ASUS ROG CROSSHAIR X870E APEX – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB4, Wi-Fi 7, LAN 5G, Bluetooth 5.4, Aura Sync [90MB1KR0-M0EAY0]

799,00 €
Leggi tutto
SKU: 90MB1KR0-M0EAY0
Peso 3,89 kg
Dimensioni 30,5 × 24,4 × 3,5 cm
M.B. - Chipset

AMD X870E
CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Memory

2 x DIMM slots, max. 128GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
9600+MT/s(OC) with Ryzen™ 8000 Series Processors
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Graphics

2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes)
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)
AMD X870E Chipset
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot
Storage

Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
Ethernet

1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth
Bluetooth® v5.4
USB

Rear USB (Total 10 ports)
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
Front USB (Total 10 ports)
1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
Back Panel I/O Ports

2 x USB4® (40Gbps) ports (2 x USB Type-C®)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet port
1 x PS/2 keyboard/mouse combo port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
2 x 4-pin Full Speed Fan headers
1 x W_PUMP+ header
1 x Extra Flow Fan header
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 20Gbps connectors (support USB Type-C® )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x 80 Light Bar jumper
3 x Addressable Gen2 headers
1 x Alteration PCIe mode switch
2 x BCLK button
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
1 x Pause switch
12 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switches
1 x RSVD_4 header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features

Extreme OC Kit
– FlexKey button
– LN2 Mode
– ProbeIt
– ReTry button
– Safe boot button
– Start button
– Slow Mode
Extreme Engine Digi+
– SMD Capacitor
– MicroFine alloy choke
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Code
– Q-Connector
– Q-Dashboard
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
– Metal backplate
ASUS EZ DIY
– Backplate
– BIOS FlashBack™ button
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen2 header(s)
Front Panel USB 20Gbps with Quick Charge 4+ Support
– Support: up to 60W fast charging and USB Wattage Watcher*
– Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
– Compatible with PD3.0 and PPS
Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
– Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (1 year full version)
– Aura Creator
– Aura Sync
-Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
FlexKey
BIOS

2 x 256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME
Accessories

ROG DIMM.2 with Heatsink
1 x ROG DIMM.2 with heatsink
1 x M.2 pad for ROG DIMM.2
2 x M.2 screw package for ROG DIMM.2
Additional Cooling Kit
1 x ROG Memory Fan Kit
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
3 x M.2 Q-Slide package
3 x M.2 rubber package
1 x ROG stickers
1 x ROG thank you card
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide
Operating System

Windows 11 (22H2 & later)
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
-15%Esaurito
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS PRIME B650M-R – Scheda Madre Micro-ATX, Socket AM5, DDR5, PCIe 4.0, USB 3.0, LAN 2.5G, Aura Sync [90MB1H30-M0EAY0]

Il prezzo originale era: 137,00 €.Il prezzo attuale è: 116,00 €.
Leggi tutto
SKU: 90MB1H30-M0EAY0
Peso 0,9 kg
Dimensioni 24,4 × 24,4 × 3,5 cm
M.B. - Chipset

AMD B650
CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Memory

2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
Graphics

1 x HDMI™ port
Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B650 Chipset
1 x PCIe 4.0 x1 slots
Storage

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet

1 x Realtek 2.5Gb Ethernet
USB

Rear USB (Total 6 ports)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
Back Panel I/O Ports

2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features

ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– Safeslot Core
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
Aura Sync
– Addressable Gen 2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
2 x M.2 Anchors
Documentation
1 x Quick start guide
Operating System

Windows® 11, Windows® 10 64-bit
Form Factor

micro-ATX Form Factor
9.3 inch x 8.7 inch ( 23.6 cm x 22.1 cm )
-19%Esaurito
Add to compare
Anteprima
Aggiungi alla lista dei desideri

MSI X870 GAMING PLUS WIFI – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB4, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [7E47-004R]

Il prezzo originale era: 320,00 €.Il prezzo attuale è: 258,00 €.
Leggi tutto
SKU: 7E47-004R
Peso 1,975 kg
Dimensioni 30,5 × 24,4 × 3,5 cm
M.B. - Chipset

AMD X870
CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
–
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Onboard Graphics

1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
Slot

4x PCI-E x16 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
–
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio

Realtek® ALC897
7.1-Channel High Definition Audio
Storage

3x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G (Qty)
–
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
RAID

• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
1x USB 40Gbps Type C (Rear)
LAN

Realtek® 8126VB 5G LAN
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x ARGB+FAN Header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
LED FEATURE

4x EZ Debug LED
BACK PANEL PORTS

Clear CMOS Button
USB 5Gbps Type-A
USB 10Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 40Gbps Type-C
USB 2.0
USB 20Gbps Type-C
USB 5Gbps Type-A
OPERATING SYSTEM

Support for Windows® 11 64-bit
-6%Esaurito
Add to compare
Anteprima
Aggiungi alla lista dei desideri

MSI PRO X870-P WIFI – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB4, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [7E47-001R]

Il prezzo originale era: 319,00 €.Il prezzo attuale è: 299,00 €.
Leggi tutto
SKU: 7E47-001R
Peso 0,97 kg
Dimensioni 30,5 × 24,4 × 3,5 cm
M.B. - Chipset

AMD X870
CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
–
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Onboard Graphics

1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
Slot

4x PCI-E x16 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
–
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Audio

Realtek® ALC897
7.1-Channel High Definition Audio
Storage

3x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G (Qty)
–
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
RAID

Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
1x USB 40Gbps Type C (Rear)
LAN

Realtek® 8126VB 5G LAN
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x ARGB+FAN Header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
LED FEATURE

4x EZ Debug LED
BACK PANEL PORTS

Clear CMOS Button
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 40Gbps Type-C
USB 10Gbps Type-A
USB 20Gbps Type-C
OPERATING SYSTEM

Support for Windows® 11 64-bit
Esaurito
Add to compare
Anteprima
Aggiungi alla lista dei desideri

MSI B650M GAMING PLUS WIFI – Scheda Madre Micro-ATX, Socket AM5, DDR5, PCIe 4.0, USB 3.1, Wi-Fi 6E, LAN 2.5G, Bluetooth 5.3 [911-7E24-008]

169,00 €
Leggi tutto
SKU: 911-7E24-008
Peso 0,97 kg
Dimensioni 24,4 × 24,4 × 3,5 cm
M.B. - Chipset

AMD B650
CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
Onboard Graphics

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
Slot

1x PCI-E x16 slot (Qty)
• Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors)
2x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage

2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G (Qty)
• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 8500/ 8300 Series processor is installed
RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 NVMe storage devices
USB

4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN

Realtek® RTL8125BG 2.5Gbps LAN
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3
LED FEATURE

4x EZ Debug LED
BACK PANEL PORTS

DisplayPort
2.5G LAN
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
Wi-Fi / Bluetooth
Flash BIOS Button
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
Audio connectors
OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info

mATX
243.84mmx243.84mm
-17%Esaurito
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS TUF GAMING X870-PLUS WIFI – Scheda Madre AM5 ATX con PCIe 5.0, DDR5, USB4, WiFi 7 e Aura Sync

Il prezzo originale era: 409,00 €.Il prezzo attuale è: 339,99 €.
Leggi tutto
SKU: 90MB1IU0-M0EAY0
Peso 1,95 kg
Dimensioni 30,5 × 24,4 × 3,5 cm
M.B. - Chipset

AMD X870
CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Memory

4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Graphics

1 x HDMI™ port
2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage

Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot not support
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
2 x SATA 6Gb/s ports
Ethernet

1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth

Wi-Fi 7
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4
USB

Rear USB (Total 10 ports)
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
– Unique de-pop circuit
Back Panel I/O Ports

2 x USB4® (40Gbps) (2 x USB Type-C®) ports
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Special Features

ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with SPS)
– ESD Guards
– TUF LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsinks
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
Aura Sync
– Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
– Support: up to 30W fast charging and USB Wattage Watcher
– Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A
– Compatible with PD3.0
Software Features

ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide
Operating System

Windows 11
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Esaurito
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS TUF GAMING B650M-PLUS WIFI – Scheda Madre Micro-ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6, LAN 2.5G, Bluetooth 5.2, Aura Sync [90MB1BF0-M0EAY0]

209,00 €
Leggi tutto
SKU: 90MB1BF0-M0EAY0
Peso 1,63 kg
Dimensioni 24,4 × 24,4 × 3,5 cm
M.B. - Chipset

AMD B650
CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Memory

4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
Graphics

1 x DisplayPort
1 x HDMI® port
Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
4 x SATA 6Gb/s ports
Ethernet

1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth

Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
USB

Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
Back Panel I/O Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI®port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB Gen 1 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
Special Features

ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– Enhanced DRAM Overcurrent Protection
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
-TurboV EVO
-DIGI+ VRM
-PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Operating System

Windows®11, Windows®10 64-bit
Form Factor

micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Esaurito
Add to compare
Anteprima
Aggiungi alla lista dei desideri

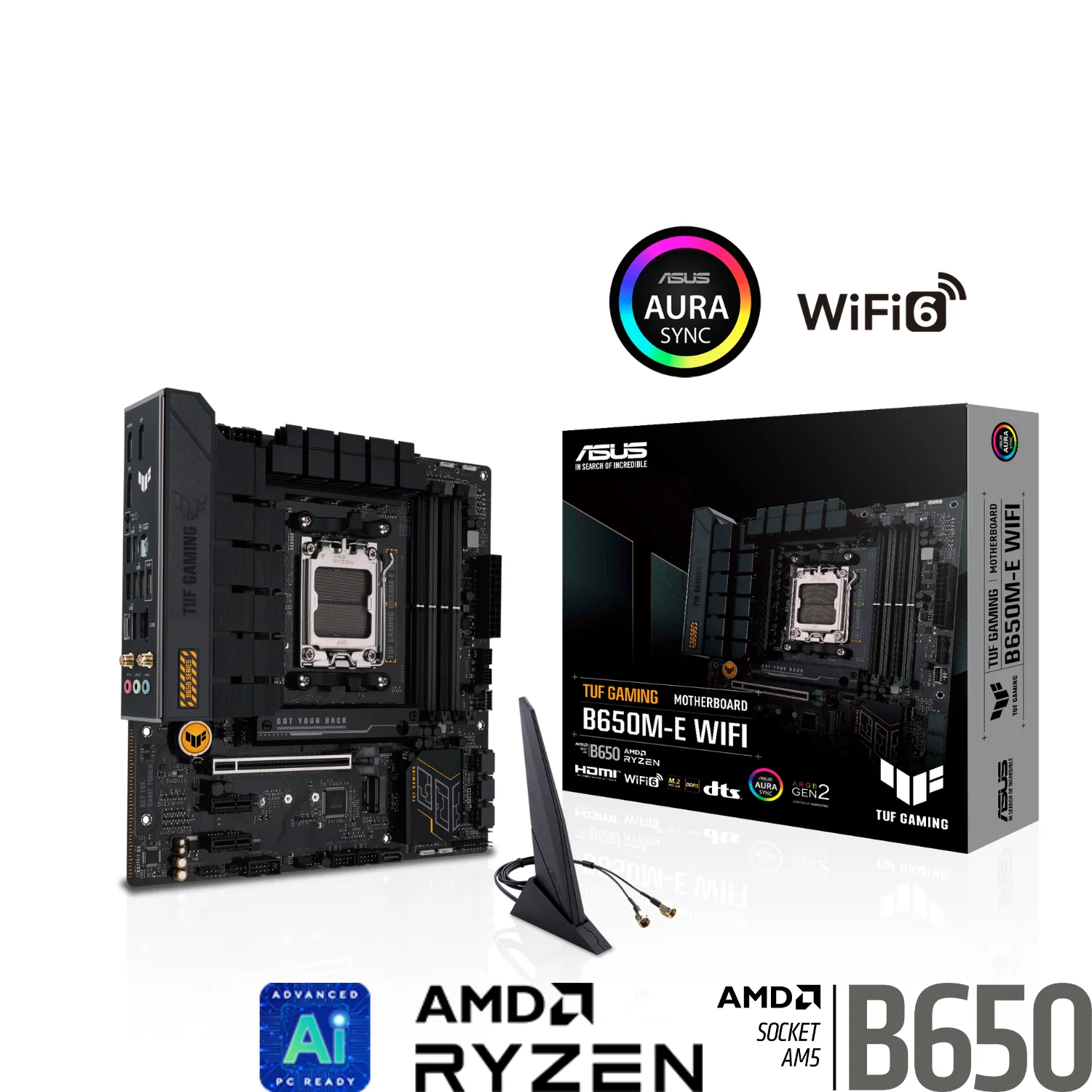

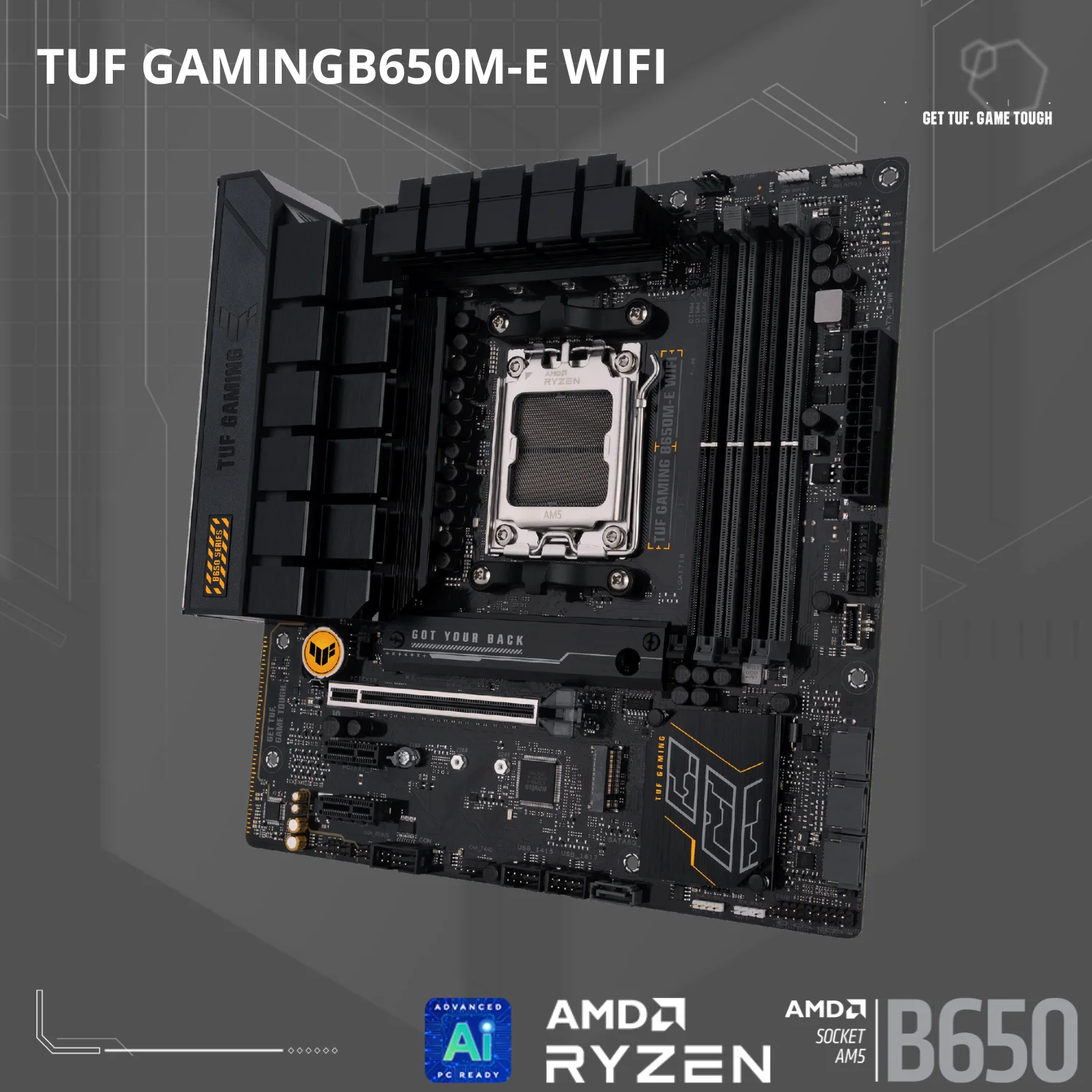

ASUS TUF GAMING B650M-E WIFI – Scheda Madre Micro-ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6, LAN 2.5G, Bluetooth 5.2, Aura Sync [90MB1FV0-M0EAY0]

179,00 €
Leggi tutto
SKU: 90MB1FV0-M0EAY0
Peso 1 kg
Dimensioni 24,4 × 24,4 × 5 cm
M.B. - Chipset

AMD B650
CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Memory

4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
Graphics

2 x DisplayPort – Supports max. 8K@60Hz as specified in DisplayPort 1.4.
1 x HDMITM port – Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
2 x PCIe 4.0 x1 slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
2 x PCIe 4.0 x1 slots
Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types.
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
4 x SATA 6Gb/s ports
Ethernet

1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth

Wi-Fi 6
1×1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2
USB

Rear USB (Total 8 ports)
2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback"
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
Back Panel I/O Ports

2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
Special Features

ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
– SafeSlot Core+
– SafeDIMM
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
– Two-Way AI Noise Cancelation
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton 360 for Gamers(60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x TUF Gaming sticker
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x TUF Certification card
1 x User guide
Operating System

Windows® 11, Windows® 10 64-bit
Form Factor

micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
-13%Esaurito
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG STRIX X870-F GAMING WIFI – Scheda Madre ATX AM5 per Ryzen 9000 con WiFi 7, Doppia USB4, PCIe 5.0 e DDR5 ad Alte Prestazioni

Il prezzo originale era: 539,00 €.Il prezzo attuale è: 469,00 €.
Leggi tutto
SKU: 90MB1IV0-M0EAY0
Peso 2,52 kg
Dimensioni 30,5 × 24,4 × 3,5 cm
M.B. - Chipset

AMD X870
CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Memory

4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports AMD Extended Profiles for
Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Graphics

1 x DisplayPort – Supports max. 8K@30Hz as specified in DisplayPort 1.4.
1 x HDMI™ port – Supports 4K@60Hz as specified in HDMI 2.1.
2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage

Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports
Ethernet

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)
2×2 Wi-Fi 7** (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth
Bluetooth® v5.4
USB

Rear USB (Total 12 ports)
2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
Back Panel I/O Ports

2 x USB4® (40Gbps) ports (2 x USB Type-C® with DP Alt mode)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet
2 x Audio jacks 
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button 
1 x Clear CMOS button 
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features

Extreme Engine Digi+
– 5K Black metallic capacitors
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen 2 headers
Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
– Power Saving
ASUS Driver Hub
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
Dynamic OC Switcher
FlexKey
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubber packages
Documentation
1 x Quick start guide
Operating System

Windows 11
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Esaurito
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG STRIX B650E-F GAMING WiFi – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6E, LAN 2.5G, Bluetooth 5.2, Aura Sync [90MB1BQ0-M0EAY0]

259,00 €
Leggi tutto
SKU: 90MB1BQ0-M0EAY0
Peso 1 kg
Dimensioni 30,5 × 24,4 × 3,5 cm
M.B. - Chipset

AMD B650E
CPU

AM5 Socket for AMD Ryzen™ 9000& 8000 & 7000 Desktop Processorss
Memory

4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/
6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
Graphics

1 x DisplayPort – Supports max. 8K@60Hz as specified in DisplayPort 1.4.
1 x HDMI® port – Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
–
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (support x8/x4 mode)
–
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0/3.0 x1 slots
Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
–
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
–
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)
–
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s port
Ethernet

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
USB

Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 port (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Premium audio capacitors
– Audio cover
Back Panel I/O Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™header
1 x COM_DEBUGheader
Special Features

Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-LED
– Q-DIMM
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync
– AURA RGB header
– Addressable Gen 2 headers
Software Features

ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
– Anti-virus software
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– AURA Creator
– AURA Sync
– Fan Xpert 4
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– TPU
– DIGI+ VRM
– Turbo app
– PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
Documentation
1 x User guide
Operating System

Windows® 10 64-bit, Windows® 11 64-bit
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
-11%
ASUS ROG CROSSHAIR X870E HERO
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG CROSSHAIR X870E HERO – Scheda Madre ATX AM5 con PCIe 5.0, DDR5, WiFi 7 e USB4

Il prezzo originale era: 789,00 €.Il prezzo attuale è: 699,00 €.
Aggiungi al carrello
SKU: 90MB1IE0-M0EAY0
Peso 0,78 kg
Dimensioni 30,5 × 24,4 × 3,5 cm
M.B. - Chipset

AMD X870E
CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Memory

4 x DIMM slots, max.256GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
Graphics

1 x HDMI™ port
2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes)
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)
Storage

Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
SlimSAS slot supports PCIe 4.0 x4 mode.
4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
Ethernet

1 x Intel® 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)
2×2 Wi-Fi 7** (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth
Bluetooth® v5.4
USB

Rear USB (Total 10 ports)
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®)
Front USB (Total 10 ports)
1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
– SupremeFX Shielding Technology
– ESS® ES9219 QUAD DAC
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
Back Panel I/O Ports

2 x USB4® (40Gbps) ports (2 x USB Type-C®)
8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
Storage Related
5 x M.2 slots (Key M)
1 x SlimSAS connector
4 x SATA 6Gb/s ports
USB
2 x USB 20Gbps connectors (support USB Type-C® )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x LN2 Mode jumper
Special Features

Extreme OC Kit
– FlexKey button
– LN2 Mode
– ReTry button
– Start button
Extreme Engine Digi+
– 10K Black metallic capacitors
– MicroFine alloy choke
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Code
– Q-Connector
– Q-Dashboard
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
– Metal backplate
ASUS EZ DIY
– Backplate
– BIOS FlashBack™ button
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen2 header(s)
Front Panel USB 20Gbps with Quick Charge 4+ Support
Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
– Internet Security (1-year full version)
– Polymo Lighting II
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (1 year full version)
– Aura Creator
– Aura Sync
-Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
– Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
FlexKey
BIOS

256Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
2 x M.2 Q-Latch package
3 x M.2 Q-Slide package
5 x M.2 rubber package
1 x ROG stickers
1 x ROG thank you card
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide
Operating System

Windows® 11
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Esaurito
Add to compare
Anteprima
Aggiungi alla lista dei desideri

MSI B760 GAMING PLUS WIFI DDR4 – Scheda Madre ATX, Socket LGA 1700, DDR4, PCIe 4.0, USB 3.2, Wi-Fi 6E, LAN 2.5G, Bluetooth 5.3 [7D98-043R]

169,00 €
Leggi tutto
SKU: 7D98-043R
Peso 1,52 kg
Dimensioni 30,5 × 24,4 × 3,5 cm
M.B. - Chipset

Intel B760
CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory

4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
–
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics

1x HDMI™ – Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort – Support DP 1.4, maximum resolution of 4K 60Hz
Slot

5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
LAN

Realtek® RTL8125BG 2.5G LAN
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
–
Supports Bluetooth® 5.3, FIPS, FISMA
LED FEATURE

4x EZ Debug LED
OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info

ATX
243.84mmx304.8mm
-29%Esaurito
ASUS PRIME H610M-D D4
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS PRIME H610M-D D4 – Scheda Madre Micro-ATX, Socket LGA 1700, DDR4, PCIe 4.0, USB 3.2, LAN GbE, [90MB1A00-M0EAY0]

Il prezzo originale era: 119,00 €.Il prezzo attuale è: 85,00 €.
Leggi tutto
SKU: 90MB1A00-M0EAY0
Peso 0,63 kg
Dimensioni 24,4 × 24,4 × 3,5 cm
M.B. - Chipset

Intel H610
CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Memory

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Graphics

1 x D-Sub port
1 x HDMI® port
Expansion Slots

Intel® Core™ Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot
Storage

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Ethernet

1 x Realtek 1Gb Ethernet
USB

Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
Back Panel I/O Ports

2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI® port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features

ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
ASUS Lighting Control
– RGB header
Software Features

ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS

128 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 ANCHOR
Installation Media
1 x Support DVD
Documentation
1 x User Guide
Operating System

Windows® 11 64-bit, Windows® 10 64-bit
Form Factor

mATX Form Factor
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
-11%Esaurito
MSI B760M PROJECT ZERO
Add to compare
Anteprima
Aggiungi alla lista dei desideri

MSI B760M PROJECT ZERO – Scheda Madre Micro-ATX, Socket LGA 1700, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6E, LAN 2.5G, Bluetooth 5.3 [911-7E14-001]

Il prezzo originale era: 235,00 €.Il prezzo attuale è: 209,00 €.
Leggi tutto
SKU: 911-7E14-001
Peso 1,6 kg
Dimensioni 24,4 × 24,4 × 3,5 cm
M.B. - Chipset

Intel B760
CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA1700
Memory

4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
–
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile
Onboard Graphics

1x HDMI™ – Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort – Support DP 1.4, maximum resolution of 4K 60Hz
Slot

2x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio

Realtek® ALC897 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Storage

2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN

Realtek® 2.5Gbps LAN
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
LED FEATURE

4x EZ Debug LED
BACK PANEL PORTS

USB 2.0
DisplayPort 1.4
USB 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI™ 2.1 Port
USB 20Gbps Type-C
Optical S/PDIF OUT
OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info

mATX
243.84mmx243.84mm
-11%Esaurito
MSI B760M GAMING PLUS WIFI
Add to compare
Anteprima
Aggiungi alla lista dei desideri

MSI B760M GAMING PLUS WIFI – Scheda Madre Micro-ATX, Socket LGA 1700, DDR5, PCIe 4.0, USB 3.2, Wi-Fi 6E, LAN 2.5G, Bluetooth 5.3

Il prezzo originale era: 179,00 €.Il prezzo attuale è: 159,00 €.
Leggi tutto
SKU: 911-7D99-017
Peso 0,76 kg
Dimensioni 24,4 × 24,4 × 3,5 cm
M.B. - Chipset

Intel B760
CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics

2x HDMI™ – Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
2x DisplayPort – Support DP 1.4, maximum resolution of 4K 60Hz
Slot

2x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage

2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
2x USB 10Gbps Type A (Rear)
LAN

Realtek® RTL8125BG 2.5G LAN
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
LED FEATURE

4x EZ Debug LED
BACK PANEL PORTS

Keyboard / Mouse
DisplayPort
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
USB 2.0
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
Audio Connectors
OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info

mATX
243.84mmx243.84mm
Esaurito
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS TUF GAMING B760M-PLUS WIFI II – Scheda Madre Micro-ATX, DDR5, LGA 1700, PCIe 5.0, LAN 2.5G, Wi-Fi 6E, Bluetooth 5.3, Aura Sync [90MB1HE0-M0EAY0]

199,00 €
Leggi tutto
SKU: 90MB1HE0-M0EAY0
Peso 0,78 kg
Dimensioni 24,4 × 24,4 × 3,5 cm
M.B. - Chipset

Intel B760
CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Memory

4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Graphics

1 x DisplayPort
1 x HDMI™port
Expansion Slots

Intel® CoreTM Processors (14th & 13th & 12th Gen)*
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet

1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth

Wi-Fi 6E
2×2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 8 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors

I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
Special Features

ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Antenna
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
– M.2 heatsinks
– VRM heatsink design
ASUS EZ DIY
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
AURA Sync
– Addressable Gen 2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
– AURA Creator
– AURA Sync
– Fan Xpert 2+
– Power Saving
– Two-Way AI Noise Cancelation
AI Suite 3
– DIGI+ VRM
– PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS

128 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Q-Antenna
1 x M.2 Rubber Package
1 x TUF Gaming sticker
2 x Screw packages for M.2 SSD
Documentation
1 x TUF Certification card
1 x User guide
Operating System

Windows® 11, Windows® 10 64-bit
Form Factor

mATX Form Factor
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
-5%
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS TUF GAMING B760M-PLUS – Scheda Madre Micro-ATX, Socket LGA 1700, DDR5, PCIe 5.0, USB 3.2, LAN 2.5G, Aura Sync [90MB1ES0-M1EAY0]

Il prezzo originale era: 189,00 €.Il prezzo attuale è: 179,00 €.
Aggiungi al carrello
SKU: 90MB1ES0-M1EAY0
Peso 1,568 kg
Dimensioni 24,4 × 24,4 × 3,5 cm
M.B. - Chipset

Intel B760
CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen
Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Memory

4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Graphics

1 x DisplayPort
1 x HDMI™port
Expansion Slots

Intel® 14th &13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 14th &13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet

1 x Realtek 2.5Gb Ethernet
TUF LANGuard
USB

Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback "
Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
Back Panel I/O Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors

I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
Special Features

ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
AURA Sync
– AURA RGB header
– Addressable Gen 2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
– AURA Creator
– AURA Sync
– Fan Xpert 2+
– Power Saving
– Two-Way AI Noise Cancelation
AI Suite 3
DIGI+ VRM
– PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS

128 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x TUF Gaming sticker
Documentation
1 x TUF Certification card
1 x User guide
Operating System

Windows® 11, Windows® 10 64-bit
Form Factor

mATX Form Factor
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
-44%
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG STRIX Z790-A GAMING WIFI – Scheda Madre ATX, Socket LGA 1700, DDR5, PCIe 5.0, USB 3.2, LAN 2.5G, Wi-Fi 6E, Bluetooth 5.3, Aura Sync [Ricondizionato]

Il prezzo originale era: 459,00 €.Il prezzo attuale è: 259,00 €.
Aggiungi al carrello
SKU: 90MB1E00-M0EAY0
Peso 2,286 kg
Dimensioni 30,5 × 24,4 × 3,5 cm
M.B. - Chipset

Intel Z790
CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Memory

4 x DIMM, Max. 192GB, DDR5
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Graphics

1 x DisplayPort
1 x HDMI® port
Expansion Slots

Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Ethernet

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.3
USB

Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
–
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 30W PD Fast-charge)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports 4 additional USB 2.0 ports
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
Back Panel I/O Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
–
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
–
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
–
USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
–
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header
Special Features

Extreme Engine Digi+
– 5K Black Metallic Capacitors
–
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
–
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
–
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
–
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Software Features

ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
–
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– Easy Optimization with AI Overclocking
– TPU
– DIGI+ VRM
– Turbo app
– PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
–
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
–
Additional Cooling Kit
1 x Thermal pad for M.2
–
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
1 x M.2 backplate Rubber
–
PackageDocumentation
1 x User guide
Operating System

Windows® 11, Windows® 10 64-bit
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
