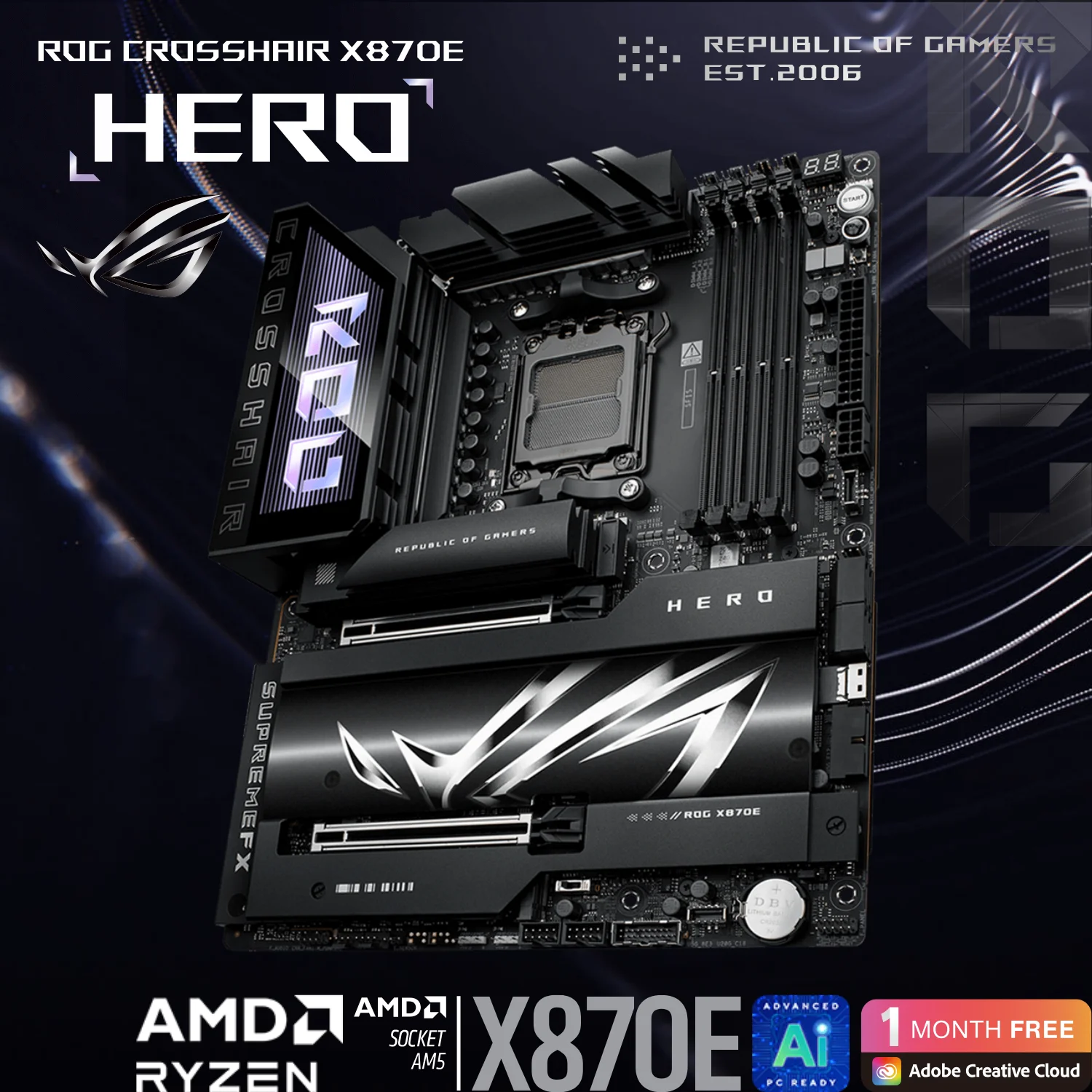

ASUS ROG CROSSHAIR X870E HERO – Scheda Madre ATX AM5 con PCIe 5.0, DDR5, WiFi 7 e USB4

0 Persone guardano adesso questo prodotto!

EAN: 4711387710302 COD: 90MB1IE0-M0EAY0 Categoria: AM5 Tag: AM5, AMD X870E, ATX, Aura Sync, Bluetooth 5.4, DDR5, LAN 2.5G, Nero, ROG Chrosshair, USB4, Wi-Fi 7

Descrizione

ASUS ROG CROSSHAIR X870E HERO / 90MB1IE0-M0EAY0 / 4711387710302

Potenza estrema per processori AMD Ryzen di ultima generazione

La ASUS ROG CROSSHAIR X870E HERO nasce per spingere al massimo le piattaforme AMD AM5, offrendo un’infrastruttura completa per sistemi enthusiast, gaming di fascia alta e workstation evolute. È compatibile con i processori AMD Ryzen™ serie 9000, 8000 e 7000, ed è stata progettata per garantire stabilità, margine di overclock e supporto alle tecnologie più recenti.

La sezione di alimentazione adotta una configurazione 18(110A) + 2(110A) + 2(80A) con connettori dual ProCool II, assicurando un’erogazione di potenza robusta, costante e pronta anche per CPU ad alte prestazioni sotto carichi intensi.

Supporto DDR5 ad alta velocità e ottimizzazioni avanzate

La scheda dispone di 4 slot DIMM DDR5 con supporto fino a 256GB complessivi in dual channel. Grazie alle tecnologie ASUS dedicate alla memoria, permette di ottenere frequenze elevate e una migliore stabilità anche in scenari di overclock.

Tra le principali tecnologie integrate troviamo:

NitroPath DRAM Technology
AEMP
Supporto AMD EXPO™
Frequenze fino a:
- 8200+ MT/s (OC) con Ryzen 9000
- 8600+ MT/s (OC) con Ryzen 8000
- 8000+ MT/s (OC) con Ryzen 7000

Questo la rende perfetta per chi cerca prestazioni elevate in gaming, produttività avanzata e utilizzo professionale.

PCIe 5.0 completo per GPU e SSD di nuova generazione

La ROG CROSSHAIR X870E HERO supporta pienamente lo standard PCIe 5.0, offrendo banda elevatissima sia per la scheda grafica che per lo storage NVMe più veloce.

La dotazione include:

2 slot PCIe 5.0 x16
5 slot M.2 totali
- 3 x M.2 PCIe 5.0 x4
- 2 x M.2 PCIe 4.0 x4
1 connettore SlimSAS
4 porte SATA 6Gb/s

Questa configurazione consente build estremamente veloci e flessibili, con ampio spazio per SSD ad alte prestazioni, archiviazione secondaria e configurazioni avanzate.

Raffreddamento robusto e gestione termica avanzata

Per mantenere il sistema stabile anche sotto stress, la scheda madre integra una sezione termica evoluta con dissipatori estesi e numerosi header dedicati.

Sono presenti:

Dissipatori per VRM
Dissipatori M.2 con backplate

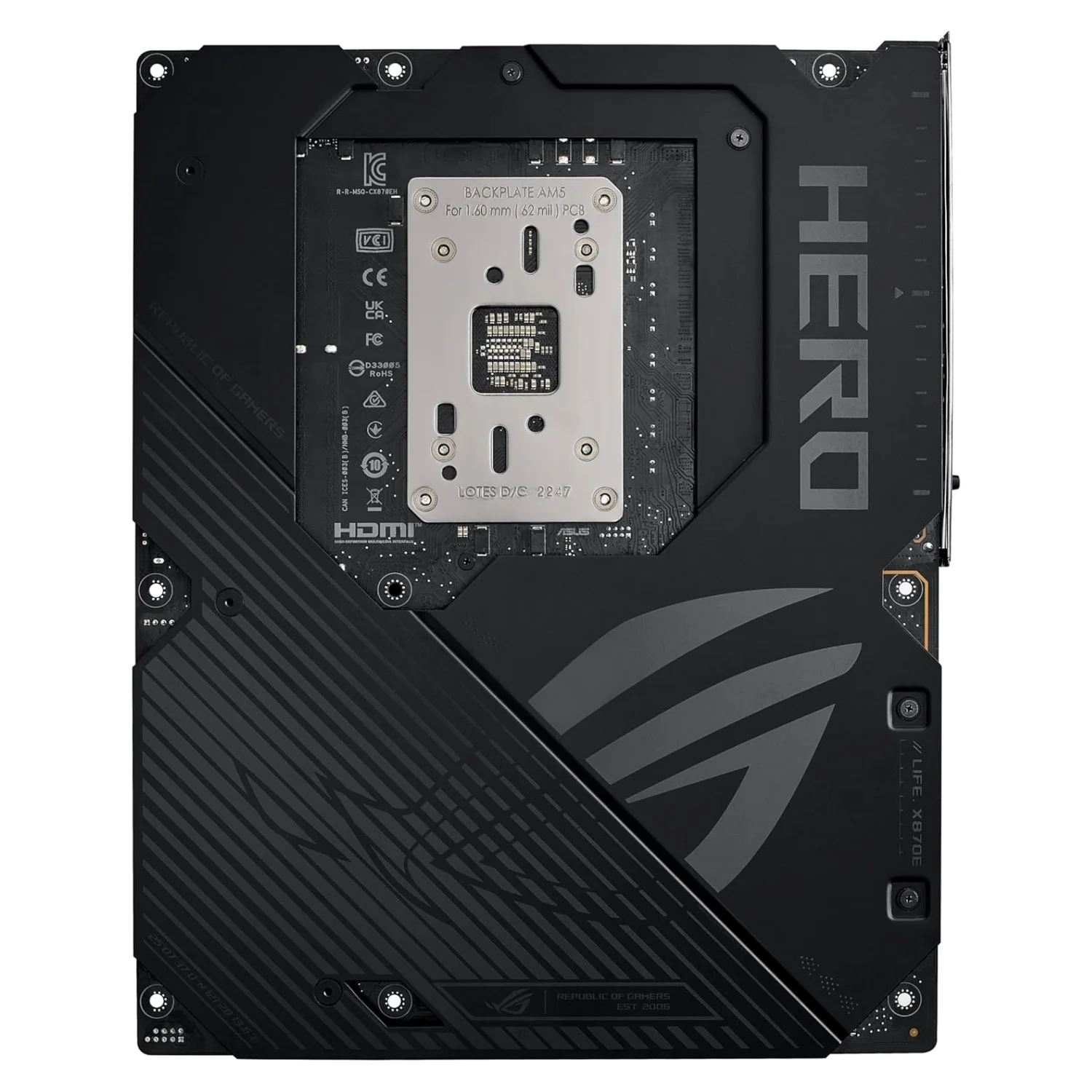

Backplate metallico
Header per:
- CPU Fan
- CPU OPT
- AIO Pump
- W_PUMP+
- 4 ventole chassis

A livello software, la scheda include anche AI Cooling II, che ottimizza automaticamente il bilanciamento tra temperature e rumorosità con un semplice click.

AI, overclock e ottimizzazione intelligente

La ROG CROSSHAIR X870E HERO integra numerose funzioni ASUS AI e strumenti avanzati per l’overclock:

AI Overclocking
AI Cooling II
AI Networking II
Dynamic OC Switcher
Core Flex
Clock Asincrono
Potenziamento PBO

Queste funzioni permettono di ottimizzare CPU, raffreddamento e rete in modo intelligente, semplificando il tuning anche per utenti evoluti.

Connettività di nuova generazione: WiFi 7, USB4 e doppia LAN

La connettività è uno dei punti forti della scheda. La CROSSHAIR X870E HERO include:

WiFi 7 2×2
Supporto banda 2.4 / 5 / 6 GHz
Bluetooth 5.4
1 x Intel 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet

Sul fronte USB troviamo una dotazione estremamente ricca:

2 x USB4 Type-C 40Gbps
8 x USB 10Gbps posteriori
2 connettori interni USB 20Gbps Type-C
Supporto ricarica rapida fino a 60W sul front USB-C compatibile

Questo la rende ideale per sistemi ricchi di periferiche, storage esterni veloci e configurazioni professionali moderne.

Audio premium ROG SupremeFX

Il comparto audio è affidato a ROG SupremeFX 7.1 con codec ALC4082 e DAC ESS ES9219 QUAD DAC, offrendo una resa sonora di alto livello per gaming, multimedia e cuffie di qualità.

Caratteristiche principali:

Supporto fino a 32-bit / 384 kHz
Jack audio placcati oro
Uscita ottica S/PDIF
Condensatori audio premium
Shielding dedicato

Una soluzione ideale per chi vuole un audio integrato superiore senza dover ricorrere subito a una scheda audio dedicata.

Design ROG premium e illuminazione Polymo Lighting II

Esteticamente la scheda adotta il classico stile ROG con finiture scure, superfici metalliche premium, dettagli nichelati e un look aggressivo ma elegante. Il modulo Polymo Lighting II integrato nel copri I/O aggiunge un’illuminazione RGB dinamica ancora più scenografica.

È inoltre compatibile con Aura Sync, per sincronizzare l’illuminazione con altri componenti ASUS e ROG.

Funzioni DIY e installazione facilitata

La CROSSHAIR X870E HERO integra molte soluzioni pensate per semplificare assemblaggio e manutenzione:

M.2 Q-Release
M.2 Q-Slide
M.2 Q-Latch
PCIe Slot Q-Release Slim
Q-Antenna
Q-Code
Q-LED
Start button
ReTry button
Clear CMOS
BIOS FlashBack™
I/O shield preinstallato

Sono dettagli che fanno la differenza soprattutto nelle build enthusiast e nei sistemi ad alte prestazioni.

FAQ – Domande Frequenti

La ASUS ROG CROSSHAIR X870E HERO è compatibile con Ryzen 9000?
Sì, supporta i processori AMD Ryzen™ serie 9000, oltre alle serie 8000 e 7000 con socket AM5.

Supporta memorie DDR5?
Sì, dispone di 4 slot DDR5 e supporta fino a 256GB di RAM.

Ha PCIe 5.0 per GPU e SSD?
Sì, offre 2 slot PCIe 5.0 x16 e fino a 3 slot M.2 PCIe 5.0 x4.

Integra WiFi e Bluetooth?
Sì, include WiFi 7 e Bluetooth 5.4.

Quante porte di rete ha?
Integra due porte LAN, una Intel 2.5GbE e una Realtek 5GbE.

Ha porte USB4?
Sì, dispone di 2 porte USB4 Type-C da 40Gbps sul pannello posteriore.

È adatta all’overclock?
Sì, è progettata per overclock avanzato e integra numerose funzioni dedicate come AI Overclocking, Dynamic OC Switcher e Core Flex.

Informazioni aggiuntive

Peso	0,78 kg
Dimensioni	30,5 × 24,4 × 3,5 cm
M.B. - Chipset	AMD X870E
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Memory	4 x DIMM slots, max.256GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 8600+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP)
Graphics	1 x HDMI™ port 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)
Storage	Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280 (Not supports) AMD X870E Chipset M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) SlimSAS slot supports PCIe 4.0 x4 mode. 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10
Ethernet	1 x Intel® 2.5Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927) 2×2 Wi-Fi 7** (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth Bluetooth® v5.4
USB	Rear USB (Total 10 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®) Front USB (Total 10 ports) 1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+) 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel Audio Features – SupremeFX Shielding Technology – ESS® ES9219 QUAD DAC – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors

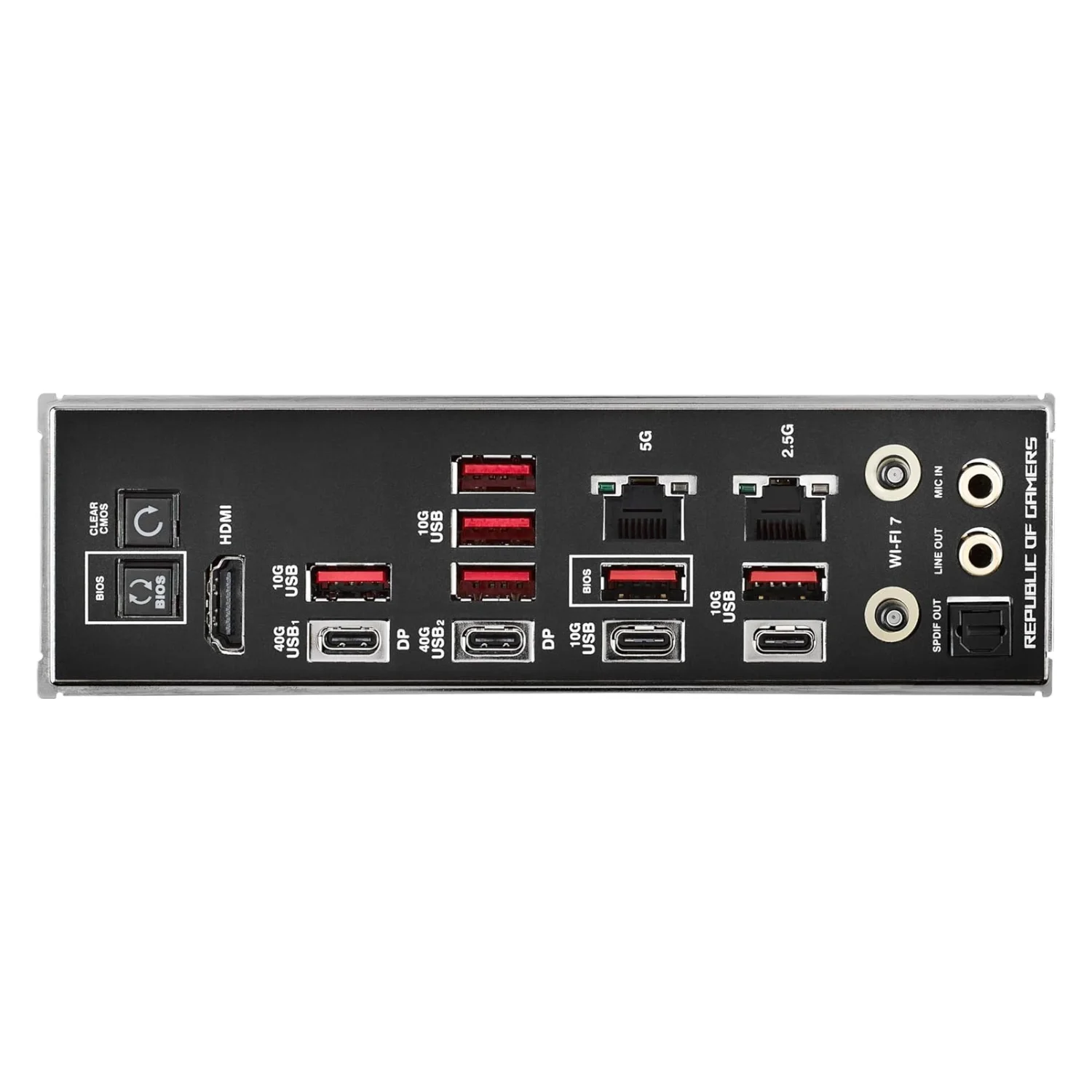

Back Panel I/O Ports	2 x USB4® (40Gbps) ports (2 x USB Type-C®) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector Storage Related 5 x M.2 slots (Key M) 1 x SlimSAS connector 4 x SATA 6Gb/s ports USB 2 x USB 20Gbps connectors (support USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x LN2 Mode jumper
Special Features	Extreme OC Kit – FlexKey button – LN2 Mode – ReTry button – Start button Extreme Engine Digi+ – 10K Black metallic capacitors – MicroFine alloy choke ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Code – Q-Connector – Q-Dashboard – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – VRM heatsink design – Metal backplate ASUS EZ DIY – Backplate – BIOS FlashBack™ button – Clear CMOS button – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Addressable Gen2 header(s) Front Panel USB 20Gbps with Quick Charge 4+ Support
Software Features	ROG Exclusive Software – ROG CPU-Z – Dolby Atmos – Internet Security (1-year full version) – Polymo Lighting II ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (1 year full version) – Aura Creator – Aura Sync -Fan Xpert 4 (with AI Cooling II) – GameFirst – HWiNFO – Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey FlexKey
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 2 x M.2 Q-Latch package 3 x M.2 Q-Slide package 5 x M.2 rubber package 1 x ROG stickers 1 x ROG thank you card 1 x ROG Bottle Opener Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide
Operating System	Windows® 11
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
