ASUS PRIME B650M-R – Scheda Madre Micro-ATX, Socket AM5, DDR5, PCIe 4.0, USB 3.0, LAN 2.5G, Aura Sync [90MB1H30-M0EAY0]

Tutti i prodotti ASUS ASUS Store Italia

0 Persone guardano adesso questo prodotto!

EAN: 4711387429761 COD: 90MB1H30-M0EAY0 Categoria: AM5

Descrizione

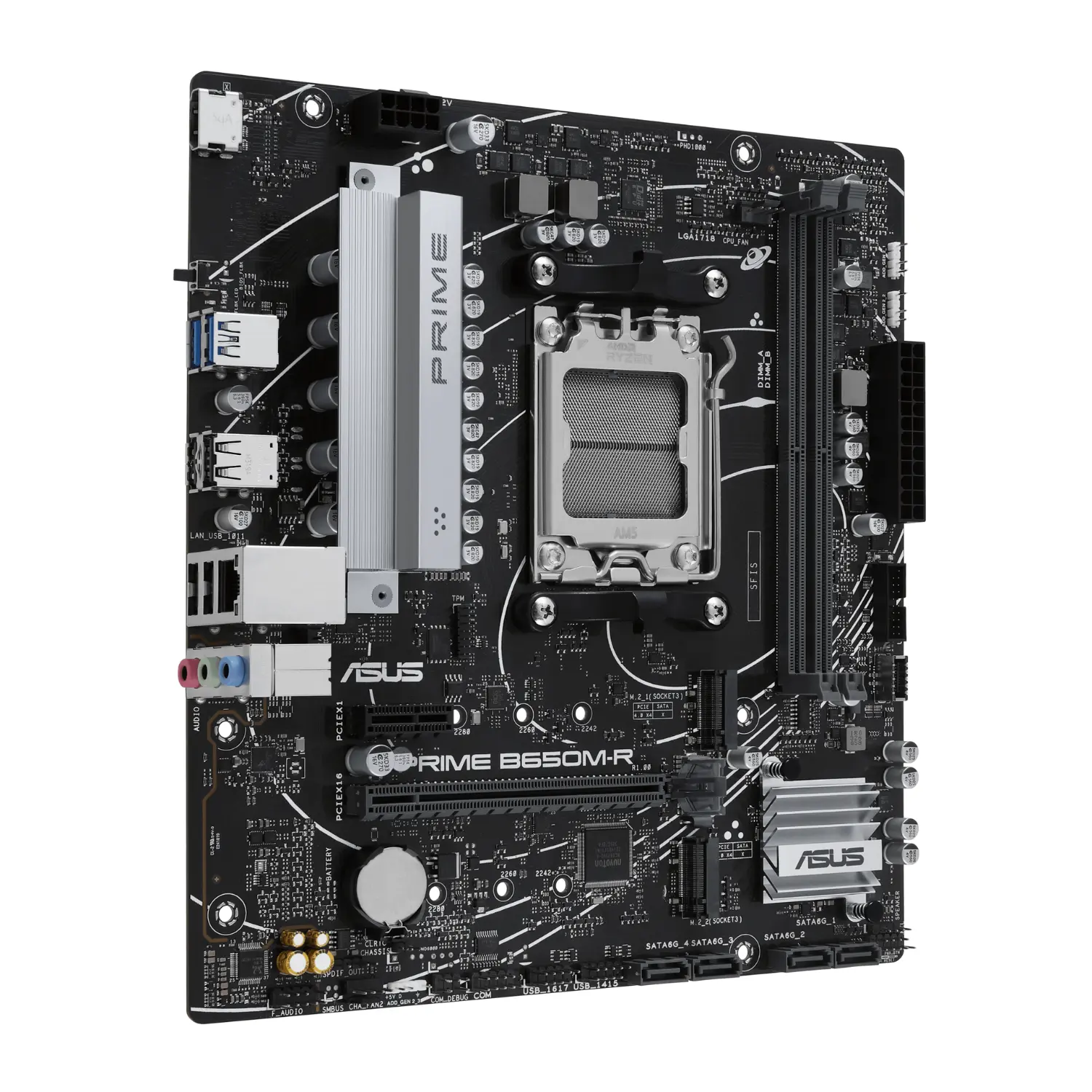

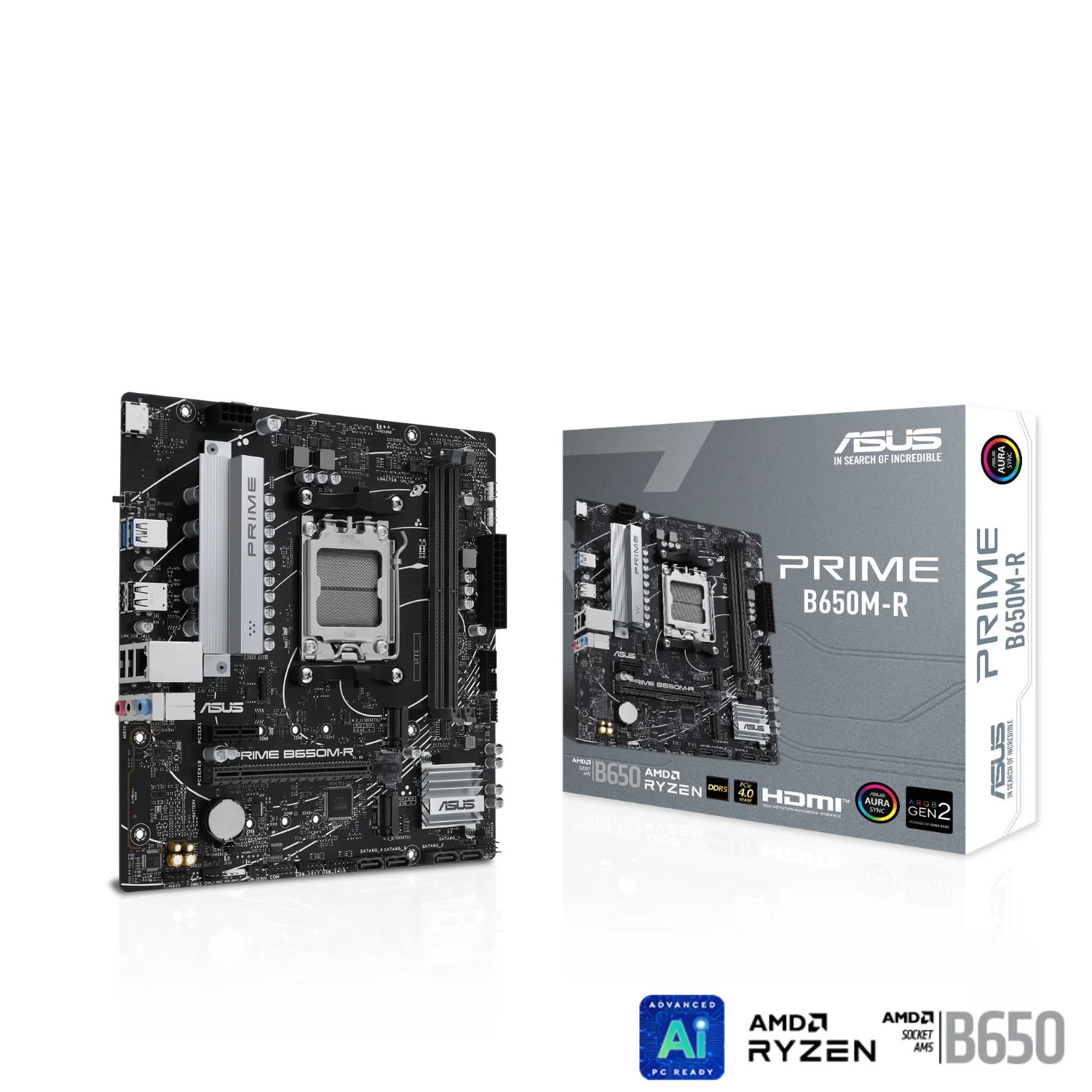

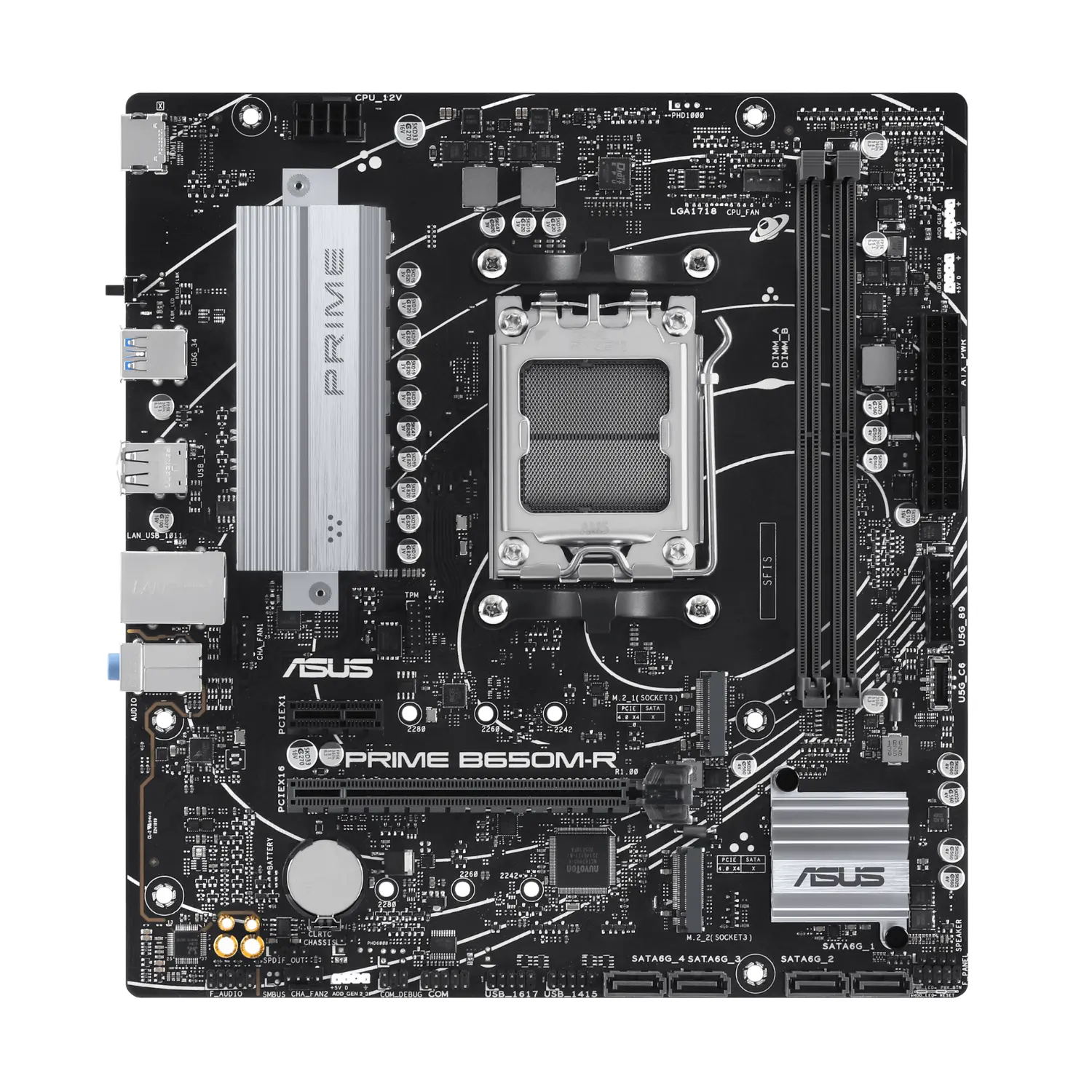

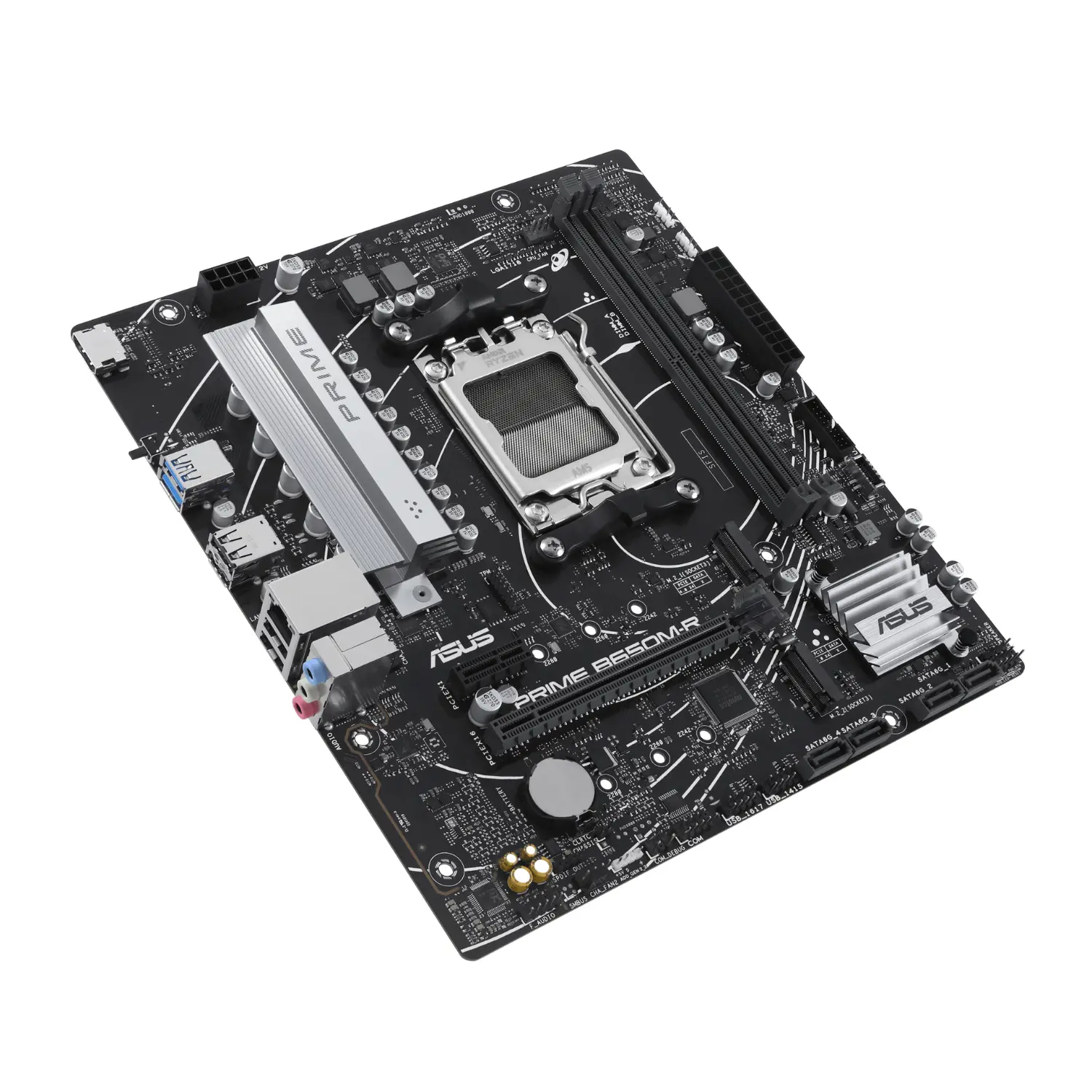

ASUS PRIME B650M-R / 90MB1H30-M0EAY0 / 4711387429761

La ASUS PRIME B650M-R è progettata per offrire affidabilità e prestazioni elevate nei sistemi desktop basati su AMD Ryzen™ serie 7000.
Con chipset AMD B650, supporta memoria DDR5 Dual Channel e offre connettività avanzata con PCIe 4.0, due slot M.2 per SSD NVMe ad alta velocità, e Realtek 2.5Gb Ethernet per connessioni di rete stabili e veloci.

Il design di raffreddamento include dissipatori dedicati per VRM e PCH, header per ventole ibride e software Fan Xpert 2+ per un controllo ottimale delle temperature.
La scheda dispone di USB Type-C® frontale da 5Gbps, numerose porte USB posteriori e supporta il BIOS FlashBack™, consentendo aggiornamenti senza necessità di CPU o RAM installate.

L’illuminazione Aura Sync offre un’ampia personalizzazione estetica grazie agli header RGB indirizzabili Gen 2. La tecnologia AI Noise Cancellation bidirezionale riduce il rumore di fondo del microfono e delle uscite audio, migliorando l’esperienza in gaming e videoconferenze.

Specifiche Tecniche

Caratteristica	Dettagli
Formato	Micro-ATX
Chipset	AMD B650
Socket	AM5
Supporto CPU	AMD Ryzen™ serie 7000 & 8000 & 9000
Memoria	DDR5 Dual Channel, fino a 128 GB
Alimentazione	VRM con dissipatori dedicati
Rete	LAN 2.5GbE
Slot di Espansione	1x PCIe 4.0 x16, 2x PCIe 3.0 x1
Archiviazione	2x M.2 PCIe 4.0, 4x SATA III
USB	USB Type-C frontale 5Gbps, porte USB posteriori
Video	HDMI™
Audio	7.1 HD con AI Noise Cancellation
RGB	Aura Sync, header Gen 2
Raffreddamento	Dissipatori VRM e PCH, Fan Xpert 2+
BIOS	BIOS FlashBack™
Dimensioni	244 x 244 mm (Micro-ATX)

Informazioni aggiuntive

Peso	0,9 kg
Dimensioni	24,4 × 24,4 × 3,5 cm
M.B. - Chipset	AMD B650
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Memory	2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II
Graphics	1 x HDMI™ port
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B650 Chipset 1 x PCIe 4.0 x1 slots
Storage	Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Ethernet	1 x Realtek 2.5Gb Ethernet
USB	Rear USB (Total 6 ports) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers

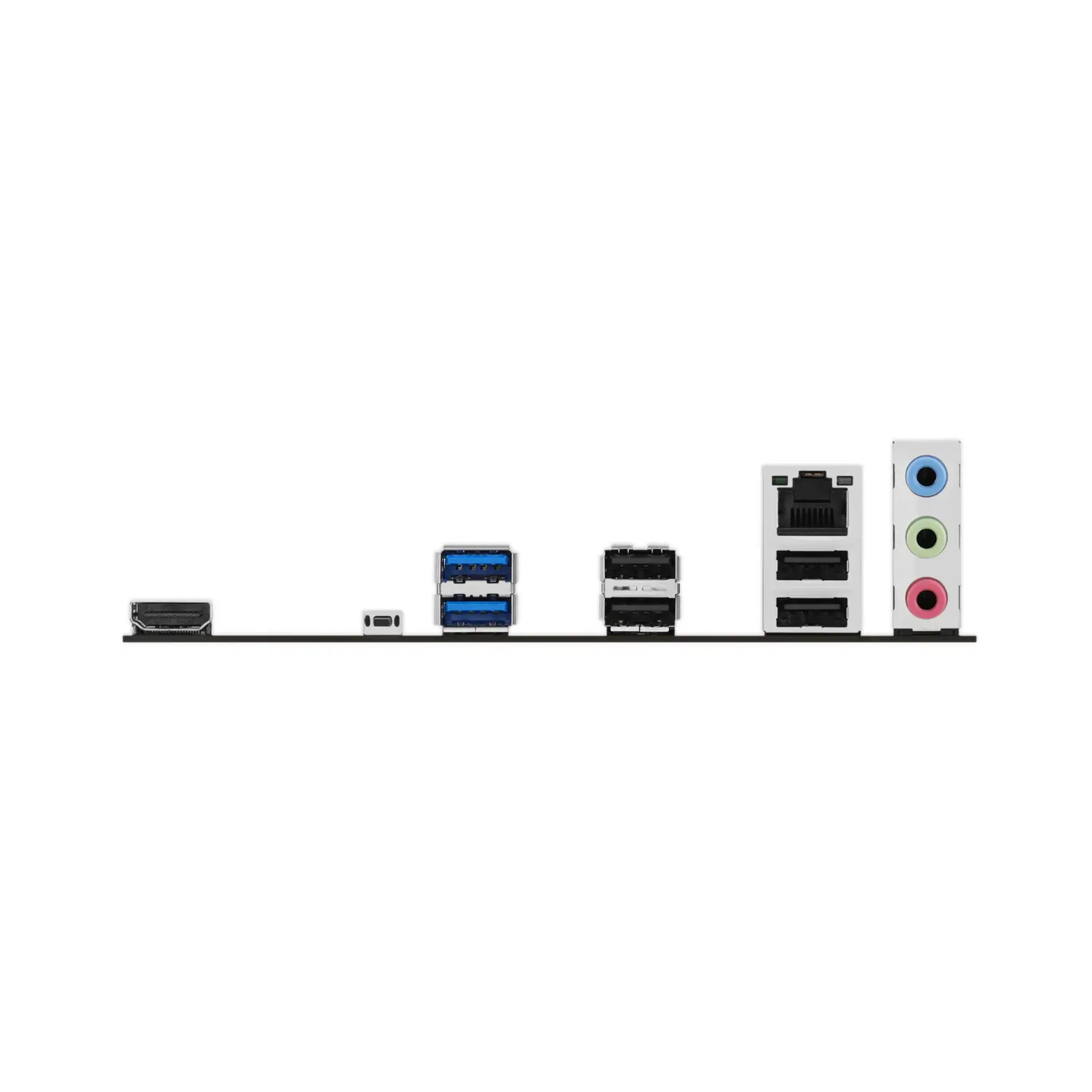

Back Panel I/O Ports	2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Special Features	ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – Safeslot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS Thermal Solution – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED Aura Sync – Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 2+ – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – TurboV EVO – DIGI+ VRM – PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

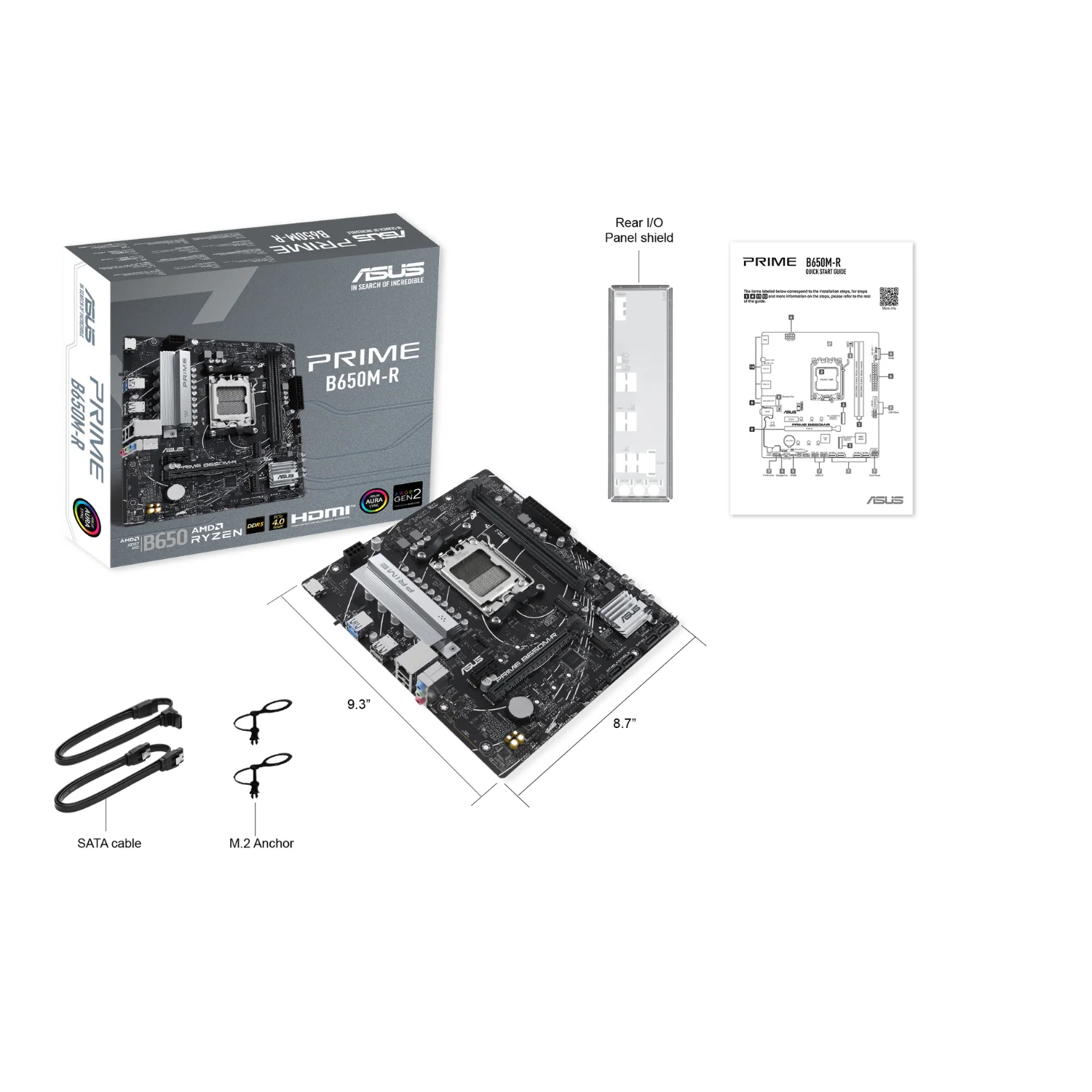

Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 Anchors Documentation 1 x Quick start guide
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	micro-ATX Form Factor 9.3 inch x 8.7 inch ( 23.6 cm x 22.1 cm )

Recensioni (0)

Recensioni

Ancora non ci sono recensioni.

Recensisci per primo “ASUS PRIME B650M-R – Scheda Madre Micro-ATX, Socket AM5, DDR5, PCIe 4.0, USB 3.0, LAN 2.5G, Aura Sync [90MB1H30-M0EAY0]”
