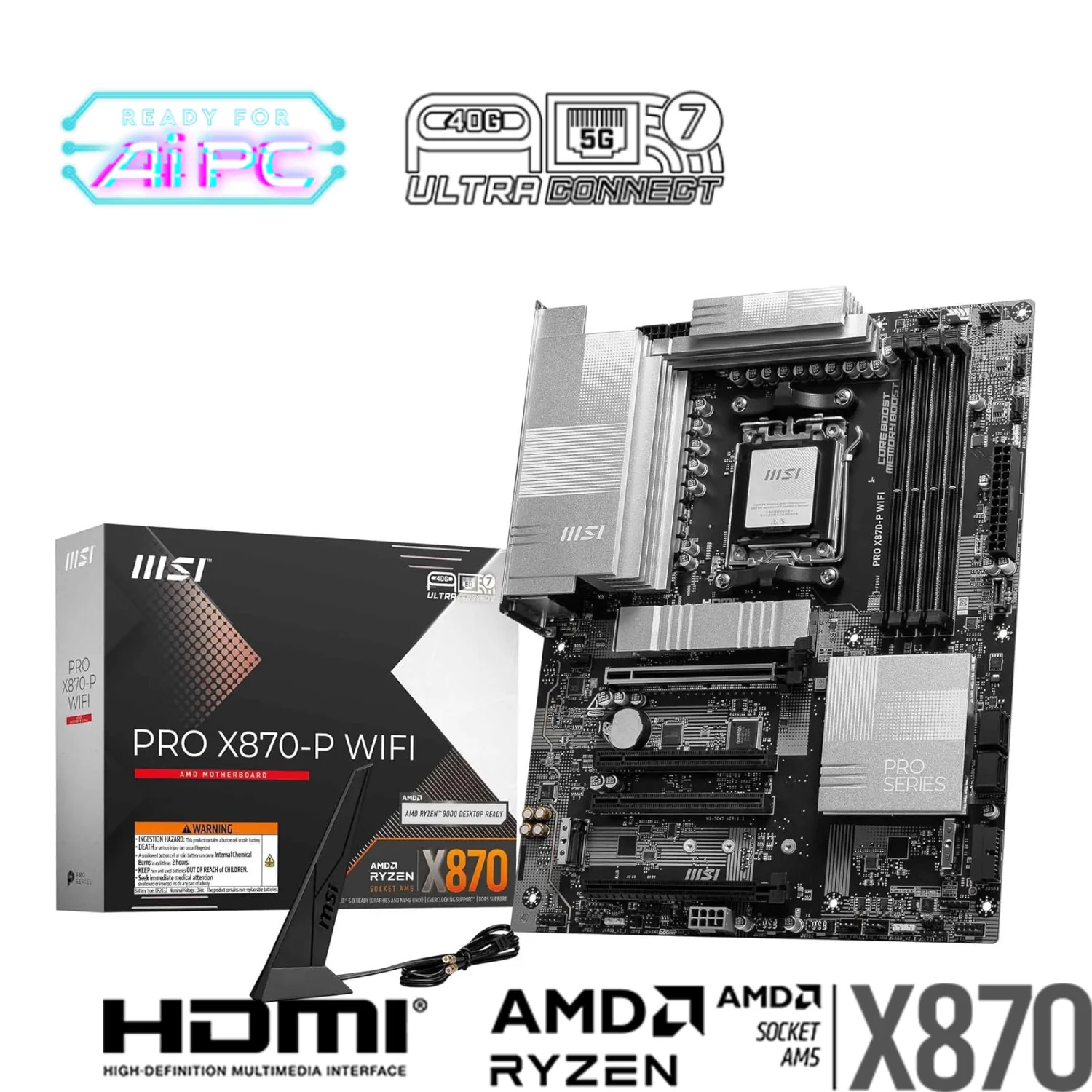

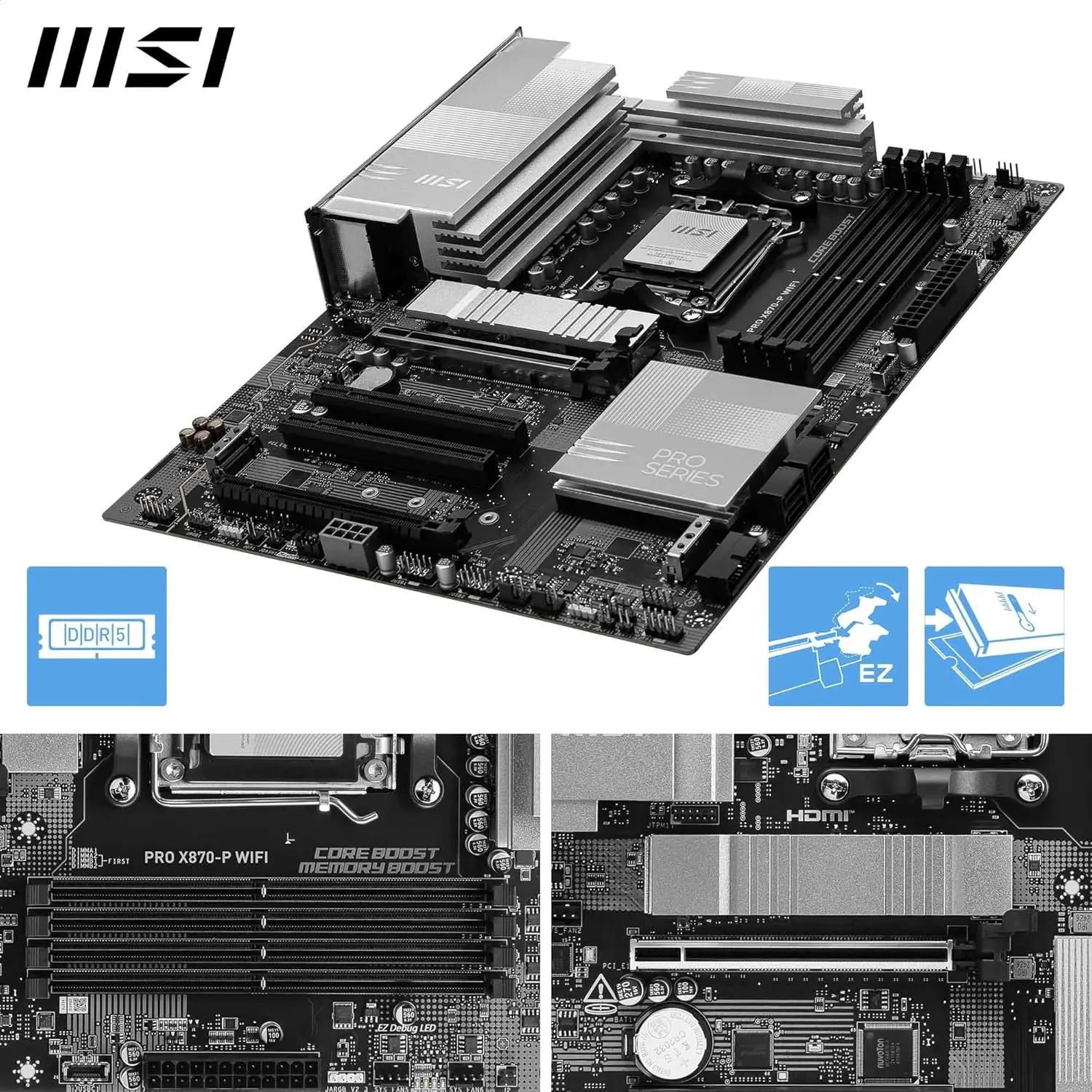

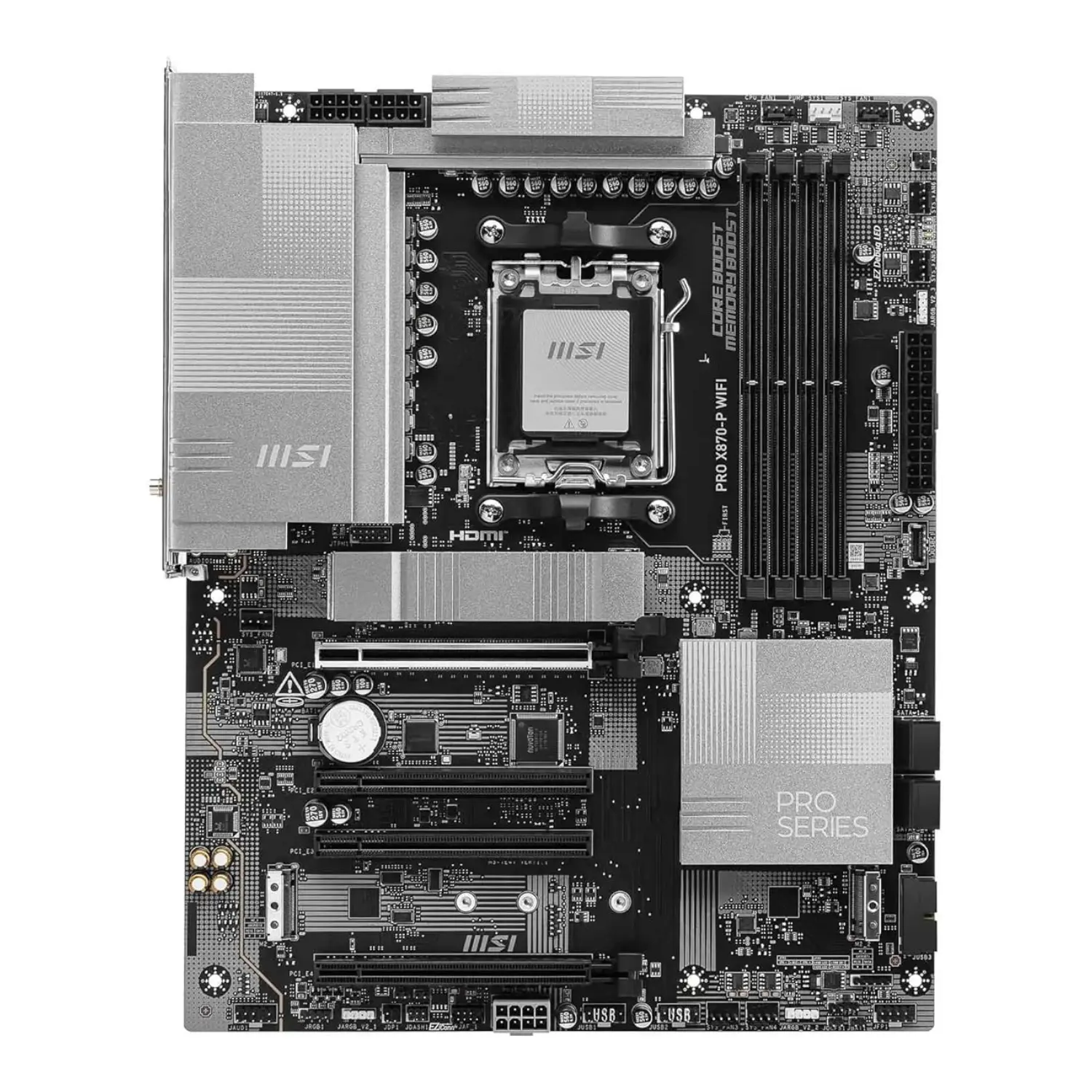

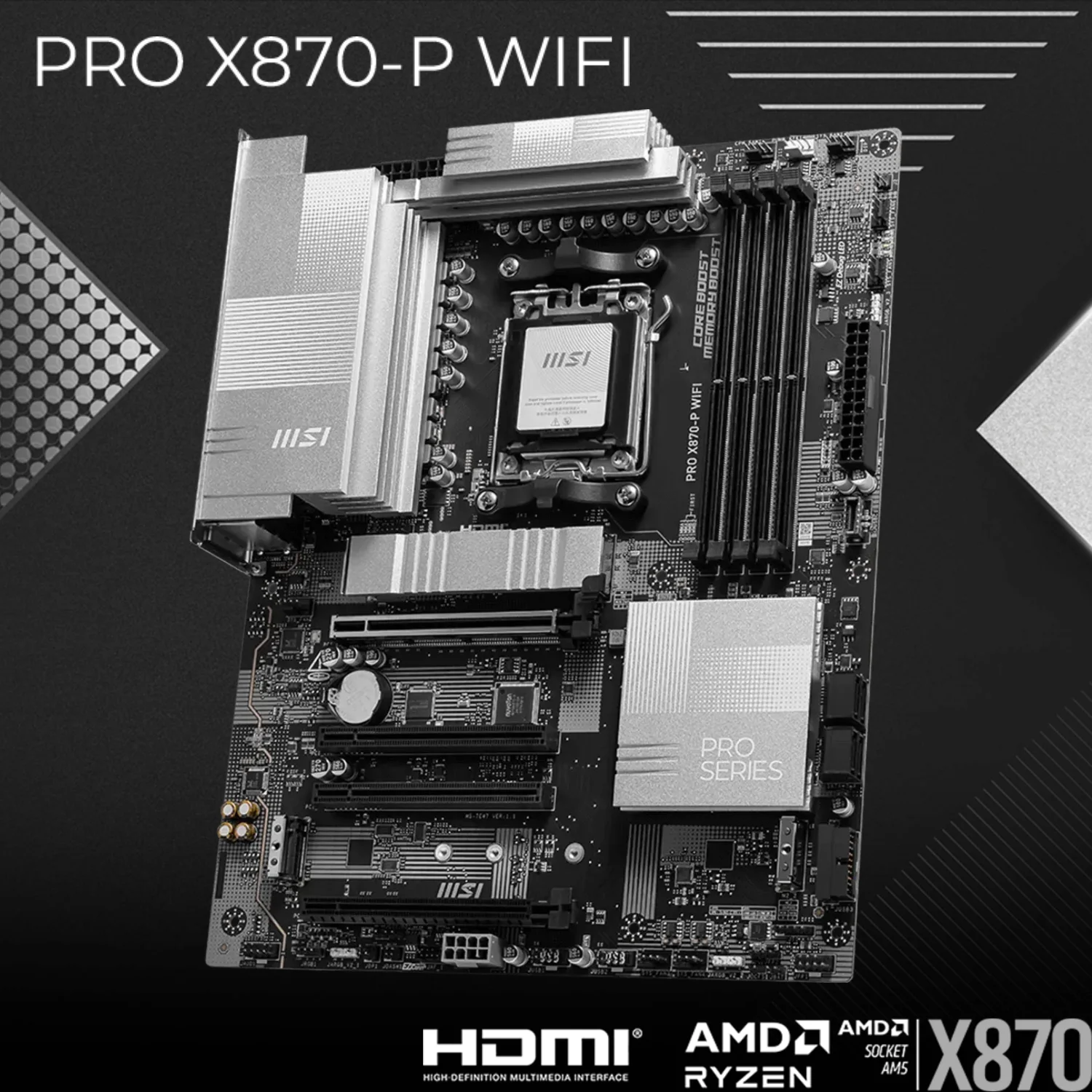

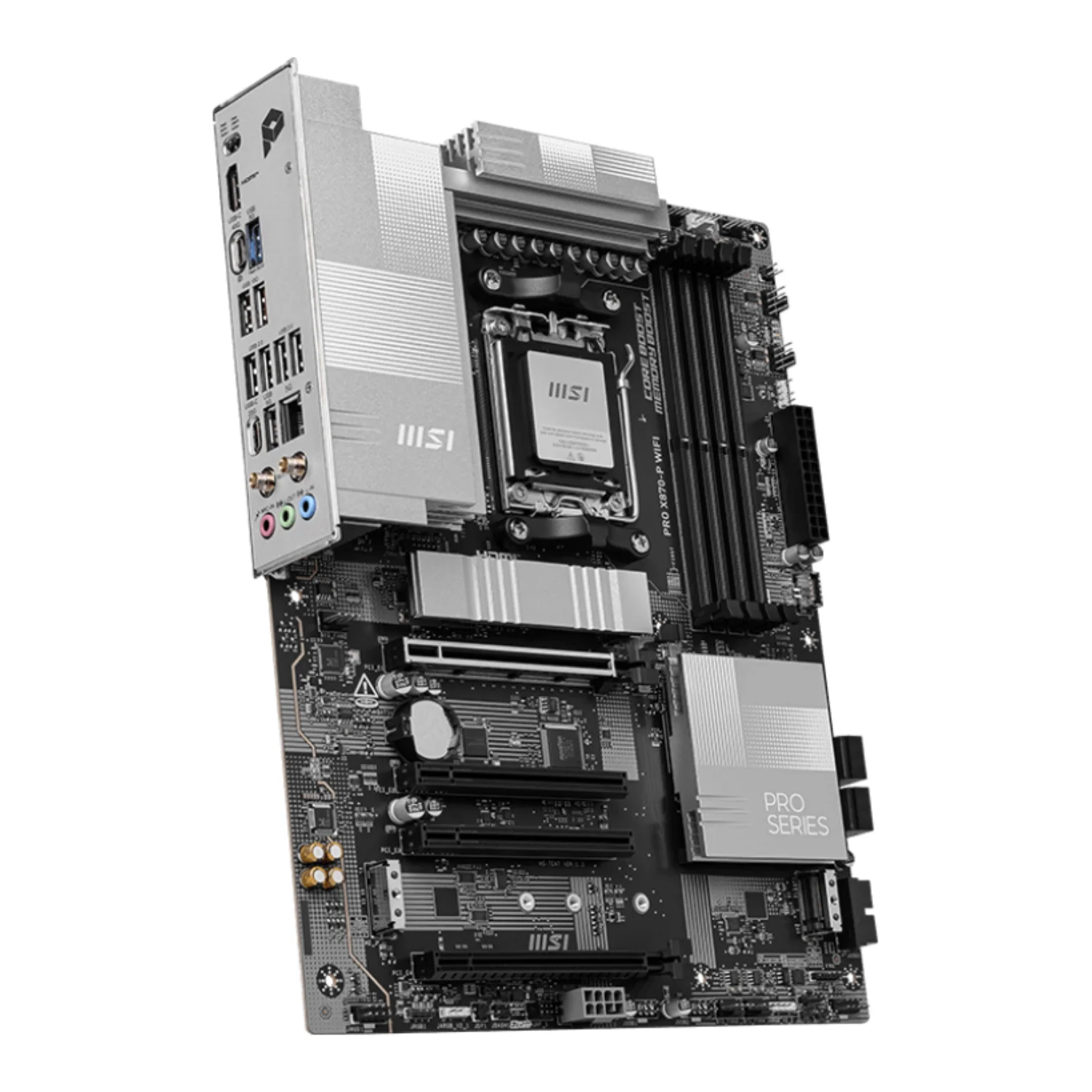

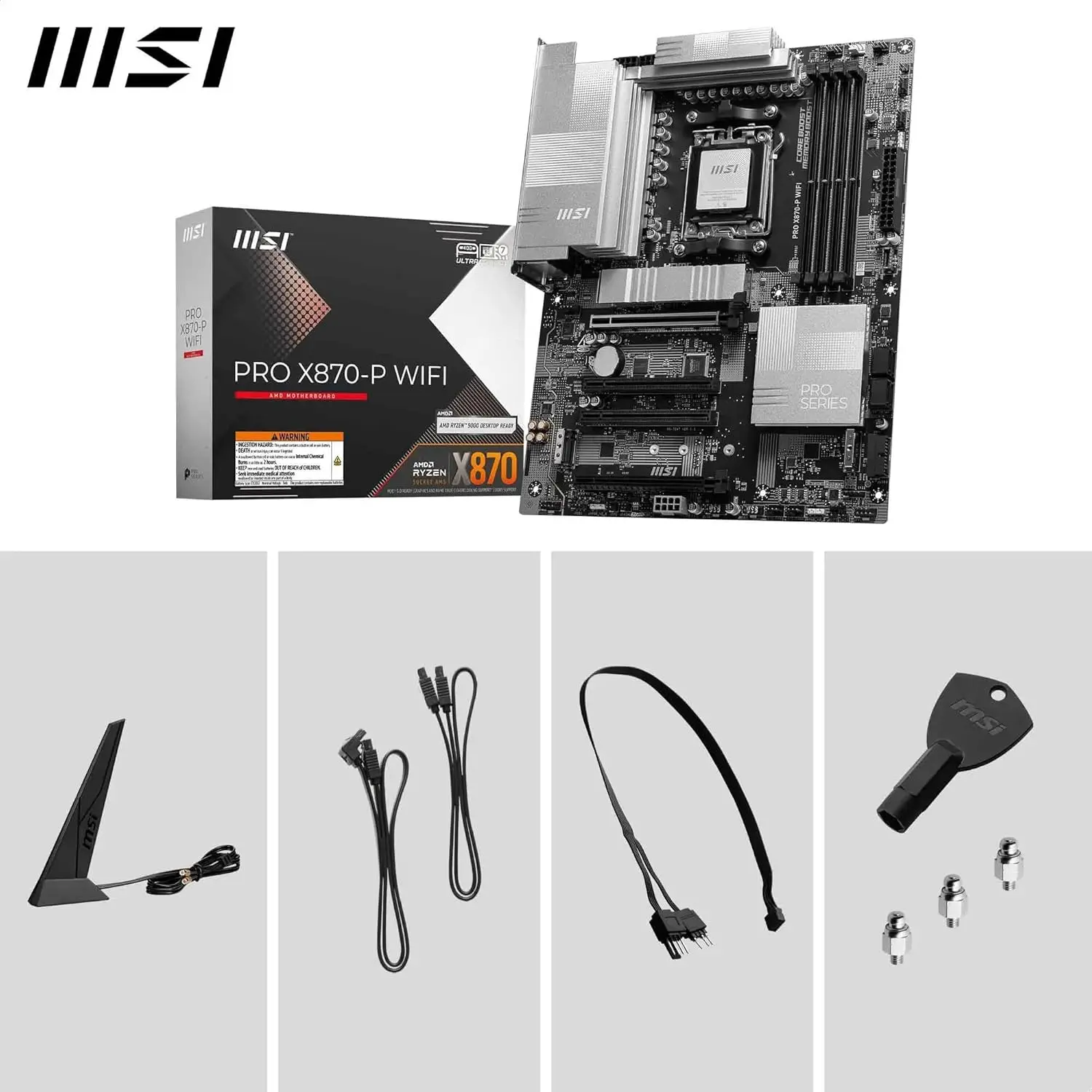

MSI PRO X870-P WIFI – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB4, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [7E47-001R]

Il prezzo originale era: 319,00 €.Il prezzo attuale è: 299,00 €.

   Chipset AMD X870
Form Factor   Form Factor ATX
Socket   Socket AM5
Tipo di Memoria   Tipo di Memoria DDR5

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4711377256339 COD: 7E47-001R Categoria: Tag: , , , , , , , , ,
Descrizione

MSI PRO X870-P WIFI / 7E47-001R / 4711377256339

La MSI PRO X870-P WIFI combina uno stile raffinato con potenza e affidabilità, rendendola perfetta per PC professionali e da gaming di nuova generazione.
Supporta processori AMD Ryzen™ serie 9000/8000/7000, memoria DDR5 Dual Channel fino a 8200+ MT/s (OC) e un robusto sistema di alimentazione 14+2+1 Duet Rail con doppi connettori CPU a 8 pin per garantire stabilità anche sotto carichi intensi.

Il sistema di raffreddamento Frozr Guard con dissipatori estesi e protezione M.2 Shield Frozr II mantiene le temperature ottimali, mentre le funzionalità EZ DIY semplificano l’assemblaggio e la gestione delle unità di archiviazione e schede di espansione.

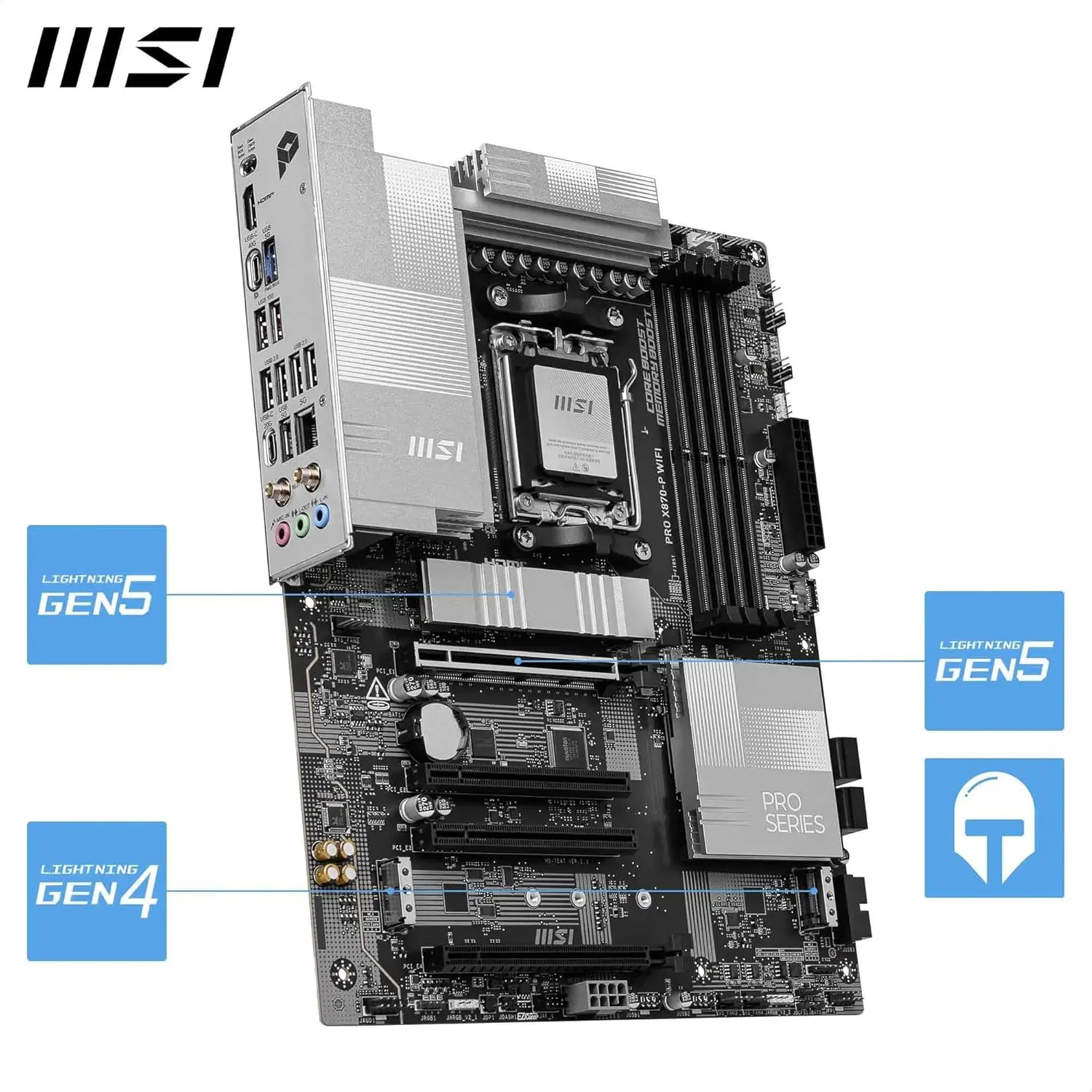

Per la connettività, offre PCIe 5.0, Lightning Gen 5 x4 M.2, USB4, Wi-Fi 7 e LAN 5G, fornendo prestazioni di rete e trasferimento dati di livello professionale. La tecnologia Audio Boost assicura un suono cristallino e immersivo per le sessioni di lavoro o intrattenimento.

Specifiche Tecniche

Caratteristica Dettagli
Formato ATX
Chipset AMD X870
Socket AM5
Supporto CPU AMD Ryzen™ serie 7000 / 8000 / 9000
Memoria DDR5 Dual Channel, fino a 8200+ MT/s (OC)
Alimentazione Duet Rail 14+2+1, doppi 8-pin CPU
Rete LAN 5GbE, Wi-Fi 7
Slot di Espansione 2x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
Archiviazione 1x M.2 Gen 5, 3x M.2 Gen 4, 6x SATA III
USB 2x USB4, USB 3.2 Gen 2×2, Gen 2, Gen 1
Audio Audio Boost 7.1 HD
Raffreddamento Dissipatori Frozr Guard, EZ M.2 Shield

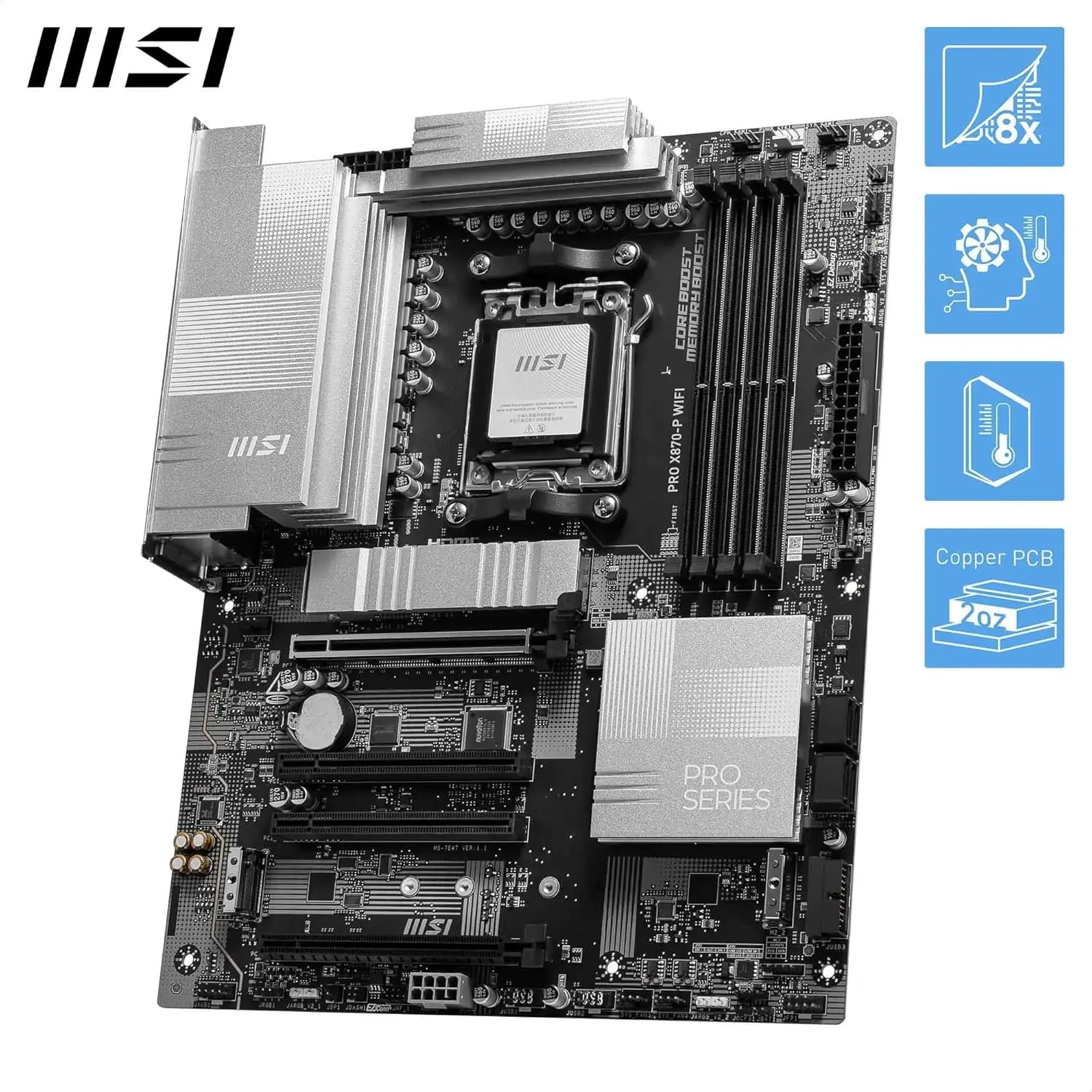

PCB 8 strati in rame 2 oz
Dimensioni 305 x 244 mm (ATX)
Informazioni aggiuntive
Peso 0,97 kg
Dimensioni 30,5 × 24,4 × 3,5 cm
M.B. - Chipset

AMD X870
CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
–
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Onboard Graphics

1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
Slot

4x PCI-E x16 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
–
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Audio

Realtek® ALC897
7.1-Channel High Definition Audio
Storage

3x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G (Qty)
–
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
RAID

Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
1x USB 40Gbps Type C (Rear)
LAN

Realtek® 8126VB 5G LAN
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x ARGB+FAN Header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
LED FEATURE

4x EZ Debug LED

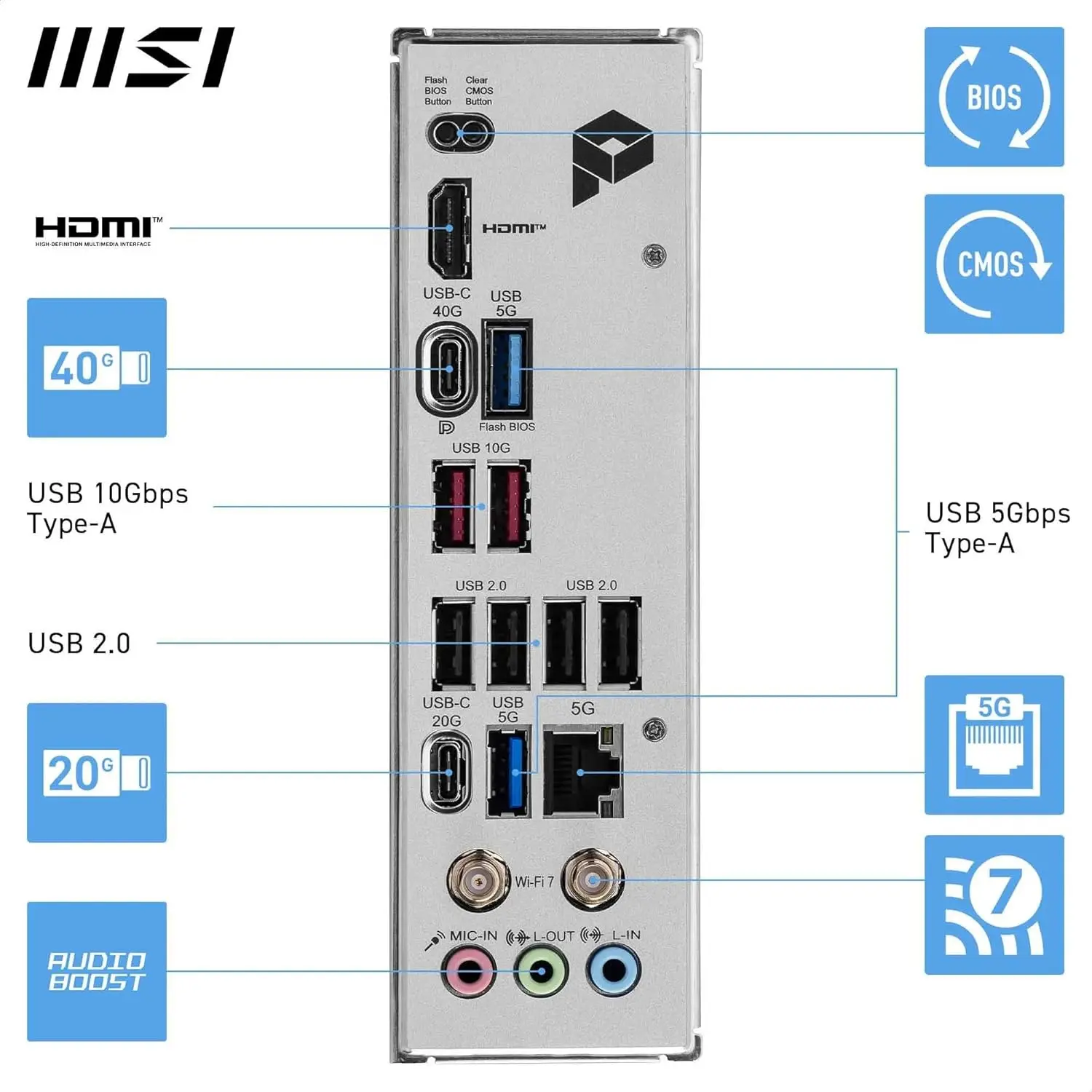

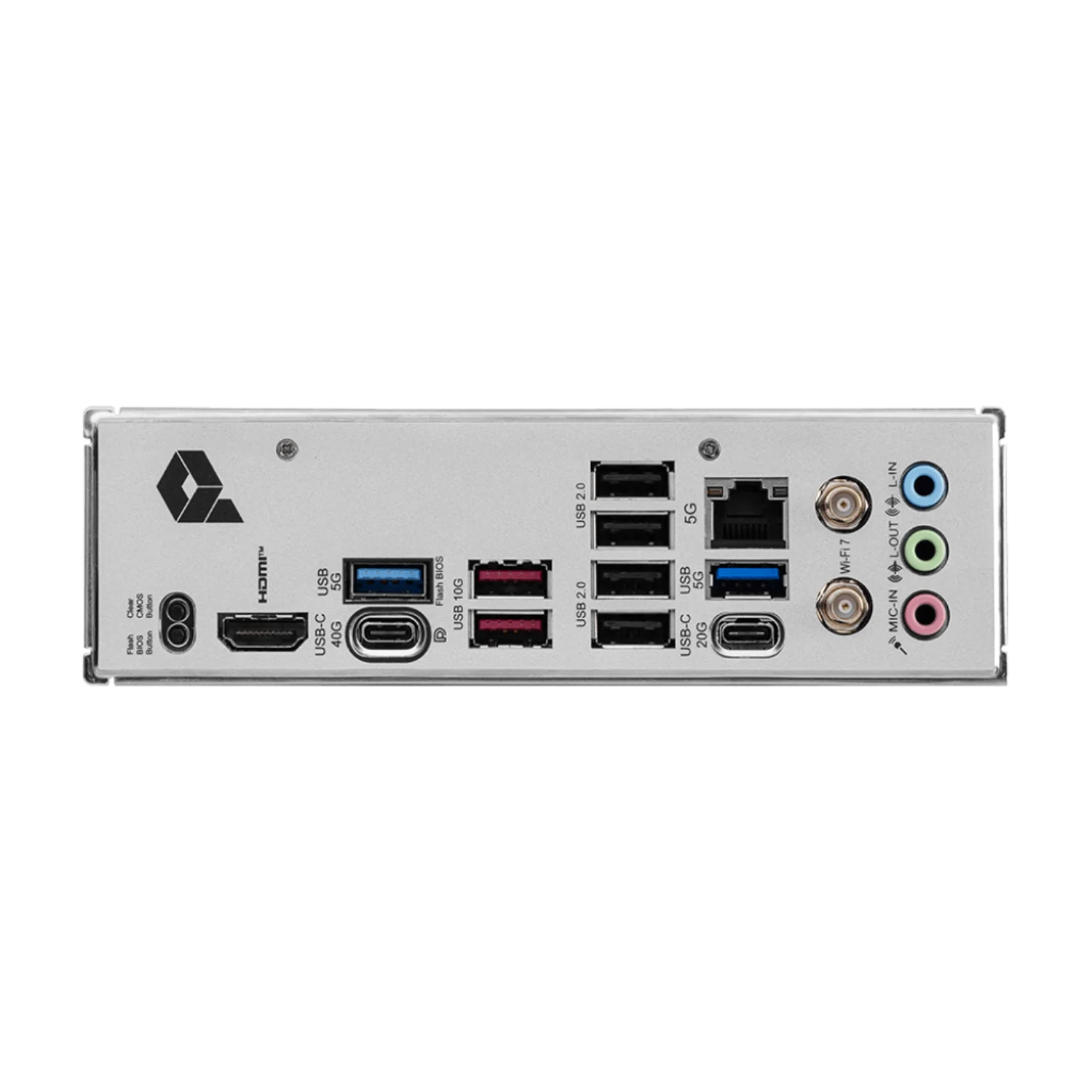

BACK PANEL PORTS

Clear CMOS Button
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 40Gbps Type-C
USB 10Gbps Type-A
USB 20Gbps Type-C
OPERATING SYSTEM

Support for Windows® 11 64-bit
