Descrizione

MSI B760M GAMING PLUS WIFI / 911-7D99-017 / 4711377154017

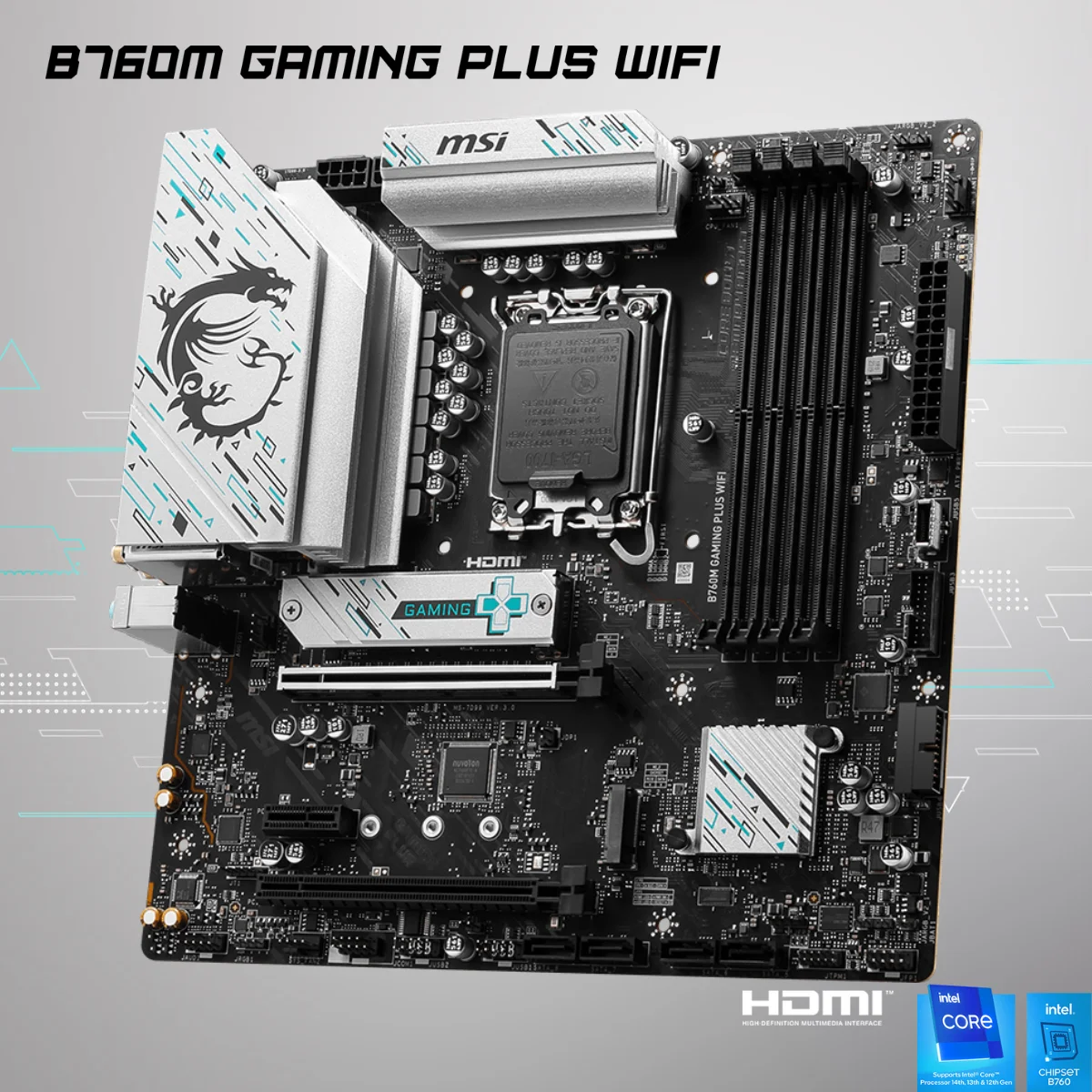

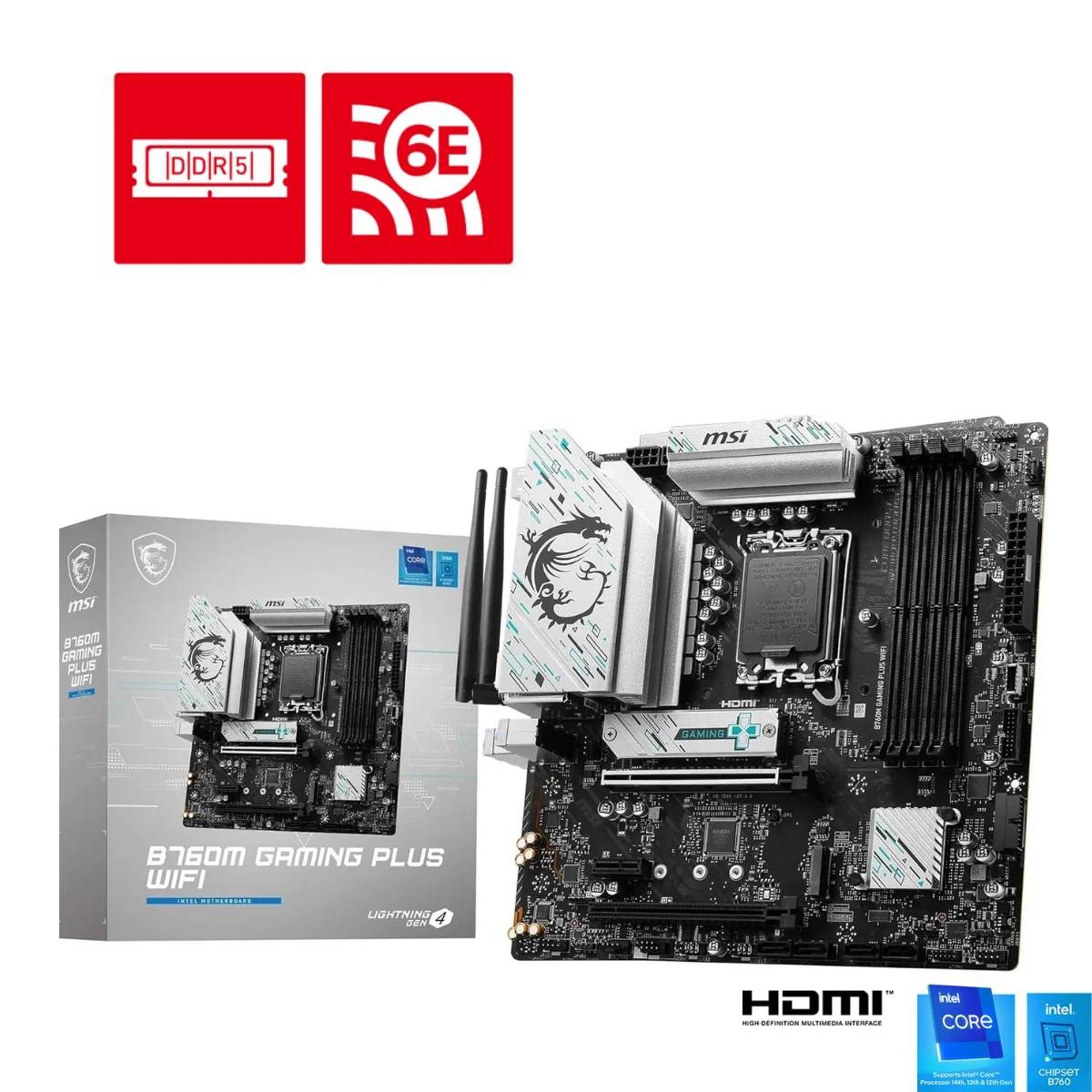

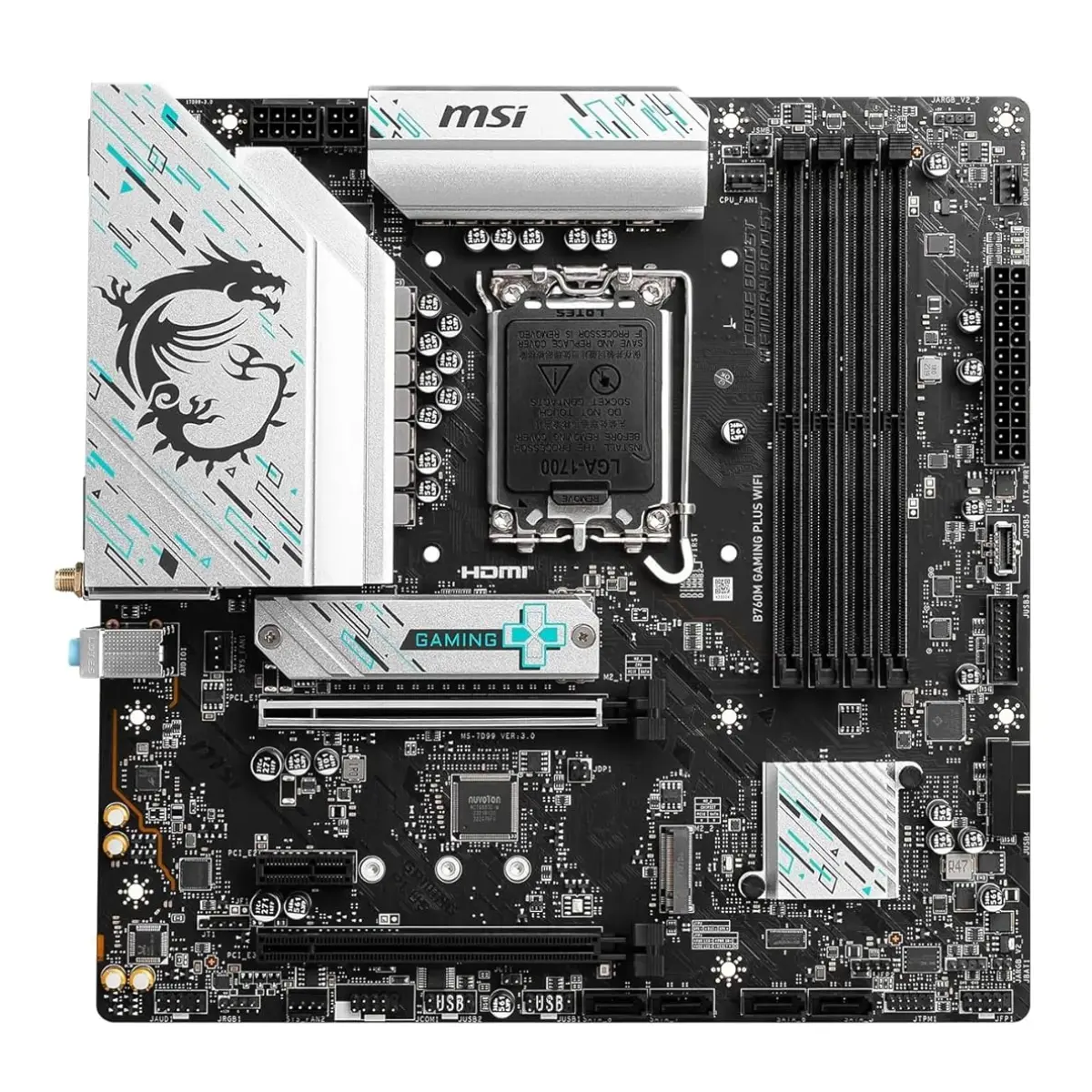

La MSI B760M Gaming Plus WiFi è una scheda madre Micro-ATX pensata per i gamer che vogliono tutto senza compromessi. Supporta CPU Intel® Core™ di 14ᵃ/13ᵃ/12ᵃ generazione con socket LGA 1700, memoria DDR5 fino a 6800+ MHz (OC) e offre connettività avanzata grazie a LAN 2.5G e Wi-Fi 6E. Prestazioni stabili, raffreddamento premium e audio di livello studio per un’esperienza di gioco fluida e coinvolgente.

La MSI B760M Gaming Plus WiFi è progettata per offrire la massima connettività e stabilità ai giocatori e agli utenti esigenti. Con una combinazione di potenza di calcolo, raffreddamento ottimizzato e tecnologie di rete di ultima generazione, questa scheda madre è perfetta per chi vuole costruire un sistema compatto ma estremamente performante.

Caratteristiche principali:

  • Compatibilità CPU di nuova generazione: supporta Intel® Core™ 14ᵃ, 13ᵃ e 12ᵃ generazione, oltre a Pentium® Gold e Celeron®, su socket LGA 1700.

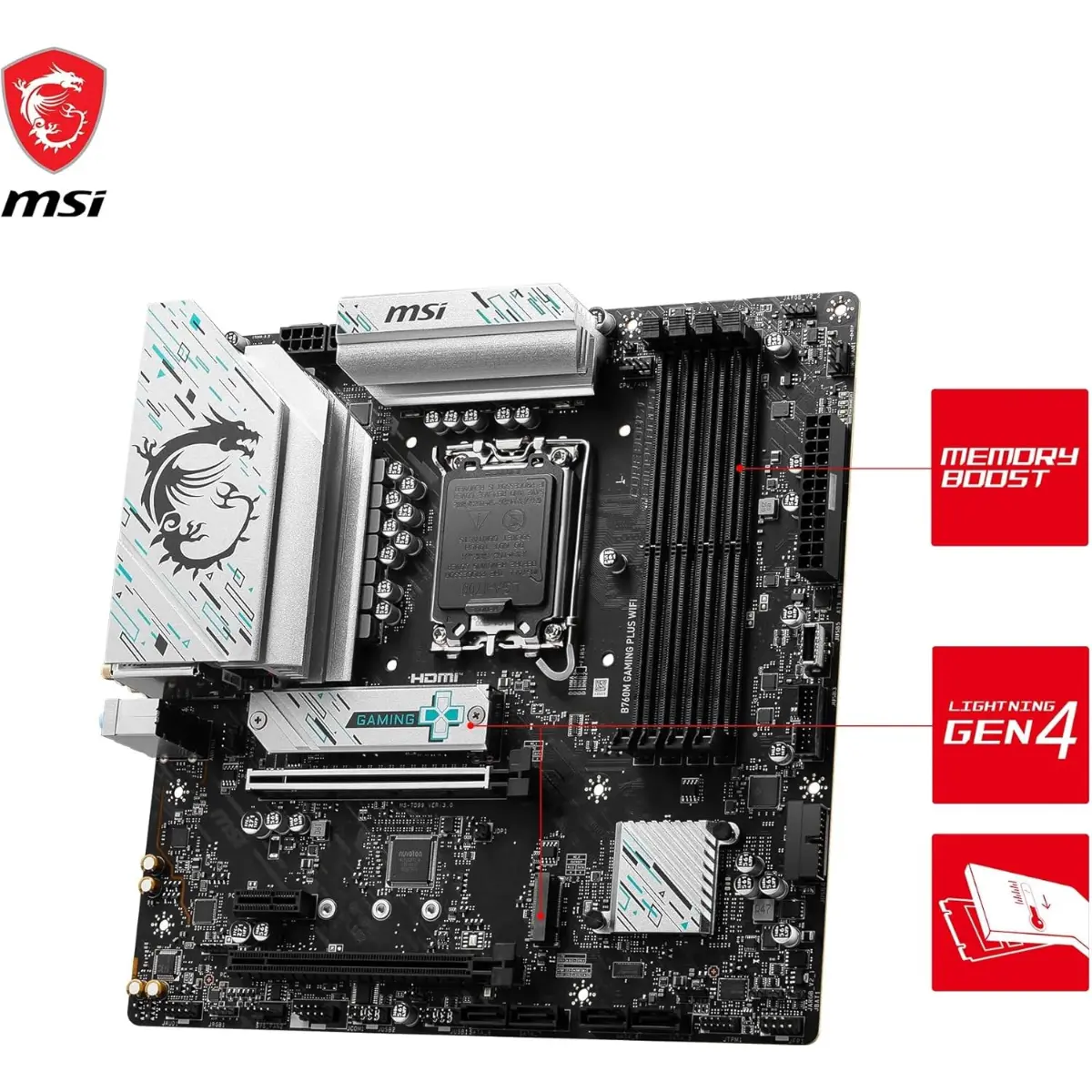

  • Memoria DDR5 ultraveloce: supporta moduli fino a 6800+ MHz (OC) in dual channel, con tecnologia Memory Boost per stabilità e prestazioni ottimali.

  • Alimentazione migliorata: sistema Duet Rail Power 12+1 con P-PAK, con connettori CPU 8-pin + 4-pin, Core Boost e componentistica di qualità per un’erogazione stabile della potenza.

  • Raffreddamento premium: dissipatore esteso, pad termici MOSFET da 7W/mK e pad aggiuntivi sui choke per mantenere basse le temperature durante le sessioni di gioco più intense.

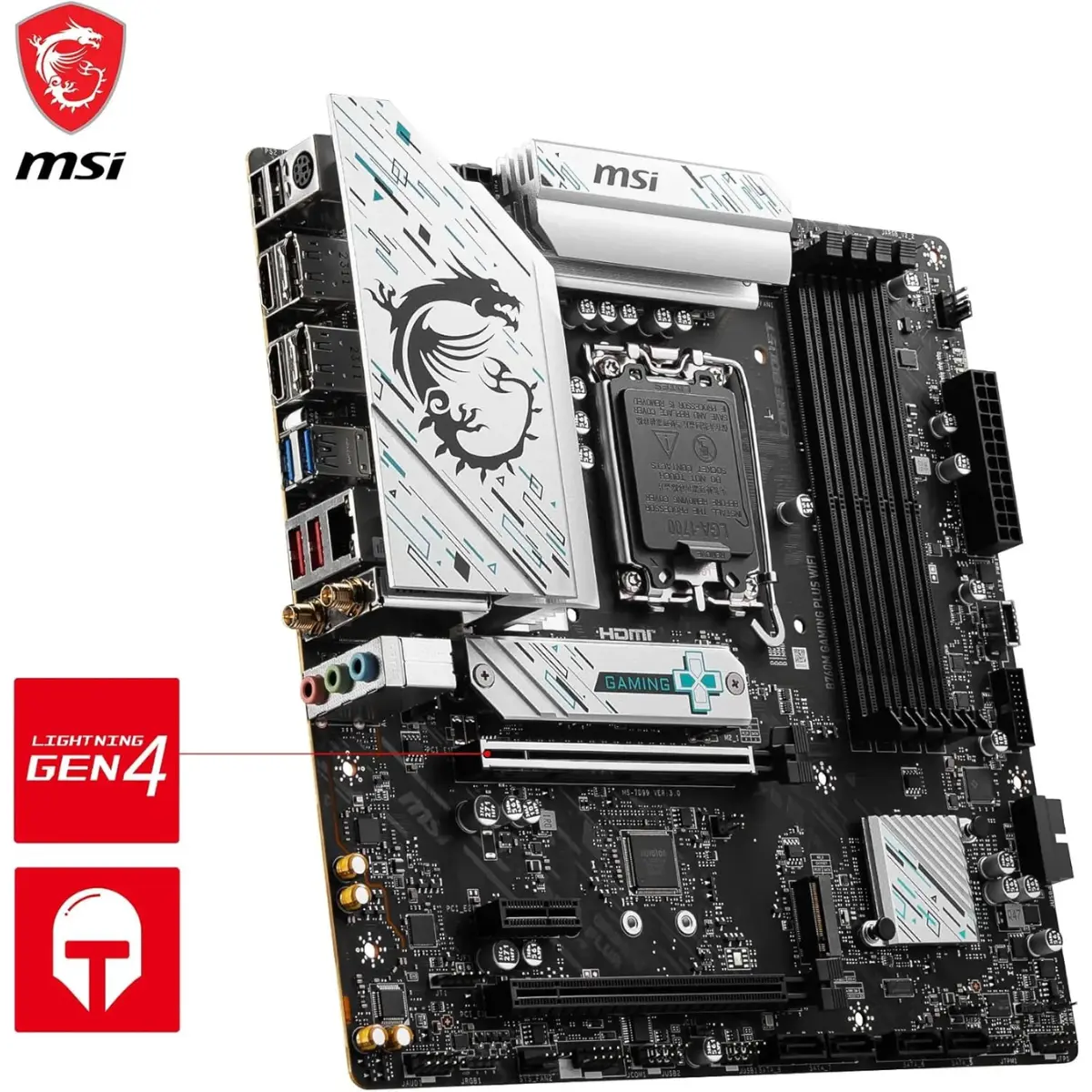

  • Esperienza gaming fluida: slot PCIe 4.0, archiviazione ad alta velocità con Lightning Gen 4 x4 M.2 e protezione M.2 Shield Frozr, più porte USB 3.2 Gen 2 10Gbps.

  • Connettività avanzata: LAN 2.5G e Wi-Fi 6E per connessioni stabili, sicure e ad alta velocità.

  • Audio immersivo: qualità sonora di livello studio per un’esperienza di gioco più realistica.

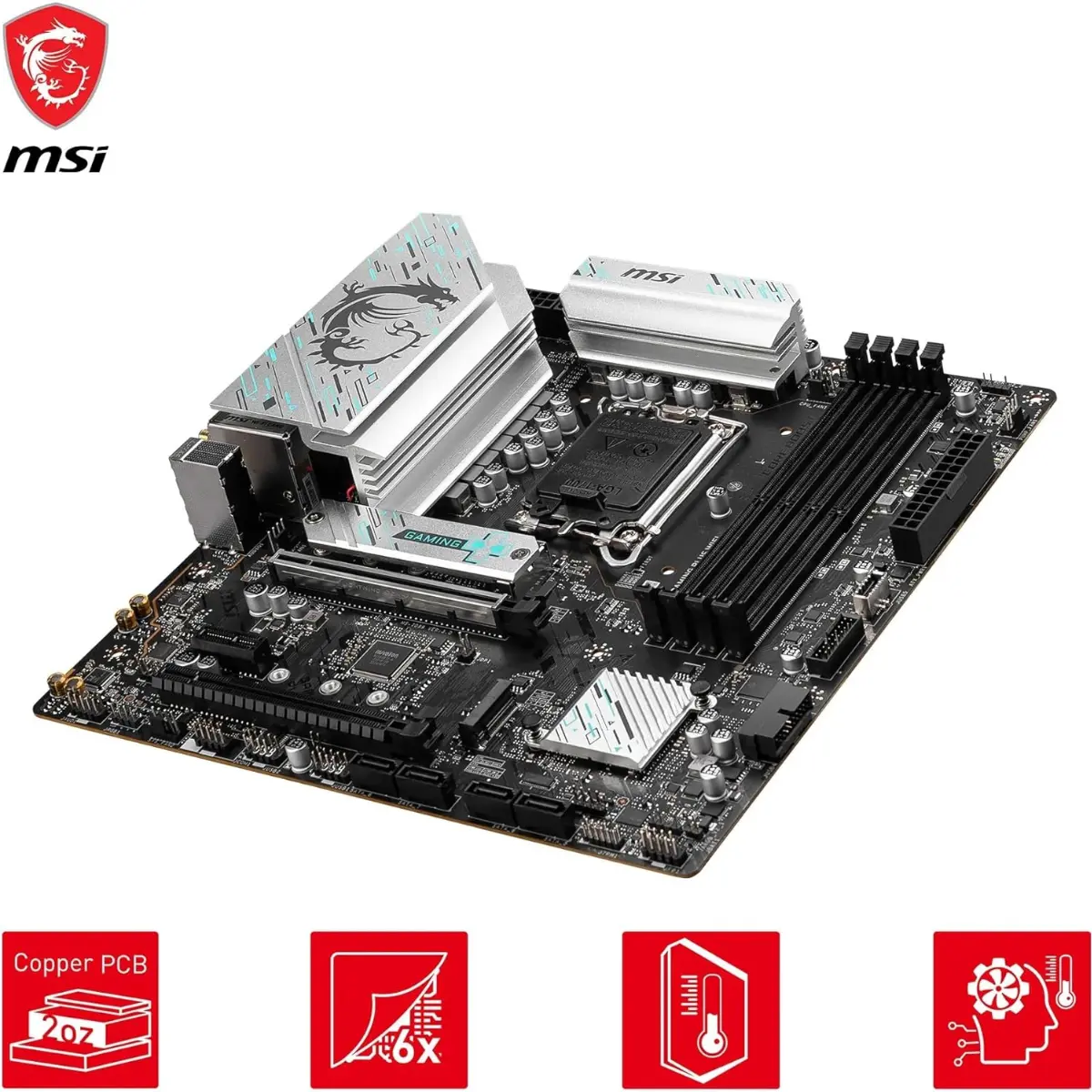

  • Costruzione robusta: PCB a 6 strati in rame da 2oz per resistenza e durabilità superiori.

Specifiche Tecniche

Caratteristica Dettagli
Marca MSI
Modello B760M Gaming Plus WiFi
Formato Micro-ATX
Socket LGA 1700
Chipset Intel® B760
Compatibilità CPU Intel® Core™ 14ᵃ/13ᵃ/12ᵃ gen, Pentium® Gold, Celeron®
Memoria DDR5, fino a 6800+(OC) MHz, Dual Channel
Slot RAM 4 x DIMM
Slot PCI Express 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
Archiviazione 2 x M.2 Gen4 x4, 4 x SATA 6Gb/s
Rete LAN 2.5G, Wi-Fi 6E
Audio High Definition Audio, qualità studio
USB USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0
Alimentazione Duet Rail Power System 12+1 con P-PAK, 8-pin + 4-pin CPU
PCB 6 strati, rame 2oz
Codice prodotto 911-7D99-017
EAN 4711377154017

Domande Frequenti (FAQ)

1. La MSI B760M Gaming Plus WiFi è compatibile con processori Intel di 14ᵃ generazione?
Sì, supporta i processori Intel® Core™ di 14ᵃ, 13ᵃ e 12ᵃ generazione, oltre a Pentium® Gold e Celeron®, con socket LGA 1700.

2. Qual è la garanzia del prodotto?
La garanzia può variare in base al rivenditore, ma normalmente MSI offre 3 anni di copertura.

3. Posso utilizzare memoria DDR4 su questa scheda madre?
No, la B760M Gaming Plus WiFi supporta esclusivamente moduli di memoria DDR5 fino a 6800+(OC) MHz.

4. Il sistema di raffreddamento è sufficiente per sessioni di gioco lunghe?
Sì, grazie al dissipatore esteso, pad termici MOSFET da 7 W/mK e pad aggiuntivi sui choke, le temperature restano sotto controllo anche in uso intensivo.

5. È adatta per un PC da gaming di fascia alta?
Assolutamente sì. Offre prestazioni elevate, connettività moderna e componentistica premium adatta a configurazioni gaming e multitasking di alto livello.

Per ulteriori dettagli e specifiche complete, visita la pagina ufficiale MSI B760M Gaming Plus WiFi.

Informazioni aggiuntive
Peso 0,76 kg
Dimensioni 24,4 × 24,4 × 3,5 cm
M.B. - Chipset

Intel B760
CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics

2x HDMI™ – Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
2x DisplayPort – Support DP 1.4, maximum resolution of 4K 60Hz
Slot

2x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage

2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
2x USB 10Gbps Type A (Rear)
LAN

Realtek® RTL8125BG 2.5G LAN
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
LED FEATURE

4x EZ Debug LED

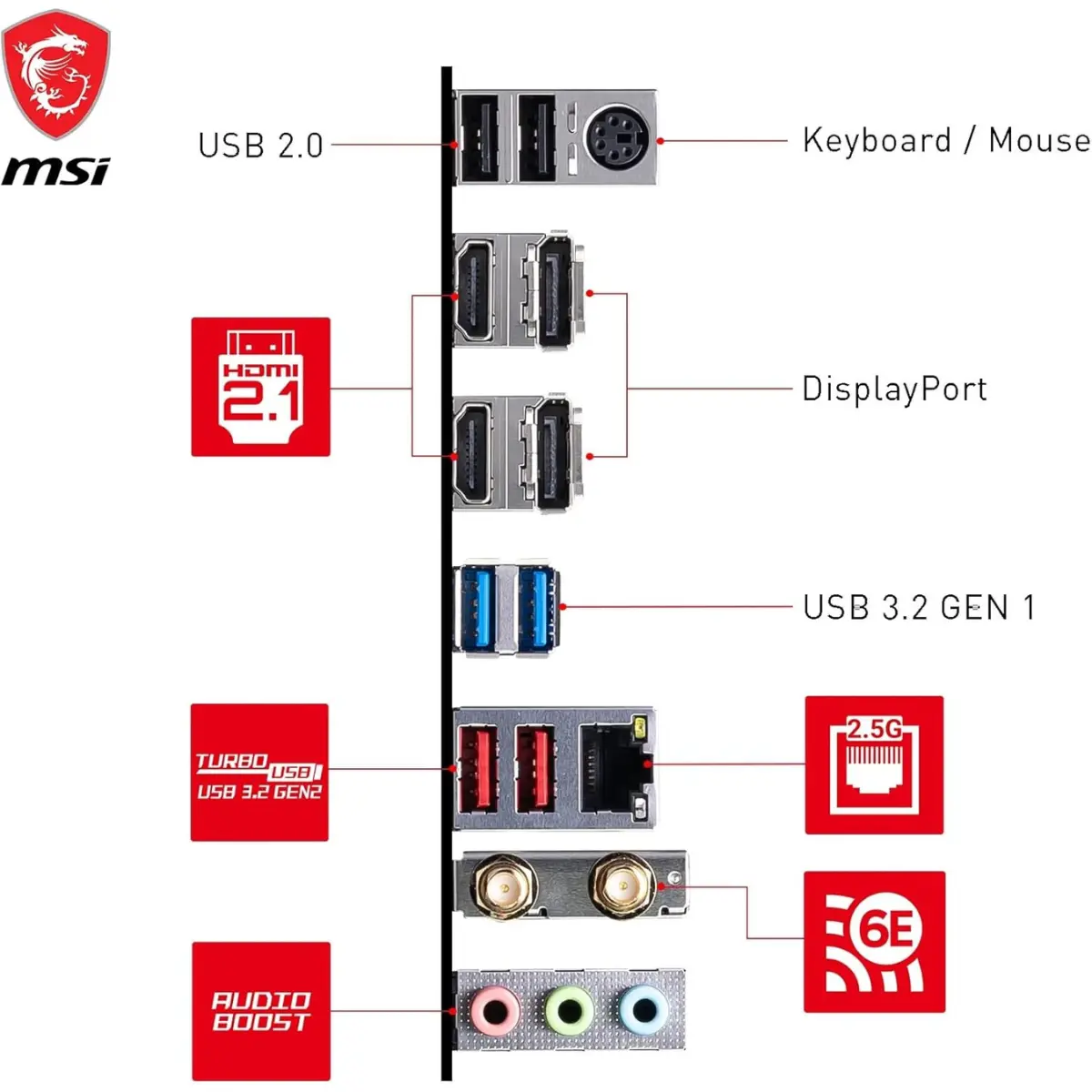

BACK PANEL PORTS

Keyboard / Mouse
DisplayPort
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
USB 2.0
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
Audio Connectors
OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info

mATX
243.84mmx243.84mm
