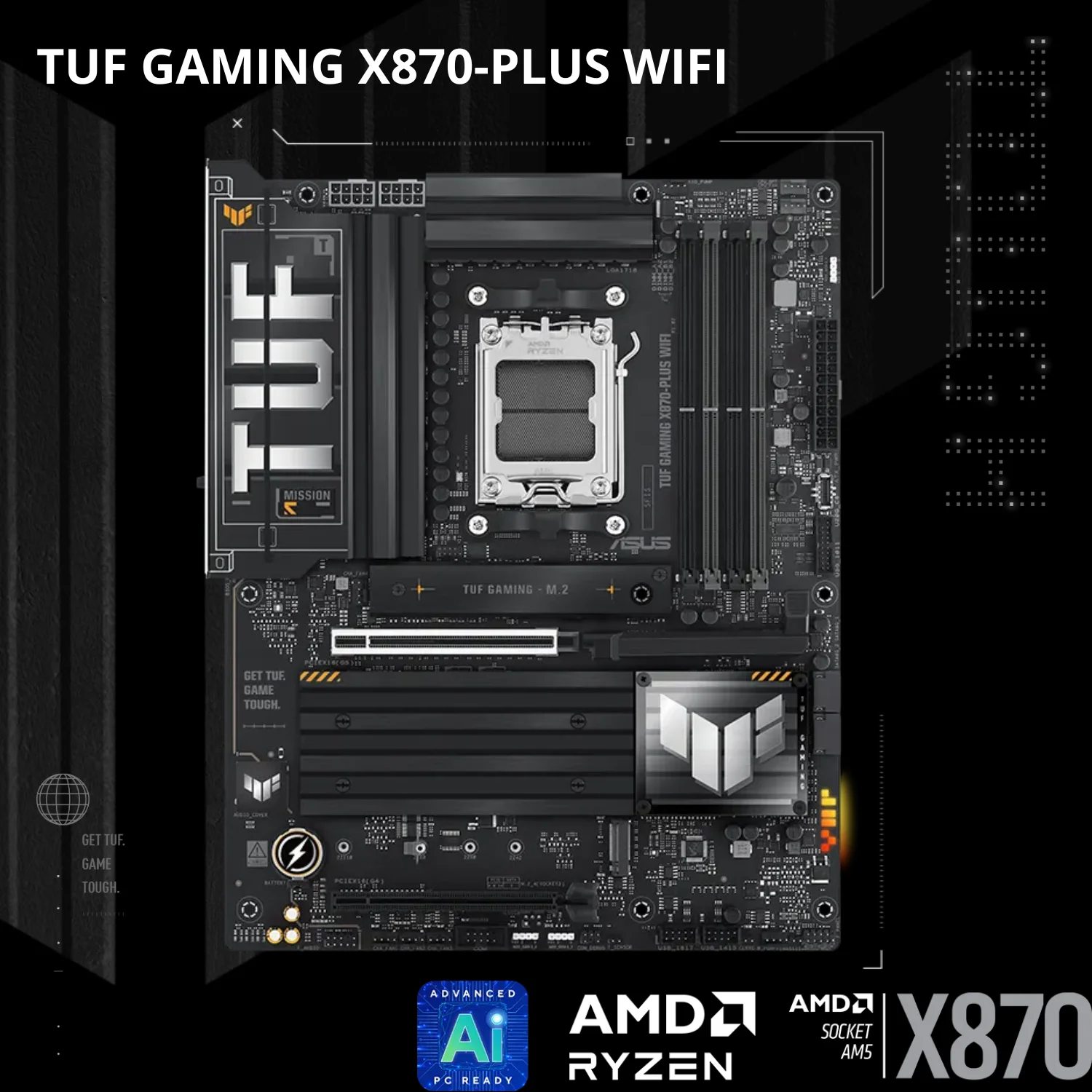

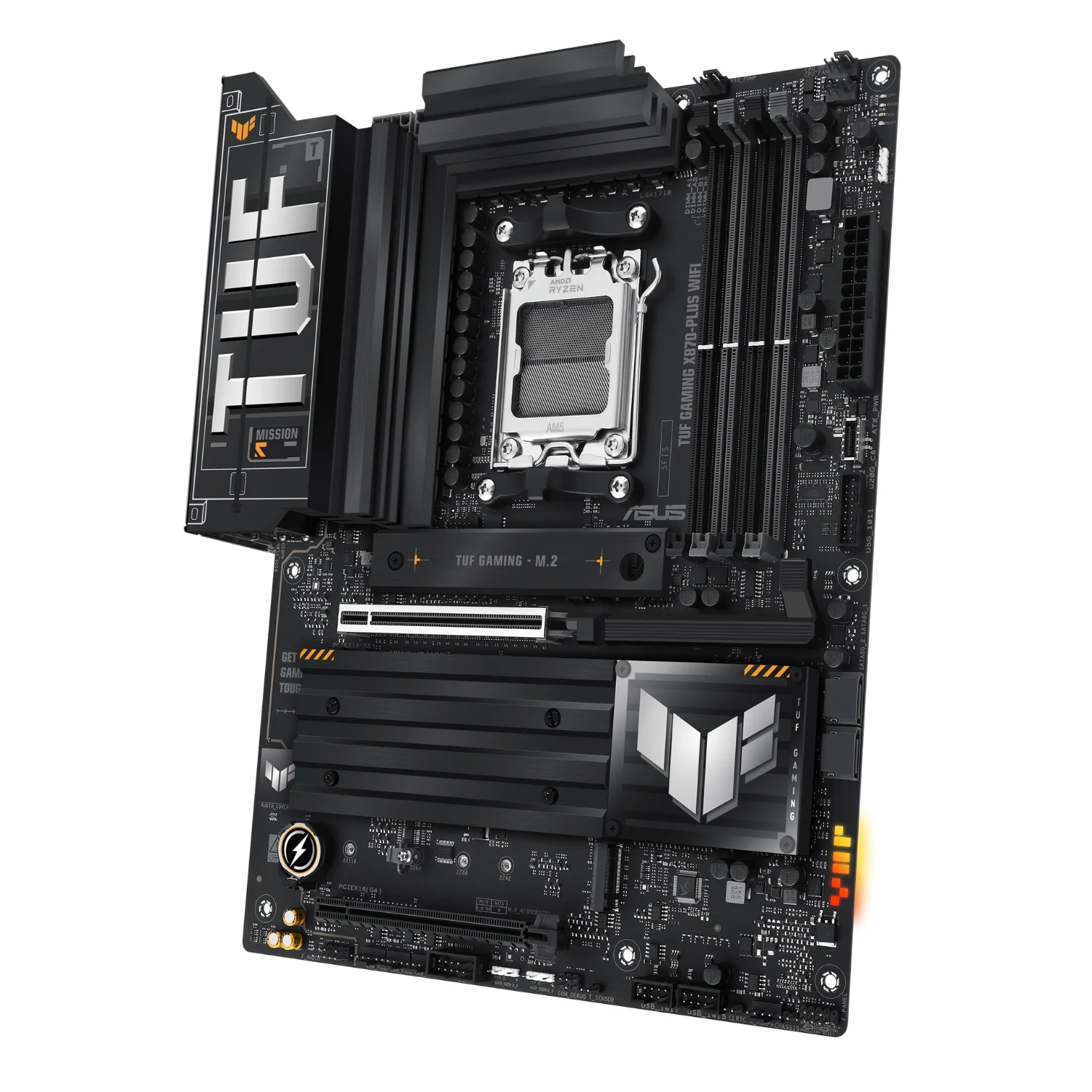

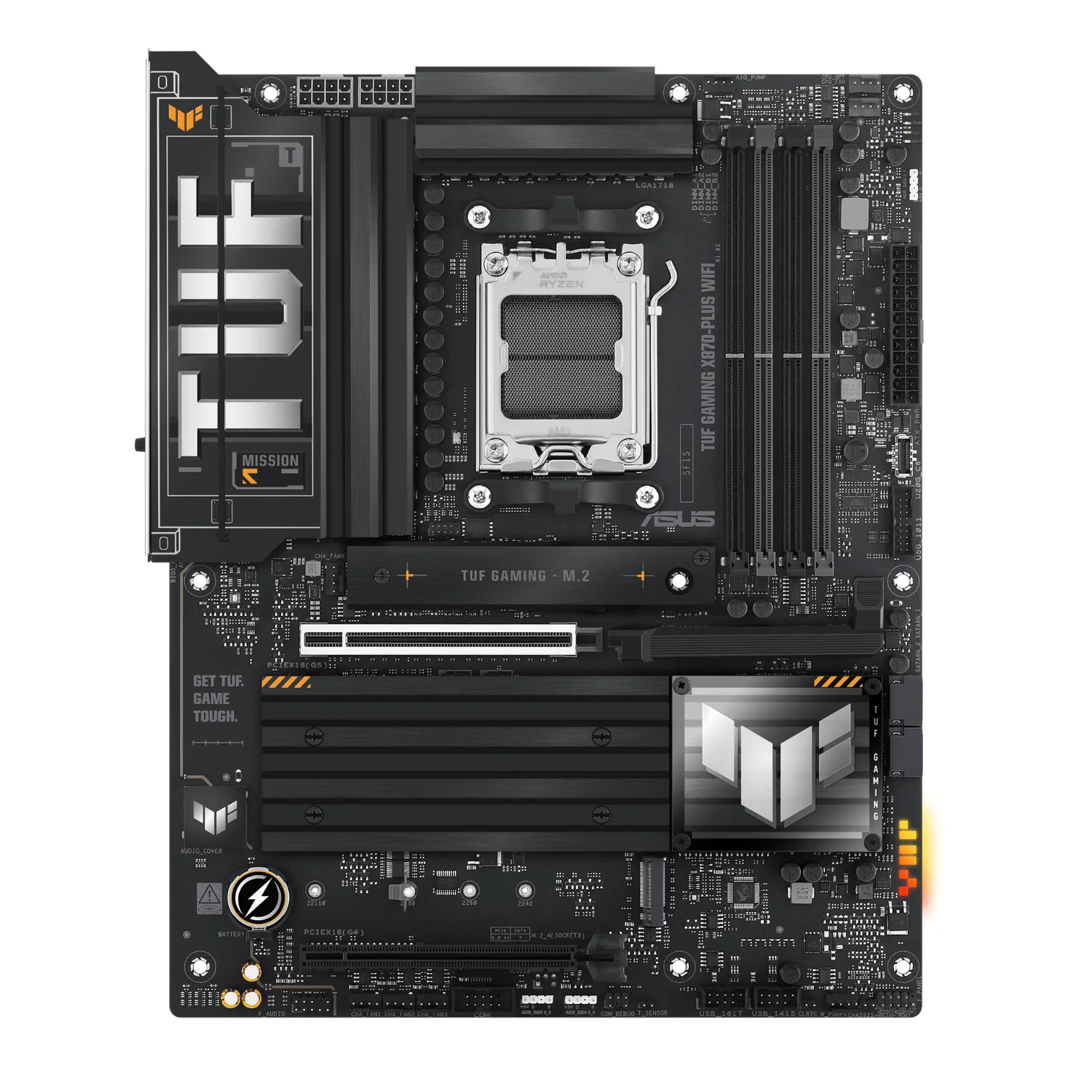

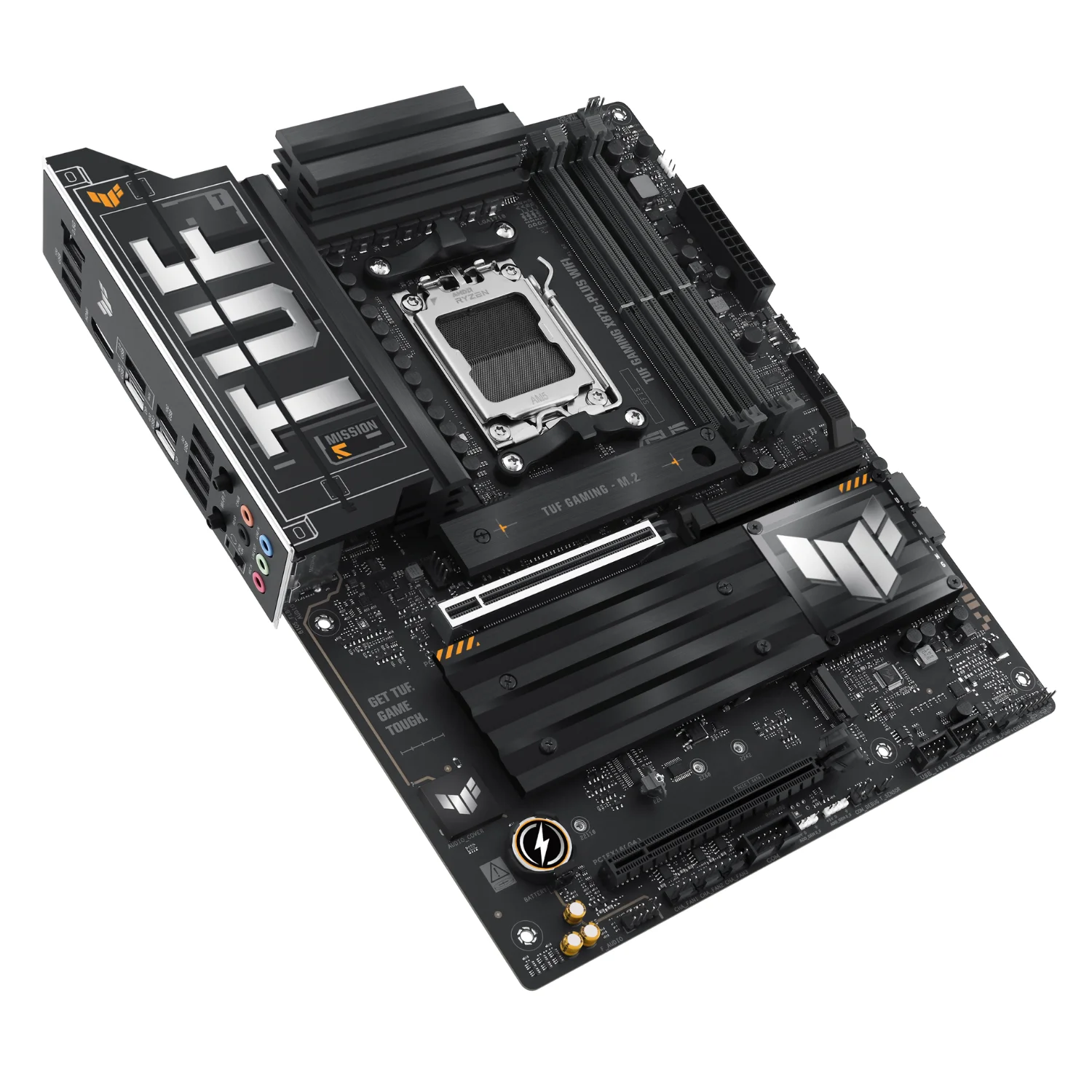

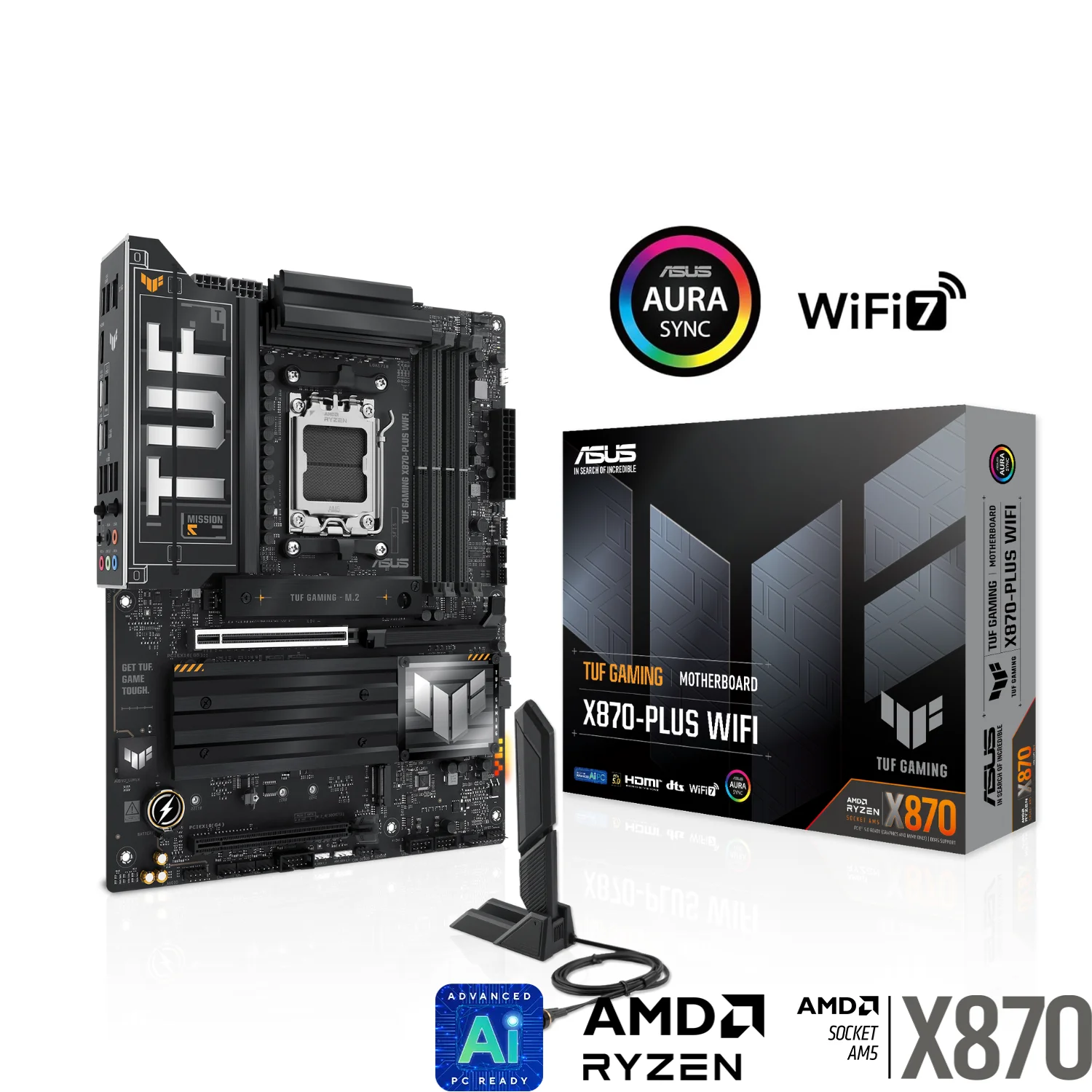

ASUS TUF GAMING X870-PLUS WIFI – Scheda Madre AM5 ATX con PCIe 5.0, DDR5, USB4, WiFi 7 e Aura Sync

0 Persone guardano adesso questo prodotto!

EAN: 4711387723609 COD: 90MB1IU0-M0EAY0 Categoria: AM5 Tag: AM5, AMD X870, ATX, Aura Sync, Bluetooth 5.4, DDR5, LAN 2.5G, Nero, PCIe 5.0, USB4, Wi-Fi 7

Descrizione

ASUS TUF GAMING X870-PLUS WIFI / 90MB1IU0-M0EAY0 / 4711387723609

🛡️ Affidabilità TUF: stabile, robusta, pronta per le maratone

Pensata per durare e reggere carichi intensi:

Componenti TUF e test di resistenza rigorosi
Alimentazione potenziata per CPU moderne ad alto numero di core
PCB multi-layer per migliore stabilità e gestione termica
Protezioni hardware (ESD Guards, TUF LANGuard, SafeSlot/SafeDIMM)

⚡ Alimentazione premium per CPU AMD Ryzen AM5

Una base perfetta per gaming avanzato e produttività:

Power stages ad alta capacità per erogazione stabile
Connettori di alimentazione rinforzati ProCool
Ideale per build high-end con CPU Ryzen 7000/8000/9000

🧊 Raffreddamento completo e controllo intelligente

Progettata per mantenere temperature sotto controllo:

Dissipatori VRM maggiorati
Dissipatori M.2 dedicati
Connettori per ventole e pompe AIO/Water Pump+
Controllo intelligente con AI Cooling II per ottimizzare rumore e temperature

🚀 Prestazioni e storage: PCIe 5.0 e M.2 ad alta velocità

Per massimizzare velocità e reattività:

Slot PCIe 5.0 x16 rinforzato per GPU
Più slot M.2, inclusi PCIe 5.0 per SSD ultra-rapidi
Supporto a configurazioni RAID NVMe

🌐 Connettività top: USB4, LAN 2.5Gb e WiFi 7

Una piattaforma moderna e completa:

USB4 40Gbps Type-C (porte posteriori)
Connettore frontale USB 20Gbps Type-C con ricarica rapida fino a 30W
Realtek 2.5Gb Ethernet per gaming online stabile
WiFi 7 + Bluetooth per prestazioni wireless avanzate
Pulsante BIOS FlashBack™ per aggiornare il BIOS in modo semplice

🎧 Audio gaming immersivo con DTS e Realtek

Perfetta per cuffie e speaker da gaming:

Codec Realtek di fascia alta
Elaborazione DTS per audio più ricco e immersivo
Schermature e componenti audio premium per ridurre interferenze

🧠 Funzioni AI e strumenti “EZ DIY” per assemblare meglio

Più prestazioni, meno complicazioni:

AI Overclocking per spingere la CPU in modo intelligente
AI Networking II per ottimizzare la banda in tempo reale
Funzioni ASUS Q-Design (es. Q-Latch per M.2, Q-Release per PCIe)
Diagnostica rapida con Q-LED

❓ FAQ

È compatibile con i processori AMD Ryzen AM5?
Sì, è pensata per processori desktop AMD Ryzen su socket AM5.

Supporta PCIe 5.0 per la scheda video?
Sì, include uno slot PCIe 5.0 x16 rinforzato.

Ha WiFi integrato?
Sì, include WiFi 7 (oltre al Bluetooth).

Posso usare SSD M.2 PCIe 5.0?
Sì, supporta slot M.2 ad alte prestazioni, inclusi PCIe 5.0.

C’è una porta USB-C veloce per il pannello frontale?
Sì, è presente un connettore frontale USB 20Gbps Type-C con ricarica rapida fino a 30W.

🔗 Maggiori informazioni

Per dettagli ufficiali, immagini e documentazione del produttore:
➡️ https://www.asus.com/it/motherboards-components/motherboards/tuf-gaming/tuf-gaming-x870-plus-wifi/

Informazioni aggiuntive

Peso	1,95 kg
Dimensioni	30,5 × 24,4 × 3,5 cm
M.B. - Chipset	AMD X870
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Memory	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP)
Graphics	1 x HDMI™ port 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage	Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot not support AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)* 2 x SATA 6Gb/s ports
Ethernet	1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless & Bluetooth	Wi-Fi 7 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4
USB	Rear USB (Total 10 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit

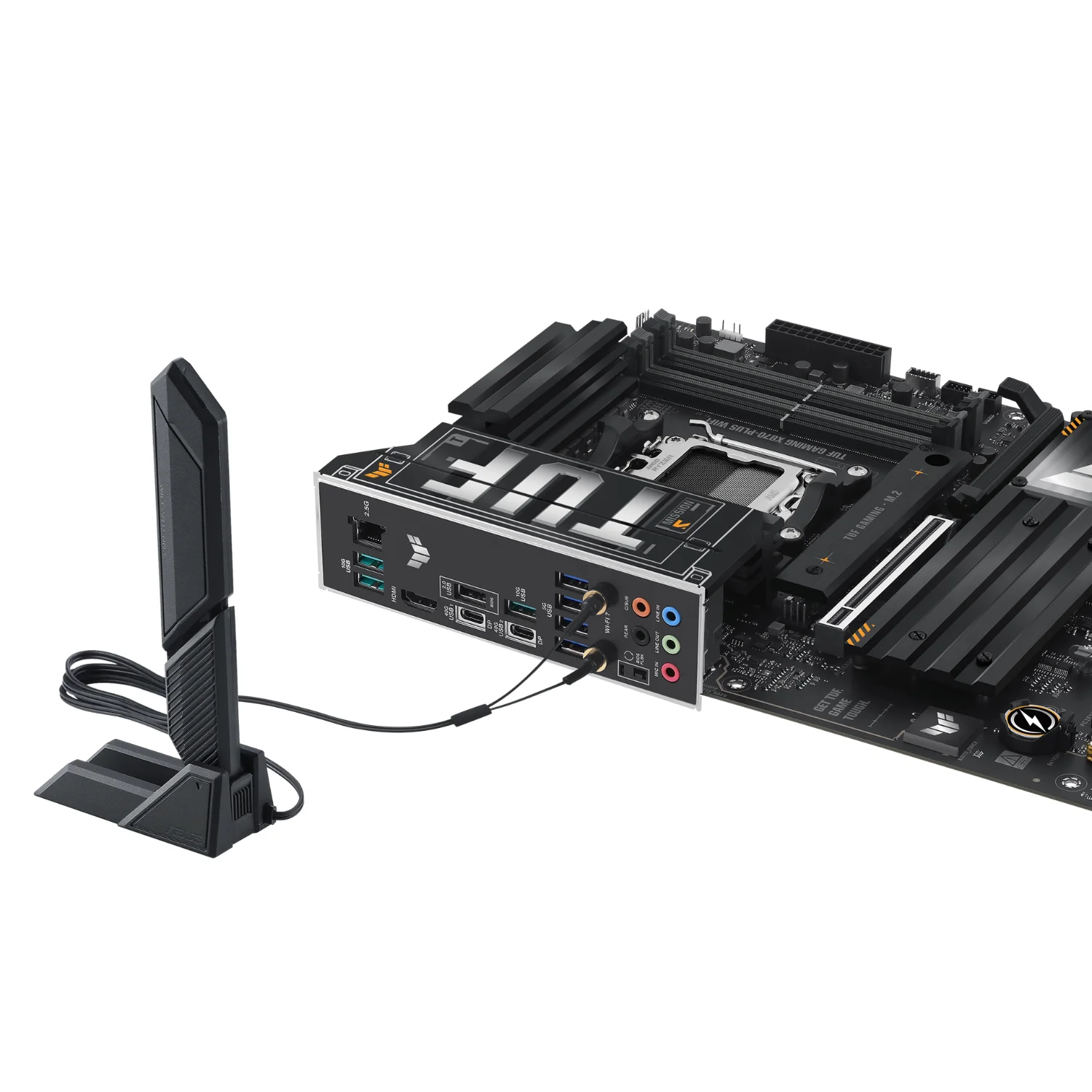

Back Panel I/O Ports	2 x USB4® (40Gbps) (2 x USB Type-C®) ports 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header
Special Features	ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with SPS) – ESD Guards – TUF LANGuard – Overvoltage protection – SafeSlot – Stainless-steel back I/O ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsinks – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – ProCool – Pre-mounted I/O shield – SafeDIMM Aura Sync – Addressable Gen 2 headers Front Panel USB 20Gbps with PD Fast Charge Support – Support: up to 30W fast charging and USB Wattage Watcher – Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A – Compatible with PD3.0
Software Features	ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

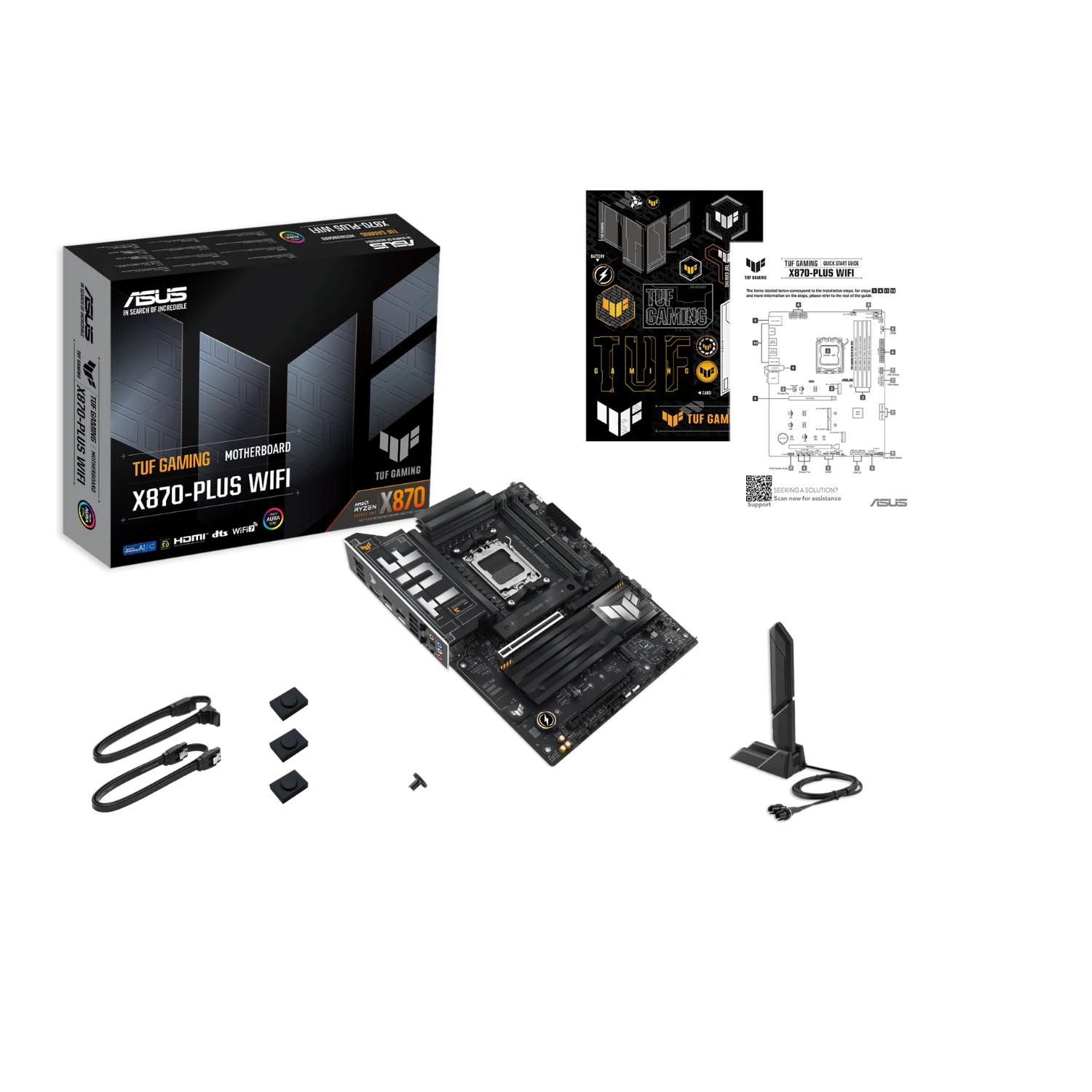

Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 2 x M.2 rubber packages 1 x Screw package for M.2 SSD 1 x TUF GAMING sticker Documentation 1 x Quick start guide
Operating System	Windows 11
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Recensioni (0)

Recensioni

Ancora non ci sono recensioni.

Recensisci per primo “ASUS TUF GAMING X870-PLUS WIFI – Scheda Madre AM5 ATX con PCIe 5.0, DDR5, USB4, WiFi 7 e Aura Sync”

About brand

ASUS è un'azienda tecnologica di fama mondiale con sede a Taipei, Taiwan, rinomata per la produzione di componenti hardware, computer portatili, schede madri, schede video, monitor e dispositivi di rete. Fondata nel 1989, ASUS si distingue per l’innovazione, l’alta qualità e il design all’avanguardia dei suoi prodotti, diventando una scelta popolare tra gamer, professionisti e utenti domestici. Con linee iconiche come ROG (Republic of Gamers) e TUF Gaming, ASUS è sinonimo di prestazioni elevate, affidabilità e soluzioni tecnologiche all'avanguardia.ASUS TUF Gaming è una linea di prodotti progettata da ASUS per offrire affidabilità, durabilità e prestazioni solide a un prezzo accessibile. Lanciata per soddisfare le esigenze dei gamer che cercano componenti robusti e resistenti, la serie TUF Gaming include schede madri, schede video, laptop, monitor, case e periferiche con un design militare e materiali di alta qualità. Ogni prodotto TUF è testato per resistere a condizioni estreme, rendendolo ideale per lunghe sessioni di gioco e sistemi stabili e durevoli.

Prodotti correlati

Anteprima

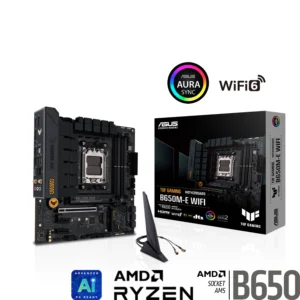

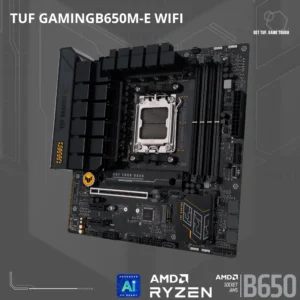

ASUS TUF GAMING B650M-E WIFI – Scheda Madre Micro-ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6, LAN 2.5G, Bluetooth 5.2, Aura Sync [90MB1FV0-M0EAY0]

AM5

179,00 €

SKU: 90MB1FV0-M0EAY0

Peso	1 kg
Dimensioni	24,4 × 24,4 × 5 cm
M.B. - Chipset	AMD B650
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Memory	4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II
Graphics	2 x DisplayPort – Supports max. 8K@60Hz as specified in DisplayPort 1.4. 1 x HDMITM port – Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 2 x PCIe 4.0 x1 slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 2 x PCIe 4.0 x1 slots
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types. Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset 4 x SATA 6Gb/s ports
Ethernet	1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless & Bluetooth	Wi-Fi 6 1×1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2
USB	Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback" Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers
Back Panel I/O Ports	2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function
Special Features	ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – ProCool – Pre-mounted I/O shield – SafeSlot Core+ – SafeDIMM Aura Sync – Aura RGB header – Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 2+ – Power Saving – Two-Way AI Noise Cancelation AI Suite 3 – TurboV EVO – DIGI+ VRM – PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers(60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x TUF Gaming sticker 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x TUF Certification card 1 x User guide
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

-19%Esaurito

Anteprima

GIGABYTE B650 UD AX – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.0 [B650UDAX]

AM5

SKU: B650UDAX

Peso	1,54 kg
Dimensioni	30,5 × 24,4 × 3,5 cm
M.B. - Chipset	AMD B650
CPU	AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Memory	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Audio	Realtek® Audio CODEC ALC897 High Definition Audio 2/4/5.1/7.1-channel
LAN	Realtek® RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module	Realtek® RTL8851 WIFI 6 module – WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band – BLUETOOTH 5.0 – Support for 11ac wireless standard
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode – 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 – 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs – 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs – 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 1 x addressable RGB Gen2 LED strip header 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x Clear CMOS jumper
Back Panel Connectors	1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) – Support for Q-Flash Support for Q-Flash Plus
Bundle Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm

Anteprima

GIGABYTE B650M AORUS ELITE AX ICE – 1Scheda Madre Micro-ATX AM5 con DDR5, PCIe 5.0, Wi-Fi 6E e USB-C 20Gb/s

AM5

195,00 €

SKU: 9MB65MEXI-00-10

Peso	1,5 kg
Dimensioni	24,4 × 24,4 × 3 cm
CPU	AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Chipset	AMD B650
Memory	Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. – – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. – Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard – Intel® Wi-Fi 6E AX210 (PCB rev. 1.1) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. – Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs – 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Back Panel Connectors	1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R)jk 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. – Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

Anteprima

GIGABYTE B850M AORUS ELITE WIFI6E ICE – Scheda madre mATX, Socket AM5, DDR5, PCIe 5.0, Wi-Fi 6E, 2.5GbE

AM5

229,00 €

SKU: 9MB85MEI6-00-G10

Peso	1,8 kg
Dimensioni	24,4 × 24,4 × 3 cm
CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD B850
Memory	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. – – 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz * Support for HDMI 1.4 version. – (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC (Only for rev. 1.0) High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. – Support for S/PDIF Out – Realtek® ALC1220 CODEC (Only for rev. 1.1) * The back panel line out jack supports DSD audio. – High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. – Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 6E RTL8852CE – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. – Chipset: – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs – 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. – RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper – (Note) Actual support may vary by CPU.
Back Panel Connectors	1 x DisplayPort (Note) 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 5 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector – (Note) Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. – Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundle Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

Anteprima

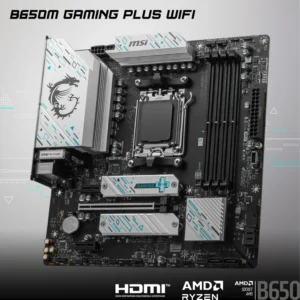

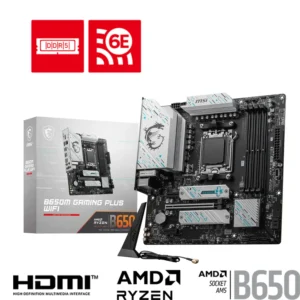

MSI B650M GAMING PLUS WIFI – Scheda Madre Micro-ATX, Socket AM5, DDR5, PCIe 4.0, USB 3.1, Wi-Fi 6E, LAN 2.5G, Bluetooth 5.3 [911-7E24-008]

AM5

169,00 €

SKU: 911-7E24-008

Peso	0,97 kg
Dimensioni	24,4 × 24,4 × 3,5 cm
M.B. - Chipset	AMD B650
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz
Slot	1x PCI-E x16 slot (Qty) • Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors) 2x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage	2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 8500/ 8300 Series processor is installed
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
LAN	Realtek® RTL8125BG 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Flash BIOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) Audio connectors
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	mATX 243.84mmx243.84mm

-10%

Anteprima

MSI B850 GAMING PLUS WIFI6E – Scheda Madre ATX, Socket AM5, DDR5, Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2, Audio Boost

AM5

Aggiungi al carrello

SKU: 911-7E80-001

Peso	0,7 kg
Dimensioni	30,5 × 24,4 × 3 cm
Chipset	AMD B850
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s – Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* – * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* – *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) – PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio	Realtek® ALC897 7.1-Channel High Definition Audio
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G – M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) – M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) – *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
LAN	Realtek® 8125D 2.5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax – Supports Bluetooth® 5.3, FIPS, FISMA – * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE	x EZ Debug LED 1x EZ Memory Detection LED
BACK PANEL PORTS	Clear CMOS Button DisplayPort 1.4 2.5G LAN USB 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps (Type-A) USB 10Gbps (Type-C) USB 5Gbps (Type-A)
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB Info	ATX 243.84mmx304.8mm

Anteprima

MSI PRO X870E-P WIFI – Scheda Madre AM5 ATX con Wi-Fi 7, 5G LAN e PCIe 5.0 per Ryzen 9000

AM5

299,00 €

Aggiungi al carrello

SKU: 911-7E70-002

Peso	1,5 kg
Dimensioni	24,3 × 30,48 × 2,5 cm
Chipset	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) – PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Audio	Realtek® ALC897 7.1-Channel High Definition Audio
Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 4x SATA 6G – M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) – *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices – *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
USB	4x USB 2.0 (Rear) 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear)
LAN	Realtek® 8126VB 5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be – Supports Bluetooth® 5.4*, MLO, 4KQAM – 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Memory Detection LED
BACK PANEL PORTS	Clear CMOS Button USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 10Gbps Type-A USB 20Gbps Type-C USB 5Gbps Type-A
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB Info	ATX 243.84mmx304.8mm

-19%Esaurito

Anteprima
