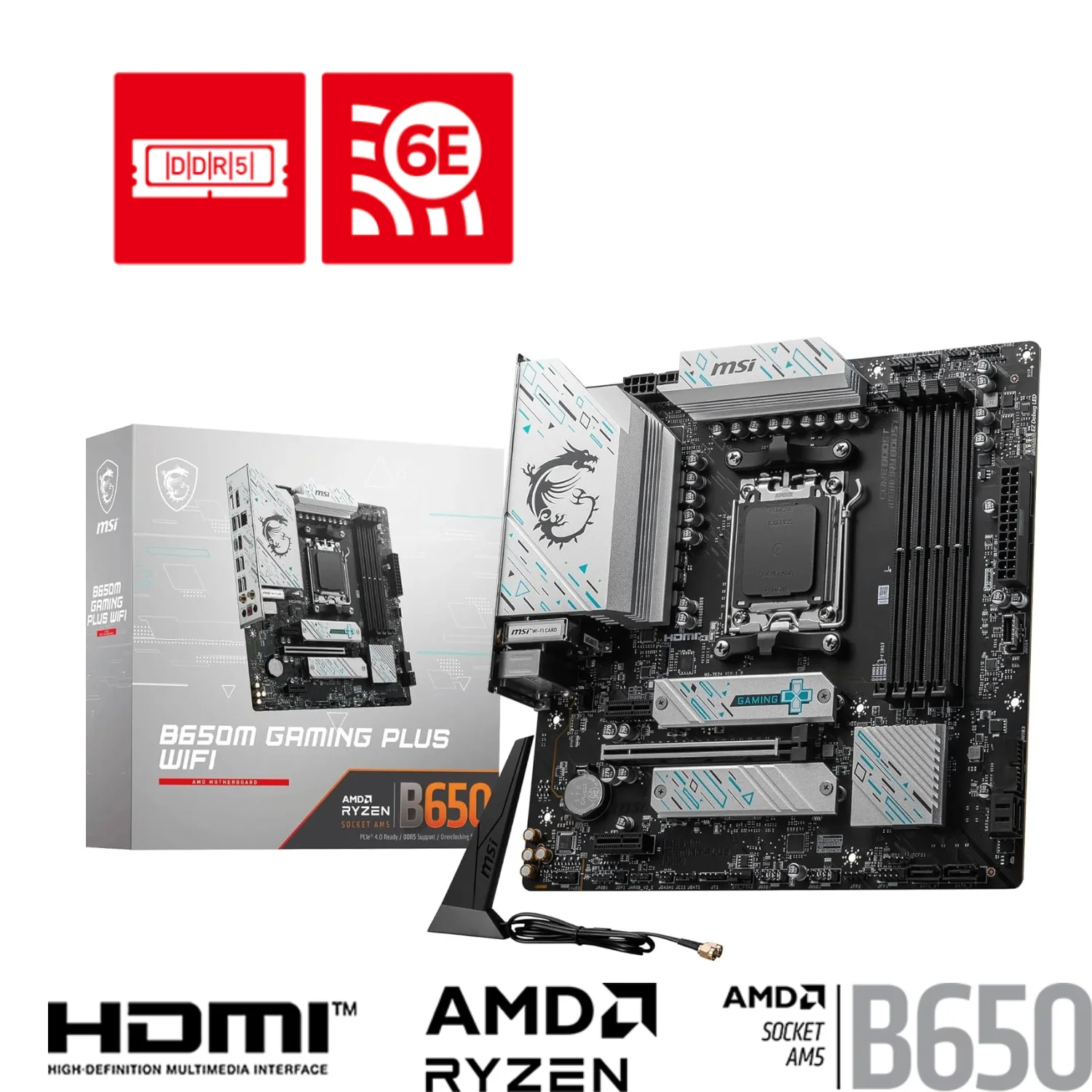

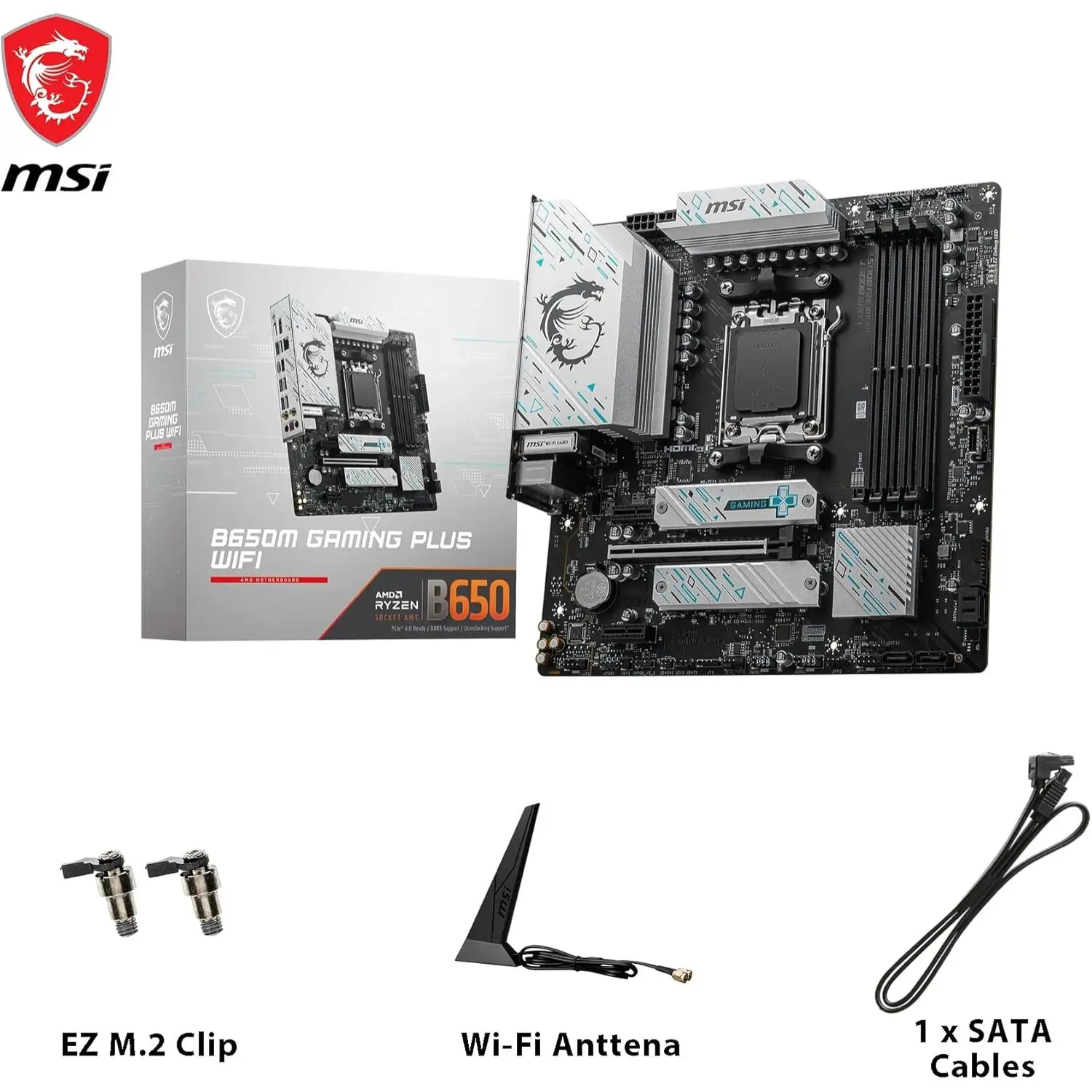

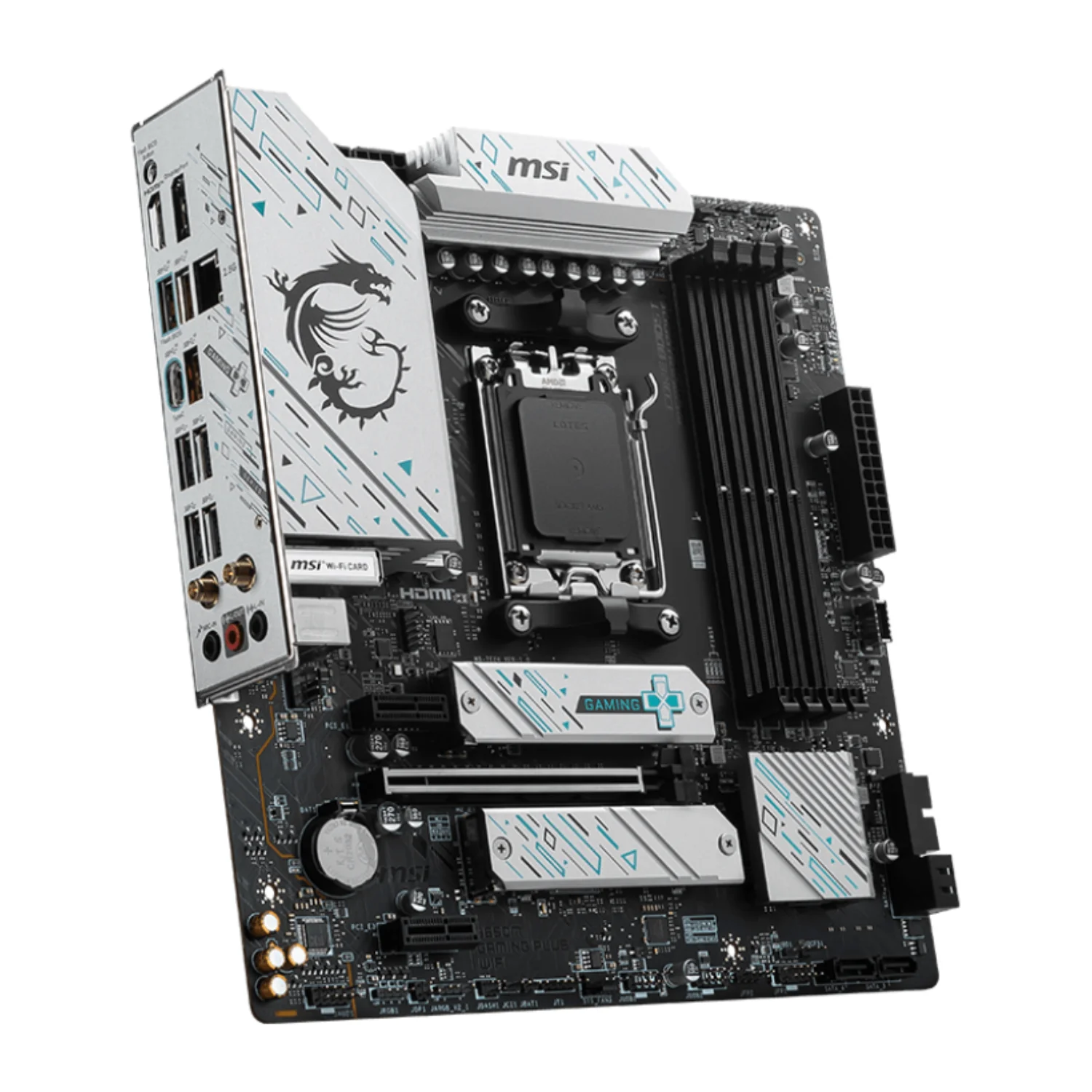

MSI B650M GAMING PLUS WIFI – Scheda Madre Micro-ATX, Socket AM5, DDR5, PCIe 4.0, USB 3.1, Wi-Fi 6E, LAN 2.5G, Bluetooth 5.3 [911-7E24-008]

169,00 €

   Chipset AMD B650
Form Factor   Form Factor Micro-ATX
Socket   Socket AM5
Tipo di Memoria   Tipo di Memoria DDR5

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4711377180955 COD: 911-7E24-008 Categoria:
Descrizione

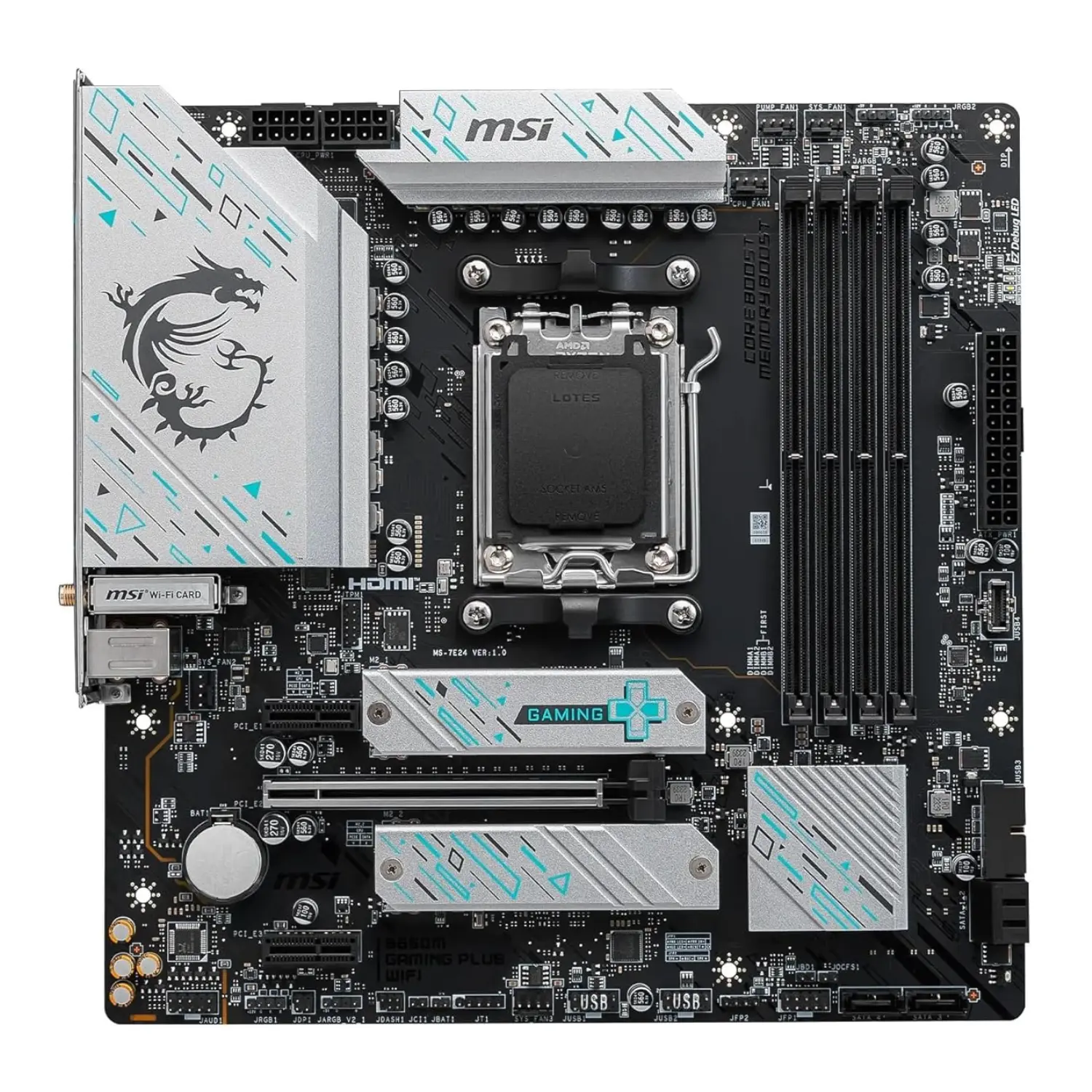

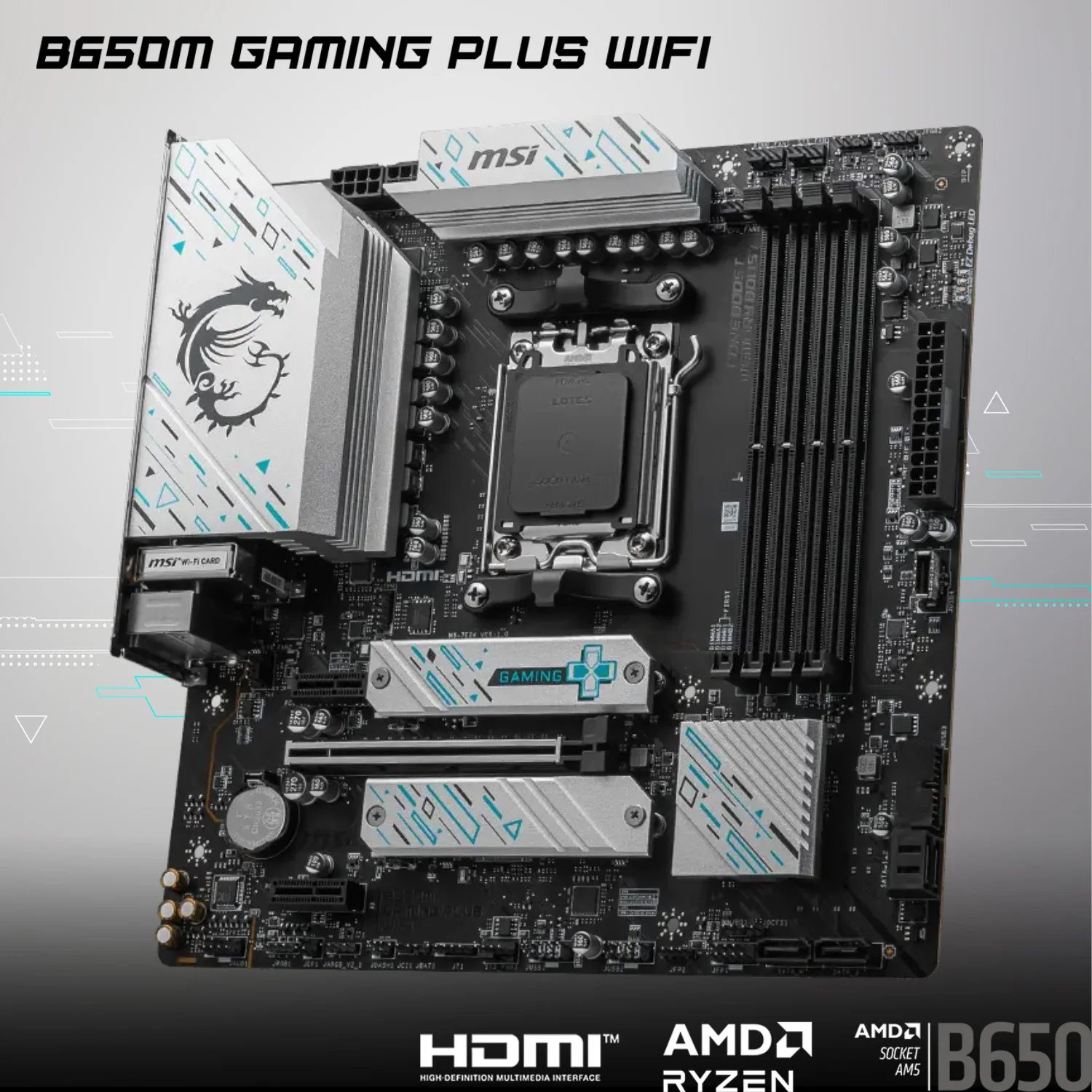

MSI B650M GAMING PLUS WIFI / 911-7E24-008 / 4711377180955

La MSI B650M GAMING PLUS WIFI offre una piattaforma compatta ma potente per costruire PC da gaming moderni basati su processori AMD Ryzen™ serie 7000 e 8000.

Il sistema di alimentazione Duet 10+2+1 con doppi connettori CPU a 8 pin, Core Boost e Memory Boost, garantisce erogazione di potenza stabile e supporto per overclocking della memoria fino a DDR5 7200+ MHz (OC).

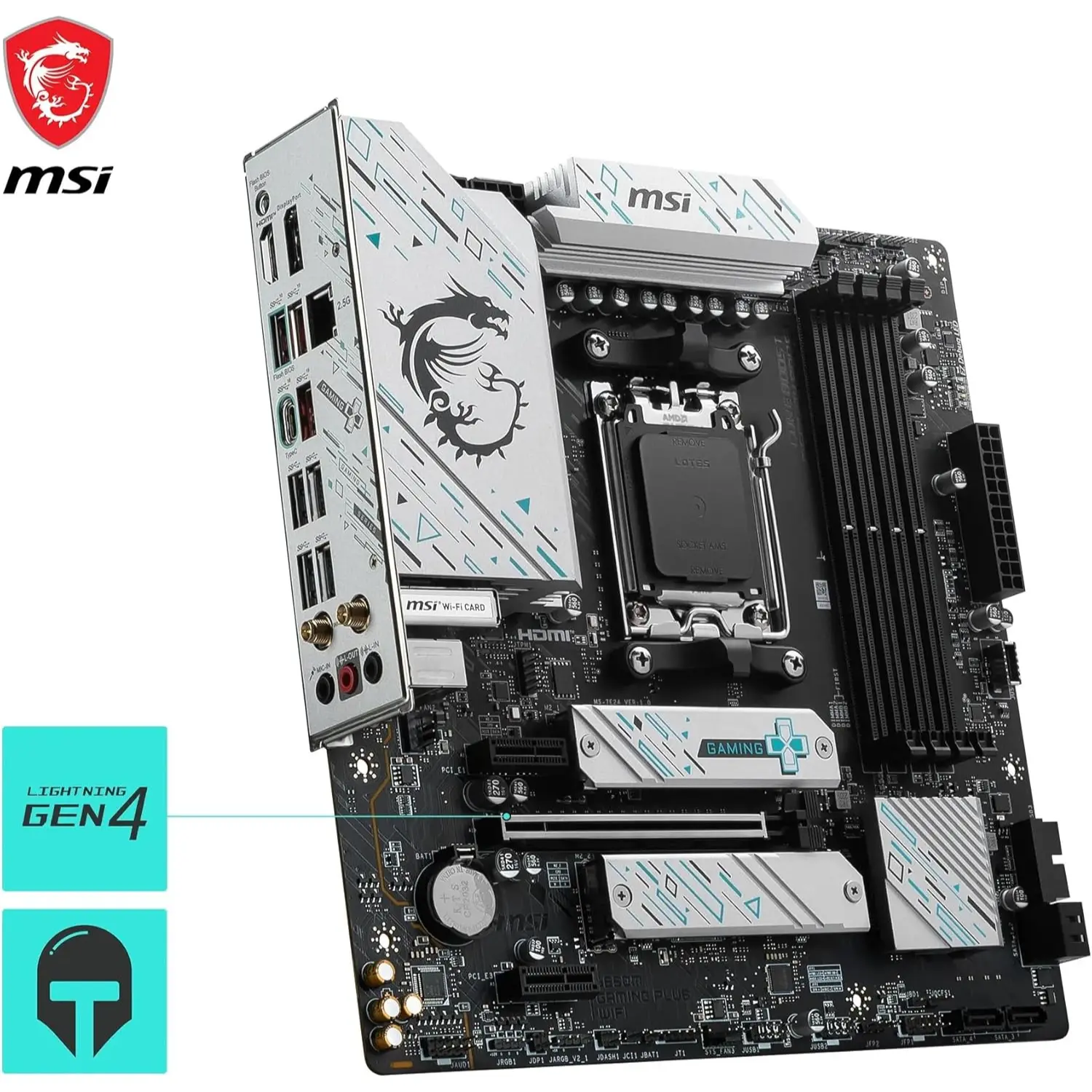

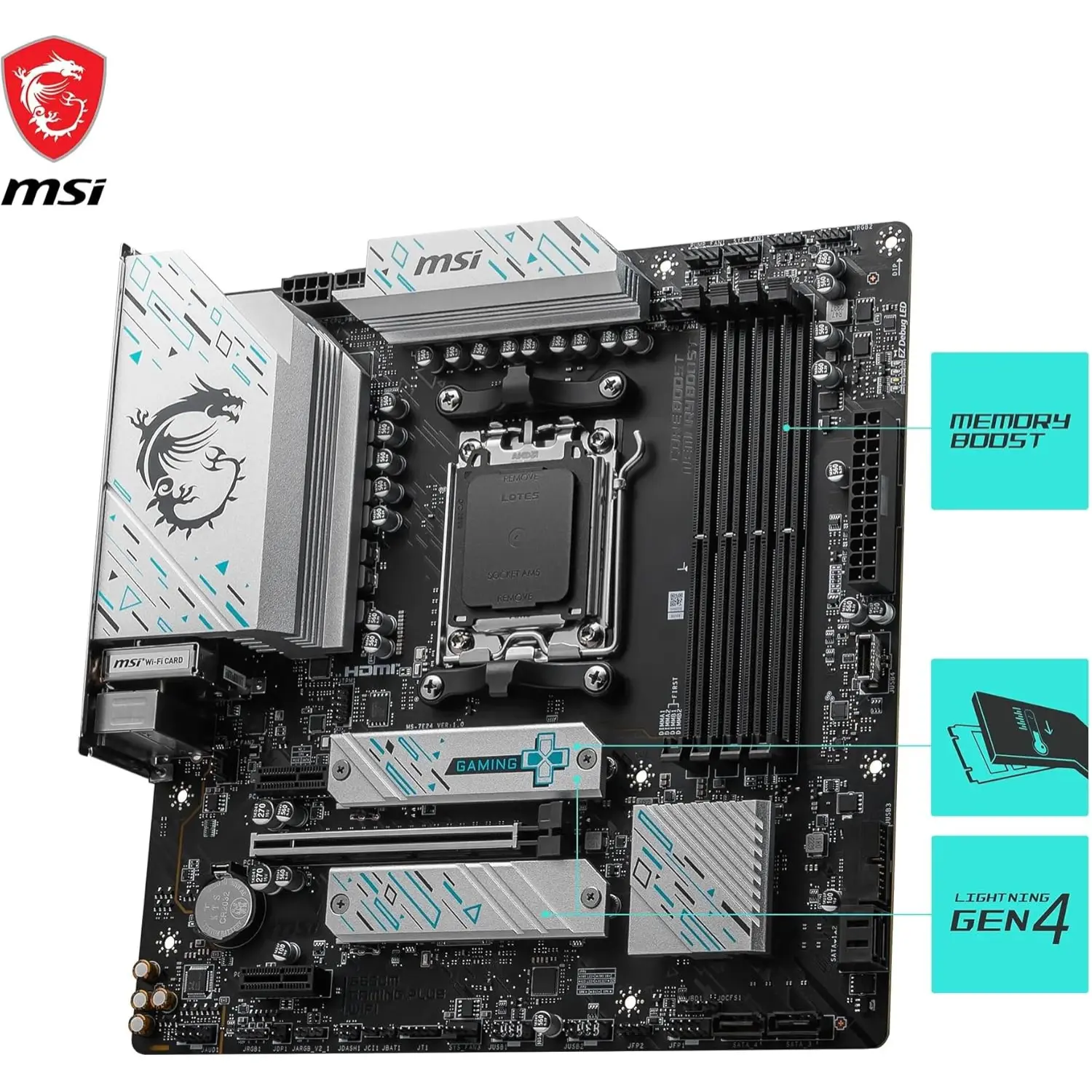

Con slot PCIe 4.0, Lightning Gen 4 M.2, connettività USB 3.2 Gen 2 e rete Wi-Fi integrata, è pensata per offrire velocità e stabilità sia in gioco che in multitasking.

Il sistema termico include dissipatori estesi e M.2 Shield Frozr per mantenere basse le temperature anche in sessioni prolungate. L’audio potenziato Audio Boost offre una qualità sonora di livello studio per un’esperienza di gioco ancora più immersiva.

Specifiche Tecniche

Caratteristica Dettagli
Formato Micro-ATX
Chipset AMD B650
Socket AM5
Supporto CPU AMD Ryzen™ serie 7000 / 8000
Memoria DDR5 Dual Channel, fino a 7200+ MHz (OC)
Alimentazione Duet Rail 10+2+1, doppi 8-pin CPU
Rete LAN 2.5Gb, Wi-Fi 6E
Slot di Espansione 2x PCIe 4.0 x16, 1x PCIe 3.0 x1
Archiviazione 2x M.2 Gen 4, 4x SATA III
USB USB 3.2 Gen 2, Gen 1 e USB 2.0
Audio Audio Boost 7.1 HD
Raffreddamento Dissipatori estesi, M.2 Shield Frozr

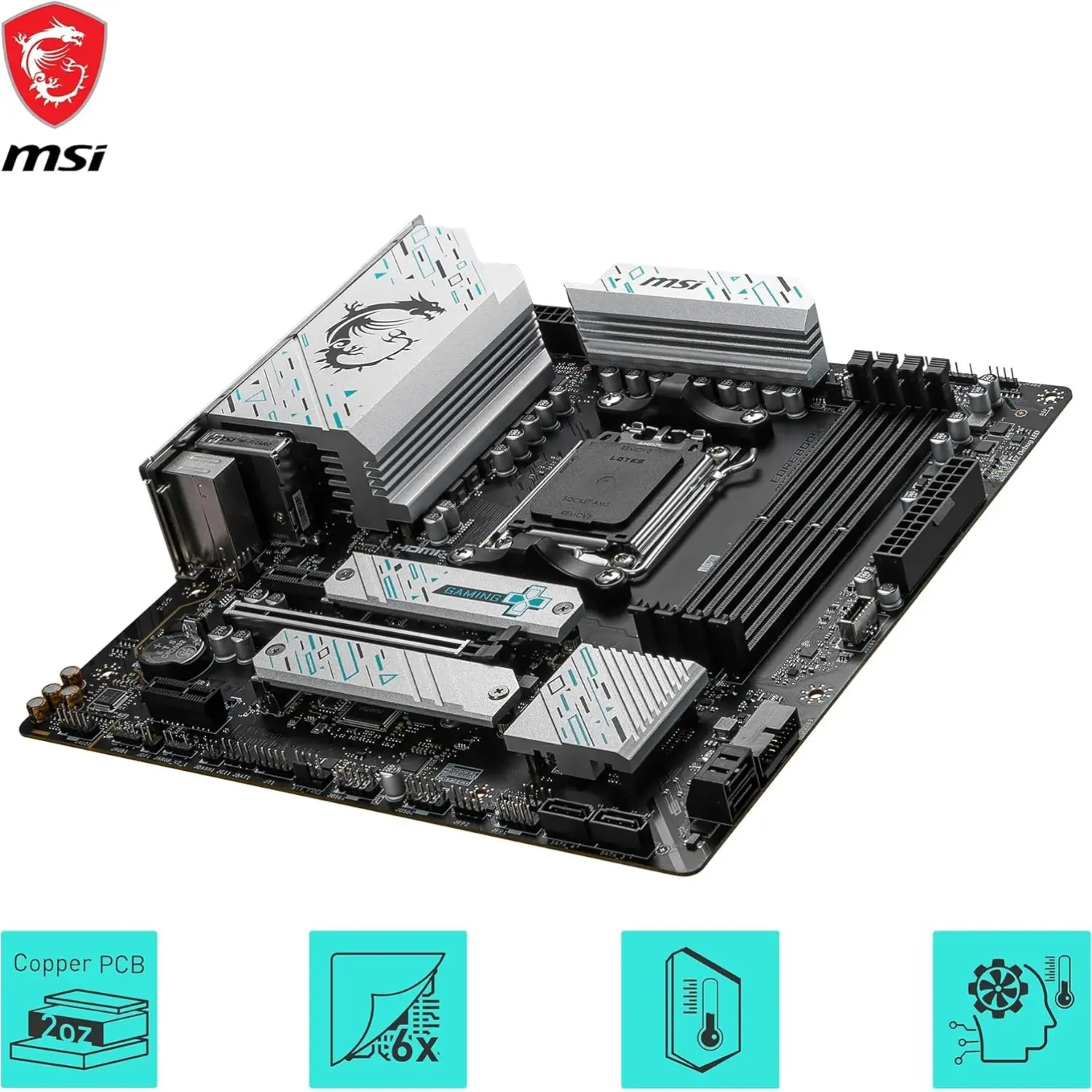

PCB 6 strati, rame 2 oz
Dimensioni 244 x 244 mm (Micro-ATX)
Informazioni aggiuntive
Peso 0,97 kg
Dimensioni 24,4 × 24,4 × 3,5 cm
M.B. - Chipset

AMD B650
CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
Onboard Graphics

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
Slot

1x PCI-E x16 slot (Qty)
• Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors)
2x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage

2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G (Qty)
• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 8500/ 8300 Series processor is installed
RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 NVMe storage devices
USB

4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN

Realtek® RTL8125BG 2.5Gbps LAN
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3
LED FEATURE

4x EZ Debug LED

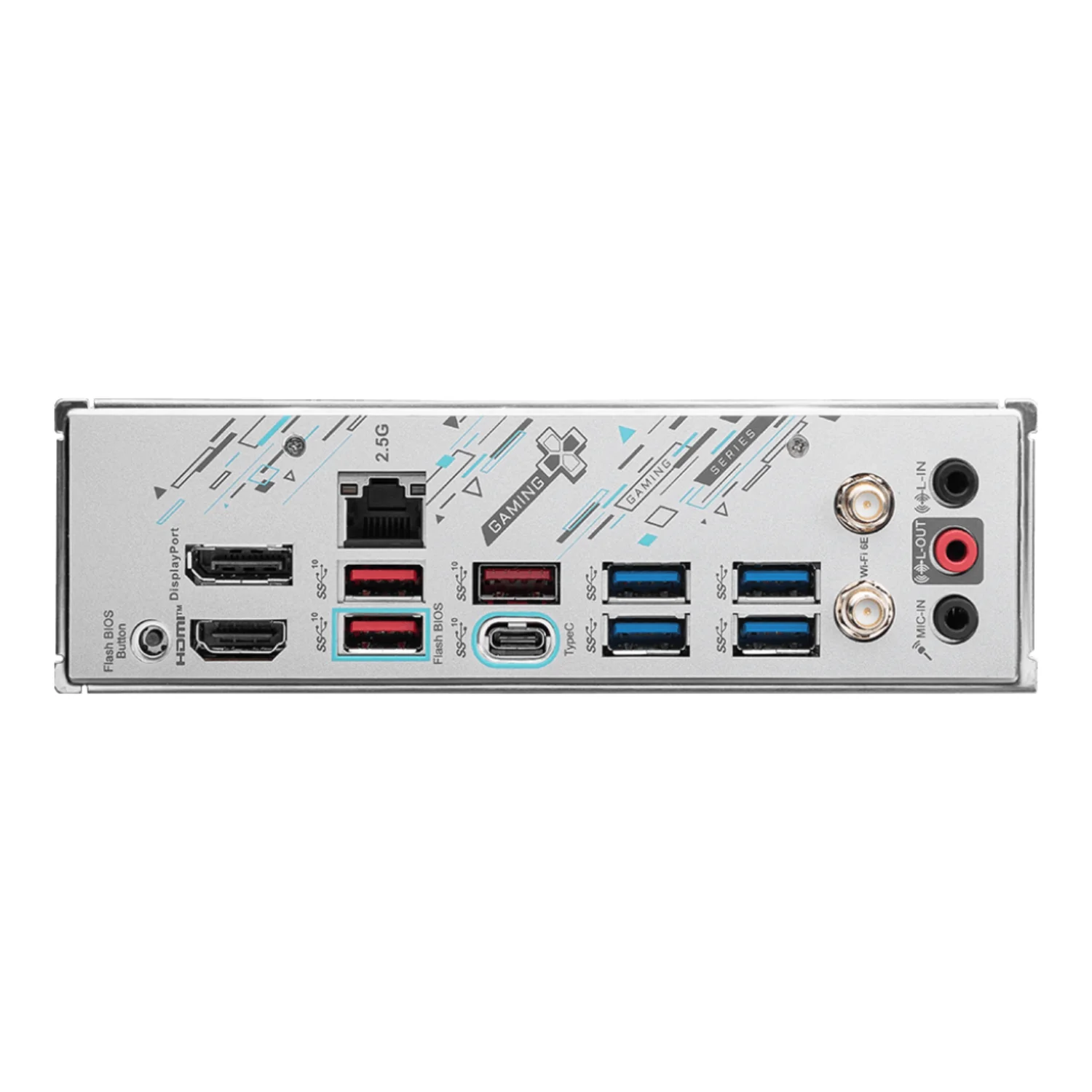

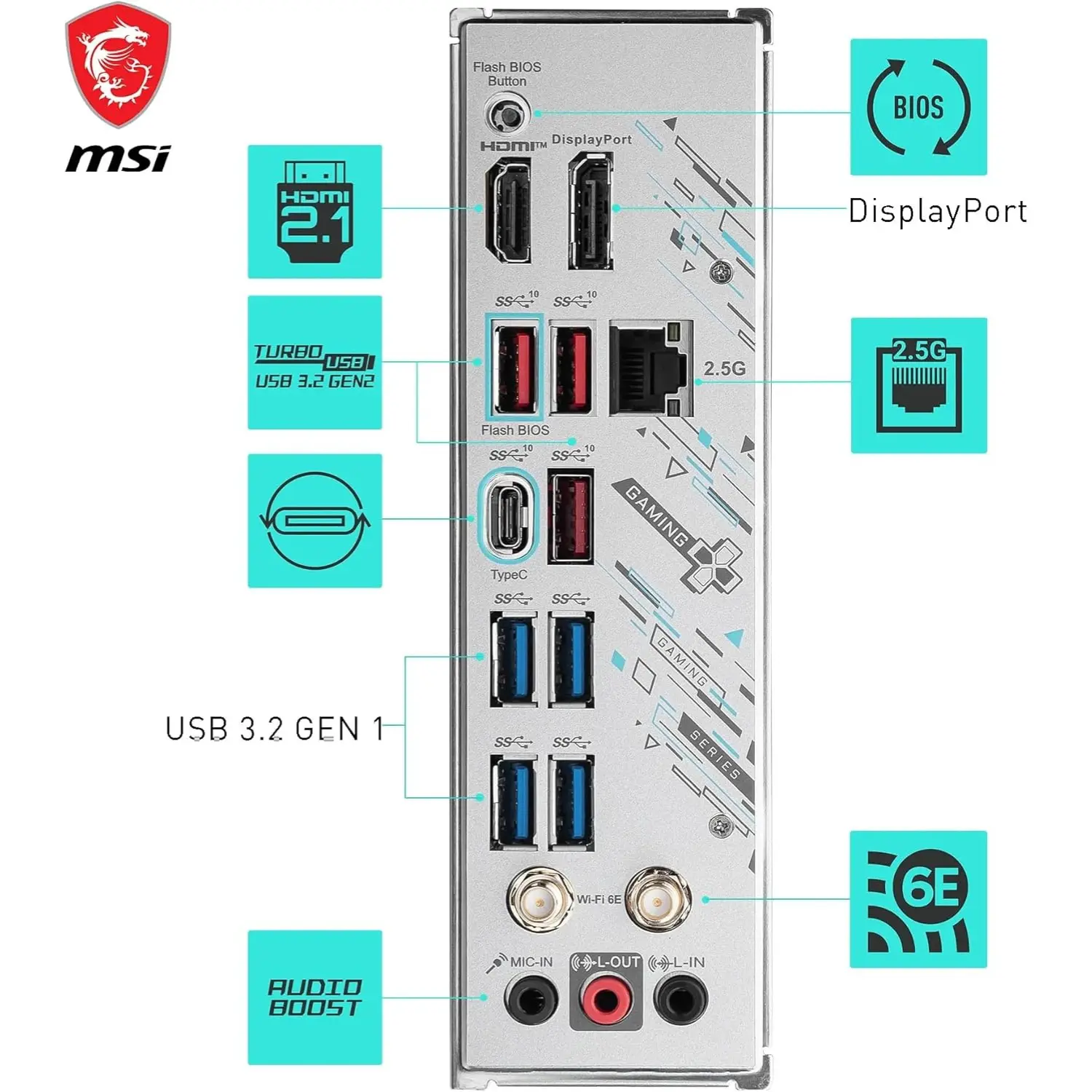

BACK PANEL PORTS

DisplayPort
2.5G LAN
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
Wi-Fi / Bluetooth
Flash BIOS Button
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
Audio connectors
OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info

mATX
243.84mmx243.84mm
