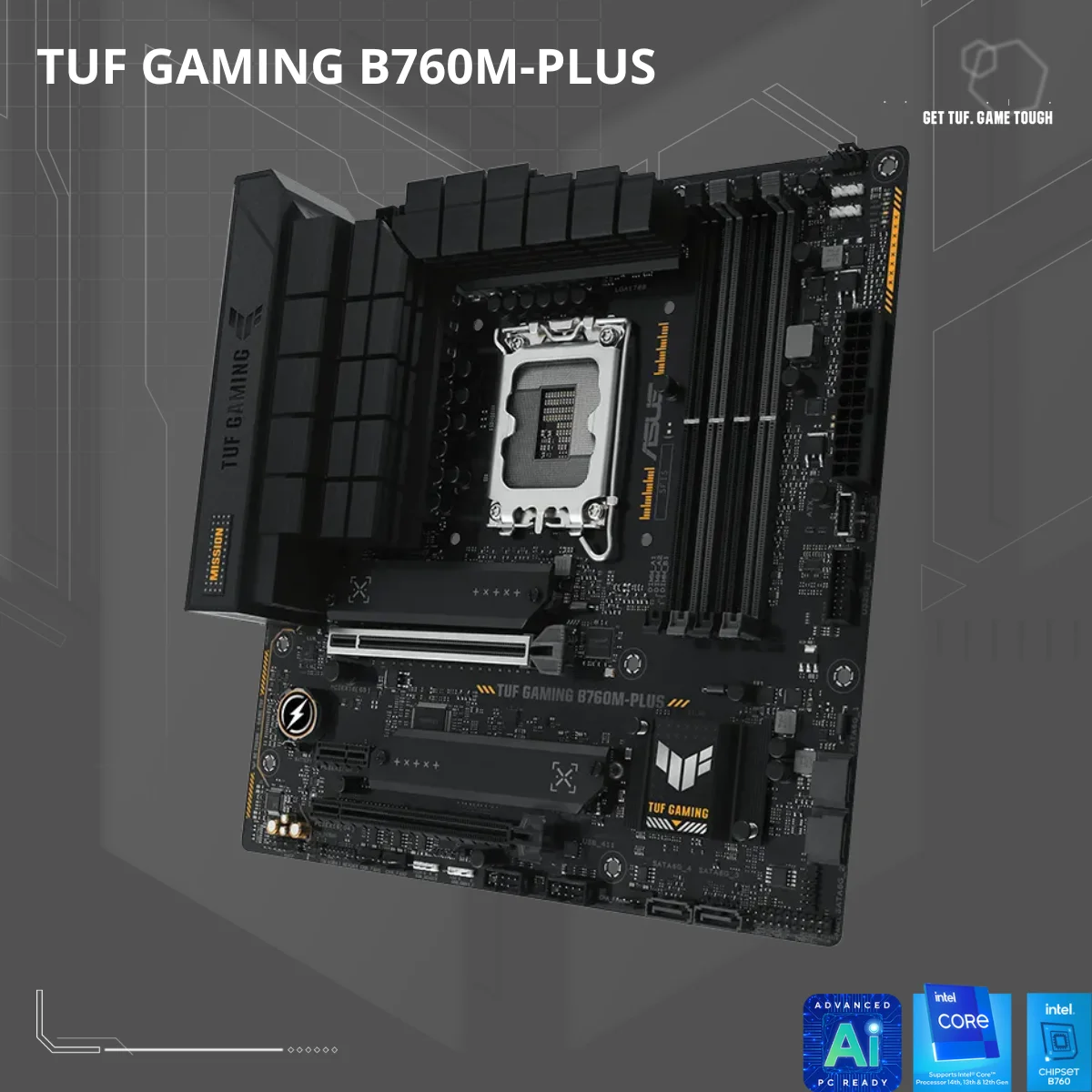

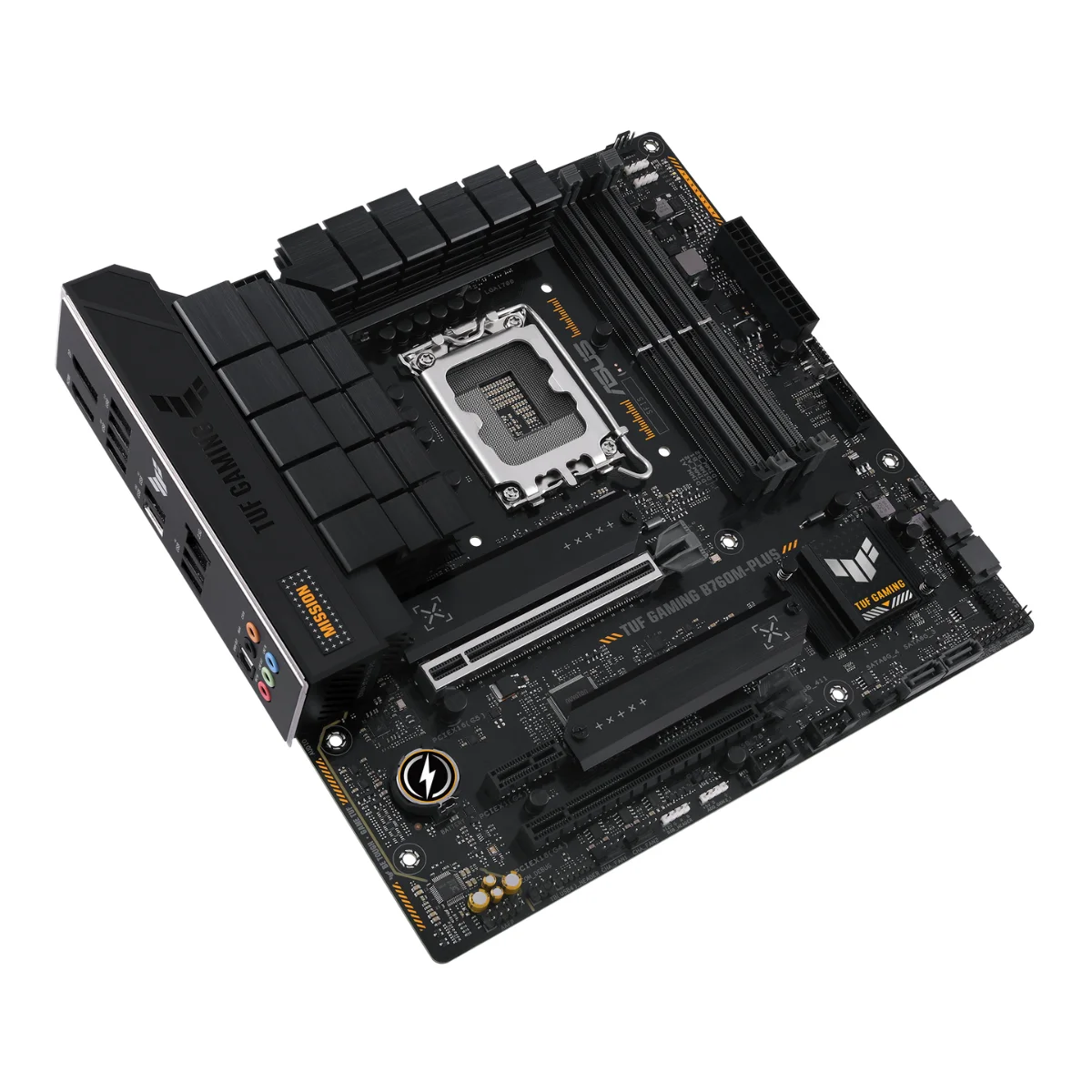

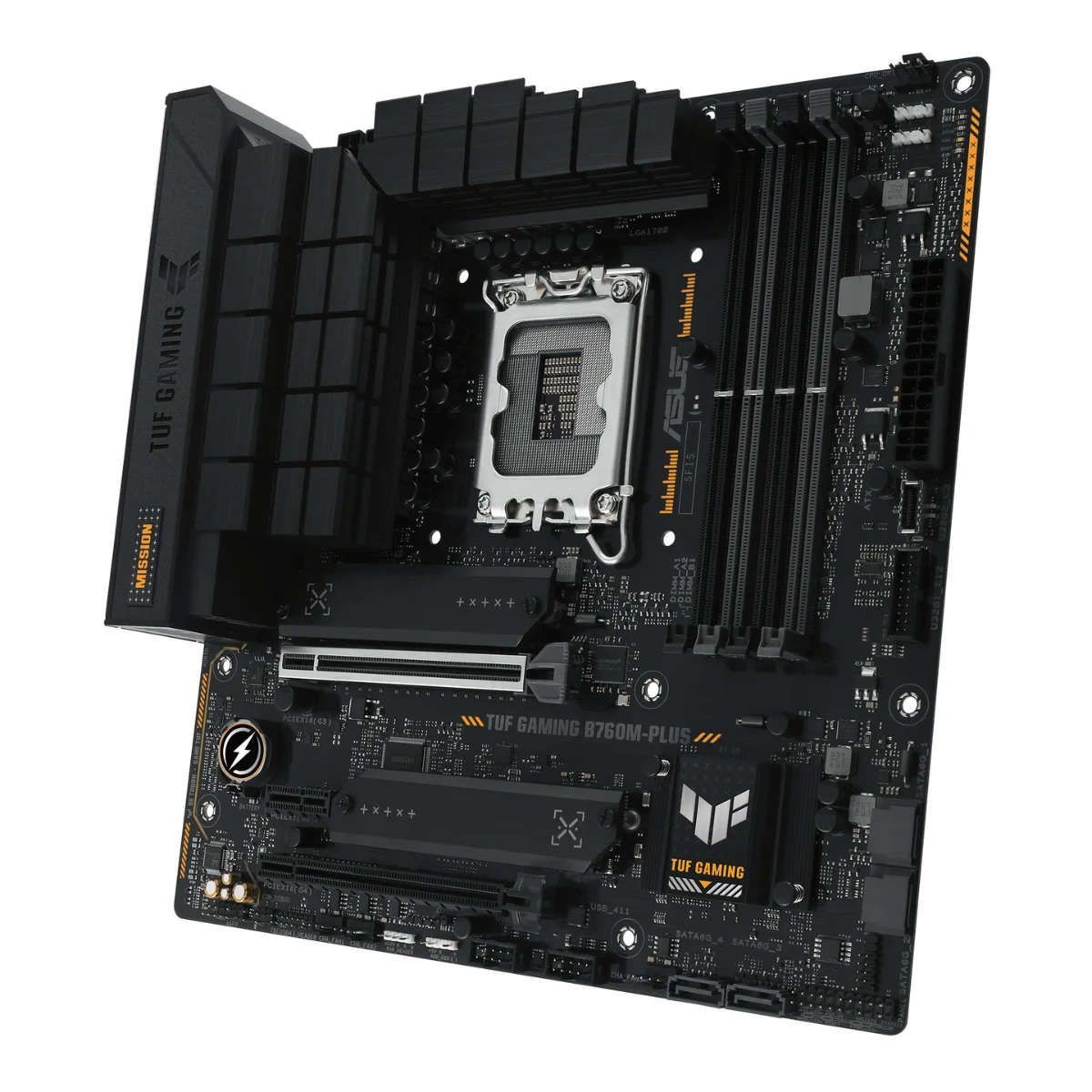

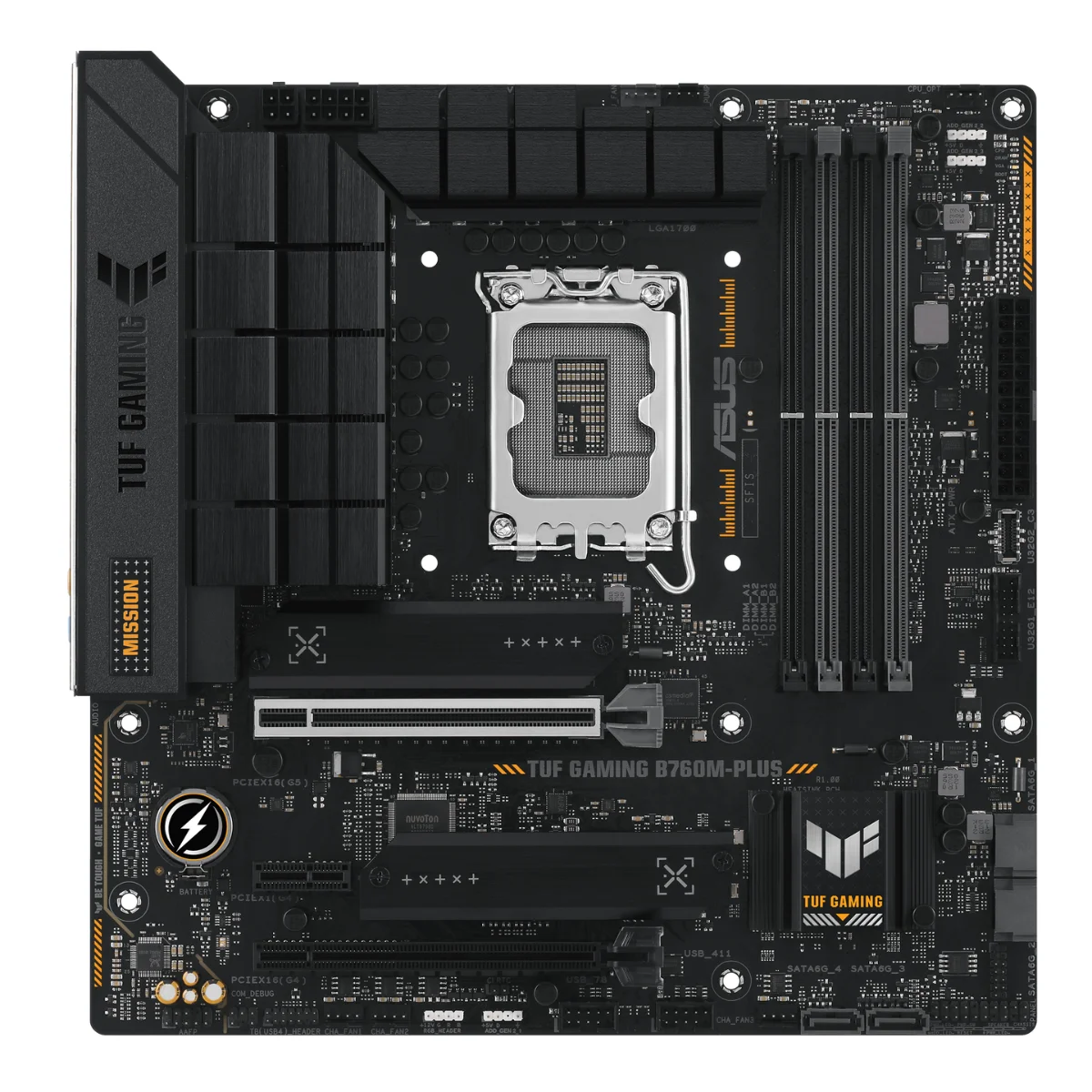

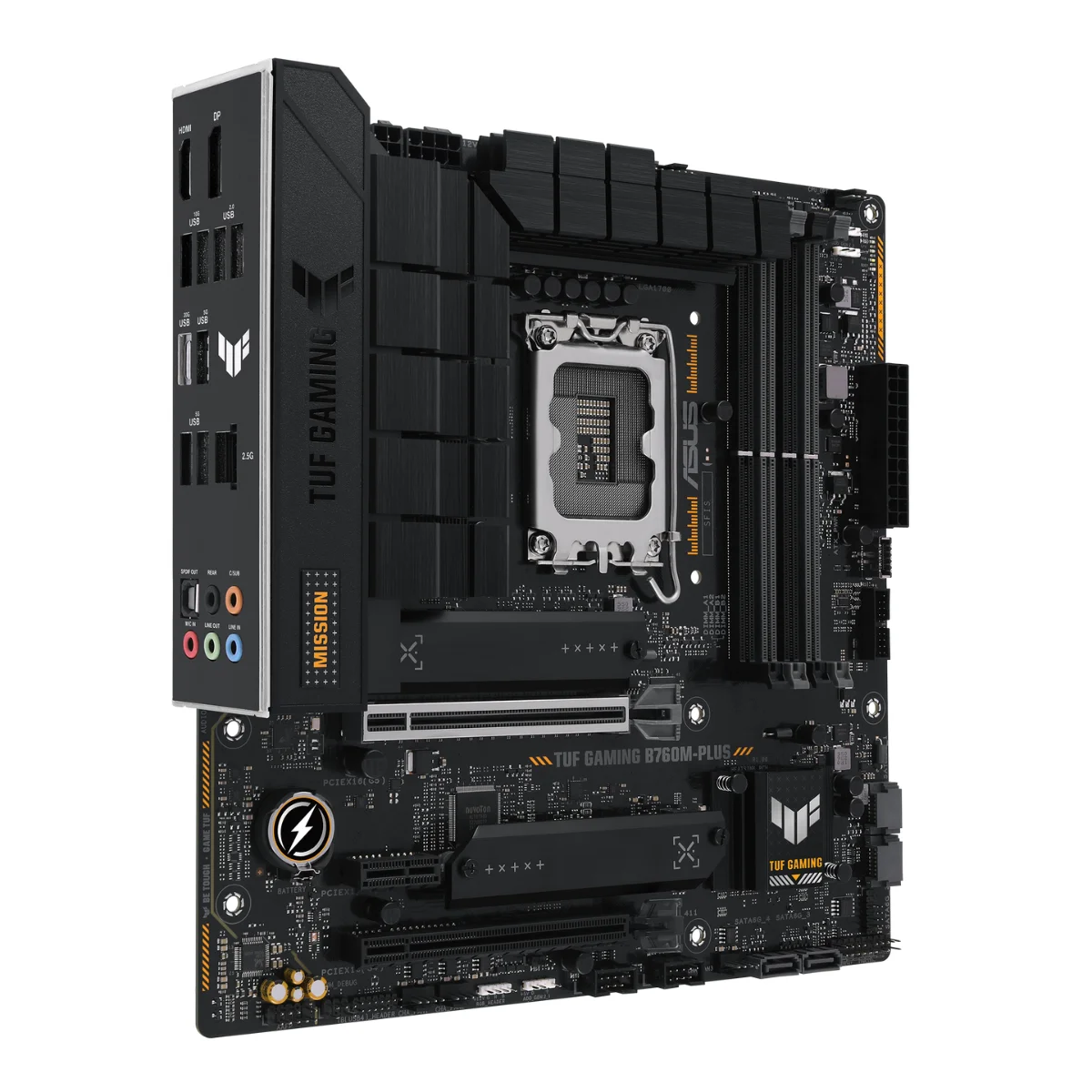

ASUS TUF GAMING B760M-PLUS – Scheda Madre Micro-ATX, Socket LGA 1700, DDR5, PCIe 5.0, USB 3.2, LAN 2.5G, Aura Sync [90MB1ES0-M1EAY0]

Tutti i prodotti ASUS ASUS Store Italia

0 Persone guardano adesso questo prodotto!

EAN: 4711387139349 COD: 90MB1ES0-M1EAY0 Categoria: LGA 1700

Descrizione

ASUS TUF Gaming B760M-PLUS / 90MB1ES0-M1EAY0 / 4711387139349

La ASUS TUF Gaming B760M-PLUS unisce le più recenti tecnologie Intel® a componenti di livello militare, un sistema di alimentazione ottimizzato e un raffreddamento avanzato. Supporta CPU Intel® Core™ 14ᵃ/13ᵃ/12ᵃ generazione, memoria DDR5, slot PCIe 5.0, connettività LAN 2.5Gb e USB Type-C® ad alta velocità, offrendo stabilità e prestazioni ideali per il gaming prolungato.

La ASUS TUF Gaming B760M-PLUS è progettata per garantire prestazioni affidabili e durature anche nelle sessioni di gioco più intense. Costruita con componenti di livello militare e dotata di un sistema di alimentazione avanzato, offre un raffreddamento completo per mantenere il sistema stabile sotto carico.

Caratteristiche principali:

Compatibilità CPU: supporta Intel® Core™ 14ᵃ, 13ᵃ e 12ᵃ generazione, oltre a Pentium® Gold e Celeron®, su socket LGA 1700.
Potenza affidabile: alimentazione 12(50A)+1(60A)+1 fasi con dissipatori VRM ingranditi per un migliore controllo termico.
Espansione grafica di ultima generazione: slot PCIe 5.0 per schede grafiche ad alte prestazioni.
Memoria DDR5: supporto per moduli ad alta velocità per una risposta rapida e fluida.
Connettività moderna: USB 3.2 Gen 2×2 Type-C®, header frontale USB 3.2 Gen 2 Type-C®, LAN 2.5Gb.
Funzioni intelligenti: Two-Way AI Noise Cancelation per comunicazioni vocali più chiare.
Design robusto: estetica con placca in rilievo ed elementi geometrici, tipica della serie TUF Gaming, sinonimo di stabilità e resistenza.

Specifiche Tecniche

Caratteristica	Dettagli
Marca	ASUS
Modello	TUF Gaming B760M-PLUS
Formato	Micro-ATX
Socket	LGA 1700
Chipset	Intel® B760
Compatibilità CPU	Intel® Core™ 14ᵃ/13ᵃ/12ᵃ gen, Pentium® Gold, Celeron®
Memoria	DDR5
Slot RAM	4 x DIMM
Slot PCI Express	1 x PCIe 5.0 x16, altri slot PCIe
Archiviazione	Slot M.2, porte SATA
Rete	LAN 2.5Gb
Audio	Two-Way AI Noise Cancelation, audio HD
USB	USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2 Type-C frontale, altre USB
Alimentazione	12(50A)+1(60A)+1 fasi, dissipatori VRM ingranditi
Codice prodotto	90MB1ES0-M1EAY0
EAN	4711387139349

Domande Frequenti (FAQ)

1. La ASUS TUF Gaming B760M-PLUS è compatibile con processori Intel di 14ᵃ generazione?
Sì, supporta Intel® Core™ di 14ᵃ, 13ᵃ e 12ᵃ generazione, oltre a Pentium® Gold e Celeron®.

2. Qual è la garanzia del prodotto?
La garanzia può variare in base al rivenditore, ma normalmente ASUS offre 3 anni di copertura.

3. La scheda supporta memoria DDR4?
No, questo modello è compatibile solo con moduli DDR5.

4. Il sistema di raffreddamento è sufficiente per uso intensivo?
Sì, grazie ai dissipatori VRM ingranditi e al design termico ottimizzato, mantiene temperature stabili anche sotto carico pesante.

5. È adatta per configurazioni gaming di fascia alta?
Sì, con PCIe 5.0, DDR5 e connettività moderna, è ideale per build gaming ad alte prestazioni.

Per ulteriori dettagli e specifiche complete, visita la pagina ufficiale ASUS TUF Gaming B760M-PLUS.

Informazioni aggiuntive

Peso	1,568 kg
Dimensioni	24,4 × 24,4 × 3,5 cm
M.B. - Chipset	Intel B760
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Memory	4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II
Graphics	1 x DisplayPort 1 x HDMI™port
Expansion Slots	Intel® 14th &13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 14th &13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Ethernet	1 x Realtek 2.5Gb Ethernet TUF LANGuard
USB	Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback " Audio Features – Audio Shielding – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers

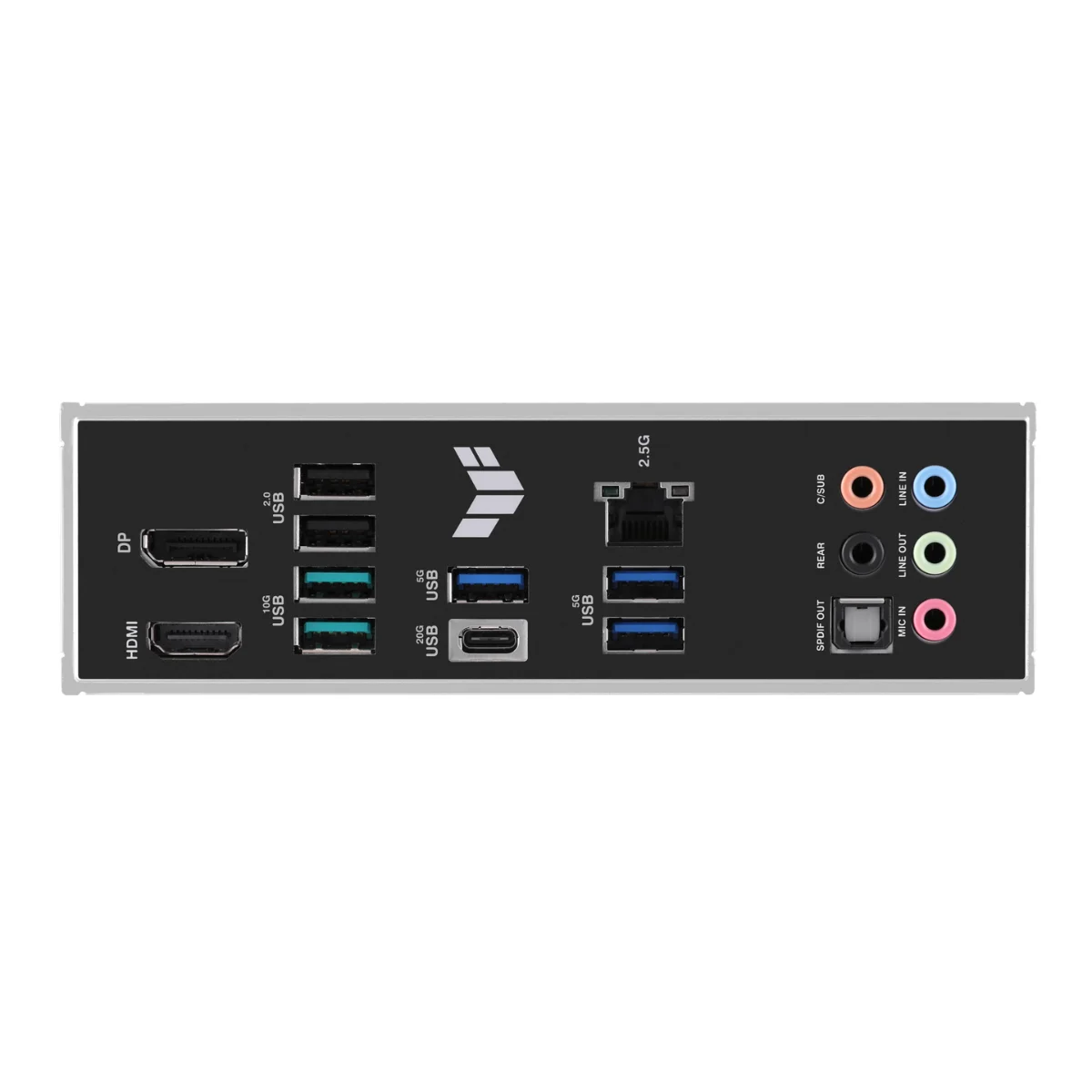

Back Panel I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Internal I/O Connectors	I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header
Special Features	ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – CPU Socket lever protector – ProCool – Pre-mounted I/O shield – SafeDIMM AURA Sync – AURA RGB header – Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Fan Xpert 2+ – Power Saving – Two-Way AI Noise Cancelation AI Suite 3 DIGI+ VRM – PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

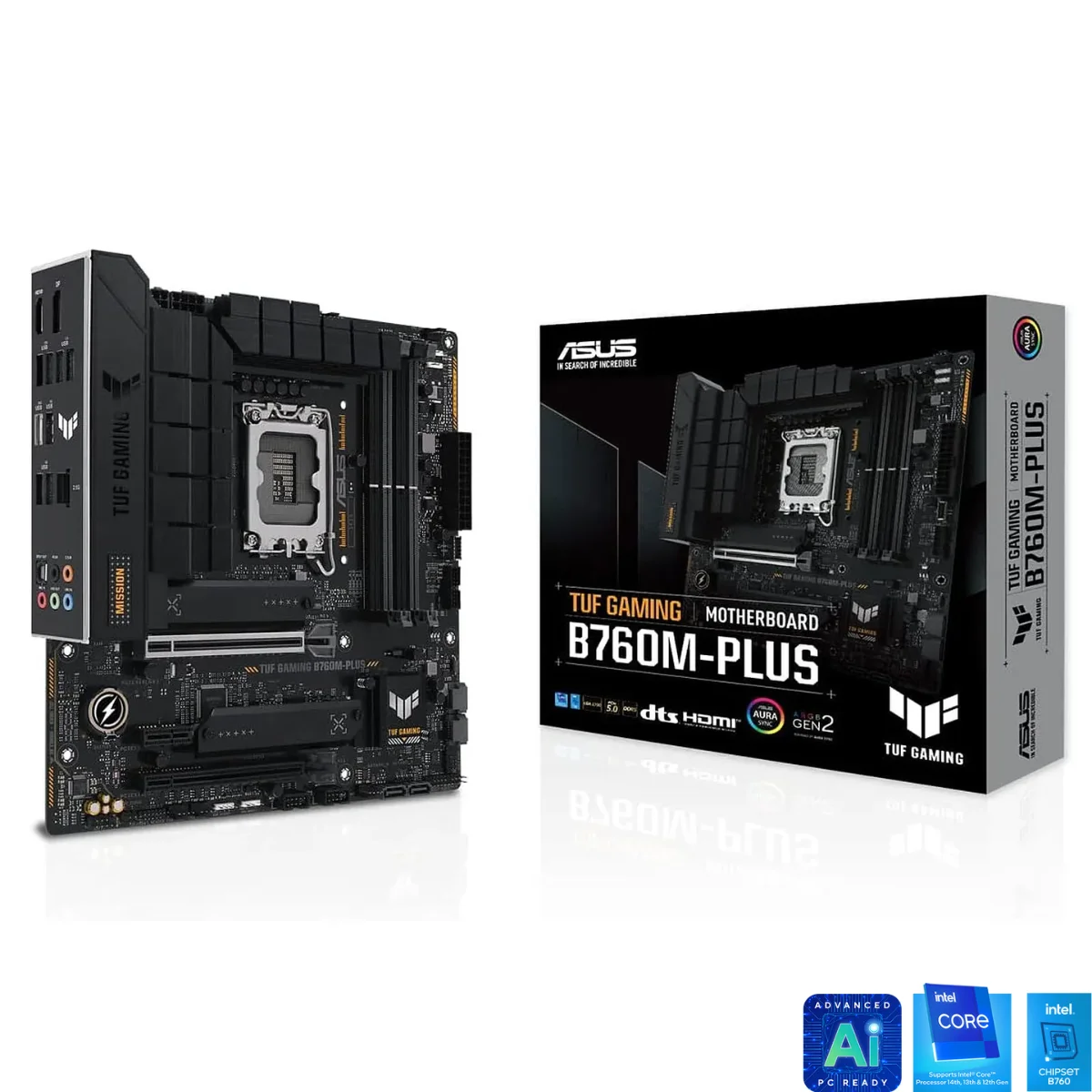

Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD 1 x TUF Gaming sticker Documentation 1 x TUF Certification card 1 x User guide
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
