TUF Gaming

ASUS TUF GAMING B760M-PLUS WIFI II – Scheda Madre Micro-ATX, DDR5, LGA 1700, PCIe 5.0, LAN 2.5G, Wi-Fi 6E, Bluetooth 5.3, Aura Sync [90MB1HE0-M0EAY0]

199,00 €

   Chipset Intel B760
Form Factor   Form Factor Micro-ATX
Socket   Socket LGA 1700
Tipo di Memoria   Tipo di Memoria DDR5

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4711387461365 COD: 90MB1HE0-M0EAY0 Categoria: Tag: , , , , , , , , , ,
Descrizione

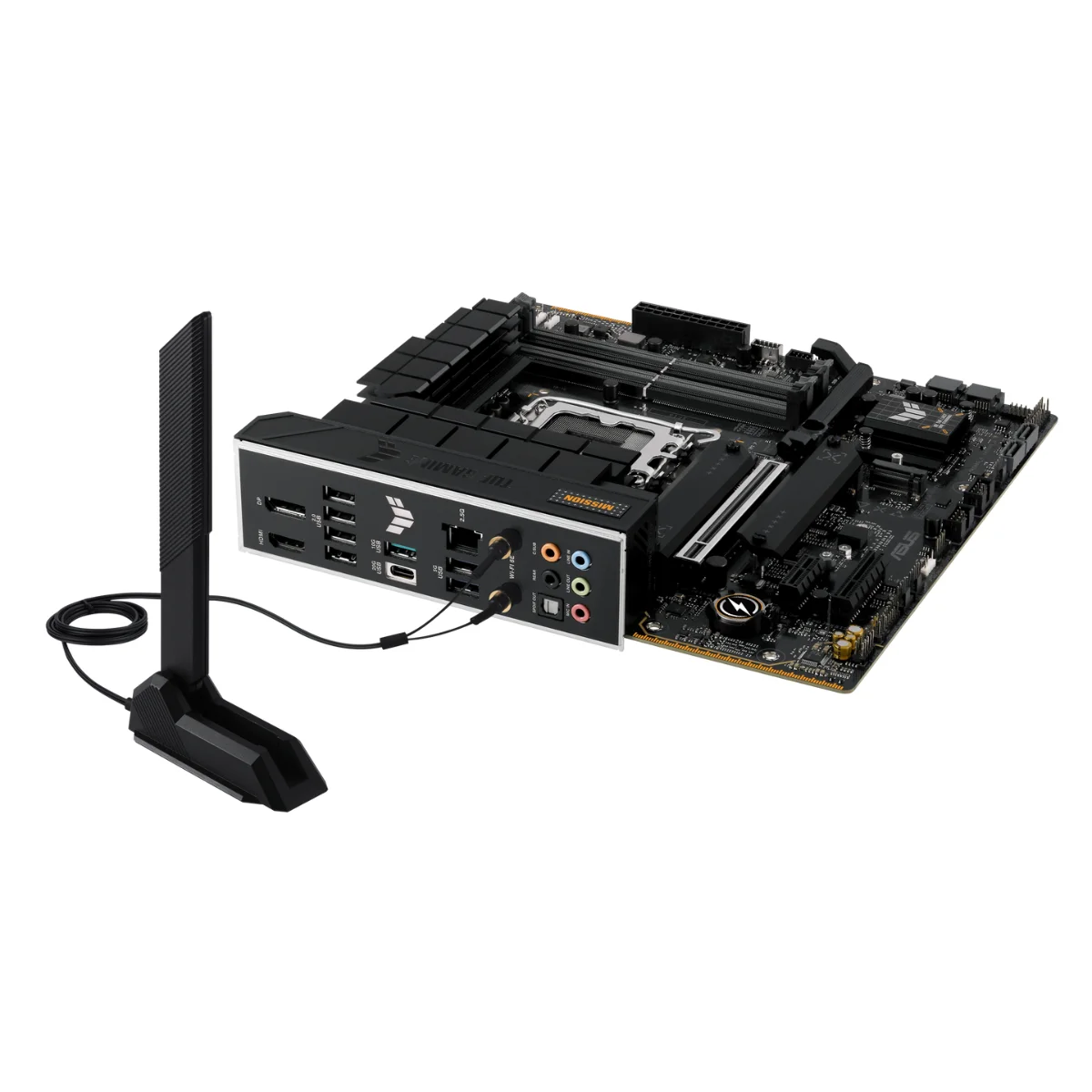

ASUS TUF GAMING B760M-PLUS WIFI II / 90MB1HE0-M0EAY0 / 4711387461365

La ASUS TUF Gaming B760M-PLUS WiFi II combina la potenza dei più recenti processori Intel® con componenti di livello militare, un sistema di alimentazione avanzato e un raffreddamento completo. Supporta CPU Intel® Core™ 14ᵃ/13ᵃ/12ᵃ generazione, memoria DDR5, slot PCIe 5.0, LAN 2.5Gb e Wi-Fi 6E, offrendo prestazioni solide e affidabilità per lunghe maratone di gioco.

La ASUS TUF Gaming B760M-PLUS WiFi II è progettata per garantire prestazioni stabili e durature, anche nelle sessioni di gioco più impegnative. Costruita con componenti di livello militare, offre una soluzione di alimentazione ottimizzata e un sistema di raffreddamento avanzato per mantenere il PC sempre reattivo.

Caratteristiche principali:

  • Compatibilità CPU: supporta Intel® Core™ 14ᵃ, 13ᵃ e 12ᵃ generazione, oltre a Pentium® Gold e Celeron®, su socket LGA 1700.

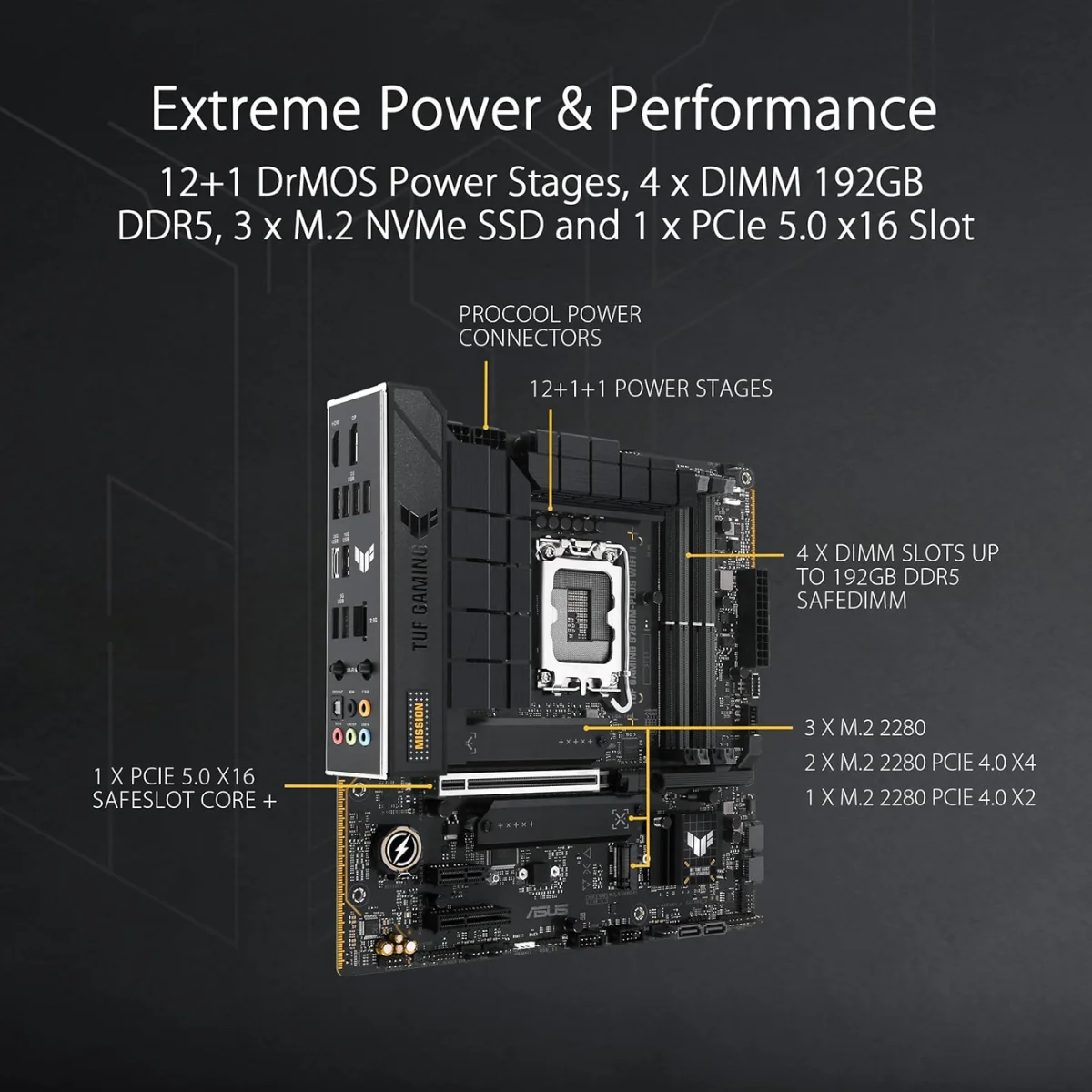

  • Potenza affidabile: alimentazione 12(50A)+1(60A)+1 fasi con dissipatori VRM ingranditi per una migliore gestione termica.

  • Espansione grafica di nuova generazione: slot PCIe 5.0 rinforzato per schede grafiche di fascia alta.

  • Memoria DDR5: supporto a moduli ad alte prestazioni per velocità e reattività ottimali.

  • Connettività moderna: USB 20Gbps Type-C®, connettore USB 10Gbps Type-C® frontale, LAN 2.5Gb, Wi-Fi 6E con Q-Antenna.

  • Funzioni esclusive: PCIe Q-Release per rimozione rapida della scheda video, cancellazione del rumore Two-Way AI per comunicazioni più chiare.

  • Design robusto: estetica con elementi geometrici e placchetta in rilievo tipiche della serie TUF Gaming, simbolo di stabilità e resistenza.

Specifiche Tecniche

Caratteristica Dettagli
Marca ASUS
Modello TUF Gaming B760M-PLUS WiFi II
Formato Micro-ATX
Socket LGA 1700
Chipset Intel® B760
Compatibilità CPU Intel® Core™ 14ᵃ/13ᵃ/12ᵃ gen, Pentium® Gold, Celeron®
Memoria DDR5
Slot RAM 4 x DIMM
Slot PCI Express 1 x PCIe 5.0 x16, altri slot PCIe
Archiviazione Slot M.2, porte SATA
Rete LAN 2.5Gb, Wi-Fi 6E
Audio Cancellazione rumore Two-Way AI, audio HD
USB USB 20Gbps Type-C, USB 10Gbps Type-C frontale, altre USB
Alimentazione 12(50A)+1(60A)+1 fasi, dissipatori VRM ingranditi
Funzioni extra PCIe Q-Release, Q-Antenna
Codice prodotto 90MB1HE0-M0EAY0
EAN 4711387461365

Domande Frequenti (FAQ)

1. La ASUS TUF Gaming B760M-PLUS WiFi II è compatibile con processori Intel di 14ᵃ generazione?
Sì, supporta Intel® Core™ di 14ᵃ, 13ᵃ e 12ᵃ generazione, oltre a Pentium® Gold e Celeron®.

2. Qual è la garanzia del prodotto?
La garanzia può variare in base al rivenditore, ma normalmente ASUS offre 3 anni di copertura.

3. La scheda supporta memoria DDR4?
No, questo modello è compatibile solo con moduli DDR5.

4. Il sistema di raffreddamento è sufficiente per uso intensivo?
Sì, grazie ai dissipatori VRM ingranditi e alla progettazione TUF Gaming, mantiene temperature stabili anche durante sessioni prolungate.

5. È adatta per configurazioni gaming di fascia alta?
Assolutamente sì. Con PCIe 5.0, DDR5 e connettività avanzata, è ideale per build ad alte prestazioni.

Per ulteriori dettagli e specifiche complete, visita la pagina ufficiale ASUS TUF Gaming B760M-PLUS WiFi II.

Informazioni aggiuntive
Peso 0,78 kg
Dimensioni 24,4 × 24,4 × 3,5 cm
M.B. - Chipset

Intel B760
CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Memory

4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Graphics

1 x DisplayPort
1 x HDMI™port
Expansion Slots

Intel® CoreTM Processors (14th & 13th & 12th Gen)*
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet

1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth

Wi-Fi 6E
2×2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 8 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers

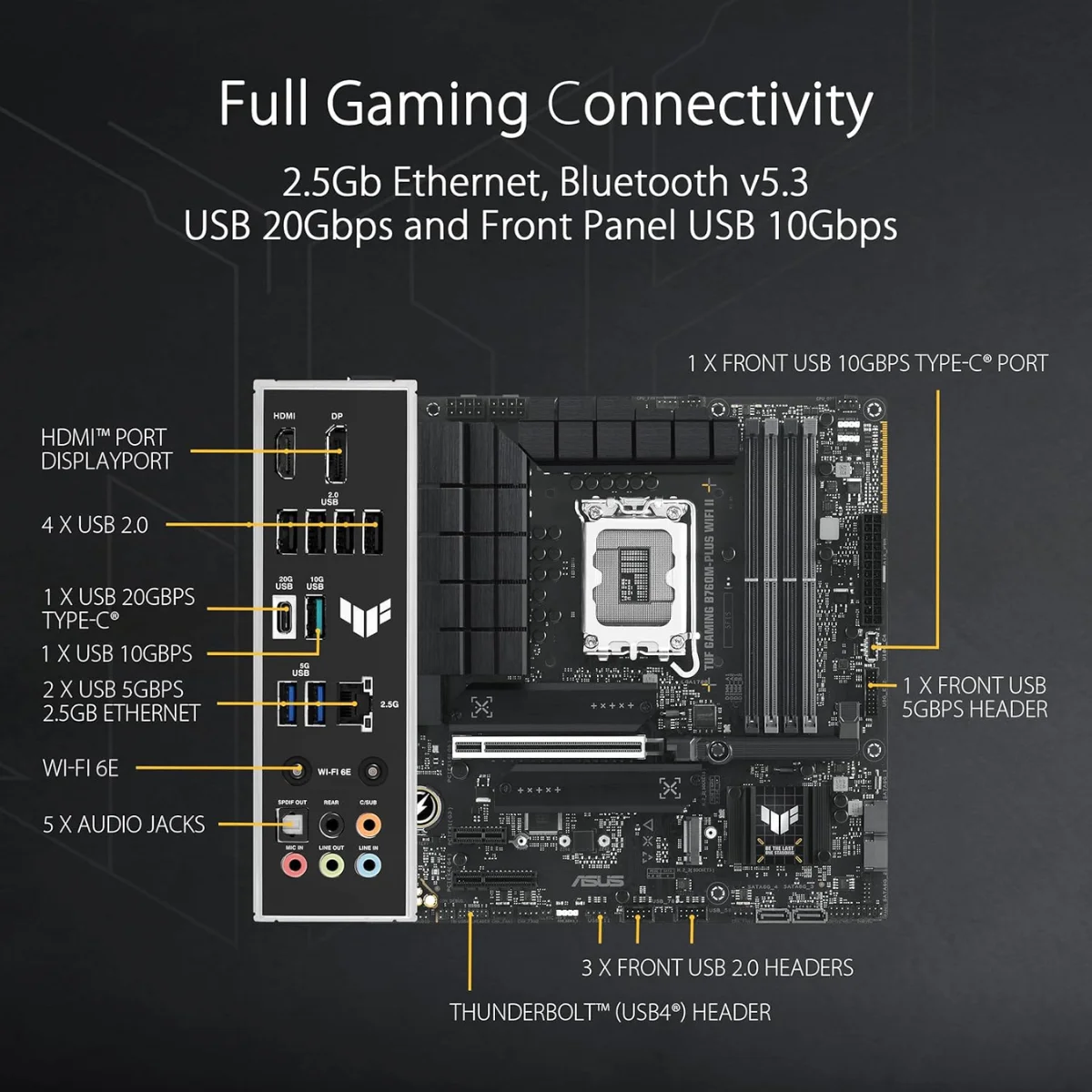

Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors

I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
Special Features

ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Antenna
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

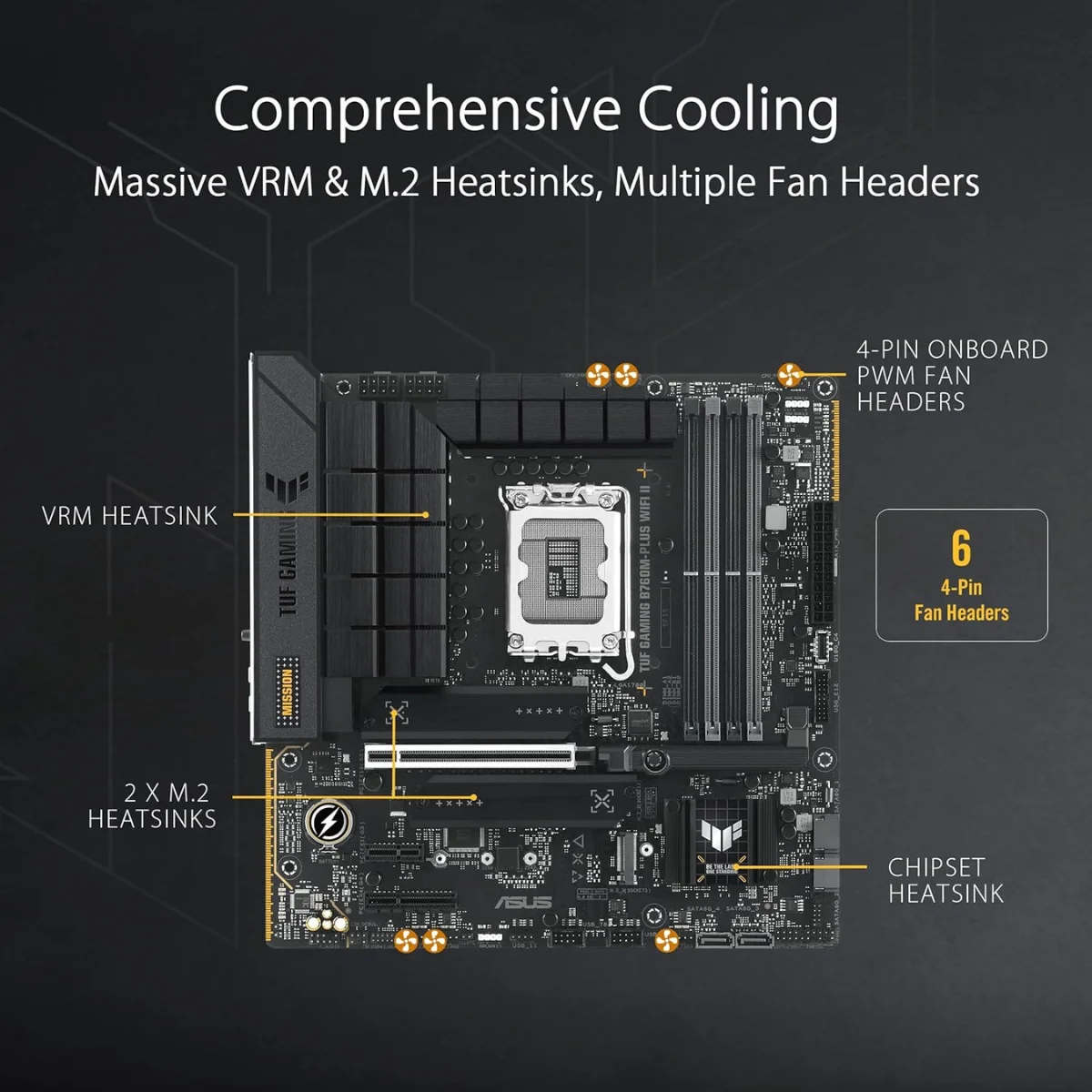

ASUS Thermal Solution
– M.2 heatsinks
– VRM heatsink design
ASUS EZ DIY
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
AURA Sync
– Addressable Gen 2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
– AURA Creator
– AURA Sync
– Fan Xpert 2+
– Power Saving
– Two-Way AI Noise Cancelation
AI Suite 3
– DIGI+ VRM
– PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS

128 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE

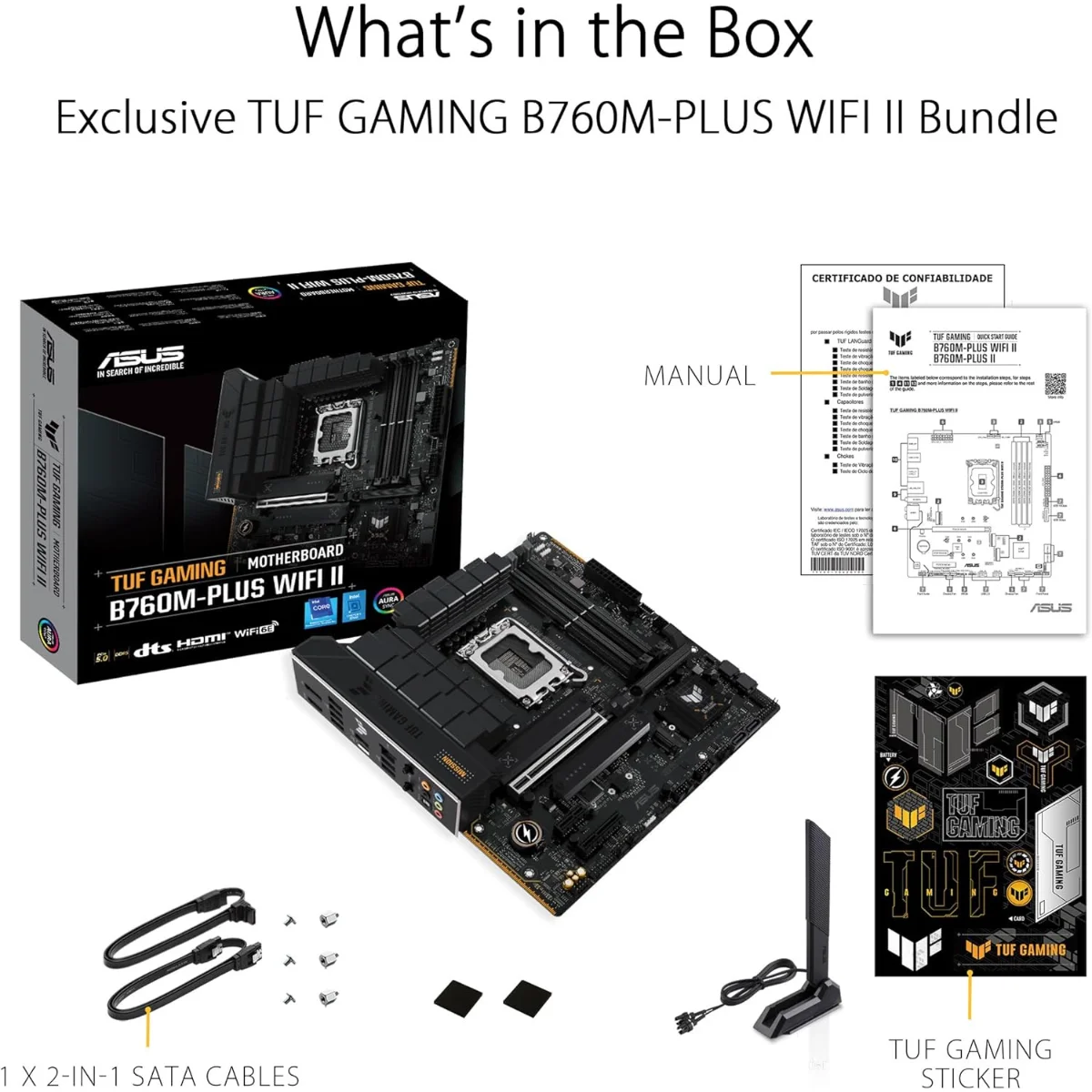

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Q-Antenna
1 x M.2 Rubber Package
1 x TUF Gaming sticker
2 x Screw packages for M.2 SSD
Documentation
1 x TUF Certification card
1 x User guide
Operating System

Windows® 11, Windows® 10 64-bit
Form Factor

mATX Form Factor
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
