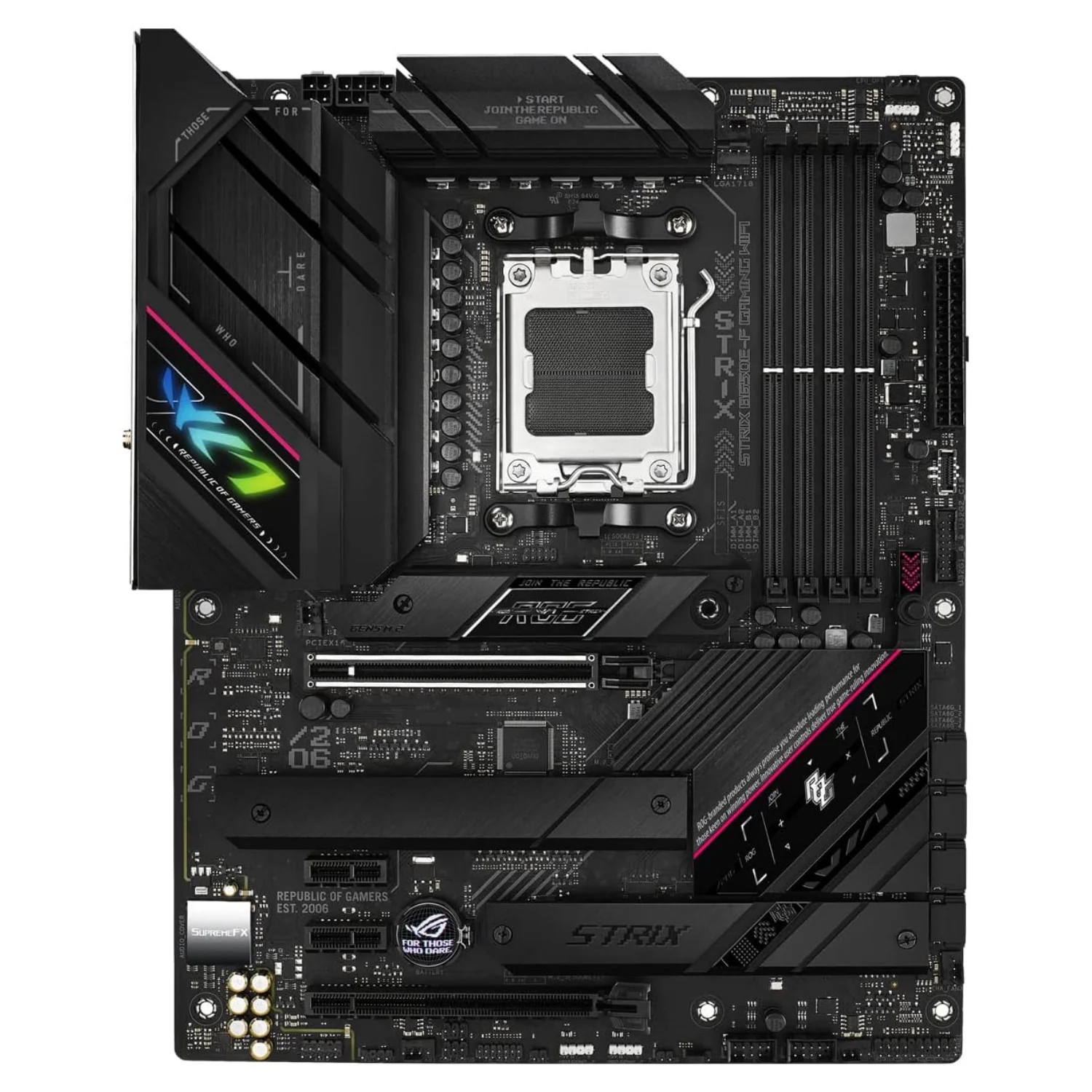

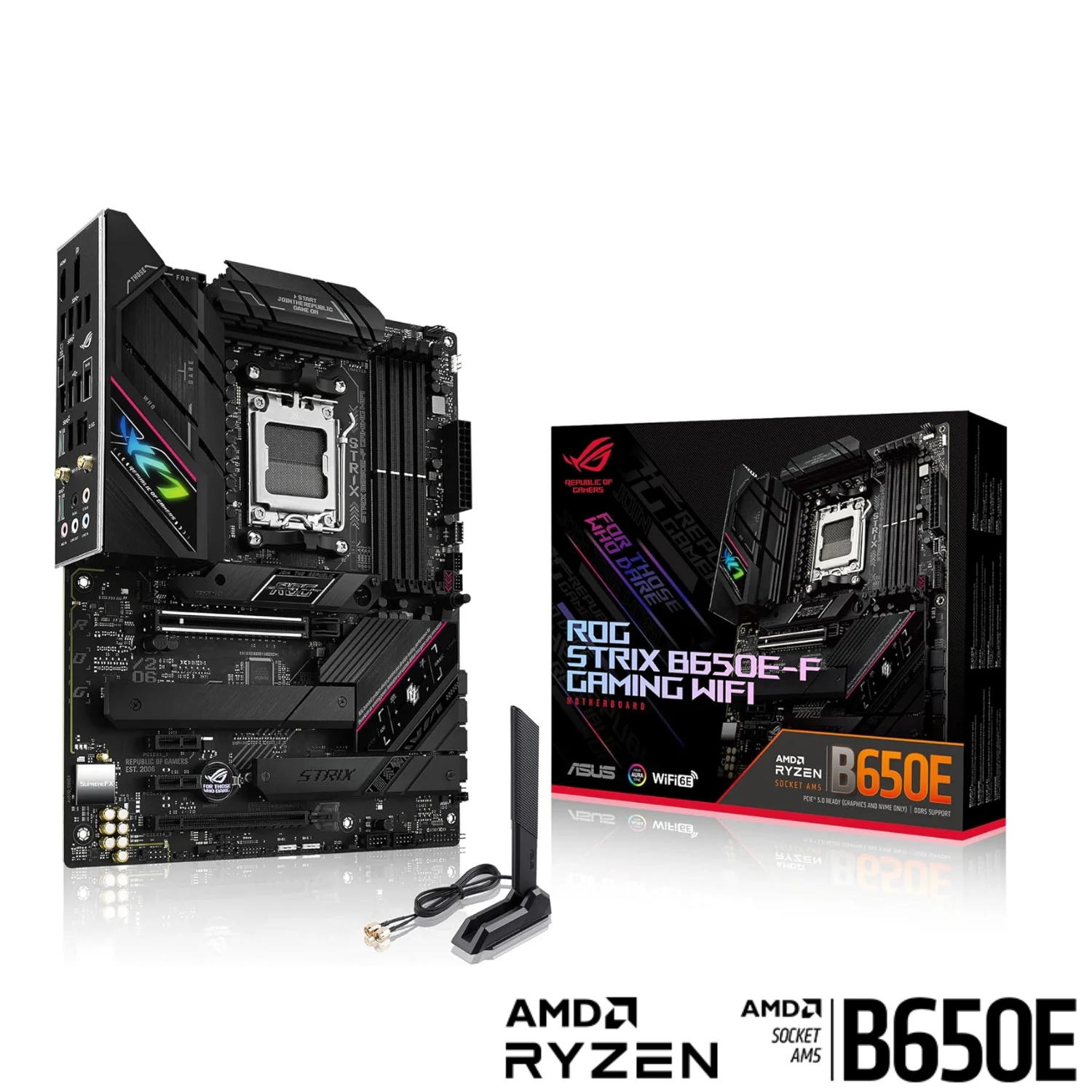

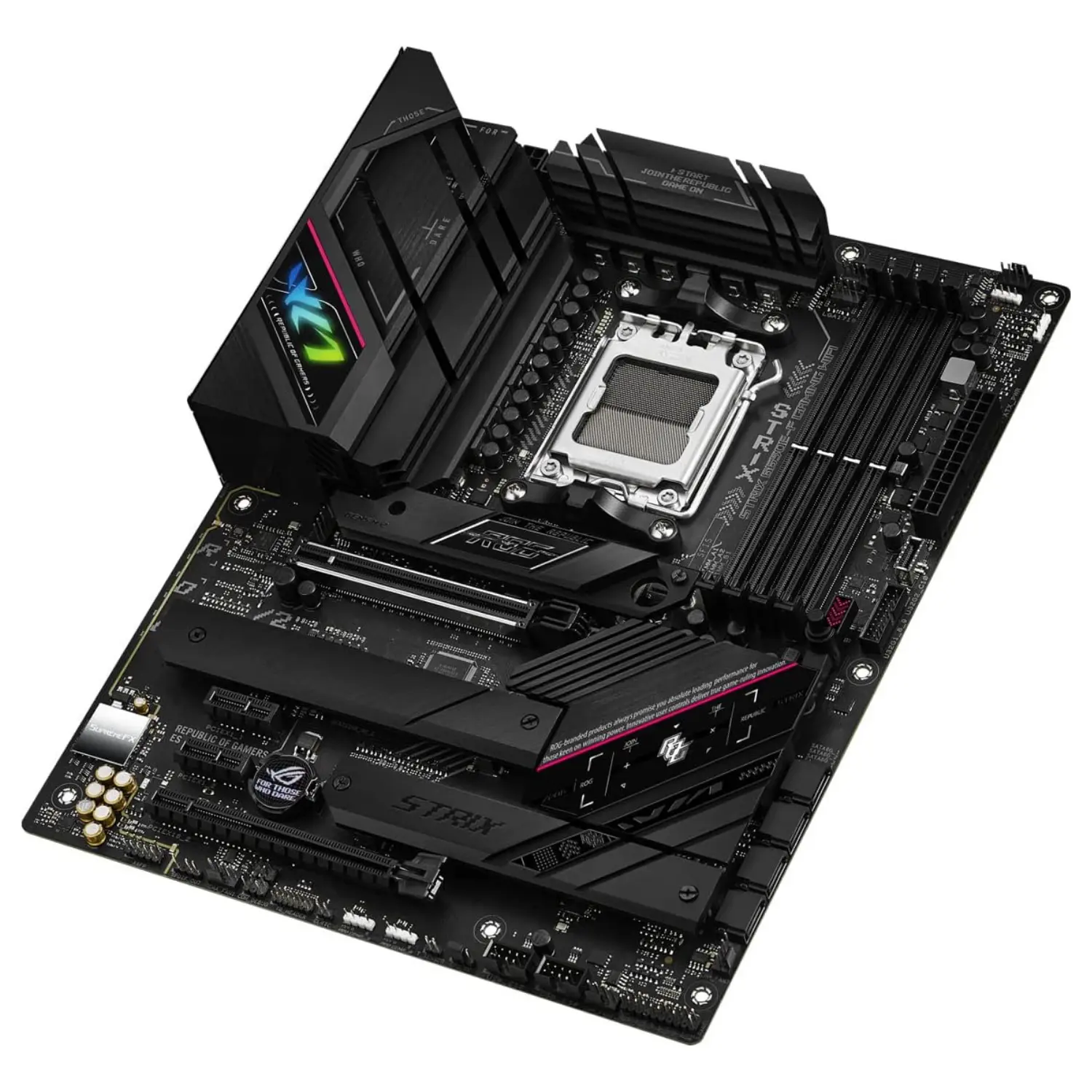

ASUS ROG STRIX B650E-F GAMING WiFi – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6E, LAN 2.5G, Bluetooth 5.2, Aura Sync [90MB1BQ0-M0EAY0]

0 Persone guardano adesso questo prodotto!

EAN: 4711081944034 COD: 90MB1BQ0-M0EAY0 Categoria: AM5

Descrizione

ASUS ROG STRIX B650E-F GAMING WIFI / 90MB1BQ0-M0EAY0 / 4711081944034

La ASUS ROG STRIX B650E-F GAMING WiFi è progettata per alimentare il tuo prossimo PC da gioco con velocità e potenza eccezionali. Grazie a una soluzione di alimentazione a 12+2 fasi da 80A, supporta senza sforzo i processori AMD Ryzen™ di ultima generazione, offrendo un’erogazione di potenza stabile anche sotto carichi estremi.

Dotata di PCIe 5.0 per schede grafiche e SSD M.2, garantisce velocità di trasferimento dati di nuova generazione. Il supporto a DDR5 fino a 6400 MT/s+, AMD EXPO, profili IC DRAM e AEMP assicura prestazioni di memoria ottimizzate per il gaming competitivo.

Con Wi-Fi 6E integrato, il sistema offre connessioni wireless più veloci e stabili, sfruttando la banda da 6 GHz a bassa interferenza.
Le funzioni DIY-friendly rendono l’installazione di GPU e SSD semplice e veloce, mentre il design termico avanzato mantiene temperature ottimali durante le sessioni di gioco più intense.

Specifiche Tecniche

Caratteristica	Dettagli
Formato	ATX
Chipset	AMD B650E
Socket	AM5
Supporto CPU	AMD Ryzen™ serie 7000
Memoria	DDR5 Dual Channel, fino a 6400 MT/s+

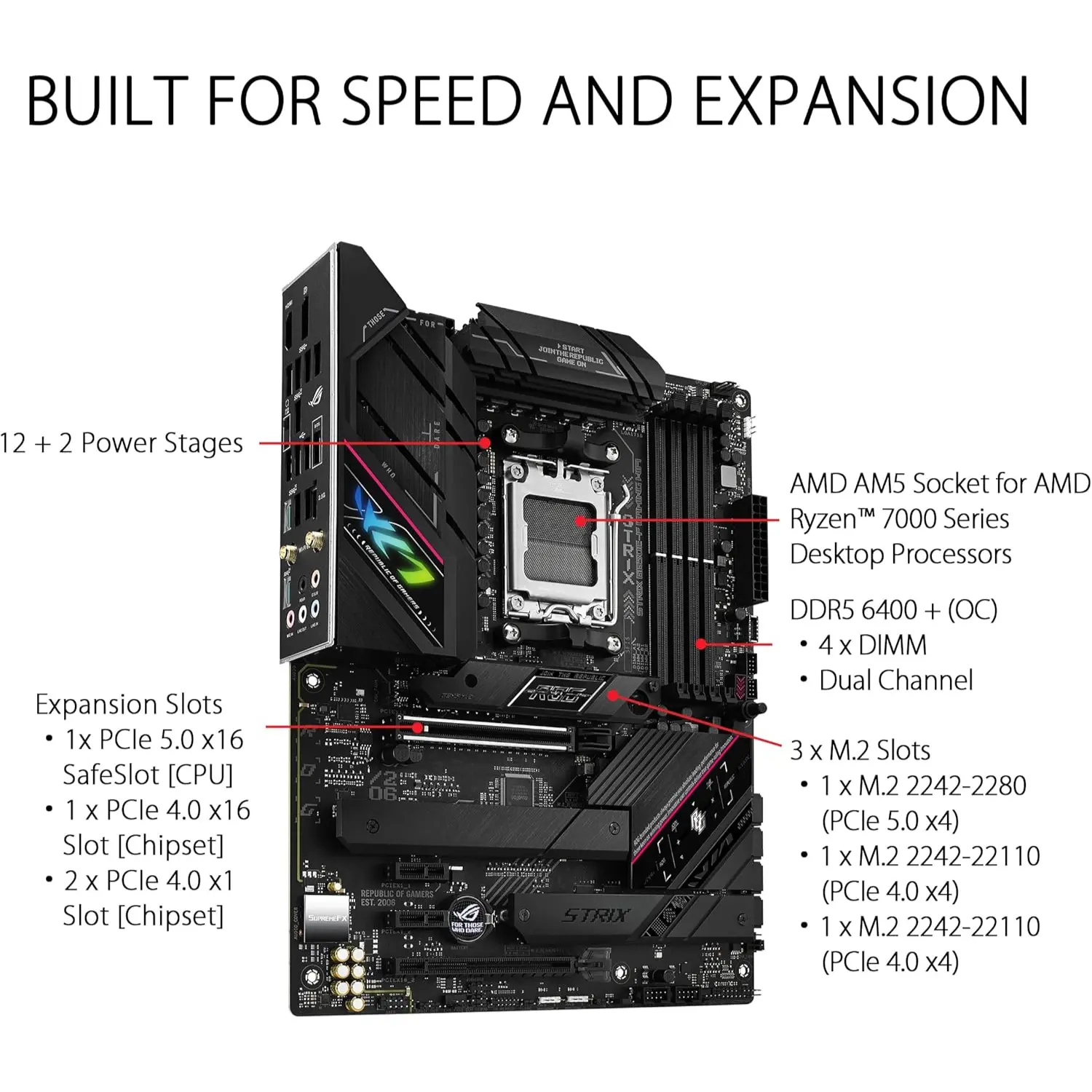

Alimentazione	12+2 fasi, 80A per fase
Rete	LAN 2.5GbE, Wi-Fi 6E
Slot di Espansione	1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 4.0 x1
Archiviazione	1x M.2 PCIe 5.0, 2x M.2 PCIe 4.0, 4x SATA III
USB	USB Type-C, USB 3.2 Gen 2×2, Gen 2, Gen 1
Audio	7.1 HD

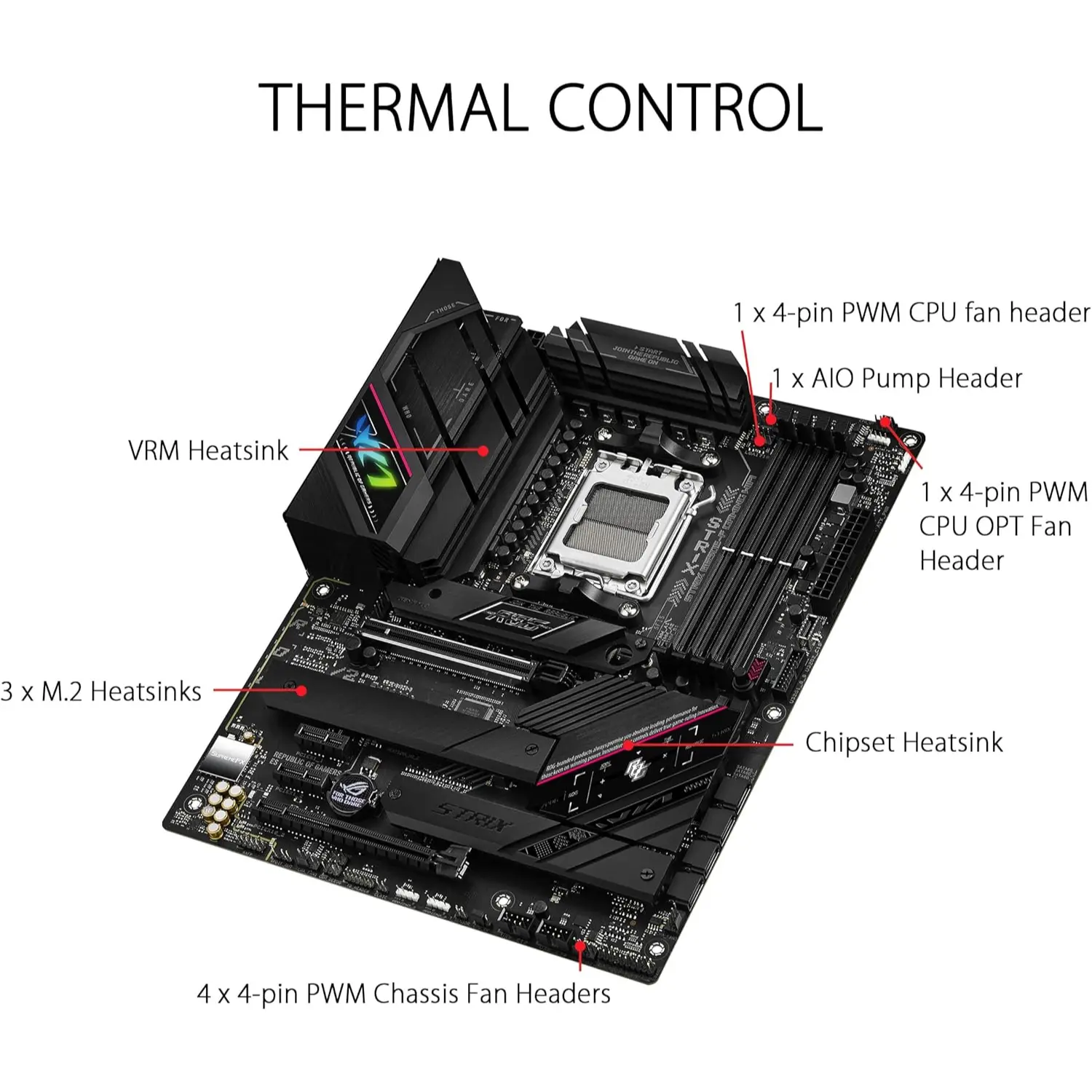

Raffreddamento	Dissipatori integrati per VRM e M.2
Tecnologie	AMD EXPO, IC DRAM, AEMP
Dimensioni	305 x 244 mm (ATX)

Informazioni aggiuntive

Peso	1 kg
Dimensioni	30,5 × 24,4 × 3,5 cm
M.B. - Chipset	AMD B650E
CPU	AM5 Socket for AMD Ryzen™ 9000& 8000 & 7000 Desktop Processorss
Memory	4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II
Graphics	1 x DisplayPort – Supports max. 8K@60Hz as specified in DisplayPort 1.4. 1 x HDMI® port – Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot – AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (support x8/x4 mode) – AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports – AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) – AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode) – AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s port
Ethernet	1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
USB	Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 port (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports

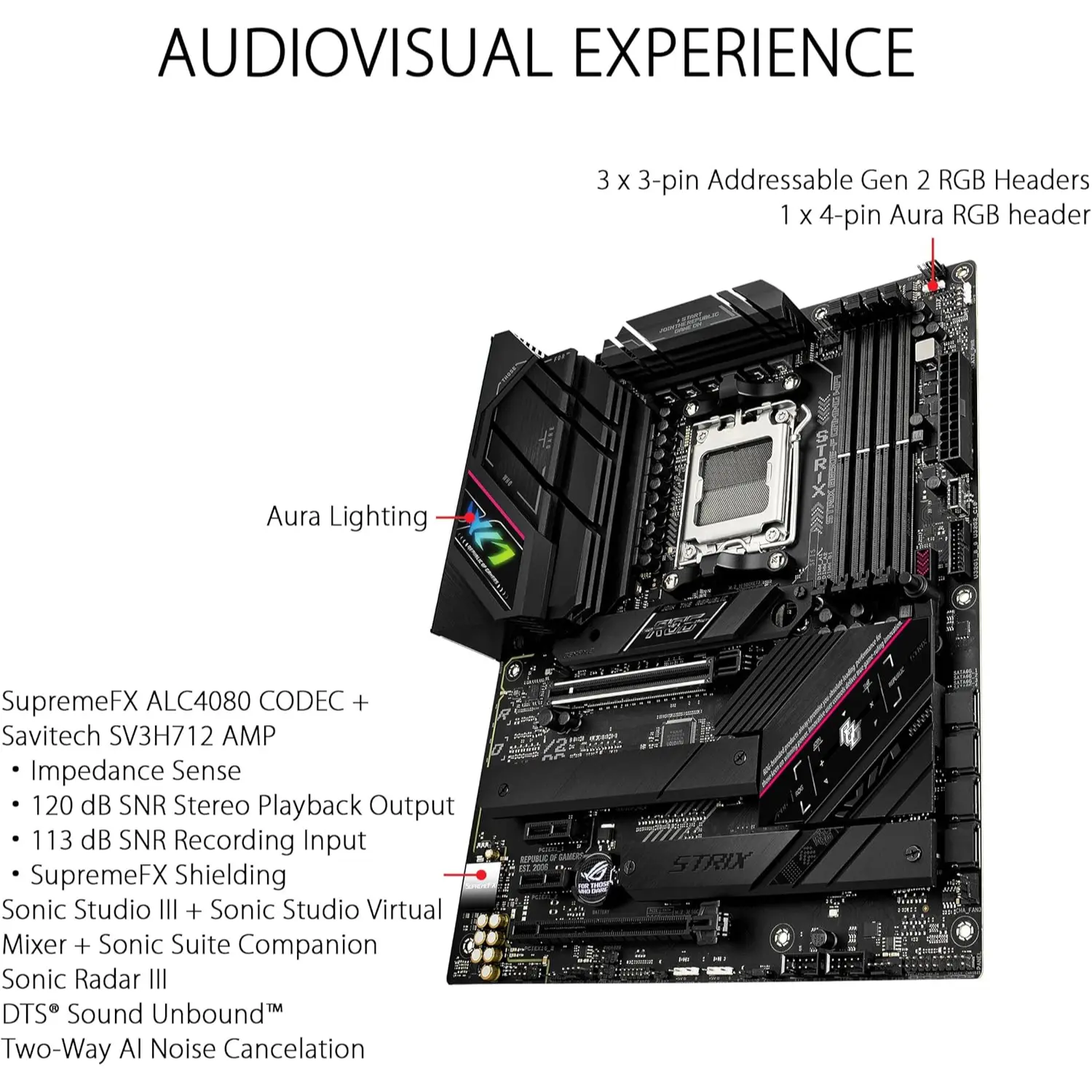

Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Premium audio capacitors – Audio cover

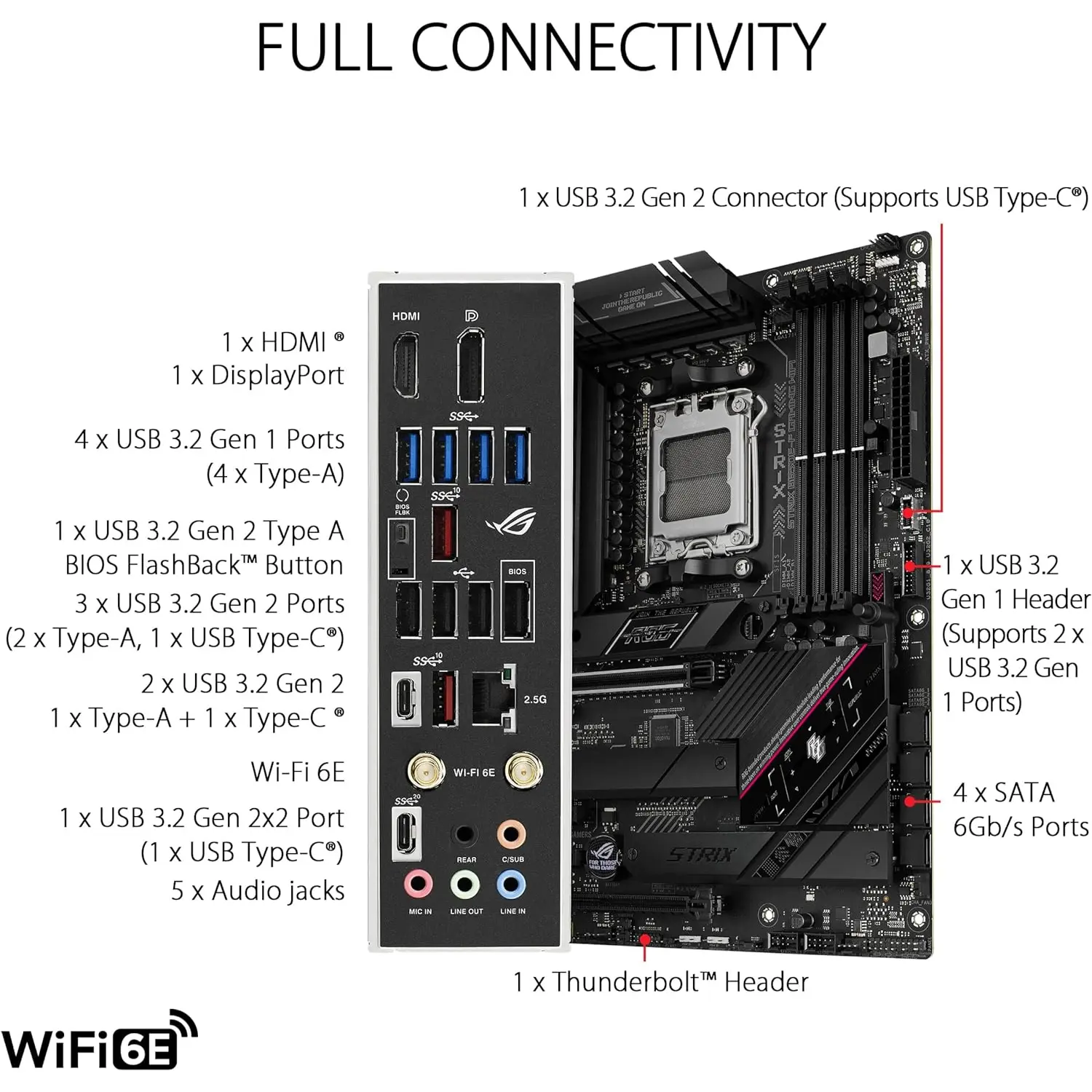

Back Panel I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™header 1 x COM_DEBUGheader
Special Features	Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-LED – Q-DIMM – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – ProCool – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – AURA RGB header – Addressable Gen 2 headers
Software Features	ROG Exclusive Software – GameFirst VI – ROG CPU-Z – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound Unbound – Anti-virus software ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – AURA Creator – AURA Sync – Fan Xpert 4 – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – TPU – DIGI+ VRM – Turbo app – PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

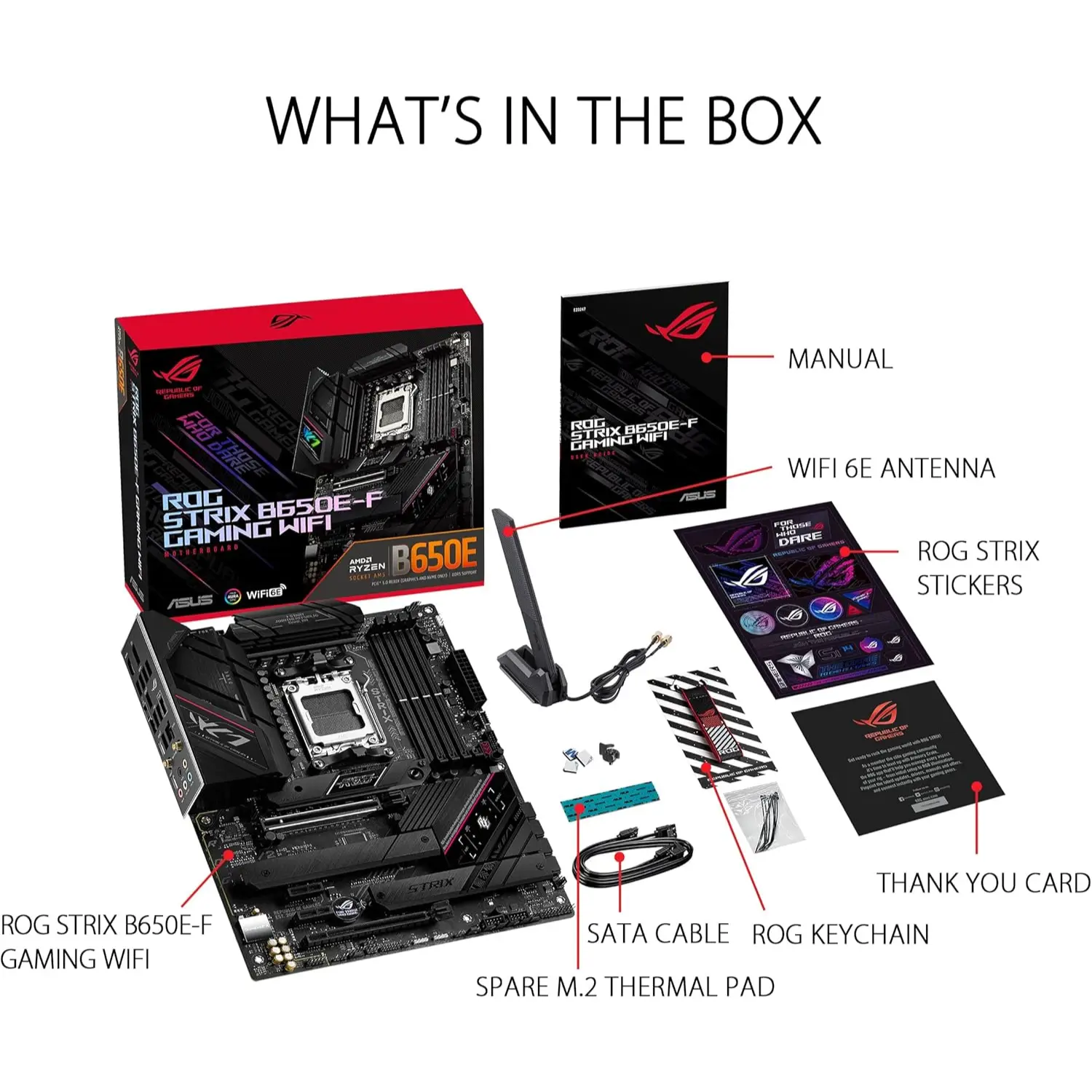

Accessories	Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x M.2 Rubber Packages Documentation 1 x User guide
Operating System	Windows® 10 64-bit, Windows® 11 64-bit
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
