GIGABYTE Z890 EAGLE WIFI7 – Scheda Madre ATX, Socket LGA 1851, DDR5, PCIe 5.0, USB 3.2, LAN 2.5G, Wi-Fi 7, Bluetooth 5.4 [9MZ89EG7-00-10]

249,00 €

   Chipset Intel Z890
Form Factor   Form Factor ATX
Socket   Socket LGA 1851
Tipo di Memoria   Tipo di Memoria DDR5

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4719331864927 COD: 9MZ89EG7-00-10 Categoria:
Descrizione

GIGABYTE Z890 Eagle WiFi 7 / 9MZ89EG7-00-10 / 4719331864927

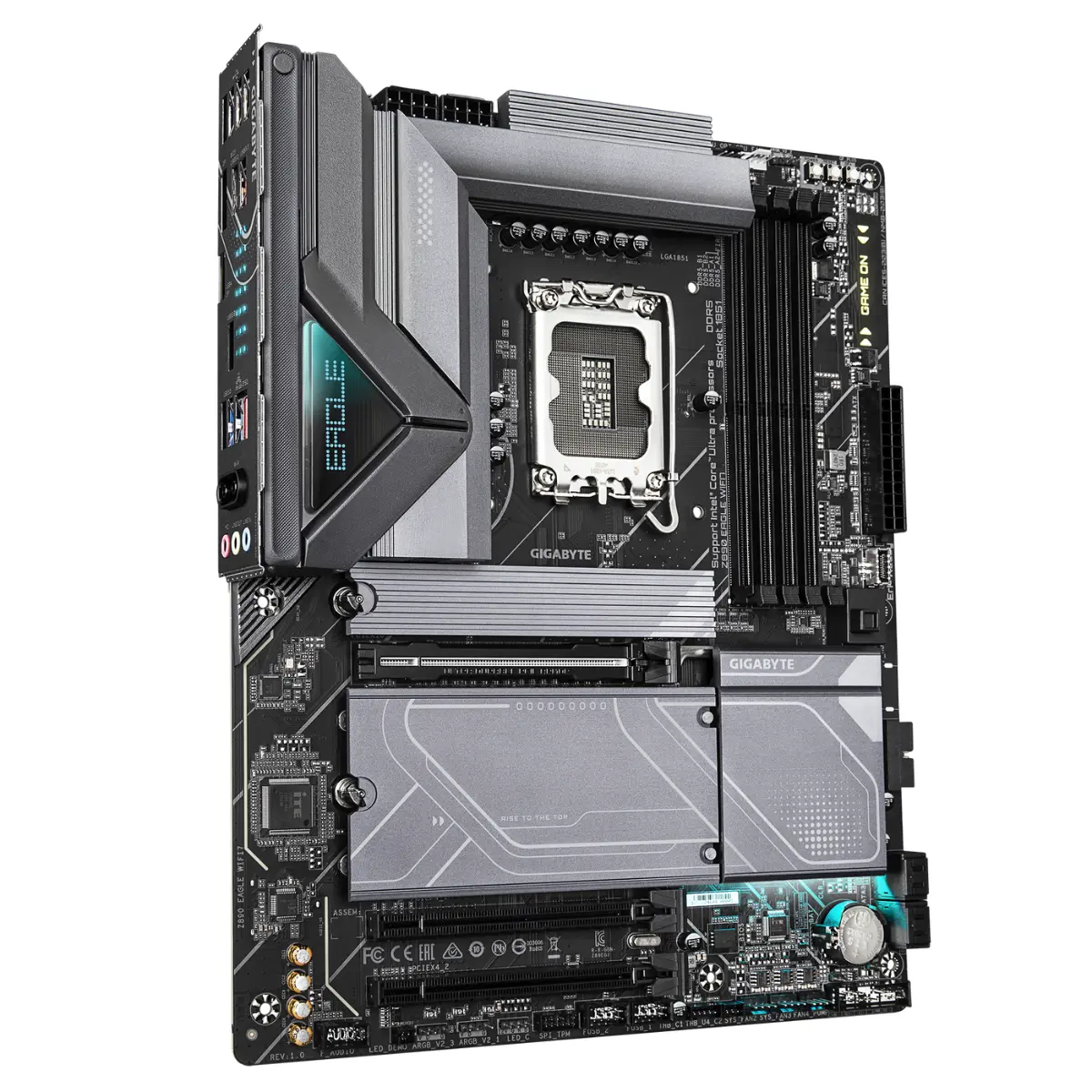

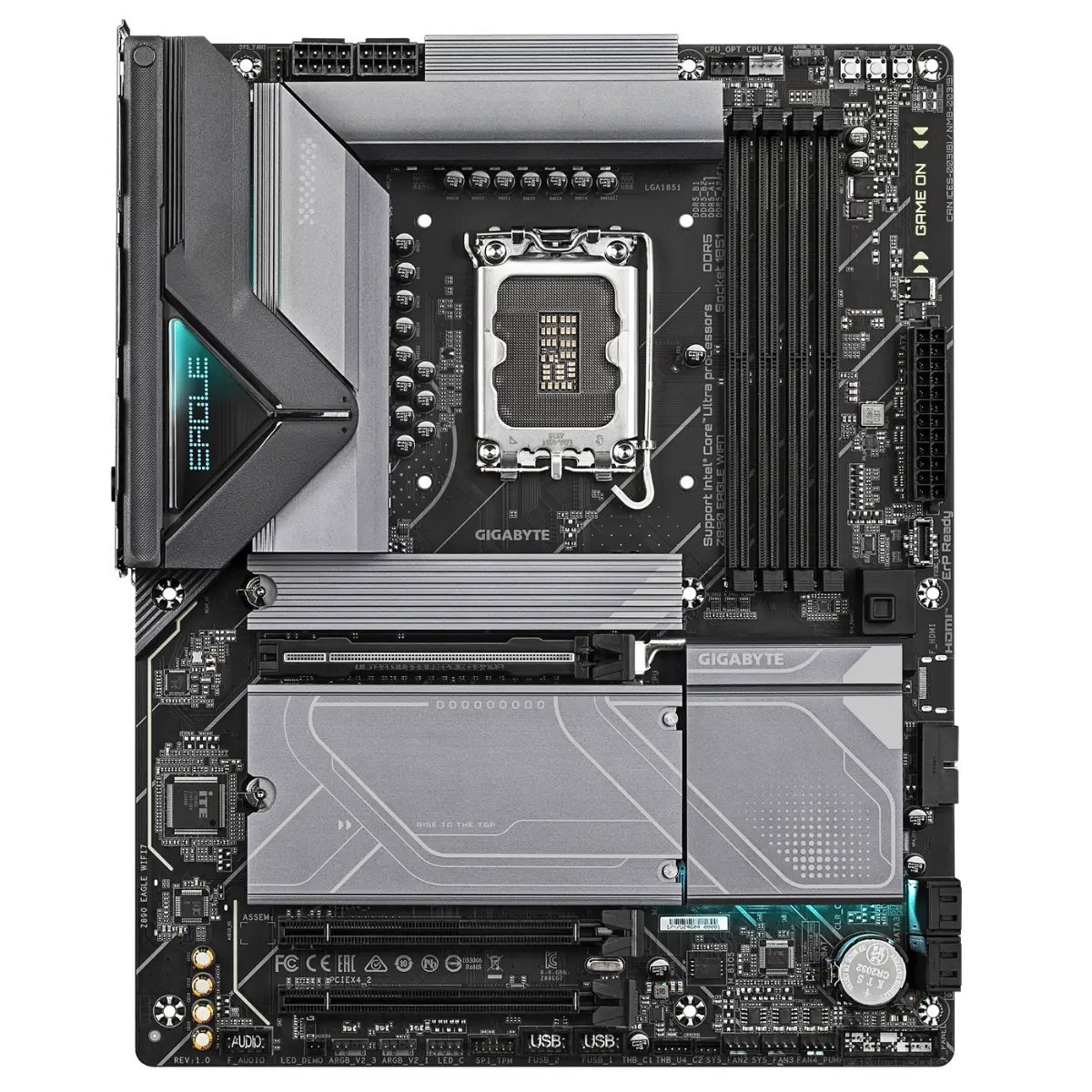

La GIGABYTE Z890 Eagle WiFi 7 è una scheda madre ATX di nuova generazione, progettata per i processori Intel® Core™ Ultra (Serie 2). Offre memoria DDR5 ad alte prestazioni, connettività all’avanguardia con LAN 2.5GbE e Wi-Fi 7, oltre a soluzioni di raffreddamento avanzate e slot PCIe 5.0 rinforzato. Ideale per gamer e creator che vogliono massime prestazioni e affidabilità.

La GIGABYTE Z890 Eagle WiFi 7 combina potenza, innovazione e facilità d’uso per offrire un’esperienza di assemblaggio e utilizzo di livello superiore. Con supporto ai processori Intel® Core™ Ultra (Serie 2) e DDR5 ad alta velocità, è perfetta per configurazioni gaming, streaming e content creation di ultima generazione.

Caratteristiche principali:

  • Compatibilità CPU avanzata: supporta Intel® Core™ Ultra (Serie 2) per prestazioni di nuova generazione.

  • Alimentazione stabile: sistema Digital Twin 14+1+2 fasi VRM per un’erogazione di potenza precisa e affidabile.

  • Memoria ad alte prestazioni: supporto fino a 4 moduli DDR5 con tecnologia D5 Bionic Corsa e profili XMP.

  • Funzioni AI: AI Perfdrive per preset BIOS ottimizzati e personalizzati.

  • Design facilitato: WiFi EZ-Plug per installazione rapida dell’antenna, EZ-Latch Plus e EZ-Latch Click per rimozione veloce di schede PCIe e SSD M.2 senza viti.

  • Connettività estrema: LAN 2.5GbE, Wi-Fi 7, USB4 Type-C con DP-Alt, DisplayPort.

  • Archiviazione ultraveloce: 4 slot M.2, di cui 1 PCIe 5.0 x4 per SSD di ultima generazione.

  • Raffreddamento efficiente: VRM Thermal Armor Advanced e M.2 Thermal Guard per mantenere basse le temperature.

  • Robustezza extra: slot PCIe UD Slot X (PCIe 5.0 x16) con resistenza 10 volte superiore per schede grafiche di fascia alta.

  • BIOS e software intuitivi: interfaccia multi-tema, controllo ventole AIO, Q-Flash Auto Scan, monitoraggio in tempo reale della potenza CPU in HWinfo.

Specifiche Tecniche

Caratteristica Dettagli
Marca GIGABYTE
Modello Z890 Eagle WiFi 7
Formato ATX
Socket Intel® LGA (Core™ Ultra Serie 2)
Chipset Intel® Z890
Compatibilità CPU Intel® Core™ Ultra (Serie 2)
Memoria DDR5, fino a frequenze elevate con XMP, D5 Bionic Corsa
Slot RAM 4 x DIMM
Slot PCI Express 1 x PCIe 5.0 x16 (UD Slot X), altri slot PCIe
Archiviazione 4 x M.2 (1 x PCIe 5.0 x4), porte SATA
Rete LAN 2.5GbE, Wi-Fi 7
Audio Alta definizione
USB USB4 Type-C con DP-Alt, porte USB 3.2 e USB 2.0
Alimentazione Digital Twin 14+1+2 fasi VRM
Raffreddamento VRM Thermal Armor Advanced, M.2 Thermal Guard

Domande Frequenti (FAQ)

1. La GIGABYTE Z890 Eagle WiFi 7 è compatibile con CPU Intel di generazione precedente?
No, è progettata specificamente per i processori Intel® Core™ Ultra (Serie 2).

2. Qual è la garanzia del prodotto?
La garanzia può variare in base al rivenditore, ma normalmente GIGABYTE offre 3 anni di copertura.

3. Posso installare facilmente SSD M.2 e schede grafiche?
Sì, grazie alla tecnologia EZ-Latch Plus e EZ-Latch Click, l’installazione e la rimozione sono rapide e senza viti.

4. Il Wi-Fi 7 è retrocompatibile con standard precedenti?
Sì, il modulo Wi-Fi 7 supporta anche Wi-Fi 6E, Wi-Fi 6 e standard inferiori.

5. È adatta per un PC da gaming di fascia alta?
Assolutamente sì. Offre connettività di ultima generazione, slot PCIe 5.0 rinforzato e memoria DDR5 ad alte prestazioni, ideale per build gaming premium.

Per ulteriori dettagli e specifiche complete, visita la pagina ufficiale GIGABYTE Z890 Eagle WiFi 7.

Informazioni aggiuntive
Peso 1,78 kg
Dimensioni 30,5 × 24,4 × 3,5 cm
M.B. - Chipset

Intel Z890
CPU

LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU
Memory

Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
– 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard
Expansion Slots

CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
– 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
Storage Interface

CPU:
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB

CPU:
– 1 x USB4® USB Type-C® port on the back panel
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
– 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
– 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x power button
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

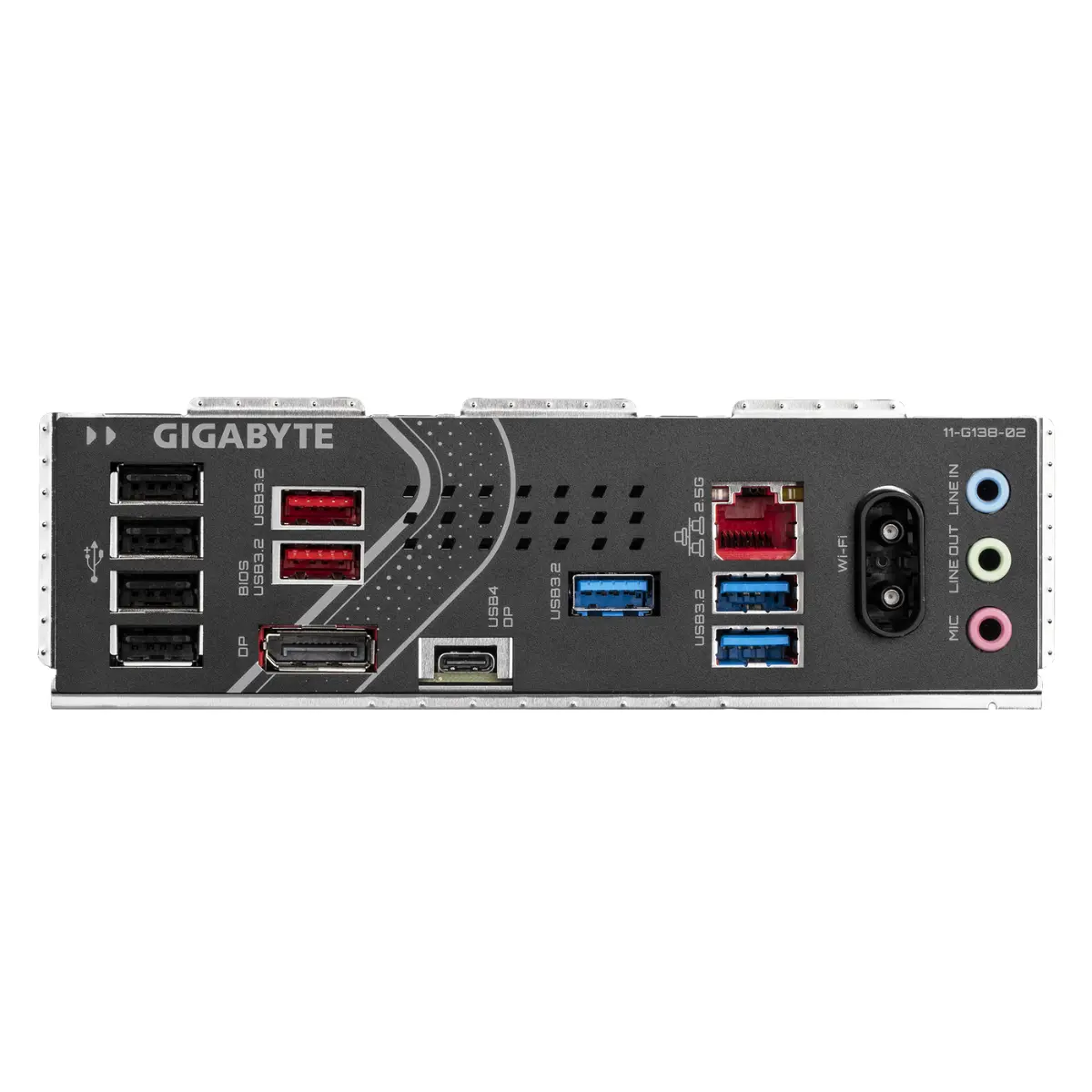

Back Panel Connectors

1 x USB4® USB Type-C® port (DisplayPort (Note))
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort (Note)
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
I/O Controller

iTE® I/O Controller Chip
H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundle Software

Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System

Support for Windows 11 64-bit
Form Factor

ATX Form Factor; 30.5cm x 24.4cm
