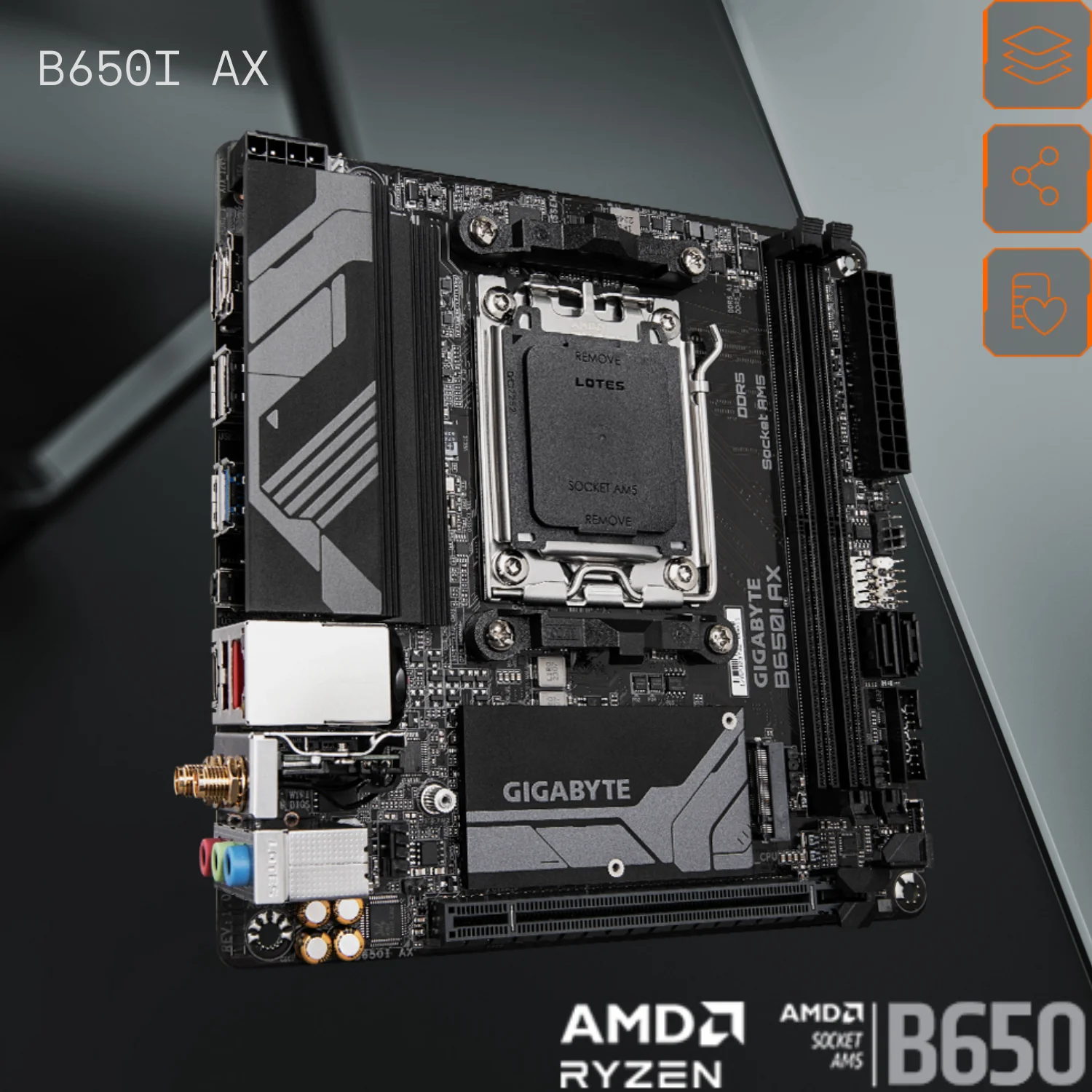

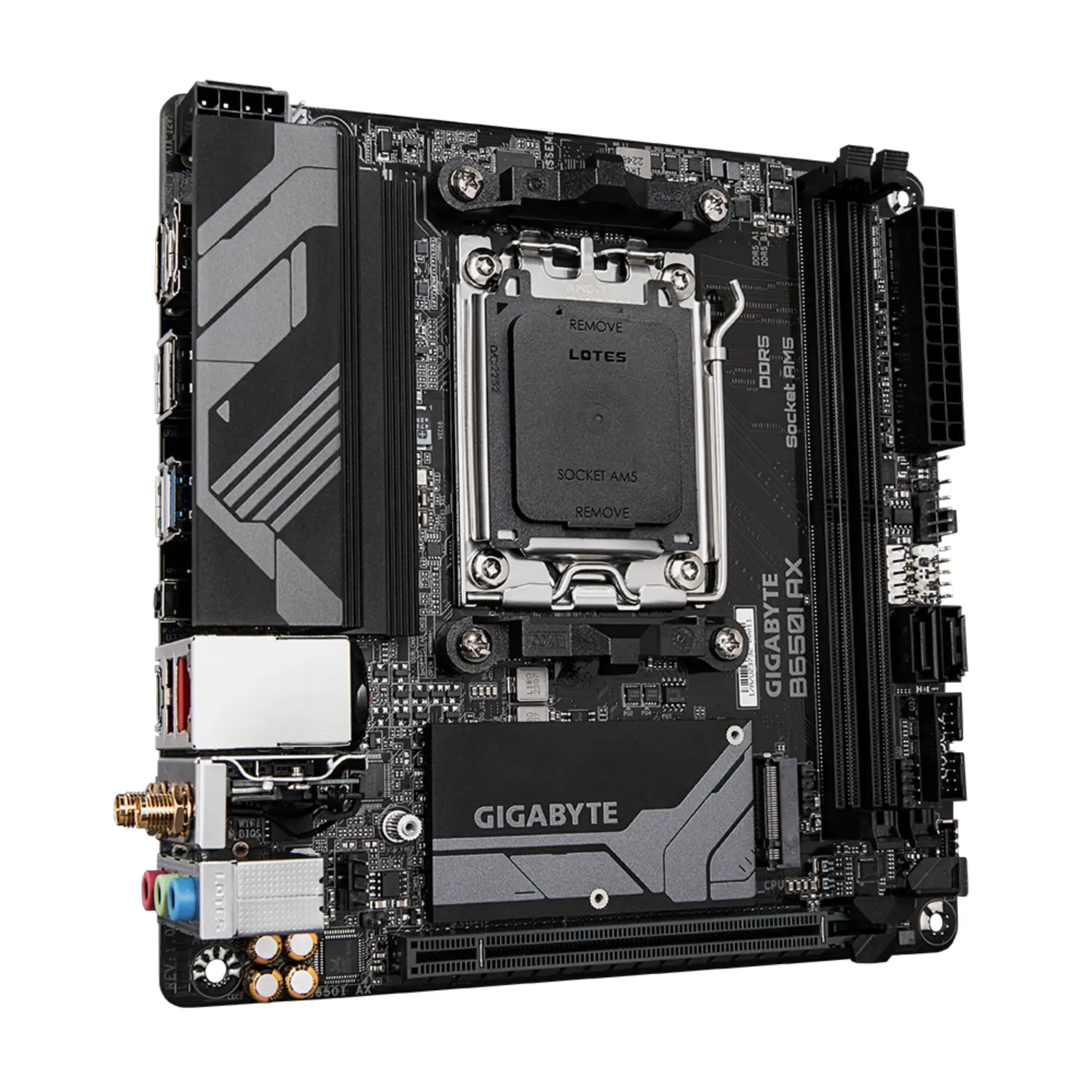

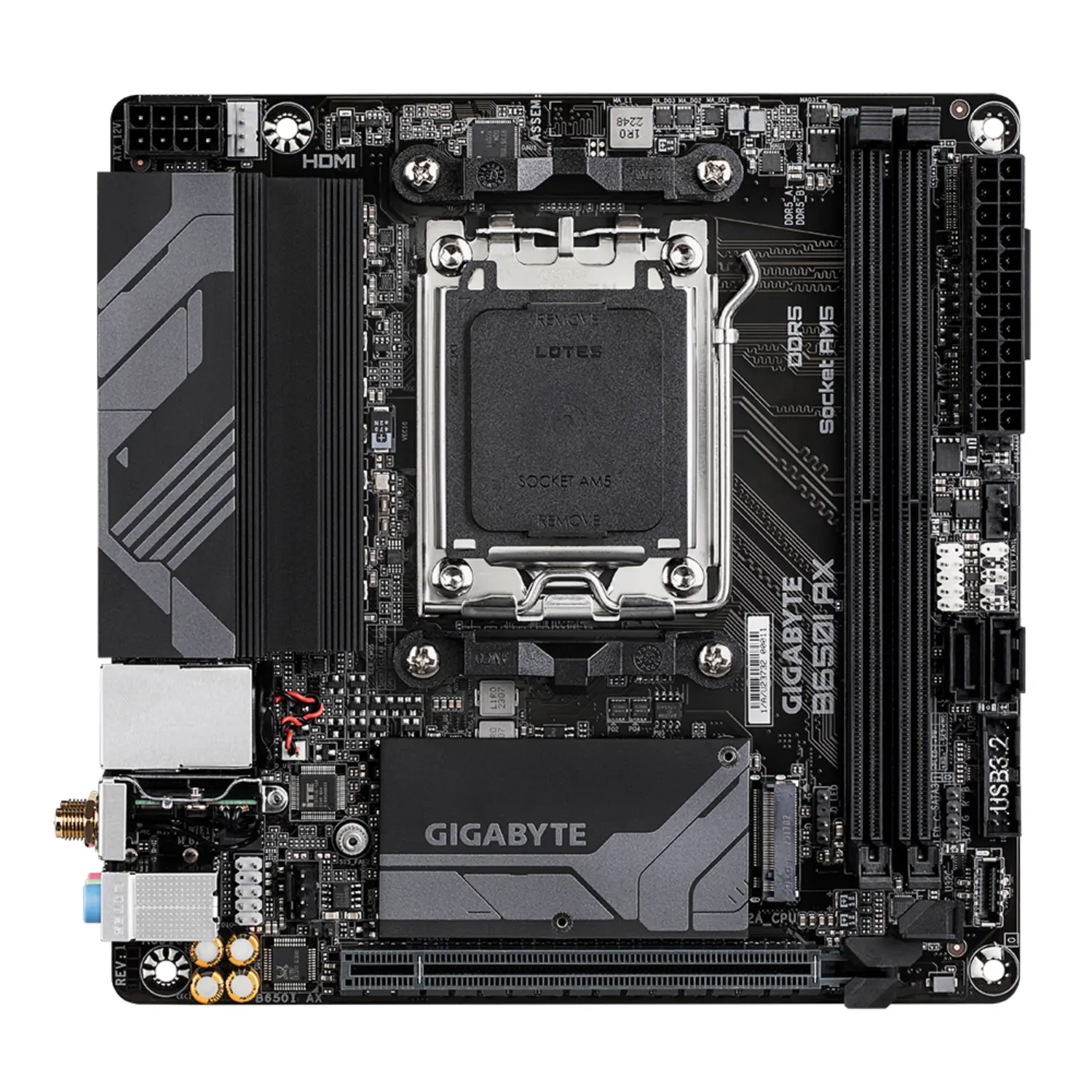

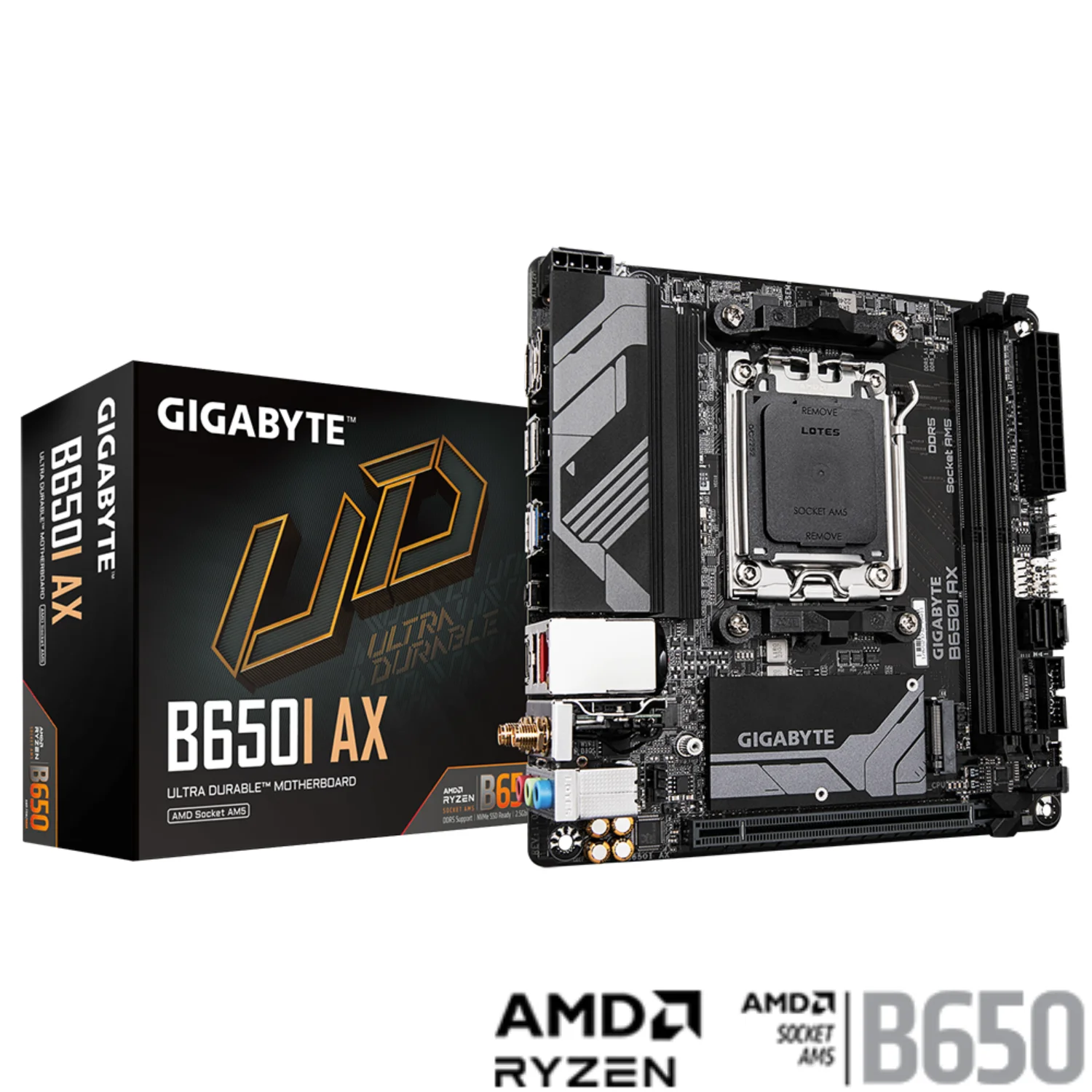

GIGABYTE B650I AX – Scheda Madre Mini-ITX, Socket AM5, DDR5, PCIe 4.0, USB 3.2, Wi-Fi 6E, LAN 2.5G, Bluetooth 5.3 [B650IAX]

165,00 €

   Chipset AMD B650
Form Factor   Form Factor Mini-ITX
Socket   Socket AM5
Tipo di Memoria   Tipo di Memoria DDR5

1 disponibili

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4719331859190 COD: B650IAX Categoria: Tag: , , , , , , , , ,
Descrizione

GIGABYTE B650I AX / B650IAX / 4719331859190

La GIGABYTE B650I AX è la scelta ideale per build compatte e potenti. Supporta processori AMD Ryzen™ serie 7000, 8000 e 9000 e memoria DDR5 Dual Channel, con compatibilità sia AMD EXPO™ che Intel® XMP per prestazioni ottimizzate.

Dotata di alimentazione 5+2+1 Digital VRM, garantisce stabilità e affidabilità anche durante sessioni di gaming o lavoro intenso. L’archiviazione è gestita da un veloce slot M.2 PCIe 4.0 x4, mentre lo slot PCIe x16 con tecnologia EZ-Latch semplifica l’installazione e la rimozione della scheda grafica.

Per la connettività di rete, integra Wi-Fi 6E di ultima generazione e LAN 2.5GbE, offrendo velocità e stabilità elevate. Include inoltre porte DisplayPort e HDMI per il supporto a display multipli.

Il sistema di raffreddamento Smart Fan 6, con sensori multipli e ventole ibride con funzione Fan Stop, mantiene la scheda sempre fresca. Con Q-Flash Plus, puoi aggiornare il BIOS facilmente senza installare CPU, RAM o GPU.

Specifiche Tecniche

Caratteristica Dettagli
Formato Mini-ITX
Chipset AMD B650
Socket AM5
Supporto CPU Ryzen™ 7000 / 8000 / 9000
Memoria DDR5, Dual Channel, fino a 96GB
Alimentazione 5+2+1 Digital VRM
Rete LAN 2.5GbE, Wi-Fi 6E
Slot di Espansione 1x PCIe 4.0 x16
Archiviazione 1x M.2 Gen 4, 2x SATA III
USB USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0
Video DisplayPort, HDMI
Audio 7.1 HD Realtek
Raffreddamento Smart Fan 6, Fan Stop
BIOS Q-Flash Plus
Dimensioni 170 x 170 mm (Mini-ITX)
Informazioni aggiuntive
Peso 0,79 kg
Dimensioni 17 × 17 × 3,5 cm
M.B. - Chipset

AMD B650
CPU

AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Memory

– Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
– 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
– Dual channel memory architecture
– Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
– Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor:
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module

Realtek® Wi-Fi 6E RTL8852CE
– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11ax 160MHz wireless standard
Expansion Slots

1 x PCI Express x16 slot, integrated in the CPU:
– AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage Interface

1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
– AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
–
2 x SATA 6Gb/s connectors
– RAID 0 and RAID 1 support for NVMe SSD storage devices
– RAID 0 and RAID 1 support for SATA storage devices
USB

CPU:
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
– 1 x USB 2.0/1.1 port on the back panel
–
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
– 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
– 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
1 x chassis intrusion header

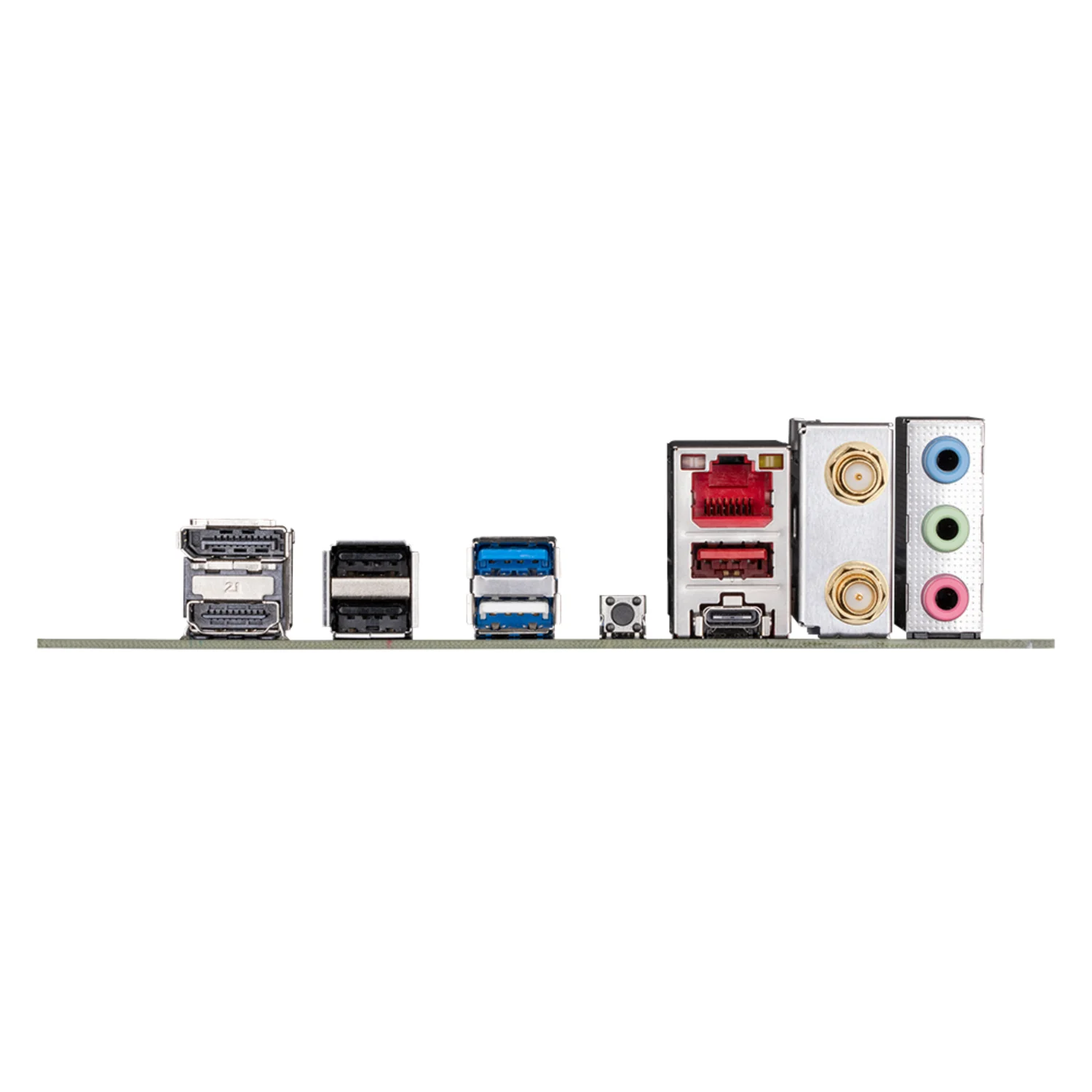

Back Panel Connectors

1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB 3.2 Gen 1 port
3 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
I/O Controller

iTE® I/O Controller Chip
H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundle Software

Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor

Mini-ITX Form Factor; 17.0cm x 17.0cm
