MSI MAG B850M MORTAR WIFI – Scheda Madre Micro-ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [911-7E61-001]

Il prezzo originale era: 289,00 €.Il prezzo attuale è: 249,00 €.

   Chipset AMD B850
Form Factor   Form Factor Micro-ATX
Socket   Socket AM5
Tipo di Memoria   Tipo di Memoria DDR5

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4711377321150 COD: 911-7E61-001 Categoria: Tag: , , , , , , , , , ,
Descrizione

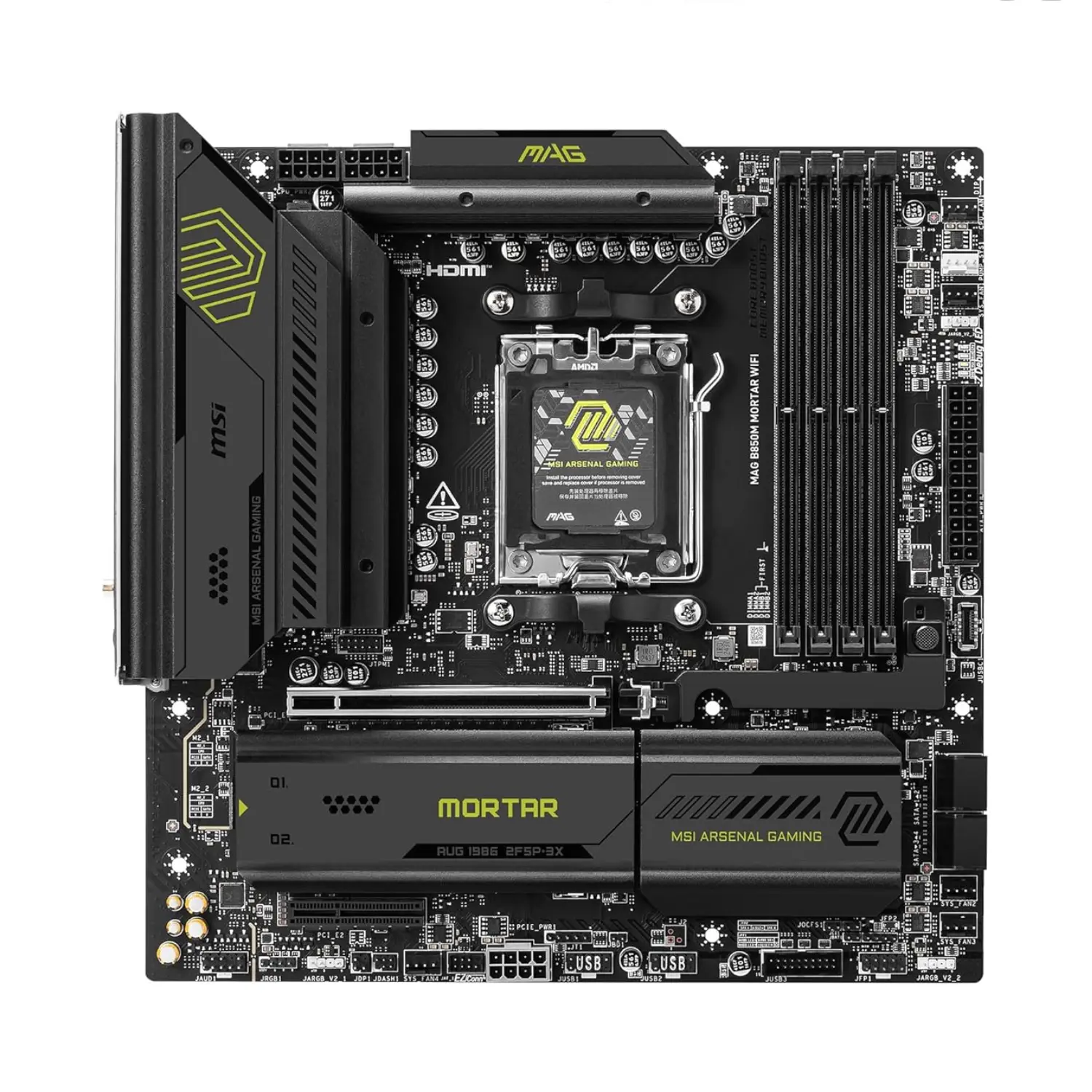

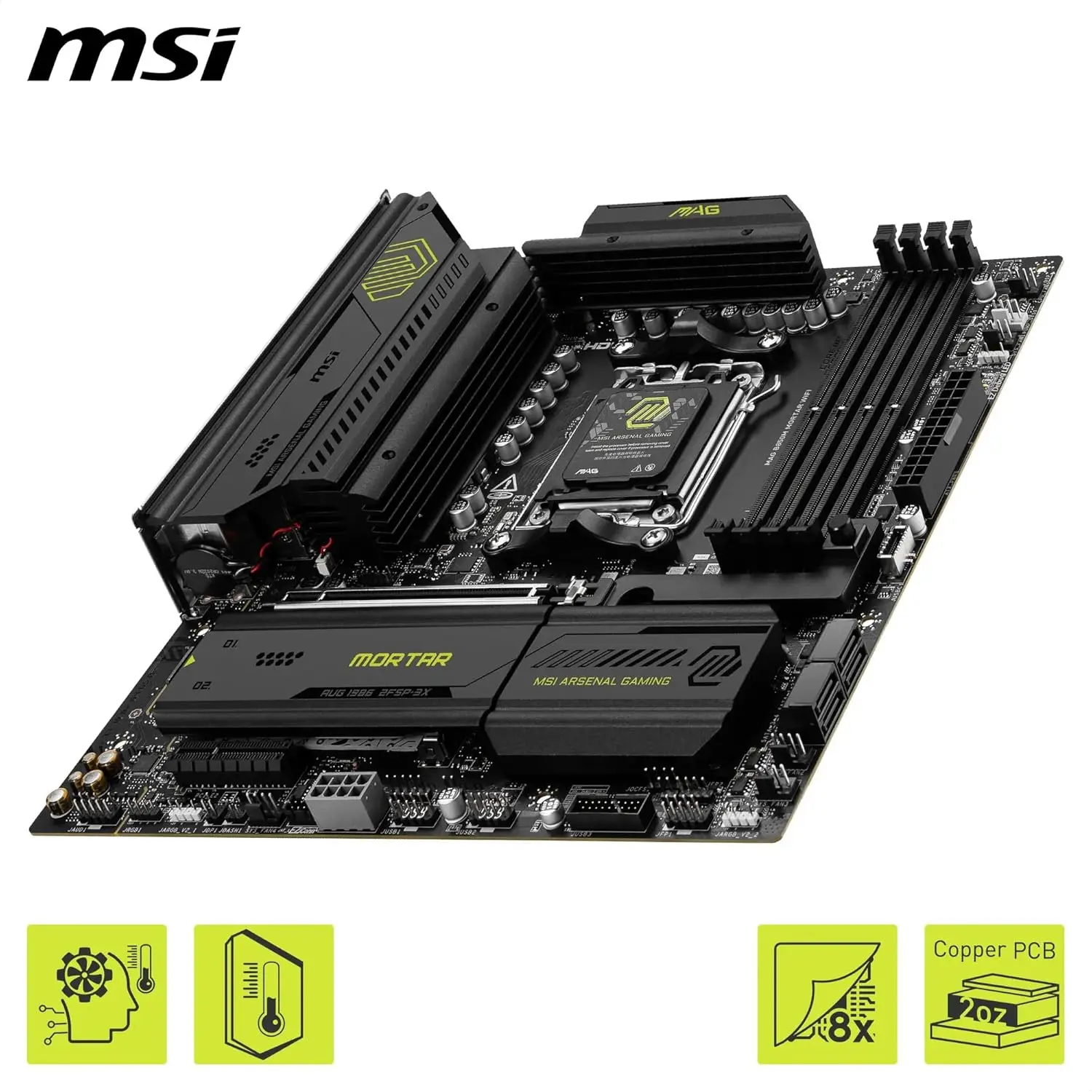

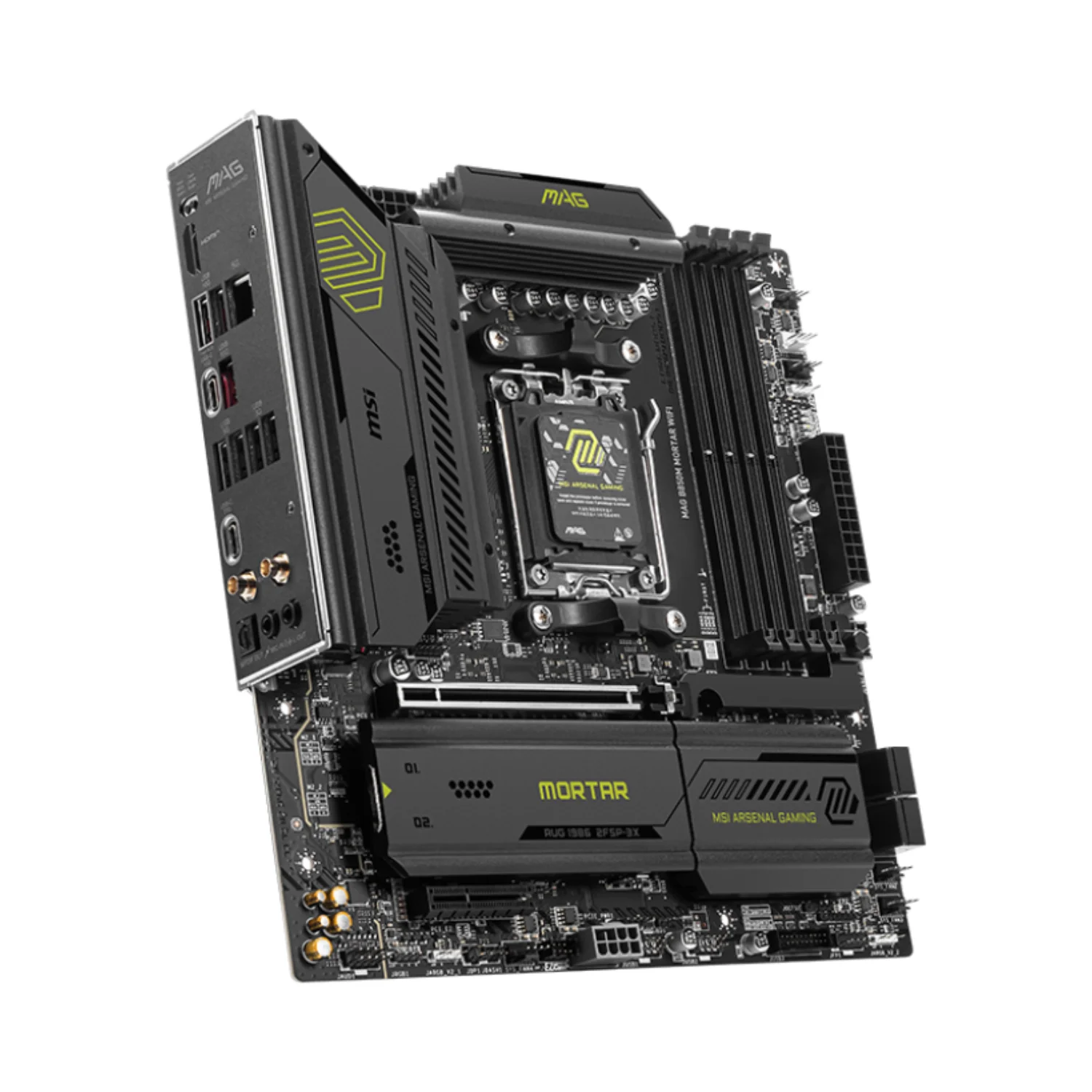

MSI MAG B850M MORTAR WIFI / 911-7E61-001 / 4711377321150

La MSI MAG B850M MORTAR WIFI è costruita per offrire stabilità e prestazioni superiori nelle configurazioni gaming più moderne.
Supporta processori AMD Ryzen™ di ultima generazione e memoria DDR5 Dual Channel fino a 8200+ MT/s (OC), garantendo velocità e reattività eccellenti.

Il sistema di alimentazione 12+2+1 Duet Rail Power con doppi connettori CPU a 8 pin e PCB a 8 strati in rame da 2 oz assicura un’erogazione di potenza stabile anche in overclock.
Il sistema di raffreddamento Frozr Guard, con dissipatori estesi, pad termici MOSFET da 7W/mK e EZ M.2 Shield Frozr II, mantiene la temperatura ottimale per sessioni di gioco continuative.

Per la connettività, offre LAN 5G, Wi-Fi 7 e porte USB Type-C 20Gbps, assicurando trasferimenti dati ultra-rapidi e stabilità di rete.

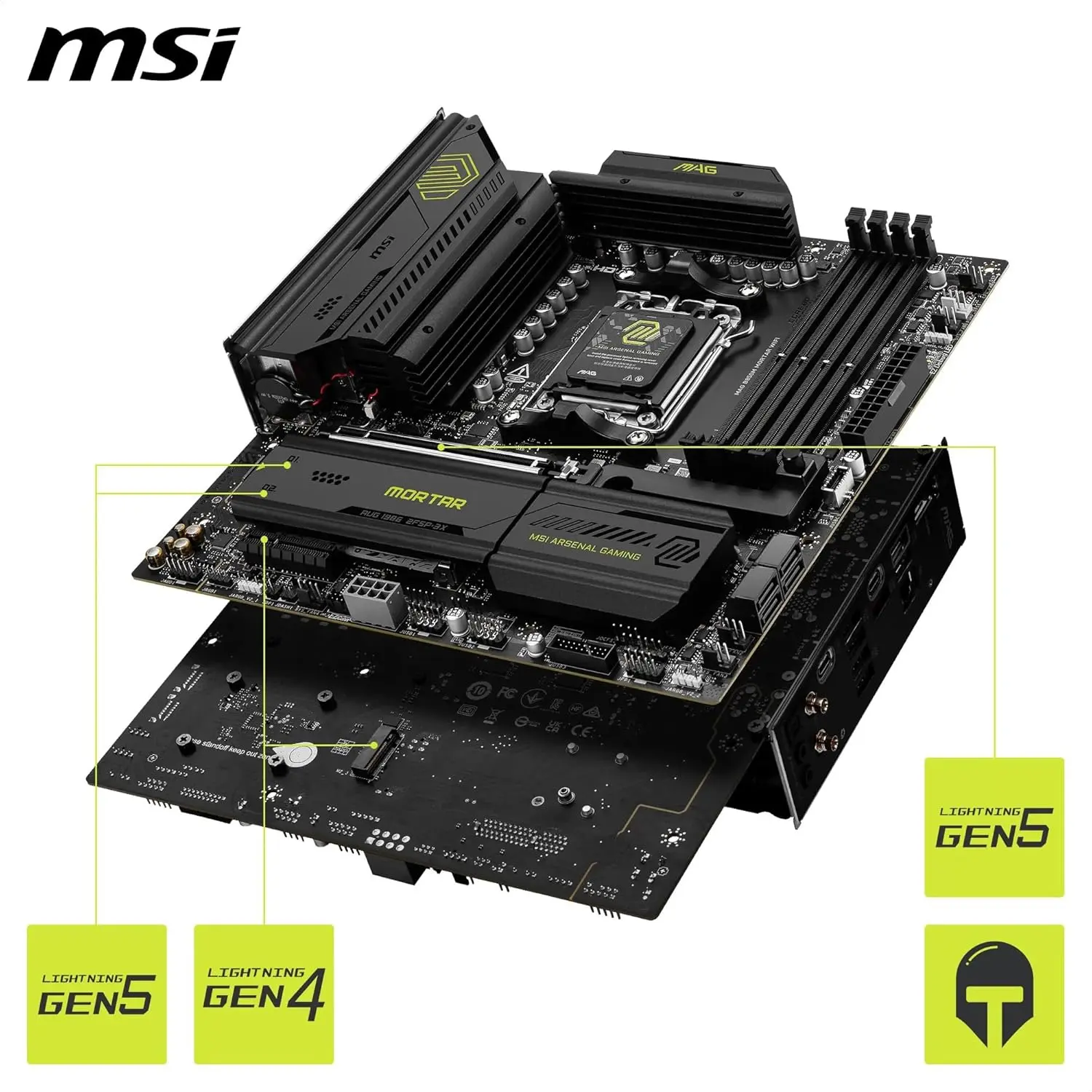

Lo slot PCIe 5.0 e Lightning Gen 5 x4 M.2 permettono di sfruttare appieno le schede grafiche e gli SSD di ultima generazione.

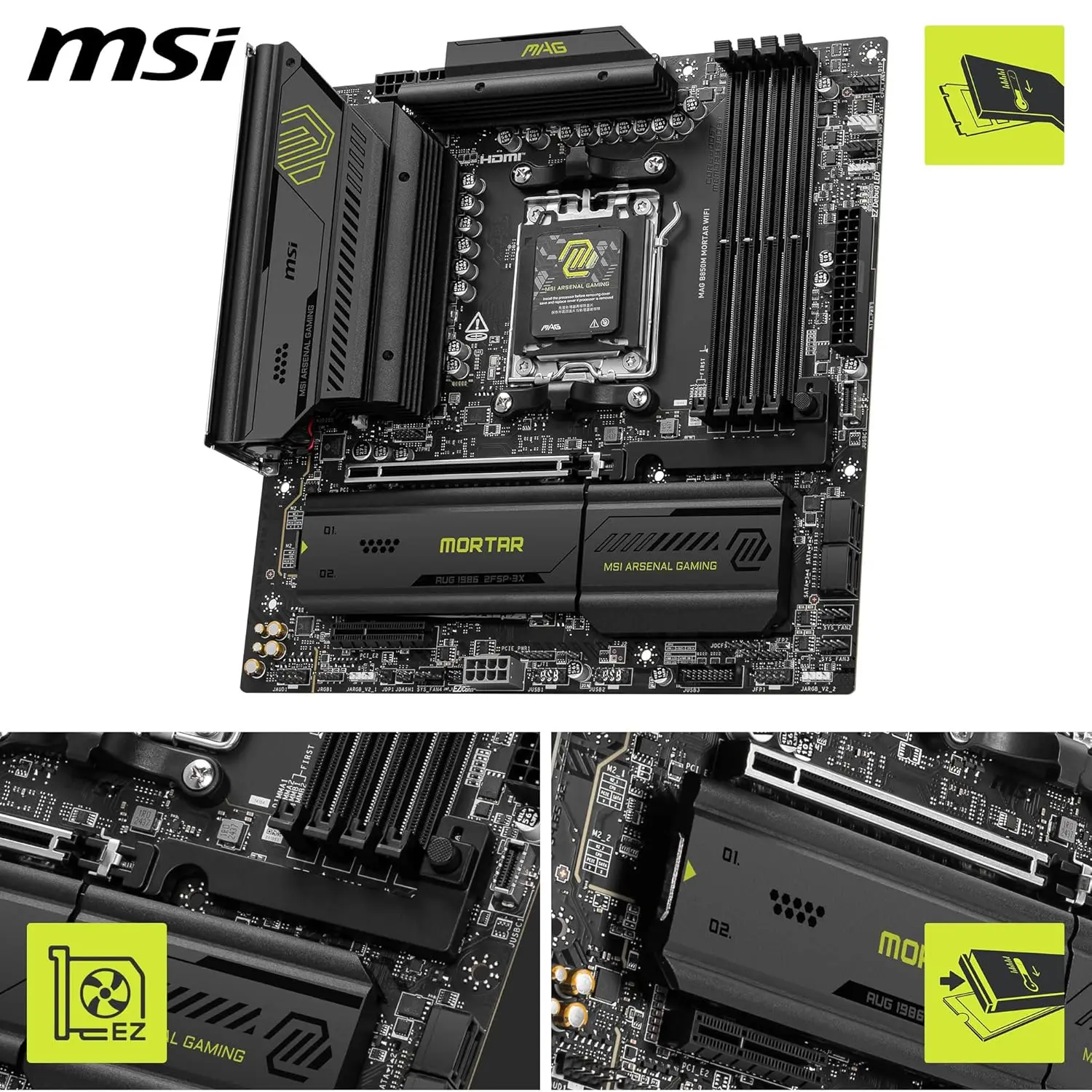

Le funzioni EZ DIY come EZ M.2 Clip II, EZ PCIe Release ed EZ Antenna semplificano il montaggio e la gestione del sistema. Infine, la tecnologia Audio Boost 5 garantisce un’esperienza sonora di livello professionale.

Specifiche Tecniche

Caratteristica Dettagli
Formato Micro-ATX
Chipset AMD B850
Socket AM5
Supporto CPU Ryzen™ 9000 / 8000 / 7000
Memoria DDR5, Dual Channel, fino a 8200+ MT/s (OC)
Alimentazione 12+2+1 Duet Rail Power, 2x 8-pin CPU
Rete LAN 5G, Wi-Fi 7
Slot di Espansione 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
Archiviazione 1x M.2 Gen 5, 3x M.2 Gen 4, 6x SATA III
USB USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1
Audio 7.1 HD Audio Boost 5
Raffreddamento Dissipatori Frozr Guard, Shield Frozr II
PCB 8 strati, rame 2 oz
Dimensioni 244 x 244 mm (Micro-ATX)
Informazioni aggiuntive
Peso 0,8 kg
Dimensioni 24,4 × 24,4 × 3,5 cm
M.B. - Chipset

AMD B550
CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
–
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Onboard Graphics

1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz
Slot

1x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
–
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Audio

Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output
Storage

3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
4x SATA 6G
–
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
–
M2_2 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
–
M2_3 slot
• Supports up to PCIe 4.0 x2
Multi-GPU

AMD MULTI-GPU Support
RAID

• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB

4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN

Realtek® 8126-VB 5G LAN
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
LED FEATURE

4x EZ Debug LED
1x EZ Memory Detection LED

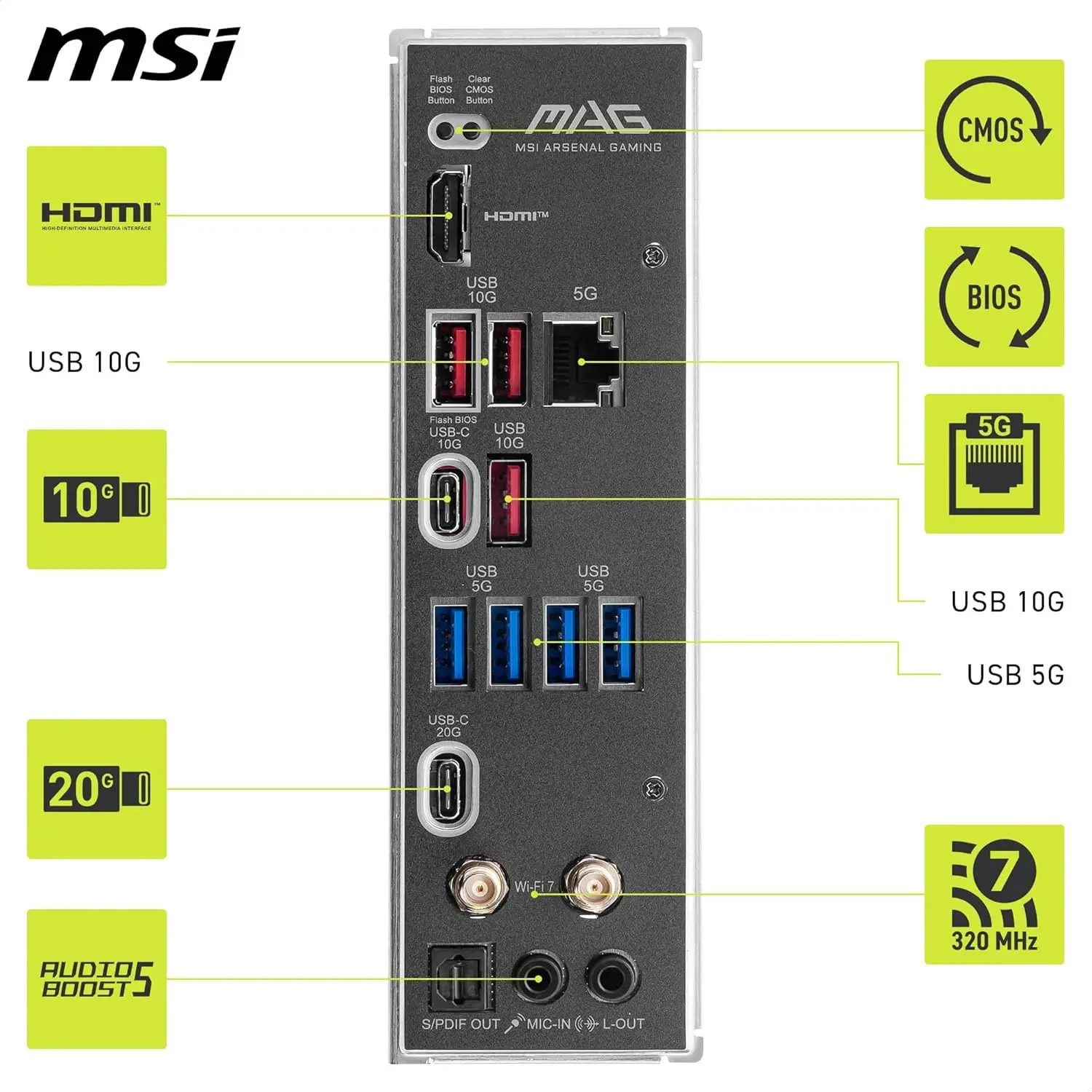

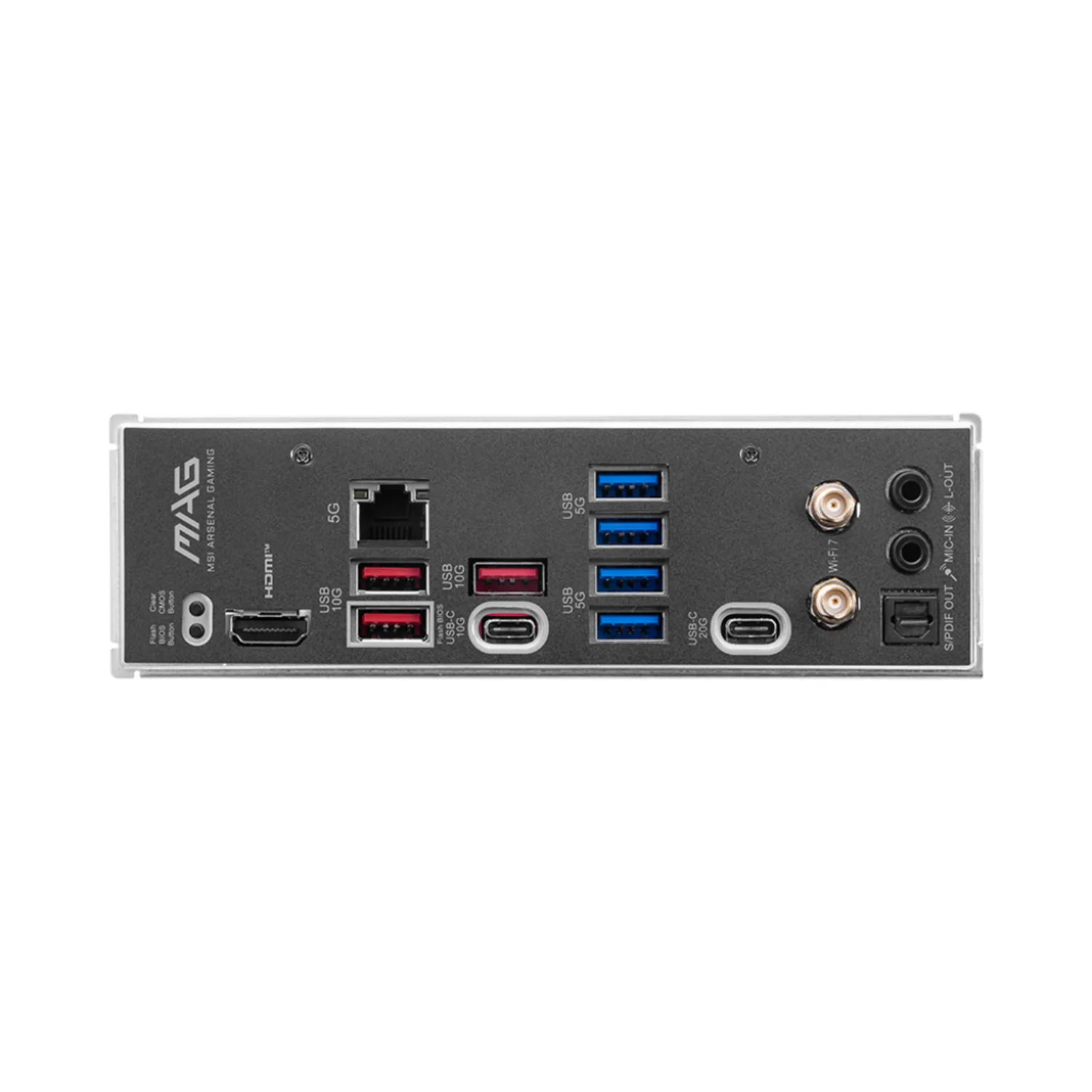

BACK PANEL PORTS

Clear CMOS Button
5G LAN
USB 10Gbps Type-A
USB 5Gbps Type-A
Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps Type-A
USB 10Gbps Type-C
USB 20Gbps Type-C
Wi-Fi / Bluetooth
Optical S/PDIF Out
OPERATING SYSTEM

Support for Windows® 11 64-bit
