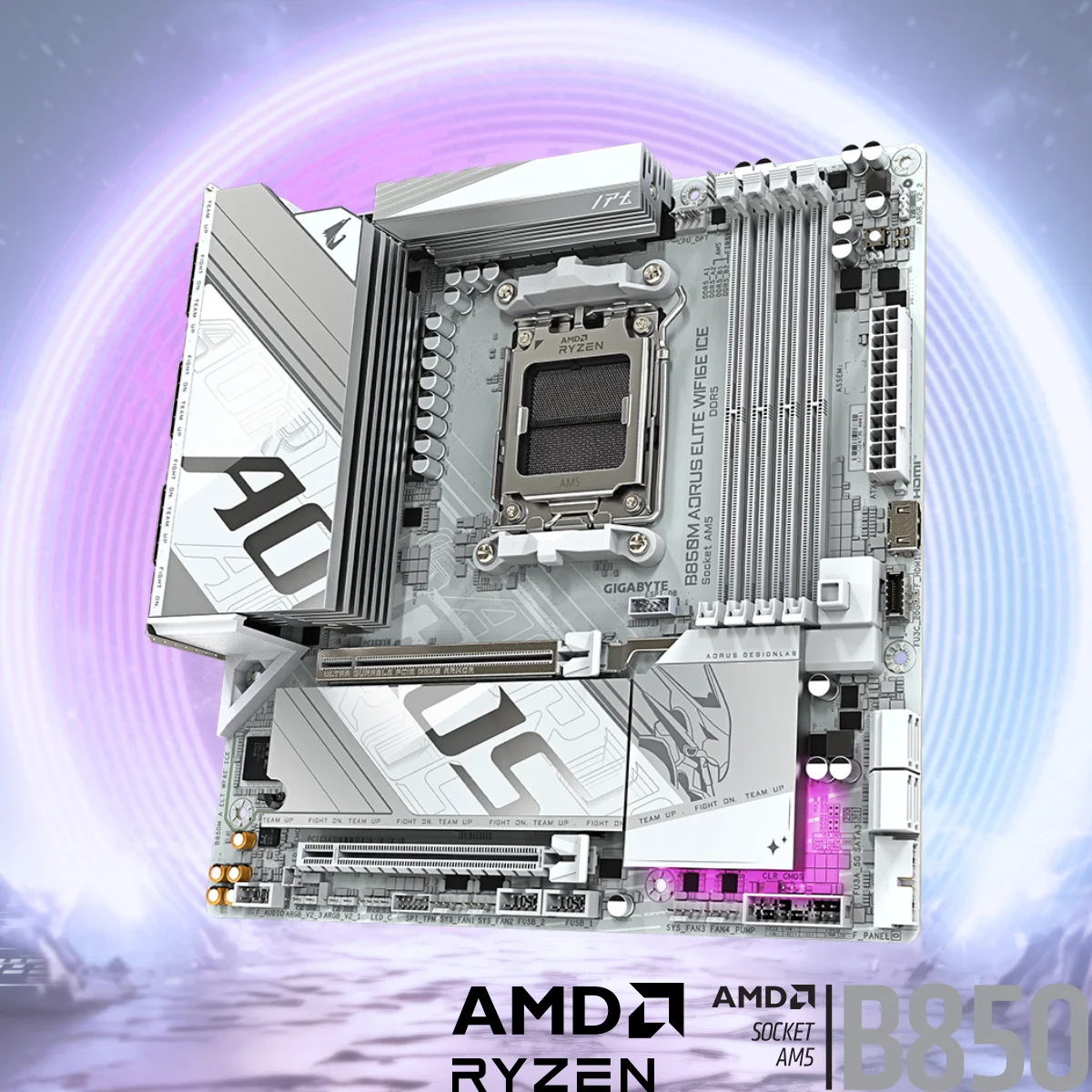

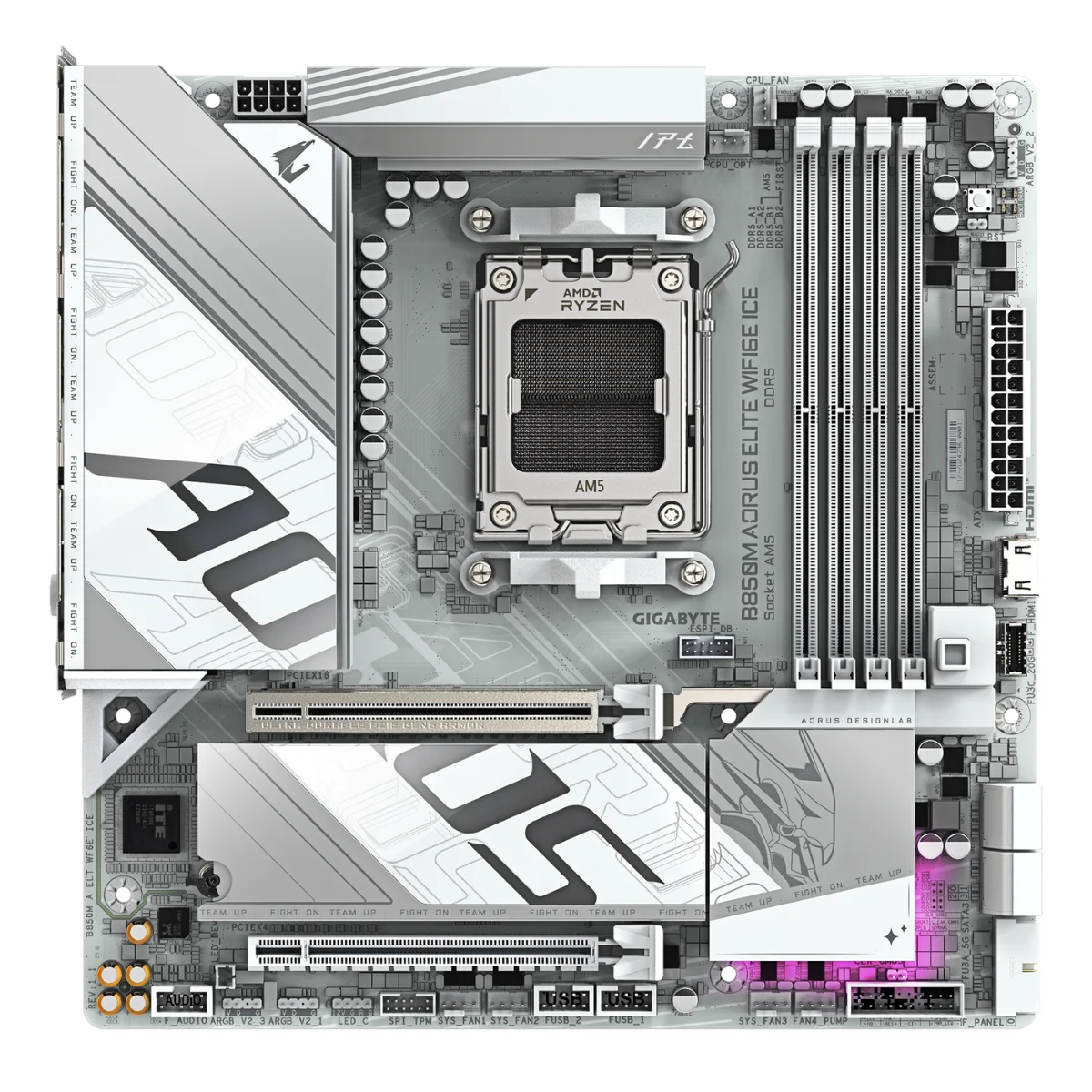

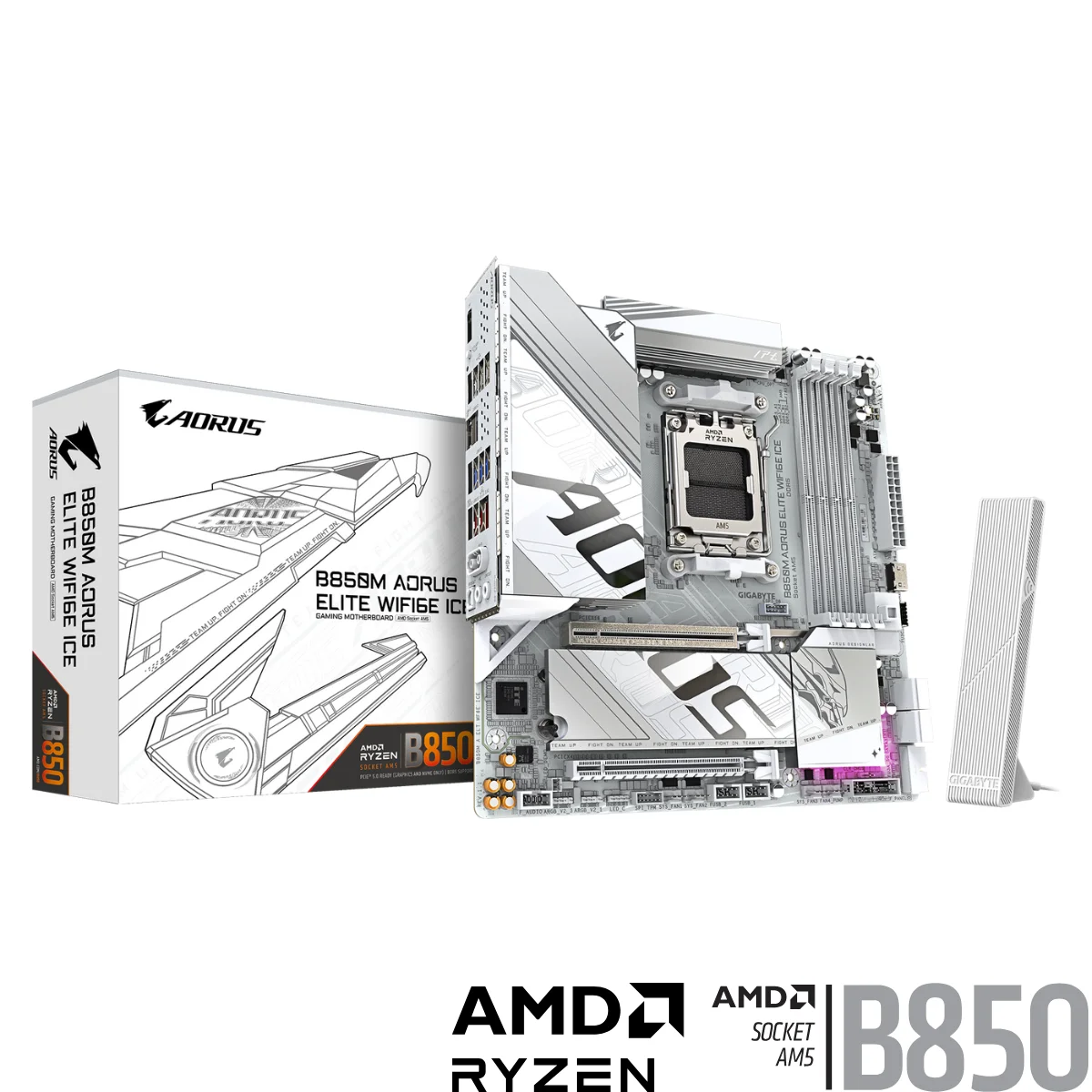

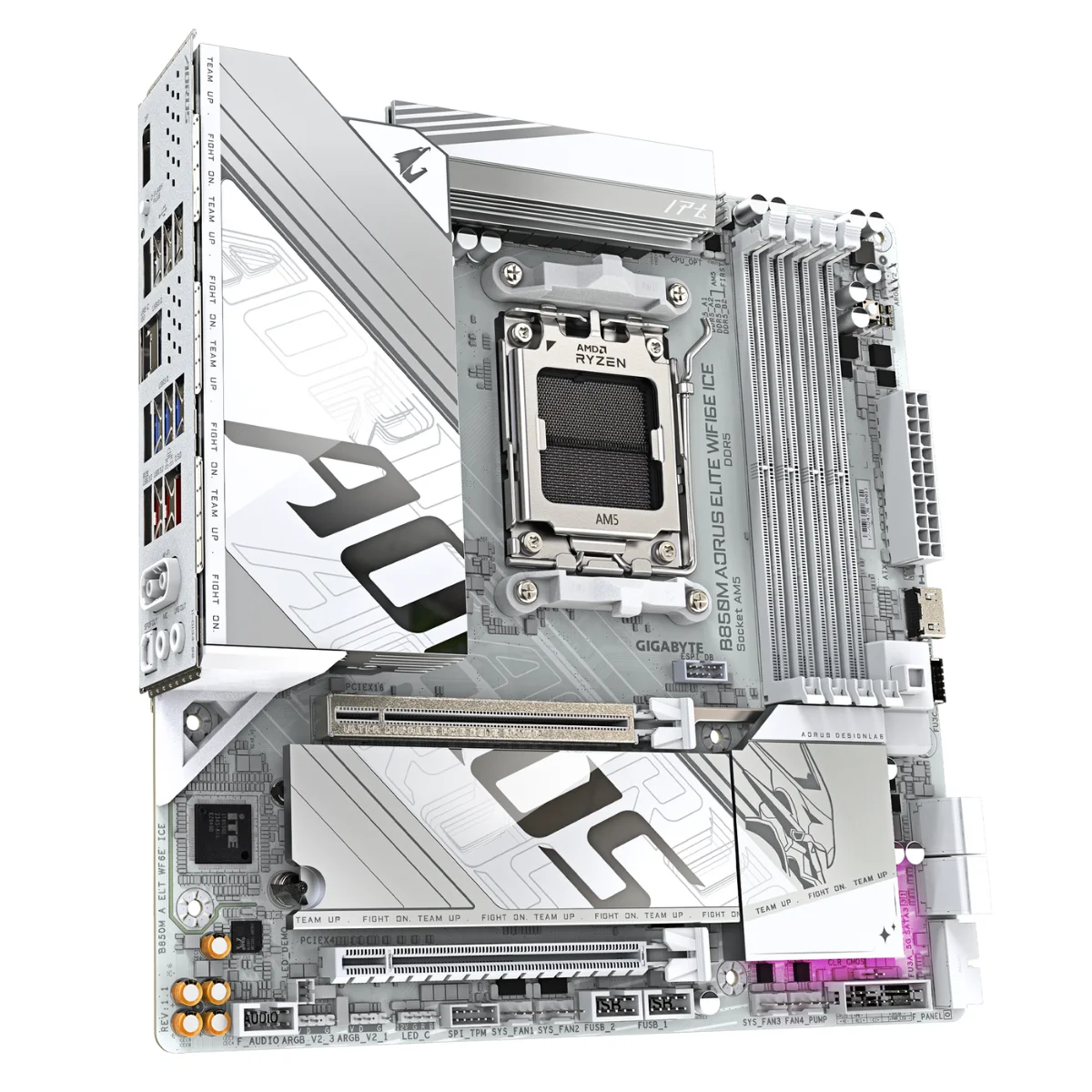

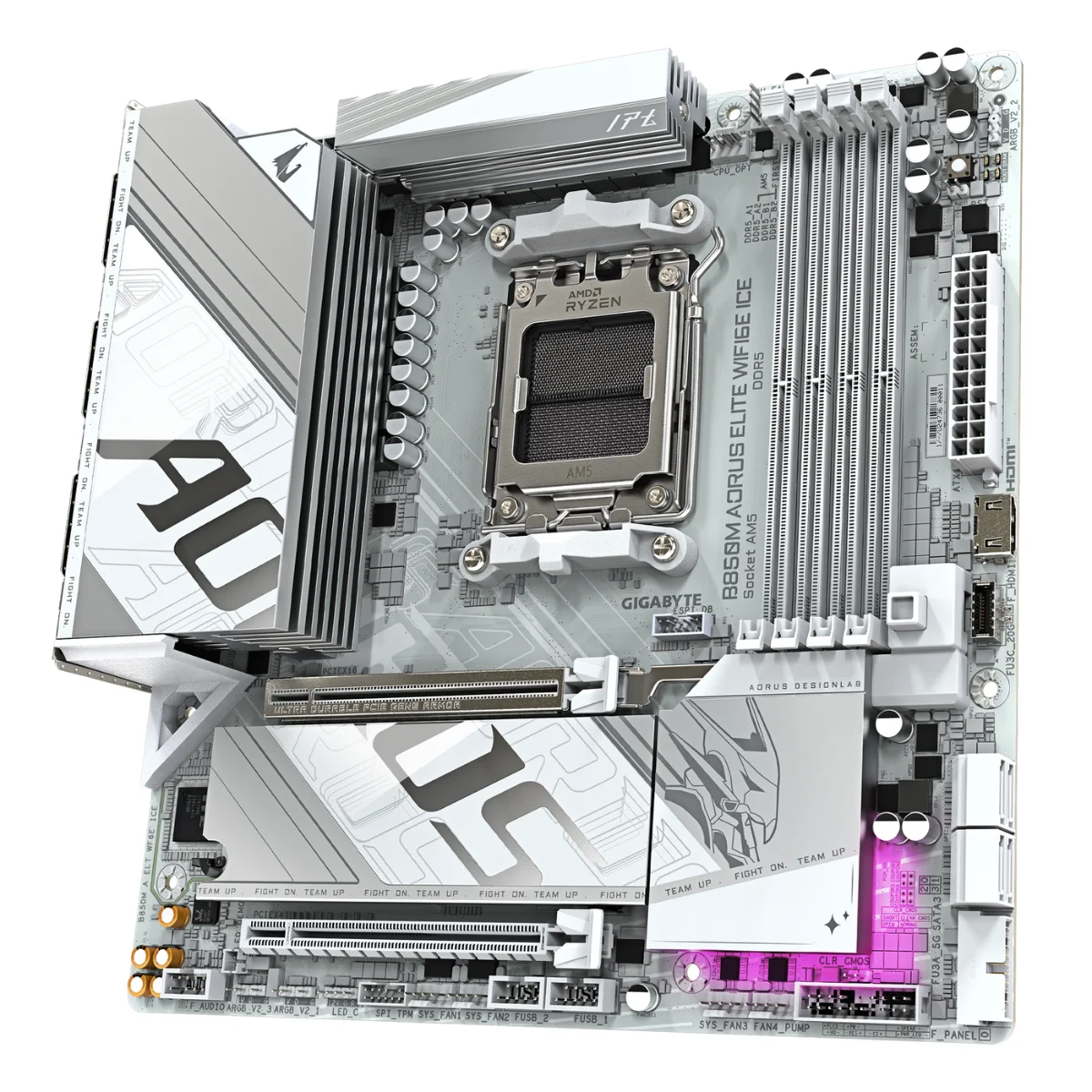

GIGABYTE B850M AORUS ELITE WIFI6E ICE – Scheda madre mATX, Socket AM5, DDR5, PCIe 5.0, Wi-Fi 6E, 2.5GbE

0 Persone guardano adesso questo prodotto!

EAN: 4719331866082 COD: 9MB85MEI6-00-G10 Categoria: AM5 Tag: AM5, AMD B850, Bianco, Bluetooth 5.3, DDR5, DisplayPort 1.4, HDMI 1.4, LAN 2.5G, Micro-ATX, PCIe 4.0, PCIe 5.0, USB 3.2, Wi-Fi 6E

Descrizione

GIGABYTE B850M AORUS ELITE WIFI6E ICE / 9MB85MEI6-00-G10 / 4719331866082

Alimentazione stabile per Ryzen

VRM digitale 12+2+2 (6+6 parallelo per Vcore) con DrMOS 60A, choke e condensatori premium. Connettori UD Solid Pin (24-pin ATX + 8-pin CPU) per migliore conducibilità e minore usura.

PCB di qualità, segnale pulito

6 layer, Mid-Loss PCB, rame 2X: migliore integrità del segnale e dissipazione. Slot PCIe UD rinforzato (acciaio) per GPU pesanti: fino a 1.7× resistenza al taglio e 3.2× forza di ritenzione (test interni).

DDR5 ad altissima velocità

4 DIMM Dual Channel con supporto AMD EXPO™ e ottimizzazioni “Infinite Memory Performance”: fino a 8200 MT/s (OC) e ampia compatibilità.

Storage di nuova generazione

Due slot M.2 con dissipazione dedicata Thermal Guard Ext.:

1× M.2 PCIe 5.0 x4 per SSD ultra-veloci
1× M.2 PCIe 4.0 x4

4× SATA 6Gb/s per storage aggiuntivo.

Connettività completa

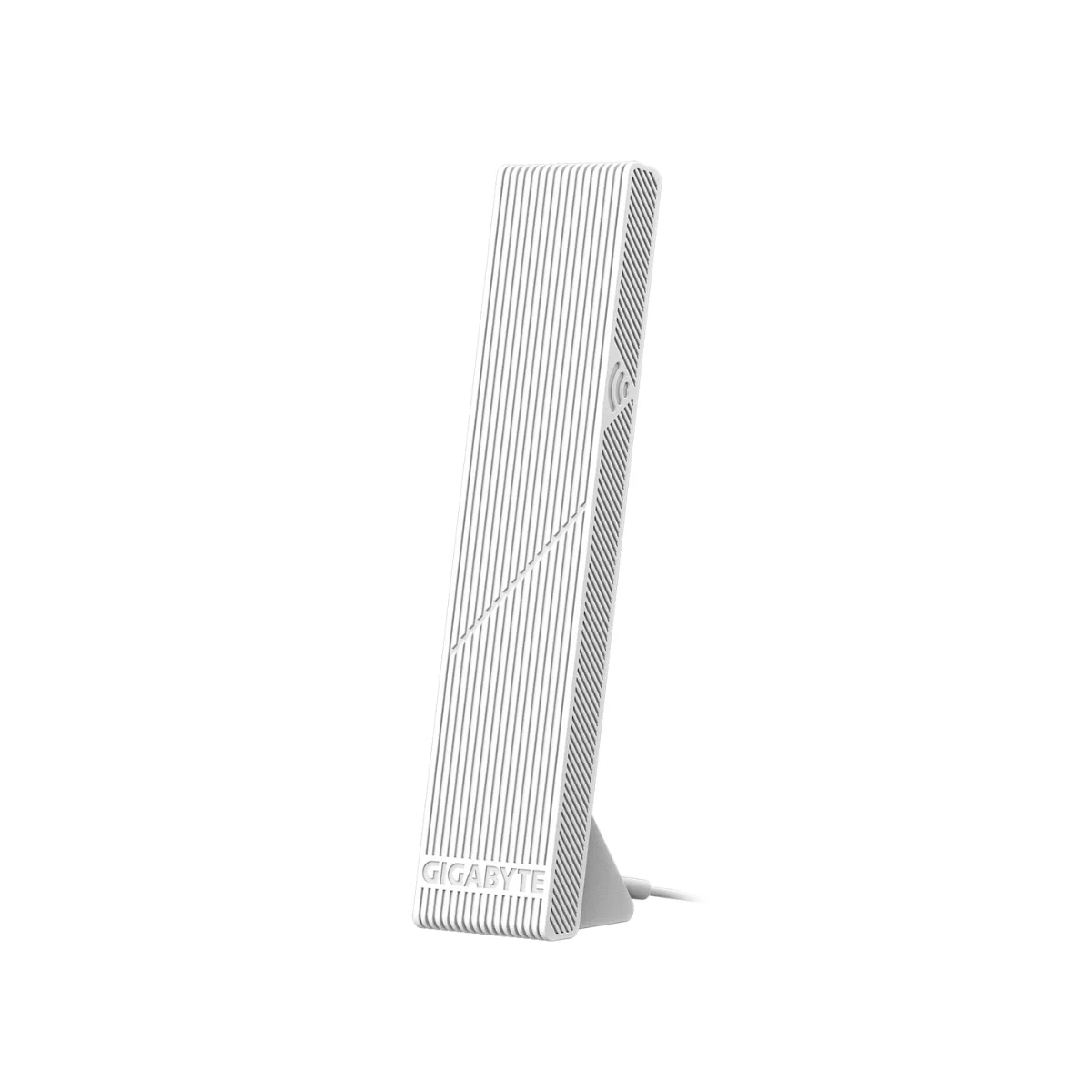

2.5GbE LAN, Wi-Fi 6E (802.11ax) con antenna direzionale high gain e WIFI EZ-Plug per un’installazione più semplice.
Porte: USB-C 3.2 Gen2x2 (20Gb/s) sul pannello frontale, USB 3.2 Gen2 Type-C sul retro, 5× USB 3.2 Gen1, 2× USB 3.2 Gen2, 4× USB 2.0, DP + HDMI (Sensor Panel Link su HDMI per pannelli interni).

Raffreddamento avanzato

VRM Thermal Armor Advanced, heatpipe ad alta efficienza, pad termici 5 W/mK, copertura M.2 estesa e Smart Fan 6 con 6 header PWM/DC, curve doppie e controlli granulari (incluso AIO Fan Control nel BIOS).

Montaggio semplificato (serie EZ)

Integrated I/O shield, M.2 EZ-Latch Plus / Click (senza viti), PCIe EZ-Latch Plus, EZ-Debug Zone con Debug LEDs e Q-Flash PLUS per aggiornare il BIOS senza CPU/RAM.

Strumenti AI & BIOS

X3D Turbo Mode: ottimizzazione one-click pensata per Ryzen™ 9000 X3D e non-X3D, con fino a +18% FPS (varia a seconda del titolo).
Suite AORUS AI (AI Overclocking/Design, HyperTune BIOS), UC BIOS con interfaccia rinnovata e temi multipli. Integrazione con GIGABYTE Control Center, RGB Fusion e partnership HWiNFO (OSD co-brand).

Specifiche tecniche

Caratteristica	Dettaglio
Marca	GIGABYTE
Modello	B850M AORUS ELITE WIFI6E ICE
Codice prodotto	9MB85MEI6-00-G10
EAN	4719331866082
Formato	Micro-ATX
Socket / Chipset	AM5 / B850
Compatibilità CPU	AMD Ryzen™ 9000 / 8000 / 7000 Series
VRM	12+2+2 Digital Twin (DrMOS 60A); design parallelo 6+6 per Vcore
PCB	6 strati, Mid-Loss, Copper 2X
Memoria	4× DDR5 DIMM, Dual Channel, fino a 8200 MT/s (OC), AMD EXPO™
Slot PCIe	1× PCIe 5.0 x16 (UD Slot), 1× PCIe 3.0 x4
Storage	2× M.2 (1× PCIe 5.0 x4 + 1× PCIe 4.0 x4), 4× SATA 6Gb/s
Rete	2.5GbE LAN, Wi-Fi 6E + antenna direzionale ad alto guadagno, Bluetooth (via modulo Wi-Fi)
USB (retro)	USB 3.2 Gen2 Type-C, 2× USB 3.2 Gen2, 2× USB 3.2 Gen1, 4× USB 2.0
USB (frontali)	USB-C 3.2 Gen2x2 (20Gb/s), 2× USB 3.2 Gen1 (tramite header)
Video I/O	1× DisplayPort, 1× HDMI (Sensor Panel Link su HDMI)
Audio	HD Audio (codec dipende dalla revisione; uscita tramite header/posteriore)
Raffreddamento	Smart Fan 6, 6 header PWM/DC, VRM Thermal Armor, M.2 Thermal Guard Ext.
Altro	Integrated I/O Shield, PCIe/M.2 EZ-Latch, Q-Flash PLUS, Debug LEDs, RGB Fusion (1× RGB, 3× ARGB)
Software	GIGABYTE Control Center, RGB Fusion, UC BIOS, HWiNFO OSD
Note	X3D Turbo Mode: fino a +18% FPS a seconda del gioco

Domande Frequenti (FAQ)

1) Supporta i nuovi Ryzen 9000?
Sì, è compatibile con Ryzen 9000/8000/7000 su socket AM5 (aggiornamento BIOS consigliato).

2) Posso installare un SSD PCIe 5.0?
Sì, è presente 1 slot M.2 PCIe 5.0 x4 dedicato + 1 slot M.2 PCIe 4.0 x4.

3) La rete è 2.5G e c’è il Wi-Fi 6E?
Sì, include LAN 2.5GbE e Wi-Fi 6E con antenna direzionale high-gain.

4) Quanto spinge la RAM DDR5?
Fino a 8200 MT/s (OC), con profili AMD EXPO™.

5) Cos’è X3D Turbo Mode?
Un profilo BIOS “one-click” che può aumentare le prestazioni in gioco fino a ~18%, variabile per titolo e configurazione.

Maggiori informazioni

Per dettagli completi, BIOS e driver ufficiali:
👉 GIGABYTE B850M AORUS ELITE WIFI6E ICE

Informazioni aggiuntive

Peso	1,8 kg
Dimensioni	24,4 × 24,4 × 3 cm
CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD B850
Memory	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. – – 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz * Support for HDMI 1.4 version. – (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC (Only for rev. 1.0) High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. – Support for S/PDIF Out – Realtek® ALC1220 CODEC (Only for rev. 1.1) * The back panel line out jack supports DSD audio. – High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. – Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 6E RTL8852CE – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. – Chipset: – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs – 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. – RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper – (Note) Actual support may vary by CPU.

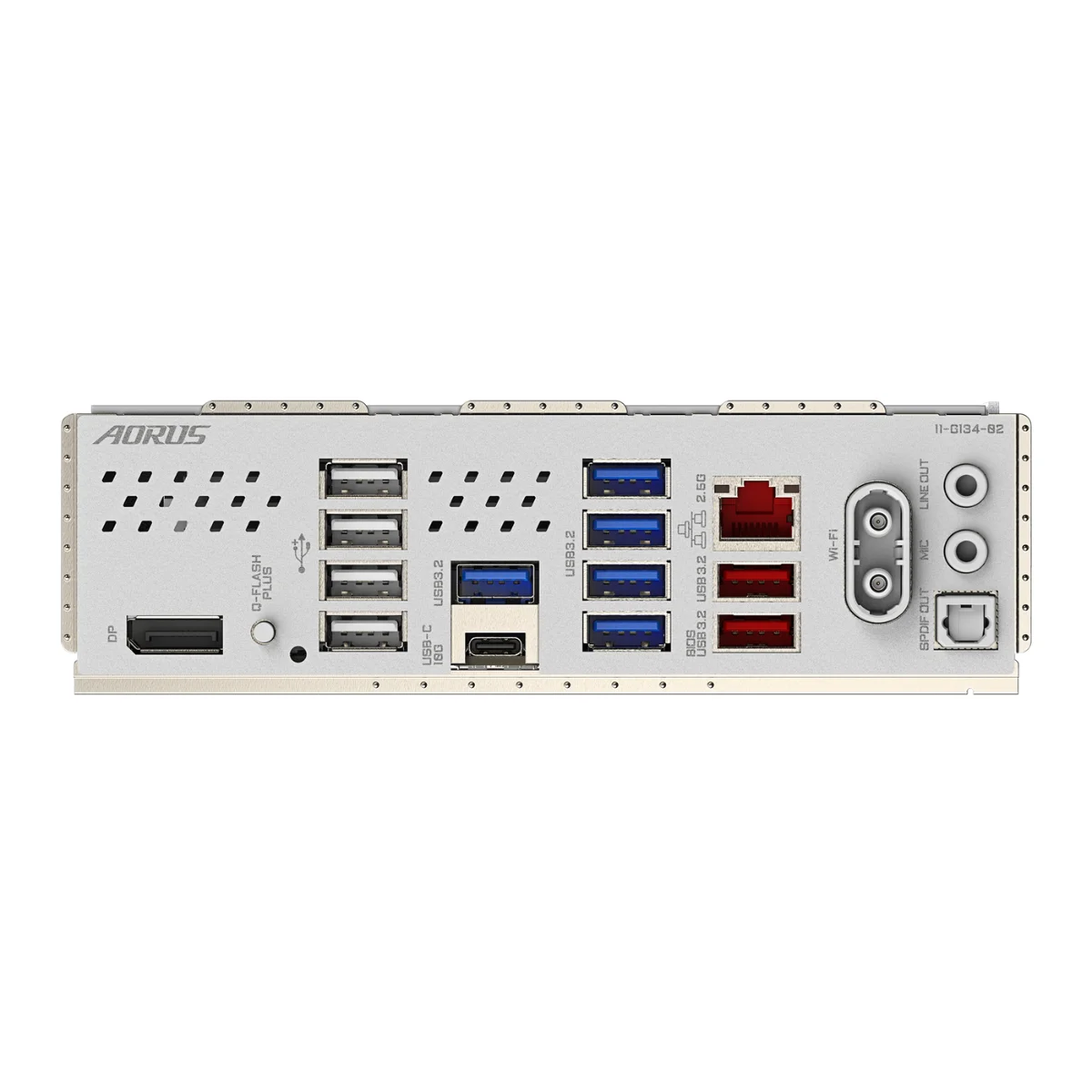

Back Panel Connectors	1 x DisplayPort (Note) 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 5 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector – (Note) Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. – Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundle Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
