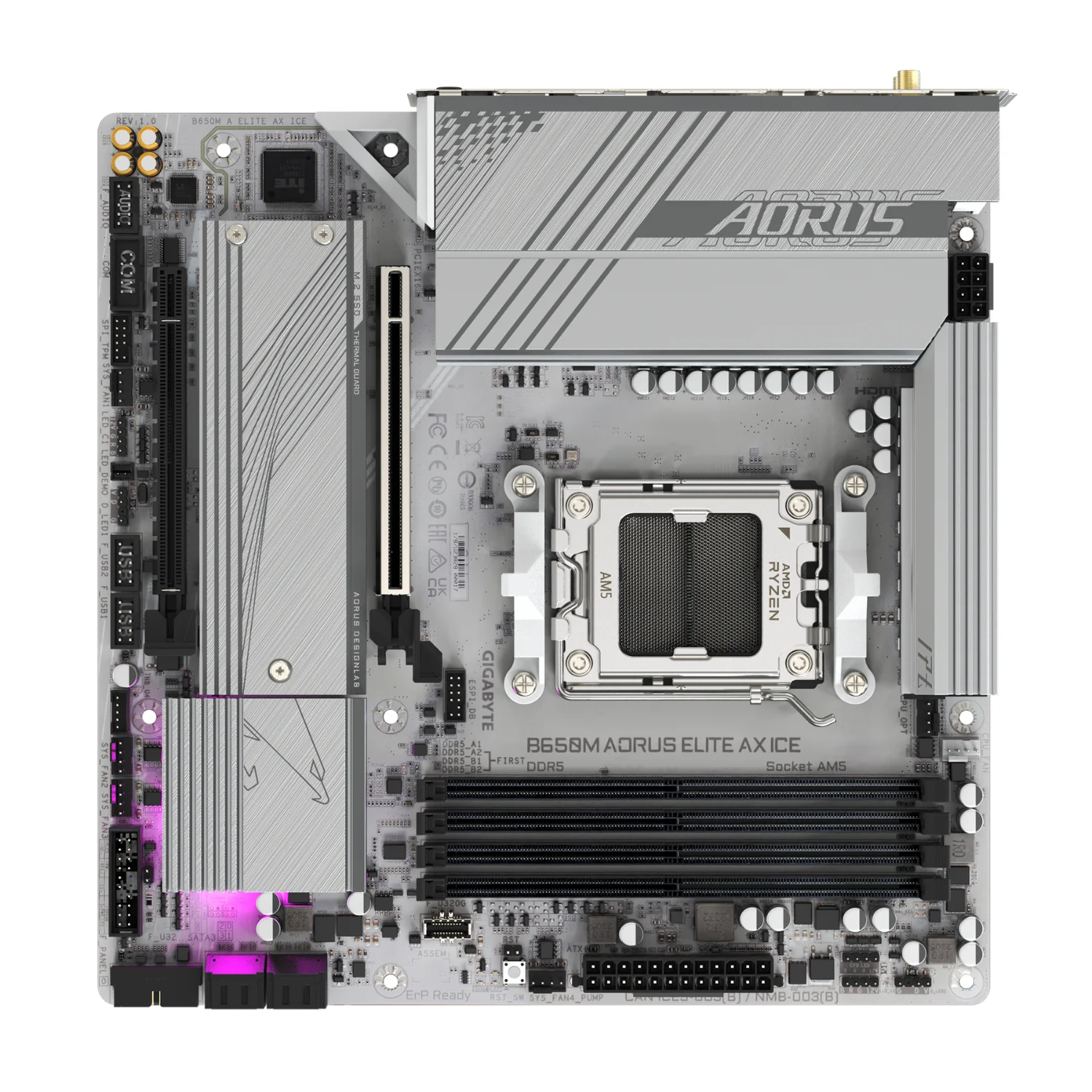

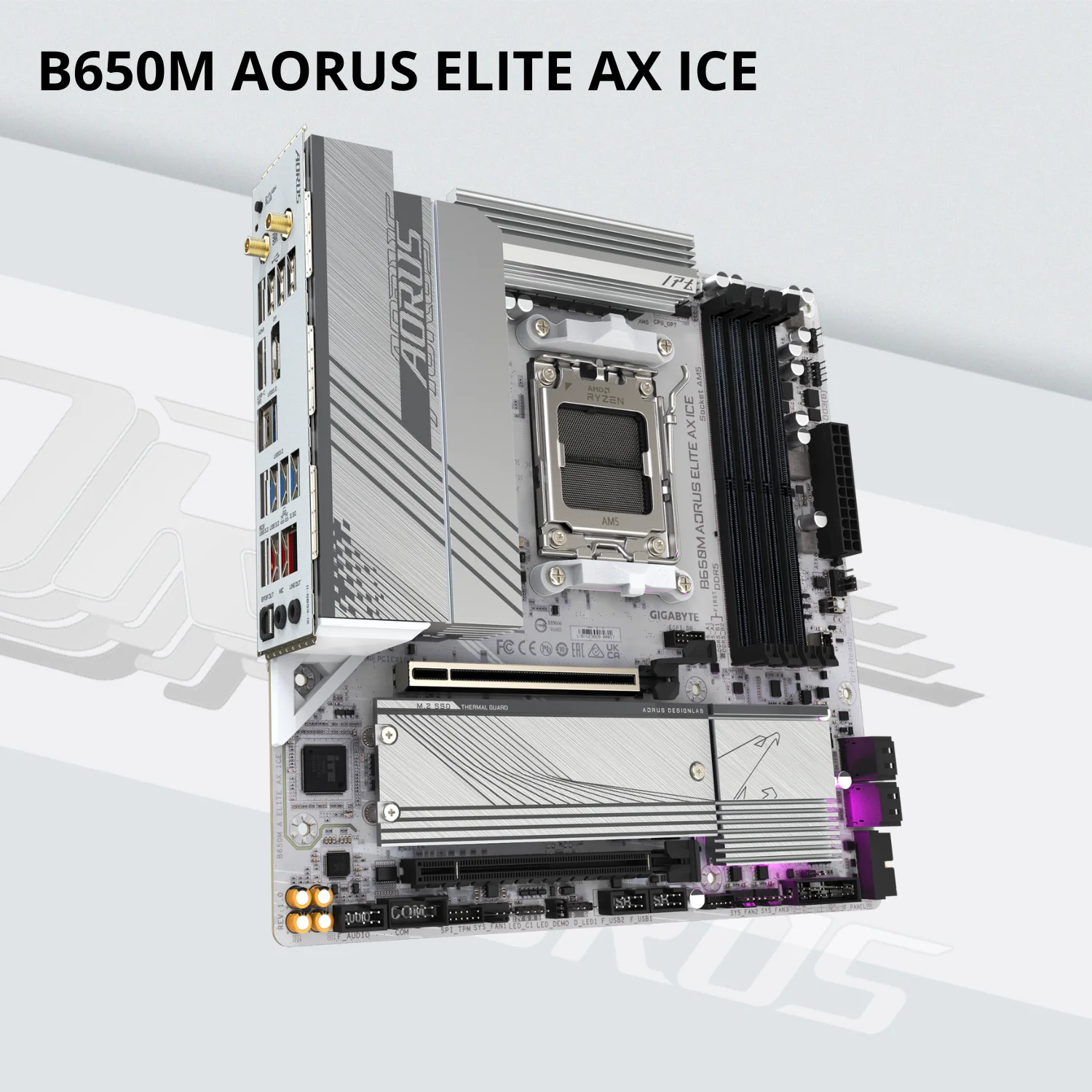

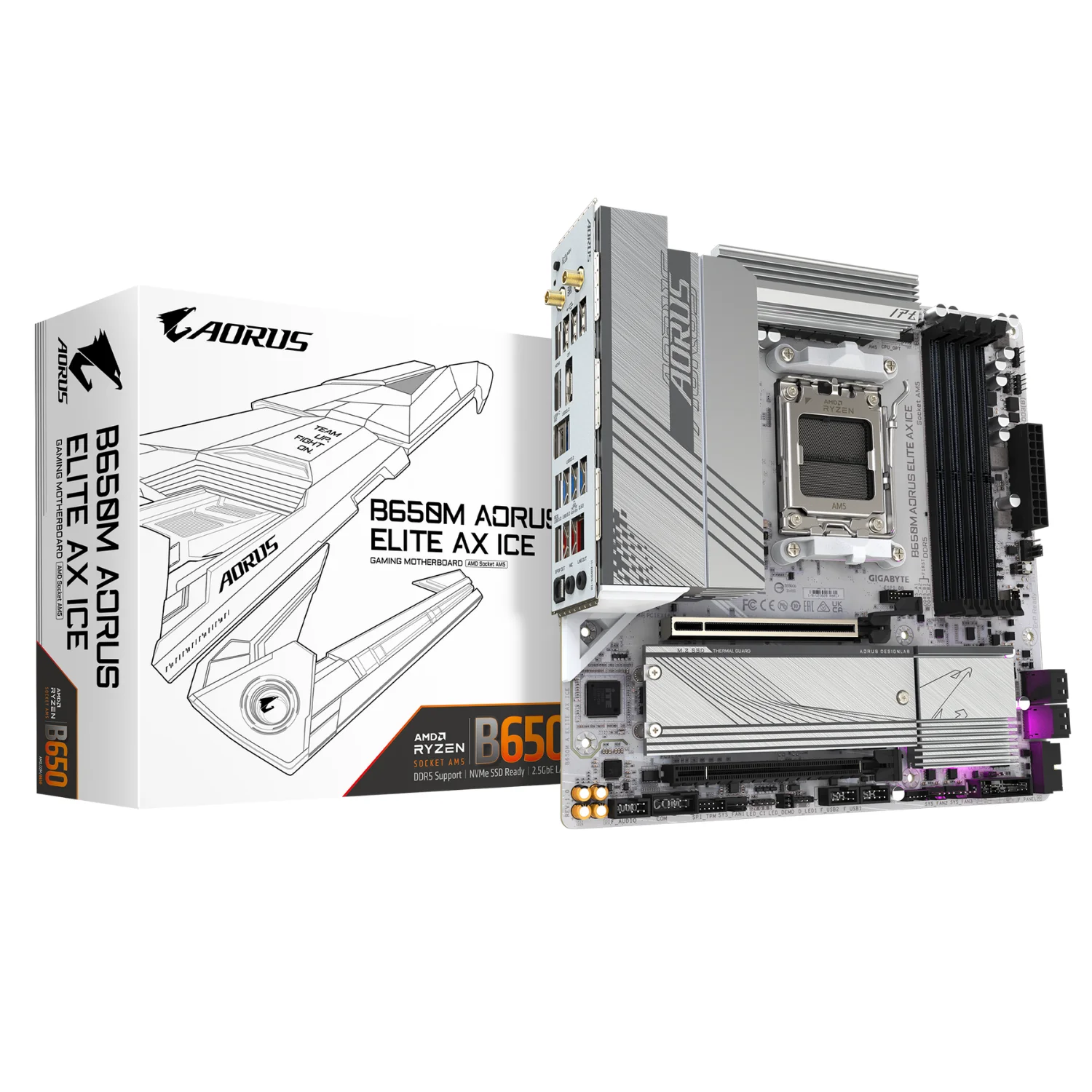

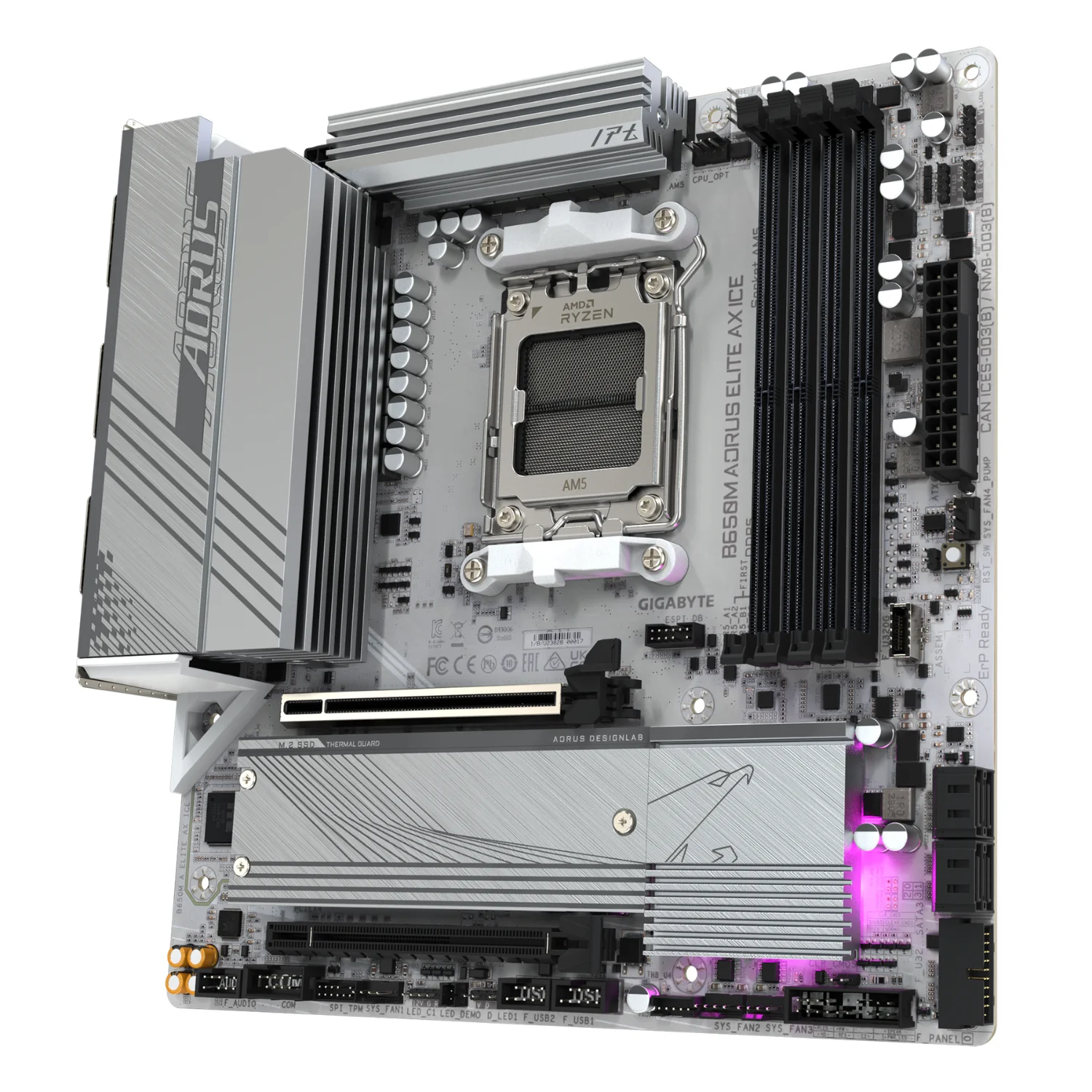

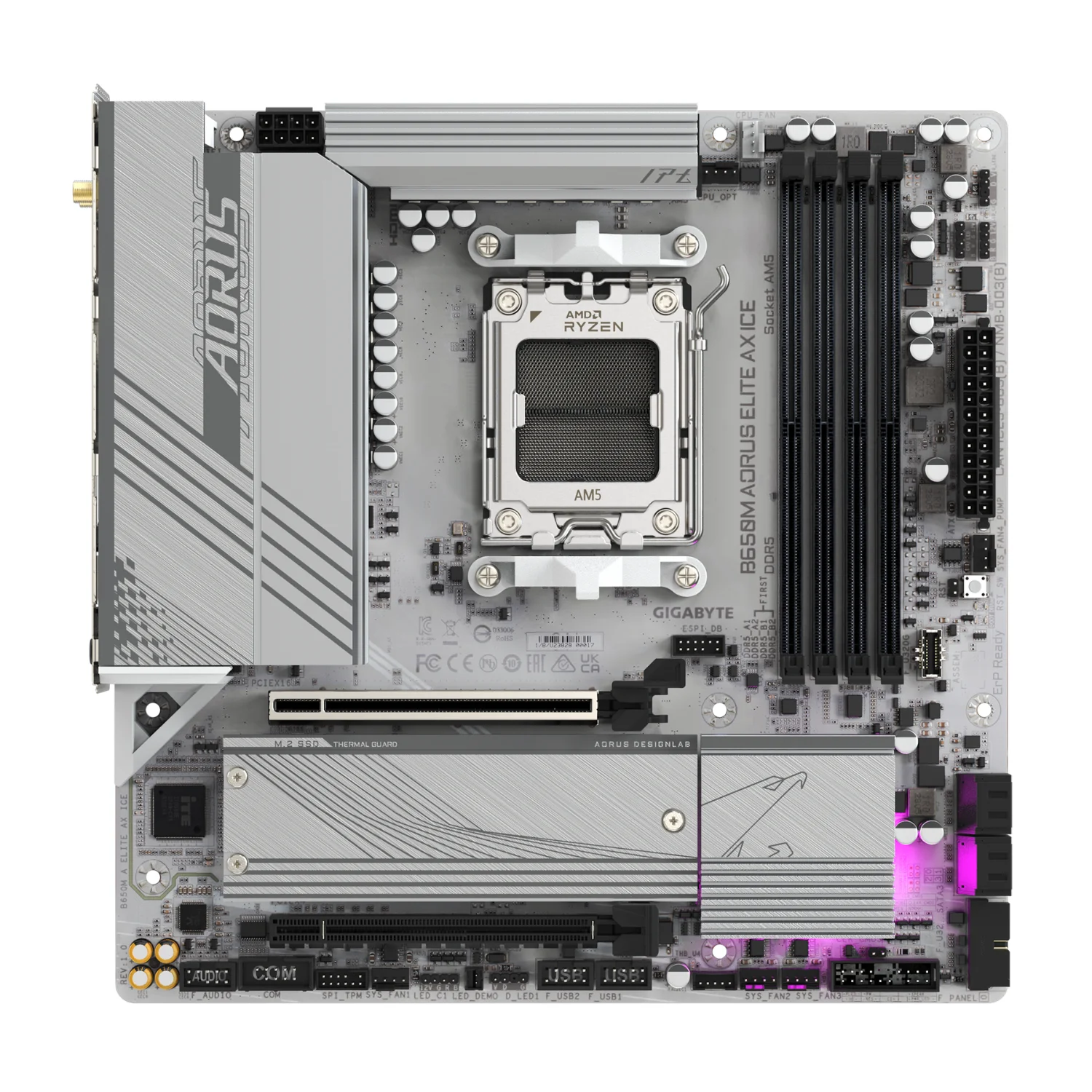

GIGABYTE B650M AORUS ELITE AX ICE
GIGABYTE B650M AORUS ELITE AX ICE – 1Scheda Madre Micro-ATX AM5 con DDR5, PCIe 5.0, Wi-Fi 6E e USB-C 20Gb/s - immagine 2
GIGABYTE B650M AORUS ELITE AX ICE – 1Scheda Madre Micro-ATX AM5 con DDR5, PCIe 5.0, Wi-Fi 6E e USB-C 20Gb/s - immagine 3
GIGABYTE B650M AORUS ELITE AX ICE – 1Scheda Madre Micro-ATX AM5 con DDR5, PCIe 5.0, Wi-Fi 6E e USB-C 20Gb/s - immagine 4
GIGABYTE B650M AORUS ELITE AX ICE – 1Scheda Madre Micro-ATX AM5 con DDR5, PCIe 5.0, Wi-Fi 6E e USB-C 20Gb/s - immagine 5
GIGABYTE B650M AORUS ELITE AX ICE – 1Scheda Madre Micro-ATX AM5 con DDR5, PCIe 5.0, Wi-Fi 6E e USB-C 20Gb/s - immagine 6
AORUS GIGABYTE

GIGABYTE B650M AORUS ELITE AX ICE – 1Scheda Madre Micro-ATX AM5 con DDR5, PCIe 5.0, Wi-Fi 6E e USB-C 20Gb/s

195,00 €

   Chipset AMD B650
Form Factor   Form Factor Micro-ATX
Socket   Socket AM5
Tipo di Memoria   Tipo di Memoria DDR5

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4719331859336 COD: 9MB65MEXI-00-10 Categoria: Tag: , , , , , , , , ,
Descrizione

GIGABYTE B650M AORUS ELITE AX ICE / 9MB65MEXI-00-10 / 4719331859336

La B650M AORUS ELITE AX ICE porta le prestazioni e l’affidabilità del gaming su PC ad un livello superiore.

  • Compatibilità AM5 estesa: supporta processori AMD Ryzen™ serie 7000 / 8000 / 9000.

  • Alimentazione avanzata: sistema di alimentazione digitale Twin 12+2+2 fasi VRM per garantire stabilità anche sotto carichi pesanti.

  • Supporto DDR5: fino a 4 moduli DIMM dual-channel con profili AMD EXPO™ e Intel® XMP, per memorie ad alte frequenze e basse latenze.

  • Archiviazione ultraveloce: uno slot M.2 PCIe 5.0 x4 e uno M.2 PCIe 4.0 x4, per SSD NVMe di ultima generazione.

  • Dissipazione intelligente: design termico avanzato con M.2 Thermal Guard per prestazioni stabili e temperature contenute.

  • Facilità d’uso con EZ-Latch: slot PCIe x16 e M.2 con sgancio rapido e design senza viti.

  • Rete ultraveloce: connettività LAN 2.5GbE e Wi-Fi 6E integrati.

  • Connettività moderna: porte HDMI, DisplayPort, USB-C frontale 20Gb/s e USB-C posteriore 10Gb/s.

  • Smart Fan 6: gestione termica con sensori multipli, connettori ibridi e funzione FAN STOP.

  • Q-Flash Plus: aggiornamento del BIOS senza CPU, RAM o GPU installata.

Caratteristiche principali

  • Socket AM5 compatibile con Ryzen™ serie 7000 / 8000 / 9000

  • Alimentazione digitale Twin 12+2+2 fasi VRM

  • DDR5 Dual Channel (4x DIMM) con supporto EXPO & XMP

  • Archiviazione ultra-rapida: 1x M.2 PCIe 5.0 + 1x M.2 PCIe 4.0

  • Dissipazione avanzata con M.2 Thermal Guard

  • EZ-Latch per installazione rapida senza viti

  • Connettività LAN 2.5GbE + Wi-Fi 6E integrati

  • Porte moderne: HDMI, DisplayPort, USB-C 20Gb/s (frontale), USB-C 10Gb/s (posteriore)

  • Smart Fan 6 con gestione intelligente delle ventole

  • Q-Flash Plus per aggiornare il BIOS facilmente

Specifiche Tecniche

Caratteristica Dettagli
Marca GIGABYTE
Modello B650M AORUS ELITE AX ICE
Codice prodotto 9MB65MEXI-00-10
EAN 4719331859336
Formato Micro-ATX
Socket CPU AMD AM5
Compatibilità CPU Ryzen™ serie 7000 / 8000 / 9000
VRM Twin 12+2+2 fasi digitali
Memoria 4x DIMM DDR5 Dual Channel, EXPO/XMP
Storage 1x M.2 PCIe 5.0 x4, 1x M.2 PCIe 4.0 x4, SATA III
Rete 2.5GbE LAN, Wi-Fi 6E
Connettività video HDMI, DisplayPort
Porte USB USB-C 20Gb/s frontale, USB-C 10Gb/s posteriore, USB standard
Gestione termica Smart Fan 6, M.2 Thermal Guard
Funzioni extra EZ-Latch PCIe/M.2, Q-Flash Plus
Colore Ice White

Domande Frequenti (FAQ)

1. Questa scheda madre supporta le CPU Ryzen serie 9000?
Sì, è compatibile con Ryzen™ serie 7000, 8000 e 9000.

2. Quanti slot M.2 sono disponibili?
Dispone di 2 slot M.2: uno PCIe 5.0 x4 e uno PCIe 4.0 x4.

3. È adatta per configurazioni gaming ad alte prestazioni?
Sì, grazie a VRM robusto, supporto DDR5 e connettività veloce è ideale per PC da gaming e produttività.

4. È difficile installare SSD M.2 o GPU?
No, grazie al sistema EZ-Latch l’installazione è rapida e senza viti.

5. Che connettività di rete offre?
Integra LAN 2.5GbE e Wi-Fi 6E per connessioni stabili e veloci.

Maggiori informazioni

Per dettagli aggiuntivi visita il sito ufficiale GIGABYTE:
GIGABYTE B650M AORUS ELITE AX ICE

Informazioni aggiuntive
Peso 1,5 kg
Dimensioni 24,4 × 24,4 × 3 cm
CPU

AMD Socket AM5, support for:
AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Chipset

AMD B650
Memory

Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
–
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
–
Support for S/PDIF Out
LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module

Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11ax 160MHz wireless standard
–
Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)
– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
–
Chipset:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
–
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
–
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB

CPU:
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports on the back panel
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
– 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
– 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

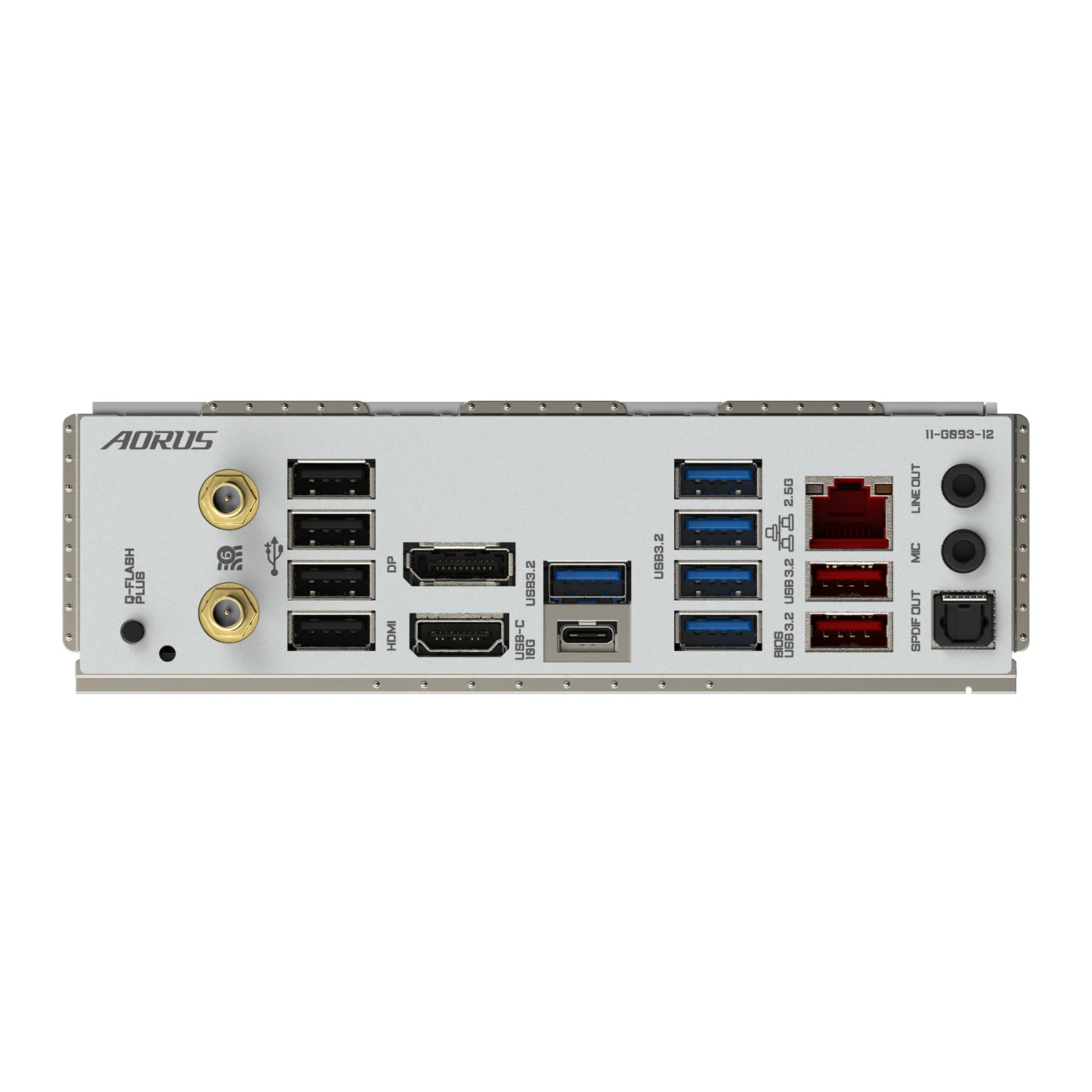

Back Panel Connectors

1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)jk
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
I/O Controller

iTE® I/O Controller Chip
H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
–
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm
