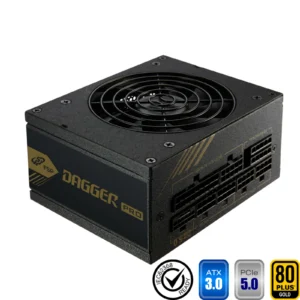

FSP DAGGER PRO 850W – Alimentatore 850W, SFX, 80 PLUS Gold, ATX 3.0, PCIe 5.0, Modulare
FSP DAGGER PRO 850W – Alimentatore 850W, SFX, 80 PLUS Gold, ATX 3.0, PCIe 5.0, Modulare 165,00 €
-19%Esaurito
GIGABYTE B650 UD AX – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.0 [B650UDAX] - immagine 1
GIGABYTE B650 UD AX – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.0 [B650UDAX] - immagine 2
GIGABYTE B650 UD AX – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.0 [B650UDAX] - immagine 3
GIGABYTE B650 UD AX – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.0 [B650UDAX] - immagine 4
GIGABYTE B650 UD AX – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.0 [B650UDAX] - immagine 5
Clicca per ingrandire
GIGABYTE B650 UD AX – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.0 [B650UDAX]
GIGABYTE B650 UD AX – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.0 [B650UDAX] - immagine 2
GIGABYTE B650 UD AX – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.0 [B650UDAX] - immagine 3
GIGABYTE B650 UD AX – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.0 [B650UDAX] - immagine 4
GIGABYTE B650 UD AX – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.0 [B650UDAX] - immagine 5
GIGABYTE

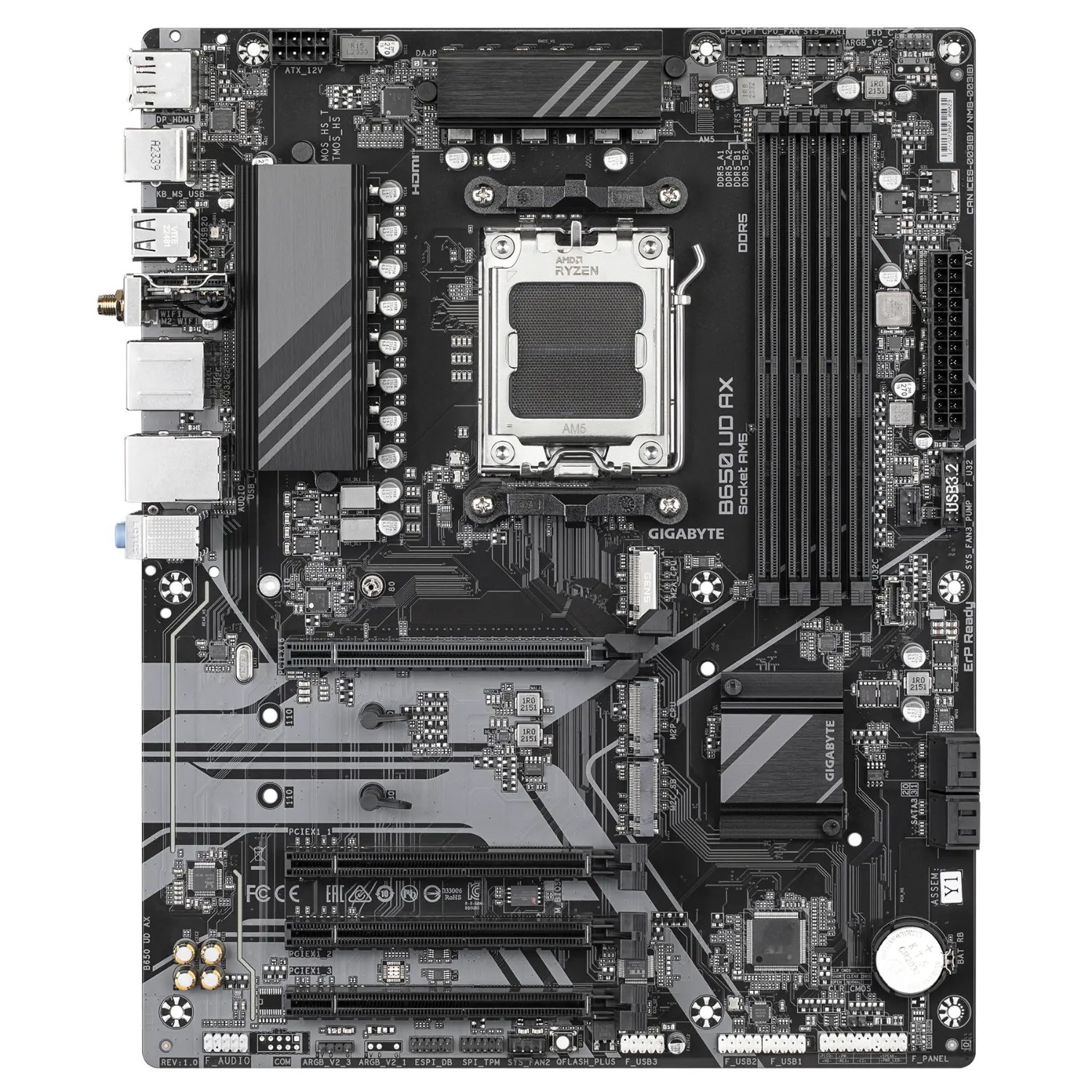

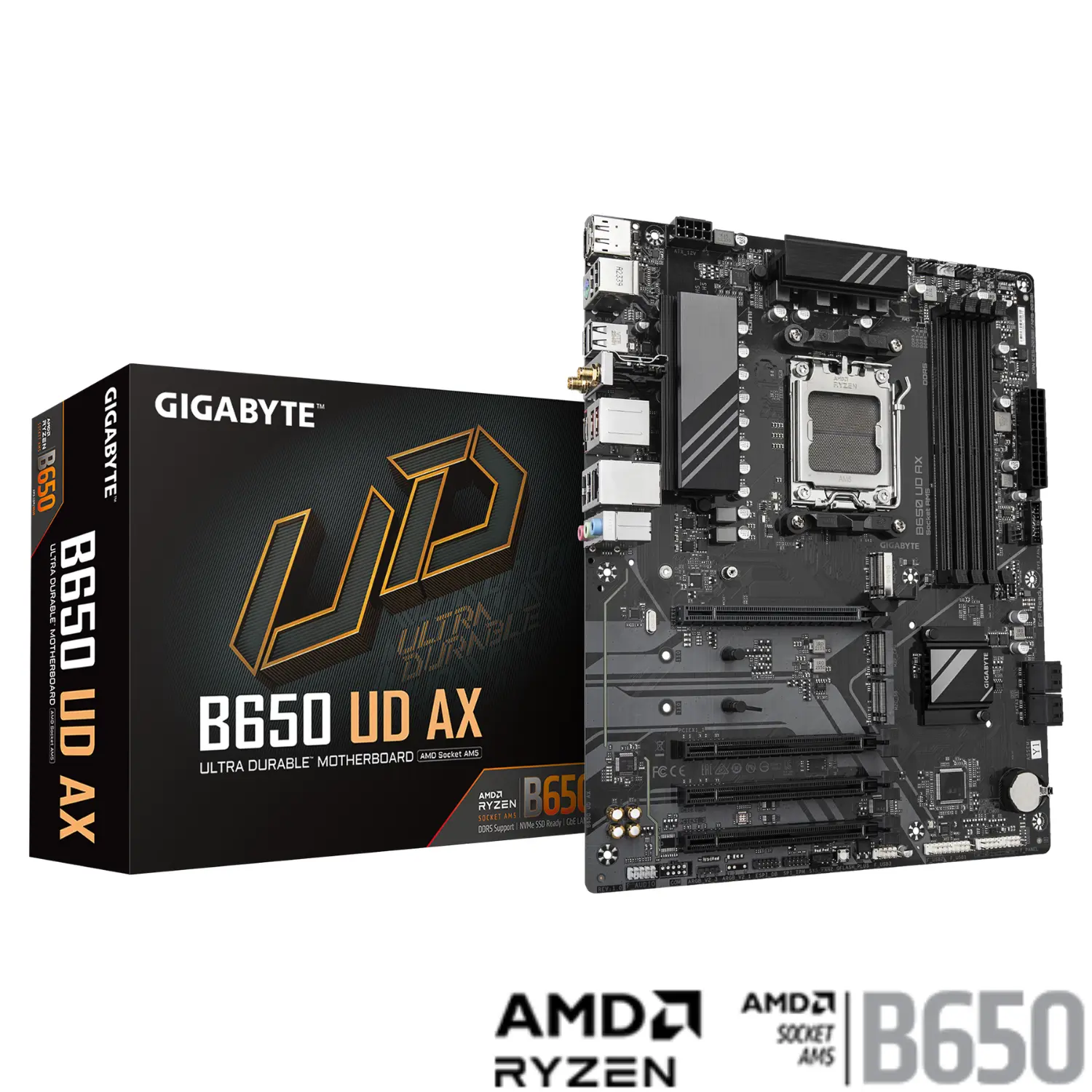

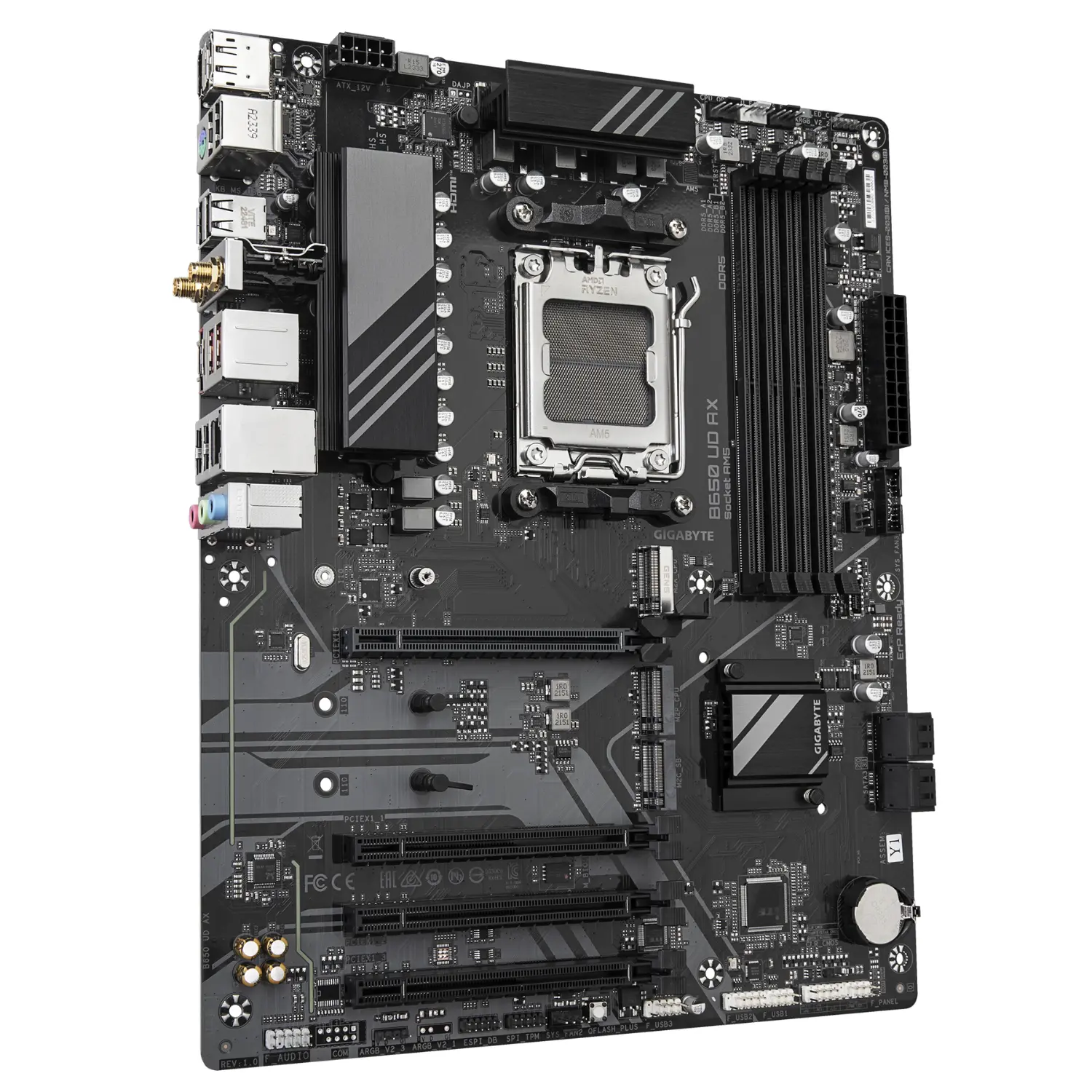

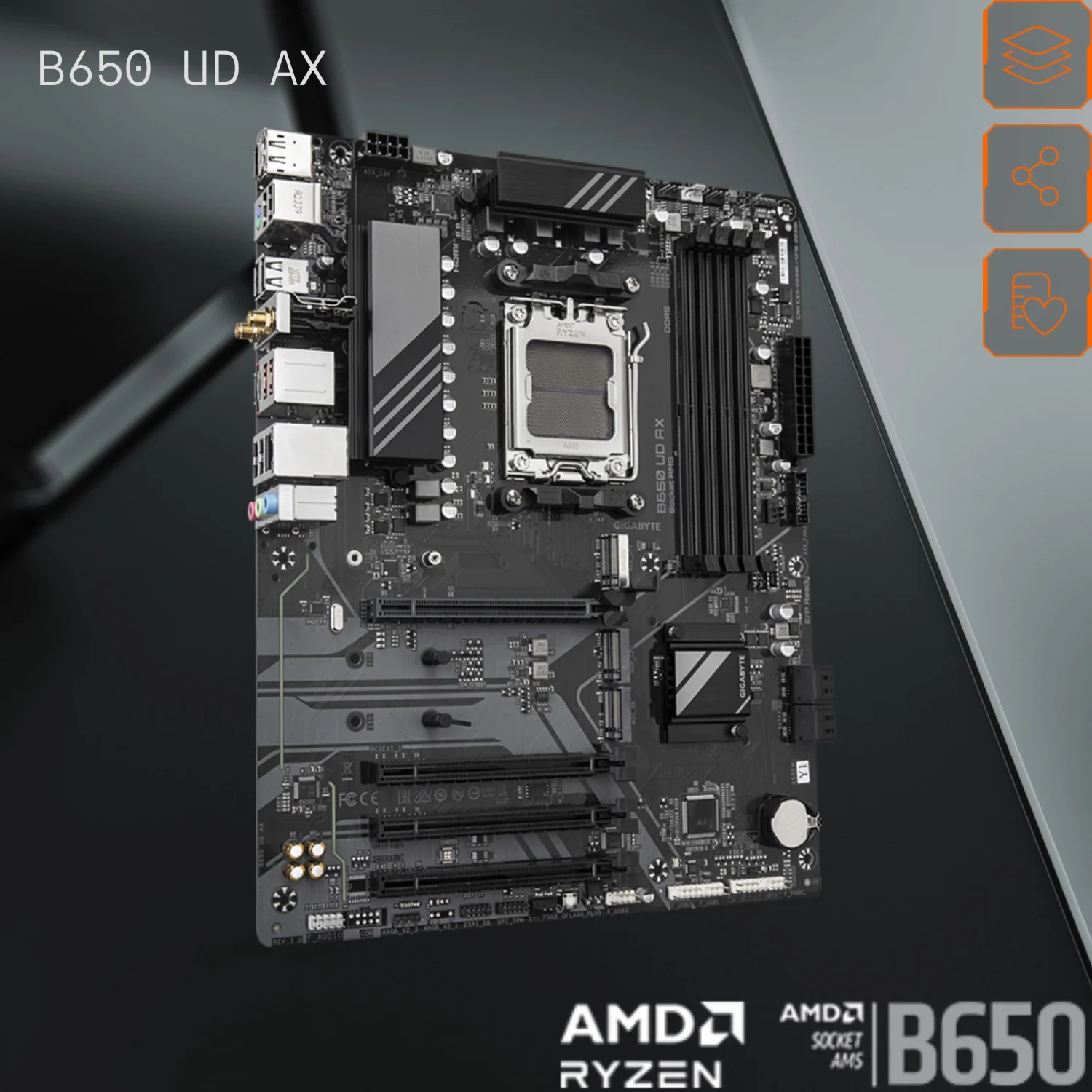

GIGABYTE B650 UD AX – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.0 [B650UDAX]

Il prezzo originale era: 180,00 €.Il prezzo attuale è: 145,00 €.

   Chipset AMD B650
Form Factor   Form Factor ATX
Socket   Socket AM5
Tipo di Memoria   Tipo di Memoria DDR5

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4719331863944 COD: B650UDAX Categoria: Tag: , , , , , , , , ,
Descrizione

GIGABYTE B650 UD AX / B650UDAX / 4719331863944

La GIGABYTE B650 UD AX è pensata per chi cerca una scheda madre affidabile e performante, ideale per configurazioni gaming e workstation moderne.
Supporta i processori AMD Ryzen™ serie 7000, 8000 e 9000, con memoria DDR5 Dual Channel fino a velocità elevate tramite AMD EXPO™ e Intel® XMP, garantendo massime prestazioni per multitasking e gaming.

Il design di alimentazione 6+2+2 fasi Digital VRM offre potenza stabile e duratura, mentre il sistema di raffreddamento Smart Fan 6, con sensori multipli e ventole ibride con funzione Fan Stop, mantiene temperature ottimali.

Per l’archiviazione, sono disponibili 3 slot M.2 (1x PCIe 5.0 + 2x PCIe 4.0) ad alta velocità e slot PCIe x16 con tecnologia EZ-Latch, che permette una rimozione rapida della scheda grafica.

Sul fronte connettività, la scheda integra Wi-Fi 6 e LAN Gigabit, offrendo connessioni rapide e stabili, oltre a porte video DisplayPort e HDMI, USB fino a 10Gb/s e compatibilità con la tecnologia Q-Flash Plus per aggiornare il BIOS senza CPU, RAM o GPU installate.

Specifiche Tecniche

Caratteristica Dettagli
Formato ATX
Chipset AMD B650
Socket AM5
Supporto CPU Ryzen™ 7000 / 8000 / 9000
Memoria DDR5, Dual Channel, AMD EXPO™, Intel XMP
Alimentazione 6+2+2 Digital VRM
Rete LAN Gigabit, Wi-Fi 6
Slot di Espansione 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 4.0 x1
Archiviazione 1x M.2 Gen 5, 2x M.2 Gen 4, 4x SATA III
USB USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0
Video DisplayPort, HDMI
Audio 7.1 HD Realtek
Raffreddamento Smart Fan 6, FAN STOP
BIOS Q-Flash Plus
Dimensioni 305 x 244 mm (ATX standard)
Informazioni aggiuntive
Peso 1,54 kg
Dimensioni 30,5 × 24,4 × 3,5 cm
M.B. - Chipset

AMD B650
CPU

AMD Socket AM5, support for:
AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Memory

Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor:
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Audio

Realtek® Audio CODEC
ALC897
High Definition Audio
2/4/5.1/7.1-channel
LAN

Realtek® RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module

Realtek® RTL8851 WIFI 6 module
– WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
– BLUETOOTH 5.0
– Support for 11ac wireless standard
Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
– AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
–
2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1
–
1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
– AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
–
1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
– AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x2 SSDs
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
–
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB

CPU:
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
CPU+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports on the back panel
Chipset:
– 2 x USB 3.2 Gen 1 ports available through the internal USB header
– 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
– 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
1 x system fan/water cooling pump header
1 x addressable RGB Gen2 LED strip header
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x Clear CMOS jumper

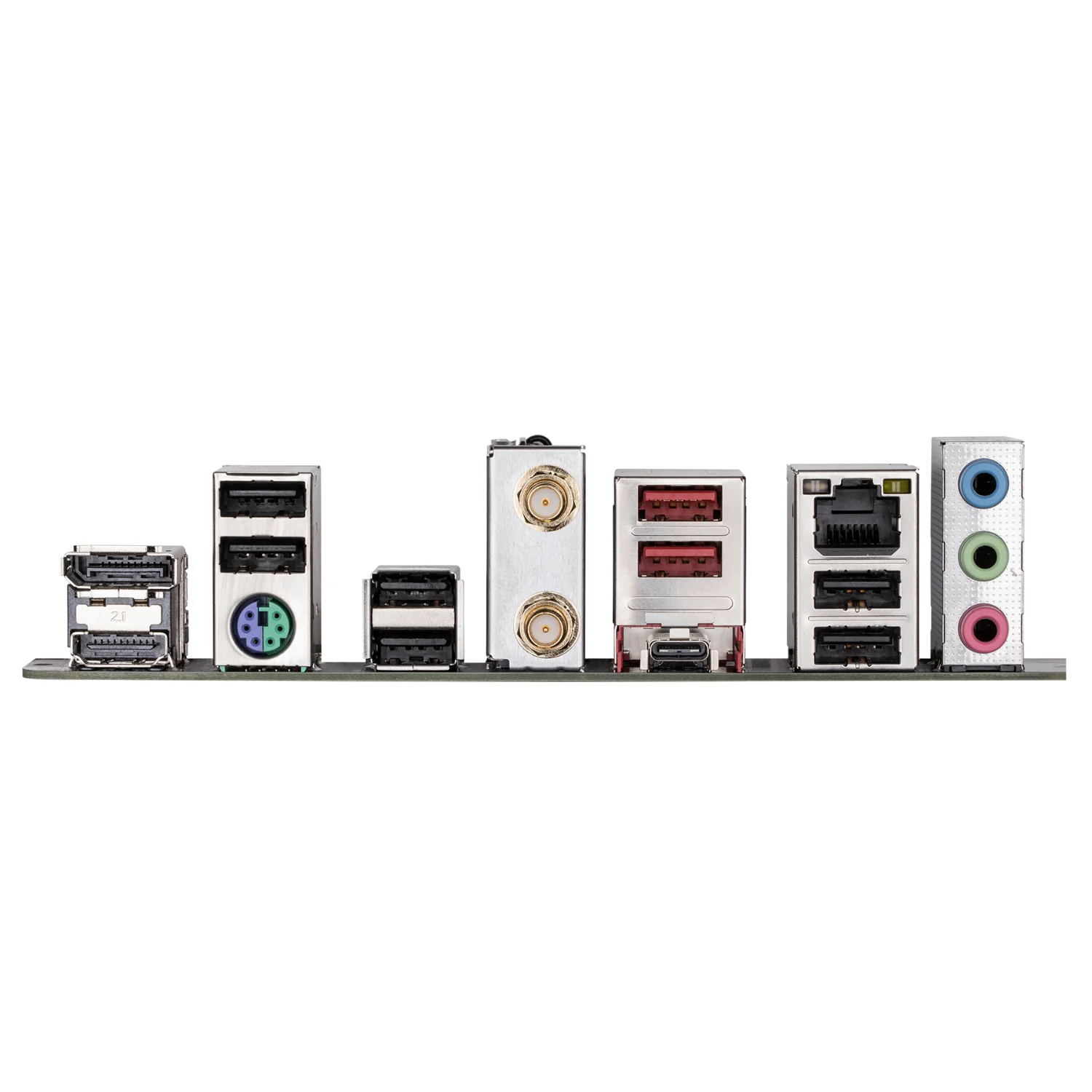

Back Panel Connectors

1 x DisplayPort
1 x HDMI port
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (1T1R)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red)
6 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller

iTE® I/O Controller Chip
H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

Support for GIGABYTE Control Center (GCC)
–
Support for Q-Flash
Support for Q-Flash Plus
Bundle Software

Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor

ATX Form Factor; 30.5cm x 24.4cm
