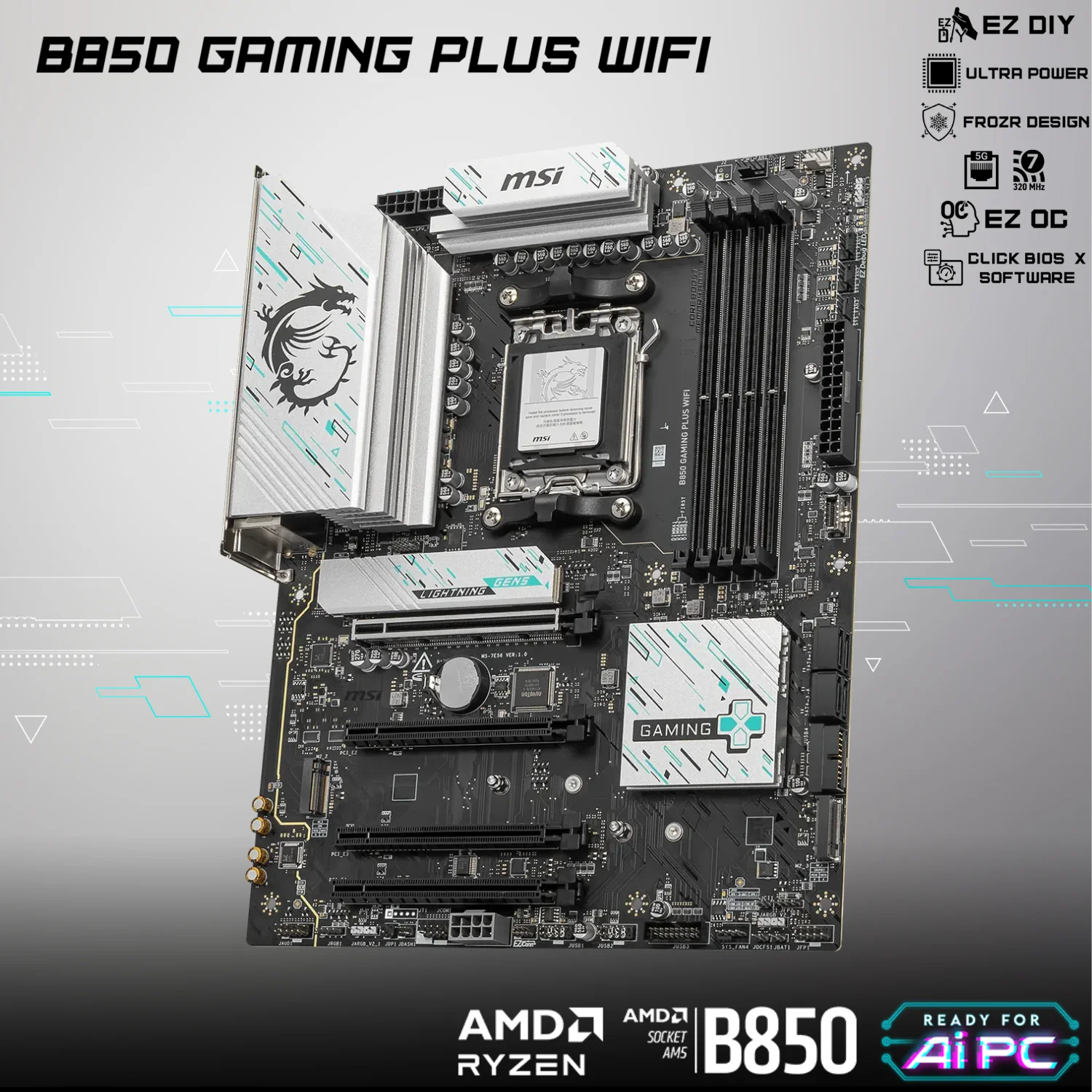

MSI B850 GAMING PLUS WIFI – Scheda Madre ATX, Socket AM5, DDR5, M.2 Gen5, PCIe 5.0, USB 3.1, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [911-7E56-05S] - immagine 1

MSI B850 GAMING PLUS WIFI – Scheda Madre ATX, Socket AM5, DDR5, M.2 Gen5, PCIe 5.0, USB 3.1, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [911-7E56-05S] - immagine 2

Clicca per ingrandire

MSI B850 GAMING PLUS WIFI – Scheda Madre ATX, Socket AM5, DDR5, M.2 Gen5, PCIe 5.0, USB 3.1, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [911-7E56-05S]

MSI B850 GAMING PLUS WIFI – Scheda Madre ATX, Socket AM5, DDR5, M.2 Gen5, PCIe 5.0, USB 3.1, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [911-7E56-05S] - immagine 3

MSI B850 GAMING PLUS WIFI – Scheda Madre ATX, Socket AM5, DDR5, M.2 Gen5, PCIe 5.0, USB 3.1, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [911-7E56-05S] - immagine 4

MSI B850 GAMING PLUS WIFI – Scheda Madre ATX, Socket AM5, DDR5, M.2 Gen5, PCIe 5.0, USB 3.1, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [911-7E56-05S] - immagine 5

MSI B850 GAMING PLUS WIFI – Scheda Madre ATX, Socket AM5, DDR5, M.2 Gen5, PCIe 5.0, USB 3.1, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [911-7E56-05S] - immagine 6

MSI B850 GAMING PLUS WIFI – Scheda Madre ATX, Socket AM5, DDR5, M.2 Gen5, PCIe 5.0, USB 3.1, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [911-7E56-05S] - immagine 7

MSI B850 GAMING PLUS WIFI – Scheda Madre ATX, Socket AM5, DDR5, M.2 Gen5, PCIe 5.0, USB 3.1, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [911-7E56-05S] - immagine 8

MSI B850 GAMING PLUS WIFI – Scheda Madre ATX, Socket AM5, DDR5, M.2 Gen5, PCIe 5.0, USB 3.1, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [911-7E56-05S] - immagine 9

MSI B850 GAMING PLUS WIFI – Scheda Madre ATX, Socket AM5, DDR5, M.2 Gen5, PCIe 5.0, USB 3.1, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [911-7E56-05S]

Il prezzo originale era: 239,00 €.Il prezzo attuale è: 229,00 €.

Chipset	AMD B850
Form Factor	ATX
Socket	AM5
Tipo di Memoria	DDR5

Esaurito

Add to compare

0 Persone guardano adesso questo prodotto!

EAN: 4711377285438 COD: 911-7E56-05S Categoria: AM5 Tag: AM5, AMD B850, ATX, Bianco, Bluetooth 5.4, DDR5, LAN 5G, Nero, PCIe 5.0, USB 3.1, Wi-Fi 7

Descrizione

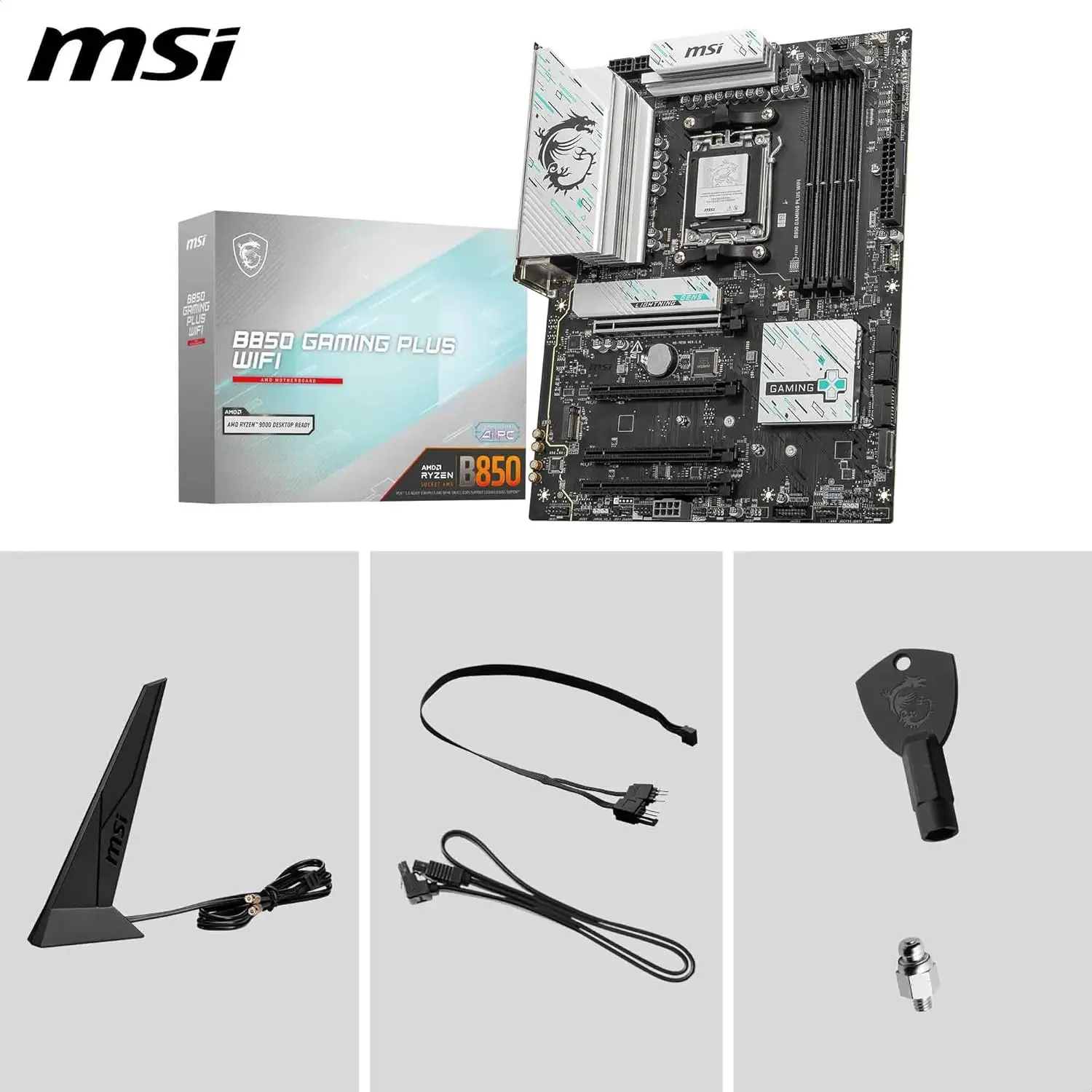

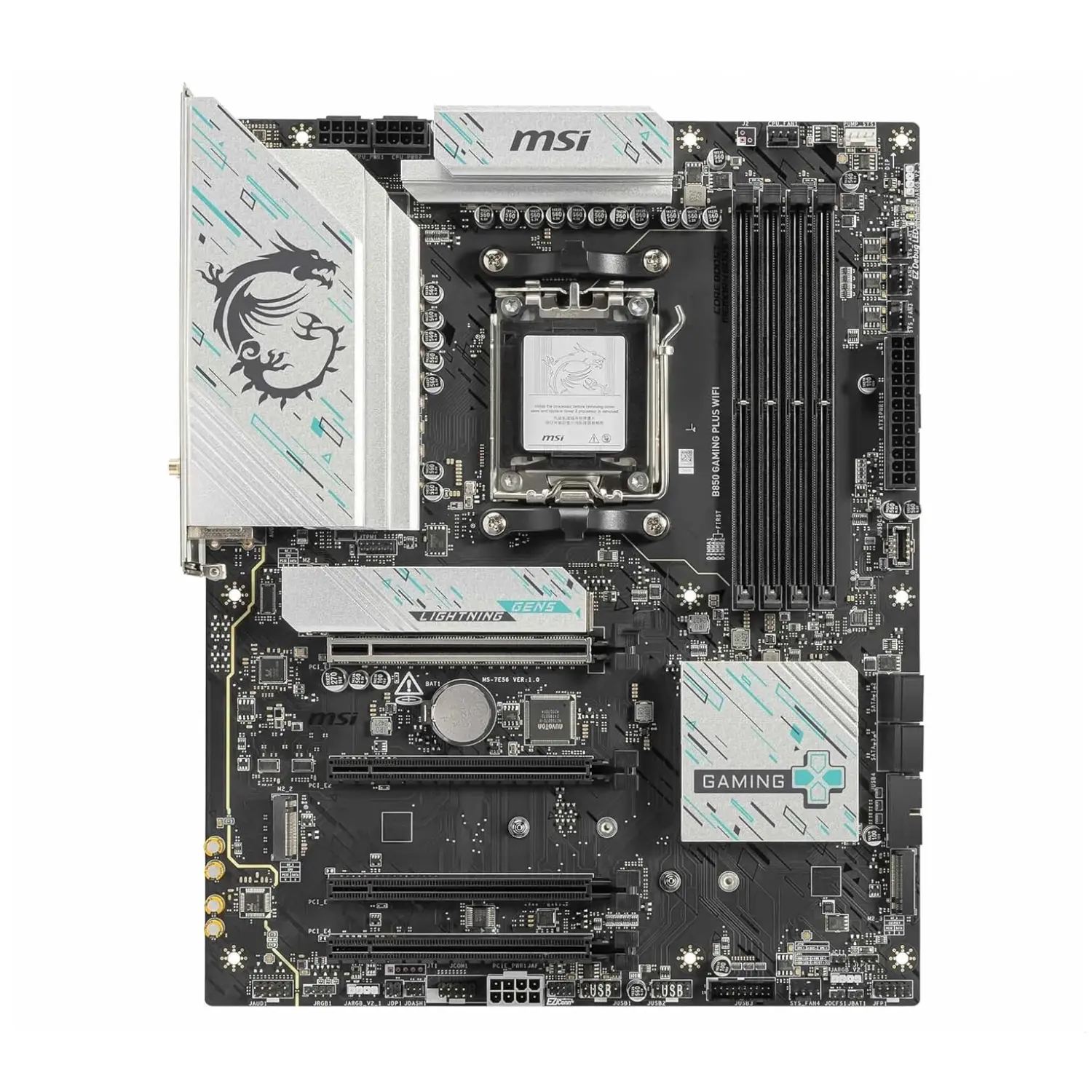

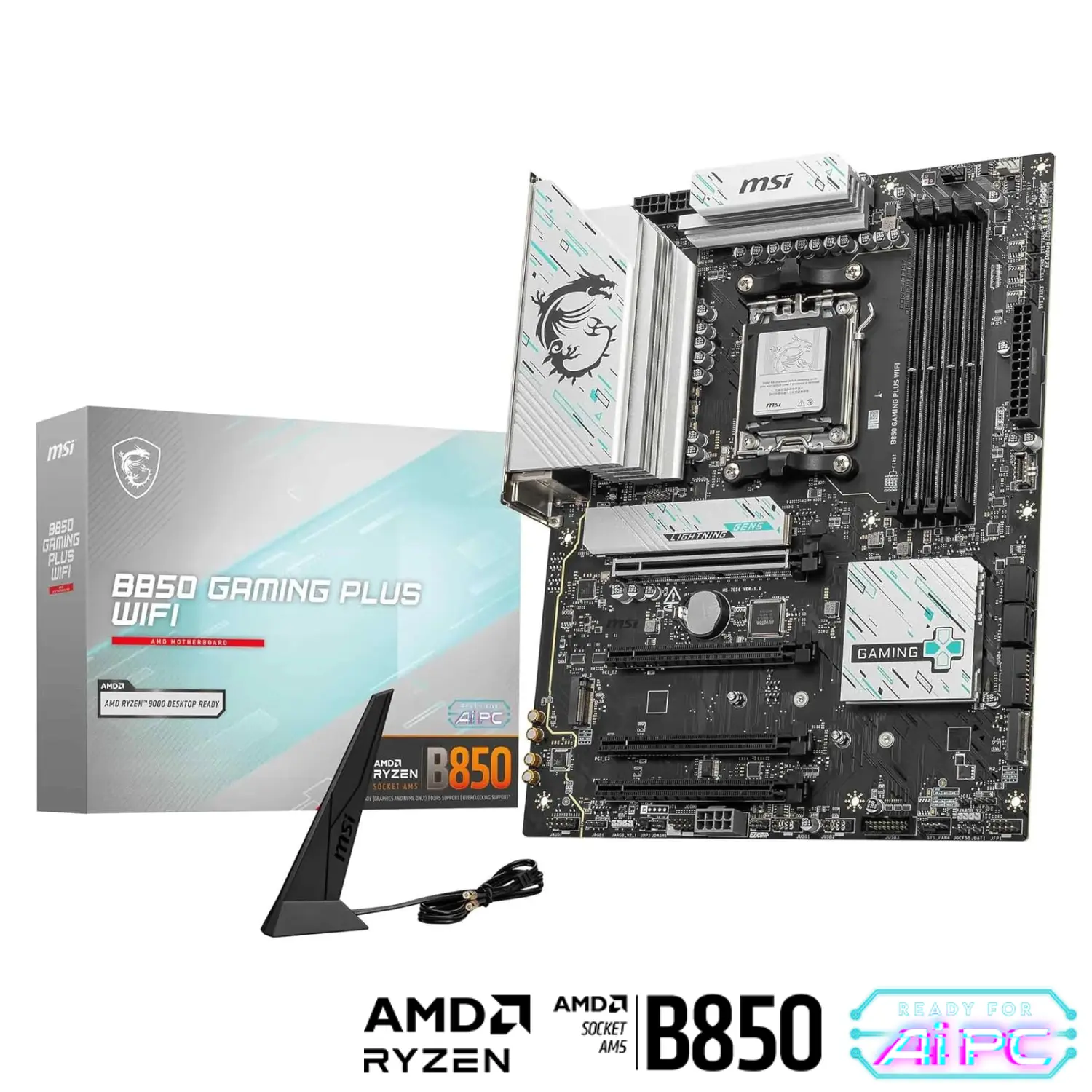

MSI B850 GAMING PLUS WIFI / 911-7E56-05S / 4711377285438

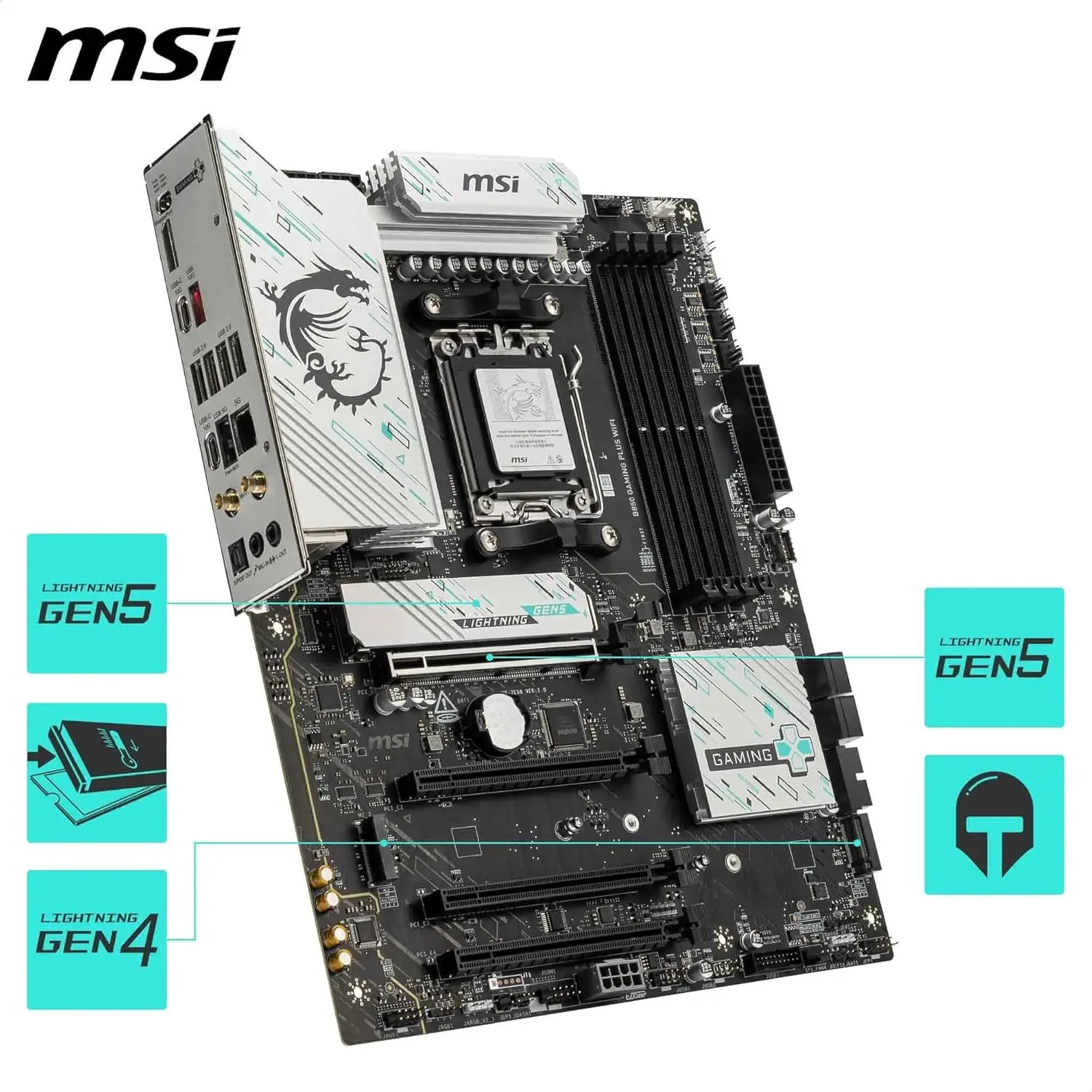

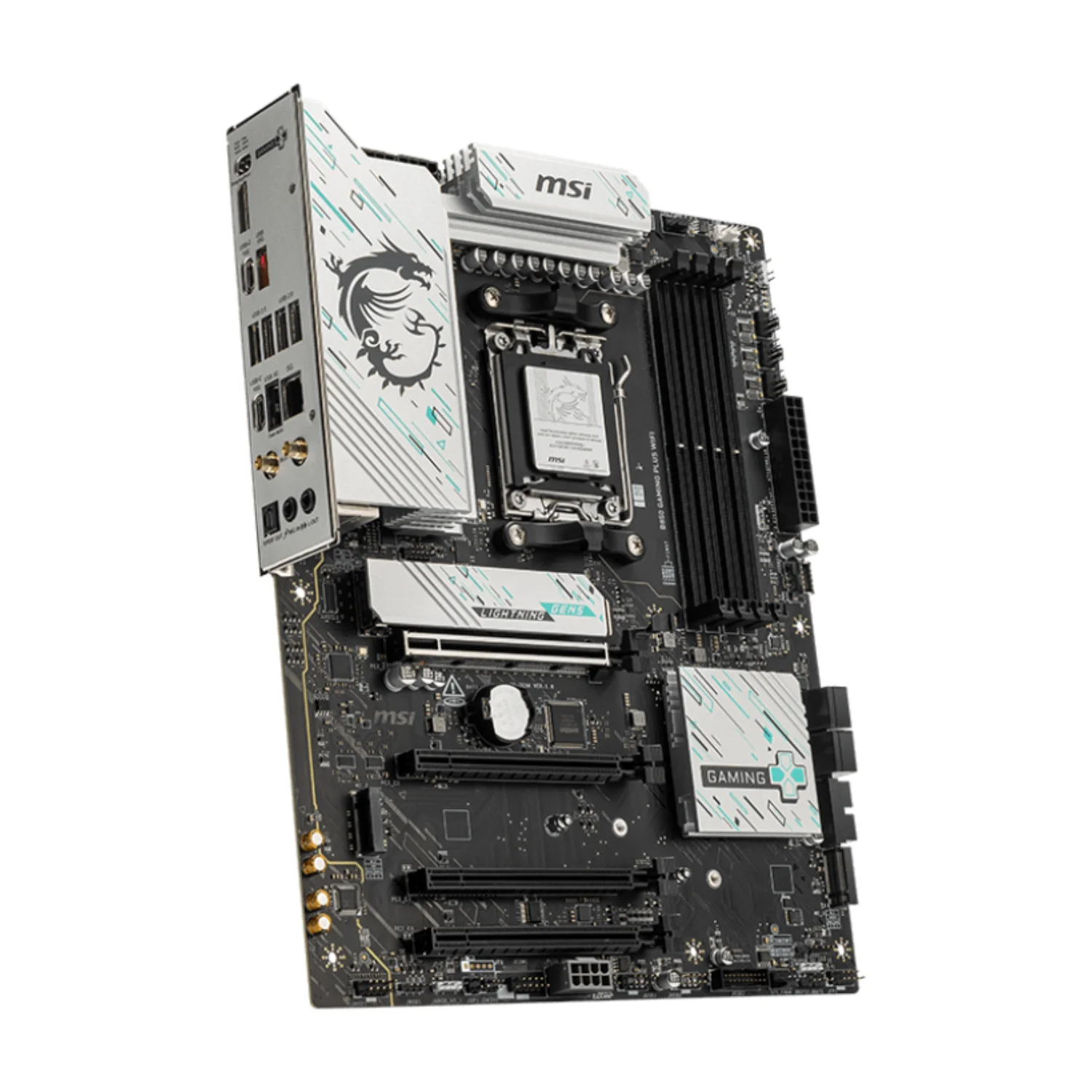

La MSI B850 GAMING PLUS WIFI è una scheda madre di fascia alta progettata per offrire affidabilità, prestazioni e connettività di ultima generazione. Compatibile con le CPU AMD Ryzen™ 9000 / 8000 / 7000 Series, offre un’ampia gamma di funzionalità ideali per il gaming e l’uso intensivo.

Con supporto Dual Channel DDR5 fino a 8200+ MT/s (OC), la scheda assicura velocità di memoria eccezionali per gestire applicazioni e giochi pesanti. Il design Duet Rail Power 12+2+1 fasi, con doppi connettori di alimentazione CPU 8-pin, garantisce una distribuzione di potenza stabile e ottimale per il massimo overclock.

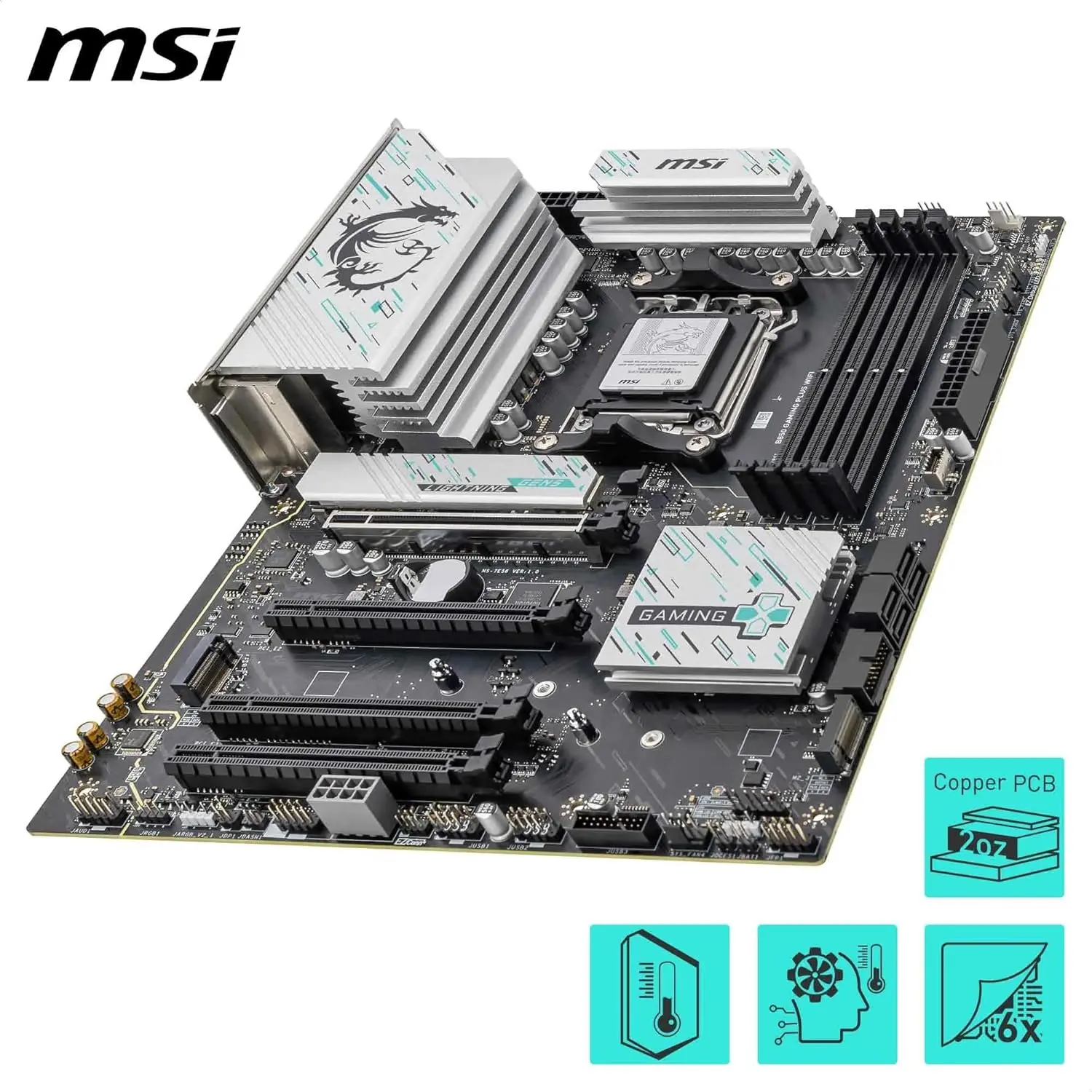

Il sistema di raffreddamento avanzato Frozr Guard include dissipatori estesi, pad termici ad alta efficienza da 7W/mK e la tecnologia EZ M.2 Shield Frozr II, pensata per mantenere basse le temperature anche sotto carichi estremi.

Sul fronte connettività, la scheda è dotata di LAN 5G e Wi-Fi 7 ad alte prestazioni, assicurando trasferimenti dati stabili e veloci, ideale per il gaming online competitivo e lo streaming ad alta definizione. Gli slot PCIe 5.0 e Lightning Gen 5 x4 M.2 permettono l’installazione di SSD e schede grafiche di nuova generazione con la massima velocità di banda.

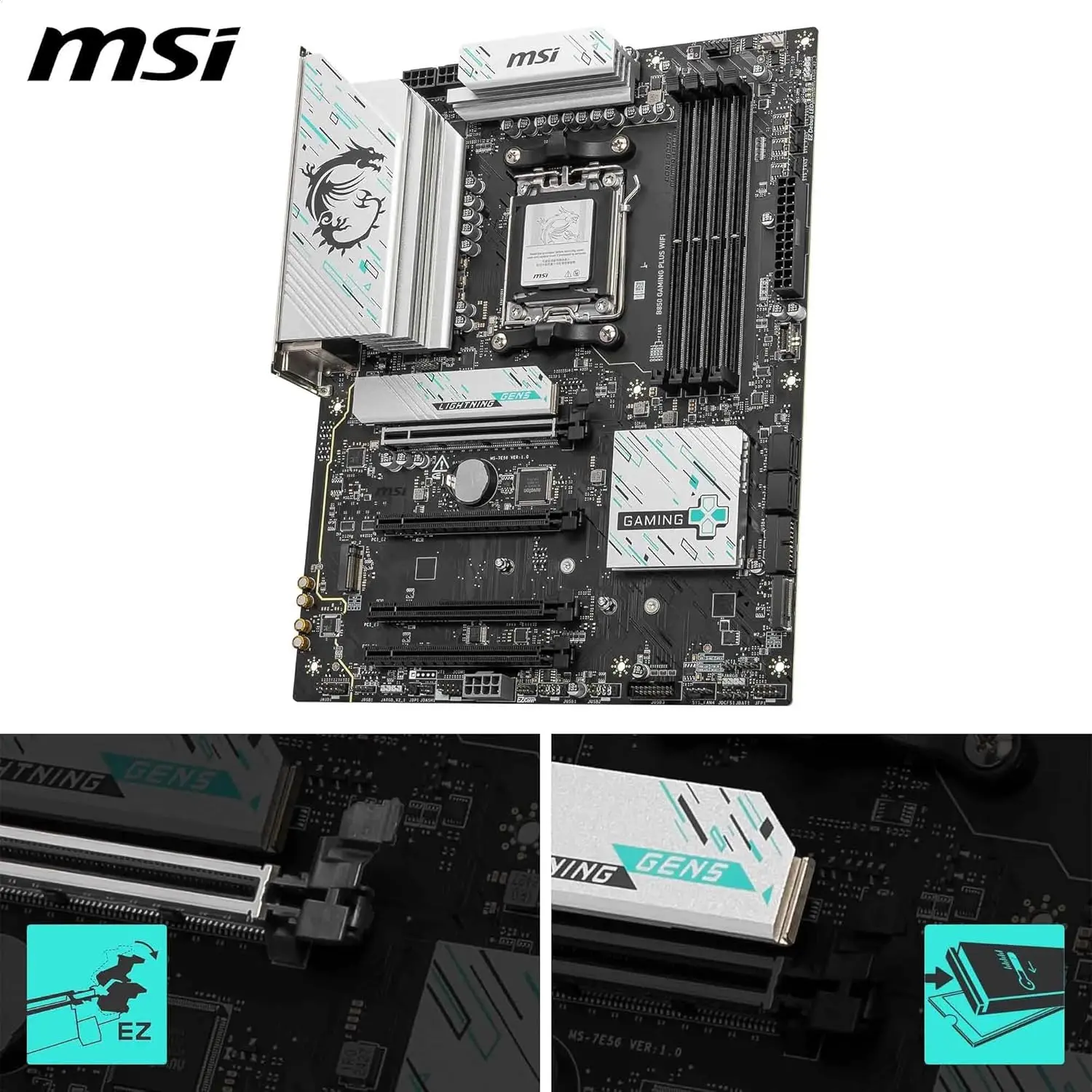

Le funzionalità EZ DIY (EZ M.2 Clip II, EZ PCIe Clip II, EZ Antenna) semplificano il montaggio e la manutenzione del sistema, mentre la tecnologia Audio Boost offre un’esperienza sonora di qualità da studio, perfetta per il gaming immersivo.

Specifiche Tecniche

Caratteristica	Dettagli
Formato	ATX
Chipset	AMD B850
Socket	AM5
Supporto CPU	Ryzen™ serie 9000 / 8000 / 7000
Memoria	DDR5, Dual Channel, fino a 8200+ MT/s (OC)
Alimentazione	Duet Rail 12+2+1, connettori CPU 2x 8-pin
Rete	LAN 5G, Wi-Fi 7
Slot di Espansione	1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
Archiviazione	4x M.2 (1x Gen 5, 3x Gen 4), 6x SATA III
USB	USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0
Audio	7.1 HD Audio Boost
Sistema di Raffreddamento	Dissipatori Frozr Guard, pad termici 7W/mK
PCB	6 strati, rame da 2 oz
Dimensioni	305 x 244 mm (ATX standard)

Informazioni aggiuntive

Peso	1,5 kg
Dimensioni	30,5 × 24,4 × 3,5 cm
M.B. - Chipset	AMD B850
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s – Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Onboard Graphics	1x DisplayPort Support DisplayPort 1.2, maximum resolution of 4K 60Hz
Slot	4x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) – PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio	Realtek® ALC897 7.1-Channel High Definition Audio
Storage	3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G (Qty) – M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
RAID	Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear)
LAN	Realtek® 8126VB 5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x ARGB+FAN Header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be – Supports Bluetooth® 5.4**, MLO, 4KQAM
LED FEATURE	4x EZ Debug LED

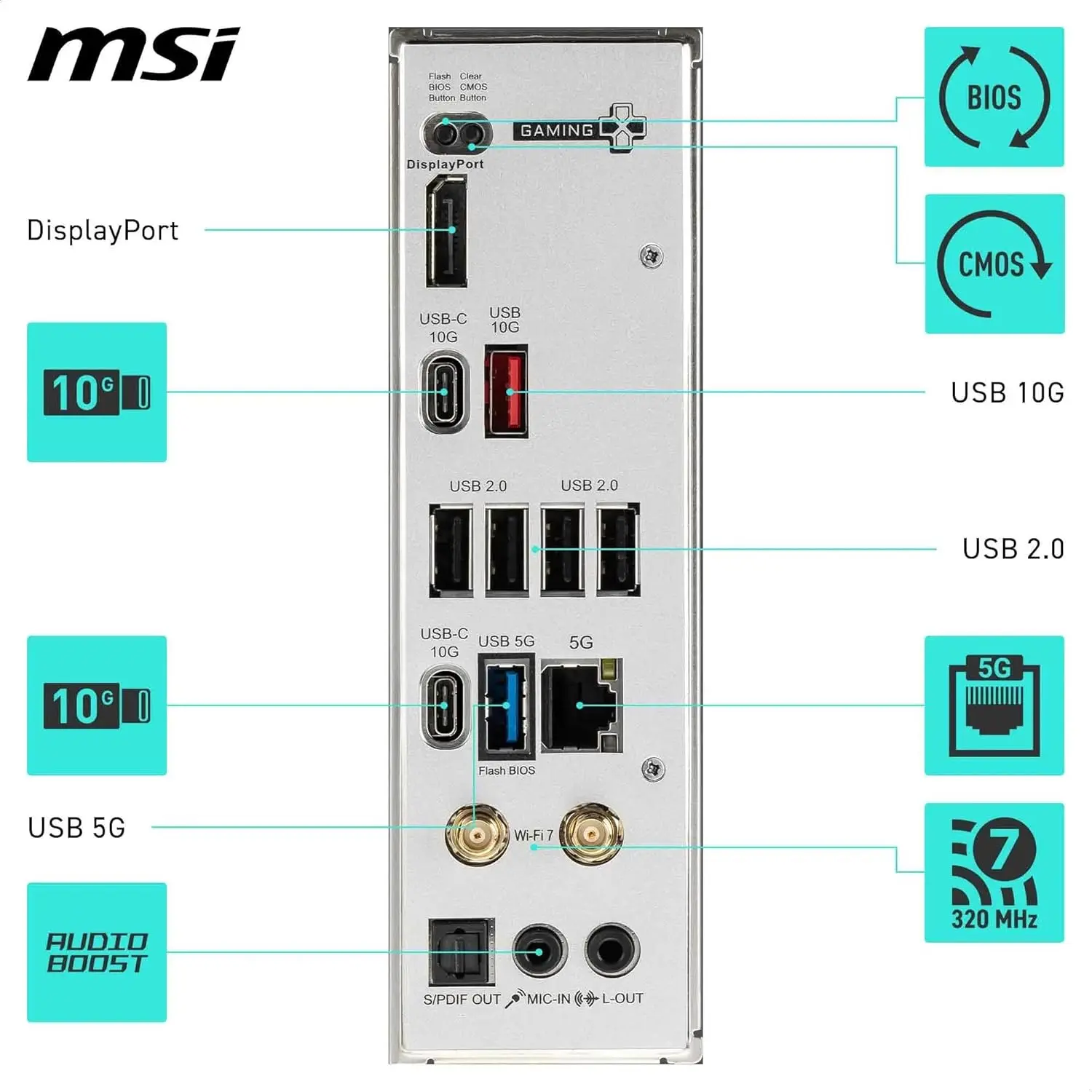

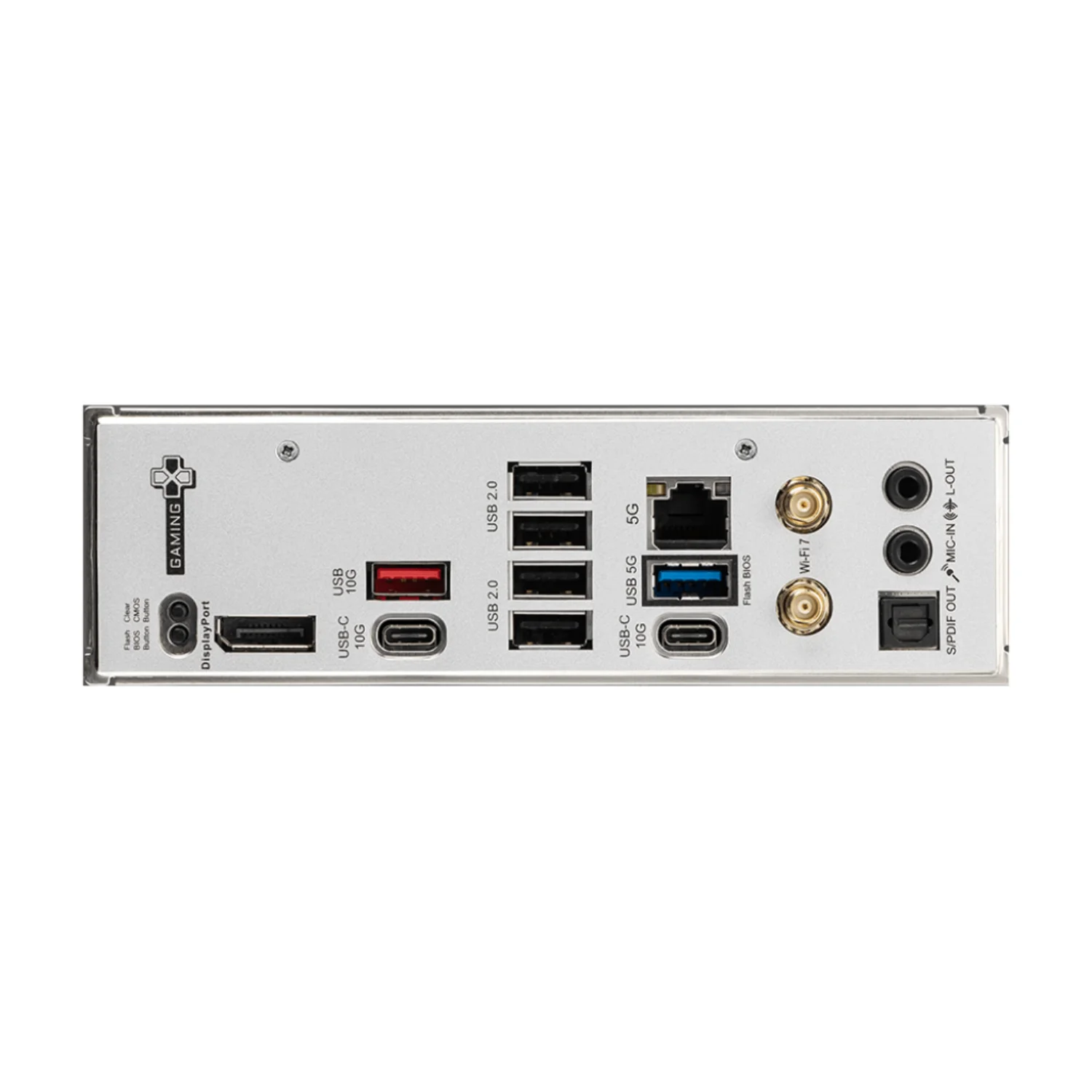

BACK PANEL PORTS	Clear CMOS Button USB 10Gbps (Type-A) USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button DisplayPort USB 10Gbps (Type-C) USB 10Gbps (Type-C) USB 5Gbps (Type-A) S/PDIF-OUT
OPERATING SYSTEM	Support for Windows® 11 64-bit

Recensioni (0)

Recensioni

Ancora non ci sono recensioni.

Recensisci per primo “MSI B850 GAMING PLUS WIFI – Scheda Madre ATX, Socket AM5, DDR5, M.2 Gen5, PCIe 5.0, USB 3.1, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [911-7E56-05S]”

About brand

MSI (Micro-Star International) è un marchio di riferimento nel mondo del gaming e della tecnologia, con sede a Taiwan e attivo dal 1986. Specializzata nella produzione di schede madri, schede video, laptop, desktop da gaming, monitor e periferiche, MSI è sinonimo di innovazione, prestazioni elevate e design aggressivo. Con le sue linee dedicate come MSI Gaming, MEG, MAG e MPG, il brand è molto apprezzato da gamer, creatori di contenuti e professionisti IT per l’affidabilità dei suoi prodotti e le tecnologie avanzate che offre.

Prodotti correlati

-11%

Add to compare

Anteprima

Aggiungi alla lista dei desideri

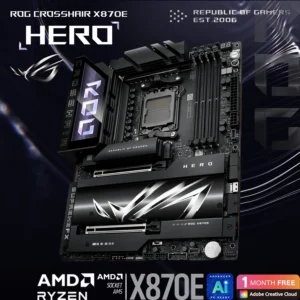

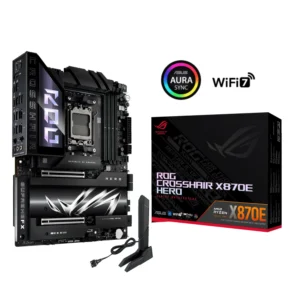

ASUS ROG CROSSHAIR X870E HERO – Scheda Madre ATX AM5 con PCIe 5.0, DDR5, WiFi 7 e USB4

AM5

Aggiungi al carrello

SKU: 90MB1IE0-M0EAY0

Peso	0,78 kg
Dimensioni	30,5 × 24,4 × 3,5 cm
M.B. - Chipset	AMD X870E
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Memory	4 x DIMM slots, max.256GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 8600+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP)
Graphics	1 x HDMI™ port 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)
Storage	Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280 (Not supports) AMD X870E Chipset M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) SlimSAS slot supports PCIe 4.0 x4 mode. 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10
Ethernet	1 x Intel® 2.5Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927) 2×2 Wi-Fi 7** (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth Bluetooth® v5.4
USB	Rear USB (Total 10 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®) Front USB (Total 10 ports) 1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+) 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel Audio Features – SupremeFX Shielding Technology – ESS® ES9219 QUAD DAC – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors
Back Panel I/O Ports	2 x USB4® (40Gbps) ports (2 x USB Type-C®) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector Storage Related 5 x M.2 slots (Key M) 1 x SlimSAS connector 4 x SATA 6Gb/s ports USB 2 x USB 20Gbps connectors (support USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x LN2 Mode jumper
Special Features	Extreme OC Kit – FlexKey button – LN2 Mode – ReTry button – Start button Extreme Engine Digi+ – 10K Black metallic capacitors – MicroFine alloy choke ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Code – Q-Connector – Q-Dashboard – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – VRM heatsink design – Metal backplate ASUS EZ DIY – Backplate – BIOS FlashBack™ button – Clear CMOS button – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Addressable Gen2 header(s) Front Panel USB 20Gbps with Quick Charge 4+ Support
Software Features	ROG Exclusive Software – ROG CPU-Z – Dolby Atmos – Internet Security (1-year full version) – Polymo Lighting II ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (1 year full version) – Aura Creator – Aura Sync -Fan Xpert 4 (with AI Cooling II) – GameFirst – HWiNFO – Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey FlexKey
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 2 x M.2 Q-Latch package 3 x M.2 Q-Slide package 5 x M.2 rubber package 1 x ROG stickers 1 x ROG thank you card 1 x ROG Bottle Opener Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide
Operating System	Windows® 11
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

-6%Esaurito

Add to compare

Anteprima

Aggiungi alla lista dei desideri

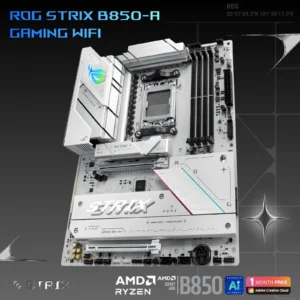

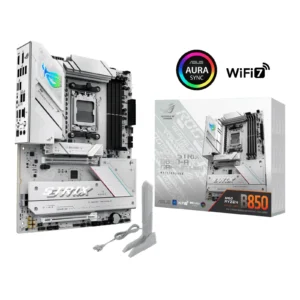

ASUS ROG STRIX B850-A GAMING WIFI – Scheda Madre ATX AM5 con PCIe 5.0, DDR5 8000+, WiFi 7, USB 20Gbps

AM5

SKU: 90MB1J50-M0EAY0

Peso	1,59 kg
Dimensioni	30,5 × 24,4 × 3 cm
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD B850 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort* 1 x HDMI™ port** – Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. * Supports max. 8K@30Hz as specified in DisplayPort 1.4 Supports 4K@60Hz as specified in HDMI 2.1 * VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)* AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)** * Specifications vary by CPU types. ** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3 – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports – AMD Ryzen™ 7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0×4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0×4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)* – AMD B850 Chipset M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)** M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4) 2 x SATA 6Gb/s ports * Specifications vary by CPU types. ** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled. – AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10
Ethernet	1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4* – Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 10 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) – Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Power button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header
Special Features	Extreme Engine Digi+ – 5K Black metallic capacitors ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – PCIe Slot Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – ProCool – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Addressable Gen 2 headers
Software Features	ROG Exclusive Software – ROG CPU-Z – Dolby Atmos ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – Aura Creator – Aura Sync – Fan Xpert 4 – GameFirst – HWiNFO – Power Saving ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubbers Documentation 1 x Quick start guide
Operating System	Windows 11
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

-17%

Add to compare

Anteprima

Aggiungi alla lista dei desideri

ASUS TUF GAMING X870-PLUS WIFI – Scheda Madre AM5 ATX con PCIe 5.0, DDR5, USB4, WiFi 7 e Aura Sync

AM5

Aggiungi al carrello

SKU: 90MB1IU0-M0EAY0

Peso	1,95 kg
Dimensioni	30,5 × 24,4 × 3,5 cm
M.B. - Chipset	AMD X870
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Memory	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP)
Graphics	1 x HDMI™ port 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage	Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot not support AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)* 2 x SATA 6Gb/s ports
Ethernet	1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless & Bluetooth	Wi-Fi 7 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4
USB	Rear USB (Total 10 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit
Back Panel I/O Ports	2 x USB4® (40Gbps) (2 x USB Type-C®) ports 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header
Special Features	ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with SPS) – ESD Guards – TUF LANGuard – Overvoltage protection – SafeSlot – Stainless-steel back I/O ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsinks – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – ProCool – Pre-mounted I/O shield – SafeDIMM Aura Sync – Addressable Gen 2 headers Front Panel USB 20Gbps with PD Fast Charge Support – Support: up to 30W fast charging and USB Wattage Watcher – Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A – Compatible with PD3.0
Software Features	ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 2 x M.2 rubber packages 1 x Screw package for M.2 SSD 1 x TUF GAMING sticker Documentation 1 x Quick start guide
Operating System	Windows 11
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

-19%

Add to compare

Anteprima

Aggiungi alla lista dei desideri

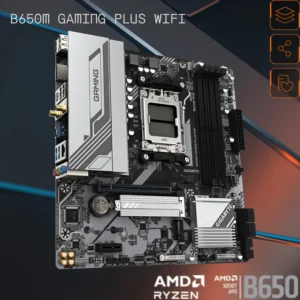

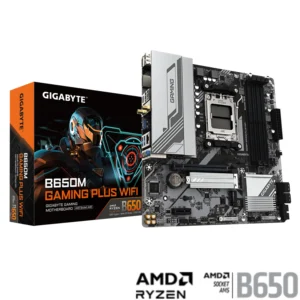

GIGABYTE B650M GAMING PLUS WIFI – Scheda Madre AM5 Micro-ATX con DDR5, PCIe 4.0, Wi-Fi 6E e LAN 2.5GbE

AM5

Aggiungi al carrello

SKU: 9MB65MGPW-00-G11

Peso	1,2 kg
Dimensioni	24,4 × 24,4 × 3,5 cm
M.B. - Chipset	AMD B650
CPU	AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Memory	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support – 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for up to triple-display at the same time
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless Realtek® Wi-Fi 6 RTL 8851BE (PCB rev. 1.1) – WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 80MHz wireless
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support – 1 x USB 3.2 Gen 1 port on the back panel – 1 x USB 2.0/1.1 port on the back panel Chipset: – 2 x USB 3.2 Gen 1 ports on the back panel – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x DisplayPorts 2 x SMA antenna connectors (2T2R) (1T1R) 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

-9%Esaurito

Add to compare

Anteprima

Aggiungi alla lista dei desideri

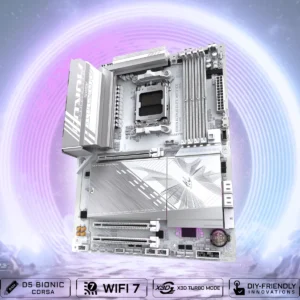

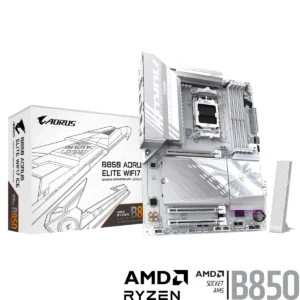

GIGABYTE B850 AORUS ELITE WIFI7 ICE – Scheda Madre ATX AM5, DDR5 8200MT/s, Wi-Fi 7, PCIe 5.0, X3D Turbo Mode, RGB, BIOS AI, Ultra Durable

AM5

SKU: 9MB85EL7E-00-G10

Peso	0,8 kg
Dimensioni	30,5 × 24,4 × 3,5 cm
CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD B850
Memory	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. – – 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz * Support for HDMI 1.4 version – (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC (Only for rev. 1.0) High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. – Support for S/PDIF Out – Realtek® ALC1220 CODEC(Only for rev. 1.1) * The back panel line out jack supports DSD audio. – High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. – Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 7 RTL8922AE – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. – Chipset: – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs – 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs – 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. – RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper – (Note) Actual support may vary by CPU.
Back Panel Connectors	1 x DisplayPort (Note) 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector – (Note) Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. – Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundle Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm

Esaurito

Add to compare

Anteprima

Aggiungi alla lista dei desideri

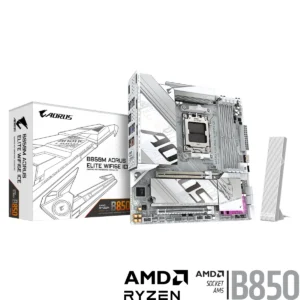

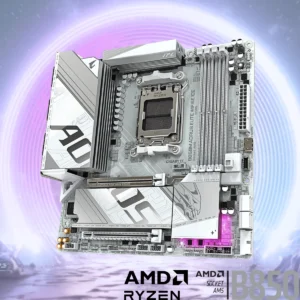

GIGABYTE B850M AORUS ELITE WIFI6E ICE – Scheda madre mATX, Socket AM5, DDR5, PCIe 5.0, Wi-Fi 6E, 2.5GbE

AM5

229,00 €

SKU: 9MB85MEI6-00-G10

Peso	1,8 kg
Dimensioni	24,4 × 24,4 × 3 cm
CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD B850
Memory	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. – – 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz * Support for HDMI 1.4 version. – (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC (Only for rev. 1.0) High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. – Support for S/PDIF Out – Realtek® ALC1220 CODEC (Only for rev. 1.1) * The back panel line out jack supports DSD audio. – High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. – Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 6E RTL8852CE – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. – Chipset: – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs – 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. – RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper – (Note) Actual support may vary by CPU.
Back Panel Connectors	1 x DisplayPort (Note) 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 5 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector – (Note) Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. – Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundle Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

-10%

Add to compare

Anteprima

Aggiungi alla lista dei desideri

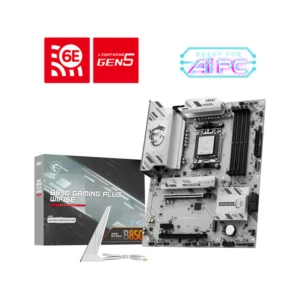

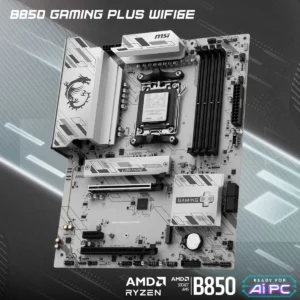

MSI B850 GAMING PLUS WIFI6E – Scheda Madre ATX, Socket AM5, DDR5, Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2, Audio Boost

AM5

Aggiungi al carrello

SKU: 911-7E80-001

Peso	0,7 kg
Dimensioni	30,5 × 24,4 × 3 cm
Chipset	AMD B850
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s – Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* – * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* – *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) – PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio	Realtek® ALC897 7.1-Channel High Definition Audio
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G – M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) – M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) – *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
LAN	Realtek® 8125D 2.5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax – Supports Bluetooth® 5.3, FIPS, FISMA – * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE	x EZ Debug LED 1x EZ Memory Detection LED
BACK PANEL PORTS	Clear CMOS Button DisplayPort 1.4 2.5G LAN USB 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps (Type-A) USB 10Gbps (Type-C) USB 5Gbps (Type-A)
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB Info	ATX 243.84mmx304.8mm

-14%Esaurito

Add to compare

Anteprima

Aggiungi alla lista dei desideri

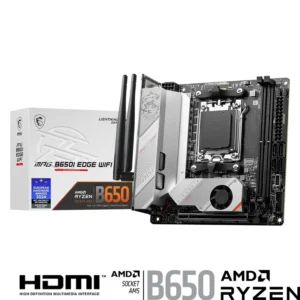

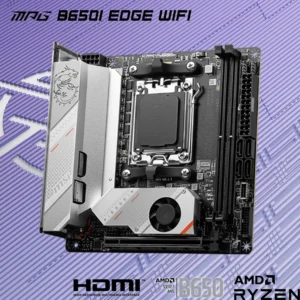

MSI MPG B650I EDGE WIFI – Scheda Madre Mini-ITX, Socket AM5, DDR5, PCIe 4.0, USB 3.2, Wi-Fi 6E, LAN 2.5G, Bluetooth 5.3 [7D73-001R]

AM5

SKU: 7D73-001R

Peso	0,7 kg
Dimensioni	17 × 17 × 3 cm
M.B. - Chipset	AMD B650
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6400+ MHz – Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz
Slot	1x PCI-E x16 slot • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
Audio	Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	2x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN	Realtek® RTL8125BG 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	Clear CMOS Button USB 5Gbps (Type-A) 2.5G LAN Wireless / Bluetooth Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps (Type-A) USB 10Gbps (Type-A) USB 20Gbps (Type-C)
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit

Spedizione Gratuita da 500€

Spedizione Gratuita da 500€

MSI B850 GAMING PLUS WIFI – Scheda Madre ATX, Socket AM5, DDR5, M.2 Gen5, PCIe 5.0, USB 3.1, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [911-7E56-05S]

MSI B850 GAMING PLUS WIFI / 911-7E56-05S / 4711377285438

Specifiche Tecniche

Recensioni

ASUS ROG CROSSHAIR X870E HERO – Scheda Madre ATX AM5 con PCIe 5.0, DDR5, WiFi 7 e USB4

ASUS ROG STRIX B850-A GAMING WIFI – Scheda Madre ATX AM5 con PCIe 5.0, DDR5 8000+, WiFi 7, USB 20Gbps

ASUS TUF GAMING X870-PLUS WIFI – Scheda Madre AM5 ATX con PCIe 5.0, DDR5, USB4, WiFi 7 e Aura Sync

GIGABYTE B650M GAMING PLUS WIFI – Scheda Madre AM5 Micro-ATX con DDR5, PCIe 4.0, Wi-Fi 6E e LAN 2.5GbE

GIGABYTE B850 AORUS ELITE WIFI7 ICE – Scheda Madre ATX AM5, DDR5 8200MT/s, Wi-Fi 7, PCIe 5.0, X3D Turbo Mode, RGB, BIOS AI, Ultra Durable

GIGABYTE B850M AORUS ELITE WIFI6E ICE – Scheda madre mATX, Socket AM5, DDR5, PCIe 5.0, Wi-Fi 6E, 2.5GbE

MSI B850 GAMING PLUS WIFI6E – Scheda Madre ATX, Socket AM5, DDR5, Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2, Audio Boost

MSI MPG B650I EDGE WIFI – Scheda Madre Mini-ITX, Socket AM5, DDR5, PCIe 4.0, USB 3.2, Wi-Fi 6E, LAN 2.5G, Bluetooth 5.3 [7D73-001R]

Iscriviti alla Newsletter
