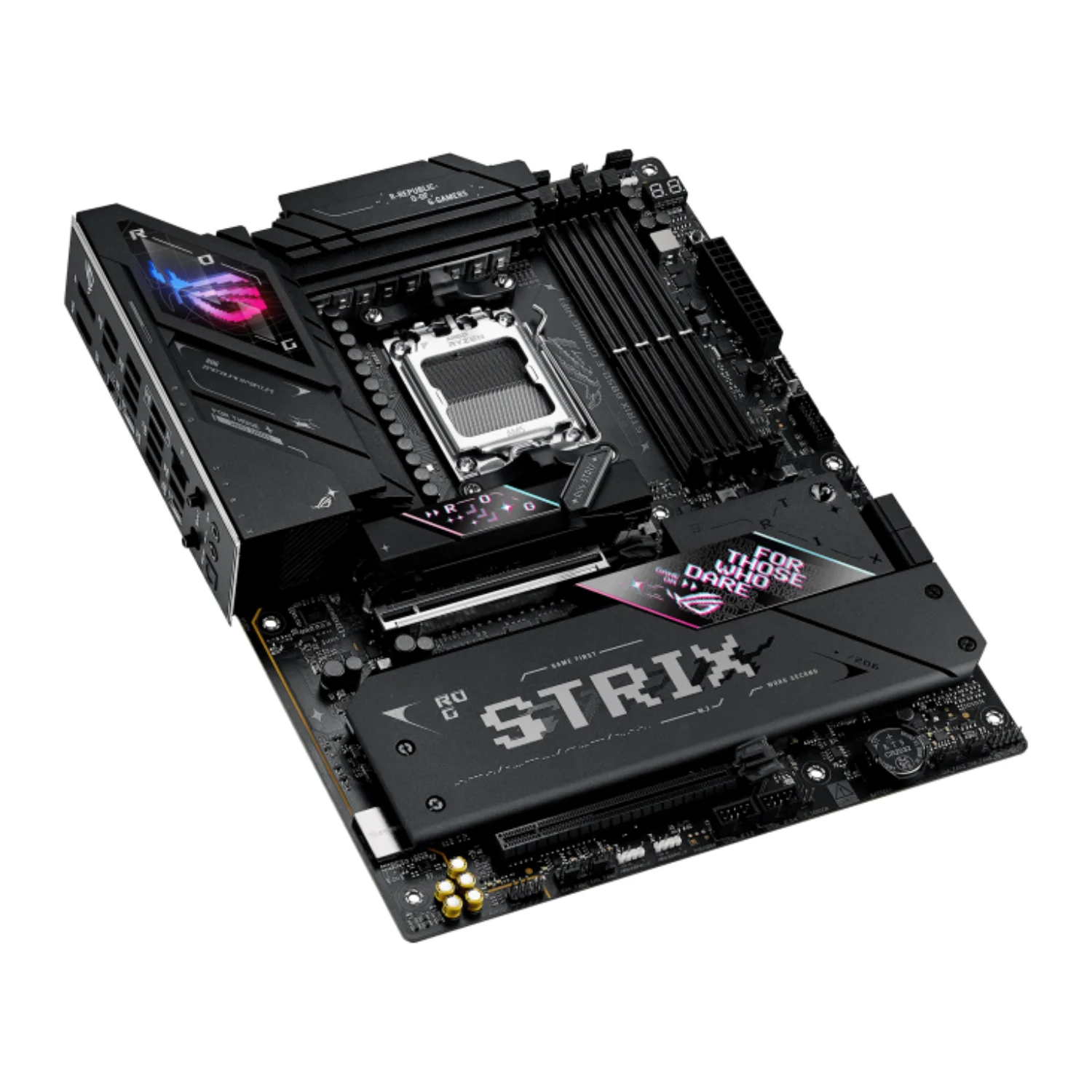

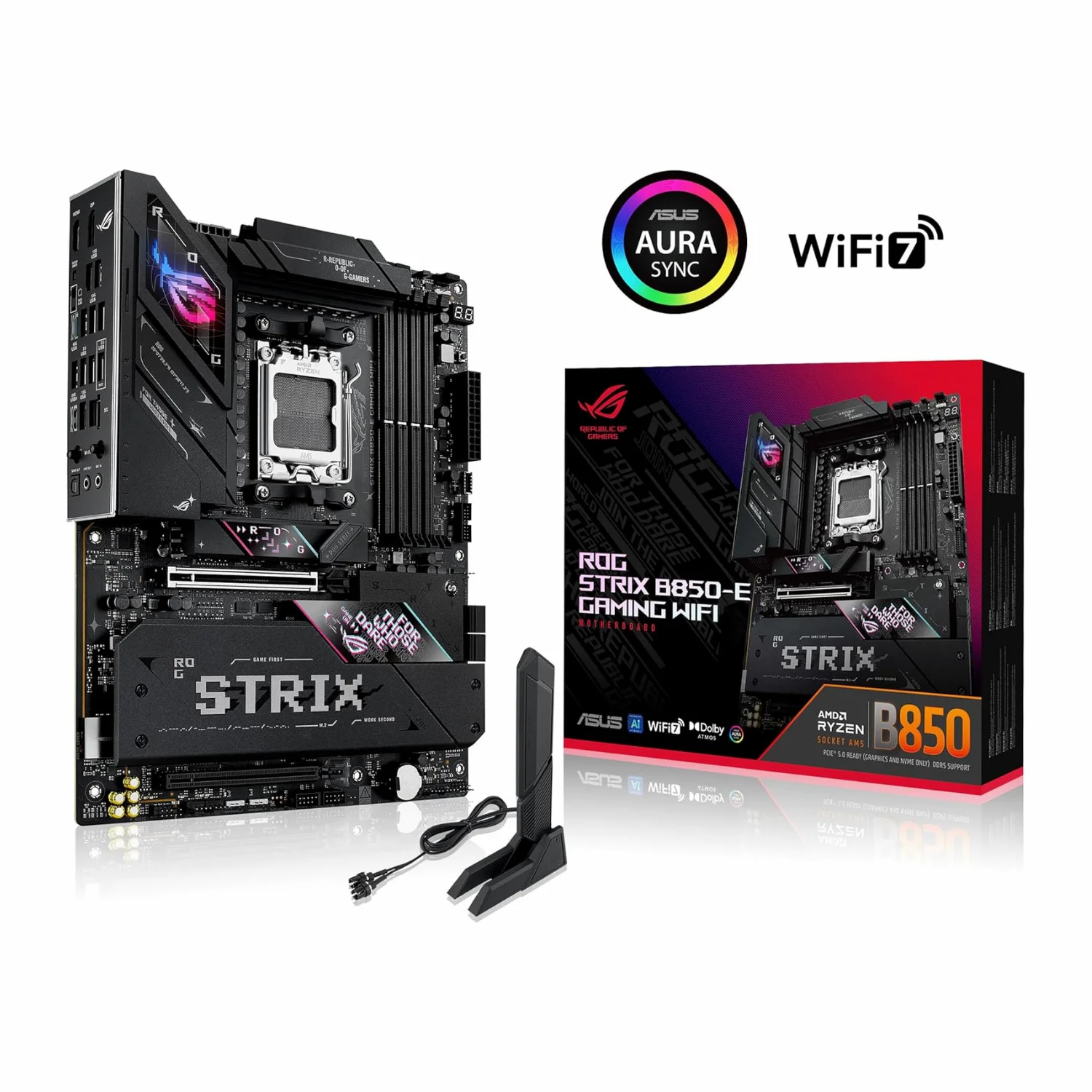

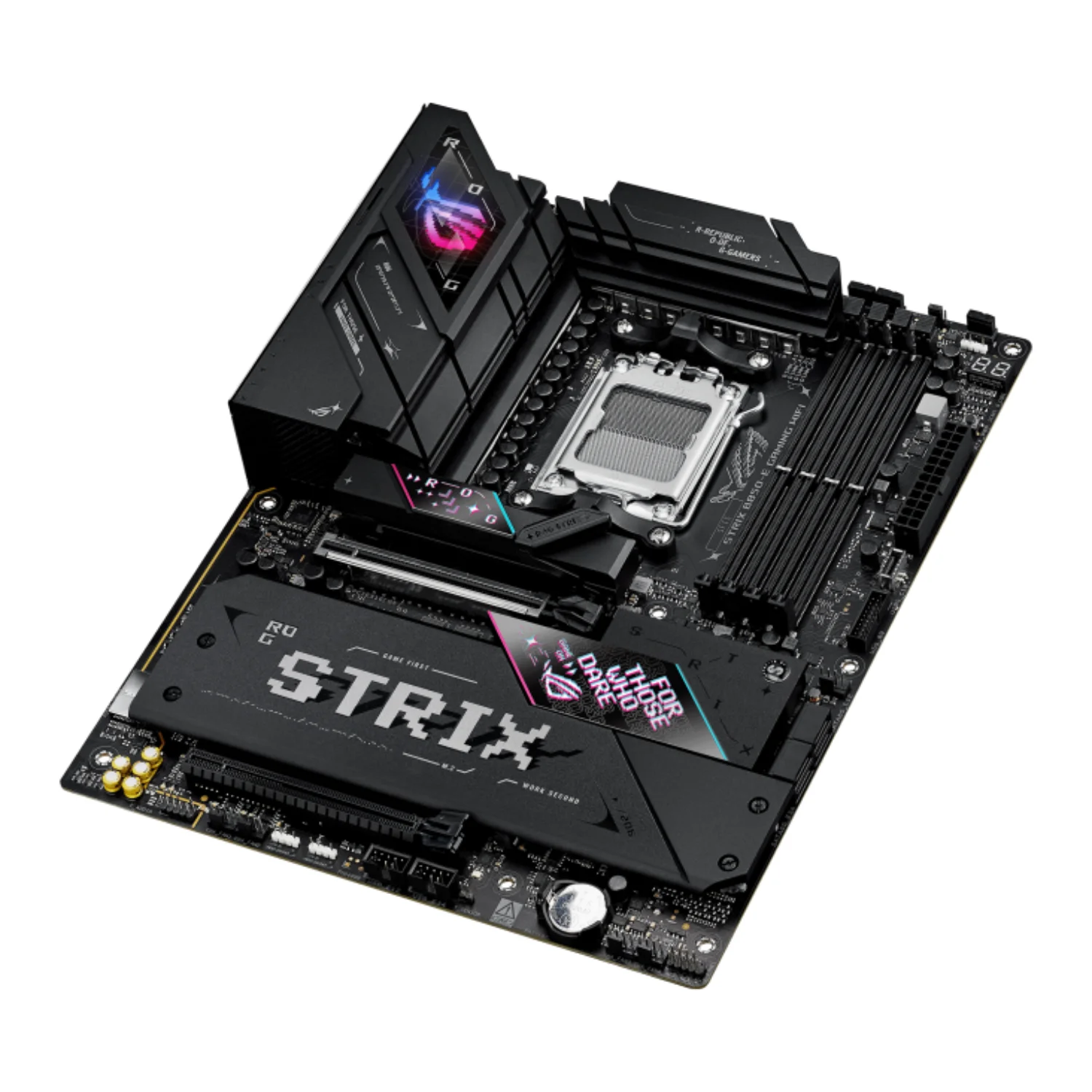

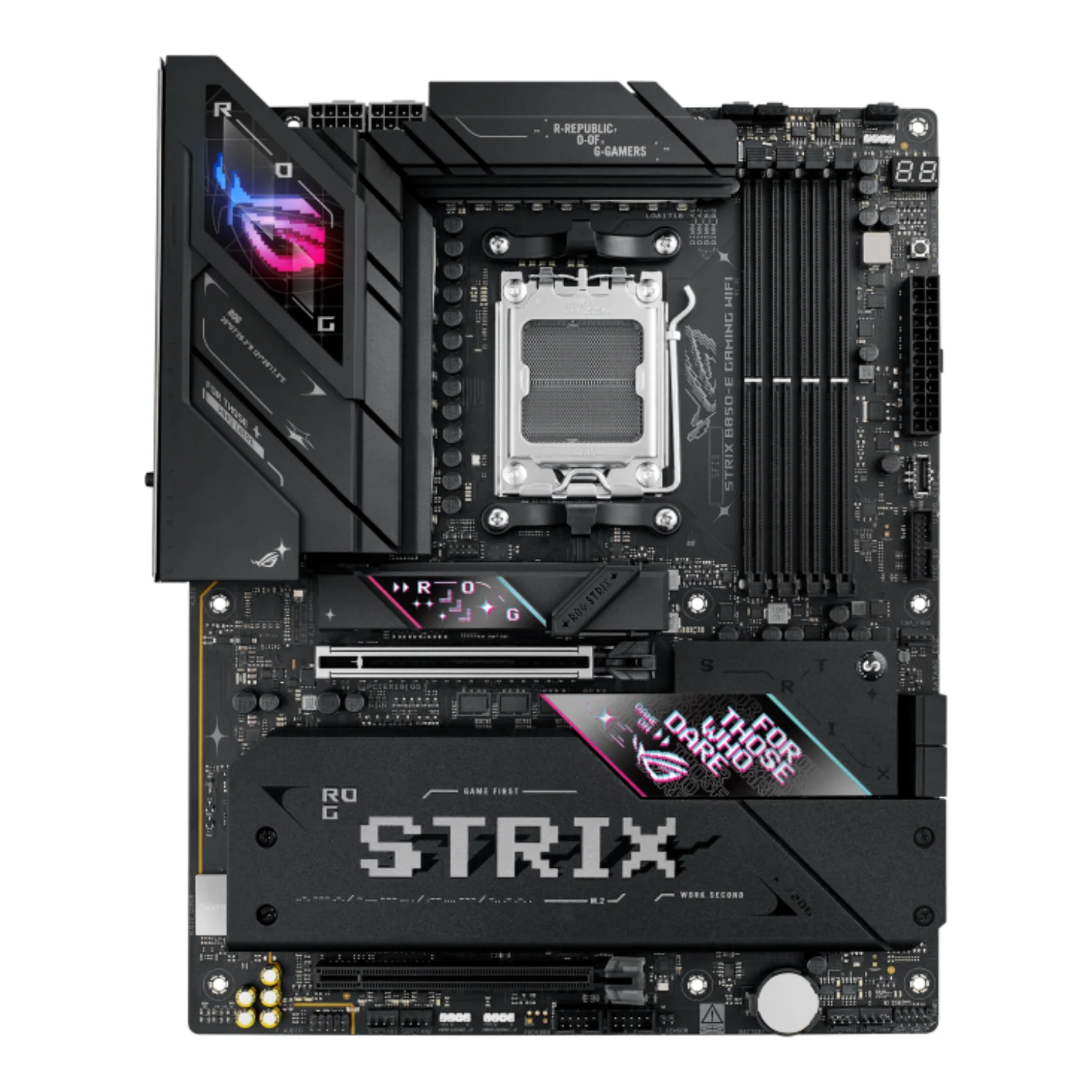

ASUS ROG STRIX B850-E GAMING WIFI – Scheda Madre ATX AM5 con WiFi 7, LAN 5G, USB4 e PCIe 5.0

0 Persone guardano adesso questo prodotto!

EAN: 4711387769300 COD: 90MB1J60-M0EAY0 Categoria: AM5

Descrizione

ROG STRIX B850-E GAMING WIFI / 90MB1J60-M0EAY0 / 4711387769300

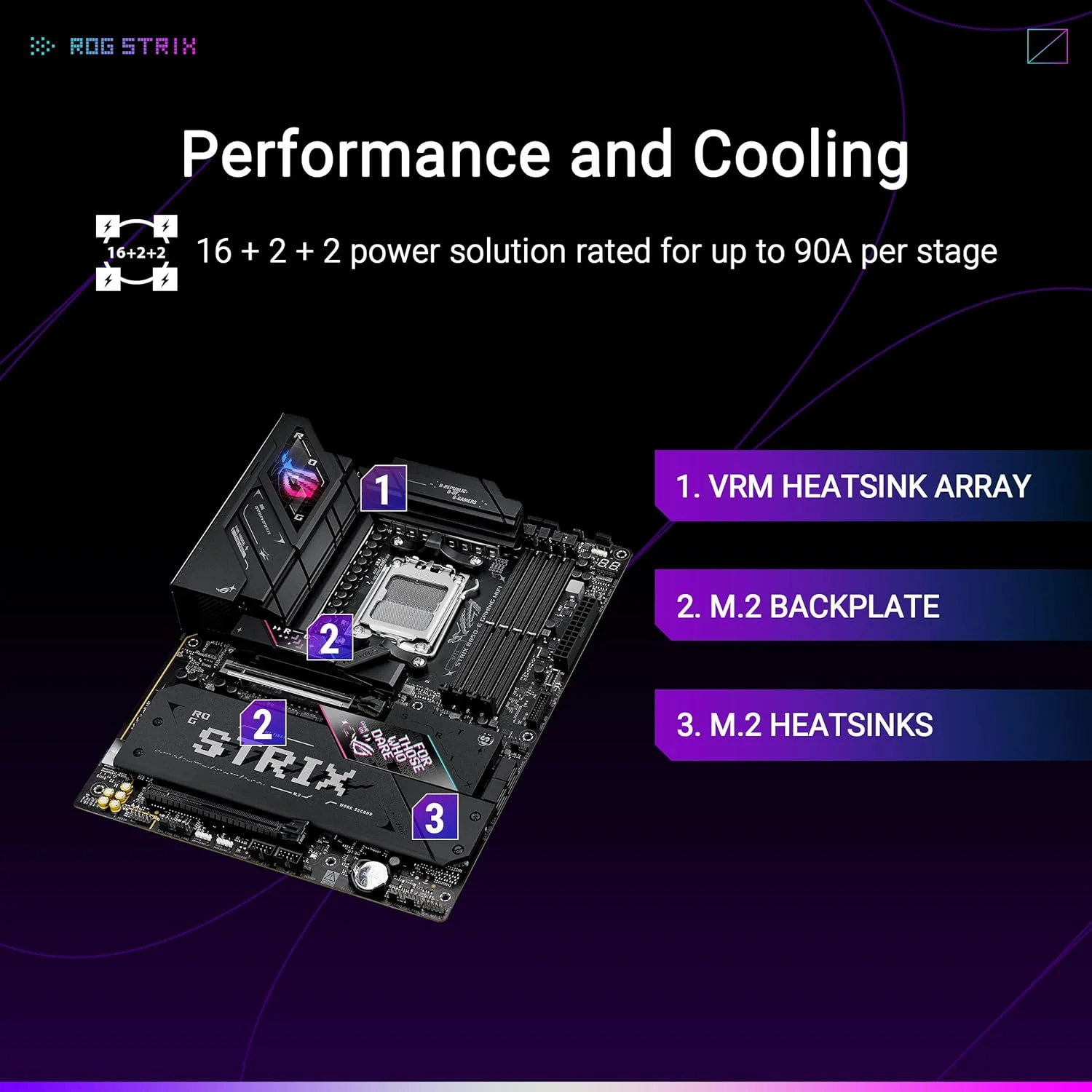

⚡ ROG Ultimate Power Design

Stabilità assoluta anche sotto carichi estremi:

16(90A) + 2(90A) + 2(80A) stadi di alimentazione
VRM con dissipatori massicci per mantenere temperature contenute
Doppio connettore CPU 8-pin ProCool per overclocking avanzato
Ideale per CPU Ryzen ad alto numero di core e boost sostenuti

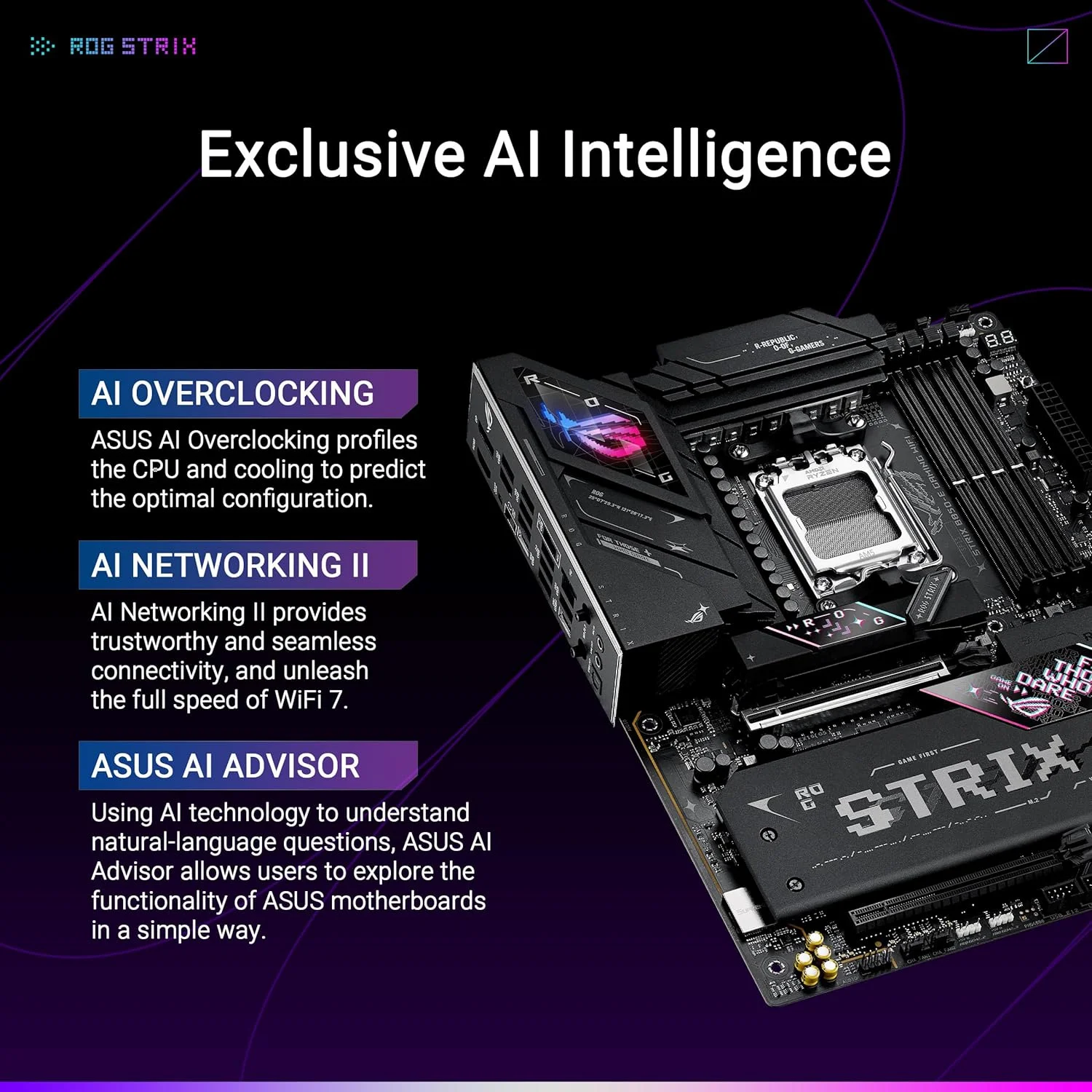

🧠 ASUS AI Intelligence

Ottimizzazione automatica, zero complicazioni:

AI Cache Boost: fino al +29% di prestazioni LLM locali con Ryzen 9000
AI Overclocking: profila CPU e raffreddamento per trovare il miglior settaggio
AI Networking II: priorità intelligente al traffico gaming e AI
AI Advisor: assistente tecnico ASUS in linguaggio naturale

🚀 Overclocking avanzato

Controllo totale per utenti enthusiast:

Dynamic OC Switcher (multi-thread vs single-thread)
Core Flex per gestione dinamica di frequenze, potenza e temperature
Precision Boost Overdrive (PBO) ottimizzato per sfruttare il VRM ROG

💾 Memoria DDR5 e Storage di nuova generazione

Velocità senza compromessi:

Supporto DDR5 fino a 8000+ MT/s (OC) con AMD EXPO™
DIMM Fit / DIMM Fit Pro per ottimizzazione automatica della RAM
5 slot M.2, di cui 3 PCIe 5.0 x4 (con Ryzen 9000/7000)

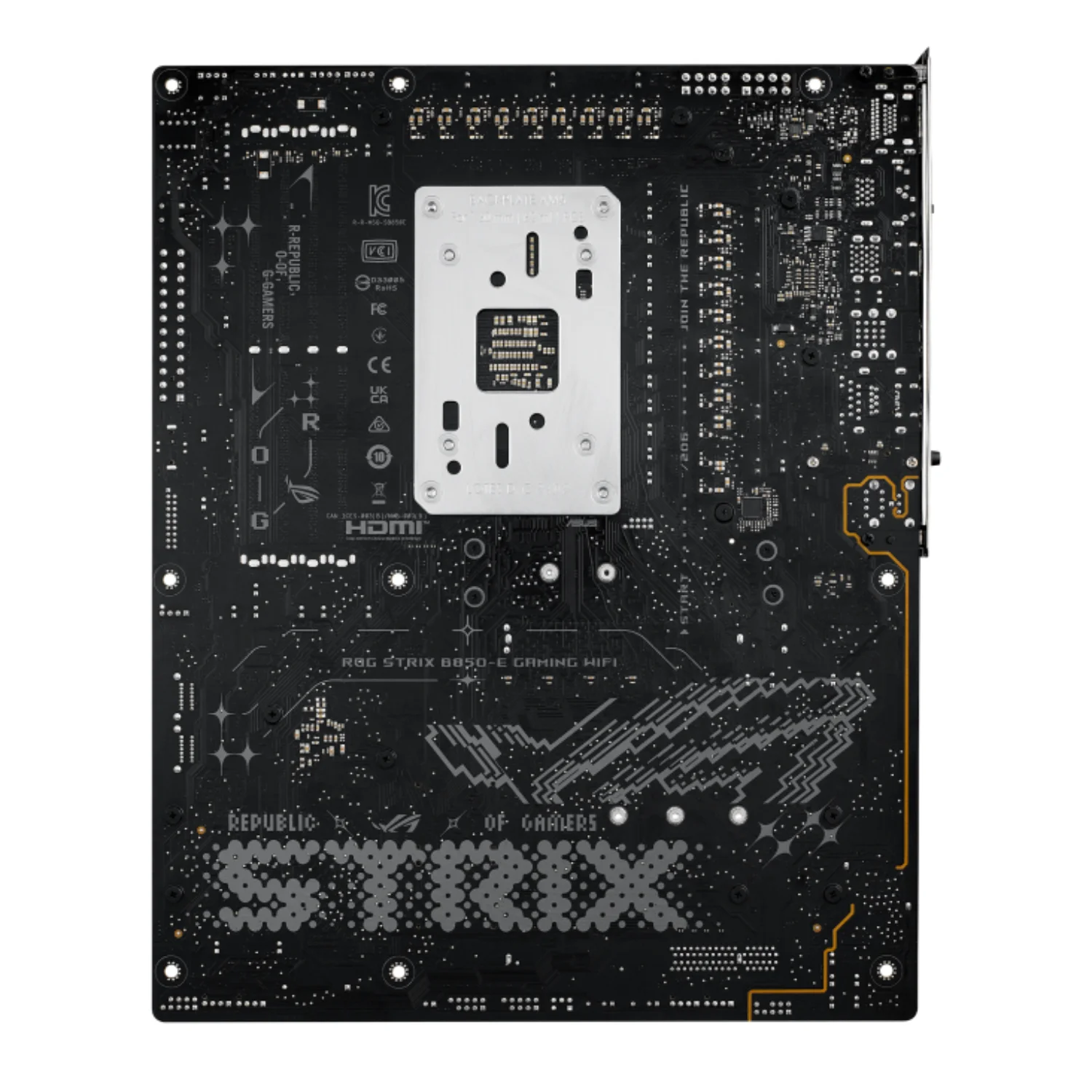

Dissipatori M.2 + backplate per SSD sempre freddi

🌐 Connettività di livello enthusiast

Pronta per il futuro:

WiFi 7 (802.11be) con banda 6GHz, 320MHz e 4096-QAM
LAN Realtek 5Gb per networking ultra-rapido
USB4® Type-C 40Gbps
USB Type-C 20Gbps con PD Fast Charge fino a 30W
Supporto completo PCIe 5.0 per GPU e NVMe

🎧 Audio Gaming SupremeFX

Esperienza sonora premium:

ROG SupremeFX ALC4080
Amplificatore Savitech + condensatori audio di qualità
Jack audio placcati oro + uscita ottica S/PDIF
Audio 7.1 ad alta fedeltà fino a 32-bit / 384 kHz

🧰 EZ PC DIY – Montaggio senza stress

ROG pensa anche all’assemblaggio:

M.2 Q-Release / Q-Latch / Q-Slide
PCIe Slot Q-Release Slim

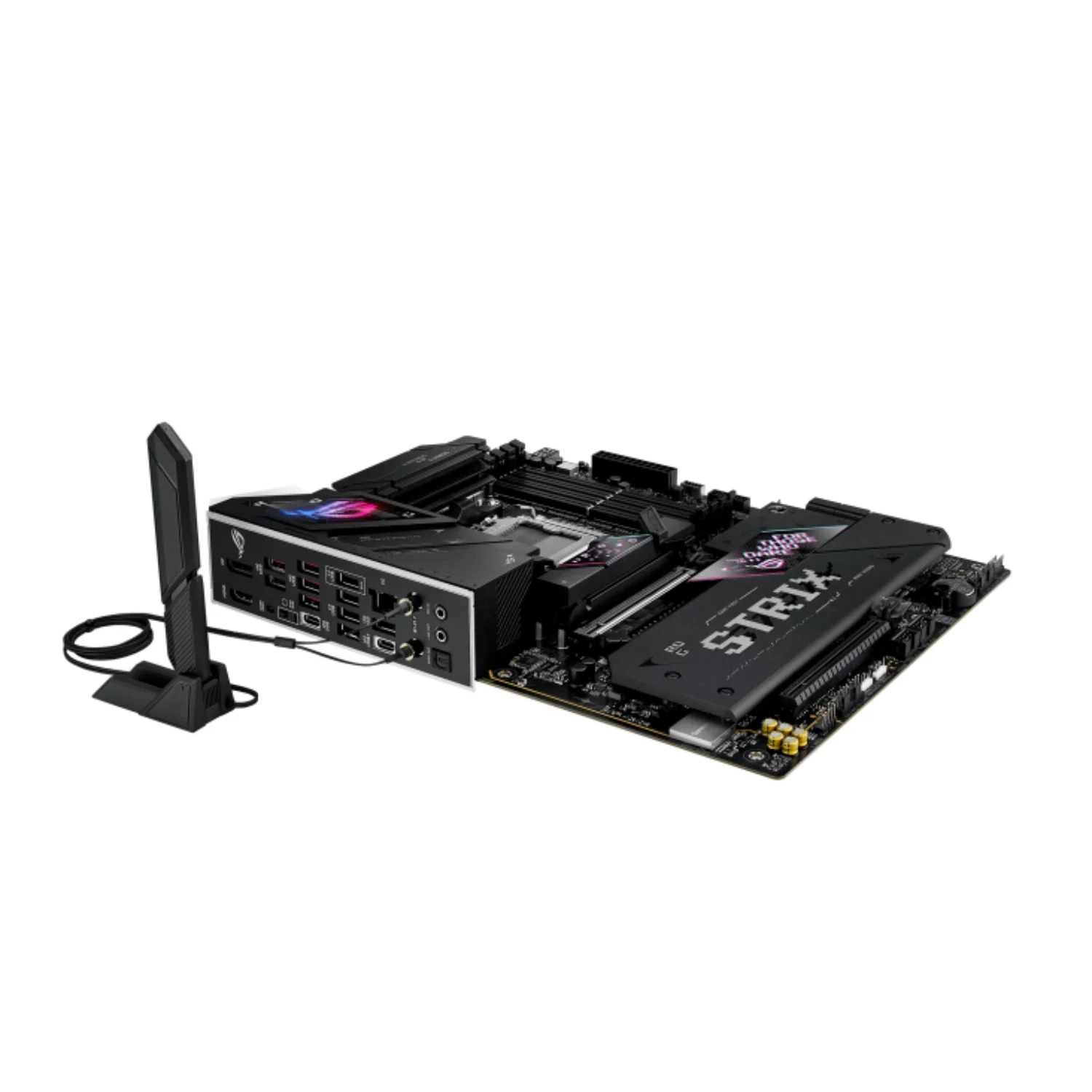

Q-Antenna per WiFi
Q-Code, Q-LED, pulsante Power onboard
Clear CMOS e BIOS FlashBack™
I/O Shield preinstallato

✨ Stile ROG STRIX inconfondibile

Design aggressivo e premium:

Dissipatori in alluminio spazzolato
Illuminazione Aura Sync RGB
Diffusori traslucidi su cover I/O
Sincronizzazione completa con ecosistema ROG

❓ FAQ

È compatibile con Ryzen 9000?
Sì, supporta AMD Ryzen™ 9000, 8000 e 7000 su socket AM5.

Supporta PCIe 5.0?
Sì, per GPU e SSD NVMe, con configurazione end-to-end PCIe 5.0.

Ha WiFi integrato?
Sì, WiFi 7 con Bluetooth 5.4.

È adatta a gaming competitivo e creator?
Assolutamente sì: VRM potente, storage ultraveloce, rete 5Gb e USB4 la rendono ideale per entrambi.

Supporta ricarica rapida USB?
Sì, USB-C 20Gbps con PD/PPS fino a 30W.

🔗 Maggiori informazioni

Sito ufficiale ASUS ROG: ROG STRIX B850-E GAMING WIFI

Informazioni aggiuntive

Peso	1,54 kg
Dimensioni	30,5 × 24,4 × 3 cm
Model	ROG STRIX B850-E GAMING WIFI
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD B850 Chipset
Memory	4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. **Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort* 1 x HDMI™ port 1 x USB4® (40Gbps) port supports USB Type-C® display outputs* – Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. * Supports max. 8K@30Hz as specified in DisplayPort 1.4 Supports 4K@60Hz as specified in HDMI 2.1 * Supports max. 4K@60Hz as specified in DisplayPort 1.4a ***** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)* – AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)**** – * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). When either M.2_2 or M.2_3 is enabled, PCIEX16(G5) will run x8. * Specifications vary by CPU types. **** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled. – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports – AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)* M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)* – AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports) M.2_3 slot (Key M), type 2280 (Not supports)* – AMD B850 Chipset M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*** M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports – * When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8. M.2_2 and M.2_3 slot will be disabled while using the AMD Ryzen™ 8000 Series Desktop Processors. * M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled. – AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10
Ethernet	1 x Realtek 5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	i-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate. Bluetooth® v5.4* Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 12 ports) 1 x USB4® (40Gbps) port(1 x USB Type-C®)* 1 x USB 20Gbps port (supports USB Type-C® with up to 30W PD/PPS Fast-charge)** 6 x USB 10Gbps ports (6 x Type-A) 4 x USB 2.0 ports (4 x Type-A) – Front USB (Total 7 ports) 1 x USB 10Gbps connector (1 x USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel – Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

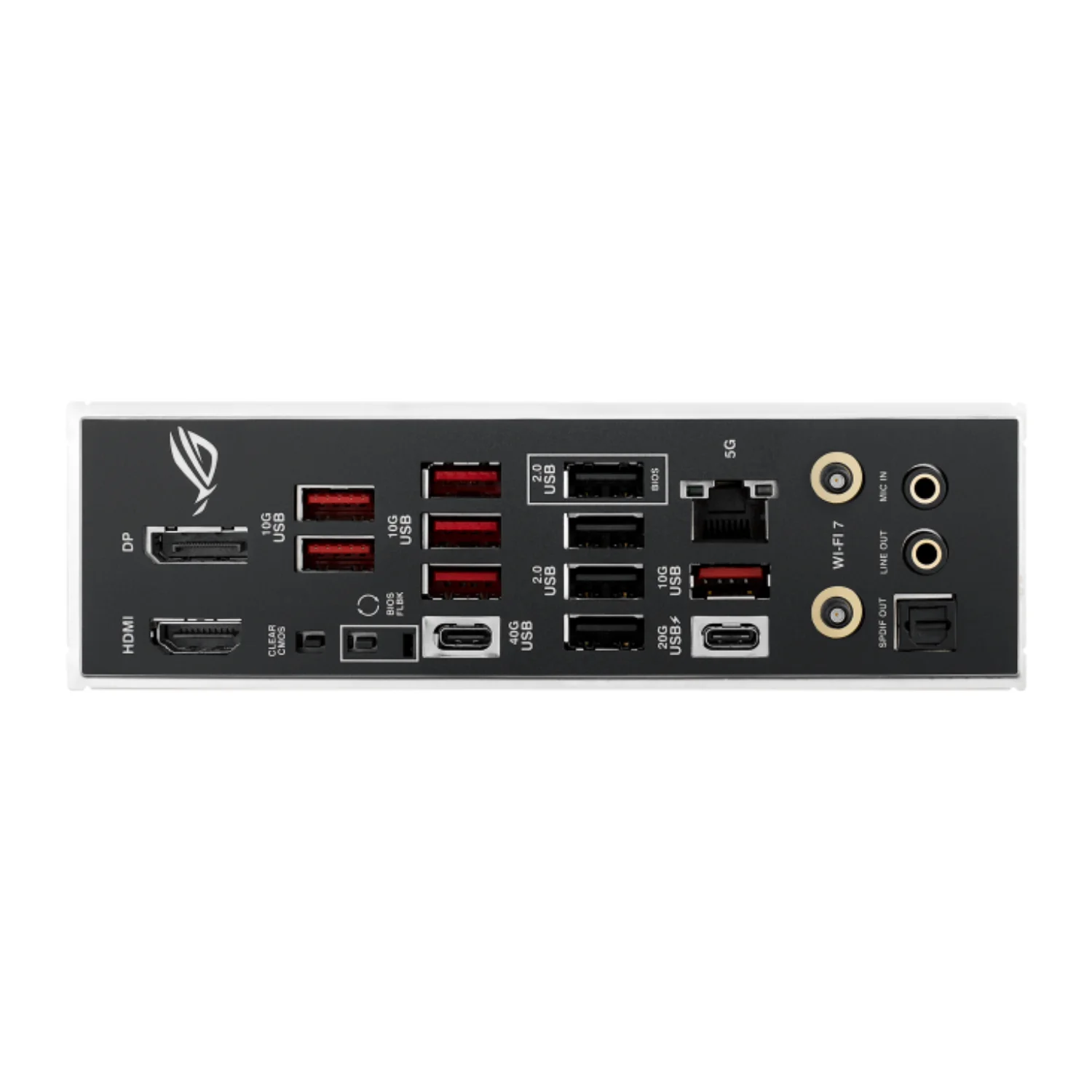

Back Panel I/O Ports	1 x USB4® (40Gbps)(1 x USB Type-C®) 1 x USB 20Gbps port (supports USB Type-C® with up to 30W PD/PPS Fast-charge) 6 x USB 10Gbps ports (6 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Power button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header
Special Features	Extreme Engine Digi+ – 5K Black metallic capacitors ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – PCIe Slot Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Code – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – ProCool – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Addressable Gen 2 header(s) Rear USB 20Gbps with PD Fast Charge Support – Support: up to 30W fast charging and USB Wattage Watcher – Output: 5V/9V max. 3A, 12V max 2.5A, 15V max2.0A – Compatible with PD3.0
Software Features	OG Exclusive Software – ROG CPU-Z – Dolby Atmos – ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – Aura Creator – Aura Sync – GameFirst – Fan Xpert 4 – HWiNFO – Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) – UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey Dynamic OC Switcher Core Flex
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

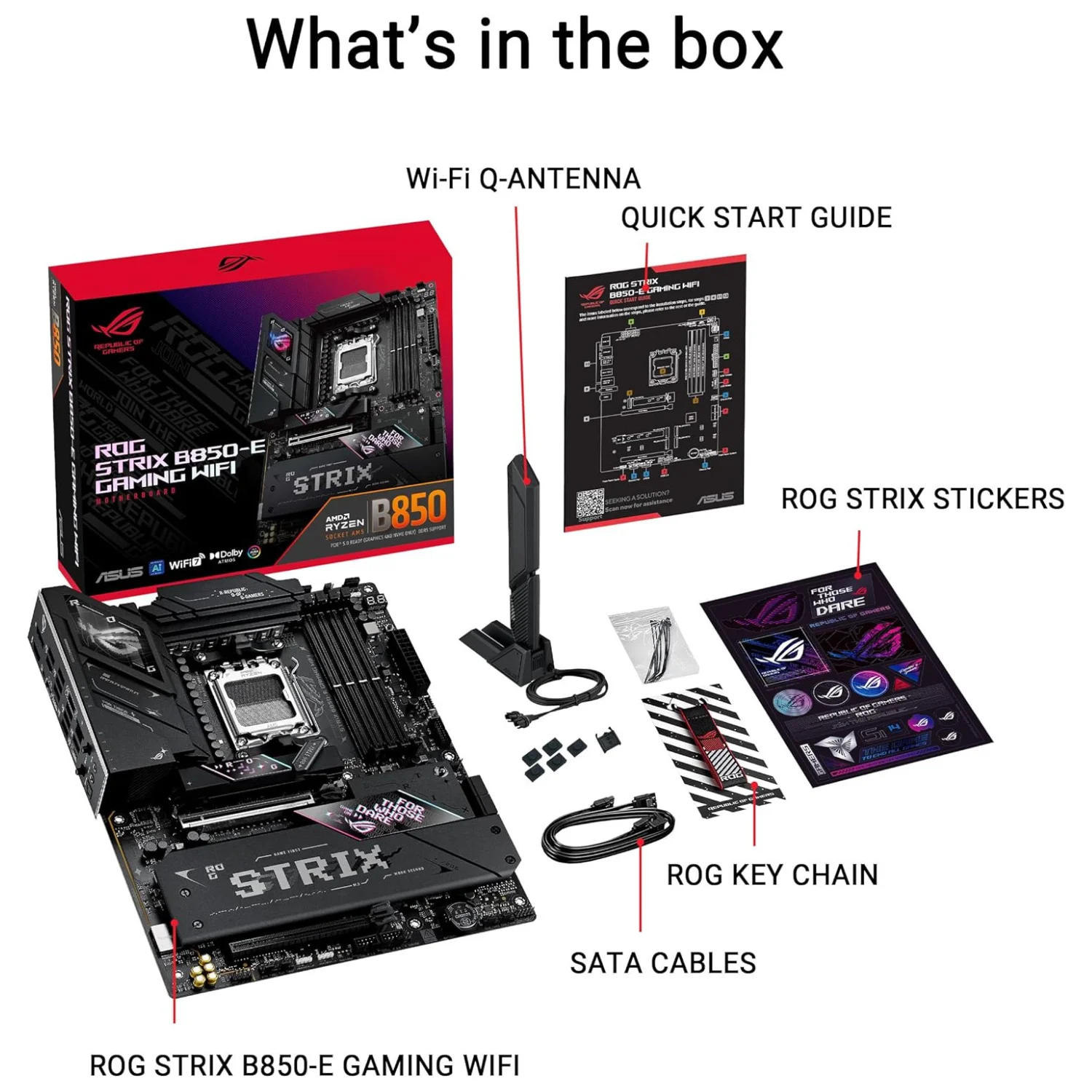

Accessories	Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 5 x M.2 rubbers Documentation 1 x Quick start guide
Operating System	Windows 11
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
