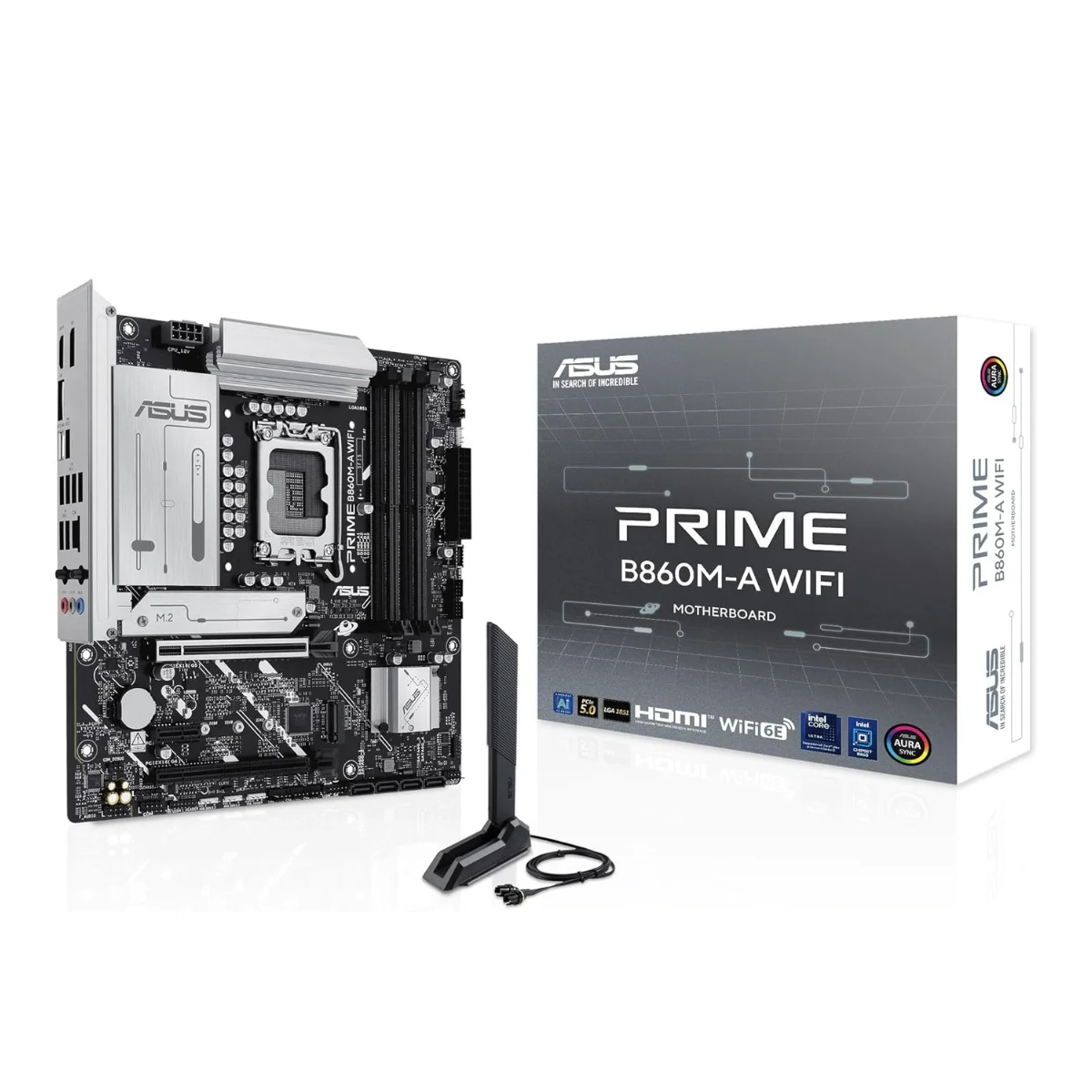

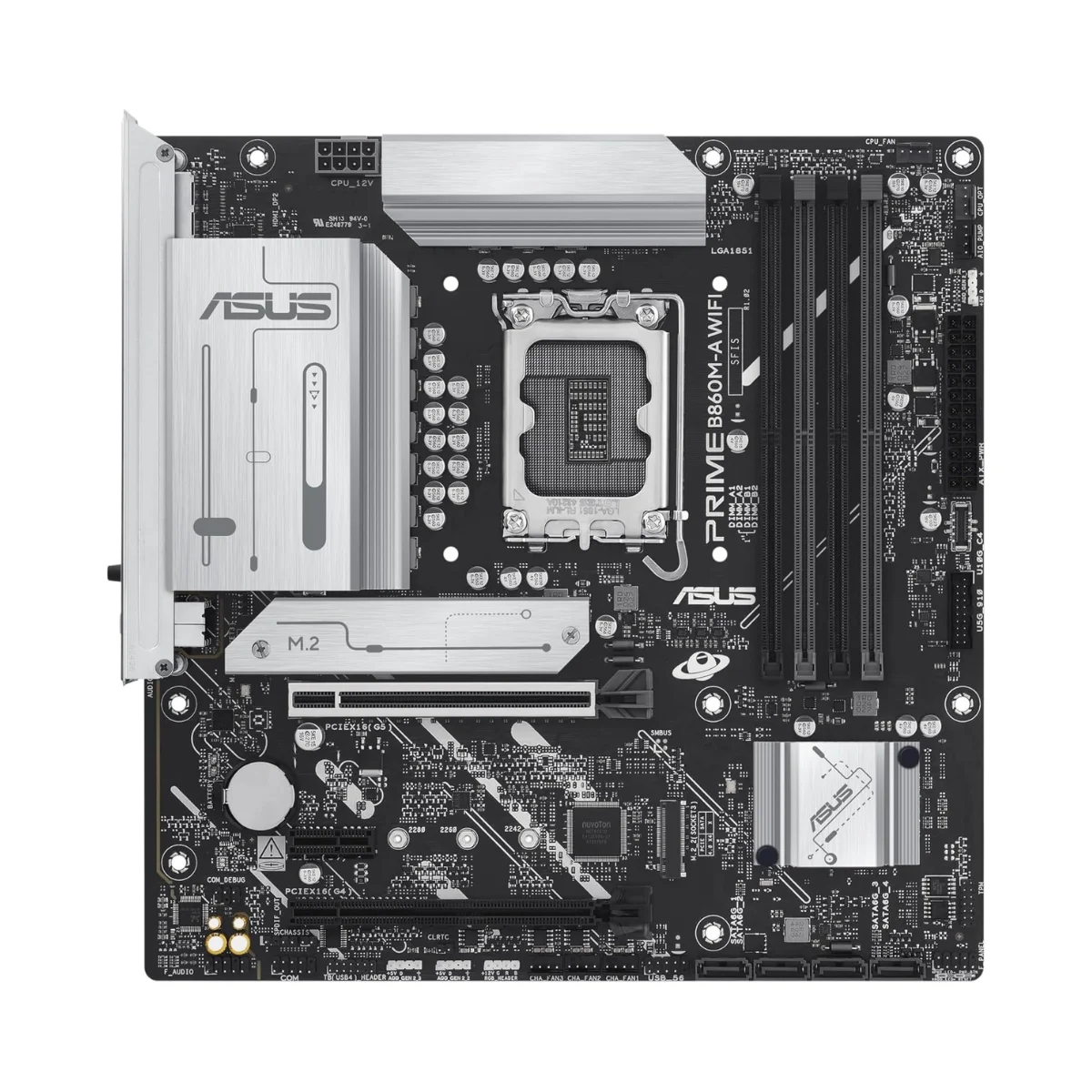

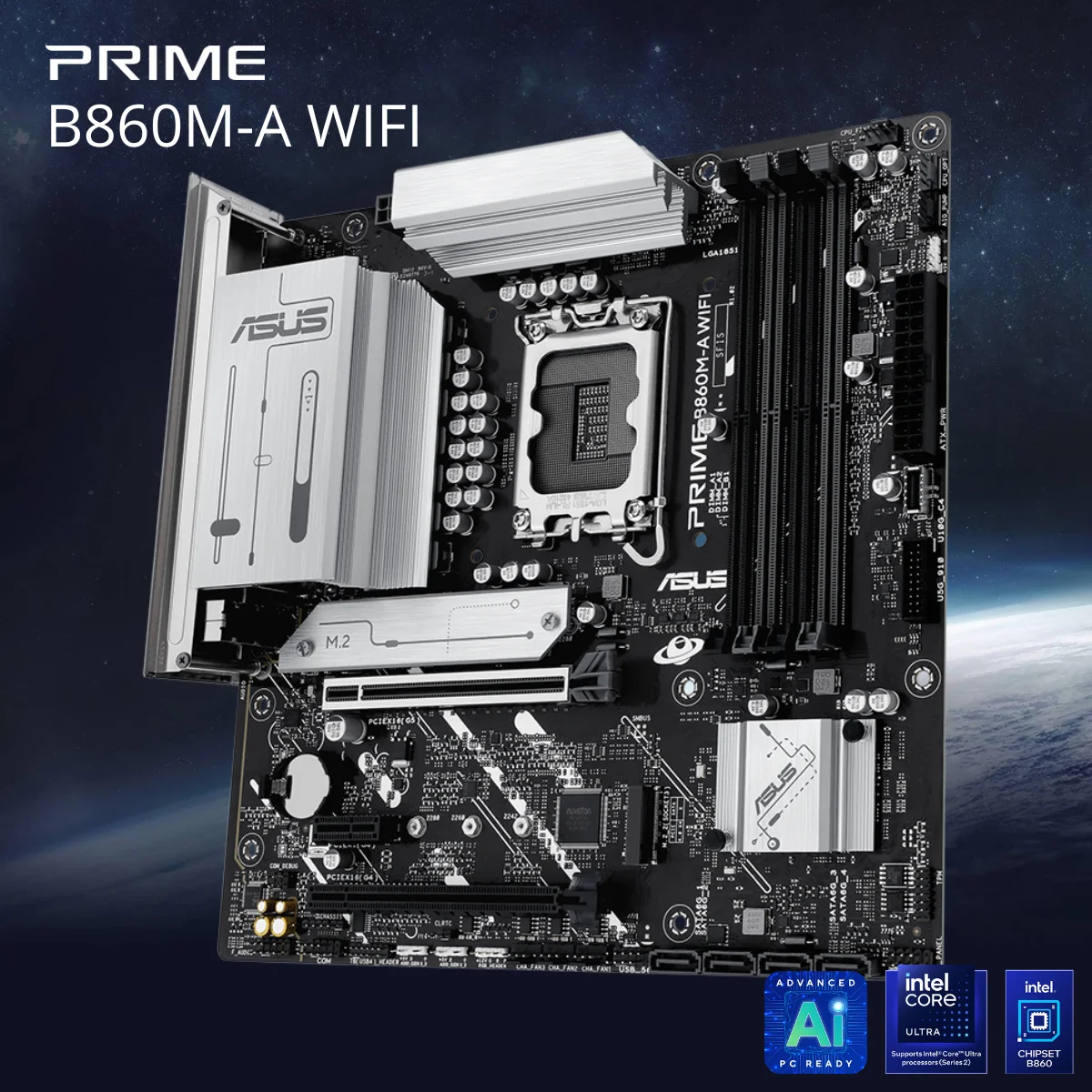

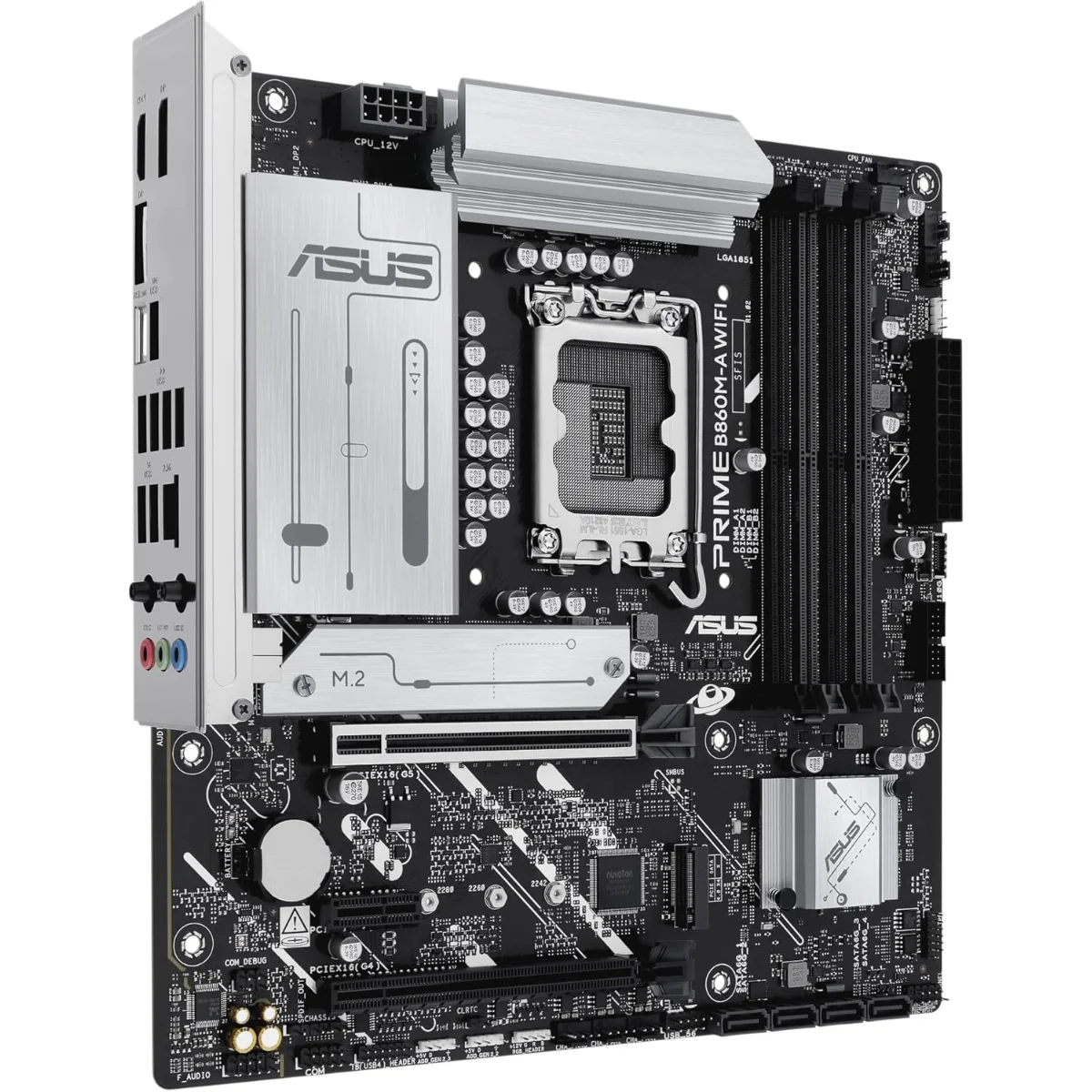

ASUS PRIME B860M-A WIFI
ASUS PRIME B860M-A WIFI – Scheda Madre Micro-ATX LGA1851 con WiFi 6E, LAN 2.5G, Bluetooth 5.3 e PCIe 5.0 - immagine 2
ASUS PRIME B860M-A WIFI – Scheda Madre Micro-ATX LGA1851 con WiFi 6E, LAN 2.5G, Bluetooth 5.3 e PCIe 5.0 - immagine 3
ASUS PRIME B860M-A WIFI – Scheda Madre Micro-ATX LGA1851 con WiFi 6E, LAN 2.5G, Bluetooth 5.3 e PCIe 5.0 - immagine 4
ASUS PRIME B860M-A WIFI – Scheda Madre Micro-ATX LGA1851 con WiFi 6E, LAN 2.5G, Bluetooth 5.3 e PCIe 5.0 - immagine 5
ASUS PRIME B860M-A WIFI – Scheda Madre Micro-ATX LGA1851 con WiFi 6E, LAN 2.5G, Bluetooth 5.3 e PCIe 5.0 - immagine 6
ASUS PRIME B860M-A WIFI – Scheda Madre Micro-ATX LGA1851 con WiFi 6E, LAN 2.5G, Bluetooth 5.3 e PCIe 5.0 - immagine 7
ASUS PRIME B860M-A WIFI – Scheda Madre Micro-ATX LGA1851 con WiFi 6E, LAN 2.5G, Bluetooth 5.3 e PCIe 5.0 - immagine 8
ASUS

ASUS PRIME B860M-A WIFI – Scheda Madre Micro-ATX LGA1851 con WiFi 6E, LAN 2.5G, Bluetooth 5.3 e PCIe 5.0

Il prezzo originale era: 229,00 €.Il prezzo attuale è: 179,00 €.

La ASUS PRIME B860M-A WIFI è una scheda madre Micro-ATX pensata per sfruttare al massimo i processori Intel® Core™ Ultra (Serie 2) su socket LGA1851. Unisce un design solido, funzioni smart per il PC-building e una connettività moderna con WiFi 6E, LAN 2.5Gb, USB Type-C fino a 20Gbps e supporto PCIe 5.0 per GPU e storage, per una build pronta anche ai carichi “AI PC-ready”.

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4711387806289 COD: ‎90MB1JY0-M0EAY0 Categoria:
Descrizione

‎PRIME B860M-A WIFI / 90MB1JY0-M0EAY0 / 4711387806289

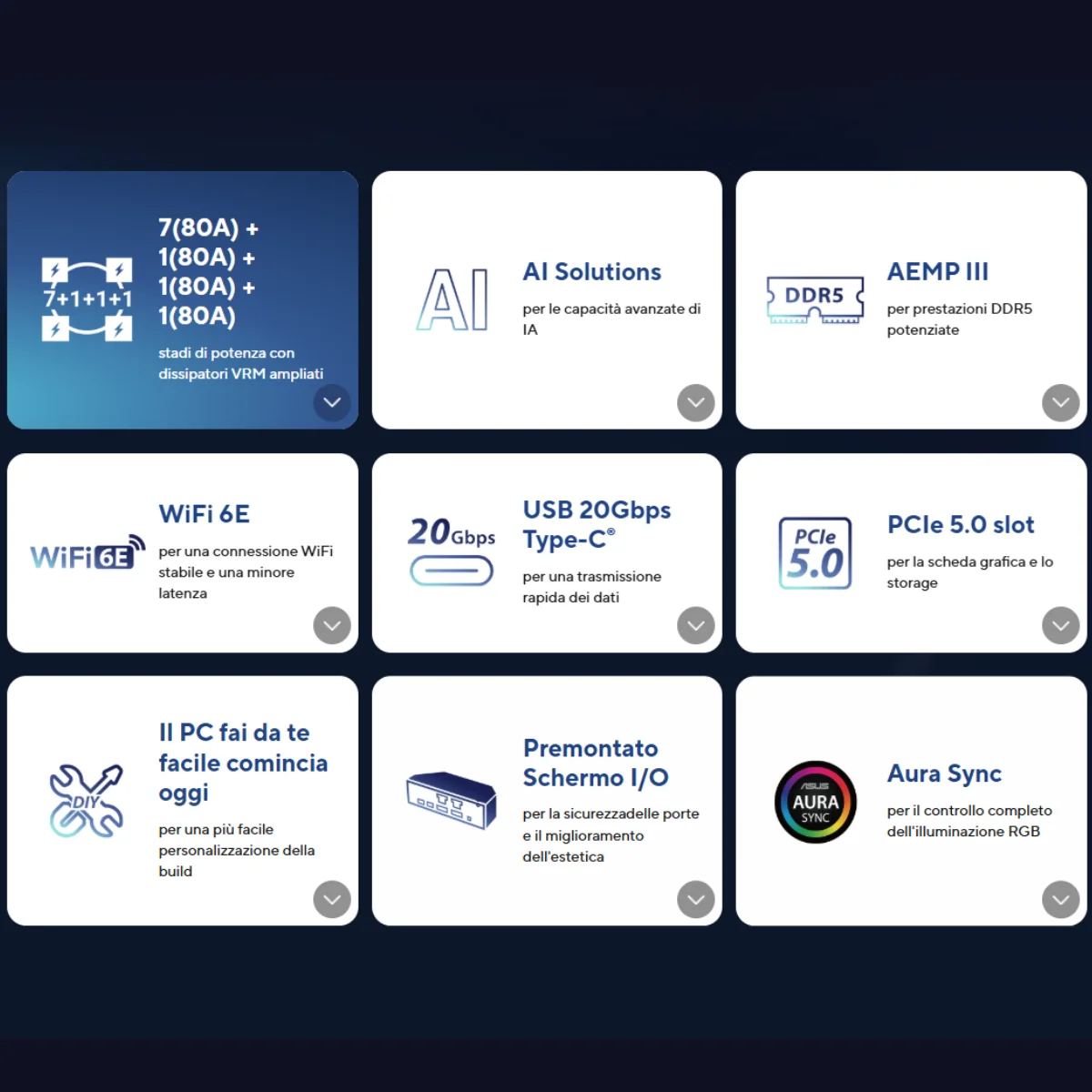

⚡ Potenza stabile e affidabile

Progettata per sistemi moderni e reattivi:

  • Stadi di potenza con dissipatori VRM ampliati per maggiore stabilità

  • PCB ottimizzato per gestire carichi intensi con temperature sotto controllo

  • Connettore CPU a 8-pin con pin solidi per un’erogazione più affidabile

🧠 AI Solutions e ottimizzazioni intelligenti

Più semplicità, meno “smanettamenti”:

  • AI Advisor per assistenza e suggerimenti in linguaggio naturale

  • Funzioni firmware/software ASUS per ottimizzare prestazioni e gestione della build

  • Profilazioni che aiutano anche chi assembla per la prima volta

💾 Memoria e storage più veloci

Pensata per tempi di avvio rapidi e fluidità:

  • AEMP III per spingere le prestazioni DDR5 in modo semplice

  • Storage M.2 con supporto anche a PCIe 5.0 per SSD ad alte prestazioni

🌐 Connettività moderna per una build completa

Tutto quello che serve oggi:

  • WiFi 6E per connessioni più stabili e latenza ridotta

  • 2.5Gb Ethernet per gaming online e download veloci

  • USB Type-C fino a 20Gbps per trasferimenti rapidi e periferiche moderne

🧰 DIY Friendly: montaggio più facile e pulito

Dettagli pratici per assemblare senza stress:

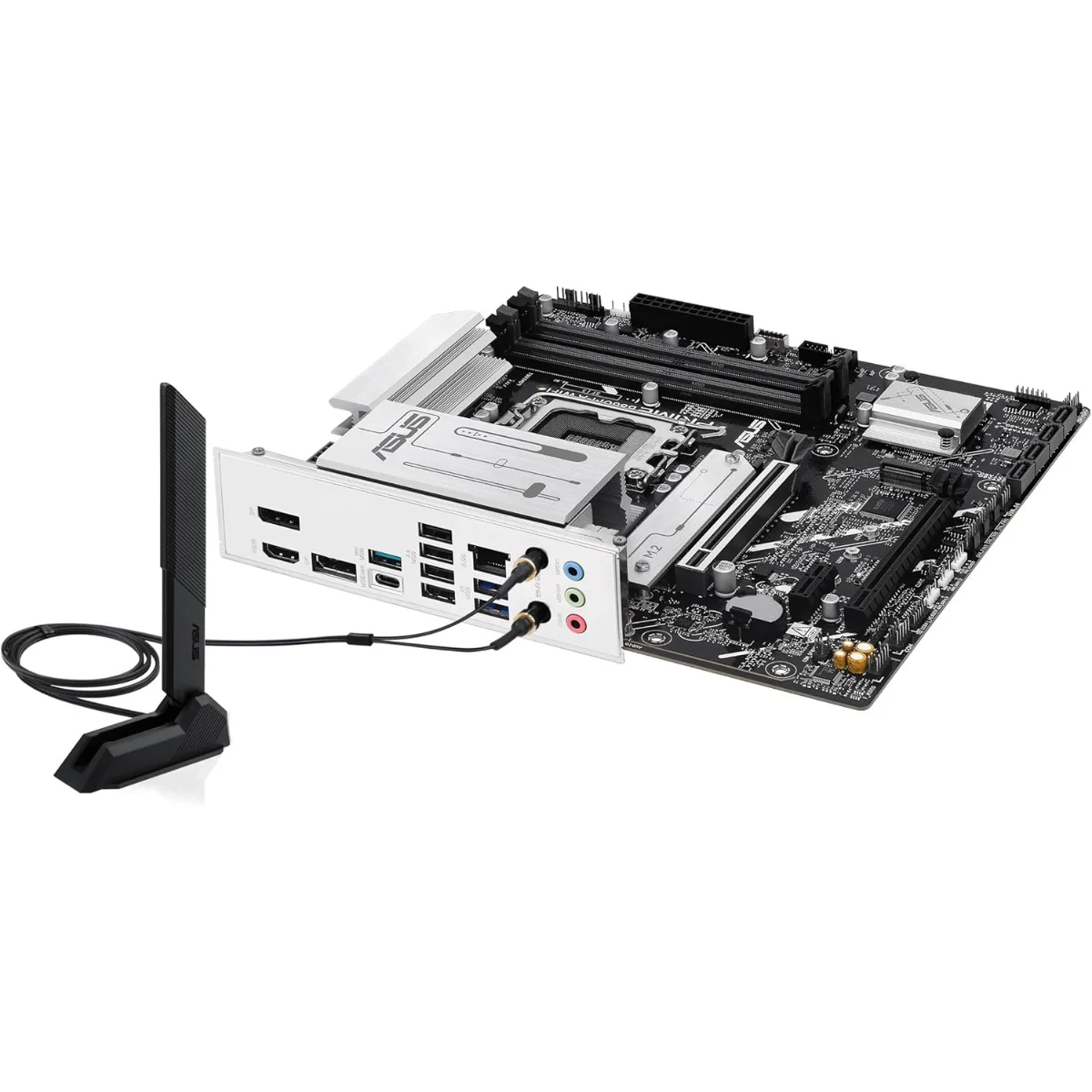

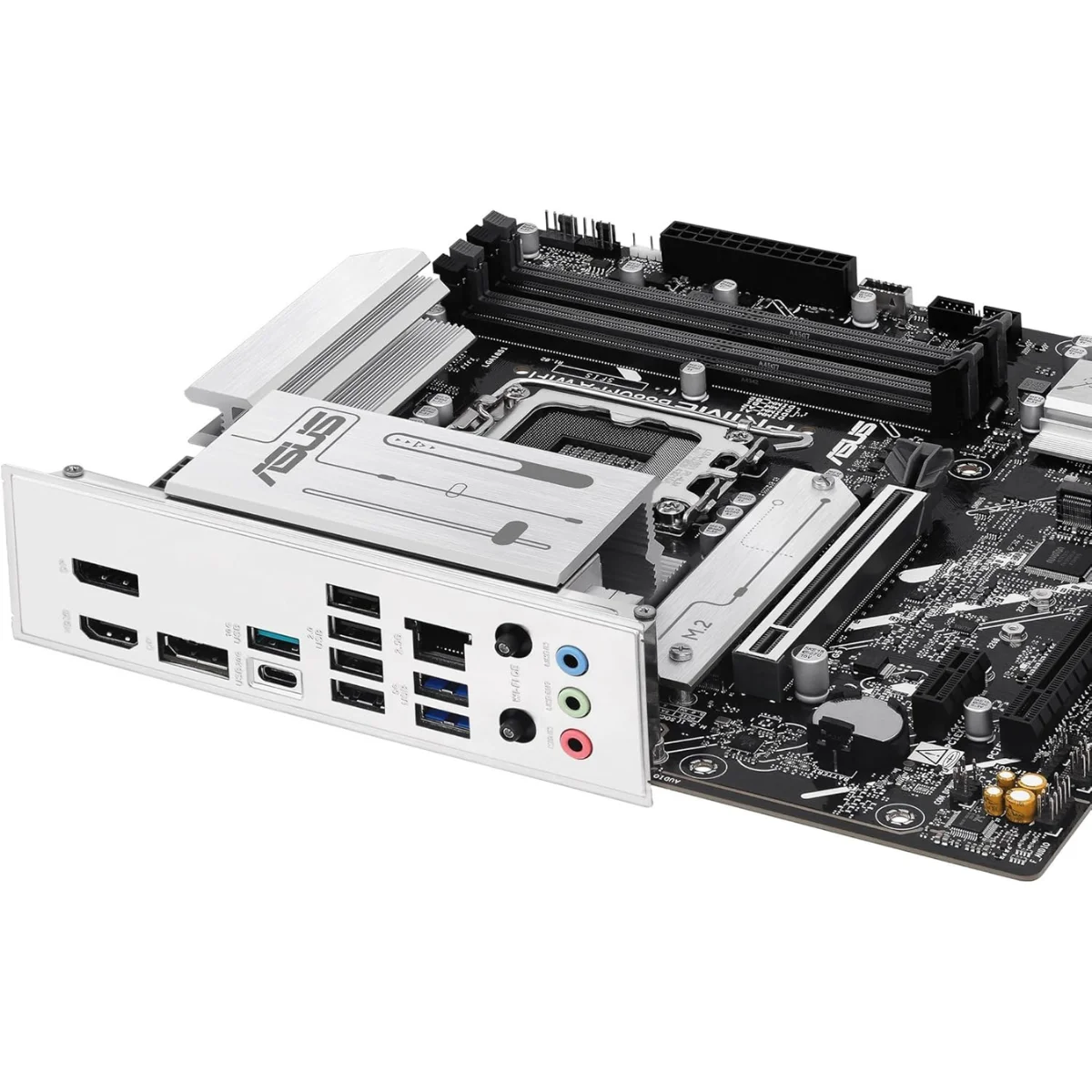

  • I/O Shield preinstallato per un montaggio più rapido e ordinato

  • Funzioni ASUS “EZ” per rendere la configurazione più semplice

  • Aura Sync per sincronizzare e gestire l’illuminazione RGB della build

❓ FAQ

È compatibile con Intel Core Ultra Serie 2?
Sì, è progettata per i processori Intel® Core™ Ultra (Serie 2) con socket LGA1851.

Ha il Wi-Fi integrato?
Sì, include WiFi 6E integrato.

Supporta PCIe 5.0?
Sì, offre supporto PCIe 5.0 per scheda grafica e storage (in base agli slot e alla configurazione).

È adatta a un PC compatto?
Sì, essendo Micro-ATX è ideale per build più compatte senza rinunciare a funzionalità moderne.

Ha una porta USB-C veloce?
Sì, include una USB Type-C fino a 20Gbps.

🔗 Maggiori informazioni

Sito ufficiale ASUS: ASUS PRIME B860M-A WIFI

Informazioni aggiuntive
Peso 1,44 kg
Dimensioni 24,4 × 24,4 × 3 cm
Modello

PRIME B860M-A WIFI
CPU

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
*Refer to https://www.asus.com/support/download-center/ for CPU support list.
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® B860 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

2 x DisplayPort**
1 x HDMI™ port***
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** Supports max. 4K@120Hz as specified in DisplayPort 1.4.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® Core™ Ultra Processors(series 2)
1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel®B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 6E
2×2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A )
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)**
Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
*USB Type-C® power delivery output: max. 5V/3A
**USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

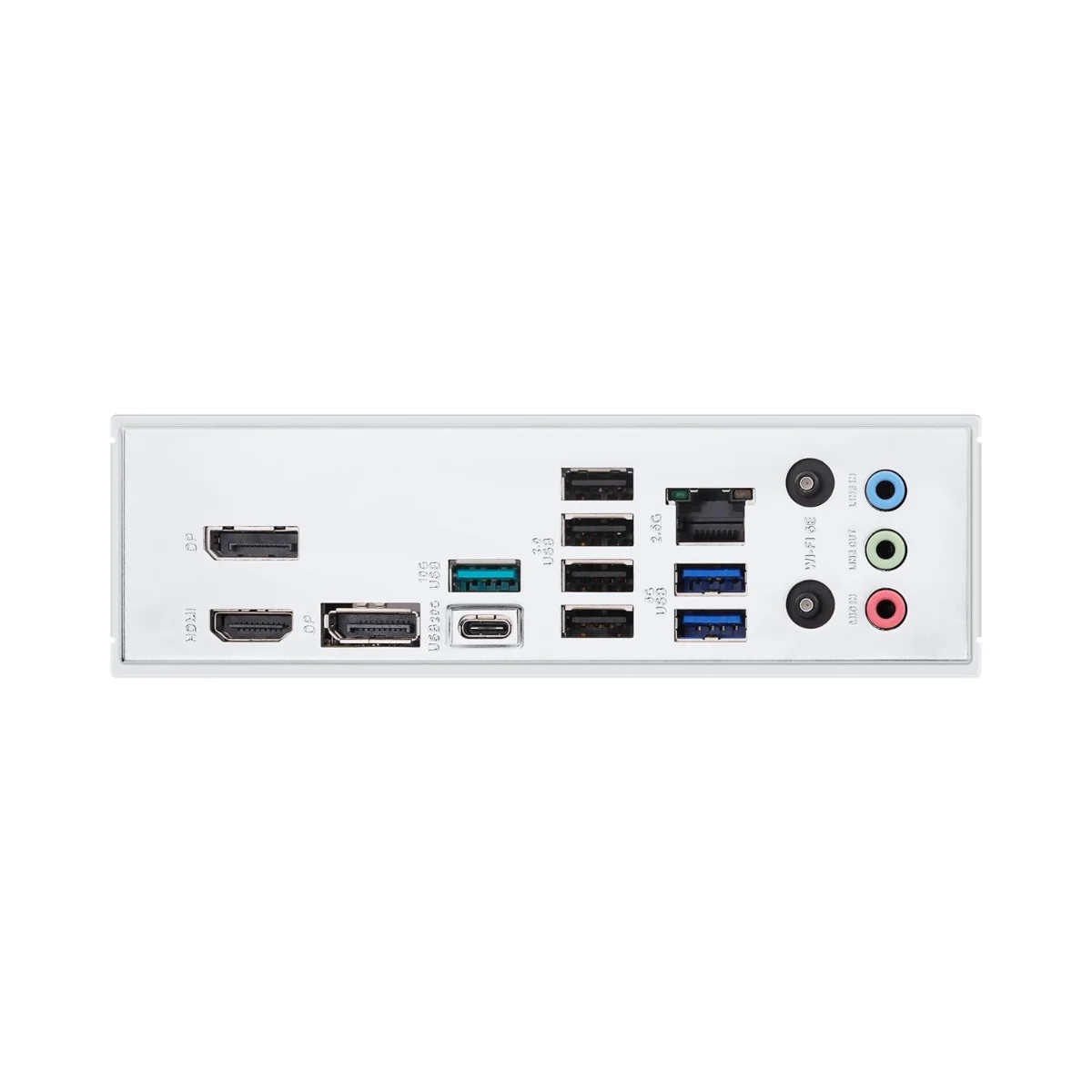

Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A )
2 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additionalUSB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
Special Features

ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O
ASUS Q-Design
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
– Pre-mounted I/O shield
Aura Sync
– Aura RGB header
– Addressable Gen2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Operating System

Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor

micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Recensioni (0)

Recensioni

Ancora non ci sono recensioni.

Recensisci per primo “ASUS PRIME B860M-A WIFI – Scheda Madre Micro-ATX LGA1851 con WiFi 6E, LAN 2.5G, Bluetooth 5.3 e PCIe 5.0”

Il tuo indirizzo email non sarà pubblicato. I campi obbligatori sono contrassegnati *



About brand

ASUS su Summit-Tech

ASUS è uno dei brand di riferimento nel mondo hardware, notebook, monitor, periferiche, networking e soluzioni gaming. Su Summit-Tech trovi prodotti ASUS selezionati per lavoro, studio, creator, business, gaming e assemblaggio PC.

La gamma ASUS include linee dedicate come ROG, TUF Gaming, ProArt, ExpertBook, ExpertCenter, Zenbook, Vivobook e Prime, pensate per esigenze diverse: dalle postazioni professionali ai setup gaming ad alte prestazioni.

Per scoprire tutti i prodotti ASUS disponibili o conoscere meglio Summit-Tech come rivenditore autorizzato ASUS, visita le pagine dedicate.

Prodotti correlati

Esaurito
ASRock B860M Pro-A WiFi
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASRock B860M Pro-A WiFi – Scheda Madre Micro ATX Intel B860 LGA1851 con DDR5, PCIe 5.0, M.2 Gen5 e Wi-Fi 6E

145,00 €
Leggi tutto
SKU: 90-MXBRS-A0UAYZ
Peso 0,8 kg
Dimensioni 24,4 × 24,4 × 3 cm
Caratteristica Unica

Produttività superba
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
Solida durabilità
– 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA
Connettività ultraveloce
– 2.5G LAN, 802.11axe Wi-Fi 6E Module
Aggiornamento EZ
– Interruttore BIOS Flashback
– Programma di installazione del driver automatico ASRock
Risoluzione dei problemi EZ
– ASRock Checker stato post
CPU

– Supporta Intel® Core™ Ultra Processors (Series 2) (LGA1851)
– Supporta Intel® Hybrid Technology
– Supporta Intel® Turbo Boost Max 3.0 Technology
– Supporta Intel® Incremento della velocità termica (TVB)
– Supporta Intel® Tecnologia ad incremento adattivo (ABT)
– NPU integrata per accelerazione IA dedicata
Chipset

– Intel® B860
Memoria

– Dual Channel DDR5 Memory Technology
– 4 x DDR5 slot DIMM
– Supporta DDR5 non-ECC, momoria senza buffer up to 8666+(OC)*
– Supporta Clocked Unbuffered DIMM (CUDIMM)
– Capacità massima della memoria di sistema: 256GB
– Supporto di Intel® XMP (Profilo di memoria estrema) 3.0x
—
*1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
BIOS

– BIOS legale 256 Mb AMI UEFI con supporto GUI
Schede Grafiche

– Intel® Xe LPG Architettura grafica
– 1 x HDMI 2.1 TMDS/FRL Compatibile con l’8G, Supporta HDR, HDCP 2.3 e max. Risoluzione up to 4K 120Hz
– 1 x DisplayPort 1.4 con DSC (compresso), supporta HDCP 2.3 e risoluzione massima fino a 8K 60Hz/5K 120Hz
—
* Intel® UHD Graphics Visuals integrata e le uscite VGA possono essere supportate solo con processori con GPU integrata.
Audio

– Audio HD a 7.1 canali (Realtek ALC897 Audio Codec)
LAN

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supporta Dragon 2.5G LAN Software
– Controllo regolazione della larghezza di banda automatico e intelligente
– Interfaccia grafica intuitiva
– Statistiche visive di utilizzo della rete
– Impostazioni predefinite e ottimizzate per modalità gioco, browser e streaming
– Controllo priorità personalizzato dall'utente
Wireless LAN

– 802.11axe Wi-Fi 6E Module
– Supporta IEEE 802.11a/b/g/n/ac/ax/axe
– Supporta Dual-Band 2×2 con extended 6GHz band* support
– CPU, CPU opzionale/Pompa dell’acqua, ventole del case
– Supporta Bluetooth 5.3
– Supporta MU-MIMO
—
*The 6GHz band of Wi-Fi 6E module is supportato da Microsoft® Windows® 11 only. La disponibilità della banda 6 GHz dipenderà dal diverso stato di regolamentazione di ciascun Paese e regione. Verrà attivato (per i Paesi supportati) tramite Windows® Update e aggiornamenti software non appena disponibili.
Per la funzionalità 6E è necessario un router compatibile con 6GHz.
Slot di espansione

CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), Supporta a modalità x16*
Chipset:
– 1 x PCIe 4.0 x4 Slot (PCIE2), Supporta a modalità x4*
– 1 x socket M.2 (Key E), supporta il modulo Wi-Fi/BT PCIe WiFi di tipo 2230 e Intel® CNVio/CNVio2 (Wi-Fi/BT integrato)
—
* SSD NVMe come dischi di avvio
Immagazzinamento

CPU:
– 1 x Blazing socket M.2 (M2_1, Key M), Supporta type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x socket Hyper M.2 (M2_2, Key M), Supporta type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x socket Hyper M.2 (M2_3, Key M), Supporta type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x connettori SATA3 6.0 Go/s
—
* Supporta il dispositivo Intel® Volume Management (VMD)
SSD NVMe come dischi di avvio
RAID

– Supporta RAID 0, RAID 1, RAID 5 e RAID 10 per dispositivi di archiviazione SATA
USB

CPU:
– 1 x USB 3.2 Gen2x2 Type-C (posteriori)
Chipset:
– 1 x USB 3.2 Gen1 Type-C (frontali)
– 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 frontali)
– 6 x USB 2.0 (2 Rear, 4 Front)
—
* Tutte le porte USB supportano la protezione ESD.
Connettore

– 1 x collettore SPI TPM
– 1 x LED di alimentazione e header altoparlanti
– 1 x collettore RGB LED*
– 3 x Header LED indirizzabiles**
– 2 x Connettore CPU ventola (4-pin) (Controllo intelligente della velocità della ventola)***
– 3 x Connettore Chassis ventola (4-pin) (Controllo intelligente della velocità della ventola)***
– 1 x AIO Pump Fan Connector (4-pin) (Controllo intelligente della velocità della ventola)***
– 1 x 24-pin collettore alimentazione ATX
– 1 x 8-pin connettore ATX 12V (Connettore di potenza ad alta densità)
– 1 x 4-pin connettore ATX 12V (Connettore di potenza ad alta densità)
– 1 x connettore audio sul pannello frontale
– 2 x collettore USB 2.0 (supporta 4 porte USB 2.0)
– 1 x collettore USB 3.2 Gen1 (Supporta 2 USB 3.2 Gen1 port)
– 1 x Header USB 3.2 Gen1 di tipo C sul pannello frontale
—
* Supporta strisce LED fino a 12V/3A 36W
** supporta in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supporta una potenza della ventola fino a 1 A (12 W).
CPU_FAN2, CHA_FAN1~3 e AIO_PUMP supporta the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~3 e AIO_PUMP possono automaticamente rilevare se la ventola a 3 pin o a 4 pin è in uso.
Pannello Posteriore I/O

– 2 x Porte dell'antenna
– 1 x porta HDMI
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
– 3 x porte USB 3.2 Gen1
– 2 x porte USB 2.0
– 1 x porte LAN RJ-45
– 1 x Interruttore BIOS Flashback
– Jack Audio HD: ingresso linea / cassa frontale / microfono
Software e UEFI

Software
– ASRock Scheda Madre Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Modalità EZ
– ASRock UEFI Full HD
– ASRock My Favorites in UEFI
– Programma di installazione del driver automatico ASRock
– ASRock Flash istantaneo
—
*Queste utility possono essere scaricate da App Shop.
Accessori

– 1 x I/O Shield
– 2 x cavi dati SATA
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas
Fattore di Forma

– Fattore di forma Micro ATX: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS

– Microsoft® Windows® 11 64-bit
Certificazioni

– FCC, CE
– Predisposto ErP/EuP (è necessaria l’alimentazione predisposta per il sistema ErP/EuP)
Esaurito
ASRock H810M-X WiFi
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASRock H810M-X WiFi – Scheda Madre Micro ATX LGA1851 DDR5 PCIe 4.0 WiFi AC 2.5G LAN USB-C

105,00 €
Leggi tutto
SKU: 90-MXBS60-A0AUYZ
Peso 1,2 kg
Dimensioni 26,5 × 22,5 × 6 cm
Caratteristica Unica

Produttività superba
– Dual Channel DDR5
Solida durabilità
– 6+1+1+1+1 Power Phase
– Tecnologia ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers)
Connettività ultraveloce
– 2.5G LAN, 802.11ac Wi-Fi Module
Aggiornamento EZ
– Programma di installazione del driver automatico ASRock
CPU

– Supporta Intel® Core™ Ultra Processors (Series 2) (LGA1851)
– Supporta Intel® Hybrid Technology
– Supporta Intel® Turbo Boost Max 3.0 Technology
– Supporta Intel® Incremento della velocità termica (TVB)
– Supporta Intel® Tecnologia ad incremento adattivo (ABT)
– NPU integrata per accelerazione IA dedicata
Chipset

– Intel® H810
Memoria

– Dual Channel DDR5 Memory Technology
– 2 x DDR5 slot DIMM
– Supporta DDR5 non-ECC, momoria senza buffer up to 6400*
– Supporta Clocked Unbuffered DIMM (CUDIMM)
– Capacità massima della memoria di sistema: 128GB*
– Supporto di Intel® XMP (Profilo di memoria estrema) 3.0x*
—-
* Fai riferimento alla lista di supporto memorie sul sito di ASRock per ulteriori informazioni.
A causa delle limitazioni del sistema operativo, le dimensioni effettive della memoria possono essere inferiori a 4GB per la prenotazione all'uso del sistema sotto Windows® a 32 bit. Per Windows® 64-bit OS con CPU 64-bit, non esiste tale limitazione.
BIOS

– BIOS legale 256 Mb AMI UEFI con supporto GUI
Schede Grafiche

– Intel® Xe LPG Architettura grafica
– 1 x HDMI 2.1 TMDS/FRL Compatibile con l’8G, Supporta HDR, HDCP 2.3 e max. Risoluzione up to 4K 120Hz
– 1 x DisplayPort 1.4 con DSC (compresso), supporta HDCP 2.3 e risoluzione massima fino a 8K 60Hz/5K 120Hz
– 1 x D-Sub, Supporta max. Risoluzione up to Full HD (1920×1080) 60Hz
—
* Intel® UHD Graphics Visuals integrata e le uscite VGA possono essere supportate solo con processori con GPU integrata.
Audio

– Audio HD a 7.1 canali (Realtek ALC897 Audio Codec)
LAN

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supporta Dragon 2.5G LAN Software
– Controllo regolazione della larghezza di banda automatico e intelligente
– Interfaccia grafica intuitiva
– Statistiche visive di utilizzo della rete
– Impostazioni predefinite e ottimizzate per modalità gioco, browser e streaming
– Controllo priorità personalizzato dall'utente
Wireless LAN

– 802.11ac Wi-Fi Module
– Supporta IEEE 802.11a/b/g/n/ac
– Supporto per il Dual-Band (2,4/5 GHz)
– Supporta la connessione wireless ad alta velocità fino a 433Mbps
– Supporta Bluetooth 5.0
Slot di espansione

CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), Supporta a modalità x16*
Chipset:
– 1 x PCIe 4.0 x1 Slot (PCIE2)*
– 1 x socket M.2 (Key E), supporta il modulo di tipo 2230 WiFi/BT PCIe WiFi
—
* SSD NVMe come dischi di avvio
Immagazzinamento

Chipset:
– 1 x socket Hyper M.2 (M2_1, Key M), Supporta type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x connettori SATA3 6.0 Go/s
—
* SSD NVMe come dischi di avvio
USB

Chipset:
– 1 x USB 3.2 Gen1 Type-C (frontali)
– 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 frontali)
– 6 x USB 2.0 (4 Rear, 2 frontali)
—
* Tutte le porte USB supportano la protezione ESD.
Connettore

– 1 x collettore SPI TPM
– 1 x LED di alimentazione e header altoparlanti
– 1 x collettore RGB LED*
– 2 x Header LED indirizzabiles**
– 1 x Connettore CPU ventola (4-pin) (Controllo intelligente della velocità della ventola)***
– 1 x Connettore Chassis ventola (4-pin) (Controllo intelligente della velocità della ventola)****
– 1 x 24-pin collettore alimentazione ATX
– 1 x 8-pin connettore ATX 12V
– 1 x connettore audio sul pannello frontale
– 1 x collettore USB 2.0 (supporta 2 porte USB 2.0)
– 1 x collettore USB 3.2 Gen1 (supporta 2 porte USB 3.2 Gen1)
– 1 x Header USB 3.2 Gen1 di tipo C sul pannello frontale
—
* Supporta strisce LED fino a 12V/3A 36W
** supporta in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supporta una potenza della ventola fino a 1 A (12 W).
**** CHA_FAN1 Supporto la fan power up to 3A (36W).
CHA_FAN1 possono automaticamente rilevare se la ventola a 3 pin o a 4 pin è in uso.
Pannello Posteriore I/O

– 2 x Porte dell'antenna
– 1 x porta PS/2 per tastiera/mouse
– 1 x porta D-Sub
– 1 x porta HDMI
– 1 x DisplayPort 1.4
– 2 x porte USB 3.2 Gen1
– 4 x porte USB 2.0
– 1 x porte LAN RJ-45
– Jack Audio HD: ingresso linea / cassa frontale / microfono
Software e UEFI

Software
– ASRock Scheda Madre Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Modalità EZ
– ASRock UEFI Full HD
– ASRock My Favorites in UEFI
– Programma di installazione del driver automatico ASRock
– ASRock Flash istantaneo
—
*Queste utility possono essere scaricate da App Shop.
Accessori

– 1 x I/O Shield
– 2 x cavi dati SATA
– 2 x Antenna ASRock WiFi 2.4/5GHz
Fattore di Forma

– Fattore di forma Micro ATX: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
OS

– Microsoft® Windows® 11 64-bit
Certificazioni

– FCC, CE
– Predisposto ErP/EuP (è necessaria l’alimentazione predisposta per il sistema ErP/EuP)
-31%Esaurito
ASUS PRIME Z890-P WIFI
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS PRIME Z890-P WIFI – Scheda Madre ATX LGA1851 con PCIe 5.0, DDR5, Thunderbolt 4, WiFi 7 e LAN 2.5G

Il prezzo originale era: 389,99 €.Il prezzo attuale è: 270,00 €.
Leggi tutto
SKU: 90MB1I70-M0EAY0
Peso 0,5 kg
Dimensioni 30,5 × 24,4 × 3 cm
Modello

PRIME Z890-P WIFI
CPU

Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® Z890 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

1 x DisplayPort**
1 x HDMITM port***
1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
**** In DP alt mode, supports up to UHBR20.
***** VGA resolution support depends on processors' or graphic cards' resolution.
****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® Core™ Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 8 ports)
1 x Thunderbolt™ 4 port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)**
Front USB (Total 9 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
* USB Type-C® power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E 4 port share the bandwidth.
** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports

1 x Thunderbolt™ 4 USB Type-C® port
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front Panel System header
1 x Thunderbolt™ (USB4®) header
Special Features

ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
Aura Sync
– Aura RGB header
– Addressable Gen2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
TurboV Core
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
NPU Boost (Intel K-series Processors only)
BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide
Operating System

Windows 11 (22H2 & later)
Form Factor

ATX Form Factor
12 inch x 9.6inch ( 30.5 cm x 24.4 cm )
-11%Esaurito
ASUS PRIME Z890M-PLUS WIFI
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS PRIME Z890M-PLUS WIFI – Scheda Madre mATX LGA1851 con WiFi 7, PCIe 5.0 e DDR5 per Intel Core Ultra (Serie 2)

Il prezzo originale era: 269,00 €.Il prezzo attuale è: 239,00 €.
Leggi tutto
SKU: 90MB1J80-M0EAY0
Peso 1,25 kg
Dimensioni 27 × 27 × 7,5 cm
Modello

PRIME Z890M-PLUS WIFI
CPU

Supports Intel® Core™ Ultra Processors(Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® Z890 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

1 x DisplayPort**
1 x HDMI™ port***
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****
*Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
**Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
****Supports max. 4K@120Hz as specified in DisplayPort 1.4.
***** VGA resolution support depends on processors' or graphic cards' resolution.
****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® Core™ Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slots (support x1 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® Z890 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1x USB 10Gbps port (1 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A) **
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
* USB Type-C® power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1x USB 10Gbps port (1 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors

Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin +12V CPU Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front Panel System header
1 x Thunderbolt™ (USB4®) header
Special Features

ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
NPU Boost (Intel K-series Processors only)
BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
3 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide
Operating System

Windows 11 (22H2 & later)
Form Factor

mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
-9%
ASUS ROG Maximus Z890 Extreme
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG MAXIMUS Z890 EXTREME – Scheda Madre E-ATX LGA1851 DDR5 PCIe 5.0 WiFi 7 Thunderbolt 5 con Display LCD 5″ [Pre-Ordine]

Il prezzo originale era: 1.529,00 €.Il prezzo attuale è: 1.399,00 €.
Aggiungi al carrello
SKU: 90MB1IA0-M0EAY0
Peso 4,5 kg
Dimensioni 38 × 30 × 14 cm
News & Updates

Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below:
—–
•Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
—–
•Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.
—–
Please visit our GLOBAL website to check and download the latest updates.
The Thunderbolt 5 features on this motherboard are only supported in Windows 11. To ensure the best experience, please install Windows 11 and update to the latest version to access the latest inbox drivers.
CPU

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® Z890 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 9200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Supports DIMM Flex
DIMM Fit
NitroPath DRAM Technology
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

1 x HDMITM port**
2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
**Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
***Supports up to 1 x 8K@60HZ(DSC mode)+2 x 4K@60HZ monitors, It is recommended to chain-connect the monitors using a verified Thunderbolt™ cable.
****For resolution support please check DisplayPort 2.1 specs.bandwidth limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s.
*****In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.
******VGA resolution support depends on processors' or graphic cards' resolution.
*******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® Core™ Ultra Processors(Series 2)*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**
Intel® Z890 Chipset**
1 x PCIe 4.0×4 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage

Total supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports*
Support Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**
Intel® Z890 Chipset
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
Ethernet

1 x Intel® 2.5Gb Ethernet
1 x Marvell® AQtion 10Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Intel® Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4***
—–
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 10 ports)
2 x Thunderbolt™ 5 ports (2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®)
Front USB (Total 10 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)*
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
*USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
– SupremeFX Shielding Technology
– ESS® ES9219 QUAD DAC
– LED-illuminated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports

2 x Thunderbolt™ 5 USB Type-C® ports
1 x USB 20Gbps port (1 x USB Type-C®)
7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®)
1 x HDMITM port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
1 x Marvell® AQtion 10Gb Ethernet port
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x WB_SENSOR header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
4 x BCLK button
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
18 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switchs
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features

Extreme OC Kit
– FlexKey button
– LN2 Mode
– ProbeIt
– ReTry button
– Safe boot button
– Start button
– Slow Mode
Extreme Engine Digi+
– 10K Black Metallic Capacitors
– MicroFine Alloy Choke
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Code
– Q-Connector
– Q-Dashboard
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
– Q-DIMM.2
ASUS Thermal Solution
– Fan bracket
– M.2 heatsink backplate
– M.2 heatsink
– Metal backplate
– VRM heatsink design
– 3D VC M.2 Heatsink
ASUS EZ DIY
– Backplate
– BIOS FlashBack™ button
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen 2 headers
Dual BIOS
Full Color 5" LCD Display
ROG M.2 PowerBoost
Front Panel USB 20Gbps with Quick Charge 4+ Support
– Support: up to 60W fast charging and USB Wattage Watcher*
– Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
– Compatible with PD3.0 and PPS
* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
– Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (1 year full version)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
– Power Saving
– LCD Display
ASUS AI Advisor
ASUS Driver Hub
Turbo Vcore
ASUS GlideX
Thunderbolt™ Share
USB Wattage Watcher
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
BIOS

2 x 64 MB (512Mb)
Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME
Accessories

Cables
1 x 1-to-3 ARGB splitter cable
1 x 1-to-2 ARGB splitter cable
2 x 1-to-4 fan splitter cable
2 x ROG weave SATA 6G cable packages
1 x 3-in-1 Thermistor cables pack
ROG Q-DIMM.2 with Heatsink
1 x ROG Q-DIMM.2 with heatsink
1 x M.2 pad package for ROG Q-DIMM.2
2 x Thermal pad for ROG Q-DIMM.2
Additional Cooling Kit
2 x Thermal pad for M.2 22110
1 x DDR5 Fan holder
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x ROG logo plate sticker
1 x ROG screwdriver
1 x ROG stickers
1 x ROG VIP card
2 x M.2 Q-Slide packages
6 x M.2 backplate rubber packages
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide
Operating System

Windows 11 (22H2 & later)
Form Factor

E-ATX Form Factor
12 inch x 10.9 inch (30.5 cm x 27.7 cm)
-12%
ASUS ROG MAXIMUS Z890 HERO BTF
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG MAXIMUS Z890 HERO BTF – Scheda Madre ATX LGA1851 DDR5 PCIe 5.0 WiFi 7 Thunderbolt 4 con Connettori Nascosti [Pre-ordine]

Il prezzo originale era: 879,00 €.Il prezzo attuale è: 775,00 €.
Aggiungi al carrello
SKU: 90MB1KG0-M0EAY0
Peso 3,5 kg
Dimensioni 36 × 28 × 12 cm
News & Updates

Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below:
—–
•Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
—–
•Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.
—–
Please visit our GLOBAL website to check and download the latest updates.
CPU

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® Z890 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM FIT
ASUS Enhanced Memory Profile III (AEMP III)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

1 x HDMI™ port**
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates
** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
*** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
**** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® Core™ Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)**
Intel® Z890 Chipset
1 x PCIe 4.0 x4 slot
1 x PCIe 4.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage

Supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® Z890 Chipset
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
Ethernet

1 x Intel® 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4***
—–
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 11 ports)
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 10 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
– SupremeFX Shielding Technology
– ESS® ES9219 QUAD DAC
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports

2 x Thunderbolt™ 4 USB Type-C® ports
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
1 x Graphics card high power slot
1 x 12V-2X6 Auxiliary power connector
Storage Related
6 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 10Gps connector (supports USB Type-C® )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header*
* The Thunderbolt™ card can only be used when installed to the PCIEX16(G4) slot. Ensure to install your Thunderbolt™ card to the PCIEX16(G4) slot.
Special Features

Extreme OC Kit
– FlexKey button
– Start button
Extreme Engine Digi+
– 10K Black metallic capacitors
– MicroFine alloy choke
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Code
– Q-Connector
– Q-Dashboard
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– Metal backplate
– VRM heatsink design
ASUS EZ DIY
– Backplate
– BIOS FlashBack™ button
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen 2 header(s)
ROG M.2 PowerBoost
Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
– Polymo Lighting II
– Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (1 year full version)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– Power Saving
– Hwinfo
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
Thunderbolt™ Share
TurboV Core
Adobe Creative Cloud (Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
NPU Boost
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME
Accessories

Cables
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
Additional Cooling Kit
1 x DDR5 fan holder
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
3 x M.2 Q-Slide packages
1 x ROG stickers
6 x M.2 rubber packages
1 x ROG thank you card
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide
Operating System

Windows 11 (22H2 & later)
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
-11%Esaurito
ASUS TUF GAMING B860M-PLUS WIFI
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS TUF GAMING B860M-PLUS WIFI – Scheda Madre mATX per Intel Core Ultra Series 2 LGA1851, DDR5 8800+, PCIe 5.0, WiFi 7, USB 20Gbps

Il prezzo originale era: 269,00 €.Il prezzo attuale è: 240,00 €.
Leggi tutto
SKU: 90MB1JV0-M0EAY0
Peso 1,8 kg
Dimensioni 30 × 27 × 7 cm
Modello

TUF GAMING B860M-PLUS WIFI
CPU

Support Intel® Core™ Ultra Processors (Series 2) ,LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
*Refer to https://www.asus.com/support/download-center/ for CPU support list.
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® B860 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

1 x DisplayPort**
1 x HDMI™ port***
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
*****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® CoreTM Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x4 slot
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet

1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth

Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
2 x USB 10Gbps port (2 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 ports (1x Type-A)
Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 headers support 2 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
2 x USB 10Gbps port (2 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors

I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front panel audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
Special Features

ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
– M.2 heatsinks
– VRM heatsink design
ASUS EZ DIY
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
AURA Sync
– Addressable Gen 2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
– AURA Creator
– AURA Sync
– Fan Xpert 2+
– Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
NPU Boost
BIOS

2 x 128 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 Rubber Packages
1 x TUF Gaming sticker
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Operating System

Windows 11 (22H2 & later)
Form Factor

mATX Form Factor
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Esaurito
Add to compare
Anteprima
Aggiungi alla lista dei desideri

GIGABYTE Z890 EAGLE WIFI7 – Scheda Madre ATX, Socket LGA 1851, DDR5, PCIe 5.0, USB 3.2, LAN 2.5G, Wi-Fi 7, Bluetooth 5.4 [9MZ89EG7-00-10]

249,00 €
Leggi tutto
SKU: 9MZ89EG7-00-10
Peso 1,78 kg
Dimensioni 30,5 × 24,4 × 3,5 cm
M.B. - Chipset

Intel Z890
CPU

LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU
Memory

Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
– 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard
Expansion Slots

CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
– 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
Storage Interface

CPU:
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB

CPU:
– 1 x USB4® USB Type-C® port on the back panel
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
– 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
– 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x power button
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors

1 x USB4® USB Type-C® port (DisplayPort (Note))
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort (Note)
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
I/O Controller

iTE® I/O Controller Chip
H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundle Software

Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System

Support for Windows 11 64-bit
Form Factor

ATX Form Factor; 30.5cm x 24.4cm
