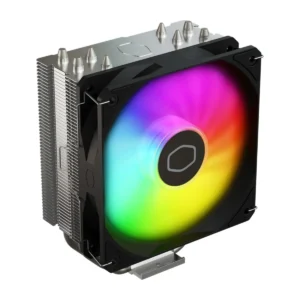

Cooler Master Hyper 212 Spectrum V3
Cooler Master Hyper 212 Spectrum V3 – Dissipatore CPU ad Aria ARGB con 4 Heat Pipes, Direct Contact e Ventola 120mm PWM 33,00 €
-10%Esaurito
ASUS ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 2
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 3
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 4
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 5
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 6
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 7
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 8
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 9
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 10
Clicca per ingrandire

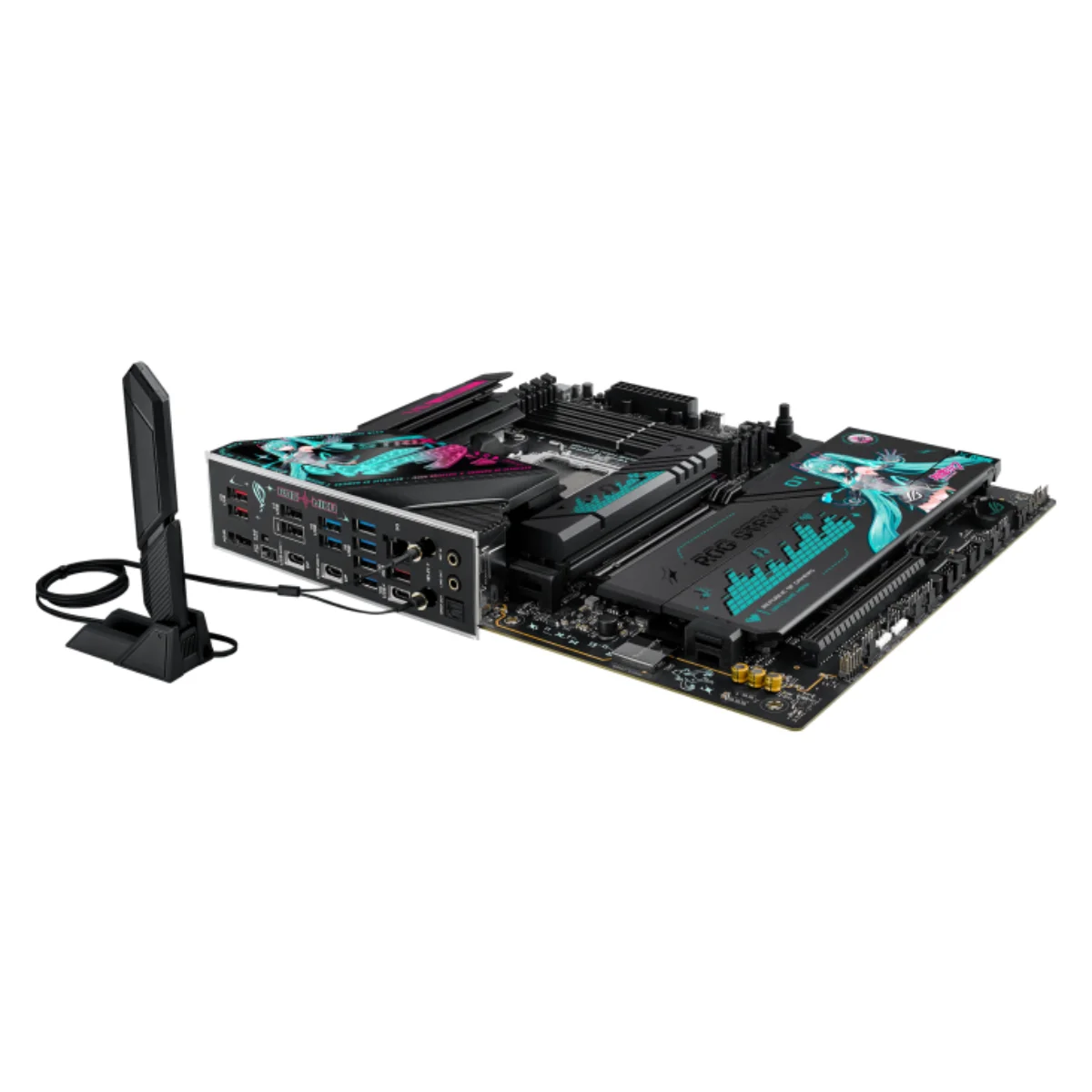

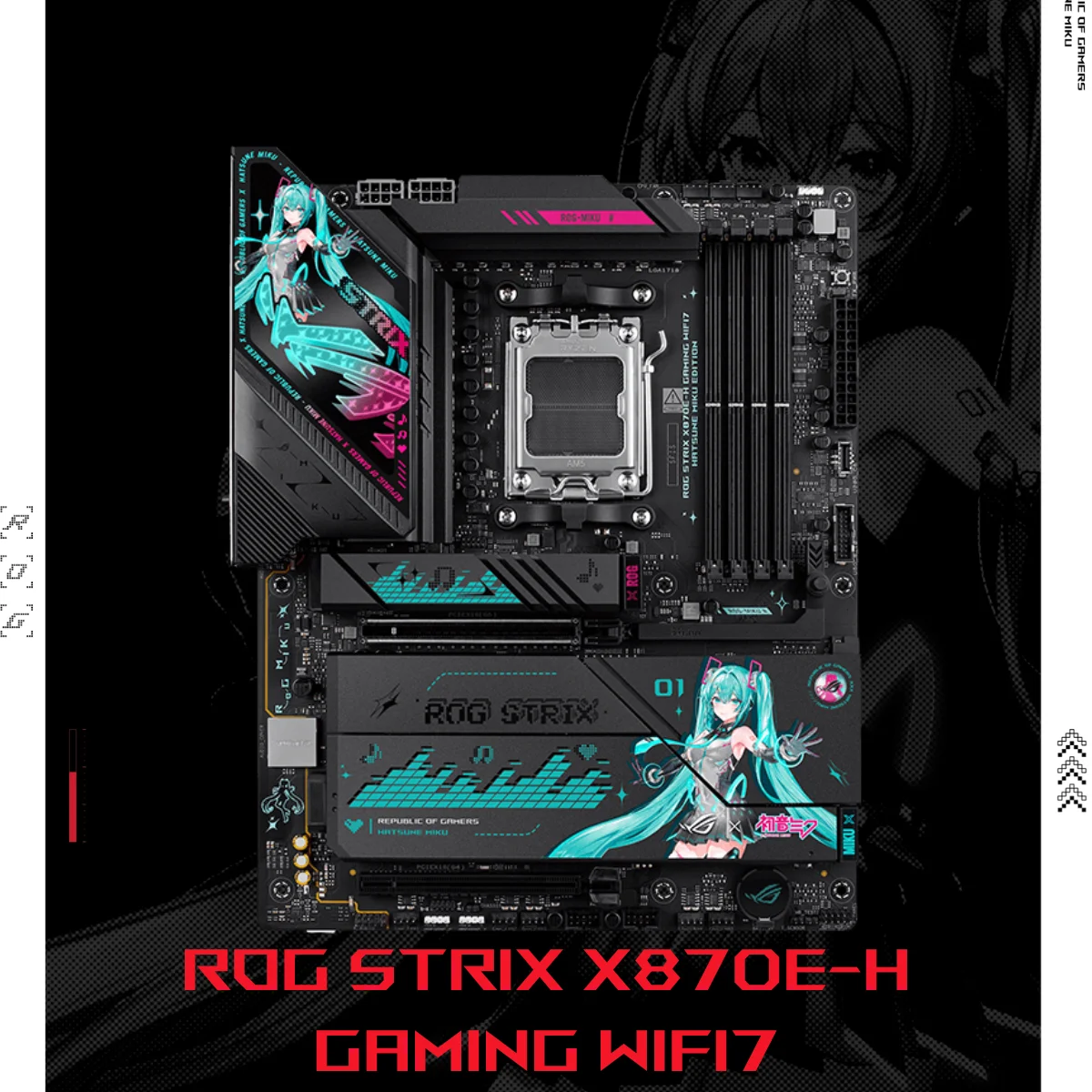

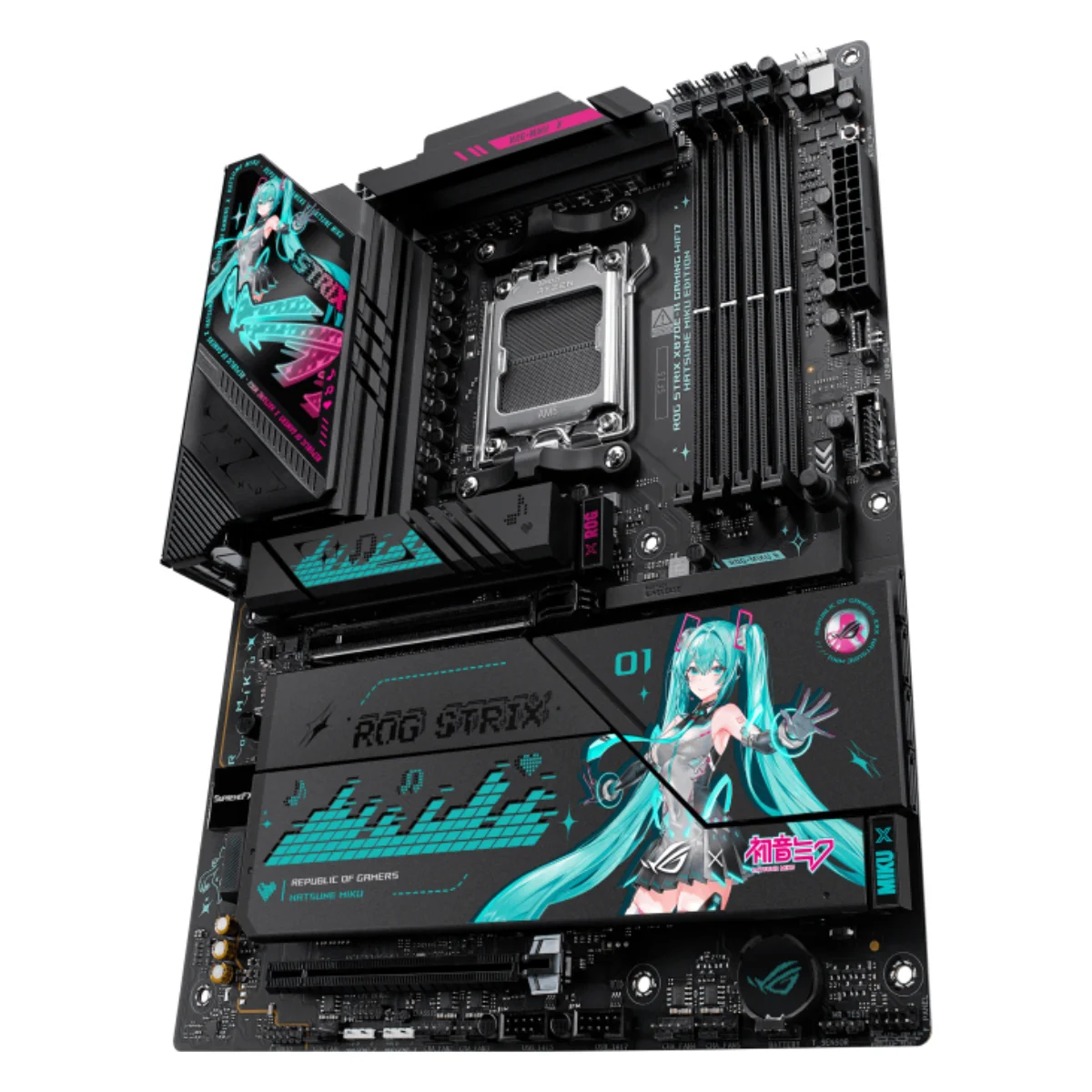

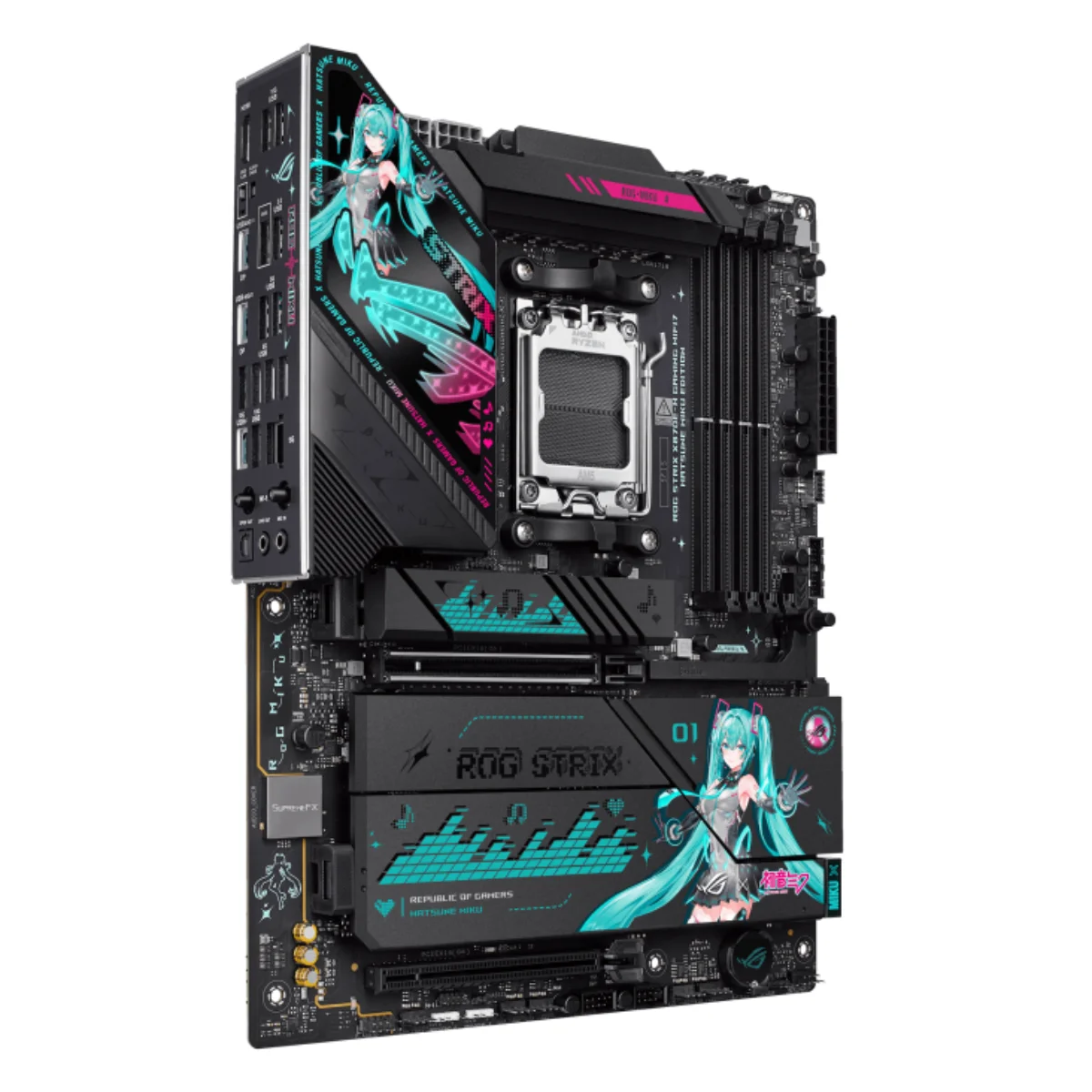

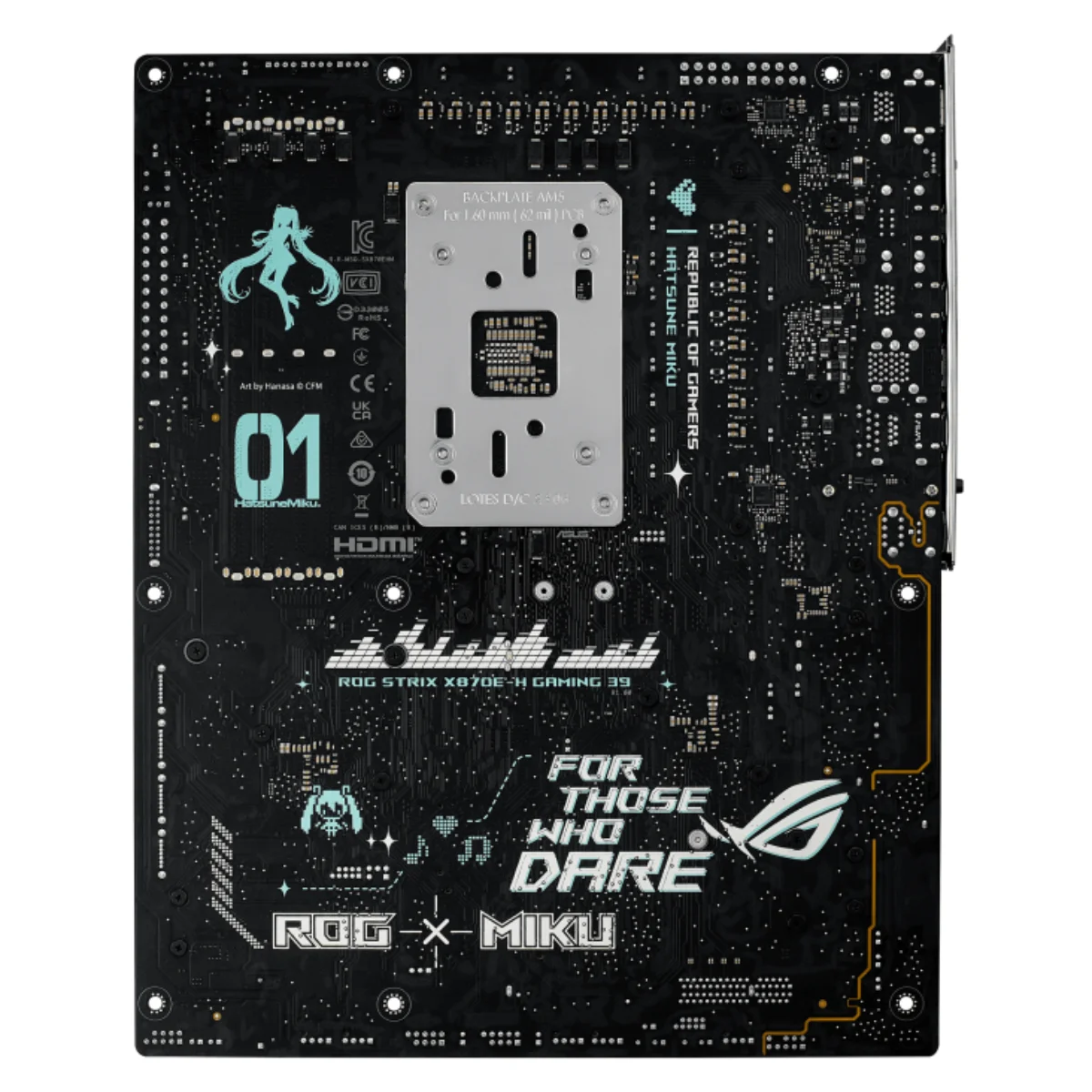

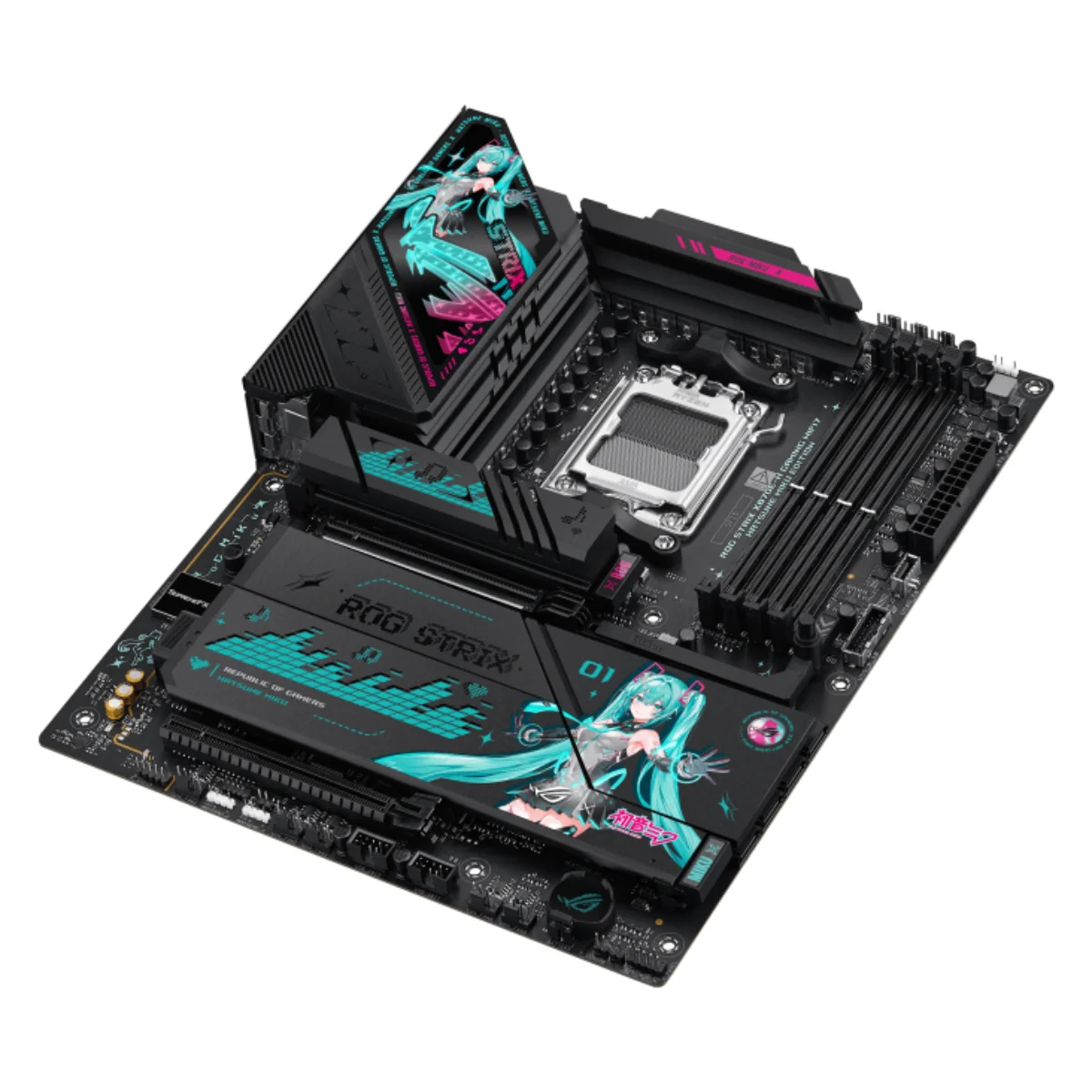

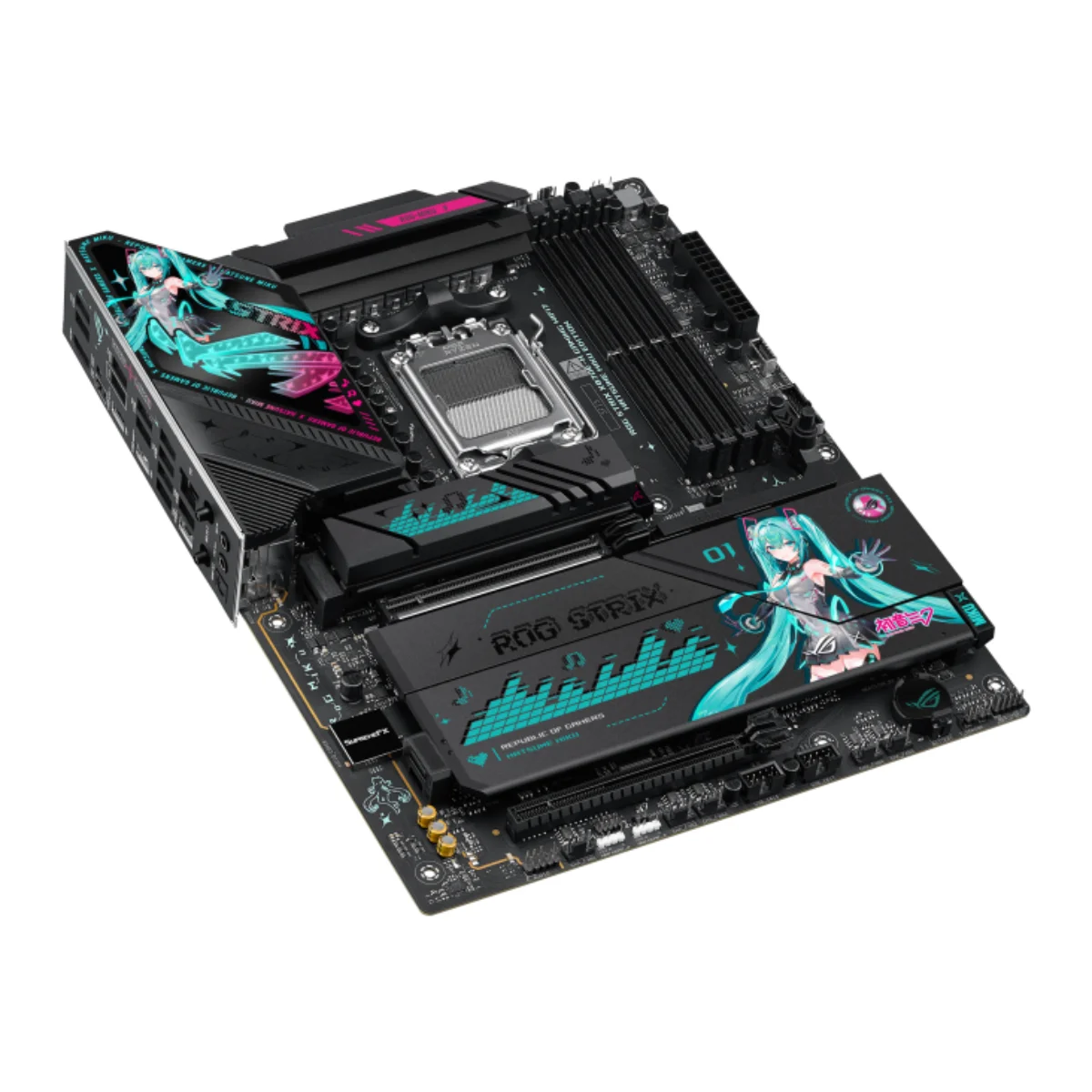

ASUS ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 2
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 3
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 4
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 5
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 6
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 7
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 8
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 9
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7 - immagine 10
ROG

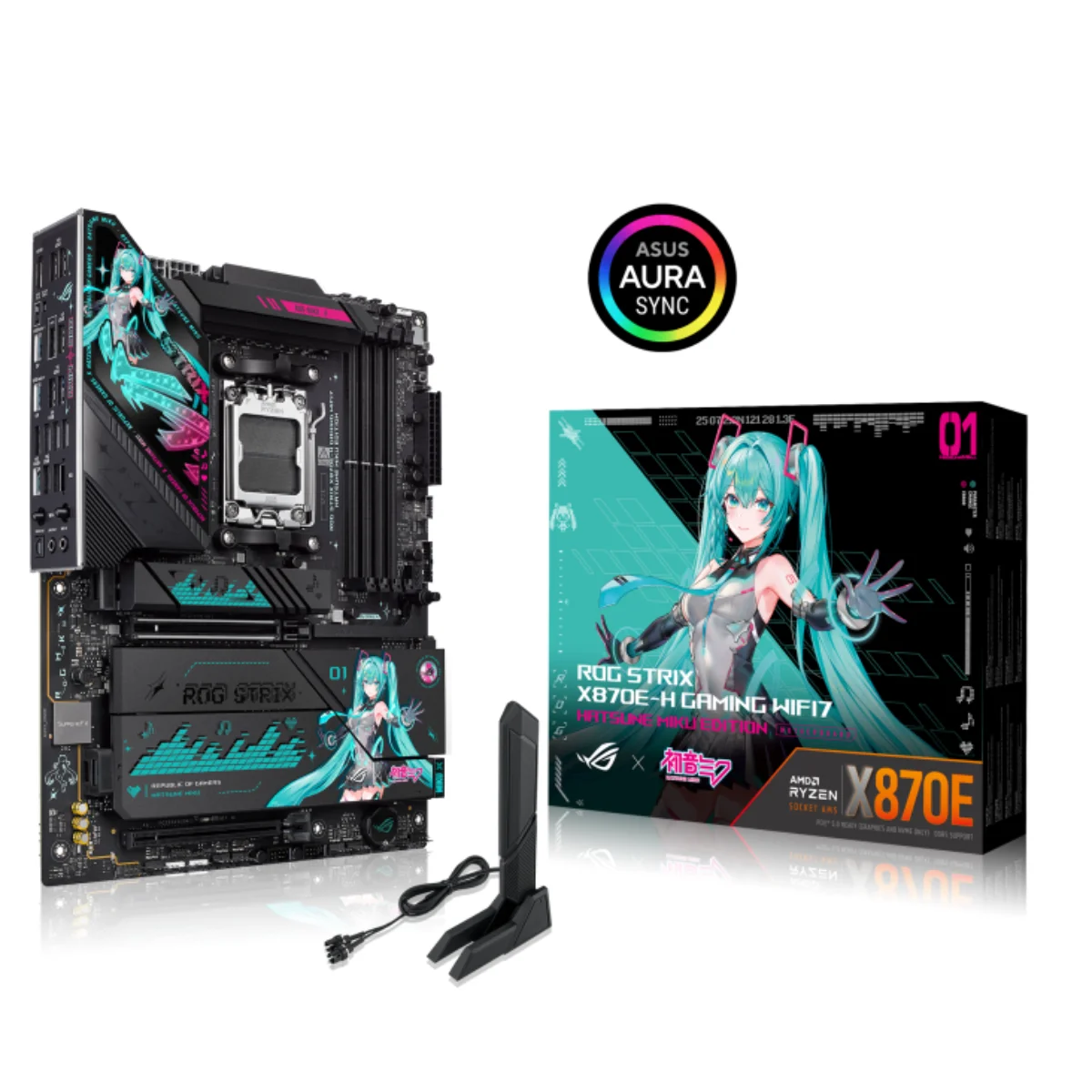

ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7

Il prezzo originale era: 600,00 €.Il prezzo attuale è: 539,00 €.

   Chipset AMD X870E
Form Factor   Form Factor ATX
Socket   Socket AM5
Tipo di Memoria   Tipo di Memoria DDR5

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4711636174640 COD: 90MB1MA0-M0EAY0 Categoria: Tag: , , , , , , , , , , , , ,
Descrizione

ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition / 90MB1MA0-M0EAY0 / 4711636174640

🎶 Senti il sound. Gioca a ritmo.

Questa edizione speciale nasce dalla collaborazione tra ROG e Hatsune Miku per offrire una piattaforma completa a tema: scheda madre, GPU, case, AIO, PSU, monitor, SSD enclosure e accessori coordinati.
La X870E-H Miku Edition porta sulla motherboard la grafica, i colori e i dettagli ispirati a Miku, inclusi heatsink, retro PCB e perfino interfaccia BIOS/Armoury Crate.

🧠 Ottimizzazione AI senza sforzo

La scheda integra l’intero ecosistema ASUS AI:

  • AI Overclocking → ottimizzazione automatica di CPU e parametri per prestazioni massime

  • AI Cooling II → gestione intelligente delle ventole per trovare il miglior equilibrio tra rumore e temperature

  • AI Networking II → prioritizza il traffico per gaming, streaming o creatività

  • ASUS AI Advisor → assistenza in linguaggio naturale

  • AI Cache Boost → accelerazione dei carichi LLM e AI

Perfetta per chi vuole un sistema pronto per gaming, creazione contenuti e AI.

❄ Raffreddamento Completo

Progettata per tenere sotto controllo anche i Ryzen più spinti:

  1. VRM + Heatsink I/O in alluminio per una dissipazione superiore

  2. Connettori CPU Fan & AIO Pump dedicati (PWM/DC)

  3. Heatsink M.2 per tutti gli slot, così gli SSD NVMe restano sempre stabili

  4. 5 connettori ventole a 4 pin con rilevamento automatico PWM/DC

Ideale per build con AIO, custom loop o sistemi ad alta densità di storage.

🚀 Piattaforma AM5 di nuova generazione

Supporta:

  • AMD Ryzen™ 9000 / 8000 / 7000 Series

  • Fattore di forma ATX

  • DDR5 fino a 256GB (4 DIMM) con profili EXPO, AEMP e supporto fino a 8000+ MT/s (OC)

Perfetta per gaming competitivo, streaming, editing pesante e AI.

⚙ Espansione & Storage

  • 1× PCIe 5.0 x16 (Ryzen 9000 / 7000)

  • 1× PCIe 4.0 x16 da chipset (x4)

  • 4× M.2 (fino a PCIe 5.0 x4 su M.2_1 e M.2_2 con Ryzen 9000/7000)

  • 4× SATA 6Gb/s

Supporto RAID tramite AMD RAIDXpert2 (fino a RAID 0/1/5/10 a seconda della CPU).

🌐 Connettività di nuova generazione

  • WiFi 7 (MediaTek MT7925) – 2×2, 2.4 / 5 / 6 GHz*

  • Bluetooth 5.4

  • Realtek 5Gb Ethernet + ASUS LANGuard

* WiFi 7 pienamente supportato da Windows 11 24H2 o successivo.

🔌 USB & I/O ultra completi

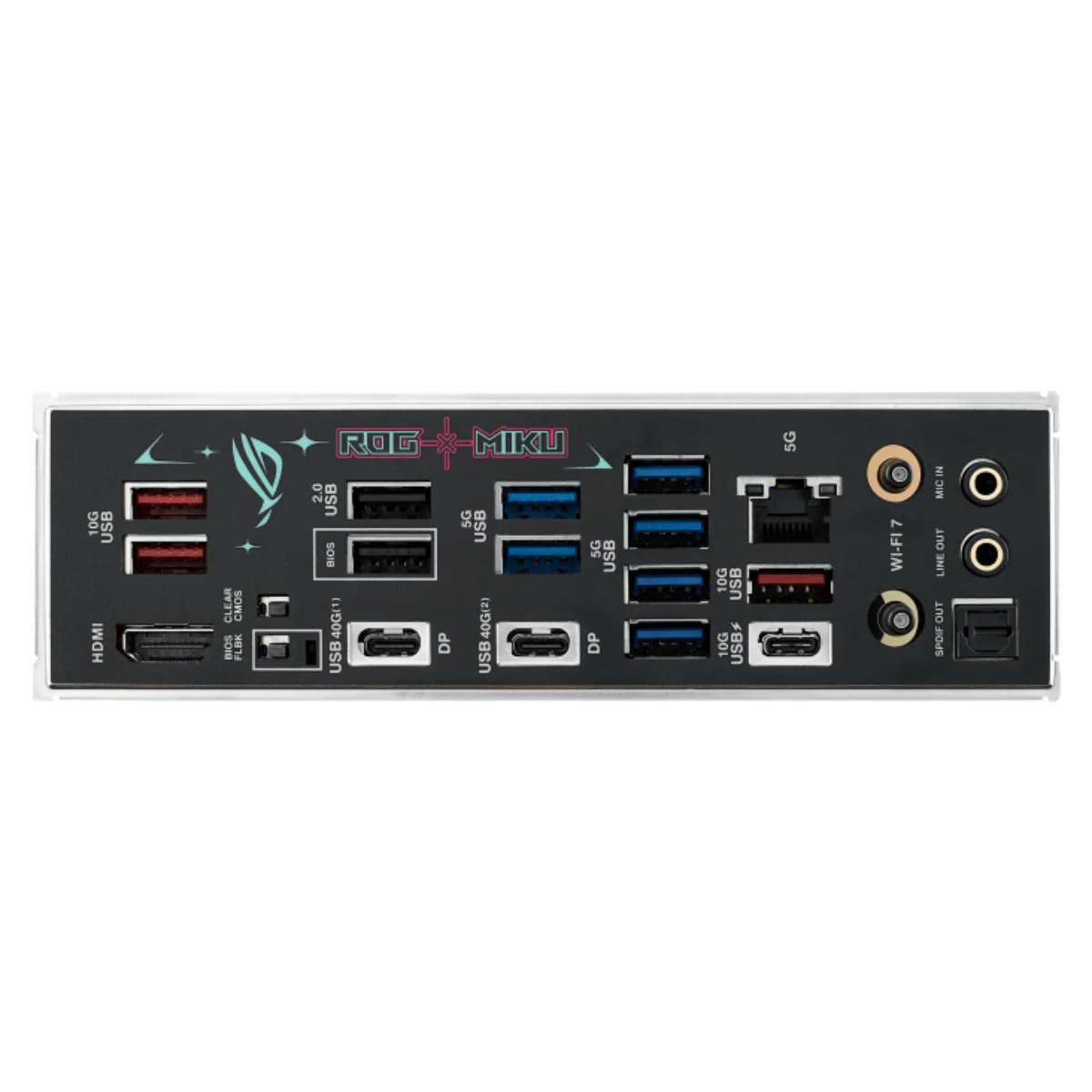

Rear I/O (14 porte USB):

  • 2× USB4 40Gbps Type-C (con output video DP)

  • 4× USB 10Gbps (3× Type-A + 1× Type-C con PD/PPS fino a 30W)

  • 6× USB 5Gbps Type-A

  • 2× USB 2.0 Type-A

  • 1× HDMI

  • 1× 5GbE RJ45

  • 1× modulo WiFi

  • 2× jack audio + 1× ottico S/PDIF

  • Pulsanti BIOS FlashBack™ e Clear CMOS

Front USB:

  • 1× header USB 20Gbps Type-C

  • 1× header USB 5Gbps (fino a 2 porte)

  • 2× header USB 2.0 (fino a 4 porte)

🎧 Audio SupremeFX

Basato su Realtek ALC1220P con:

  • 7.1 canali HD

  • amplificatore integrato

  • Savitech SV3H712 AMP

  • S/PDIF ottico posteriore

  • condensatori audio premium, schermatura, audio cover

Qualità sonora adatta sia a gaming competitivo che multimedia hi-res.

🎮 Giocare con stile – Miku ovunque

La scheda è completamente personalizzata:

  • estetica Miku su heatsink e PCB

  • RGB sincronizzabili con Aura Sync

  • interfaccia BIOS e Armoury Crate tematizzate

  • header ARGB Gen 2 per strip e dispositivi esterni

Perfetta come cuore di una build full Hatsune Miku Edition.

Specifiche tecniche

Caratteristica Dettaglio
Marca ASUS
Modello ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition
Codice prodotto (MPN) 90MB1MA0-M0EAY0
EAN 4711636174640
Form Factor ATX – 30,5 × 24,4 cm (12″ × 9,6″)
Socket CPU AMD AM5
CPU supportate Ryzen™ 9000 / 8000 / 7000 Desktop
Chipset AMD X870E
Memoria 4× DIMM DDR5, max 256GB, fino a 8000+ MT/s (OC), Dual Channel, EXPO, AEMP
PCIe 1× PCIe 5.0 x16 (Ryzen 9000/7000) • 1× PCIe 4.0 x16 (x4 da chipset)
M.2 4× M.2 (fino PCIe 5.0 x4 a seconda della CPU/slot)
SATA 4× SATA 6Gb/s
RAID RAIDXpert2 (0/1/5/10 – in base a CPU)
LAN 1× Realtek 5Gb Ethernet + LANGuard
WiFi WiFi 7 (2×2, 2.4/5/6 GHz, 160MHz)
Bluetooth v5.4
USB Rear 2× USB4 Type-C, 4× USB 10Gbps, 6× USB 5Gbps, 2× USB 2.0
USB Front 1× USB 20Gbps Type-C, 1× USB 5Gbps header (2 porte), 2× USB 2.0 header (4 porte)
Video output 1× HDMI, USB4 Type-C DP out
Audio Realtek ALC1220P, SupremeFX, Savitech AMP, S/PDIF ottico
Ventole / Cooling header 1× CPU Fan, 1× CPU OPT, 1× AIO Pump, 5× Chassis Fan (4-pin)
RGB header 3× Addressable RGB Gen 2
Alimentazione 1× 24-pin ATX, 2× 8-pin CPU 12V (ProCool II)
Funzioni Q-Design M.2 Q-Latch / Q-Release, PCIe Slot Q-Release, Q-Antenna, Q-LED, Q-Slot, Q-DIMM
Tasti & funzioni speciali Start button onboard, BIOS FlashBack, Clear CMOS

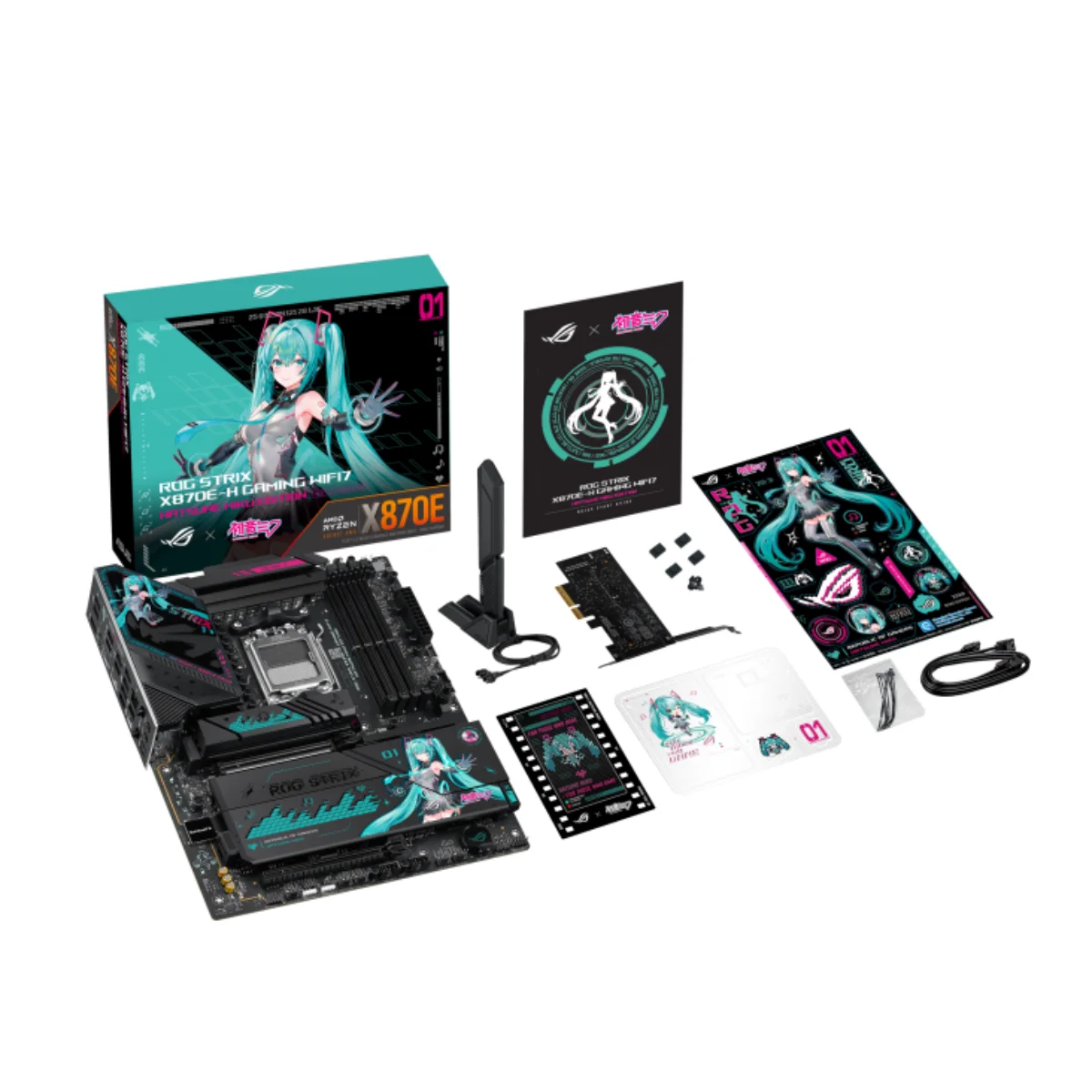

Accessori WiFi Q-Antenna, cavetteria SATA, PCIe to Front USB card, M.2 Q-Latch, Phone Stand Miku, sticker & thank you card, manuali
OS supportato Windows 11

FAQ – Domande Frequenti

1. La scheda è pronta per i nuovi Ryzen 9000?

Sì. La ROG STRIX X870E-H Miku Edition è progettata nativamente per Ryzen 9000, oltre a supportare Ryzen 8000 e 7000.

2. Posso usare il WiFi 7 anche con Windows 10?

No in modo completo. Su Windows 10 non sono disponibili driver ufficiali WiFi 7; per sfruttarlo pienamente è richiesto Windows 11 (24H2 o successivo).

3. La PCIe 5.0 x16 è sempre attiva?

Con Ryzen 9000/7000, lo slot principale lavora in PCIe 5.0 x16, ma condividendo banda con uno degli slot M.2: quando M.2_2 è occupato, lo slot può scendere a x8 come da specifiche.

4. Posso usare le porte USB4 come uscita video?

Sì. Le due USB4 Type-C supportano output video fino a 4K@60Hz, come da specifiche DP 1.4a (dipende dalla CPU e configurazione).

5. Le funzioni AI (OC, Cooling, Networking) sono difficili da usare?

No. Sono pensate per essere one-click tramite Armoury Crate e BIOS: AI Overclocking, AI Cooling II e AI Networking II si configurano rapidamente anche per utenti non esperti.

Maggiori informazioni

Per specifiche complete, aggiornamenti BIOS, QVL RAM e dettagli tecnici, visita la pagina ufficiale ASUS:
👉 https://rog.asus.com/it/motherboards/rog-strix/rog-strix-x870e-h-gaming-wifi7-hatsune-miku-edition/spec/

Informazioni aggiuntive
Peso 1 kg
Dimensioni 30,5 × 24,4 × 3,5 cm
Model

ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION
CPU

AMD Socket AM5 for AMD Ryzen™ 9000 &
8000 & 7000 Series Desktop Processors*
* Refer to
https://www.asus.com/support/download-center/ for CPU support list.
Chipset

AMD X870E
Memory

4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™
9000 & 8000 & 7000 Series Processors
Dual channel memory architecture
Supports AMD Extended Profiles for
Overclocking (EXPO™)
Supports DIMM Fit / DIMM Fit Pro
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate
(speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list
under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
Adjustments will be made based on the specifications of mass-produced memory
products available on the market.
** Non-ECC, un-buffered DDR5 memory
supports On-Die ECC function.
Graphics

1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB
Type-C® display outputs***
* Graphics specifications may vary between
CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI
2.1.
*** Supports max. 4K@60Hz as specified in
DisplayPort 1.4a
**** VGA resolution support depends on
processors' or graphic cards' resolution.
Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop
Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4
mode)**
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table
on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
– To ensure compatibility of the device
installed, please refer to https://www.asus.com/support/download-center/ for
the list of supported peripherals.
Storage

Supports 4 x M.2 slots and 4 x SATA 6Gb/s
ports
AMD Ryzen™ 9000 & 7000 Series Desktop
Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110
(supports PCIe 5.0 x4 mode)*
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not
supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* M.2_2 shares bandwidth with PCIEX16(G5).
When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
** M.2_2 will be disabled when using AMD
Ryzen™ 8000 Series Desktop Processors.
RAID Support

AMD RAIDXpert2 Technology*
Ryzen™ 9000 Series Processors: RAID
0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
* Specifications vary by CPU types.
Ethernet

1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 7 (MediaTek MT7925)
2×2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the
operating system
For
Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions,
Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For
Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth
regulatory may vary between countries.
*** The Bluetooth® version may vary, please
refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 14 ports)
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB
Type-C® with up to 30W PD/PPS Fast-charge)**
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB
Type-C®)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
2 x USB 2.0 headers support 4 additional
USB 2.0 ports
* USB Type-C® power delivery output: max.
5V/3A
** USB Type-C® power delivery output: 5V/9V
max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio

Realtek ALC1220P 7.1 Surround Sound
High Definition Audio CODEC*
– Impedance sense for front and rear
headphone outputs
– Internal audio Amplifier to enhance the
highest quality sound for headphone and speakers
– Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz
playback*
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
* The LINE OUT port on the rear panel does
not support spatial audio. If you wish to use spatial audio, make sure to
connect your audio output device to the audio jack on the front panel of your
chassis or use a USB interface audio device.
Back Panel I/O Ports

2 x USB4® (40Gbps) ports(2 x USB Type-C®)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB
Type-C® with up to 30W PD/PPS Fast-charge)**
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB
Type-C®)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
2 x USB 2.0 headers support 4 additional
USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Special Features

Extreme Engine Digi+
– 5K Black metallic capacitors
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– PCIe Slot Q-Release
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers
Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
ASUS AI Advisor
ASUS DriverHub
– AIDA64 Extreme (60 days free trial)
– HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
FlexKey
* For more software features, please visit
the asus support site or refer to http://www.asus.com/support for additional
information.
** For detailed information on the
supported models and restricted regions for this redemption offer, please refer
to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ASUS PCIe to Front USB Card (supports 2 x USB 5Gbps Type-A + 1 x USB 10Gbps Type-C ports)
1 x PHONE STAND HATSUNE MIKU EDITION
1 x THANK YOU CARD HATSUNE MIKU EDITION
1 x STICKER HATSUNE MIKU EDITION
4 x M.2 rubbers
Documentation
1 x Quick start guide
Operating System

Windows 11
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Recensioni (0)

Recensioni

Ancora non ci sono recensioni.

Recensisci per primo “ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7”

Il tuo indirizzo email non sarà pubblicato. I campi obbligatori sono contrassegnati *



About brand
ASUS ROG (Republic of Gamers) è la linea premium di ASUS dedicata al gaming ad alte prestazioni. Lanciata nel 2006, ROG si è affermata come uno dei marchi più prestigiosi nel mondo del gaming, grazie a prodotti progettati per offrire la massima potenza, estetica aggressiva e tecnologie all'avanguardia. La gamma include schede madri, schede video, laptop, monitor, periferiche e accessori ottimizzati per i gamer più esigenti e gli appassionati di eSport. ASUS ROG rappresenta il perfetto equilibrio tra innovazione, qualità costruttiva e performance estreme.

Spesso acquistati insieme

-10%Esaurito
ASUS ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune Miku Edition – Scheda Madre ATX, AM5, X870E, DDR5, PCIe 5.0, USB4, WiFi 7

Il prezzo originale era: 600,00 €.Il prezzo attuale è: 539,00 €.
SKU: 90MB1MA0-M0EAY0
Peso 1 kg
Dimensioni 30,5 × 24,4 × 3,5 cm
Model

ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION
CPU

AMD Socket AM5 for AMD Ryzen™ 9000 &
8000 & 7000 Series Desktop Processors*
* Refer to
https://www.asus.com/support/download-center/ for CPU support list.
Chipset

AMD X870E
Memory

4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™
9000 & 8000 & 7000 Series Processors
Dual channel memory architecture
Supports AMD Extended Profiles for
Overclocking (EXPO™)
Supports DIMM Fit / DIMM Fit Pro
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate
(speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list
under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
Adjustments will be made based on the specifications of mass-produced memory
products available on the market.
** Non-ECC, un-buffered DDR5 memory
supports On-Die ECC function.
Graphics

1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB
Type-C® display outputs***
* Graphics specifications may vary between
CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI
2.1.
*** Supports max. 4K@60Hz as specified in
DisplayPort 1.4a
**** VGA resolution support depends on
processors' or graphic cards' resolution.
Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop
Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4
mode)**
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table
on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
– To ensure compatibility of the device
installed, please refer to https://www.asus.com/support/download-center/ for
the list of supported peripherals.
Storage

Supports 4 x M.2 slots and 4 x SATA 6Gb/s
ports
AMD Ryzen™ 9000 & 7000 Series Desktop
Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110
(supports PCIe 5.0 x4 mode)*
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not
supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* M.2_2 shares bandwidth with PCIEX16(G5).
When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
** M.2_2 will be disabled when using AMD
Ryzen™ 8000 Series Desktop Processors.
RAID Support

AMD RAIDXpert2 Technology*
Ryzen™ 9000 Series Processors: RAID
0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
* Specifications vary by CPU types.
Ethernet

1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 7 (MediaTek MT7925)
2×2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the
operating system
For
Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions,
Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For
Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth
regulatory may vary between countries.
*** The Bluetooth® version may vary, please
refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 14 ports)
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB
Type-C® with up to 30W PD/PPS Fast-charge)**
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB
Type-C®)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
2 x USB 2.0 headers support 4 additional
USB 2.0 ports
* USB Type-C® power delivery output: max.
5V/3A
** USB Type-C® power delivery output: 5V/9V
max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio

Realtek ALC1220P 7.1 Surround Sound
High Definition Audio CODEC*
– Impedance sense for front and rear
headphone outputs
– Internal audio Amplifier to enhance the
highest quality sound for headphone and speakers
– Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz
playback*
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
* The LINE OUT port on the rear panel does
not support spatial audio. If you wish to use spatial audio, make sure to
connect your audio output device to the audio jack on the front panel of your
chassis or use a USB interface audio device.
Back Panel I/O Ports

2 x USB4® (40Gbps) ports(2 x USB Type-C®)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB
Type-C® with up to 30W PD/PPS Fast-charge)**
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB
Type-C®)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
2 x USB 2.0 headers support 4 additional
USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Special Features

Extreme Engine Digi+
– 5K Black metallic capacitors
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– PCIe Slot Q-Release
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers
Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
ASUS AI Advisor
ASUS DriverHub
– AIDA64 Extreme (60 days free trial)
– HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
FlexKey
* For more software features, please visit
the asus support site or refer to http://www.asus.com/support for additional
information.
** For detailed information on the
supported models and restricted regions for this redemption offer, please refer
to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ASUS PCIe to Front USB Card (supports 2 x USB 5Gbps Type-A + 1 x USB 10Gbps Type-C ports)
1 x PHONE STAND HATSUNE MIKU EDITION
1 x THANK YOU CARD HATSUNE MIKU EDITION
1 x STICKER HATSUNE MIKU EDITION
4 x M.2 rubbers
Documentation
1 x Quick start guide
Operating System

Windows 11
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Esaurito
ASUS ROG Strix Helios II Hatsune Miku Edition
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG Strix Helios II Hatsune Miku Edition – Case Mid Tower Premium in Vetro Temperato e Alluminio, con 4 Ventole da 140 mm Preinstallate

439,90 €
SKU: 90DC00W0-B39010
Peso 18 kg
Dimensioni 25 × 56,5 × 59,1 cm
Model

ROG Strix Helios II Hatsune Miku Edition
Dimensioni custodia

Mid Tower
Supporto scheda madre

EATX (12"x10.9")
ATX
Micro-ATX
Mini-ITX
Alloggiamenti per dSlot di espansioneischi

4 x 2.5" Bay
2 x 2.5"/3.5" Combo Bay
Slot di espansione

8
2 (additional vertical)
Porte I/O frontali

1 x headphone / Microphone
2 x USB 3.2 Gen 2×2 Type C
4 x USB 3.2Gen1
Vetro temperato

Front Side
Left Side
Right Side
Supporto radiatore (Frontale)

120 mm
140 mm
240 mm
280 mm
360 mm
420 mm
Supporto radiatore (Coperchio)

120 mm
140 mm
240 mm
280 mm
360 mm
Supporto radiatore (Retro)

120 mm
140 mm
Supporto raffreddamento (Frontale)

3 x 120 mm
3 x 140 mm
Supporto raffreddamento (Coperchio)

3 x 120 mm
2 x 140 mm
Supporto raffreddamento (Retro)

1 x 120 mm
1 x 140 mm
Ventole pre installate (Frontali)

3 x 140 mm
PWM
Ventole pre installate (Retro)

1 x 140 mm
Massima altezza raffreddamento CPU

190 mm
Massima lunghezza GPU

450 mm
Massima lunghezza PSU

220 mm
Filtri polvere removibili

Front
Top
Bottom
Massimo spazio per la gestione cavi

33 mm
Dimensioni

250 x 565 x 591 mm
Peso

18Kg
AURA Sync

ARGB
Accessory

Extension Hub Support PWM Fan x 6, ARGB LED Strip x 6
-9%Esaurito
ASUS ROG RYUO IV 360 ARGB Hatsune Miku Edition
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG RYUO IV 360 ARGB Hatsune Miku Edition – Dissipatore a liquido AIO 360mm con Display AMOLED Curvo 6.67″, Ventole ARGB MF-12C

Il prezzo originale era: 450,00 €.Il prezzo attuale è: 409,00 €.
SKU: 90RC01P1-B0EAY0
Peso 2 kg
Dimensioni 39,4 × 12 × 5,2 cm
-10%Esaurito
ASUS ROG Thor 1200W Platinum III Hatsune Miku Edition
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG Thor 1200W Platinum III Hatsune Miku Edition – Alimentatore ATX 3.1 con GaN MOSFET, OLED Magnetico, GPU-First IVS, 80+ Platinum

Il prezzo originale era: 509,00 €.Il prezzo attuale è: 459,00 €.
SKU: 90YE00V6-B0NA00
Peso 2,37 kg
Dimensioni 19 × 15 × 8,6 cm
Model

ROG Thor 1200W Platinum III Hatsune Miku Edition
Intel Form Factor

ATX12V
PFC Type

Active PFC
ATX Standard

ATX 3.1
Dimensions

190 x 150 x 86 mm
Efficiency

80Plus Platinum
MTBF

>120,000 hrs @ 25°C
Protection Features

OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials

ROHS
AC Input Range

100-240Vac
DC Output Voltage

+3.3V +5V +12V -12V +5Vsb
Maximum Load

30A 25A 100A 0.3A 3A
Combined Load

125W 125W 1200W 3.6W 15W
Total Output

1200W
Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 6+2-pin x 4
SATA x 7
PERIPHERAL x 6
Package Contents

Power cord x 1
Motherboard power cable x 1 (610mm)
CPU cable x 2 (1000mm)
PCI-E Gen 5 16-pin cable x 1 (750mm)
PCI-E cable 1-to-1 x 4 (750mm)
SATA cable 1-to-4 x 1 (400+120+120+120mm)
SATA cable 1-to-3 x 1 (400+120+120mm)
Peripheral cable 1-to-3 x 2 (400+150+150mm)
Addressable RGB cable x 1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Chassis screws package x 1
Cable tie x 12
Thank you card x 1
User manual x 1
Weight

2.37 KG (single PSU)
AURA SYNC

ARGB
Cybenetics Noise Level Certification

A++
0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button

Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
-11%Esaurito
ASUS ROG Strix XG27ACMEG-G Hatsune Miku Edition
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG Strix XG27ACMEG-G Hatsune Miku Edition – Monitor Gaming 27” QHD Fast IPS 260Hz, 0.3ms, ELMB Sync, USB-C, Aura Sync

Il prezzo originale era: 449,00 €.Il prezzo attuale è: 399,00 €.
SKU: 90LM0C7U-B01371
Peso 9,2 kg
Dimensioni 72,2 × 47,6 × 22,7 cm
Model

ROG Strix XG27ACMEG-G Hatsune Miku Edition
Display

Panel Size (inch) : 27
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 596.74 x 335.66 mm
Display Surface : Anti-Glare
Backlight Type : LED
Panel Type : Fast IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.233mm
Resolution : 2560×1440
Color Space (DCI-P3) : 95%
Brightness (HDR, Peak) : 400 cd/㎡
Brightness (Typ.) : 400cd/㎡
Contrast Ratio (HDR, Max) : 100,000,000:1
Contrast Ratio (Typ.) : 1000:1
Display Colors : 1073.7M (10 bit)
Response Time : 1ms(GTG), 0.3ms(min.)
Refresh Rate (Max) : 260Hz
HDR (High Dynamic Range) Support : HDR10
Flicker-free : Yes
Features

GameVisual : Yes
Color Temp. Selection : Yes (8 modes)
Color Adjustment : 6-axis adjustment (R,G,B,C,M,Y)
Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6)
GamePlus : Yes
HDCP : Yes
Extreme Low Motion Blur : Yes
ELMB Sync: Yes
VRR Technology : Yes (Adaptive-Sync)
GameFast Input technology : Yes
Shadow Boost : Yes
DisplayWidget : Yes, DisplayWidget Center
Low Blue Light : Yes
ASUS Power Sync : Yes
A.I. Assistant Technology : AI Visual
A.I. Assistant Technology : Dynamic Crosshair
A.I. Assistant Technology : Dynamic Shadow Boost
Audio

Speaker : No
I/O Ports

USB-C x 1 (DP Alt Mode)
DisplayPort 1.4 x 1 (HBR3)
HDMI(v2.1) x 1 (FRL)
Earphone Jack : Yes
USB-C Power Delivery : 15W
Signal Frequency

Digital Signal Frequency :

HDMI: 27 ~ 385 Khz (H) /48 ~ 260Hz (V)
USB-C, DisplayPort: 27 ~ 385 Khz (H)/ 48 ~ 260Hz(V)
Power Consumption

Power Consumption : Power On: < 29 W
Power Saving Mode : Standby: < 0.5 W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz
Mechanical Design

Tilt : Yes (+20° ~ -5°)
Swivel : Yes (+45° ~ -45°)
Pivot : Yes (+90° ~ -90°)
Height Adjustment : 0~110mm
Lighting effect : Aura Sync
VESA Wall Mounting : 100x100mm
Kensington Lock : Yes
1/4" Tripod Socket : Yes
Dimensions (Esti.)

Phys. Dimension (W x H x D) :
61.4 x 50.3 x 18.8 cm (24.17" x 19.80" x 7.40")
–
Phys. Dimension without Stand (W x H x D) :
61.4 x 36.7 x 8.6 cm (24.17" x 14.45" x 3.39")
–
Box Dimension (W x H x D) :
72.2 x 47.6 x 22.7 cm (28.43" x 18.74" x 8.94")
Weight (Esti.)

Net Weight : 5.8 kg (12.79 lbs)
Net Weight without Stand : 3.7 kg (8.16 lbs)
Gross Weight : 9.2 kg (20.28 lbs)
Accessories (vary by regions)

DisplayPort cable
Phone Holder
Power adapter
Power cord
Quick start guide
ROG pouch
ROG sticker
Thank You Card
Warranty Card
Certificate

TÜV Flicker-free
TÜV Low Blue Light
VESA AdaptiveSync Display 260Hz
VESA DisplayHDR 400
AMD FreeSync Premium
G-SYNC Compatible
FSC MIX
Esaurito
ASUS TUF Gaming K3 Gen II Hatsune Miku Edition
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS TUF Gaming K3 Gen II Hatsune Miku Edition – Tastiera Gaming Meccanica Compatta 96% RGB con Switch Ottico-Meccanici Rossi, IP57, Aura Sync e Layout US (ANSI)

99,90 €
SKU: 90MP0460-BKUA30
Peso 1,068 kg
Dimensioni 38,5 × 15,3 × 3,8 cm
Modello

TUF Gaming K3 Gen II Hatsune Miku Edition
Key Switch

Optical-Mechanical RGB Switch
Connectivity

USB 2.0 (TypeA)
Size (Full/TKL)

96%
Lighting

RGB Per keys
AURA Sync

Sì
Macro Keys

Programmable F1-F8 keys
USB Report rate

(USB Report rate)1000 Hz
Cable

2-meter rubber cable
OS

Windows® 11
Software

Armoury Crate
Dimensions

385 x 153 x 38mm
Weight

1068g (with cable)
Color

GREEN
Contents

1 x TUF Gaming K3 Gen II – Hatsune Miku Edition
1 x Quick Start Guide
1 x warranty booklet
Esaurito
ASUS TUF Gaming H1 Gen II Hatsune Miku Edition
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS TUF Gaming H1 Gen II Hatsune Miku Edition – Cuffie Gaming USB, 40mm Essence, Surround 7.1, Microfono TeamSpeak

79,90 €
SKU: 90YH048B-BHUA00
Peso 0,297 kg
Modello

TUF Gaming H1 Gen II Hatsune Miku Edition
Product Type

Headset USB
Usage Scenario

Gaming
Interface

Cablato
Connector

USB 2.0
Support Platform

PC
PS4
PlayStation® 5
Driver Material

Magnete al neodimio
Driver Size

40mm
Headphones Impedance

32 ohm
Headphones Frequency Response

20Hz – 20KHz
Microphone Pick-up Pattern

Unidirezionale
Microphone Sensitivity

-24dB
Microphone Frequency Response

100-10KHz
AI Noise Cancelling Microphone

No
Channel

Virtual 7.1
Lighting

LED a colore singolo
Aura

No
Foldablility No

No
Weight

297g
Carry bag/box

Sì
Extra ear-cushion

No
Color

Nero
Cable

2 m
Accessories

TUF x Hatsune Miku Limited Edition Poster*1
TUF x Hatsune Miku Limited Edition Sticker*1
Quick start guide*1
Warranty booklet*1
Esaurito
ASUS TUF GAMING Mini Wireless Mouse Hatsune Miku Edition
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS TUF Gaming Mini Wireless Mouse Hatsune Miku Edition – Mouse Gaming Wireless Tri-Mode 65g, 12.000 DPI, 100M Click, PTFE

99,90 €
SKU: 90MP0420-BMUA00
Peso 0,065 kg
Dimensioni 11,5 × 6,34 × 3,75 cm
Modello

ASUS TUF GAMING Mini Wireless Mouse Hatsune Miku Edition
Key Switch

100M Mechanical Switch
Lighting

Logo
Underglow
AURA Sync

Sì
OS

Windows® 11
Dimensions

115(L)x63.4(w)x37.5(H) mm
Weight

65g
Color

Hatsune Miku Edition
Contents

1 x TUF Gaming Mini Wireless Mouse Hatsune Miku Edition
1 x TUF Gaming Mini Wireless Mouse Hatsune Miku Edition Sticker
1 x Hatsune Miku grip tape set
1 x USB wireless receiver
1 x Quick Start Guide
1 x 2-meter Paracord
1 x Warranty booklet
ASUS TUF Gaming P1 Hatsune Miku Edition
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS TUF Gaming P1 Hatsune Miku Edition – Tappetino Mouse Gaming 360 x 260 mm, Impermeabile, Antiscivolo

19,90 €
SKU: 90MP04C0-BPUA00
Peso 0,132 kg
Dimensioni 26 × 36 × 0,2 cm
Modello

ASUS TUF Gaming P1 Hatsune Miku Edition
Dimensions

260x360x2 mm
Weight

132g
Color

Hatsune Miku Edition
Contents

TUF Gaming P1 Hatsune Miku Edition x1
TUF Gaming P1 Hatsune Miku Sticker x1
    Il prezzo originale era: 600,00 €.Il prezzo attuale è: 539,00 €.
    439,90 €
    Il prezzo originale era: 1.919,00 €.Il prezzo attuale è: 1.899,00 €.
    Il prezzo originale era: 450,00 €.Il prezzo attuale è: 409,00 €.
    Il prezzo originale era: 509,00 €.Il prezzo attuale è: 459,00 €.
    Il prezzo originale era: 449,00 €.Il prezzo attuale è: 399,00 €.
    99,90 €
    79,90 €
    99,90 €
    19,90 €
    Il prezzo originale era: 4.666,50 €.Il prezzo attuale è: 4.444,50 €.
    Per 9 articoli

    Prodotti correlati

    Esaurito
    ASRock X870 Pro RS WiFi
    Add to compare
    Anteprima
    Aggiungi alla lista dei desideri

    ASRock X870 Pro RS WiFi – Scheda Madre ATX Socket AM5 con DDR5, PCIe 5.0, Wi-Fi 7 e USB4

    239,00 €
    Leggi tutto
    SKU: 90-MXBQ00-A0UAYZ
    Peso 1 kg
    Dimensioni 30,5 × 24,4 × 3 cm
    Caratteristica Unica

    Produttività superba
    – PCIe Gen5 (Graphics, M.2)
    – Dual Channel DDR5
    – USB4 Type-C Ports (40 Gb/s)
    Solida durabilità
    – 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC con Armatura del dissipatore di calore ingrandita
    – Schermo I/O integrato flessibile
    Connettività ultraveloce
    – 2.5G LAN, 802.11be Wi-Fi 7 Module
    Aggiornamento EZ
    – Interruttore BIOS Flashback
    – Programma di installazione del driver automatico ASRock
    Risoluzione dei problemi EZ
    – ASRock Checker stato post
    CPU

    – Supporta AMD Socket AM5 Ryzen™ 9000, 8000 e 7000 Series Processors
    Chipset

    – AMD X870
    Memoria

    – Dual Channel DDR5 Memory Technology
    – 4 x DDR5 slot DIMM
    – Supporta DDR5 ECC/non-ECC, momoria senza buffer up to 8000+(OC)
    – Capacità massima della memoria di sistema: 256GB
    – Supporta Profilo di memoria estrema (XMP) e Profili estesi per l'overclocking (EXPO) moduli di memoria
    BIOS

    – BIOS legale 256 Mb AMI UEFI con supporto GUI
    Schede Grafiche

    Integrated AMD RDNA™ graphics (Il supporto effettivo può variare a seconda della CPU)
    – 1 x HDMI 2.1 TMDS/FRL Compatibile con l’8G, Supporta HDR, HDCP 2.3 e max. Risoluzione up to 4K 120Hz
    – 2 x USB4, supporta HDCP 2.3 e max. Risoluzione up to 8K 30Hz
    Audio

    – Audio HD a 7.1 canali con protezioni contenuti (Codec audio Realtek ALC1220)
    – Sensore di impedenza sulla porta posteriore
    – Singoli strati PCB per canale audio R/L
    – Nahimic Audio
    LAN

    – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    – Dragon RTL8125BG
    – Supporta Dragon 2.5G LAN Software
    – Controllo regolazione della larghezza di banda automatico e intelligente
    – Interfaccia grafica intuitiva
    – Statistiche visive di utilizzo della rete
    – Impostazioni predefinite e ottimizzate per modalità gioco, browser e streaming
    – Controllo priorità personalizzato dall'utente
    Wireless LAN

    – 802.11be 2×2 Wi-Fi 7 Module
    – Supporta IEEE 802.11a/b/g/n/ac/ax/axe/be
    – Supporta 2.4GHz/5GHz/6GHz* frequency band
    – Supporta 160MHz channel bandwidth con 6GHz* frequency band
    – 1 antenna per supportare la tecnologia Diversity 2 (in trasmissione) e 2 (in ricezione)
    – Supporta Bluetooth 5.4
    – Supporta MU-MIMO
    Slot di espansione

    CPU:
    – 1 x PCIe 5.0 x16 Slot (PCIE1), Supporta a modalità x16*
    Chipset:
    – 1 x PCIe 4.0 x16 Slot (PCIE2), Supporta a modalità x4*
    – 1 x socket M.2 (Key E), supporta il modulo di tipo 2230 WiFi/BT PCIe WiFi
    – Supporta AMD CrossFire™
    – Contatti in oro a 15μ nello slot PCIe VGA (PCIE1)
    Immagazzinamento

    CPU:
    – 1 x Blazing socket M.2 (M2_1, Key M), Supporta type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    –
    Chipset:
    – 1 x socket Hyper M.2 (M2_2, Key M), Supporta type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    – 1 x socket Ultra M.2 (M2_3, Key M), Supporta type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
    – 2 x connettori SATA3 6.0 Go/s
    –
    ASMedia ASM1061:
    – 2 x connettori SATA3 6.0 Go/s
    RAID

    – Supporta RAID 0 e RAID 1 for SATA Dispositivi di memoria
    – Supporta RAID 0, RAID 1 e RAID 10 for M.2 NVMe Dispositivi di memoria
    USB

    CPU:
    – 2 x USB4 Type-C (posteriori)
    – 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 e USB32_2))
    Chipset:
    – 1 x USB 3.2 Gen2x2 Type-C (frontali)
    – 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 e USB32_4), 2 frontali)
    – 9 x USB 2.0 (6 Rear, 3 Front)
    Connettore

    – 1 x Cavo del termistore Header
    – 1 x collettore SPI TPM
    – 1 x LED di alimentazione e header altoparlanti
    – 1 x collettore RGB LED*
    – 3 x Header LED indirizzabiles**
    – 2 x Connettore CPU ventola (4-pin) (Controllo intelligente della velocità della ventola)***
    – 4 x Connettore Chassis ventola (4-pin) (Controllo intelligente della velocità della ventola)***
    – 1 x AIO Pump Fan Connector (4-pin) (Controllo intelligente della velocità della ventola)***
    – 1 x 24-pin collettore alimentazione ATX
    – 2 x 8-pin connettore ATX 12V (Connettore di potenza ad alta densità)
    – 1 x connettore audio sul pannello frontale
    – 2 x collettore USB 2.0 (supporta 3 porte USB 2.0)
    – 1 x collettore USB 3.2 Gen1 (supporta 2 porte USB 3.2 Gen1)
    – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
    Pannello Posteriore I/O

    2 x Porte dell'antenna
    – 1 x porta HDMI
    – 1 x Uscita porta ottica SPDIF
    – 2 x USB4 Type-C Ports (40 Gb/s)*
    – 4 x USB 3.2 Gen1 Type-A Ports
    – 6 x porte USB 2.0
    – 1 x porte LAN RJ-45
    – 1 x Interruttore BIOS Flashback
    – 1 x Uscita jack (Gold Audio Jack)
    – 1 x microfono Input Jack (Gold Audio Jack)
    Software e UEFI

    Software
    – ASRock Scheda Madre Utility (A-Tuning)
    – ASRock Dragon 2.5G LAN Software
    – ASRock Polychrome SYNC*
    UEFI
    – ASRock Modalità EZ
    – ASRock UEFI Full HD
    – Programma di installazione del driver automatico ASRock
    – ASRock Flash istantaneo
    Accessori

    – 2 x cavi dati SATA
    – 2 x ASRock WiFi 2.4/5/6 GHz Antennas
    Fattore di Forma

    – Fattore di forma ATX: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    – PCB a 8 strati
    OS

    – Microsoft® Windows® 10 64-bit / 11 64-bit
    Certificazioni

    – FCC, CE
    – Predisposto ErP/EuP (è necessaria l’alimentazione predisposta per il sistema ErP/EuP)
    -15%Esaurito
    Add to compare
    Anteprima
    Aggiungi alla lista dei desideri

    ASUS PRIME B650M-R – Scheda Madre Micro-ATX, Socket AM5, DDR5, PCIe 4.0, USB 3.0, LAN 2.5G, Aura Sync [90MB1H30-M0EAY0]

    Il prezzo originale era: 137,00 €.Il prezzo attuale è: 116,00 €.
    Leggi tutto
    SKU: 90MB1H30-M0EAY0
    Peso 0,9 kg
    Dimensioni 24,4 × 24,4 × 3,5 cm
    M.B. - Chipset

    AMD B650
    CPU

    AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
    Memory

    2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports AMD Extended Profiles for Overclocking (EXPO™)
    OptiMem II
    Graphics

    1 x HDMI™ port
    Expansion Slots

    AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
    1 x PCIe 4.0 x16 slot (supports x16 mode)
    AMD Ryzen™ 8000 Series Desktop Processors
    1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
    AMD B650 Chipset
    1 x PCIe 4.0 x1 slots
    Storage

    Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
    AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    AMD B650 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    Ethernet

    1 x Realtek 2.5Gb Ethernet
    USB

    Rear USB (Total 6 ports)
    2 x USB 5Gbps ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 5Gbps connector (supports USB Type-C®)
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Audio

    Realtek 7.1 Surround Sound High Definition Audio CODEC*
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
    Audio Features
    – Audio Shielding
    – Premium audio capacitors
    – Dedicated audio PCB layers
    Back Panel I/O Ports

    2 x USB 5Gbps ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x HDMI™ port
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x BIOS FlashBack™ button
    Internal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header
    2 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 5Gbps connector (supports USB Type-C® )
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x S/PDIF Out header
    1 x Speaker header
    1 x SPI TPM header (14-1pin)
    1 x 10-1 pin System Panel header
    Special Features

    ASUS 5X PROTECTION III
    – DIGI+ VRM
    – LANGuard
    – Overvoltage Protection
    – Safeslot Core
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – Q-DIMM
    – Q-LED Core
    – Q-Slot
    ASUS Thermal Solution
    – VRM heatsink design
    ASUS EZ DIY
    – BIOS FlashBack™ button
    – BIOS FlashBack™ LED
    Aura Sync
    – Addressable Gen 2 headers
    Software Features

    ASUS Exclusive Software
    Armoury Crate
    – Aura Creator
    – Aura Sync
    – Fan Xpert 2+
    – Power Saving
    – Two-Way AI Noise Cancellation
    AI Suite 3
    – TurboV EVO
    – DIGI+ VRM
    – PC Cleaner
    ASUS CPU-Z
    Norton 360 Deluxe (60 Days Free Trial)
    WinRAR (40 Days Free Trial)
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    BIOS

    256 Mb Flash ROM, UEFI AMI BIOS
    Manageability

    WOL by PME, PXE
    Accessories

    Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x I/O Shield
    2 x M.2 Anchors
    Documentation
    1 x Quick start guide
    Operating System

    Windows® 11, Windows® 10 64-bit
    Form Factor

    micro-ATX Form Factor
    9.3 inch x 8.7 inch ( 23.6 cm x 22.1 cm )
    Esaurito
    Add to compare
    Anteprima
    Aggiungi alla lista dei desideri

    ASUS ROG STRIX B650E-F GAMING WiFi – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6E, LAN 2.5G, Bluetooth 5.2, Aura Sync [90MB1BQ0-M0EAY0]

    259,00 €
    Leggi tutto
    SKU: 90MB1BQ0-M0EAY0
    Peso 1 kg
    Dimensioni 30,5 × 24,4 × 3,5 cm
    M.B. - Chipset

    AMD B650E
    CPU

    AM5 Socket for AMD Ryzen™ 9000& 8000 & 7000 Desktop Processorss
    Memory

    4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/
    6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports AMD EXTended Profiles for Overclocking (EXPO™)
    OptiMem II
    Graphics

    1 x DisplayPort – Supports max. 8K@60Hz as specified in DisplayPort 1.4.
    1 x HDMI® port – Supports 4K@60Hz as specified in HDMI 2.1.
    Expansion Slots

    AMD Ryzen™ 9000 & 7000 Series Desktop Processors
    1 x PCIe 5.0 x16 slot
    –
    AMD Ryzen™ 8000 Series Desktop Processors
    1 x PCIe 4.0 x16 slot (support x8/x4 mode)
    –
    AMD B650 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 mode)
    2 x PCIe 4.0/3.0 x1 slots
    Storage

    Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
    –
    AMD Ryzen™ 9000 & 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    –
    AMD Ryzen™ 8000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)
    –
    AMD B650 Chipset
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s port
    Ethernet

    1 x Intel® 2.5Gb Ethernet
    ASUS LANGuard
    Wireless & Bluetooth

    Wi-Fi 6E
    2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth v5.2
    USB

    Rear USB (Total 12 ports)
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
    4 x USB 3.2 Gen 1 port (4 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers supports additional 4 USB 2.0 ports
    Audio

    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
    – Impedance sense for front and rear headphone outputs
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    – Supports up to 32-Bit/384 kHz playback
    Audio Features
    – SupremeFX Shielding Technology
    – Savitech SV3H712 AMP
    – Premium audio capacitors
    – Audio cover
    Back Panel I/O Ports

    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
    4 x USB 3.2 Gen 1 ports (4 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Intel® I225-V 2.5Gb Ethernet port
    5 x Audio jacks
    1 x BIOS FlashBack™ button
    Internal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers supports additional 4 USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x AURA RGB header
    1 x Clear CMOS header
    1 x CPU Over Voltage jumper
    1 x Front Panel Audio header (AAFP)
    1 x S/PDIF Out header
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thermal Sensor header
    1 x Thunderbolt™header
    1 x COM_DEBUGheader
    Special Features

    Extreme Engine Digi+
    – 5K Black Metallic Capacitors
    ASUS Q-Design
    – M.2 Q-Latch
    – PCIe Slot Q-Release
    – Q-LED
    – Q-DIMM
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – BIOS FlashBack™ button
    – BIOS FlashBack™ LED
    – ProCool
    – Pre-mounted I/O shield
    – SafeSlot
    – SafeDIMM
    AURA Sync
    – AURA RGB header
    – Addressable Gen 2 headers
    Software Features

    ROG Exclusive Software
    – GameFirst VI
    – ROG CPU-Z
    – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
    – Sonic Radar III
    – DTS® Sound Unbound
    – Anti-virus software
    ASUS Exclusive Software
    Armoury Crate
    – AIDA64 Extreme (60 days free trial)
    – AURA Creator
    – AURA Sync
    – Fan Xpert 4
    – Power Saving
    – Two-Way AI Noise Cancellation
    AI Suite 3
    – TPU
    – DIGI+ VRM
    – Turbo app
    – PC Cleaner
    MyAsus
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    FlexKey
    BIOS

    256 Mb Flash ROM, UEFI AMI BIOS
    Manageability

    WOL by PME, PXE
    Accessories

    Cables
    2 x SATA 6Gb/s cables
    Additional Cooling Kit
    1 x Thermal pad for M.2
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x Cable ties pack
    1 x M.2 Q-Latch package
    1 x ROG key chain
    1 x ROG Strix stickers
    1 x ROG Strix thank you card
    2 x M.2 Rubber Packages
    Documentation
    1 x User guide
    Operating System

    Windows® 10 64-bit, Windows® 11 64-bit
    Form Factor

    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
    -10%
    ASUS TUF GAMING B850M-E WIFI
    Add to compare
    Anteprima
    Aggiungi alla lista dei desideri

    ASUS TUF GAMING B850M-E WIFI – Scheda Madre Micro-ATX, Socket AM5, DDR5, PCIe 5.0, WiFi 6E, 2.5G LAN, USB-C 10Gbps

    Il prezzo originale era: 239,00 €.Il prezzo attuale è: 215,00 €.
    Aggiungi al carrello
    SKU: 90MB1LS0-M0EAY0
    Peso 0,7 kg
    Dimensioni 24,4 × 24,4 × 3 cm
    Modello

    TUF GAMING B850M-E WIFI
    CPU

    AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
    * Refer to http://www.asus.com for CPU support list.
    Chipset

    AMD B850 Chipset
    Memory

    4 x DIMM slots, Max. 256GB, DDR5
    Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
    Dual Channel Memory Architecture
    Supports AMD Extended Profiles for Overclocking (EXPO™)
    ASUS Enhanced Memory Profile (AEMP)
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
    ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
    Graphics

    2 x DisplayPort**
    1 x HDMI™ port***
    * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
    ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.
    Expansion

    AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
    1 x PCIe 5.0 x16 slot**
    AMD Ryzen™ 8000 Series Desktop Processors
    1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
    AMD B650 Chipset
    1 x PCIe 4.0 x1 slot
    * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
    ** Specifications vary by CPU types.
    – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
    Storage

    Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
    AMD Ryzen™ 9000 & 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*
    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
    AMD Ryzen™ 8000 Series Desktop Processors
    M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
    AMD B650 Chipset
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    AMD RAIDXpert2 Technology
    Ryzen™ 9000 Series Processors: RAID 0/1/5/10
    Ryzen™ 8000 Series Processors: RAID 0/1
    Ryzen™ 7000 Series Processors: RAID 0/1/10
    * Specifications vary by CPU types.
    Ethernet

    1 x Realtek 2.5Gb Ethernet
    TUF LANGuard
    Wireless & Bluetooth

    Wi-Fi 6E
    2×2 Wi-Fi 6E (802.11ax)
    Supports 2.4/5/6GHz frequency band*
    Bluetooth® v5.3**
    * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
    ** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
    USB

    Rear USB (Total 8 ports)
    2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
    2 x USB 5Gbps ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 5Gbps connector (supports USB Type-C®)
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Audio

    Realtek 7.1 Surround Sound High Definition Audio CODEC*
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback"
    Audio Features
    – Audio Shielding
    – Premium audio capacitors
    – Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    Back Panel I/O Ports

    2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
    2 x USB 5Gbps ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    2 x DisplayPort
    1 x HDMI™ port
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x BIOS FlashBack™ button
    1 x PS/2 keyboard/mouse combo port
    Internal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    2 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V CPU Power connector
    1 x 4-pin +12V CPU Power connector
    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 5Gbps connector (supports USB Type-C® )
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable RGB Gen 2 headers
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (F_AUDIO)
    1 x 10-1 pin Front Panel System header
    1 x Chassis Intrusion header
    Special Features

    ASUS TUF PROTECTION
    – DIGI+ VRM (- Digital power design with DrMOS)
    – ESD Guards
    – TUF LANGuard
    – Overvoltage Protection
    – SafeSlot
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – M.2 Q-Latch
    – PCIe Slot Q-Release
    – Q-Antenna
    – Q-Dashboard
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – BIOS FlashBack™ button
    – BIOS FlashBack™ LED
    – ProCool
    – Pre-mounted I/O shield
    – SafeSlot
    – SafeDIMM
    Aura Sync
    – Addressable RGB Gen 2 headers
    Software Features

    ASUS Exclusive Software
    Armoury Crate
    – Aura Creator
    – Aura Sync
    – Fan Xpert 2+
    – DIGI+ VRM
    ASUS AI Advisor
    ASUS DriverHub
    ASUS GlideX
    TurboV Core
    TUF GAMING CPU-Z
    DTS Audio Processing
    Norton 360 for Gamers (60 Days Free Trial)
    WinRAR (40 Days Free Trial)
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    – ASUS MyHotkey
    BIOS

    256 Mb Flash ROM, UEFI AMI BIOS
    Manageability

    WOL by PME, PXE
    Accessories

    Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS WiFi Q-Antenna
    1 x TUF Gaming sticker
    1 x M.2 Rubber Package
    1 x Screw package for M.2 SSD
    Documentation
    1 x Quick start guide
    Operating System

    Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
    Form Factor

    micro-ATX Form Factor
    9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
    -9%Esaurito
    GIGABYTE B850 AORUS ELITE WIFI7 ICE
    Add to compare
    Anteprima
    Aggiungi alla lista dei desideri

    GIGABYTE B850 AORUS ELITE WIFI7 ICE – Scheda Madre ATX AM5, DDR5 8200MT/s, Wi-Fi 7, PCIe 5.0, X3D Turbo Mode, RGB, BIOS AI, Ultra Durable

    Il prezzo originale era: 239,90 €.Il prezzo attuale è: 219,00 €.
    Leggi tutto
    SKU: 9MB85EL7E-00-G10
    Peso 0,8 kg
    Dimensioni 30,5 × 24,4 × 3,5 cm
    CPU

    AMD Socket AM5, support for:
    AMD Ryzen™ 9000 Series Processors/
    AMD Ryzen™ 8000 Series Processors/
    AMD Ryzen™ 7000 Series Processors
    (Go to GIGABYTE's website for the latest CPU support list.)
    Chipset

    AMD B850
    Memory

    Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
    Onboard Graphics

    Integrated Graphics Processor with AMD Radeon™ Graphics support:
    – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
    * Support for DisplayPort 1.4 version and HDR.
    –
    – 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz
    * Support for HDMI 1.4 version
    –
    (Graphics specifications may vary depending on CPU support.)
    Audio

    Realtek® Audio CODEC (Only for rev. 1.0)
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    –
    Support for S/PDIF Out
    –
    Realtek® ALC1220 CODEC(Only for rev. 1.1)
    * The back panel line out jack supports DSD audio.
    –
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    –
    Support for S/PDIF Out
    LAN

    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication module

    Realtek® Wi-Fi 7 RTL8922AE
    – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    – BLUETOOTH 5.4
    – Support for 11be 160MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)
    * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
    ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations
    Expansion Slots

    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
    AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    –
    Chipset:
    – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)
    Storage Interface

    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    –
    1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
    –
    1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
    –
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
    USB

    CPU:
    – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    CPU+USB 2.0 Hub:
    – 4 x USB 2.0/1.1 ports on the back panel
    Chipset:
    – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
    – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
    – 4 x USB 2.0/1.1 ports available through the internal USB headers
    Chipset+USB 3.2 Gen 1 Hub:
    – 4 x USB 3.2 Gen 1 ports on the back panel
    Internal I/O Connectors

    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    3 x system fan headers
    1 x system fan/water cooling pump header
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    3 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x HDMI port (Note)
    1 x power button
    1 x reset button
    1 x reset jumper
    1 x Clear CMOS jumper
    –
    (Note) Actual support may vary by CPU.
    Back Panel Connectors

    1 x DisplayPort (Note)
    1 x Q-Flash Plus button
    4 x USB 2.0/1.1 ports
    1 x USB Type-C® port, with USB 3.2 Gen 2 support
    5 x USB 3.2 Gen 1 ports
    1 x RJ-45 port
    2 x USB 3.2 Gen 2 Type-A ports (red)
    2 x antenna connectors (2T2R)
    2 x audio jacks
    1 x optical S/PDIF Out connector
    –
    (Note) Actual support may vary by CPU.
    I/O Controller

    iTE® I/O Controller Chip
    H/W Monitoring

    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
    BIOS

    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features

    Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    –
    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
    Bundle Software

    Norton® Internet Security (OEM version)
    LAN bandwidth management software
    Operating System

    Support for Windows 11 64-bit
    Form Factor

    ATX Form Factor; 30.5cm x 24.4cm
    -10%
    MSI B850 GAMING PLUS WIFI6E
    Add to compare
    Anteprima
    Aggiungi alla lista dei desideri

    MSI B850 GAMING PLUS WIFI6E – Scheda Madre ATX, Socket AM5, DDR5, Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2, Audio Boost

    Il prezzo originale era: 199,00 €.Il prezzo attuale è: 179,00 €.
    Aggiungi al carrello
    SKU: 911-7E80-001
    Peso 0,7 kg
    Dimensioni 30,5 × 24,4 × 3 cm
    Chipset

    AMD B850
    CPU

    Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
    Socket AM5
    Memory

    4x DDR5 UDIMM, Maximum Memory Capacity 256GB
    Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
    Ryzen™ 9000 Series Processors max. overclocking frequency:
    • 1DPC 1R Max speed up to 8200+ MT/s
    • 1DPC 2R Max speed up to 6400+ MT/s
    • 2DPC 1R Max speed up to 6400+ MT/s
    • 2DPC 2R Max speed up to 6000+ MT/s
    –
    Supports AMD POR Speed and JEDEC Speed
    Supports Memory Overclocking and AMD EXPOTM
    Supports Dual-Channel mode
    Supports Non-ECC, Un-buffered memory
    Supports CUDIMM, Clock Driver bypass mode only*
    –
    * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
    • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
    Onboard Graphics

    1x HDMI™
    Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
    –
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot

    2x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    –
    PCI_E1 slot
    • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
    Audio

    Realtek® ALC897
    7.1-Channel High Definition Audio
    Storage

    2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
    M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    4x SATA 6G
    –
    M2_1 slot
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
    –
    M2_2 slot
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
    • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
    –
    *Please refer to the manual for M.2 SSD heatsink restrictions.
    RAID

    Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
    USB

    4x USB 2.0 (Front)
    4x USB 5Gbps Type A (Rear)
    2x USB 5Gbps Type A (Front)
    3x USB 10Gbps Type A (Rear)
    1x USB 10Gbps Type C (Rear)
    1x USB 10Gbps Type C (Front)
    LAN

    Realtek® 8125D 2.5G LAN
    Internal IO

    1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Combo Fan (Pump_Sys Fan)
    4x System Fan
    1x EZ Conn-header (JAF_1)
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    1x Tuning Controller connector(JDASH)
    3x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 5Gbps Type A ports
    1x USB 10Gbps Type C ports
    WIRELESS LAN & BLUETOOTH

    Wi-Fi 6E Solution
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    –
    Supports Bluetooth® 5.3, FIPS, FISMA
    –
    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    LED FEATURE

    x EZ Debug LED
    1x EZ Memory Detection LED
    BACK PANEL PORTS

    Clear CMOS Button
    DisplayPort 1.4
    2.5G LAN
    USB 10Gbps (Type-A)
    Wi-Fi / Bluetooth
    HD Audio Connectors
    Flash BIOS Button
    HDMI™
    USB 10Gbps (Type-A)
    USB 10Gbps (Type-C)
    USB 5Gbps (Type-A)
    OPERATING SYSTEM

    Support for Windows® 11 64-bit
    PCB Info

    ATX
    243.84mmx304.8mm
    -14%Esaurito
    Add to compare
    Anteprima
    Aggiungi alla lista dei desideri

    MSI MPG B650I EDGE WIFI – Scheda Madre Mini-ITX, Socket AM5, DDR5, PCIe 4.0, USB 3.2, Wi-Fi 6E, LAN 2.5G, Bluetooth 5.3 [7D73-001R]

    Il prezzo originale era: 284,99 €.Il prezzo attuale è: 245,00 €.
    Leggi tutto
    SKU: 7D73-001R
    Peso 0,7 kg
    Dimensioni 17 × 17 × 3 cm
    M.B. - Chipset

    AMD B650
    CPU

    Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
    Socket AM5
    Memory

    2x DDR5, Maximum Memory Capacity 128GB
    Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7200+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    –
    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports AMD EXPO™
    Onboard Graphics

    1x HDMI™
    Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz
    Slot

    1x PCI-E x16 slot
    • Supports x16 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    Audio

    Realtek® ALC4080 Codec
    7.1-Channel USB High Performance Audio
    Supports up to 32-Bit/384 kHz playback on front panel
    Storage

    2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    4x SATA 6G
    RAID

    Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
    Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
    USB

    2x USB 2.0 (Front)
    2x USB 5Gbps Type A (Rear)
    2x USB 5Gbps Type A (Front)
    3x USB 10Gbps Type A (Rear)
    1x USB 10Gbps Type C (Front)
    1x USB 20Gbps Type C (Rear)
    LAN

    Realtek® RTL8125BG 2.5Gbps LAN
    Internal IO

    1x Power Connector(ATX_PWR)
    1x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    1x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Addressable V2 RGB LED connector (JARGB_V2)
    1x TPM pin header(Support TPM 2.0)
    2x USB 2.0 ports
    2x USB 5Gbps Type A ports
    1x USB 10Gbps Type C ports
    WIRELESS LAN & BLUETOOTH

    AMD Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX
    Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Supports Bluetooth® 5.3
    LED FEATURE

    4x EZ Debug LED
    BACK PANEL PORTS

    Clear CMOS Button
    USB 5Gbps (Type-A)
    2.5G LAN
    Wireless / Bluetooth
    Audio Connectors
    Flash BIOS Button
    HDMI™
    USB 10Gbps (Type-A)
    USB 10Gbps (Type-A)
    USB 20Gbps (Type-C)
    OPERATING SYSTEM

    Support for Windows® 11 64-bit, Windows® 10 64-bit
    -6%Esaurito
    Add to compare
    Anteprima
    Aggiungi alla lista dei desideri

    MSI PRO X870-P WIFI – Scheda Madre ATX, Socket AM5, DDR5, PCIe 5.0, USB4, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [7E47-001R]

    Il prezzo originale era: 319,00 €.Il prezzo attuale è: 299,00 €.
    Leggi tutto
    SKU: 7E47-001R
    Peso 0,97 kg
    Dimensioni 30,5 × 24,4 × 3,5 cm
    M.B. - Chipset

    AMD X870
    CPU

    Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
    Socket AM5
    Memory

    4x DDR5 UDIMM, Maximum Memory Capacity 256GB
    Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
    Ryzen™ 9000 Series Processors max. overclocking frequency:
    • 1DPC 1R Max speed up to 8200+ MT/s
    • 1DPC 2R Max speed up to 6400+ MT/s
    • 2DPC 1R Max speed up to 6400+ MT/s
    • 2DPC 2R Max speed up to 6000+ MT/s
    –
    Supports AMD POR Speed and JEDEC Speed
    Supports Memory Overclocking and AMD EXPOTM
    Supports Dual-Channel mode
    Supports Non-ECC, Un-buffered memory
    Supports CUDIMM, Clock Driver bypass mode only
    Onboard Graphics

    1x HDMI™
    Support HDMITM 2.1, maximum resolution of 4K 60Hz*
    1x Type-C DisplayPort
    USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
    Slot

    4x PCI-E x16 slot (Qty)
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
    –
    PCI_E1 slot
    • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
    Audio

    Realtek® ALC897
    7.1-Channel High Definition Audio
    Storage

    3x M.2 (Qty)
    M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
    4x SATA 6G (Qty)
    –
    M2_1 slot
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
    RAID

    Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
    USB

    4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 5Gbps Type A (Rear)
    2x USB 5Gbps Type A (Front)
    2x USB 10Gbps Type A (Rear)
    1x USB 10Gbps Type C (Front)
    1x USB 20Gbps Type C (Rear)
    1x USB 40Gbps Type C (Rear)
    LAN

    Realtek® 8126VB 5G LAN
    Internal IO

    1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x Power Connector(PCIE_PWR 8pin)
    1x CPU Fan
    1x Combo Fan (Pump_Sys Fan)
    6x System Fan
    1x ARGB+FAN Header (JAF_1)
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Tuning Controller connector(JDASH)
    3x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 5Gbps Type A ports
    1x USB 10Gbps Type C ports
    WIRELESS LAN & BLUETOOTH

    Wi-Fi 7
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
    Supports Bluetooth® 5.4**, MLO, 4KQAM
    LED FEATURE

    4x EZ Debug LED
    BACK PANEL PORTS

    Clear CMOS Button
    USB 5Gbps Type-A
    USB 2.0
    5G LAN
    Wi-Fi / Bluetooth
    Audio connectors
    Flash BIOS Button
    HDMI™
    USB 40Gbps Type-C
    USB 10Gbps Type-A
    USB 20Gbps Type-C
    OPERATING SYSTEM

    Support for Windows® 11 64-bit
