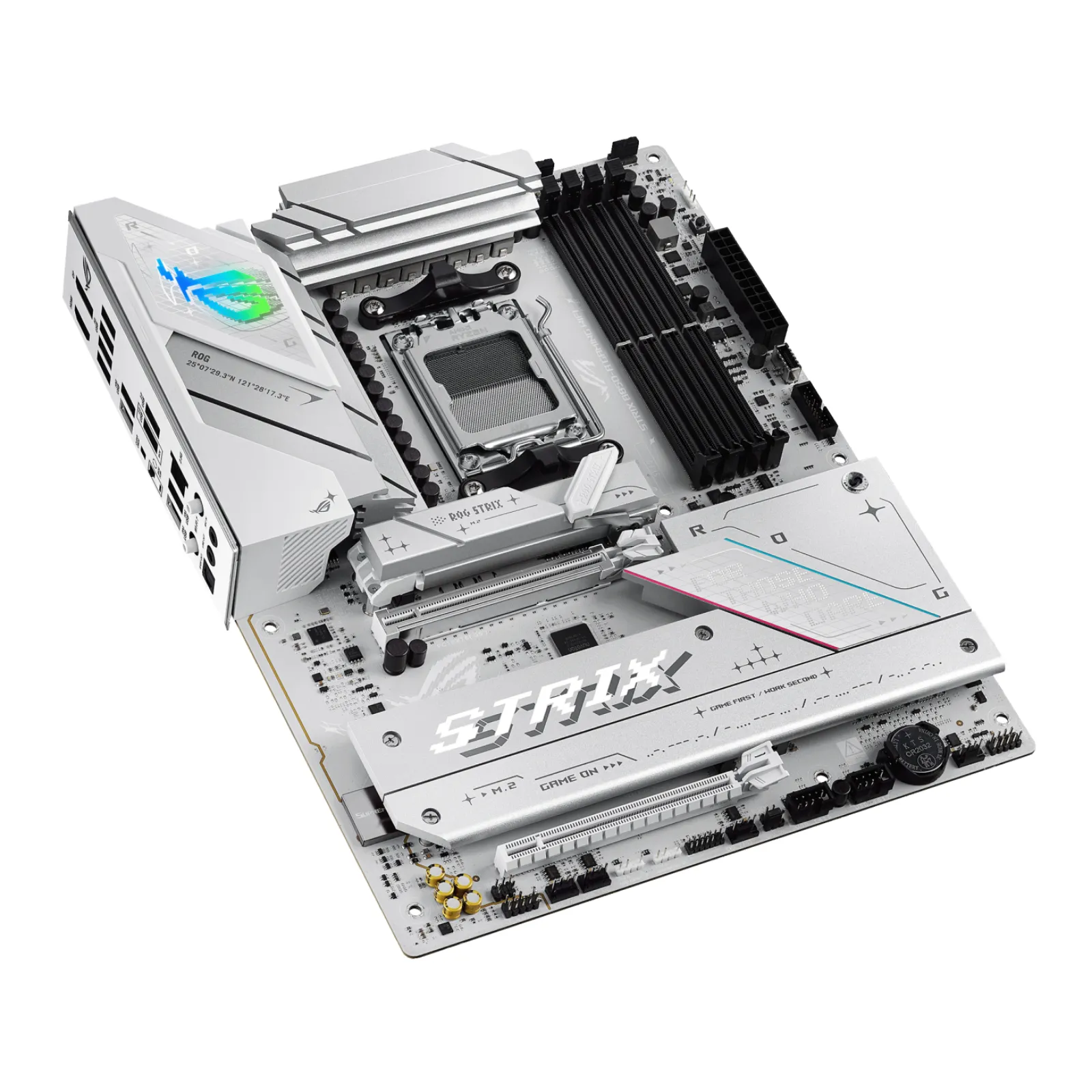

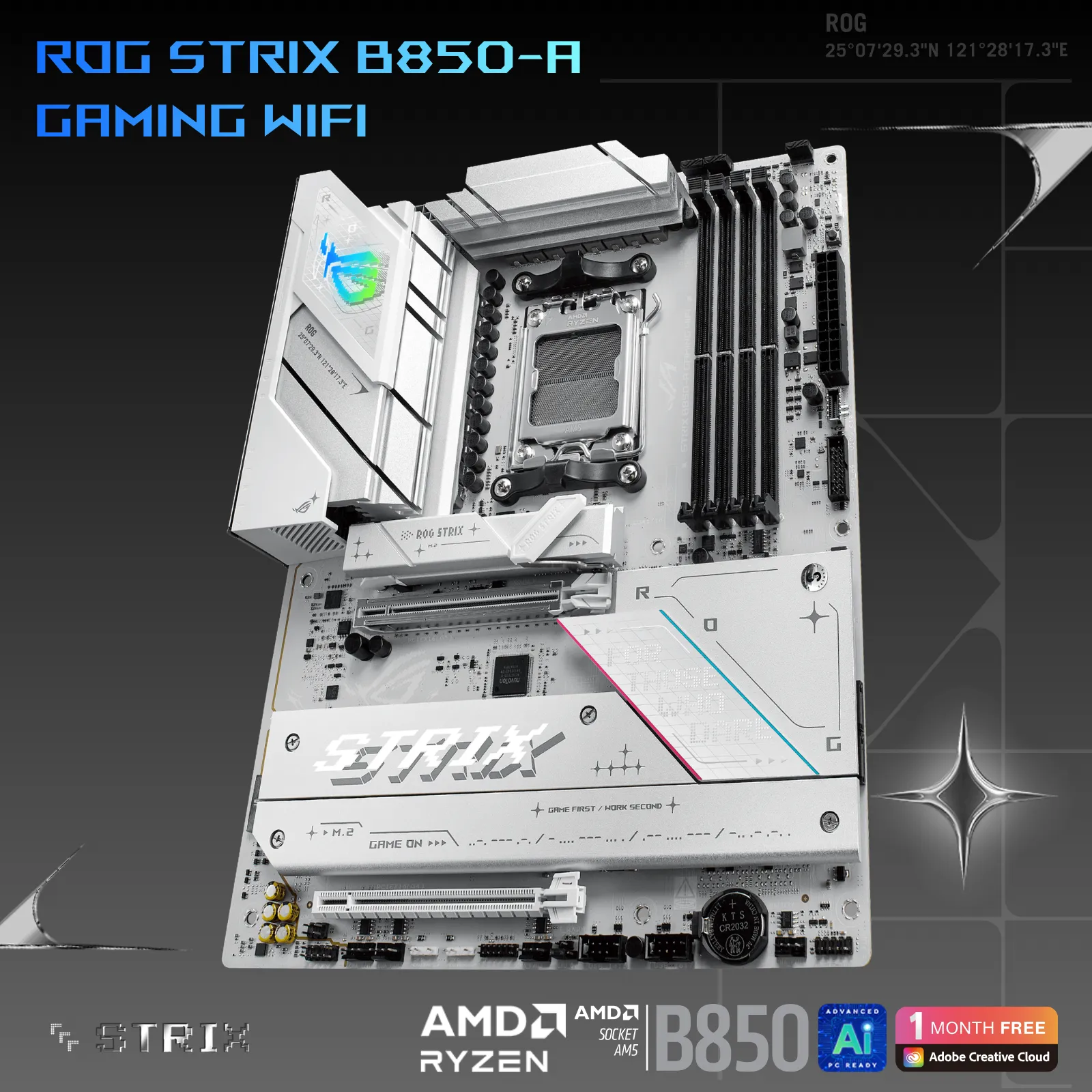

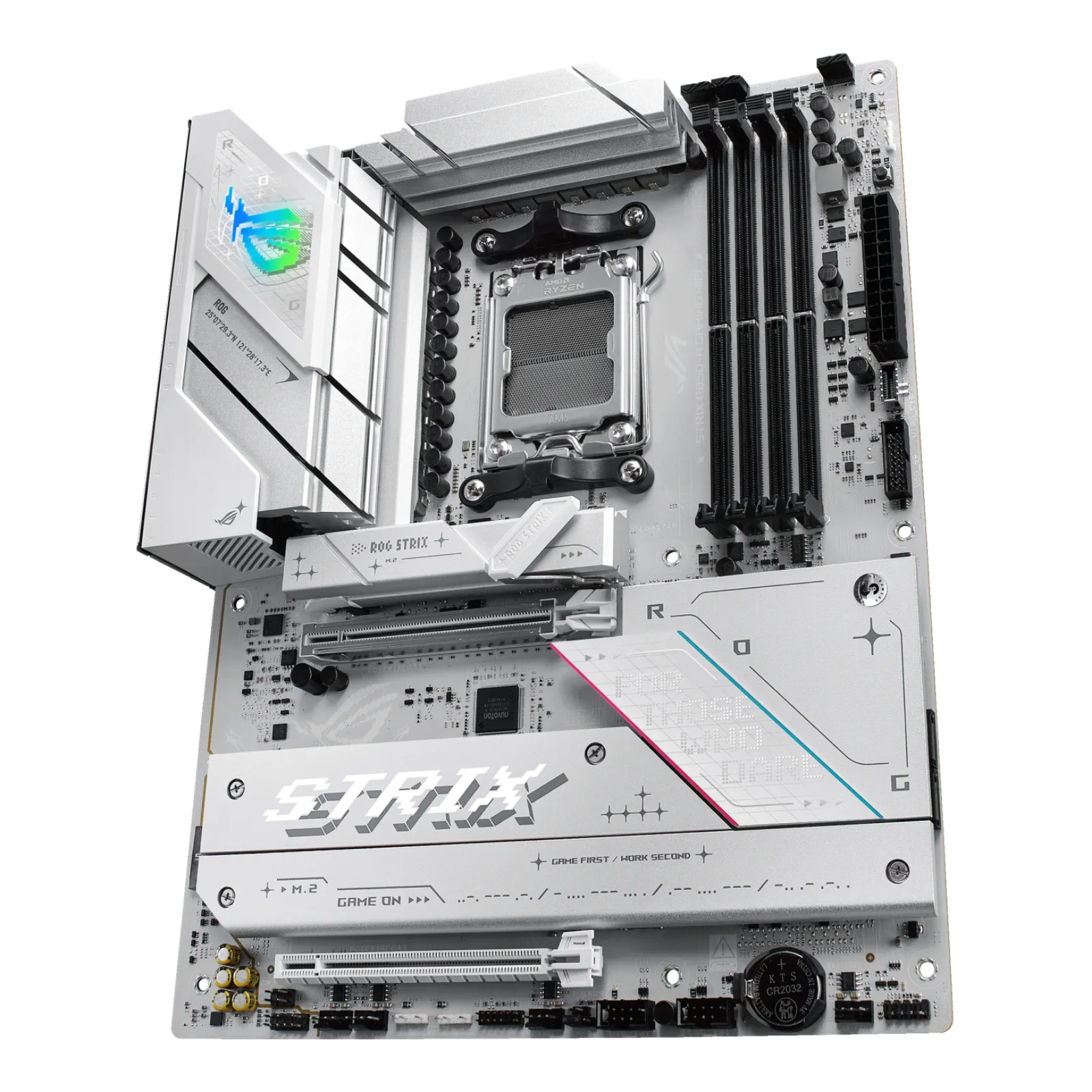

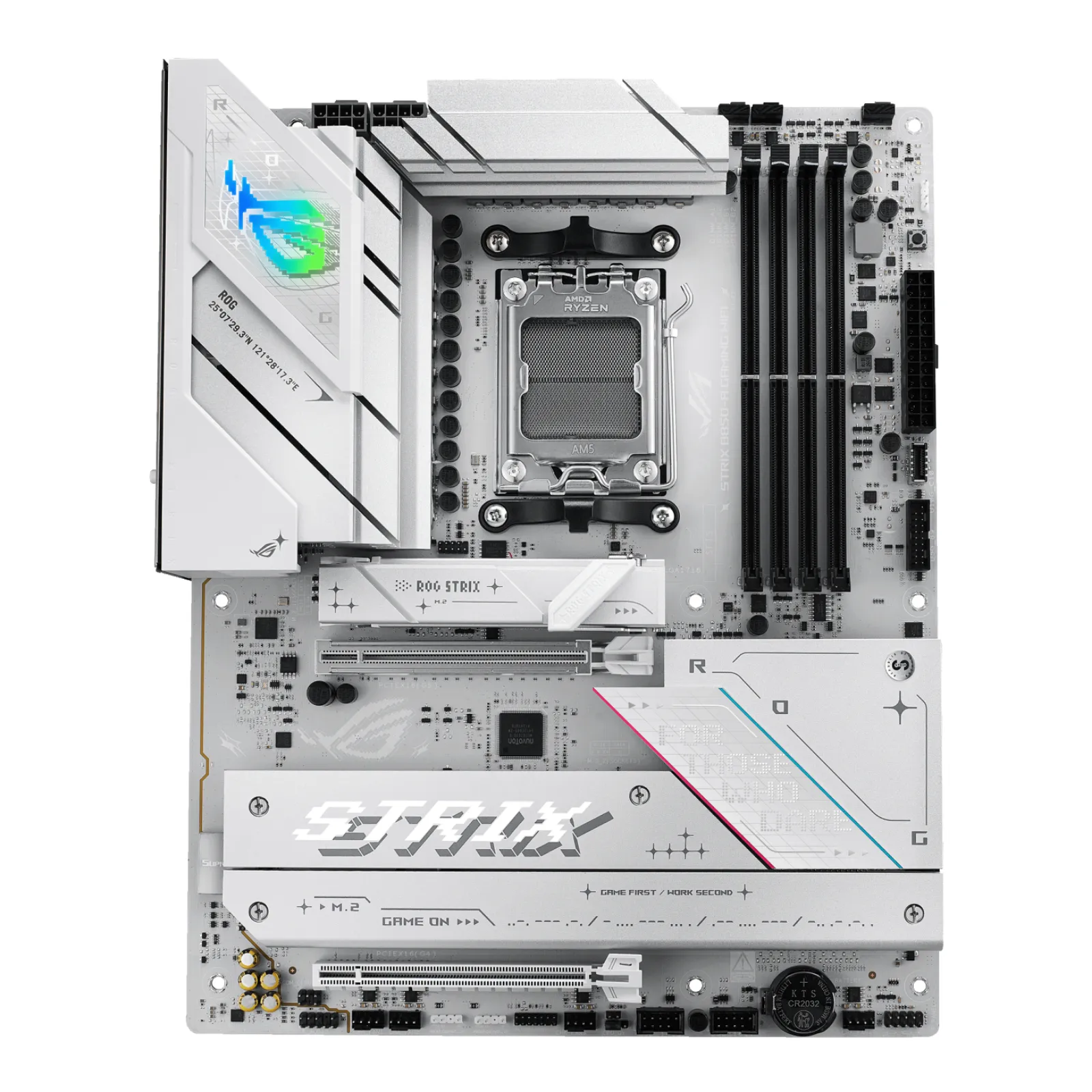

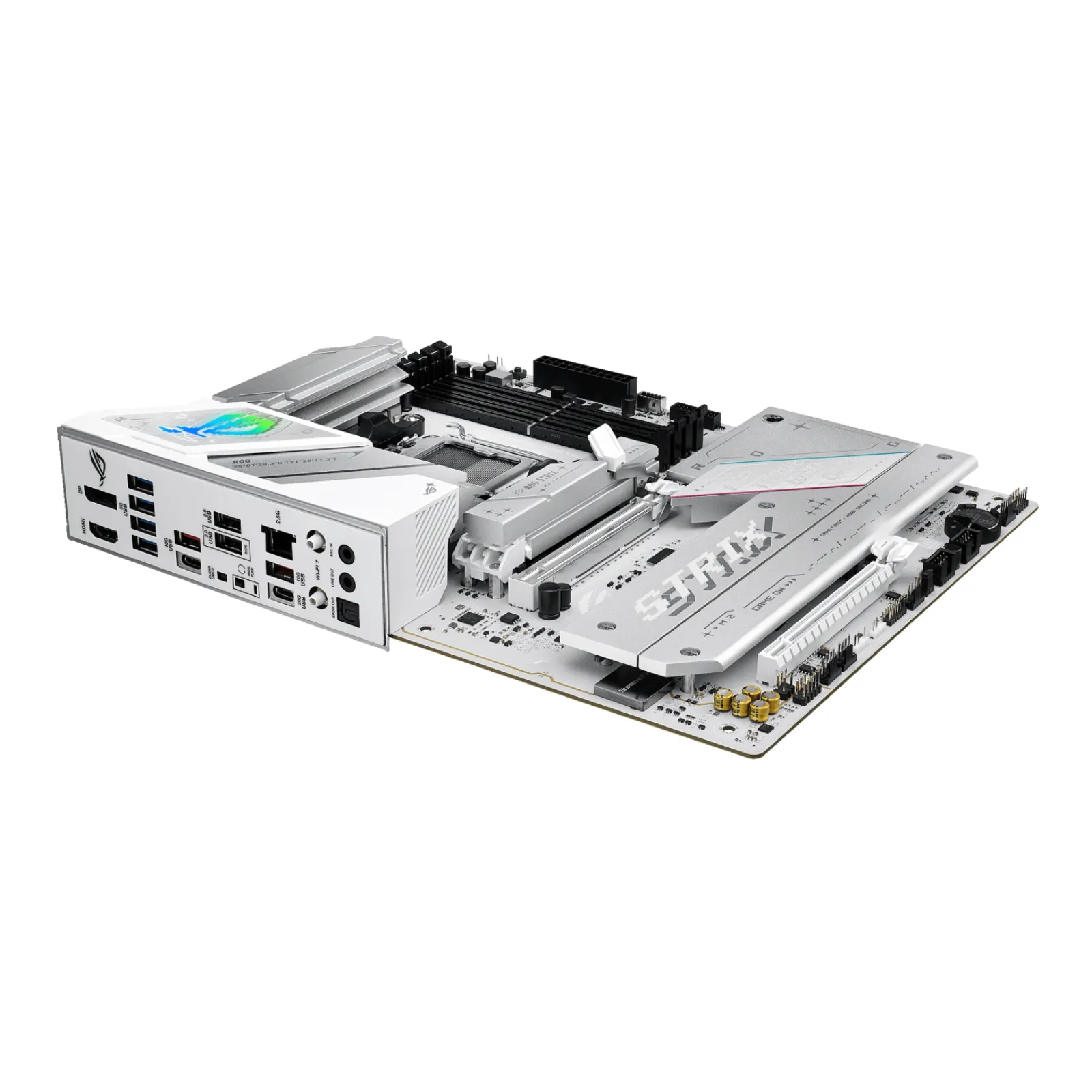

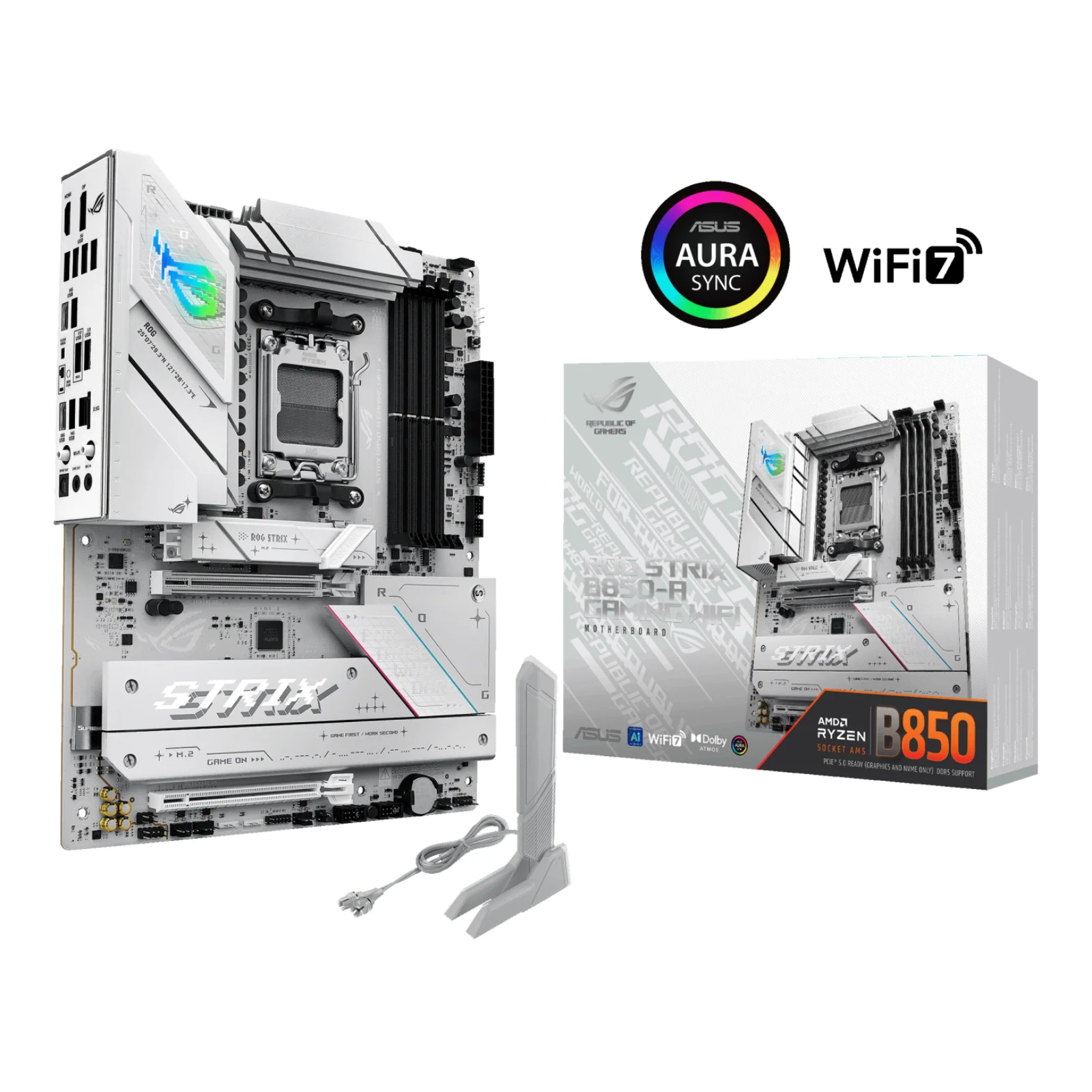

ASUS ROG STRIX B850-A GAMING WIFI – Scheda Madre ATX AM5 con PCIe 5.0, DDR5 8000+, WiFi 7, USB 20Gbps

0 Persone guardano adesso questo prodotto!

EAN: 4711387772676 COD: 90MB1J50-M0EAY0 Categoria: AM5 Tag: AM5, AMD B850, ATX, Aura Sync, Bianco, Bluetooth 5.4, DDR5, LAN 2.5G, PCIe 5.0, ROG Strix, Wi-Fi 7

Descrizione

ASUS ROG STRIX B850-A GAMING WIFI / 90MB1J50-M0EAY0 / 4711387772676

Progettata per gamer e creator che vogliono il massimo dalla piattaforma AMD, la ROG STRIX B850-A GAMING WIFI unisce potenza, connettività avanzata e un’estetica distintiva con PCB bianco e dissipatori coordinati.

Basata su chipset AMD B850, è pronta per costruire sistemi di nuova generazione ottimizzati per gaming, AI e produttività avanzata.

Compatibilità Processori AMD AM5

Socket AM5
Supporto AMD Ryzen™ serie 9000, 8000 e 7000
Supporto AMD EXPO™ per overclock memoria
Precision Boost Overdrive (PBO)

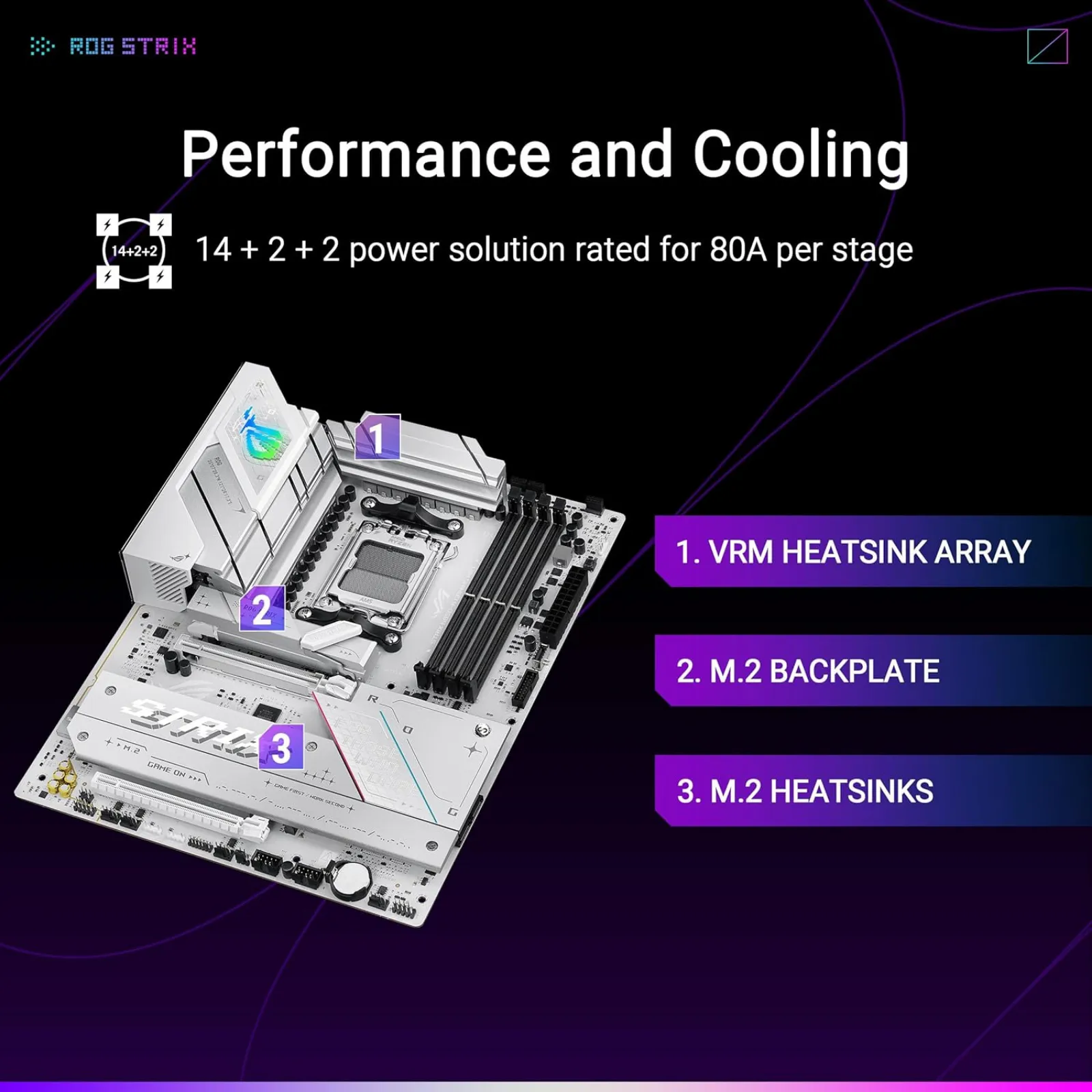

Alimentazione ROG STRIX Ultimate Power Design

Sistema VRM avanzato:

14 + 2 + 2 stadi di alimentazione
Fino a 80A per stadio
Connettori ProCool
2 x 8-pin CPU Power

Stabilità eccellente anche in overclock spinto.

Memoria DDR5 ad Alte Prestazioni

4 x DIMM DDR5
Fino a 256GB
Frequenze fino a 8000+ MT/s (OC)
Dual Channel
Supporto AEMP (ASUS Enhanced Memory Profile)

PCIe 5.0 e Storage Ultra Veloce

1 x PCIe 5.0 x16 (SafeSlot + Q-Release Slim)
1 x PCIe 4.0 x16 (x4)
4 x slot M.2:
- 1 x PCIe 5.0 x4
- 3 x PCIe 4.0 x4
2 x SATA 6Gb/s

Supporto RAID tramite AMD RAIDXpert2.

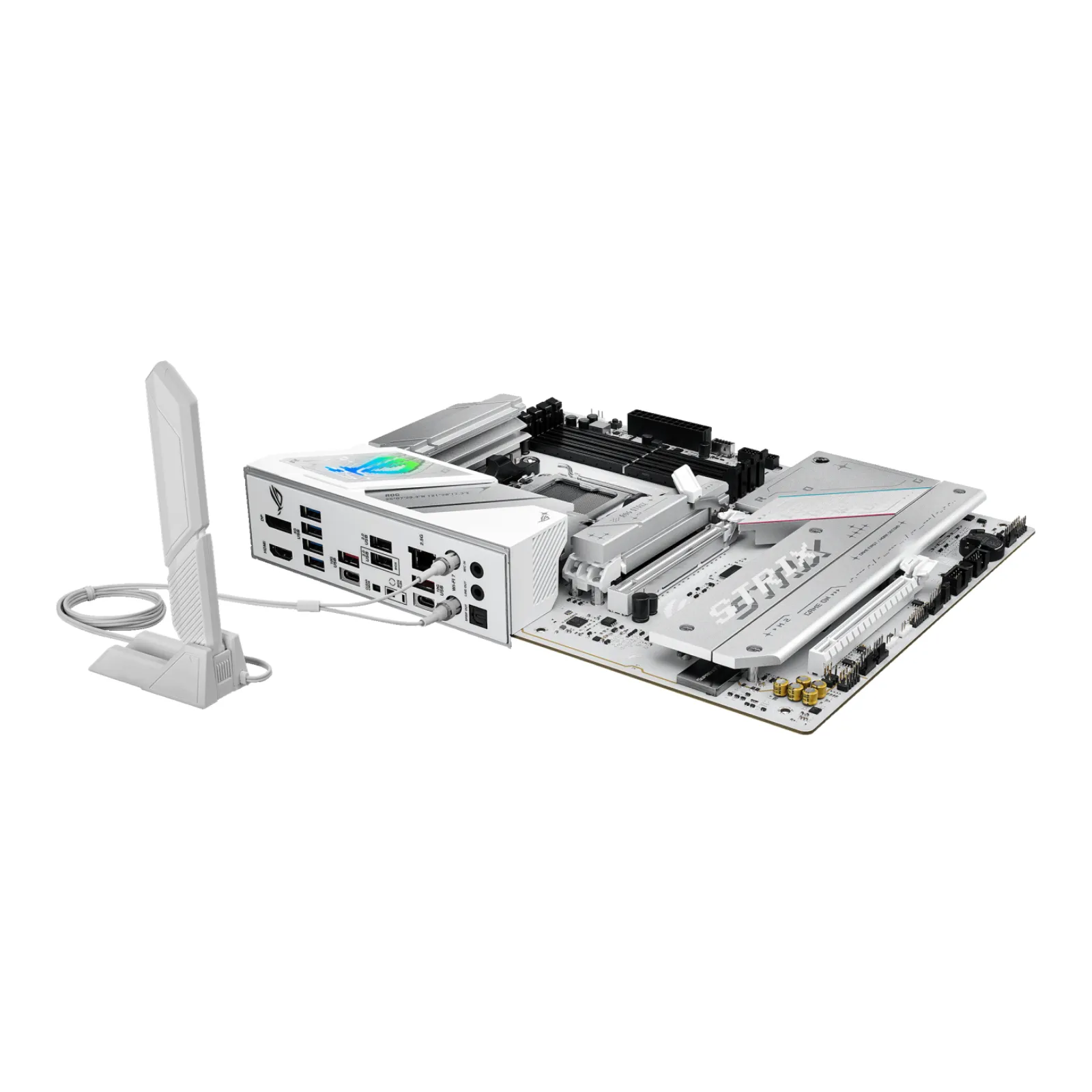

Connettività di Nuova Generazione

WiFi 7 (802.11be)

2×2 Tri-band (2.4 / 5 / 6 GHz)
Fino a 160MHz
Fino a 2.9Gbps

Intel® 2.5Gb Ethernet

USB Totali: 17 porte

Posteriori:

1 x USB 20Gbps Type-C
3 x USB 10Gbps
4 x USB 5Gbps
2 x USB 2.0

Frontali:

USB Type-C 10Gbps
USB 5Gbps
USB 2.0

Audio SupremeFX 7.1

Codec ALC4080
120 dB SNR playback
110 dB SNR recording
Savitech AMP
Uscita ottica S/PDIF
Supporto Dolby Atmos

Qualità audio premium per gaming immersivo.

Raffreddamento e Controllo Totale

Dissipatori VRM
Dissipatori M.2 con backplate
Header ventole CPU, AIO e chassis
Sensore termico dedicato
Fan Xpert 4

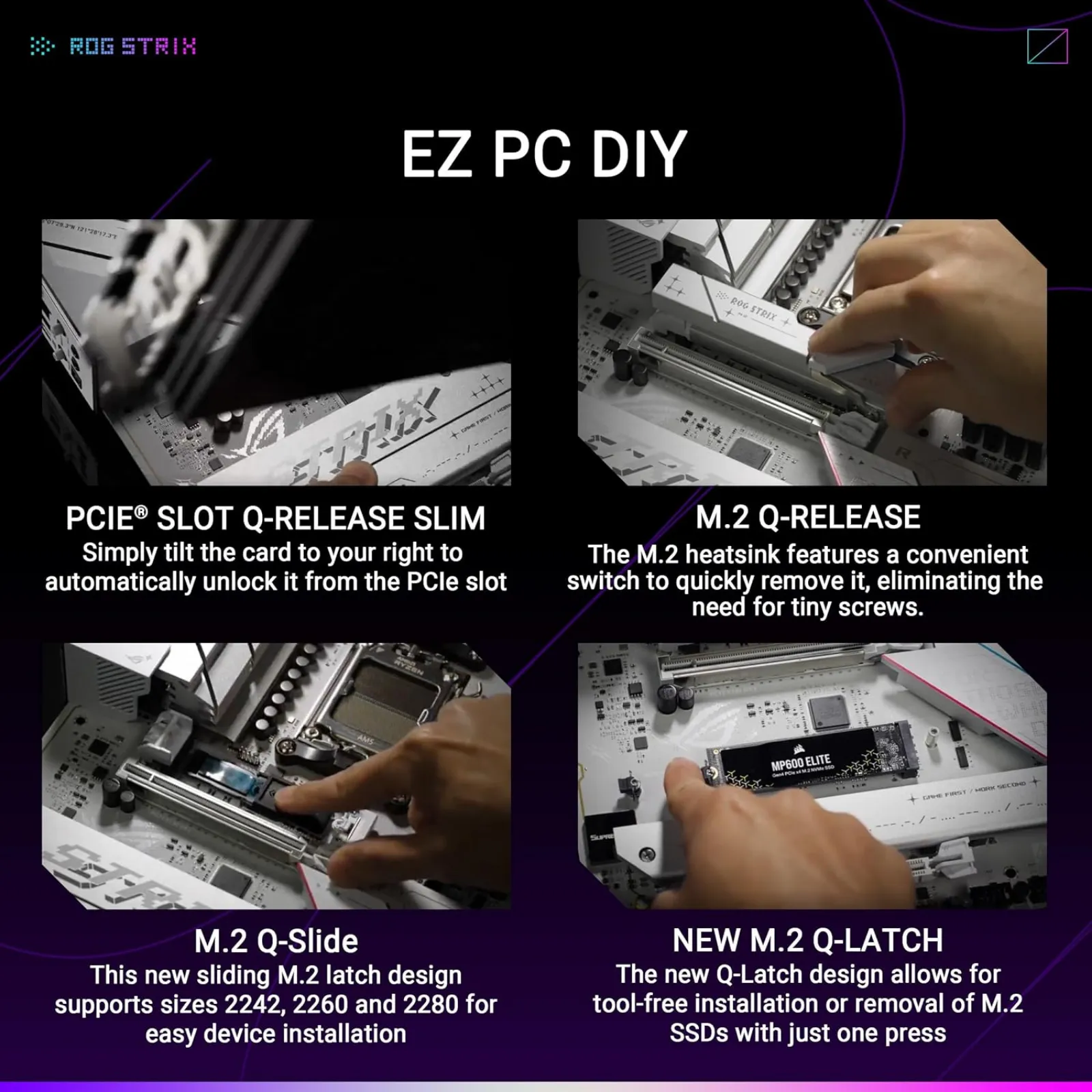

Funzionalità DIY Avanzate

M.2 Q-Latch / Q-Release / Q-Slide
PCIe Slot Q-Release Slim
Q-LED diagnostica
BIOS FlashBack™
Clear CMOS
Pre-mounted I/O Shield

Assemblaggio semplice e manutenzione facilitata.

Software e AI Integrata

ASUS AI Advisor
AI Networking II
Armoury Crate
AIDA64 Extreme (60 giorni)
ASUS DriverHub
TurboV Core
ASUS GlideX

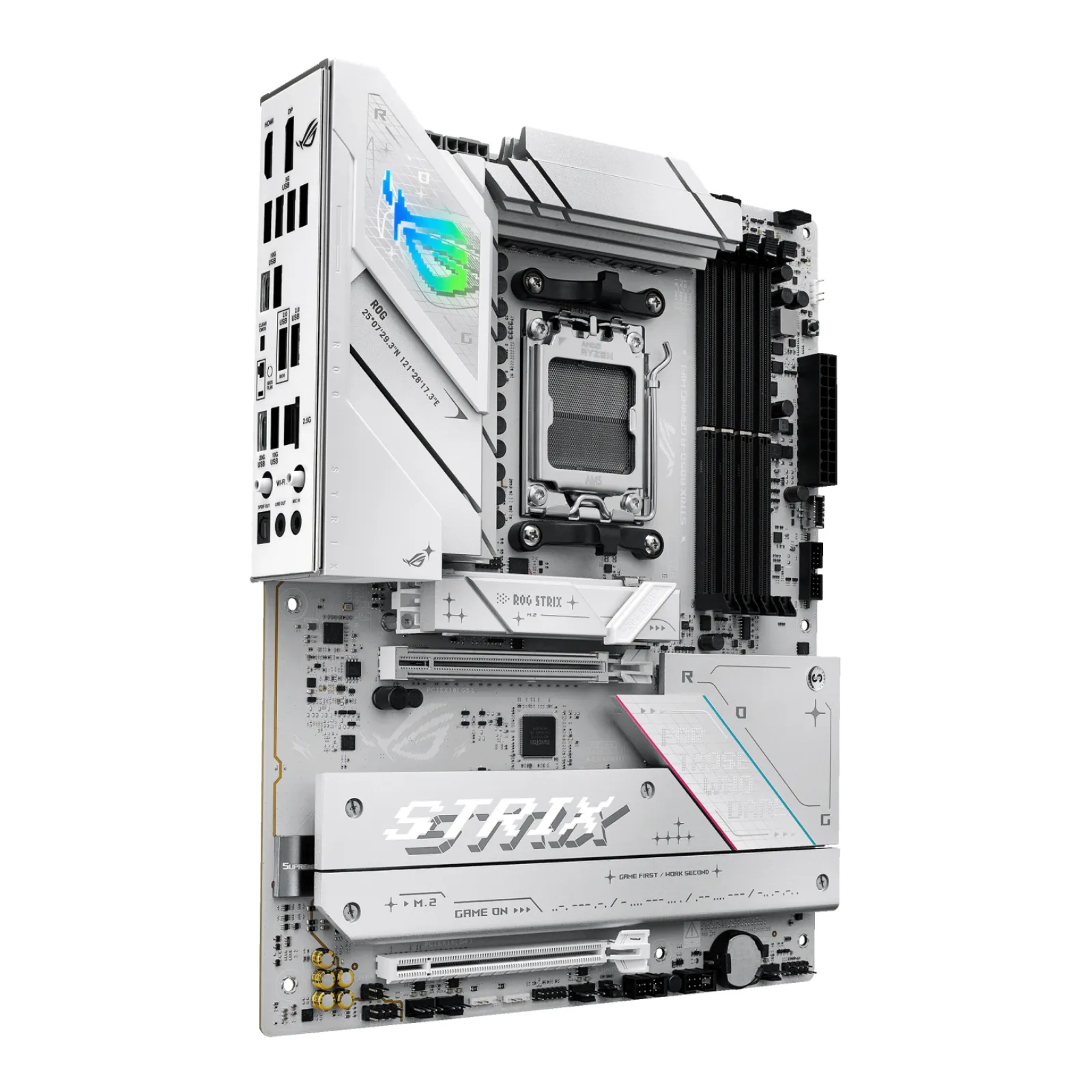

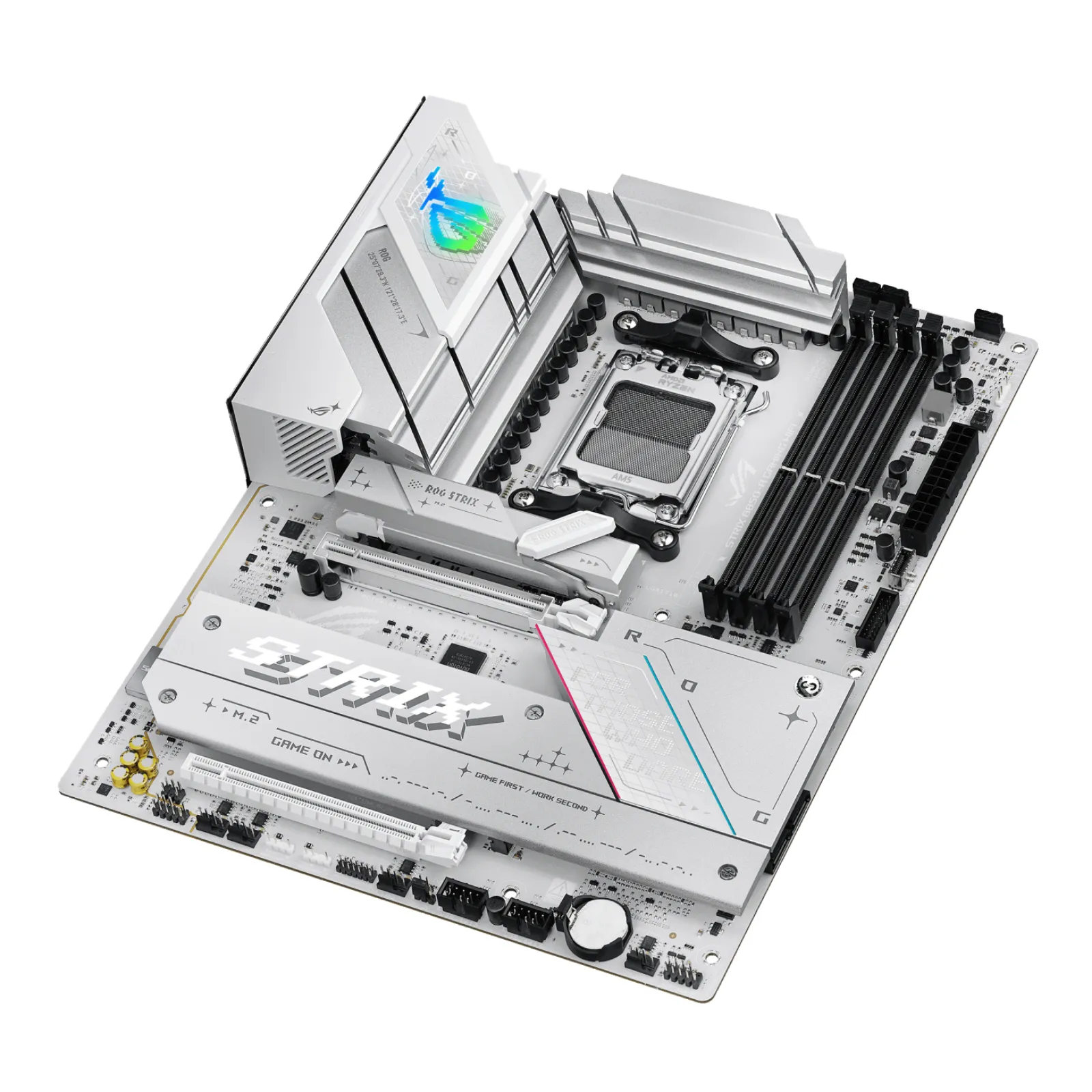

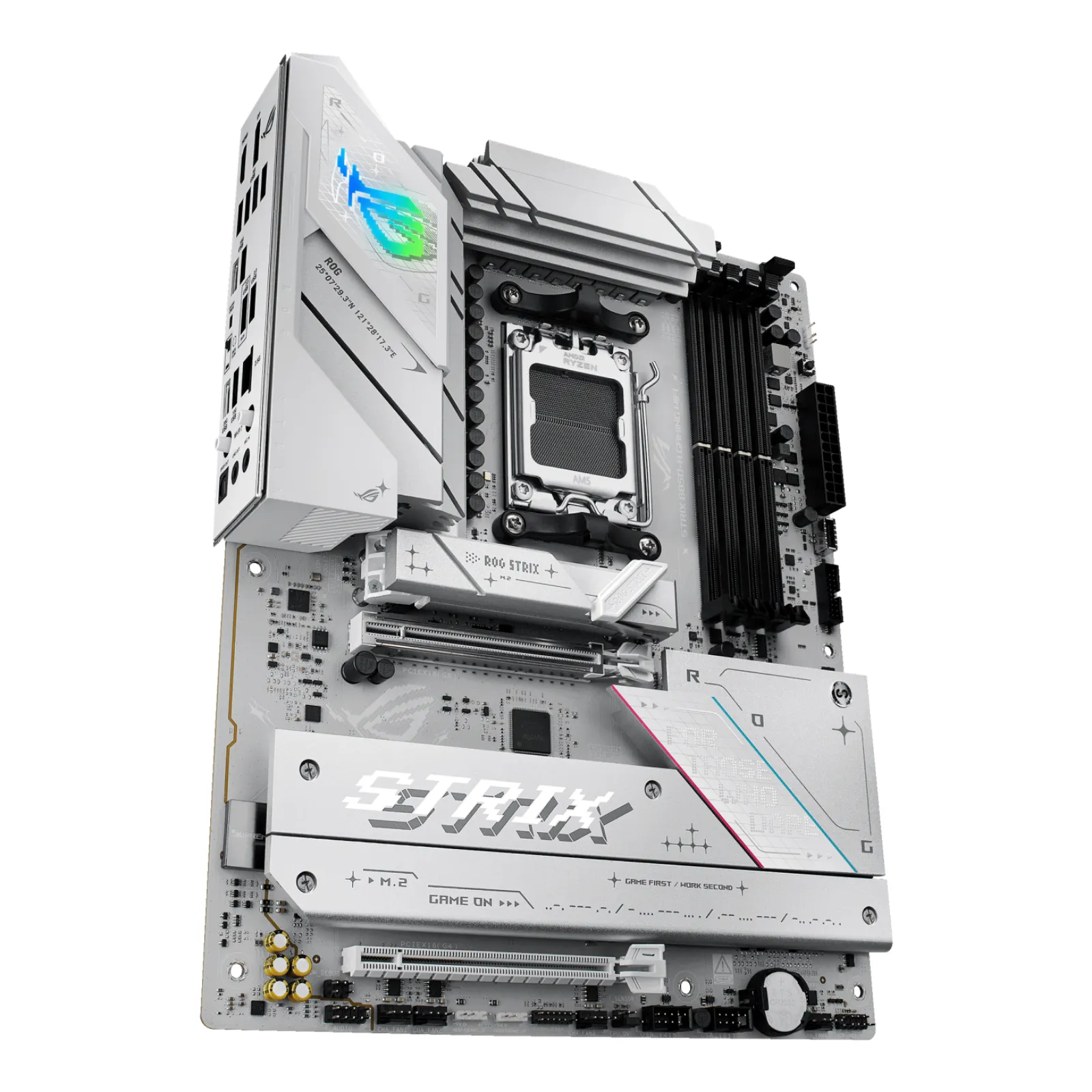

Design ROG Strix

PCB bianco premium
Dissipatori metallici coordinati
Illuminazione RGB Aura Sync
Header Addressable Gen 2

Perfetta per build bianche o RGB personalizzate.

❓ FAQ – Domande Frequenti

È compatibile con Ryzen 9000?
Sì, supporta Ryzen serie 9000, 8000 e 7000 con socket AM5.

Supporta PCIe 5.0 per GPU e SSD?
Sì, dispone di slot PCIe 5.0 x16 e M.2 PCIe 5.0.

Quanta RAM supporta?
Fino a 256GB DDR5.

Ha WiFi integrato?
Sì, WiFi 7 tri-band con Bluetooth 5.4.

È adatta per overclock?
Sì, grazie al VRM 14+2+2 da 80A e supporto PBO.

Informazioni aggiuntive

Peso	1,59 kg
Dimensioni	30,5 × 24,4 × 3 cm
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD B850 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort* 1 x HDMI™ port** – Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. * Supports max. 8K@30Hz as specified in DisplayPort 1.4 Supports 4K@60Hz as specified in HDMI 2.1 * VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)* AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)** * Specifications vary by CPU types. ** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3 – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports – AMD Ryzen™ 7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0×4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0×4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)* – AMD B850 Chipset M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)** M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4) 2 x SATA 6Gb/s ports * Specifications vary by CPU types. ** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled. – AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10
Ethernet	1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4* – Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 10 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) – Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

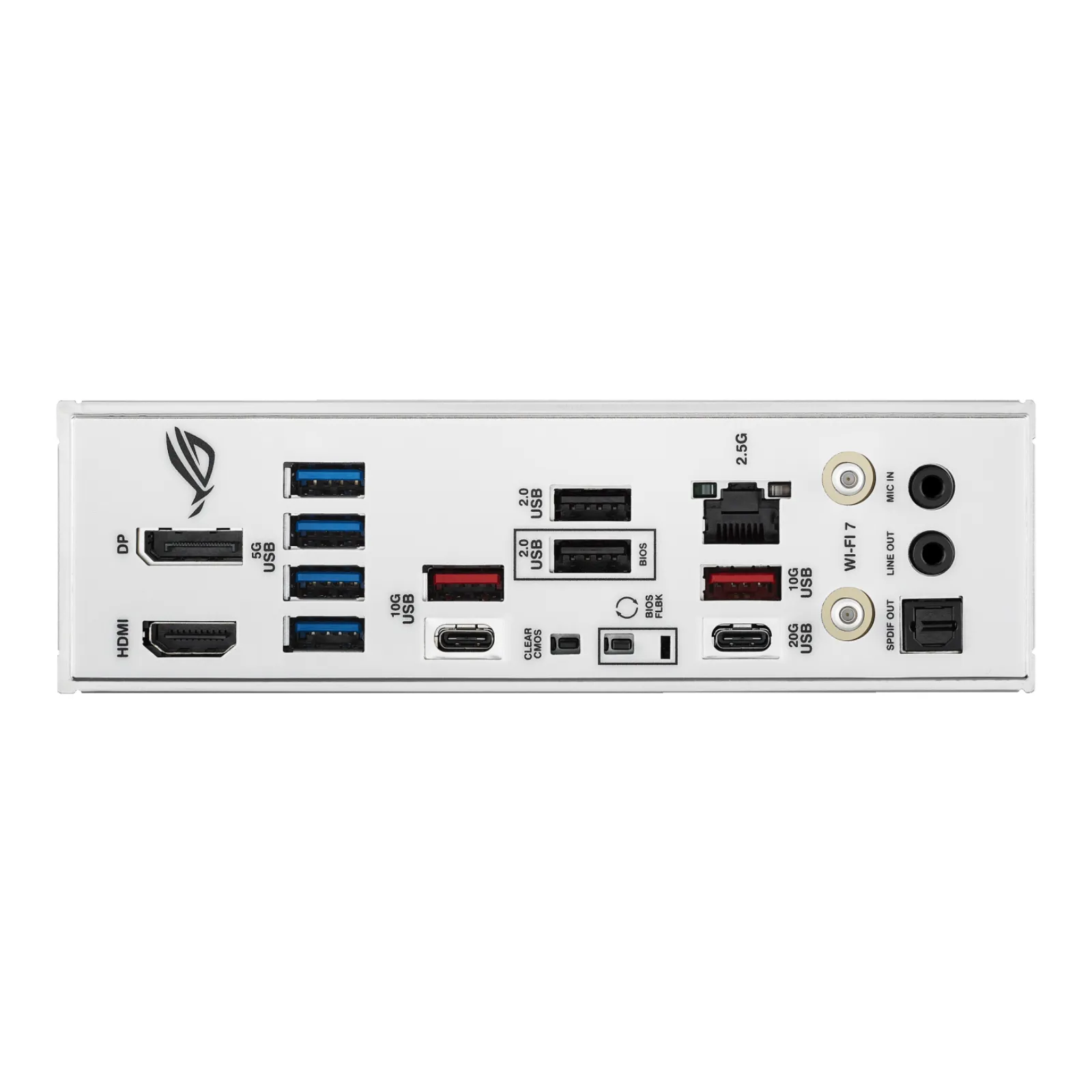

Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Power button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header
Special Features	Extreme Engine Digi+ – 5K Black metallic capacitors ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – PCIe Slot Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – ProCool – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Addressable Gen 2 headers
Software Features	ROG Exclusive Software – ROG CPU-Z – Dolby Atmos ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – Aura Creator – Aura Sync – Fan Xpert 4 – GameFirst – HWiNFO – Power Saving ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

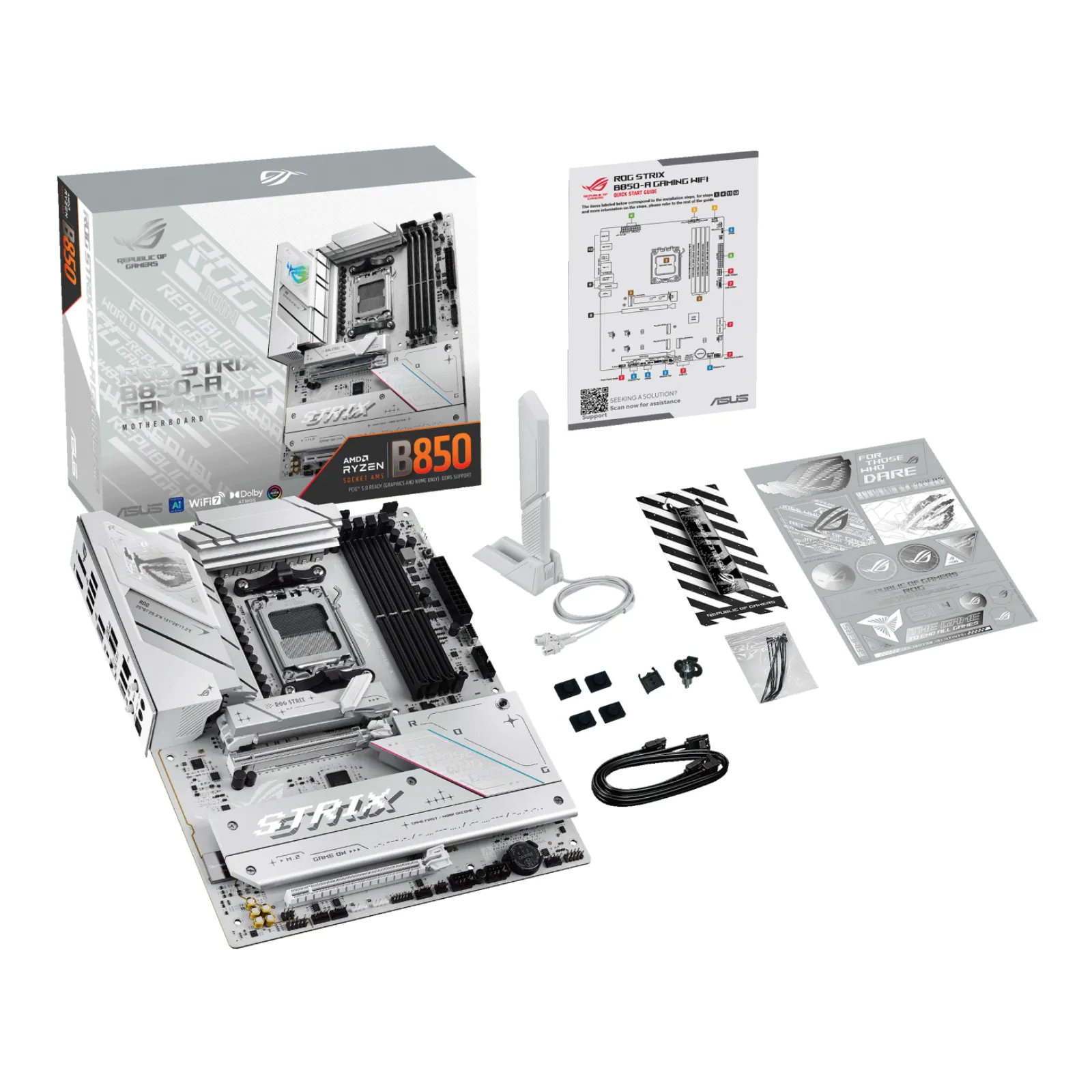

Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubbers Documentation 1 x Quick start guide
Operating System	Windows 11
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
