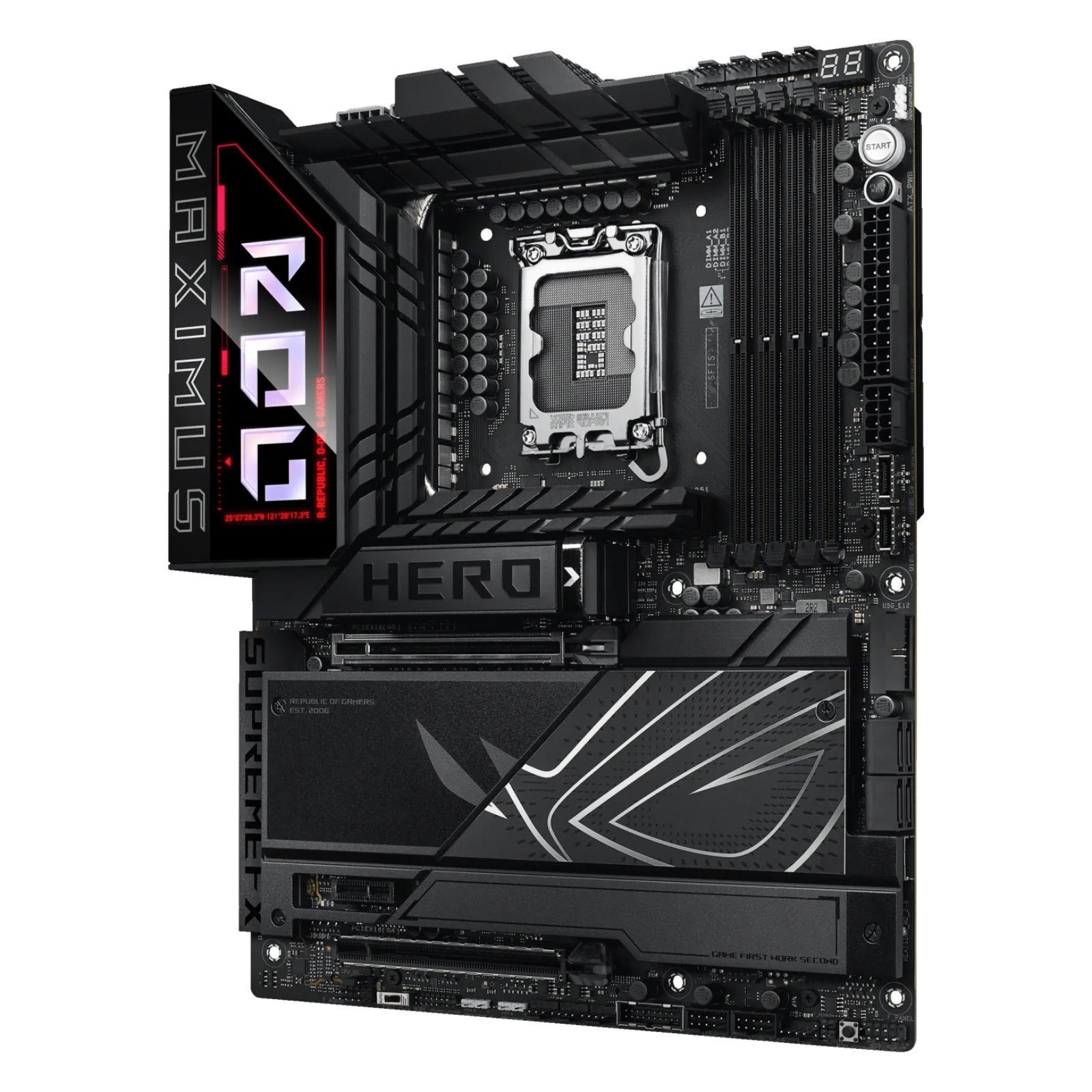

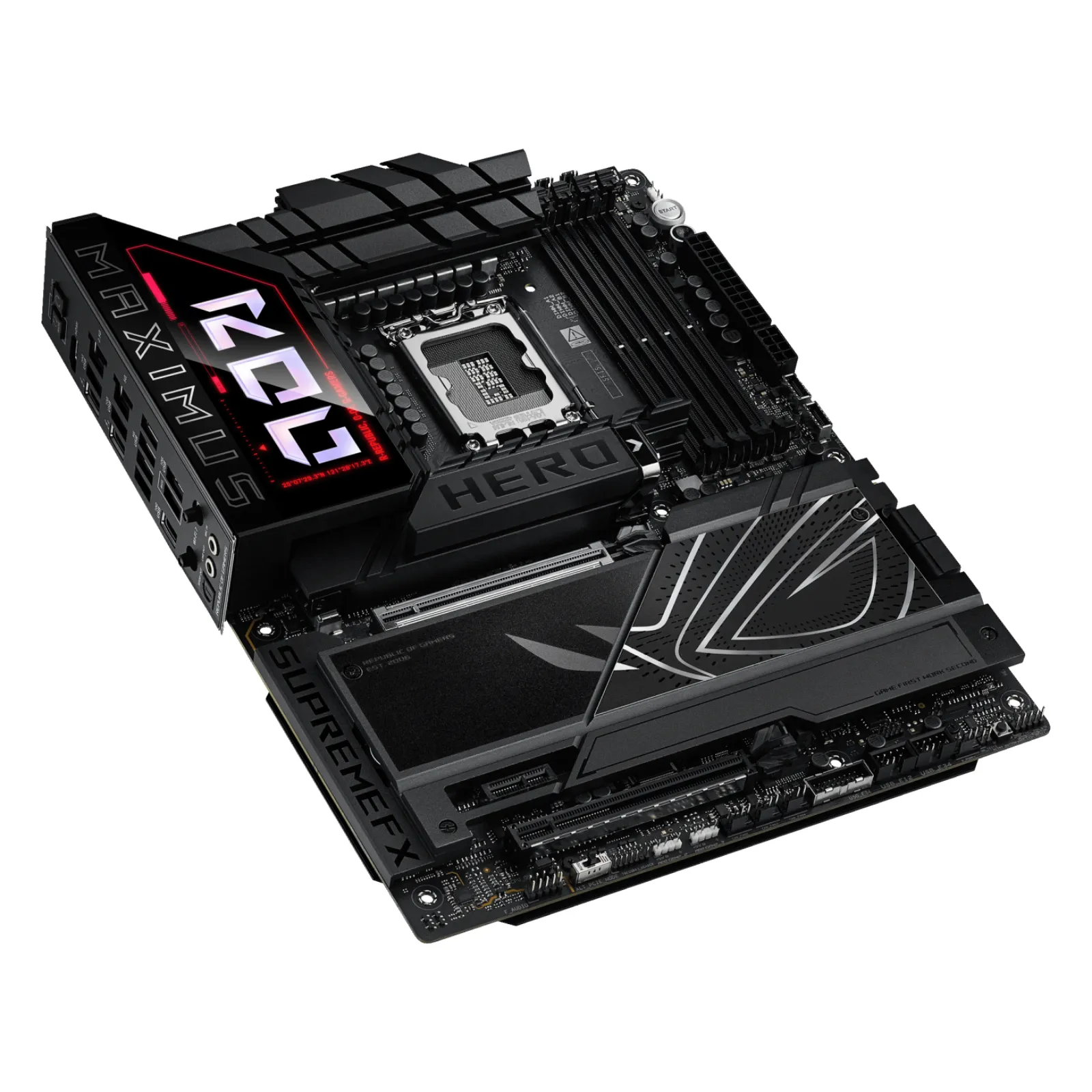

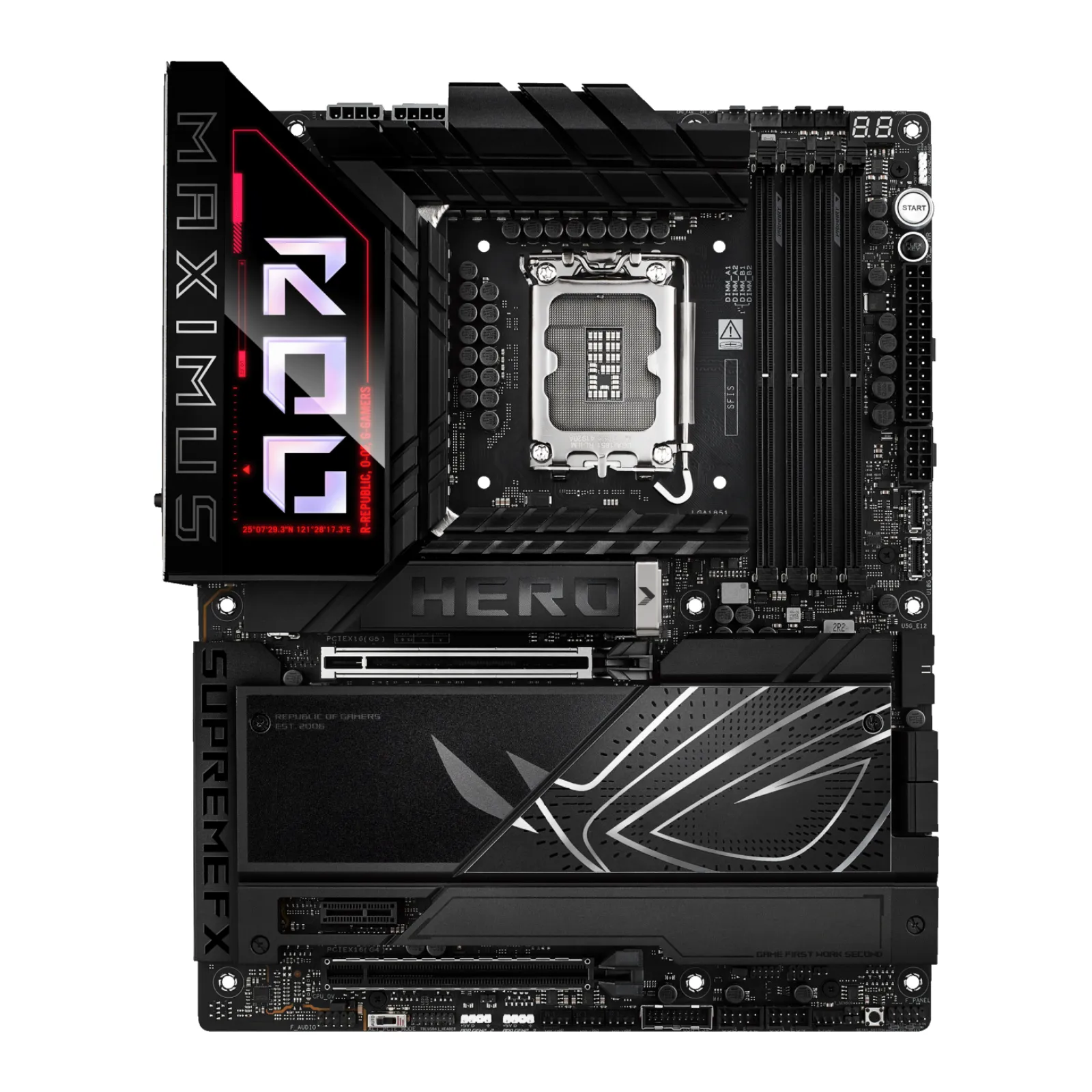

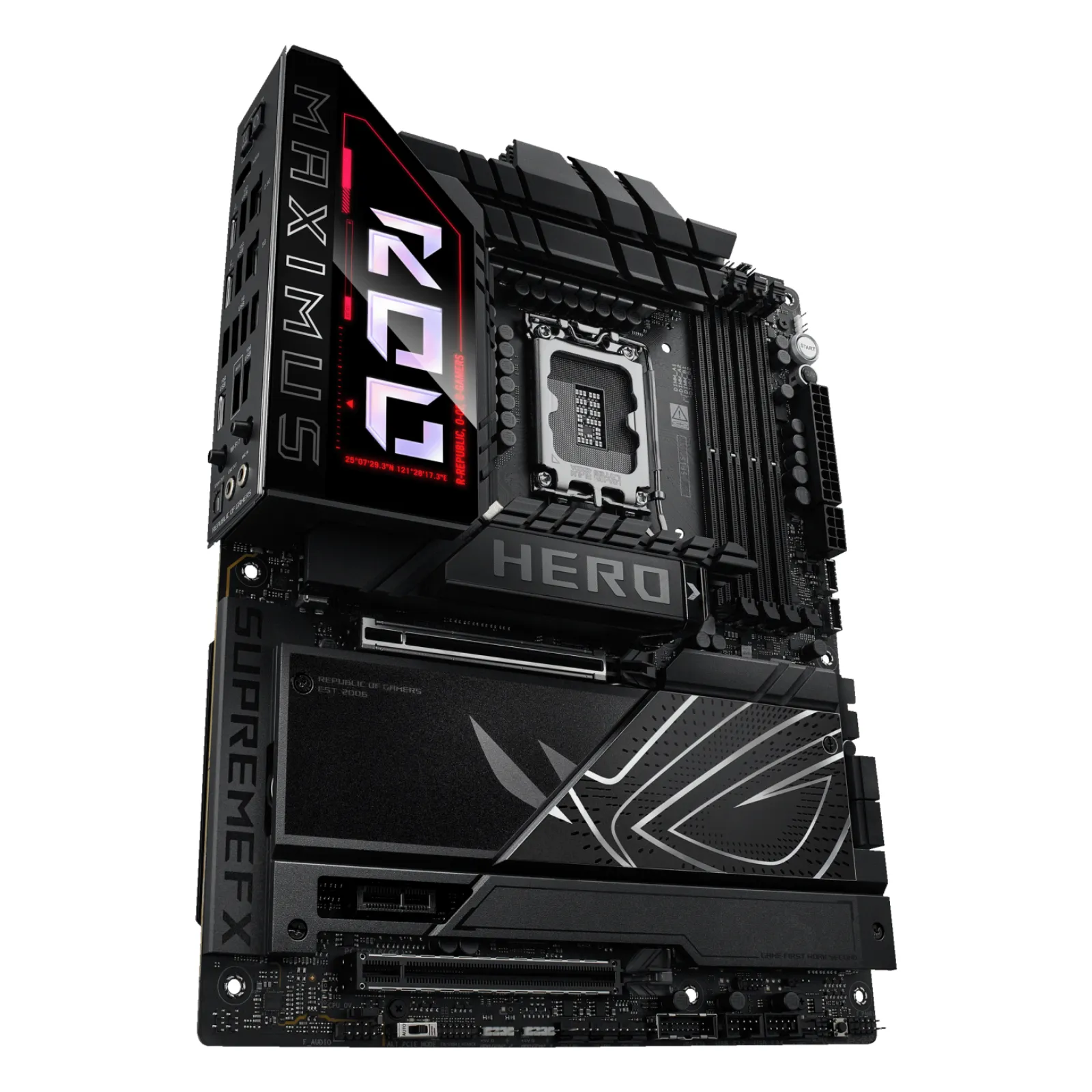

ASUS ROG MAXIMUS Z890 HERO – Scheda Madre ATX LGA1851 DDR5 PCIe 5.0 WiFi 7 Thunderbolt 4 per Gaming e Overclock [Pre-Ordine]

0 Persone guardano adesso questo prodotto!

EAN: 4711387747223 COD: 90MB1ID0-M0EAY0 Categorie: LGA 1851, ROG Z890 Promo

Descrizione

ASUS ROG MAXIMUS Z890 HERO / 90MB1ID0-M0EAY0 / 4711387747223

Prestazioni premium per piattaforma Intel di nuova generazione

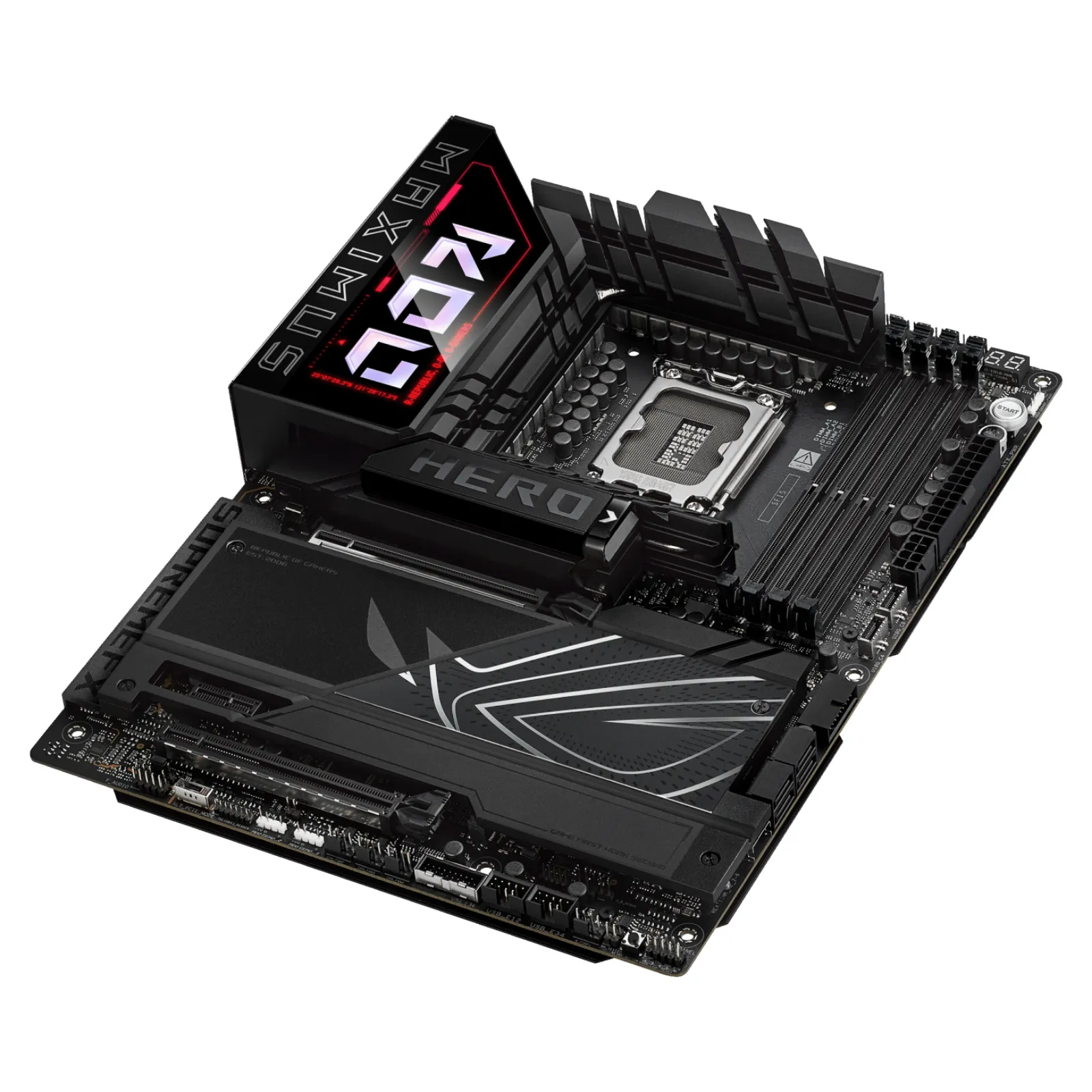

La ASUS ROG Maximus Z890 Hero è una scheda madre high-end progettata per chi vuole realizzare un PC gaming o workstation di fascia enthusiast senza compromessi. Basata su chipset Intel Z890 e socket LGA1851, è pensata per i processori Intel Core Ultra Series 2, con una dotazione tecnica evoluta che combina potenza, connettività avanzata, funzioni AI e un design ROG distintivo con illuminazione Polymo Lighting II.

Potenza stabile per CPU di fascia alta e overclock

La sezione di alimentazione è progettata per sostenere senza difficoltà processori ad alte prestazioni e scenari di tuning avanzato. La motherboard integra una soluzione VRM con 22+1+2+2 stadi di potenza, connettori Dual ProCool II e componenti premium pensati per garantire erogazione stabile, efficienza e precisione anche sotto carico elevato.

Questo si traduce in:

maggiore stabilità del sistema
supporto ottimale all’overclock
alimentazione affidabile per CPU e memoria DDR5

È una scheda madre pensata per utenti esigenti che vogliono prestazioni elevate nel lungo periodo.

Supporto DDR5 ad alta velocità fino a 256GB

La ROG Maximus Z890 Hero dispone di 4 slot DIMM DDR5 e supporta fino a 256GB di memoria, con frequenze fino a 8800+ MT/s in overclock. La piattaforma è ottimizzata per ottenere prestazioni elevate in gaming, multitasking, produttività avanzata e applicazioni intensive.

Le tecnologie ASUS dedicate alla memoria includono:

NitroPath DRAM Technology
DIMM Fit
DIMM Flex
AEMP III
supporto XMP
compatibilità con moduli CUDIMM

Queste soluzioni migliorano compatibilità, stabilità e margine di overclock, offrendo una gestione avanzata della memoria DDR5.

PCIe 5.0 e storage NVMe ultraveloce

La scheda madre offre una piattaforma moderna e versatile anche per grafica e archiviazione. È presente:

1 slot PCIe 5.0 x16 SafeSlot
1 slot PCIe 4.0 x16
1 slot PCIe 4.0 x1

Per lo storage, la dotazione è particolarmente ricca:

6 slot M.2
4 porte SATA 6Gb/s
1 connettore SlimSAS

Gli slot M.2 comprendono sia supporto PCIe 5.0 x4 sia PCIe 4.0 x4, permettendo di creare una configurazione storage estremamente veloce per sistema operativo, librerie giochi, editing video, gestione file pesanti e workflow professionali. La tecnologia ROG M.2 PowerBoost aiuta inoltre a mantenere prestazioni ottimali su tutti gli SSD M.2 onboard.

WiFi 7 e doppia LAN per rete ad alte prestazioni

La connettività di rete della ASUS ROG Maximus Z890 Hero è di livello premium. Include:

WiFi 7
supporto banda 2.4 / 5 / 6 GHz
canale 320 MHz
velocità fino a 5.8Gbps
Bluetooth 5.4
Intel 2.5Gb Ethernet
Realtek 5Gb Ethernet

Questa combinazione rende la scheda ideale per gaming online competitivo, streaming, cloud workflow, trasferimenti veloci e configurazioni di rete avanzate. Con AI Networking II, la rete viene inoltre ottimizzata in modo intelligente per migliorare stabilità e priorità del traffico.

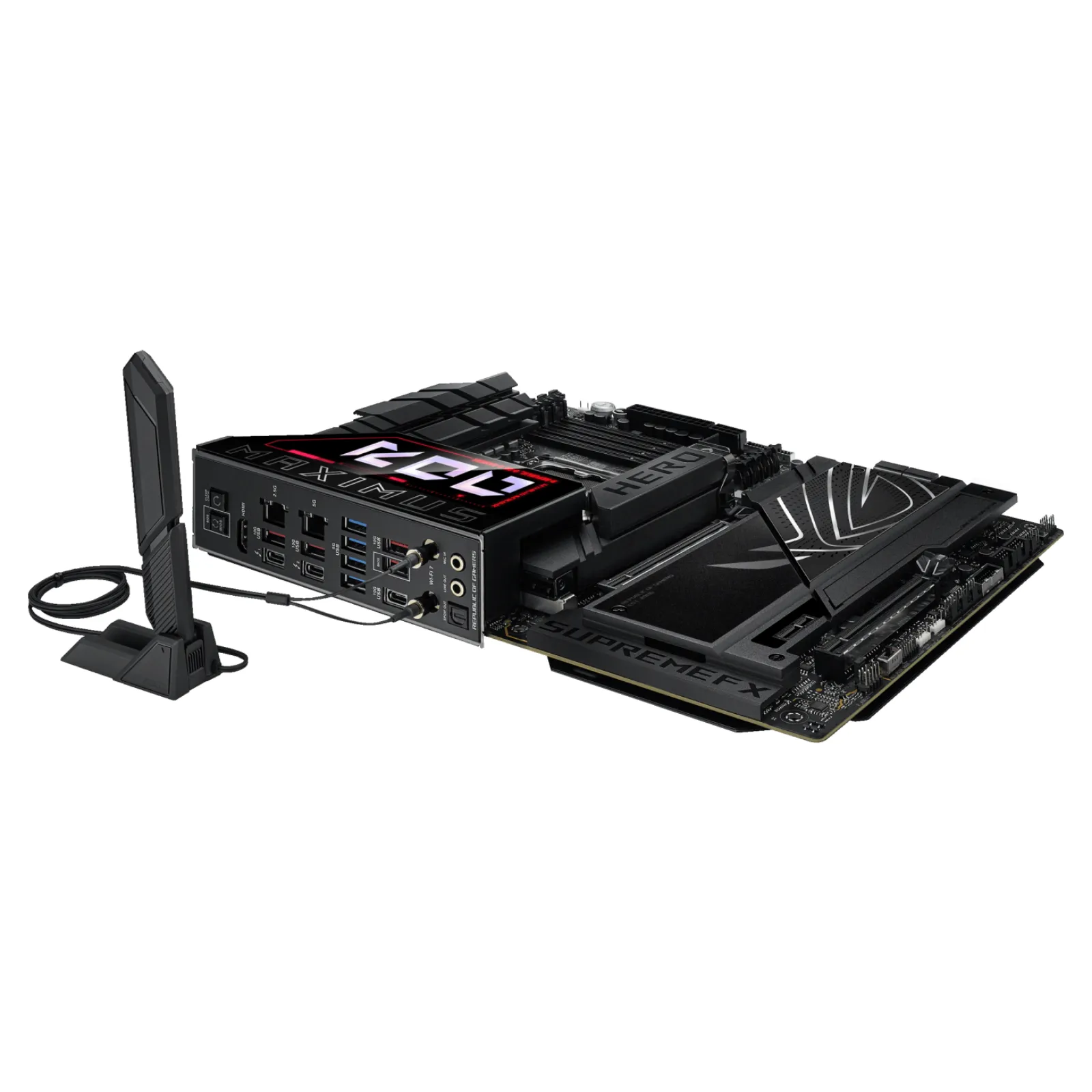

Thunderbolt 4 e connettività USB evoluta

La sezione I/O è estremamente completa e pensata per periferiche moderne, storage esterno ad alta velocità e sistemi premium. Sul pannello posteriore trovi:

2 porte Thunderbolt 4 USB Type-C
5 porte USB 10Gbps
4 porte USB 5Gbps
1 porta HDMI

Sul pannello frontale sono disponibili:

1 connettore USB 20Gbps Type-C
1 connettore USB 10Gbps Type-C
header USB aggiuntivi per porte frontali supplementari

È presente anche il supporto Quick Charge 4+ fino a 60W sulla USB-C frontale compatibile, utile per ricaricare rapidamente dispositivi compatibili.

Audio SupremeFX per un’esperienza più immersiva

Anche il comparto audio è di fascia alta. La Z890 Hero integra:

ROG SupremeFX 7.1
codec ALC4082
ESS ES9219 QUAD DAC
jack audio placcati oro
uscita ottica S/PDIF
condensatori premium

Questa configurazione assicura un audio dettagliato, potente e pulito, perfetto per gaming immersivo, contenuti multimediali e utilizzo con cuffie di qualità.

Funzioni AI ASUS per ottimizzazione smart

La scheda madre integra le principali tecnologie ASUS per l’ottimizzazione intelligente del sistema:

AI Overclocking
AI Cooling II
AI Networking II
ASUS AI Advisor
NPU Boost

Queste funzioni semplificano il tuning del PC, permettono di bilanciare meglio temperature e rumorosità, migliorano la rete e aiutano a sfruttare in modo più efficace la NPU integrata nei processori Intel Core Ultra.

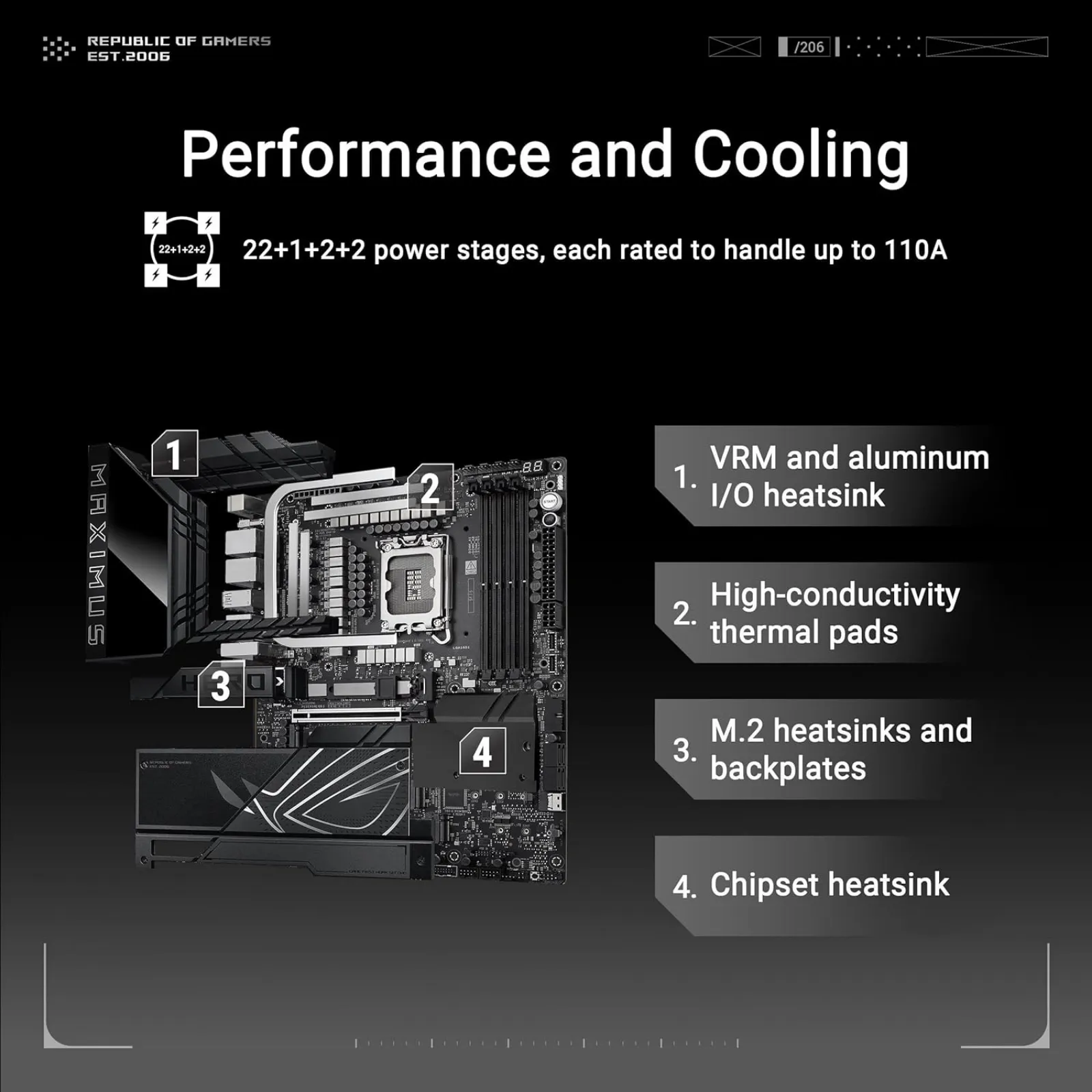

Raffreddamento avanzato e gestione termica

La ASUS ROG Maximus Z890 Hero è pensata per mantenere temperature stabili anche in build potenti. Include:

dissipatori M.2 dedicati
backplate per M.2
dissipatori VRM maggiorati

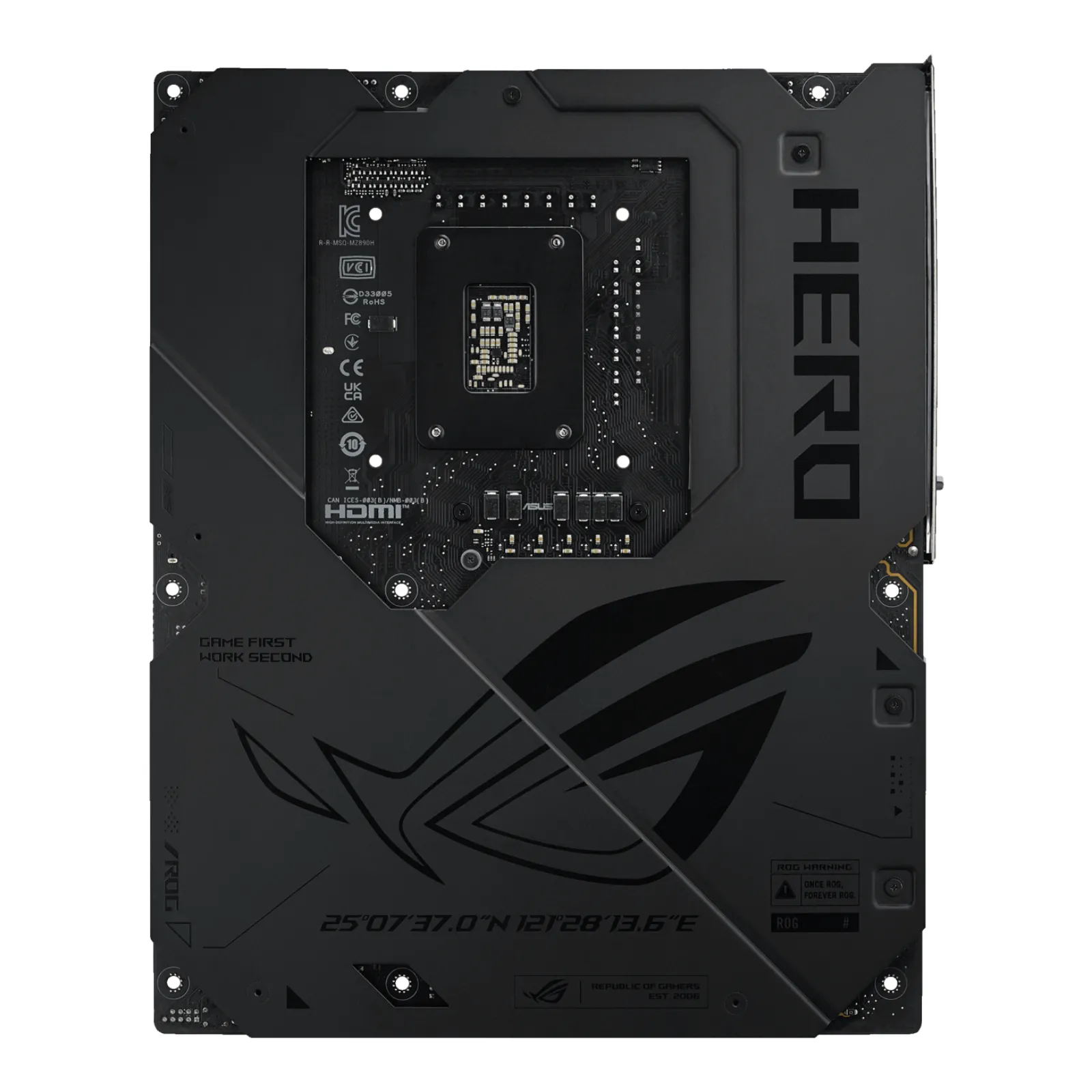

backplate metallico
header ventole multipli
header AIO Pump
header W_PUMP+
supporto sensore termico

Questa dotazione permette di realizzare build con raffreddamento ad aria o a liquido molto evolute, con un controllo accurato del sistema tramite BIOS e software ASUS.

Design ROG con Polymo Lighting II

Dal punto di vista estetico, la Z890 Hero mantiene il DNA Republic of Gamers con linee aggressive, finiture premium e l’illuminazione Polymo Lighting II attorno al logo ROG. È una motherboard che si adatta perfettamente a build high-end con finestra laterale, offrendo un look distintivo e moderno.

Grazie al supporto Aura Sync e agli header ARGB Gen 2, è possibile sincronizzare facilmente l’illuminazione con ventole, strisce LED, dissipatori, case e altri componenti compatibili.

Assemblaggio semplice con ASUS Q-Design

ASUS ha inserito numerose funzioni per semplificare installazione, upgrade e manutenzione:

M.2 Q-Latch
M.2 Q-Release
M.2 Q-Slide
Q-Release Slim
Q-Antenna
Q-Code
Q-Connector
Q-Dashboard
Q-LED
BIOS FlashBack
Clear CMOS
I/O shield preinstallato

Queste soluzioni rendono la build più semplice, ordinata e veloce, specialmente per chi assembla spesso sistemi di fascia alta.

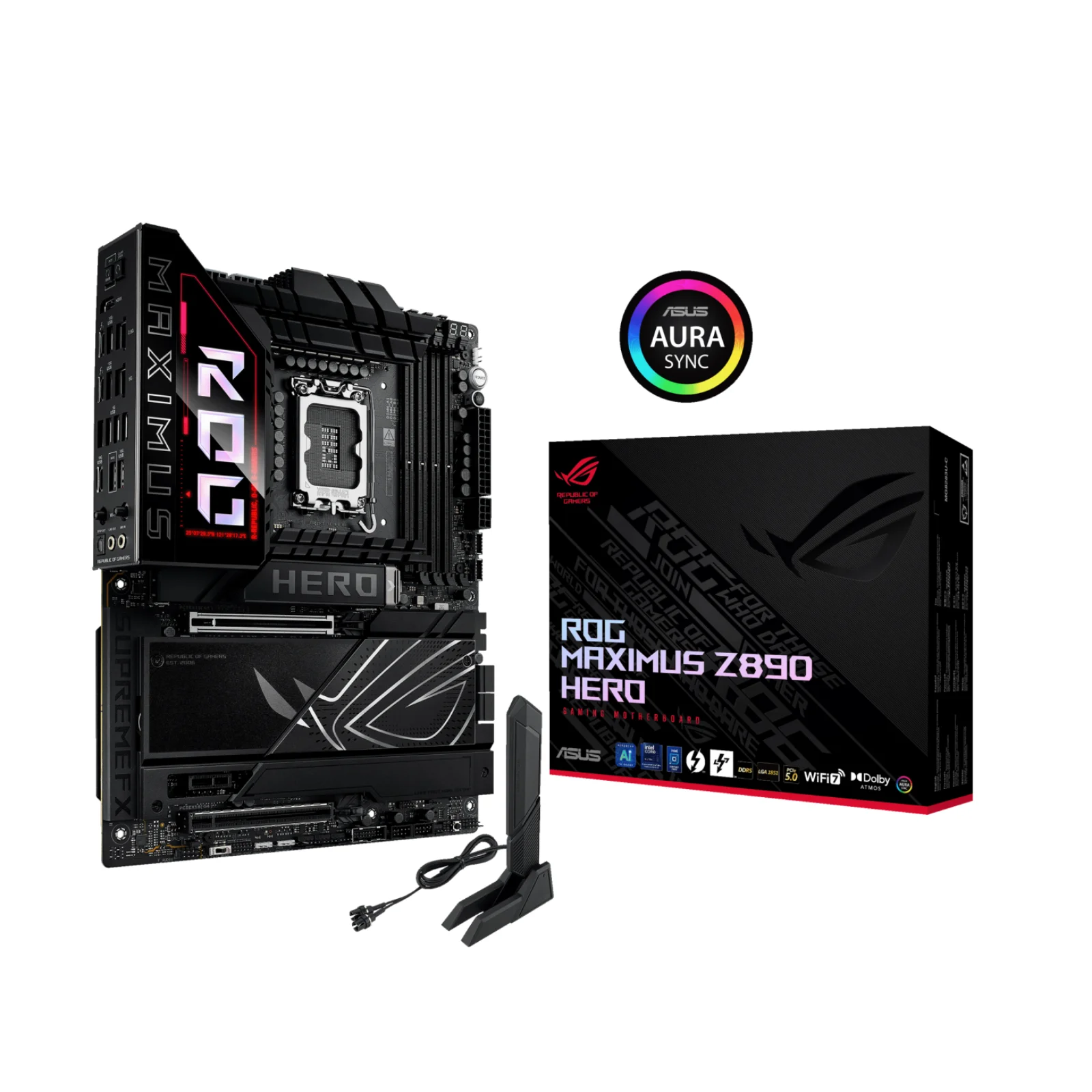

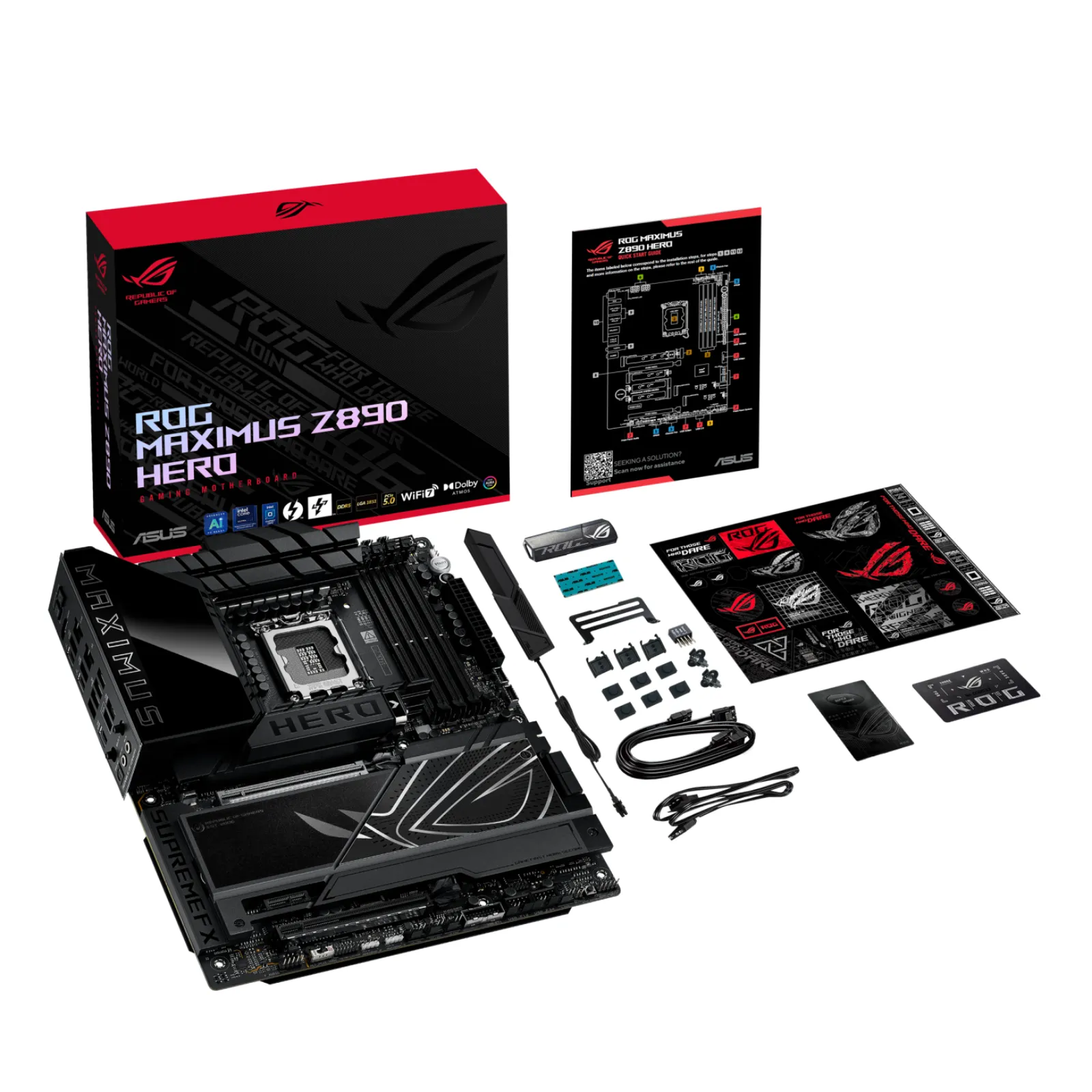

Dotazione completa per build enthusiast

La confezione include accessori utili per completare una build premium:

cavi SATA
estensione ARGB
antenna WiFi Q-Antenna
Q-connector
pad termico per M.2
supporto ventola DDR5
USB drive con driver e utility
adesivi ROG
accessori M.2
ROG Bottle Opener

È una dotazione molto completa, adatta a chi vuole iniziare subito l’assemblaggio con tutti gli accessori principali già inclusi.

FAQ

Quali processori supporta ASUS ROG Maximus Z890 Hero?
Supporta i processori Intel Core Ultra Series 2 con socket LGA1851.

Supporta RAM DDR5?
Sì, dispone di 4 slot DDR5 e supporta fino a 256GB con frequenze fino a 8800+ MT/s in overclock.

Quanti slot M.2 offre?
Offre 6 slot M.2 totali, oltre a 4 porte SATA 6Gb/s e un connettore SlimSAS.

Ha WiFi 7?
Sì, integra WiFi 7 con supporto 2.4/5/6 GHz e Bluetooth 5.4.

Che rete cablata include?
Dispone di 2.5Gb Ethernet Intel e 5Gb Ethernet Realtek.

Ha Thunderbolt?
Sì, include 2 porte Thunderbolt 4 USB Type-C.

È adatta all’overclock?
Sì, grazie alla sezione di alimentazione avanzata, alle funzioni AI ASUS e agli strumenti dedicati nel BIOS è perfetta anche per overclock e tuning avanzato.

È adatta per build gaming premium?
Assolutamente sì, è una scheda madre high-end pensata per PC gaming enthusiast con GPU di nuova generazione, SSD NVMe veloci e RAM DDR5 ad alte frequenze.

Informazioni aggiuntive

Peso	3,2 kg
Dimensioni	35 × 27 × 11,5 cm
News & Updates	Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below: —– •Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). —– •Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.
CPU	Support Intel® Core™ Ultra Processors (Series 2) , LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z890 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex NitroPath DRAM Technology DIMM FIT ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x HDMI™ port 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs* * Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates Supports max. 8K@60Hz with DSC as specified in HDMI 2.1. * In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. ** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time. * VGA resolution support depends on processors' or graphic cards' resolution. ****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots	Intel® Core™ Ultra Processors (Series 2)* 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)** Intel® Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only. – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Supports 6 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® Z890 Chipset M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports SlimSAS slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via an adapter cable. The cable is purchased separately. * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 ** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
Ethernet	1 x Intel® 2.5Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4* —– Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 11 ports) 2 x Thunderbolt™ 4 ports (2 x USB Type-C®) 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 10 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)* 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A * USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel" Audio Features – SupremeFX Shielding Technology – ESS® ES9219 QUAD DAC – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports	2 x Thunderbolt™ 4 USB Type-C® ports 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors 1 x 8-pin PCIe Power connector Storage Related 6 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS connector USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 10Gps connector (supports USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header
Special Features	Extreme OC Kit – FlexKey button – ReTry button – Start button Extreme Engine Digi+ – 10K Black metallic capacitors – MicroFine alloy choke ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Code – Q-Connector – Q-Dashboard – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – Metal backplate – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Addressable Gen 2 header(s) ROG M.2 PowerBoost Front Panel USB 20Gbps with Quick Charge 4+ Support – Support: up to 60W fast charging and USB Wattage Watcher* – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A – Compatible with PD3.0 and PPS * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
Software Features	ROG Exclusive Software – ROG CPU-Z – Dolby Atmos – Polymo Lighting II – Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (1 year full version) – Aura Creator – Aura Sync – Xpert 4 (with AI Cooling II) – GameFirst – Power Saving – Hwinfo ASUS AI Advisor ASUS DriverHub ASUS GlideX Thunderbolt™ Share USB Wattage Watcher TurboV Core Adobe Creative Cloud (Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS NPU Boost AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME
Accessories	Cables 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x DDR5 fan holder 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x M.2 Q-Latch package 3 x M.2 Q-Slide packages 1 x ROG stickers 6 x M.2 rubber packages 1 x ROG thank you card 1 x ROG Bottle Opener Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide
Operating System	Windows 11 (22H2 & later)
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
