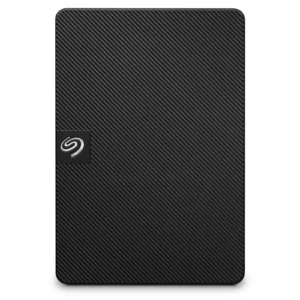

Seagate Expansion Portable – HDD Esterno Portatile USB 3.0 fino a 5TB Plug & Play per PC, Mac e Chromebook
Seagate Expansion Portable – HDD Esterno Portatile USB 3.0 fino a 5TB Plug & Play per PC, Mac e Chromebook Fascia di prezzo: da 89,99 € a 177,99 €
Torna ai prodotti
PNY GeForce RTX 5070 ARGB EPIC-X RGB Overclocked
PNY GeForce RTX 5070 ARGB EPIC-X RGB Overclocked – Scheda Video 12GB GDDR7 DLSS 4 Ray Tracing RGB 3xDP HDMI PCIe 4.0 Il prezzo originale era: 739,00 €.Il prezzo attuale è: 699,00 €.
EsauritoNew
ASRock H810M-X WiFi
ASRock H810M-X WiFi – Scheda Madre Micro ATX LGA1851 DDR5 PCIe 4.0 WiFi AC 2.5G LAN USB-C - immagine 2
ASRock H810M-X WiFi – Scheda Madre Micro ATX LGA1851 DDR5 PCIe 4.0 WiFi AC 2.5G LAN USB-C - immagine 3
ASRock H810M-X WiFi – Scheda Madre Micro ATX LGA1851 DDR5 PCIe 4.0 WiFi AC 2.5G LAN USB-C - immagine 4
ASRock H810M-X WiFi – Scheda Madre Micro ATX LGA1851 DDR5 PCIe 4.0 WiFi AC 2.5G LAN USB-C - immagine 5
Clicca per ingrandire
ASRock H810M-X WiFi
ASRock H810M-X WiFi – Scheda Madre Micro ATX LGA1851 DDR5 PCIe 4.0 WiFi AC 2.5G LAN USB-C - immagine 2
ASRock H810M-X WiFi – Scheda Madre Micro ATX LGA1851 DDR5 PCIe 4.0 WiFi AC 2.5G LAN USB-C - immagine 3
ASRock H810M-X WiFi – Scheda Madre Micro ATX LGA1851 DDR5 PCIe 4.0 WiFi AC 2.5G LAN USB-C - immagine 4
ASRock H810M-X WiFi – Scheda Madre Micro ATX LGA1851 DDR5 PCIe 4.0 WiFi AC 2.5G LAN USB-C - immagine 5
ASRock

ASRock H810M-X WiFi – Scheda Madre Micro ATX LGA1851 DDR5 PCIe 4.0 WiFi AC 2.5G LAN USB-C

105,00 €

La ASRock H810M-X WiFi è una scheda madre Micro ATX compatta e versatile, progettata per processori Intel Core Ultra (Series 2). Offre supporto DDR5, connettività avanzata WiFi AC e LAN 2.5G, oltre a storage M.2 Gen4 per prestazioni elevate.

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4711581490659 COD: 90-MXBS60-A0AUYZ Categoria:
Descrizione

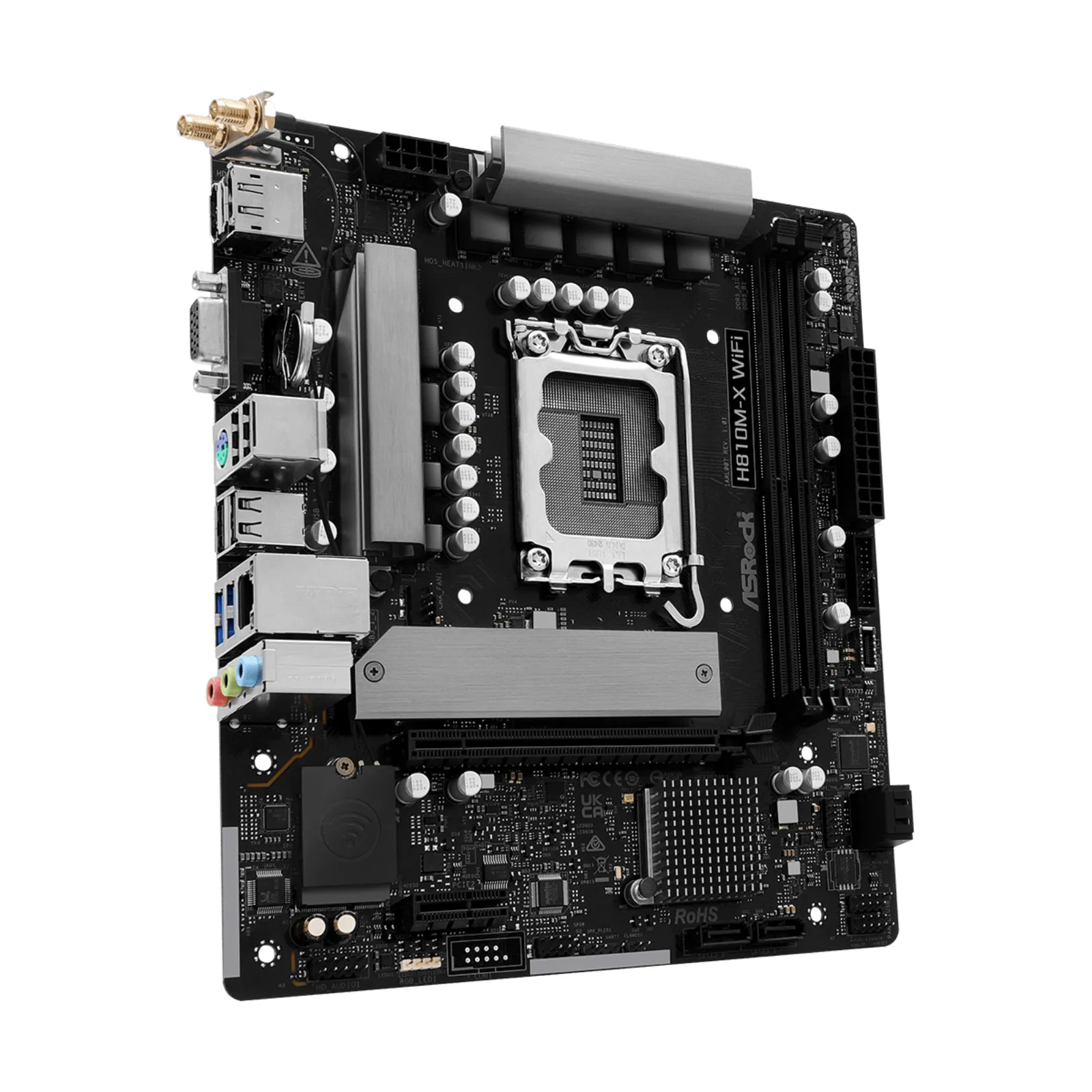

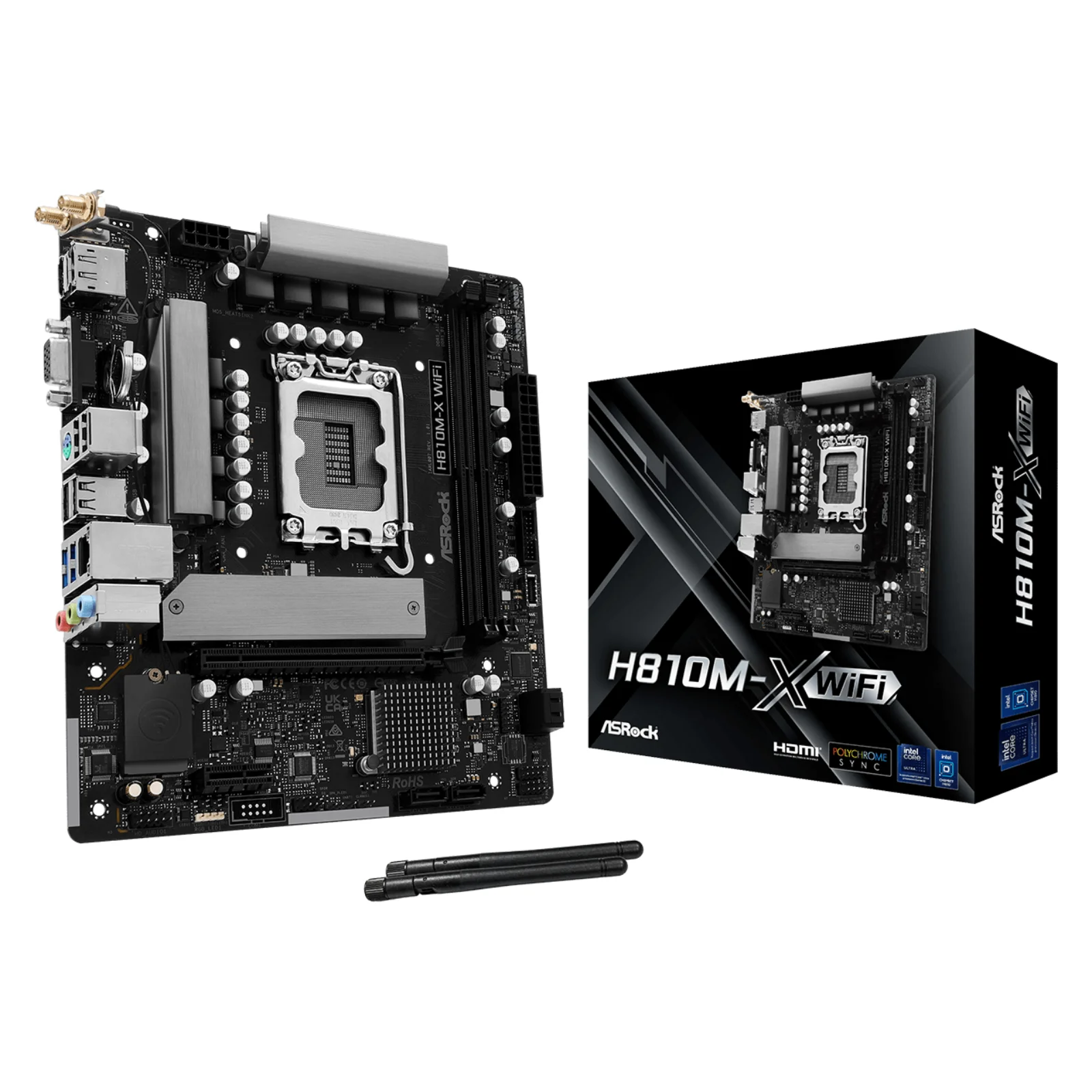

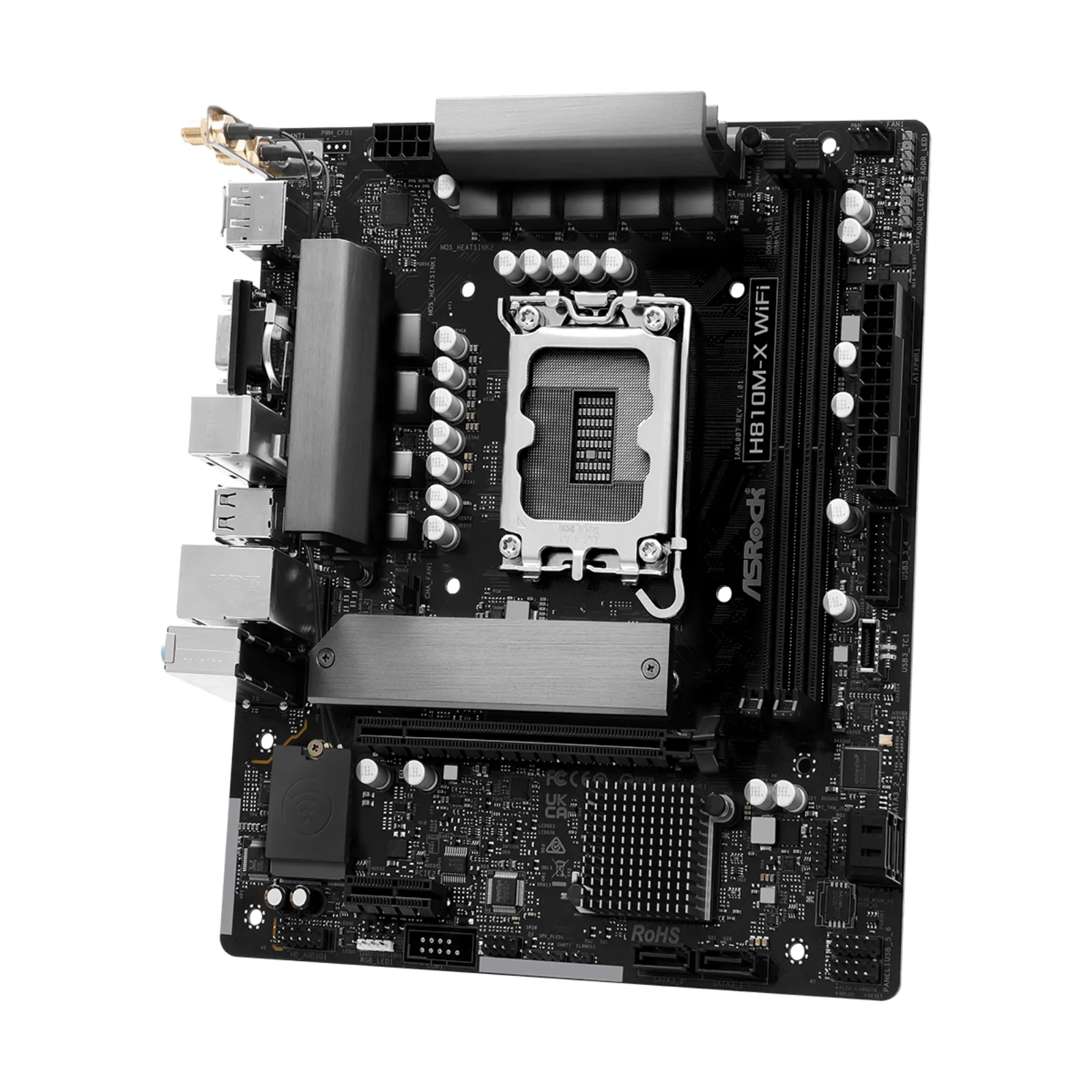

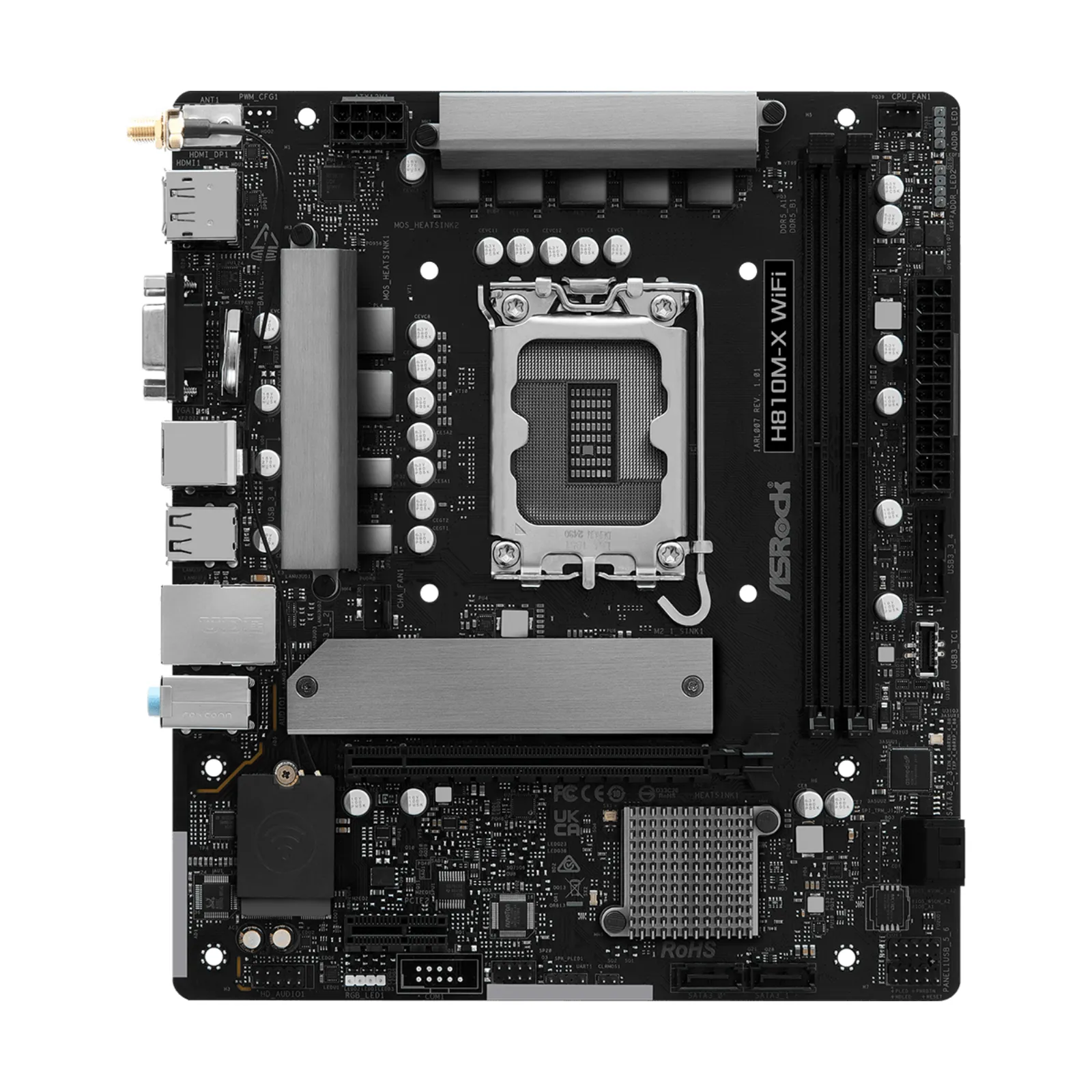

ASRock H810M-X WiFi / 90-MXBS60-A0AUYZ / 4711581490659

Prestazioni affidabili in formato compatto

La ASRock H810M-X WiFi è progettata per offrire un perfetto equilibrio tra prestazioni, efficienza e affidabilità. Grazie al formato Micro ATX, è ideale per configurazioni compatte senza rinunciare a potenza e funzionalità avanzate.

Supporto per processori Intel Core Ultra

Compatibile con socket LGA1851, questa scheda madre supporta i più recenti processori Intel Core Ultra (Series 2), garantendo prestazioni elevate per produttività, multitasking e applicazioni moderne, inclusa l’accelerazione AI integrata.

Memoria DDR5 ad alta velocità

Dotata di 2 slot DDR5 Dual Channel, supporta frequenze fino a 6400 MHz, offrendo maggiore larghezza di banda e migliori prestazioni rispetto alle generazioni precedenti.

Storage ultraveloce con M.2 Gen4

Lo slot Hyper M.2 PCIe Gen4 x4 consente velocità di trasferimento fino a 64 Gb/s, ideale per SSD NVMe di ultima generazione, riducendo drasticamente i tempi di caricamento di sistema e applicazioni.

Connettività avanzata e rete ad alte prestazioni

La scheda integra:

  • WiFi 802.11ac Dual Band (2.4GHz / 5GHz) con Bluetooth
  • LAN 2.5 Gigabit per connessioni cablate ultra veloci

Perfetta per gaming online, streaming e trasferimenti di grandi file senza interruzioni.

Ampia connettività e porte moderne

Include numerose porte per ogni esigenza:

  • USB 3.2 Gen1 Type-C frontale
  • USB 3.2 e USB 2.0 multiple
  • Uscite video HDMI, DisplayPort e D-Sub

Compatibile con configurazioni multi-display grazie alle tre uscite video integrate.

Raffreddamento efficiente e stabilità

Il dissipatore in alluminio ottimizzato migliora la gestione termica anche sotto carichi elevati, assicurando stabilità e durata nel tempo.

Illuminazione RGB personalizzabile

Grazie alla tecnologia Polychrome RGB, è possibile sincronizzare strisce LED e componenti compatibili per creare un setup personalizzato, con supporto anche a software avanzati come SignalRGB.

Installazione semplice e gestione intelligente

Con Auto Driver Installer, l’installazione dei driver è immediata anche senza unità ottica. Il BIOS UEFI intuitivo semplifica configurazione e gestione del sistema.

FAQ

Quali processori supporta questa scheda madre?
Supporta processori Intel Core Ultra (Series 2) con socket LGA1851.

È compatibile con RAM DDR4?
No, supporta esclusivamente memoria DDR5 fino a 6400 MHz.

Supporta SSD NVMe?
Sì, dispone di uno slot Hyper M.2 PCIe Gen4 x4 per SSD NVMe ad alte prestazioni.

Ha WiFi e Bluetooth integrati?
Sì, include WiFi dual band 802.11ac e Bluetooth 5.0.

Quante porte USB sono disponibili?
Offre diverse porte USB tra cui USB 3.2 Gen1 Type-C, USB 3.2 Type-A e USB 2.0.

È adatta per gaming?
Sì, grazie alla LAN 2.5G, supporto PCIe 4.0 e RAM DDR5, è adatta anche per configurazioni gaming entry/mid-level.

Informazioni aggiuntive
Peso 1,2 kg
Dimensioni 26,5 × 22,5 × 6 cm
Caratteristica Unica

Produttività superba
– Dual Channel DDR5
Solida durabilità
– 6+1+1+1+1 Power Phase
– Tecnologia ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers)
Connettività ultraveloce
– 2.5G LAN, 802.11ac Wi-Fi Module
Aggiornamento EZ
– Programma di installazione del driver automatico ASRock
CPU

– Supporta Intel® Core™ Ultra Processors (Series 2) (LGA1851)
– Supporta Intel® Hybrid Technology
– Supporta Intel® Turbo Boost Max 3.0 Technology
– Supporta Intel® Incremento della velocità termica (TVB)
– Supporta Intel® Tecnologia ad incremento adattivo (ABT)
– NPU integrata per accelerazione IA dedicata
Chipset

– Intel® H810
Memoria

– Dual Channel DDR5 Memory Technology
– 2 x DDR5 slot DIMM
– Supporta DDR5 non-ECC, momoria senza buffer up to 6400*
– Supporta Clocked Unbuffered DIMM (CUDIMM)
– Capacità massima della memoria di sistema: 128GB*
– Supporto di Intel® XMP (Profilo di memoria estrema) 3.0x*
—-
* Fai riferimento alla lista di supporto memorie sul sito di ASRock per ulteriori informazioni.
A causa delle limitazioni del sistema operativo, le dimensioni effettive della memoria possono essere inferiori a 4GB per la prenotazione all'uso del sistema sotto Windows® a 32 bit. Per Windows® 64-bit OS con CPU 64-bit, non esiste tale limitazione.
BIOS

– BIOS legale 256 Mb AMI UEFI con supporto GUI
Schede Grafiche

– Intel® Xe LPG Architettura grafica
– 1 x HDMI 2.1 TMDS/FRL Compatibile con l’8G, Supporta HDR, HDCP 2.3 e max. Risoluzione up to 4K 120Hz
– 1 x DisplayPort 1.4 con DSC (compresso), supporta HDCP 2.3 e risoluzione massima fino a 8K 60Hz/5K 120Hz
– 1 x D-Sub, Supporta max. Risoluzione up to Full HD (1920×1080) 60Hz
—
* Intel® UHD Graphics Visuals integrata e le uscite VGA possono essere supportate solo con processori con GPU integrata.
Audio

– Audio HD a 7.1 canali (Realtek ALC897 Audio Codec)
LAN

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supporta Dragon 2.5G LAN Software
– Controllo regolazione della larghezza di banda automatico e intelligente
– Interfaccia grafica intuitiva
– Statistiche visive di utilizzo della rete
– Impostazioni predefinite e ottimizzate per modalità gioco, browser e streaming
– Controllo priorità personalizzato dall'utente
Wireless LAN

– 802.11ac Wi-Fi Module
– Supporta IEEE 802.11a/b/g/n/ac
– Supporto per il Dual-Band (2,4/5 GHz)
– Supporta la connessione wireless ad alta velocità fino a 433Mbps
– Supporta Bluetooth 5.0
Slot di espansione

CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), Supporta a modalità x16*
Chipset:
– 1 x PCIe 4.0 x1 Slot (PCIE2)*
– 1 x socket M.2 (Key E), supporta il modulo di tipo 2230 WiFi/BT PCIe WiFi
—
* SSD NVMe come dischi di avvio
Immagazzinamento

Chipset:
– 1 x socket Hyper M.2 (M2_1, Key M), Supporta type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x connettori SATA3 6.0 Go/s
—
* SSD NVMe come dischi di avvio
USB

Chipset:
– 1 x USB 3.2 Gen1 Type-C (frontali)
– 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 frontali)
– 6 x USB 2.0 (4 Rear, 2 frontali)
—
* Tutte le porte USB supportano la protezione ESD.
Connettore

– 1 x collettore SPI TPM
– 1 x LED di alimentazione e header altoparlanti
– 1 x collettore RGB LED*
– 2 x Header LED indirizzabiles**
– 1 x Connettore CPU ventola (4-pin) (Controllo intelligente della velocità della ventola)***
– 1 x Connettore Chassis ventola (4-pin) (Controllo intelligente della velocità della ventola)****
– 1 x 24-pin collettore alimentazione ATX
– 1 x 8-pin connettore ATX 12V
– 1 x connettore audio sul pannello frontale
– 1 x collettore USB 2.0 (supporta 2 porte USB 2.0)
– 1 x collettore USB 3.2 Gen1 (supporta 2 porte USB 3.2 Gen1)
– 1 x Header USB 3.2 Gen1 di tipo C sul pannello frontale
—
* Supporta strisce LED fino a 12V/3A 36W
** supporta in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supporta una potenza della ventola fino a 1 A (12 W).
**** CHA_FAN1 Supporto la fan power up to 3A (36W).
CHA_FAN1 possono automaticamente rilevare se la ventola a 3 pin o a 4 pin è in uso.

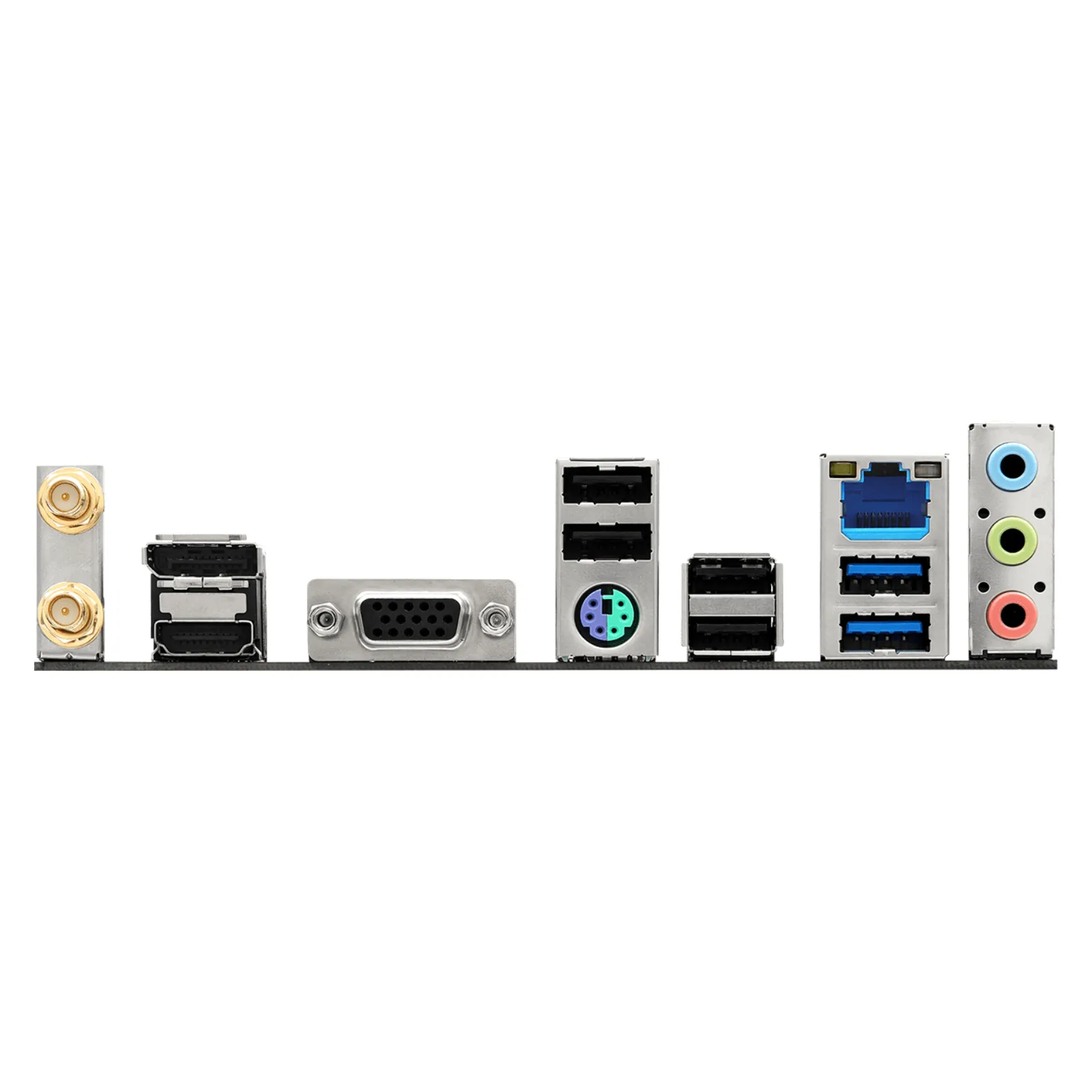

Pannello Posteriore I/O

– 2 x Porte dell'antenna
– 1 x porta PS/2 per tastiera/mouse
– 1 x porta D-Sub
– 1 x porta HDMI
– 1 x DisplayPort 1.4
– 2 x porte USB 3.2 Gen1
– 4 x porte USB 2.0
– 1 x porte LAN RJ-45
– Jack Audio HD: ingresso linea / cassa frontale / microfono
Software e UEFI

Software
– ASRock Scheda Madre Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Modalità EZ
– ASRock UEFI Full HD
– ASRock My Favorites in UEFI
– Programma di installazione del driver automatico ASRock
– ASRock Flash istantaneo
—
*Queste utility possono essere scaricate da App Shop.
Accessori

– 1 x I/O Shield
– 2 x cavi dati SATA
– 2 x Antenna ASRock WiFi 2.4/5GHz
Fattore di Forma

– Fattore di forma Micro ATX: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
OS

– Microsoft® Windows® 11 64-bit
Certificazioni

– FCC, CE
– Predisposto ErP/EuP (è necessaria l’alimentazione predisposta per il sistema ErP/EuP)
Recensioni (0)

Recensioni

Ancora non ci sono recensioni.

Recensisci per primo “ASRock H810M-X WiFi – Scheda Madre Micro ATX LGA1851 DDR5 PCIe 4.0 WiFi AC 2.5G LAN USB-C”

Il tuo indirizzo email non sarà pubblicato. I campi obbligatori sono contrassegnati *



About brand
ASRock è un brand taiwanese fondato nel 2002, nato come spin-off di ASUS e oggi tra i principali produttori mondiali di schede madri. L’azienda si è affermata grazie alla capacità di combinare innovazione, qualità e prezzi competitivi, proponendo soluzioni adatte a diversi segmenti di mercato: dagli utenti domestici agli appassionati di gaming, fino ad arrivare a workstation professionali e sistemi industriali. Oltre alle schede madri, ASRock sviluppa anche mini PC, soluzioni per server e prodotti dedicati al settore embedded. La filosofia del marchio si concentra su creatività, funzionalità e affidabilità, con l’obiettivo di rendere la tecnologia accessibile e performante per ogni esigenza.

Prodotti correlati

Esaurito
ASRock B860M-X WiFi
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASRock B860M-X WiFi – Scheda Madre Micro-ATX Intel B860 con DDR5, PCIe 5.0 M.2, Wi-Fi 6E e LAN 2.5G

139,00 €
Leggi tutto
SKU: 90-MXBRY0-A0UAYZ
Peso 0,6 kg
Dimensioni 24,4 × 21,8 × 2,5 cm
Caratteristica Unica

Produttività superba
– PCIe Gen5 (M.2)
– Dual Channel DDR5
Solida durabilità
– 7+1+1+1+1 Power Phase
Connettività ultraveloce
– 2.5G LAN, 802.11axe Wi-Fi 6E Module
Aggiornamento EZ
– Interruttore BIOS Flashback
– Programma di installazione del driver automatico ASRock
Risoluzione dei problemi EZ
– ASRock Checker stato post
CPU

– Supporta Intel® Core™ Ultra Processors (Series 2) (LGA1851)
– Supporta Intel® Hybrid Technology
– Supporta Intel® Turbo Boost Max 3.0 Technology
– Supporta Intel® Incremento della velocità termica (TVB)
– Supporta Intel® Tecnologia ad incremento adattivo (ABT)
– NPU integrata per accelerazione IA dedicata
Chipset

– Intel® B860
Memoria

– Dual Channel DDR5 Memory Technology
– 2 x DDR5 slot DIMM
– Supporta DDR5 non-ECC, momoria senza buffer up to 9066+(OC)*
– Supporta Clocked Unbuffered DIMM (CUDIMM)
– Capacità massima della memoria di sistema: 128GB
– Supporto di Intel® XMP (Profilo di memoria estrema) 3.0x
–
*1DPC 1R Up to 9066+ MHz (OC), 6400 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively.
BIOS

– BIOS legale 256 Mb AMI UEFI con supporto GUI
Schede Grafiche

– Intel® Xe LPG Architettura grafica
– 1 x HDMI 2.1 TMDS/FRL Compatibile con l’8G, Supporta HDR, HDCP 2.3 e max. Risoluzione up to 4K 120Hz
– 1 x DisplayPort 1.4 con DSC (compresso), supporta HDCP 2.3 e risoluzione massima fino a 8K 60Hz/5K 120Hz
–
*Intel® UHD Graphics Visuals integrata e le uscite VGA possono essere supportate solo con processori con GPU integrata.
Audio

– Audio HD a 7.1 canali (Realtek ALC897 Audio Codec)
LAN

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supporta Dragon 2.5G LAN Software
– Controllo regolazione della larghezza di banda automatico e intelligente
– Interfaccia grafica intuitiva
– Statistiche visive di utilizzo della rete
– Impostazioni predefinite e ottimizzate per modalità gioco, browser e streaming
– Controllo priorità personalizzato dall'utente
Wireless LAN

– 802.11axe Wi-Fi 6E Module
– Supporta IEEE 802.11a/b/g/n/ac/ax/axe
– Supporta Dual-Band 2×2 con supporto esteso della banda a 6GHz*
– CPU, CPU opzionale/Pompa dell’acqua, ventole del case
– Supporta Bluetooth 5.3
– Supporta MU-MIMO
–
*The 6GHz band of Wi-Fi 6E module is supportato da Microsoft® Windows® 11 only. La disponibilità della banda 6 GHz dipenderà dal diverso stato di regolamentazione di ciascun Paese e regione. Verrà attivato (per i Paesi supportati) tramite Windows® Update e aggiornamenti software non appena disponibili.
Per la funzionalità 6E è necessario un router compatibile con 6GHz.
Slot di espansione

CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), Supporta a modalità x16*
Chipset:
– 1 x PCIe 4.0 x1 Slot (PCIE2)*
– 1 x PCIe 4.0 x4 Slot (PCIE3), Supporta a modalità x4*
– 1 x socket M.2 (Key E), supporta il modulo Wi-Fi/BT PCIe WiFi di tipo 2230 e Intel® CNVio/CNVio2 (Wi-Fi/BT integrato)
–
*SSD NVMe come dischi di avvio
Immagazzinamento

CPU:
– 1 x Blazing socket M.2 (M2_1, Key M), Supporta type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x socket Hyper M.2 (M2_2, Key M), Supporta type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x connettori SATA3 6.0 Go/s
–
*Supporta il dispositivo Intel® Volume Management (VMD)
SSD NVMe come dischi di avvio
RAID

– Supporta RAID 0, RAID 1, RAID 5 e RAID 10 per dispositivi di archiviazione SATA
USB

CPU:
– 1 x USB 3.2 Gen2x2 Type-C (posteriori)
Chipset:
– 1 x USB 3.2 Gen1 Type-C (frontali)
– 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 frontali)
– 6 x USB 2.0 (2 Rear, 4 Front)
–
*Tutte le porte USB supportano la protezione ESD.
Connettore

– 1 x collettore SPI TPM
– 1 x LED di alimentazione e header altoparlanti
– 1 x collettore RGB LED*
– 2 x Header LED indirizzabiles**
– 2 x Connettore CPU ventola (4-pin) (Controllo intelligente della velocità della ventola)***
– 2 x Connettore Chassis ventola (4-pin) (Controllo intelligente della velocità della ventola)***
– 1 x AIO Pump Fan Connector (4-pin) (Controllo intelligente della velocità della ventola)***
– 1 x 24-pin collettore alimentazione ATX
– 1 x 8-pin connettore ATX 12V (Connettore di potenza ad alta densità)
– 1 x 4-pin connettore ATX 12V (Connettore di potenza ad alta densità)
– 1 x connettore audio sul pannello frontale
– 2 x collettore USB 2.0 (supporta 4 porte USB 2.0)
– 1 x collettore USB 3.2 Gen1 (supporta 2 porte USB 3.2 Gen1)
– 1 x Header USB 3.2 Gen1 di tipo C sul pannello frontale
–
*Supporta strisce LED fino a 12V/3A 36W
–
**supporta in total up to 5V/3A, 15W LED Strip
–
***CPU_FAN1 supporta una potenza della ventola fino a 1 A (12 W).
CPU_FAN2, CHA_FAN1~2 e AIO_PUMP supporta the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~2 e AIO_PUMP possono automaticamente rilevare se la ventola a 3 pin o a 4 pin è in uso.
Pannello Posteriore I/O

– 2 x Porte dell'antenna
– 1 x porta HDMI
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
– 3 x porte USB 3.2 Gen1
– 2 x porte USB 2.0
– 1 x porte LAN RJ-45
– 1 x Interruttore BIOS Flashback
– Jack Audio HD: ingresso linea / cassa frontale / microfono
Software e UEFI

Software
– ASRock Scheda Madre Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Modalità EZ
– ASRock UEFI Full HD
– ASRock My Favorites in UEFI
– Programma di installazione del driver automatico ASRock
– ASRock Flash istantaneo
–
*Queste utility possono essere scaricate da App Shop.
Accessori

– 1 x I/O Shield
– 2 x cavi dati SATA
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas
– 1 x Vite per Socket M.2
– 1 x Standoff per prese M.2
Fattore di Forma

– Fattore di forma Micro ATX: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm
OS

– Microsoft® Windows® 11 64-bit
Certificazioni

– FCC, CE
– Predisposto ErP/EuP (è necessaria l’alimentazione predisposta per il sistema ErP/EuP)
ASRock Z890 Pro-A WiFi
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4

219,00 €
Aggiungi al carrello
SKU: 90-MXBP60-A0UAYZ
Peso 1,2 kg
Dimensioni 34 × 27 × 7 cm
Unique Feature

Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
– Thunderbolt™ 4/USB4 Type-C Port (40 Gb/s)
Rock-Solid Durability
– 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT
– Memory OC Shield
Ultrafast Connectivity
– 2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker
CPU

– Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
– Supports Intel® Thermal Velocity Boost (TVB)
– Supports Intel® Adaptive Boost Technology (ABT)
– Integrated NPU for dedicated AI acceleration
Chipset

– Intel® Z890
Memory

– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)*
– Supports Clocked Unbuffered DIMM (CUDIMM)
– Max. capacity of system memory: 256GB
– Supports Intel® Extreme Memory Profile (XMP) 3.0x
—
*1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively.
1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively.
2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
BIOS

– 256Mb AMI UEFI Legal BIOS with GUI support
Graphics

– Intel® Xe LPG Graphics Architecture
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
– 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*
—
* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Supports two 4K displays or one 8K display
Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports.
If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
Audio

– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
Wireless LAN

– 802.11axe Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax/axe
– Supports Dual-Band 2×2 with extended 6GHz band support*
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.3
– Supports MU-MIMO
—
*The 6GHz band of Wi-Fi 6E module is supported by Microsoft Windows® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Slots

CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*
– 1 x PCIe 4.0 x1 Slot (PCIE2)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
—
* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
Supports NVMe SSD as boot disks
Storage

CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 4 x SATA3 6.0 Gb/s Connectors
—
* Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
RAID

– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB

CPU:
– 1 x Thunderbolt™ 4/USB4 Type-C (Rear)
– 1 x USB 3.2 Gen2x2 Type-C (Rear)
Chipset:
– 1 x USB 3.2 Gen2x2 Type-C (Front)
– 1 x USB 3.2 Gen2 Type-A (Rear)
– 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
– 8 x USB 2.0 (4 Rear, 4 Front)
—
* All USB ports support ESD Protection
Connector

– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
– 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
– 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
—
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O

– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x Thunderbolt™ 4/USB4 Type-C Port (40 Gb/s)*
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
– 2 x USB 3.2 Gen1 Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
—
* Supports USB PD 3.0 up to 5V@3A (15W) charging
Software and UEFI

Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
—
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories

– 1 x I/O Shield
– 2 x SATA Data Cables
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas
Form Factor

– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 2oz Copper PCB
OS

– Microsoft Windows® 11 64-bit
Certifications

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
-22%Esaurito
ASUS PRIME B860M-A WIFI
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS PRIME B860M-A WIFI – Scheda Madre Micro-ATX LGA1851 con WiFi 6E, LAN 2.5G, Bluetooth 5.3 e PCIe 5.0

Il prezzo originale era: 229,00 €.Il prezzo attuale è: 179,00 €.
Leggi tutto
SKU: ‎90MB1JY0-M0EAY0
Peso 1,44 kg
Dimensioni 24,4 × 24,4 × 3 cm
Modello

PRIME B860M-A WIFI
CPU

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
*Refer to https://www.asus.com/support/download-center/ for CPU support list.
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® B860 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

2 x DisplayPort**
1 x HDMI™ port***
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** Supports max. 4K@120Hz as specified in DisplayPort 1.4.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® Core™ Ultra Processors(series 2)
1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel®B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 6E
2×2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A )
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)**
Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
*USB Type-C® power delivery output: max. 5V/3A
**USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A )
2 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additionalUSB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
Special Features

ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O
ASUS Q-Design
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
– Pre-mounted I/O shield
Aura Sync
– Aura RGB header
– Addressable Gen2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Operating System

Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor

micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
-11%Esaurito
ASUS PRIME Z890M-PLUS WIFI
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS PRIME Z890M-PLUS WIFI – Scheda Madre mATX LGA1851 con WiFi 7, PCIe 5.0 e DDR5 per Intel Core Ultra (Serie 2)

Il prezzo originale era: 269,00 €.Il prezzo attuale è: 239,00 €.
Leggi tutto
SKU: 90MB1J80-M0EAY0
Peso 1,25 kg
Dimensioni 27 × 27 × 7,5 cm
Modello

PRIME Z890M-PLUS WIFI
CPU

Supports Intel® Core™ Ultra Processors(Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® Z890 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

1 x DisplayPort**
1 x HDMI™ port***
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****
*Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
**Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
****Supports max. 4K@120Hz as specified in DisplayPort 1.4.
***** VGA resolution support depends on processors' or graphic cards' resolution.
****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® Core™ Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slots (support x1 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® Z890 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1x USB 10Gbps port (1 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A) **
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
* USB Type-C® power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1x USB 10Gbps port (1 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors

Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin +12V CPU Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front Panel System header
1 x Thunderbolt™ (USB4®) header
Special Features

ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
NPU Boost (Intel K-series Processors only)
BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
3 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide
Operating System

Windows 11 (22H2 & later)
Form Factor

mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
-9%New

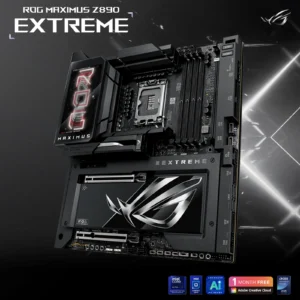

ASUS ROG Maximus Z890 Extreme
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG MAXIMUS Z890 EXTREME – Scheda Madre E-ATX LGA1851 DDR5 PCIe 5.0 WiFi 7 Thunderbolt 5 con Display LCD 5″ [Pre-Ordine]

,
Il prezzo originale era: 1.529,00 €.Il prezzo attuale è: 1.399,00 €.
Aggiungi al carrello
SKU: 90MB1IA0-M0EAY0
Peso 4,5 kg
Dimensioni 38 × 30 × 14 cm
News & Updates

Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below:
—–
•Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
—–
•Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.
—–
Please visit our GLOBAL website to check and download the latest updates.
The Thunderbolt 5 features on this motherboard are only supported in Windows 11. To ensure the best experience, please install Windows 11 and update to the latest version to access the latest inbox drivers.
CPU

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® Z890 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 9200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Supports DIMM Flex
DIMM Fit
NitroPath DRAM Technology
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

1 x HDMITM port**
2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
**Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
***Supports up to 1 x 8K@60HZ(DSC mode)+2 x 4K@60HZ monitors, It is recommended to chain-connect the monitors using a verified Thunderbolt™ cable.
****For resolution support please check DisplayPort 2.1 specs.bandwidth limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s.
*****In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.
******VGA resolution support depends on processors' or graphic cards' resolution.
*******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® Core™ Ultra Processors(Series 2)*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**
Intel® Z890 Chipset**
1 x PCIe 4.0×4 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage

Total supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports*
Support Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**
Intel® Z890 Chipset
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
Ethernet

1 x Intel® 2.5Gb Ethernet
1 x Marvell® AQtion 10Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Intel® Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4***
—–
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 10 ports)
2 x Thunderbolt™ 5 ports (2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®)
Front USB (Total 10 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)*
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
*USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
– SupremeFX Shielding Technology
– ESS® ES9219 QUAD DAC
– LED-illuminated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports

2 x Thunderbolt™ 5 USB Type-C® ports
1 x USB 20Gbps port (1 x USB Type-C®)
7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®)
1 x HDMITM port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
1 x Marvell® AQtion 10Gb Ethernet port
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x WB_SENSOR header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
4 x BCLK button
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
18 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switchs
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features

Extreme OC Kit
– FlexKey button
– LN2 Mode
– ProbeIt
– ReTry button
– Safe boot button
– Start button
– Slow Mode
Extreme Engine Digi+
– 10K Black Metallic Capacitors
– MicroFine Alloy Choke
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Code
– Q-Connector
– Q-Dashboard
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
– Q-DIMM.2
ASUS Thermal Solution
– Fan bracket
– M.2 heatsink backplate
– M.2 heatsink
– Metal backplate
– VRM heatsink design
– 3D VC M.2 Heatsink
ASUS EZ DIY
– Backplate
– BIOS FlashBack™ button
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen 2 headers
Dual BIOS
Full Color 5" LCD Display
ROG M.2 PowerBoost
Front Panel USB 20Gbps with Quick Charge 4+ Support
– Support: up to 60W fast charging and USB Wattage Watcher*
– Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
– Compatible with PD3.0 and PPS
* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
– Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (1 year full version)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
– Power Saving
– LCD Display
ASUS AI Advisor
ASUS Driver Hub
Turbo Vcore
ASUS GlideX
Thunderbolt™ Share
USB Wattage Watcher
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
BIOS

2 x 64 MB (512Mb)
Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME
Accessories

Cables
1 x 1-to-3 ARGB splitter cable
1 x 1-to-2 ARGB splitter cable
2 x 1-to-4 fan splitter cable
2 x ROG weave SATA 6G cable packages
1 x 3-in-1 Thermistor cables pack
ROG Q-DIMM.2 with Heatsink
1 x ROG Q-DIMM.2 with heatsink
1 x M.2 pad package for ROG Q-DIMM.2
2 x Thermal pad for ROG Q-DIMM.2
Additional Cooling Kit
2 x Thermal pad for M.2 22110
1 x DDR5 Fan holder
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x ROG logo plate sticker
1 x ROG screwdriver
1 x ROG stickers
1 x ROG VIP card
2 x M.2 Q-Slide packages
6 x M.2 backplate rubber packages
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide
Operating System

Windows 11 (22H2 & later)
Form Factor

E-ATX Form Factor
12 inch x 10.9 inch (30.5 cm x 27.7 cm)
-11%New

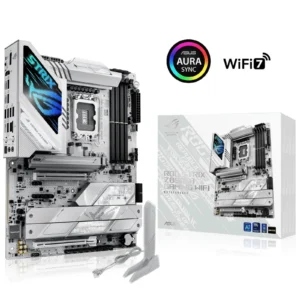

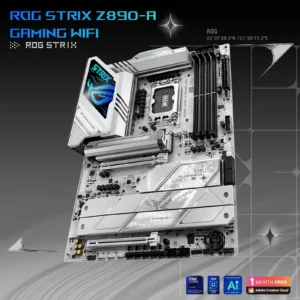

ASUS ROG STRIX Z890-A GAMING WIFI
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG STRIX Z890-A GAMING WIFI – Scheda Madre ATX LGA1851 DDR5 WiFi 7 PCIe 5.0 Thunderbolt 4 per Gaming e AI PC [Pre-Ordine]

,
Il prezzo originale era: 509,00 €.Il prezzo attuale è: 455,00 €.
Aggiungi al carrello
SKU: 90MB1I90-M0EAY0
Peso 3 kg
Dimensioni 34 × 26,5 × 11 cm
News & Updates

Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below:
—–
•Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
—–
•Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.
CPU

Support Intel® Core™ Ultra Processors (Series 2)*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® Z890 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 8600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
Supports DIMM FIT
ASUS Enhanced Memory Profile III (AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

1 x DisplayPort*
1 x HDMI™ port**
2 x Intel® Thunderbolt™ 4 support
DisplayPort and Thunderbolt™ video outputs***
– Graphics specifications may vary between
CPU types. Please refer to http://www.intel.com for any updates.
* Supports max. 8K@60Hz as specified in
DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI
2.1.
*** In Thunderbolt™ 4 mode, supports up to
8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or
16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP
alt mode, supports up to UHBR20.
**** VGA resolution support depends on
processors' or graphic cards' resolution.
***** While installing the operating
system, please ensure that your monitor is connected to the HDMI port on the
back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
—–
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage

Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
—–
Intel® Core™ Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
—–
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
—–
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Ethernet

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 10 ports)
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)*
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge)**
2 x USB 5Gbps ports (2 x Type-A)
—–
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C® )*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
—–
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel
—–
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
—–
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports

2 x Thunderbolt™ 4 ports (2 x USB Type-C®)*
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge)
2 x USB 5Gbps ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
—–
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
—–
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
—–
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
—–
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Special Features

Extreme Engine Digi+
– 5K Black metallic capacitors
—–
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Dashboard
– Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-SlotASUS
—–
Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
—–
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
—–
Aura Sync
– Addressable Gen 2 headers
Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
—–
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Xpert 4 (with AI Cooling II)
– GameFirst
– Power Saving
—–
AIDA64 Extreme (60 days free trial)
HWiNFO
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
MyAsus
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (30 Days Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
—–
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
FlexKey
BIOS

256 Mb UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
—–
Additional Cooling Kit
1 x Thermal pad for M.2 22110
—–
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
5 x M.2 rubbers
—–
Documentation
1 x Quick start guide
Operating System

Windows 11 (22H2 later)
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
-11%New
ASUS ROG STRIX Z890-E GAMING WIFI
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG STRIX Z890-E GAMING WIFI – Scheda Madre ATX LGA1851 DDR5 PCIe 5.0 WiFi 7 Thunderbolt 4 con 7 Slot M.2 [Pre-Ordine]

,
Il prezzo originale era: 629,00 €.Il prezzo attuale è: 560,00 €.
Aggiungi al carrello
SKU: 90MB1IM0-M0EAY0
Peso 3 kg
Dimensioni 34 × 26,5 × 11 cm
News & Updates

Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below:
—–
•Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
—–
•Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.
CPU

Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® Z890 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 9200+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)
*Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics

1 x DisplayPort**
1 x HDMI® port***
2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports max. 8K@60Hz as specified in HDMI 2.1.
**** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
***** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
****** VGA resolution support depends on processors' or graphic cards' resolution.
*******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® Core™ Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage

Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
Intel® Z890 Chipset
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
** M.2_3 & M.2_4 slots share bandwidth with PCIEX16(G5). When M.2_3 & M.2_4 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
Ethernet

1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4***
—–
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 14 ports)
2 x Thunderbolt™ 4 (2 x USB Type-C®)
9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**
3 x USB 5Gbps ports (3 x Type-A)
Front USB (Total 11 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
* USB Type-C® power delivery output: 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel
—–
Audio Features
– Audio Shielding
– Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
—–
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports

2 x Thunderbolt™ 4 (2 x USB Type-C®)
9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)
3 x USB 5Gbps ports (3 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage related
7 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Chassis Intrusion header
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Alteration PCIe mode switch
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Special Features

Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Code
– Q-Dashboard
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsinks
– M.2 heatsink backplate
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen2 headers
Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
– Power Saving
ASUS Driver Hub
ASUS GlideX
TurboV Core
USB Wattage Watcher
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
NPU Boost
FlexKey
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS Wi-Fi Q-Antenna
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG key chain
1 x ROG Strix stickers
7 x M.2 Rubbers
Documentation
1 x Quick start guide
Operating System

Windows® 11 (22H2 & later)
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
-15%New
ASUS ROG STRIX Z890-H GAMING WIFI
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG STRIX Z890-H GAMING WIFI – Scheda Madre ATX LGA1851 DDR5 WiFi 7 PCIe 5.0 USB 20Gbps con PD 30W per Gaming e AI PC [Pre-Ordine]

,
Il prezzo originale era: 489,00 €.Il prezzo attuale è: 416,00 €.
Aggiungi al carrello
SKU: 90MB1K20-M0EAY0
Peso 3 kg
Dimensioni 34 × 26,5 × 11 cm
News & Updates

Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below:
—–
•Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
—–
•Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.
CPU

Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® Z890 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)
*Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory
Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots

Intel® Core™ Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Intel® Z890 Chipset
2 x PCIe 4.0 x16 slots (supports x4 mode)
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage

Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
Ethernet

1 x Realtek 5G Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
—–
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 10 ports)
2 x USB 20Gbps ports (1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**
4 x USB 10Gbps ports (4 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps (1 x USB Type-C®)
1 x USB 5Gbps header support 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports

2 x USB 20Gbps ports (1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge**)
4 x USB 10Gbps ports (4 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan header
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header support 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Special Features

Extreme Engine Digi+
– 5K Black metallic capacitors
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Dashboard
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen 2 headers
Rear USB 20Gbps with PD Fast Charge Support
– Support: up to 30W fast charging and USB Wattage Watcher
– Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
– Compatible with PD3.0
Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
– Power Saving
– ASUS AI Advisor
– ASUS Driver Hub
– ASUS GlideX
– USB Wattage Watcher
– TurboV Core
– Adobe Creative Cloud (Free Trial)
– Norton 360 for Gamers (60 Days Free Trial)
– WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
FlexKey
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubbers
Documentation
1 x Quick start guide
Operating System

Windows® 11 (22H2 & later)
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
