ASUS ROG MAXIMUS Z890 APEX – Scheda Madre ATX LGA1851 DDR5 PCIe 5.0 WiFi 7 Thunderbolt 4 per Overclock Estremo [Pre-Ordine]

0 Persone guardano adesso questo prodotto!

EAN: 4711387754290 COD: 90MB1IP0-M0EAY0 Categorie: LGA 1851, ROG Z890 Promo

Descrizione

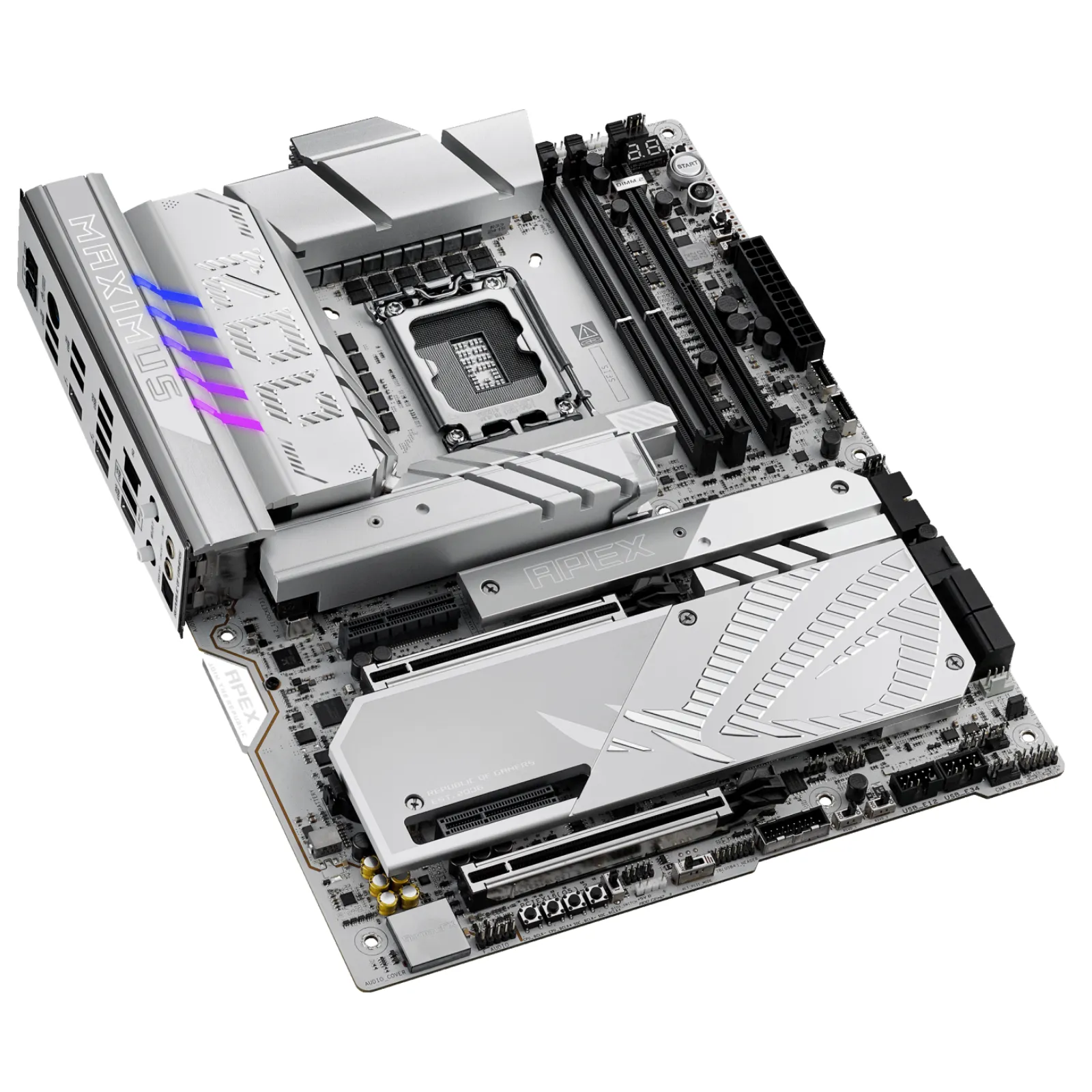

ASUS ROG MAXIMUS Z890 APEX / 90MB1IP0-M0EAY0 / 4711387754290

Scheda madre pensata per l’overclocking senza compromessi

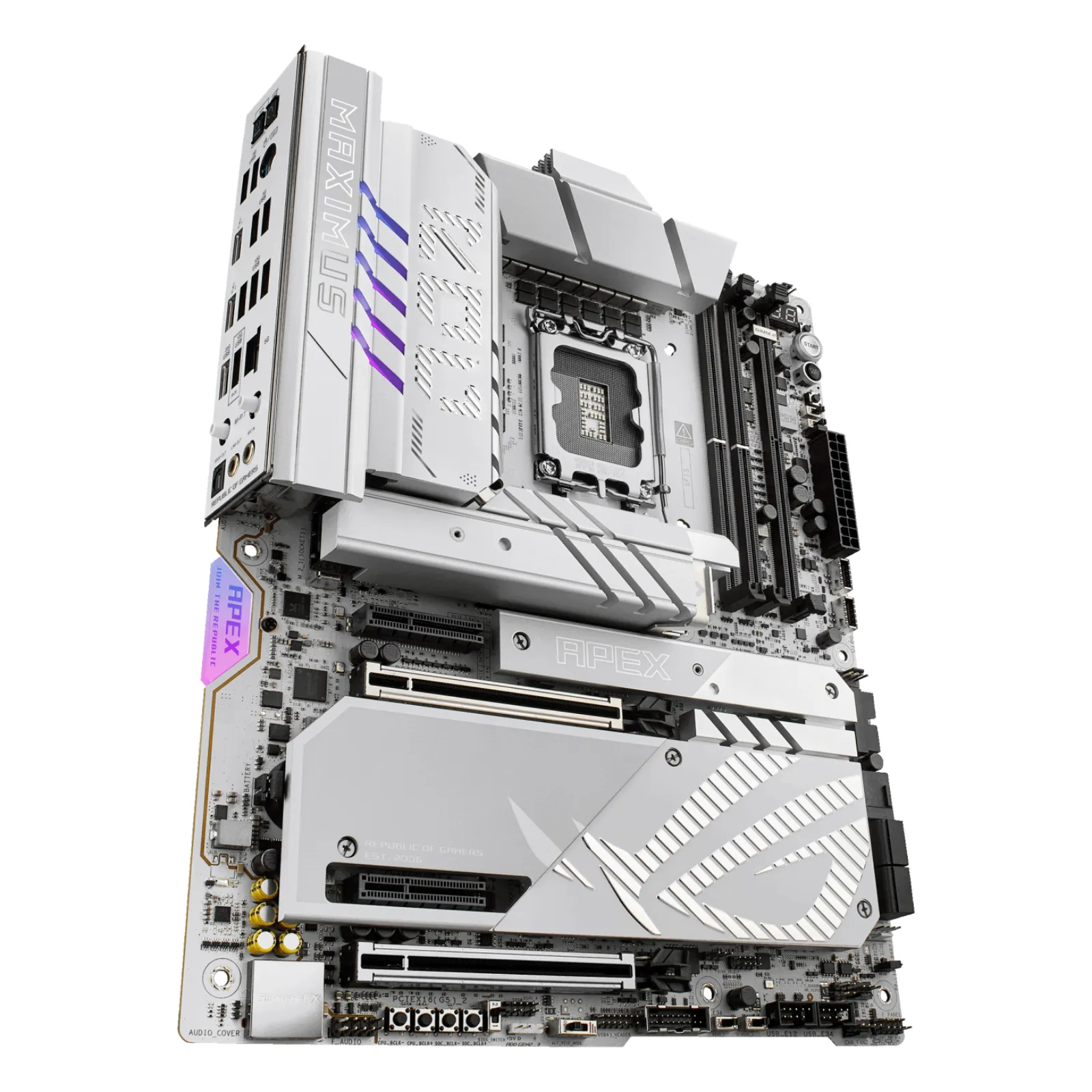

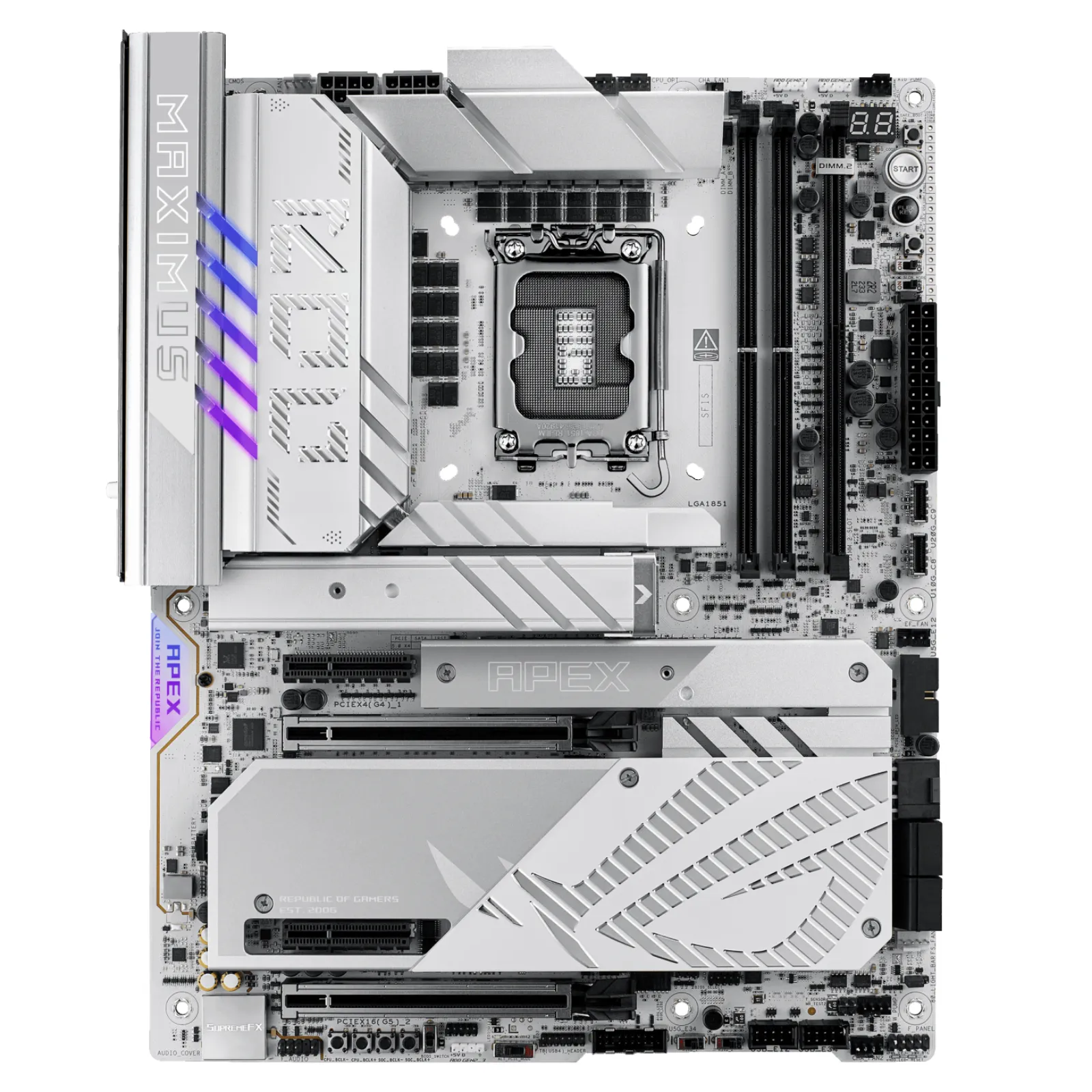

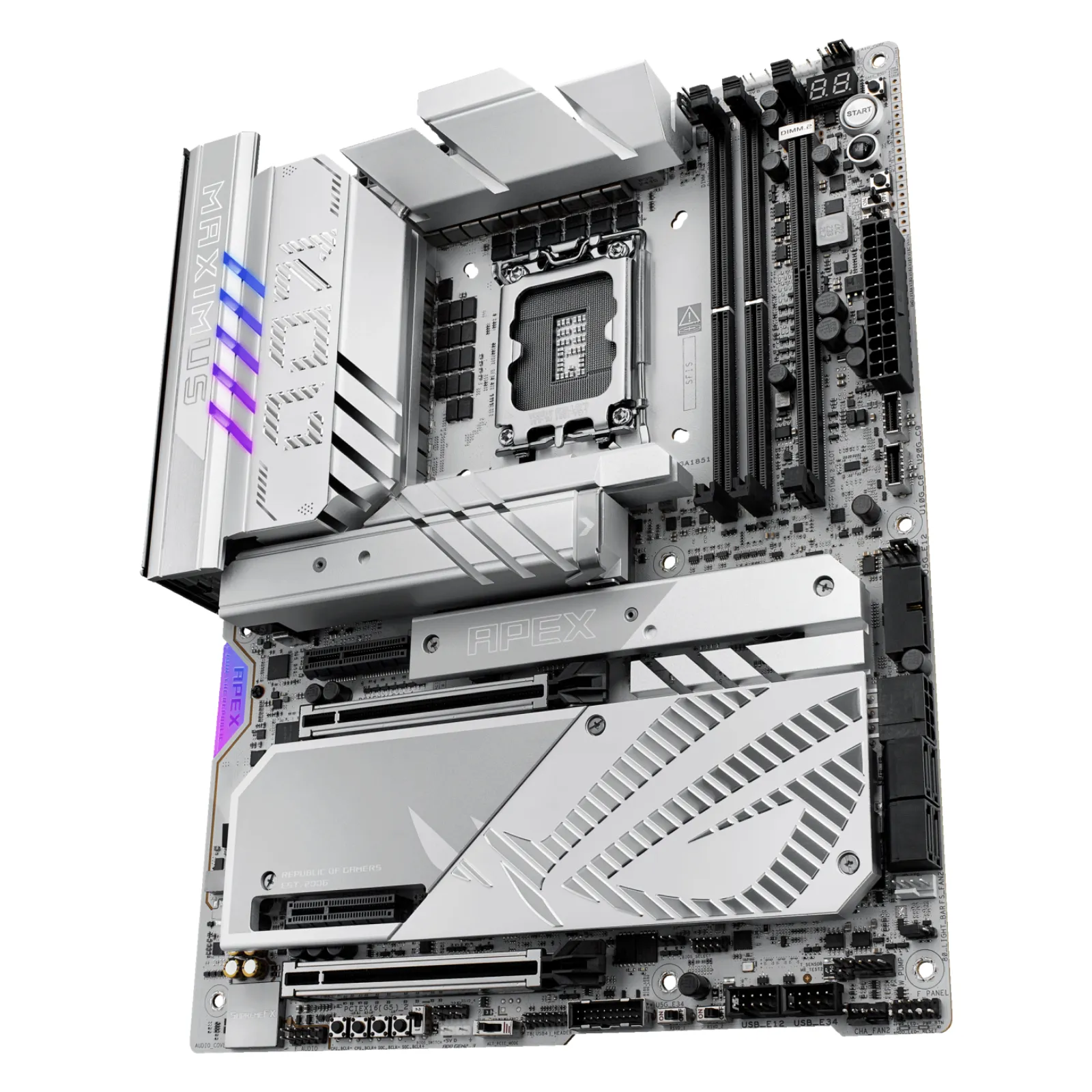

La ASUS ROG Maximus Z890 Apex è una motherboard progettata per chi vuole spingere il sistema oltre i limiti. Erede di una delle serie più apprezzate dagli overclocker, questa scheda madre ROG per chipset Intel Z890 è sviluppata per offrire controllo, stabilità e precisione assoluta su CPU e memoria. Il suo layout a 2 DIMM DDR5 è una scelta precisa: ridurre le interferenze e massimizzare il potenziale della RAM per raggiungere frequenze estreme e prestazioni da record.

Supporto ai processori Intel Core Ultra Series 2

Basata su socket LGA1851, la ROG Maximus Z890 Apex supporta i processori Intel Core Ultra Series 2, offrendo una piattaforma di nuova generazione per gaming enthusiast, overclock competitivo e sistemi high-end. Grazie alla combinazione tra chipset Z890, BIOS avanzato e sezione di alimentazione premium, è pronta a gestire CPU top di gamma anche in scenari di utilizzo intenso.

Alimentazione premium per performance estreme

Il sistema di alimentazione è progettato per offrire massima stabilità anche sotto overclock pesante. La scheda integra una soluzione VRM con 22(110A)+1(90A)+2(90A)+2(80A) stadi di potenza, doppio connettore ProCool II e componentistica selezionata per supportare carichi elevati e tuning avanzato.

Questo si traduce in:

erogazione di potenza più stabile
maggiore precisione durante l’overclock
temperature meglio gestite anche sotto stress

È una piattaforma costruita per benchmark, tuning manuale e configurazioni enthusiast di altissimo livello.

DDR5 estrema con layout a 2 slot

Uno dei tratti distintivi della Z890 Apex è il design memoria a 2 slot DIMM, studiato espressamente per ottenere il massimo dalla RAM DDR5. Supporta fino a 128GB DDR5 e frequenze fino a 9600+ MT/s in overclock, rendendola una delle soluzioni più interessanti per chi cerca performance record sulla memoria.

Sono presenti inoltre tecnologie avanzate ASUS dedicate all’ottimizzazione RAM:

DIMM Fit
DIMM Flex
AEMP III
supporto XMP
compatibilità CUDIMM

Per chi punta al massimo nelle prestazioni memoria, questa è una delle migliori schede madri ATX Z890 disponibili.

PCIe 5.0 e storage NVMe ad altissima velocità

La ASUS ROG Maximus Z890 Apex è pronta per le configurazioni più moderne grazie al supporto completo a PCIe 5.0 per GPU e SSD. La dotazione comprende:

2 slot PCIe 5.0 x16
2 slot PCIe 4.0 x4
fino a 6 slot M.2
4 porte SATA 6Gb/s

Lo storage è particolarmente ricco:

4 slot M.2 onboard
2 slot aggiuntivi tramite ROG DIMM.2
supporto M.2 PCIe 5.0 e PCIe 4.0
supporto RAID PCIe e SATA

È una piattaforma ideale per build con SSD NVMe ultra veloci, gaming di fascia alta, editing avanzato e gestione di grandi quantità di dati.

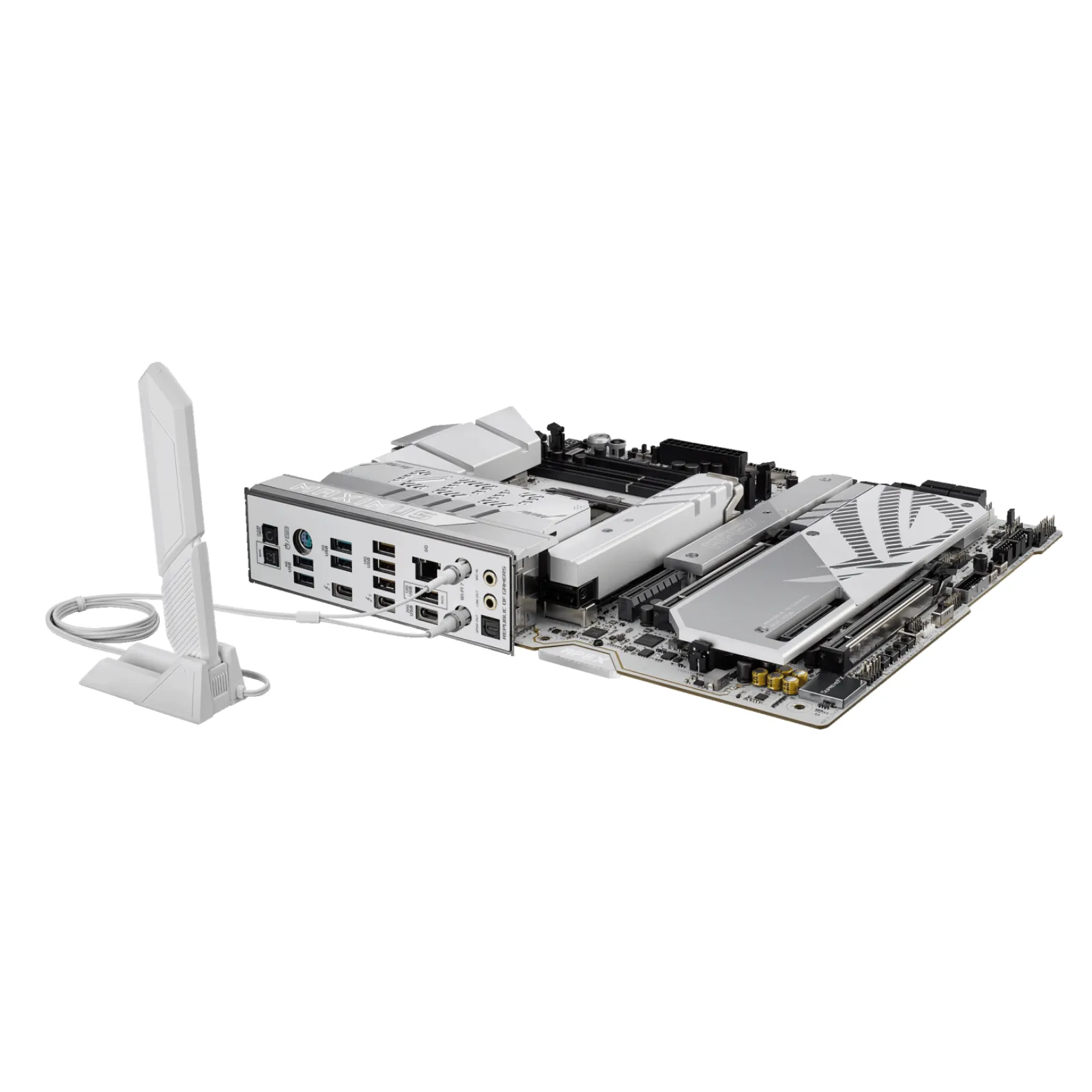

WiFi 7 e rete 5GbE per connettività avanzata

La scheda offre una connettività di rete molto evoluta, perfetta per gaming online, streaming e trasferimenti rapidi:

WiFi 7
supporto banda 2.4 / 5 / 6 GHz
canale 320 MHz
velocità fino a 5.8Gbps
Bluetooth 5.4
Realtek 5Gb Ethernet

Grazie a AI Networking II, la rete viene ottimizzata in modo intelligente per migliorare stabilità, priorità e prestazioni.

Thunderbolt 4 e USB ad alta velocità

La connettività è uno dei punti forti di questa scheda madre premium. Sul pannello posteriore trovi:

2 porte Thunderbolt 4 USB Type-C
1 porta USB 20Gbps Type-C
4 porte USB 10Gbps Type-A
4 porte USB 5Gbps Type-A

Sul pannello frontale sono disponibili inoltre connettori USB Type-C fino a 20Gbps, con supporto Power Delivery / Quick Charge 4+ fino a 60W. È una soluzione eccellente per periferiche moderne, docking station, storage esterno veloce e dispositivi professionali.

Audio SupremeFX per gaming e contenuti multimediali

Anche il comparto audio è curato come da tradizione ROG. La Z890 Apex integra:

ROG SupremeFX 7.1
codec ALC4080
amplificatore Savitech SV3H712
jack audio placcati oro
uscita ottica S/PDIF
condensatori premium

Il risultato è un audio nitido, potente e di qualità elevata, ideale per gaming immersivo, musica e contenuti ad alta fedeltà.

Funzioni AI e ottimizzazione intelligente

ASUS integra una suite di strumenti intelligenti per semplificare tuning e gestione del sistema:

AI Overclocking
AI Cooling II
AI Networking II
ASUS AI Advisor
NPU Boost

Queste tecnologie aiutano a migliorare prestazioni, raffreddamento, rete e utilizzo della NPU integrata nei processori Intel Core Ultra, offrendo una gestione più smart del sistema.

Strumenti dedicati agli overclocker

La ROG Maximus Z890 Apex è ricca di funzioni dedicate all’overclock estremo, molto apprezzate dagli utenti enthusiast e dai benchmarker:

Start button
Safe Boot
ReTry button
Slow Mode
Pause switch
LN2 Mode
ProbeIt Measurement Points
BCLK buttons
BIOS Switch
Q-Code
Clear CMOS
BIOS FlashBack

A questo si aggiungono anche strumenti di sicurezza e monitoraggio come il rilevamento della condensa, fondamentale in scenari di overclock estremo.

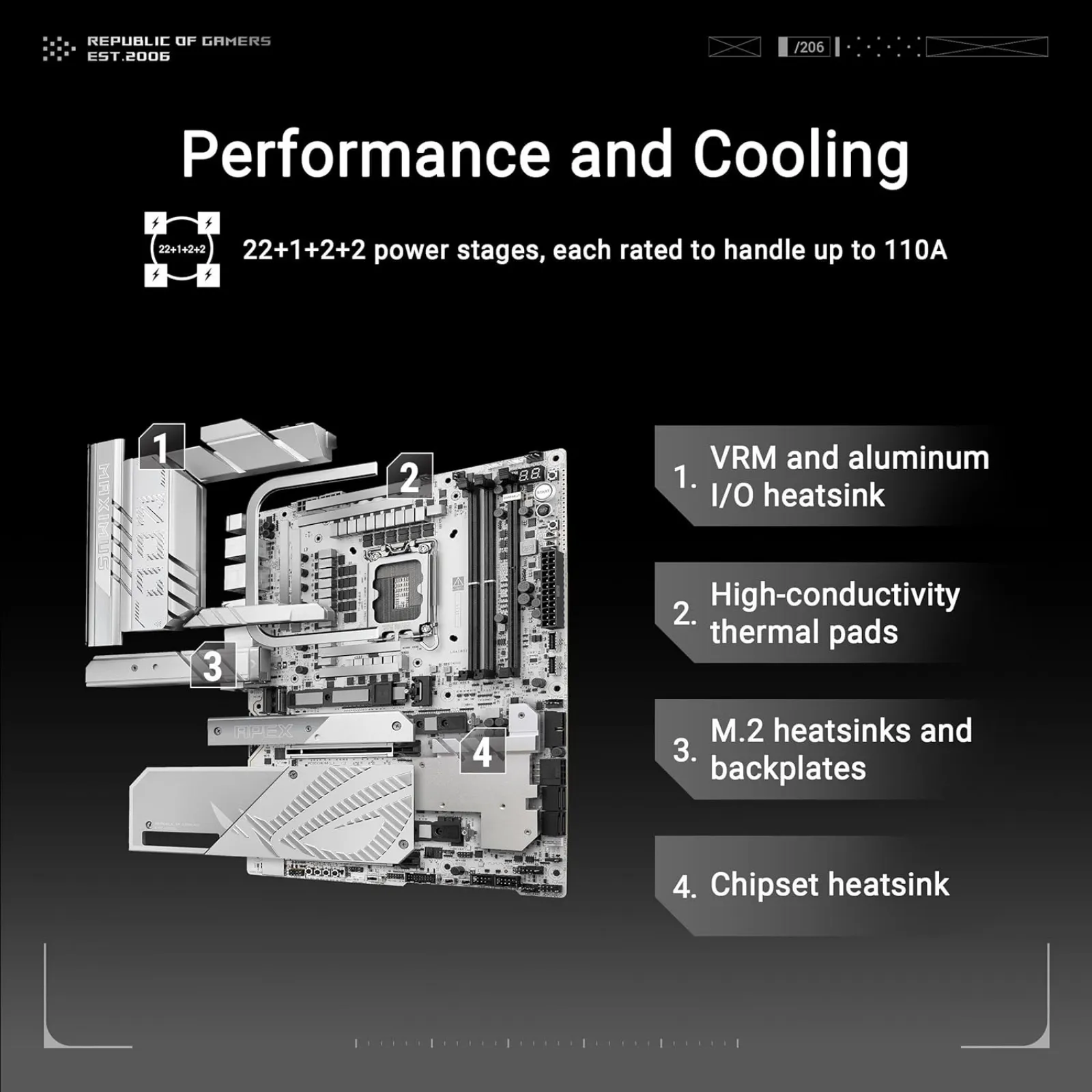

Raffreddamento ottimizzato per build spinte

La gestione termica è pensata per supportare carichi elevati e configurazioni aggressive. Sono presenti:

dissipatori M.2 dedicati
dissipazione VRM avanzata
header per ventole ad alta velocità
header AIO Pump
header W_PUMP+
header Extra Flow Fan
supporto sensori termici

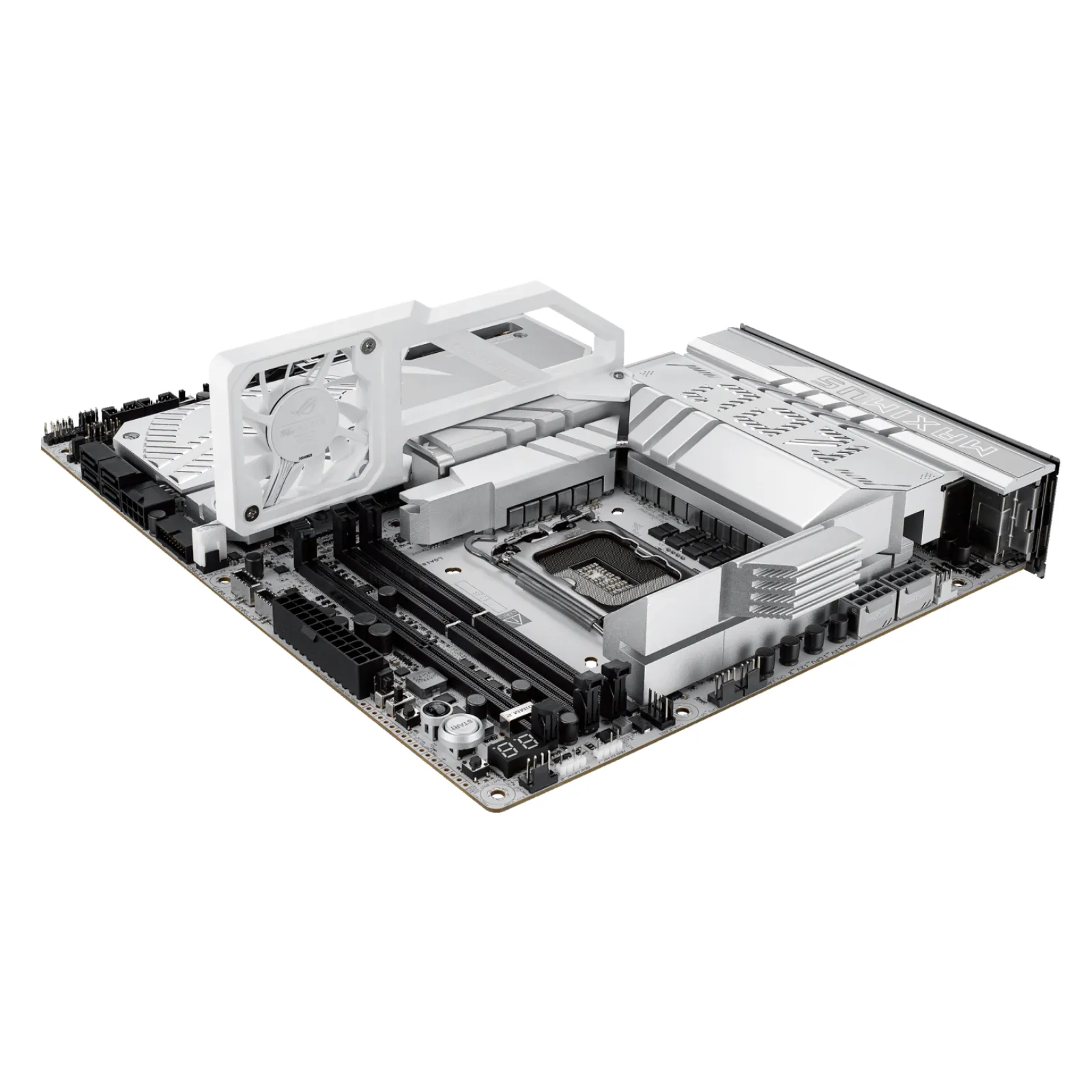

In dotazione è incluso anche il ROG Memory Fan Kit, utile per raffreddare la RAM in scenari di memory overclock spinto.

Design distintivo per build chiare e premium

A differenza delle classiche Apex dal look più scuro, questa generazione adotta una finitura grigio ciottolo con accenti argento, pensata per integrarsi perfettamente con build bianche, silver o chiare. È una scheda madre dal forte impatto visivo, ideale per configurazioni premium che vogliono unire estetica e prestazioni.

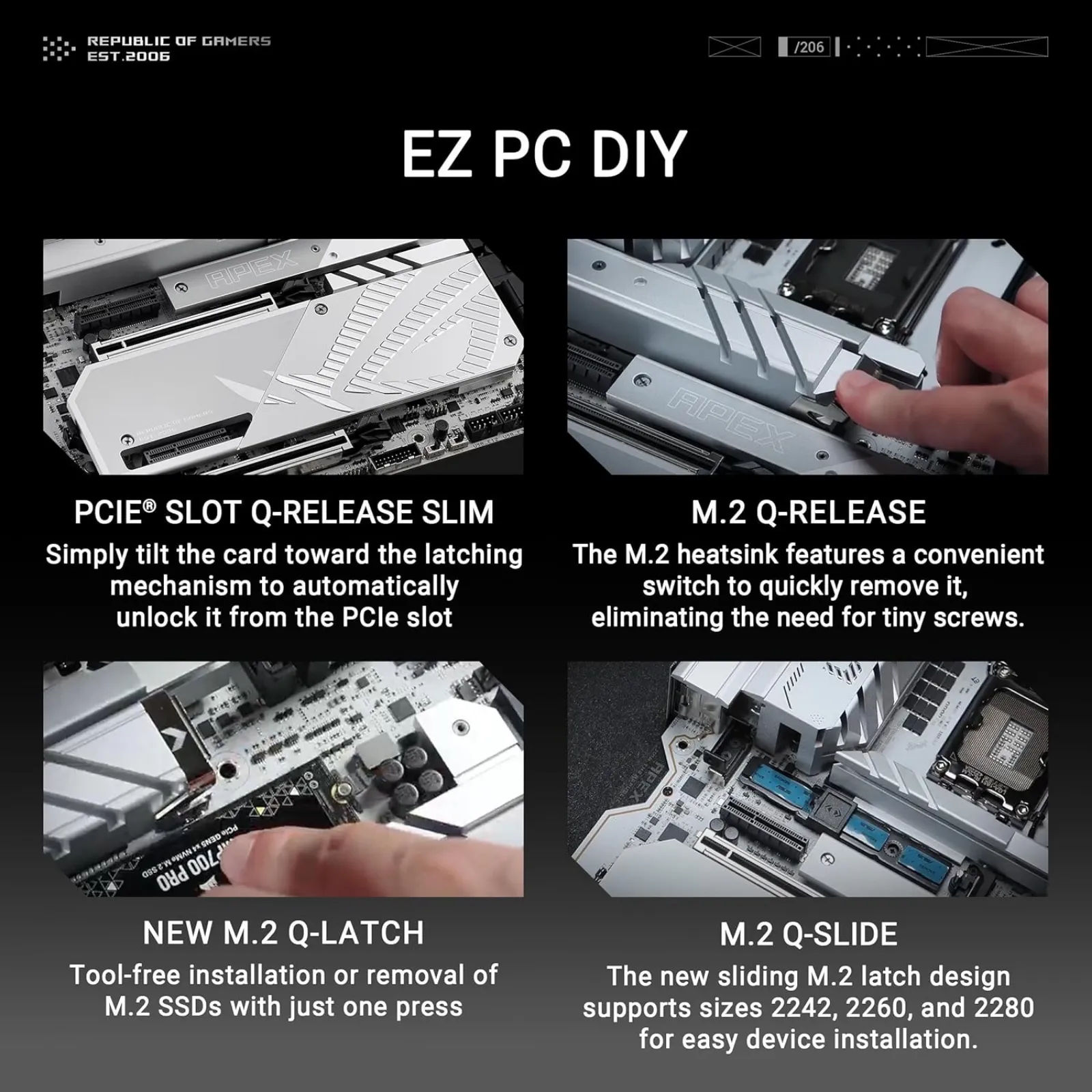

Funzioni ASUS Q-Design per assemblaggio semplificato

Anche l’esperienza di montaggio è curata nei dettagli, grazie alle tecnologie ASUS dedicate al fai-da-te:

M.2 Q-Latch
M.2 Q-Release
M.2 Q-Slide
PCIe Slot Q-Release Slim
Q-Antenna
Q-Code
Q-Dashboard
Q-Connector
Q-LED

Queste funzioni rendono il montaggio, l’aggiornamento e la manutenzione molto più semplici e rapidi.

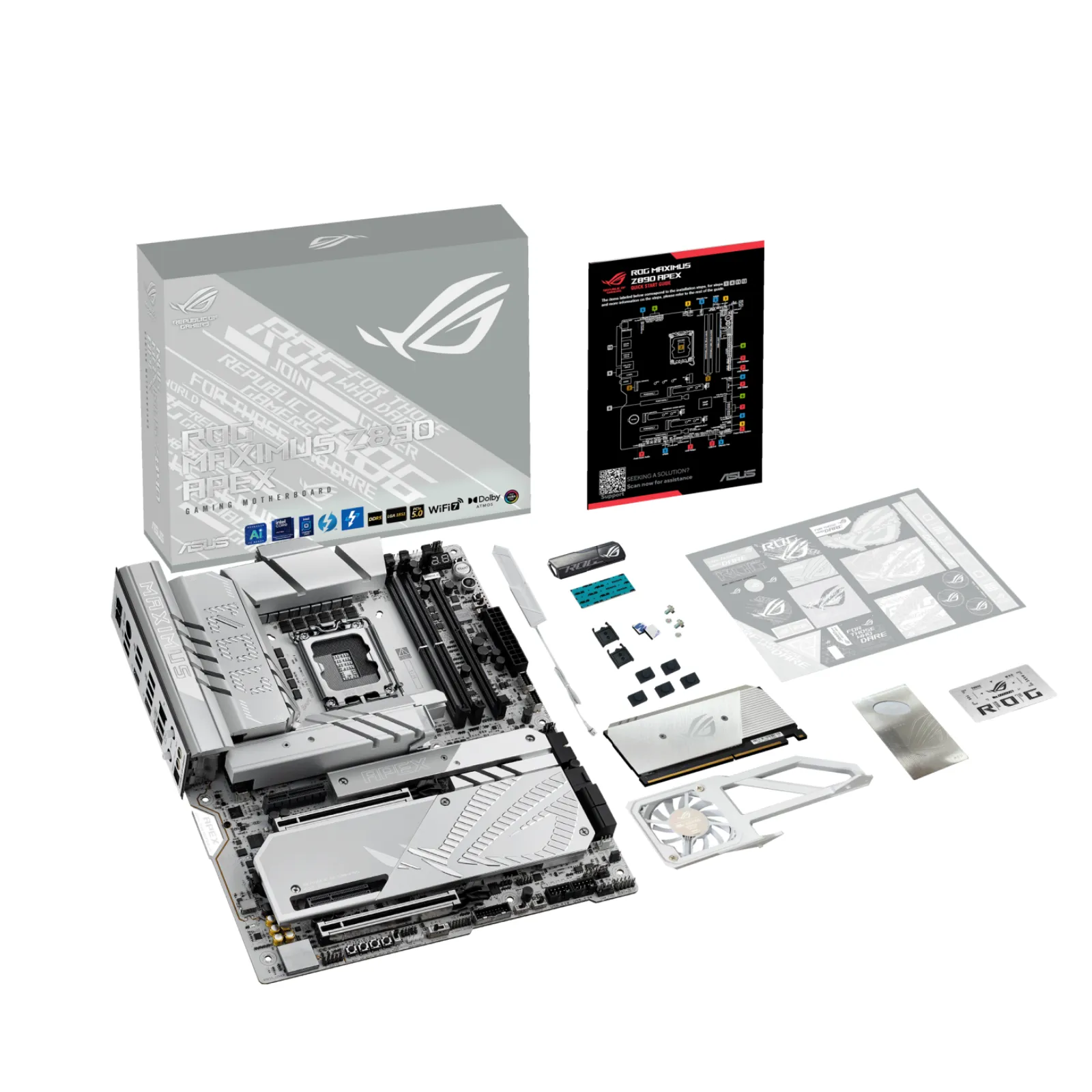

Dotazione premium per sistemi enthusiast

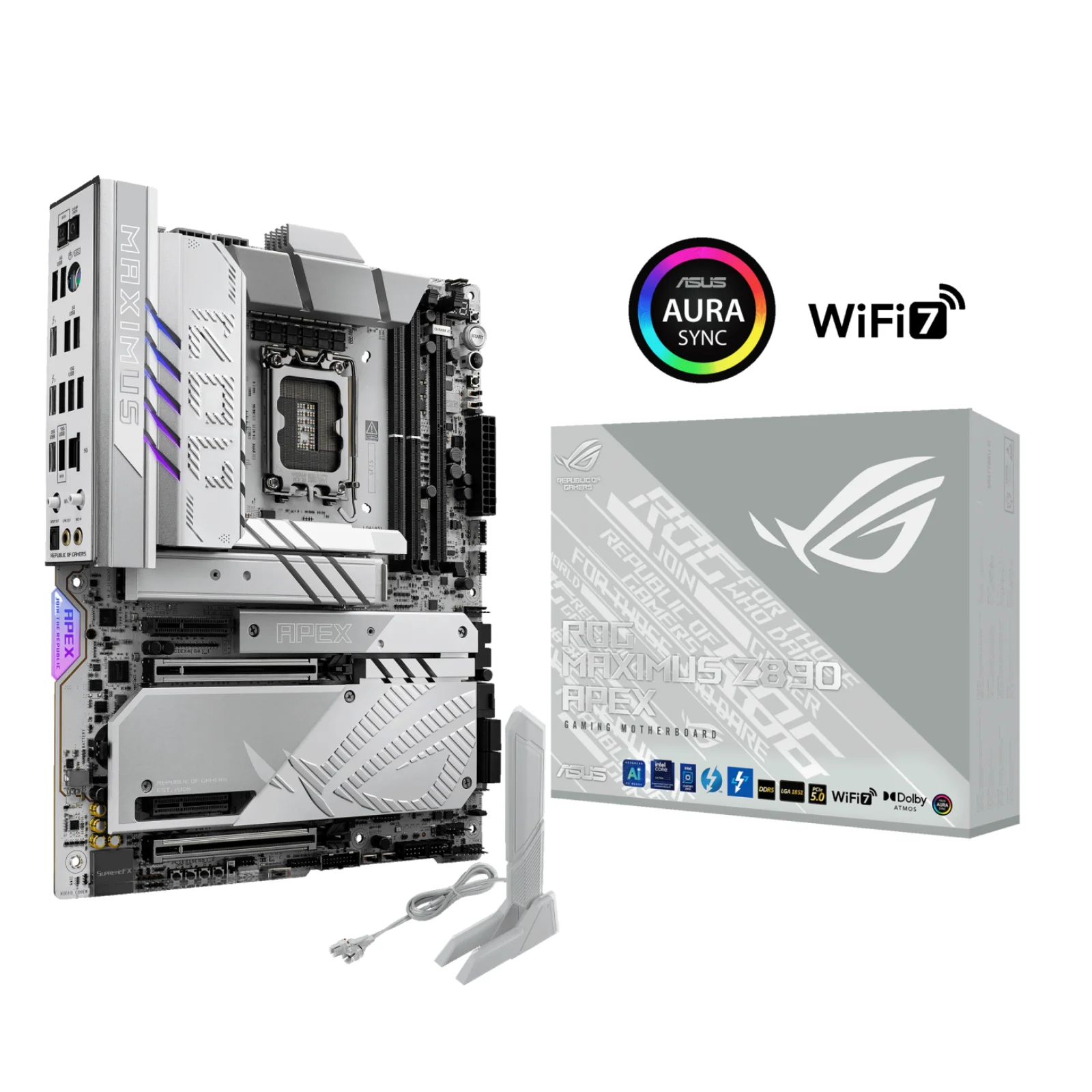

La confezione include accessori di alto livello come:

ROG DIMM.2 con dissipatore
ROG Memory Fan Kit
antenna WiFi Q-Antenna
cavi e accessori M.2
USB drive con driver e utility
Q-connector
ROG Bottle Opener
documentazione e guida rapida

Una dotazione completa per chi vuole assemblare subito una build di fascia altissima.

FAQ

Quali processori supporta ASUS ROG Maximus Z890 Apex?
Supporta i processori Intel Core Ultra Series 2 con socket LGA1851.

Quanti slot RAM ha?
Ha 2 slot DDR5, progettati appositamente per massimizzare l’overclock della memoria.

Quanta RAM supporta?
Supporta fino a 128GB DDR5.

Supporta PCIe 5.0?
Sì, integra 2 slot PCIe 5.0 x16 e supporta anche SSD M.2 PCIe 5.0.

Quanti slot M.2 sono disponibili?
Fino a 6 slot M.2 totali, inclusi quelli tramite ROG DIMM.2.

Ha WiFi 7?
Sì, include WiFi 7, Bluetooth 5.4 e porta 5Gb Ethernet.

È adatta all’overclock estremo?
Sì, è una delle schede madri ASUS più orientate all’overclock, con numerosi controlli hardware e funzioni dedicate.

Ha Thunderbolt?
Sì, dispone di 2 porte Thunderbolt 4 USB Type-C.

Informazioni aggiuntive

Peso	3,6 kg
Dimensioni	36 × 28 × 12 cm
News & Updates	Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below: —– •Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). —– •Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. —– Please visit our GLOBAL website to check and download the latest updates.
CPU	Support Intel® Core™ Ultra Processors(Series 2) , LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z890 Chipset
Memory	2 x DIMM slots, max. 128GB, DDR5 Supports up to 9600+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates. In Thunderbolt4TM mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time. * VGA resolution support depends on processors' or graphic cards' resolution. ***While installing the operating system, please ensure that your monitor is connected to a discrete graphics card.
Expansion Slots	Support Intel® Core™ Ultra Processors(Series 2) * 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)** Intel® Z890 Chipset 2 x PCIe 4.0 x4 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled. – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports* Support Intel® Core™ Ultra Processors(Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes) Intel® Z890 Chipset DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. **M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
Ethernet	1 x Realtek 5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4* —– Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 11 ports) 2 x Thunderbolt™ 4 ports (2 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 4 x USB 10Gbps ports (4 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 10 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)* 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A *USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Audio	"ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel" Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

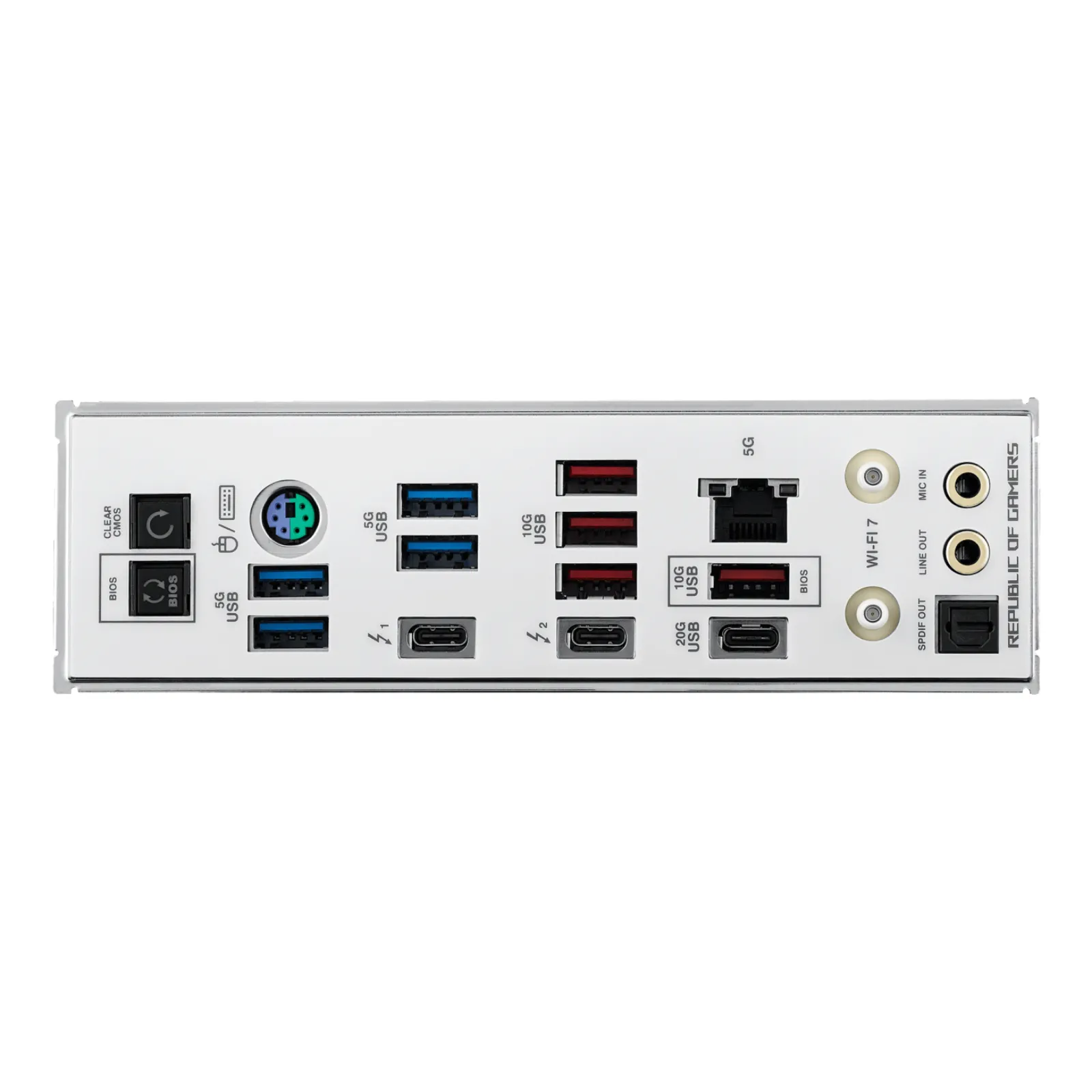

Back Panel I/O Ports	2 x Thunderbolt™ 4 ports (USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 4 x USB 10Gbps ports (4 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x PS/2 keyboard/mouse combo port
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 2 x 4-pin Full Speed Fan headers 1 x W_PUMP+ header 1 x Extra Flow Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 8-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x 80 Light Bar jumper 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 4 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 1 x Pause switch 18 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switches 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header* *The Thunderbolt™ card can only be used when installed to the PCIEX4(G4)_2 slot. Ensure to install your Thunderbolt™ card to the PCIEX4(G4)_2 slot.
Special Features	Extreme OC Kit – FlexKey button – LN2 Mode – ProbeIt – ReTry button – Safe boot button – Start button – Slow Mode Extreme Engine Digi+ – SMD Capacitor – MicroFine Alloy Choke ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – PCIe Slot Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Code – Q-Dashboard – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Addressable Gen 2 headers Dual BIOS Front Panel USB 20Gbps with Quick Charge 4+ Support – Support: up to 60W fast charging and USB Wattage Watcher* – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A – Compatible with PD3.0 and PPS * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
Software Features	ROG Exclusive Software – ROG CPU-Z – Dolby Atmos – Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (1 year full version) – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – GameFirst – Power Saving – HWiNFO ASUS AI Advisor ASUS Driver Hub ASUS GlideX Turbo Vcore Adobe Creative Cloud (Free Trial) Thunderbolt™ Share USB Wattage Watcher WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey NPU Boost
BIOS	2 x 256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME
Accessories	ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 Additional Cooling Kit 1 x Thermal pad for M.2 22110 1 x ROG Memory Fan Kit Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x ROG VIP card 3 x M.2 Q-Slide package 5 x M.2 backplate rubber packages 1 x ROG Bottle Opener Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide
Operating System	Windows 11 (22H2 & later)
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
