MSI Z890 GAMING PLUS WIFI – Scheda Madre ATX, Socket LGA 1851 DDR5, PCIe 5.0, Thunderbolt4, Wi-Fi 7, LAN 5G Bluetooth 5.4 [911-7E34-002]

299,00 €

   Chipset Intel Z890
Form Factor   Form Factor ATX
Socket   Socket LGA 1851
Tipo di Memoria   Tipo di Memoria DDR5

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4711377257718 COD: 911-7E34-002 Categoria:
Descrizione

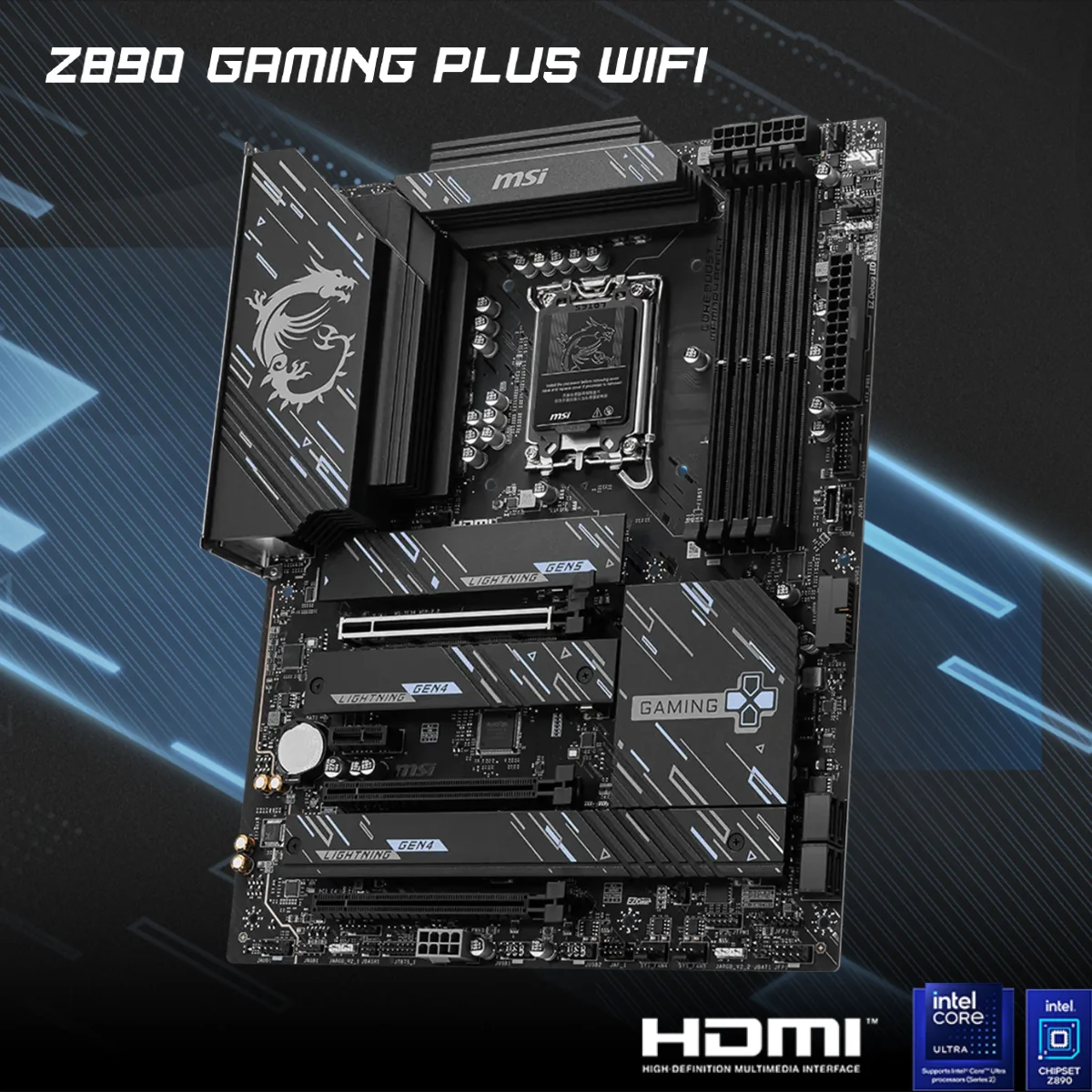

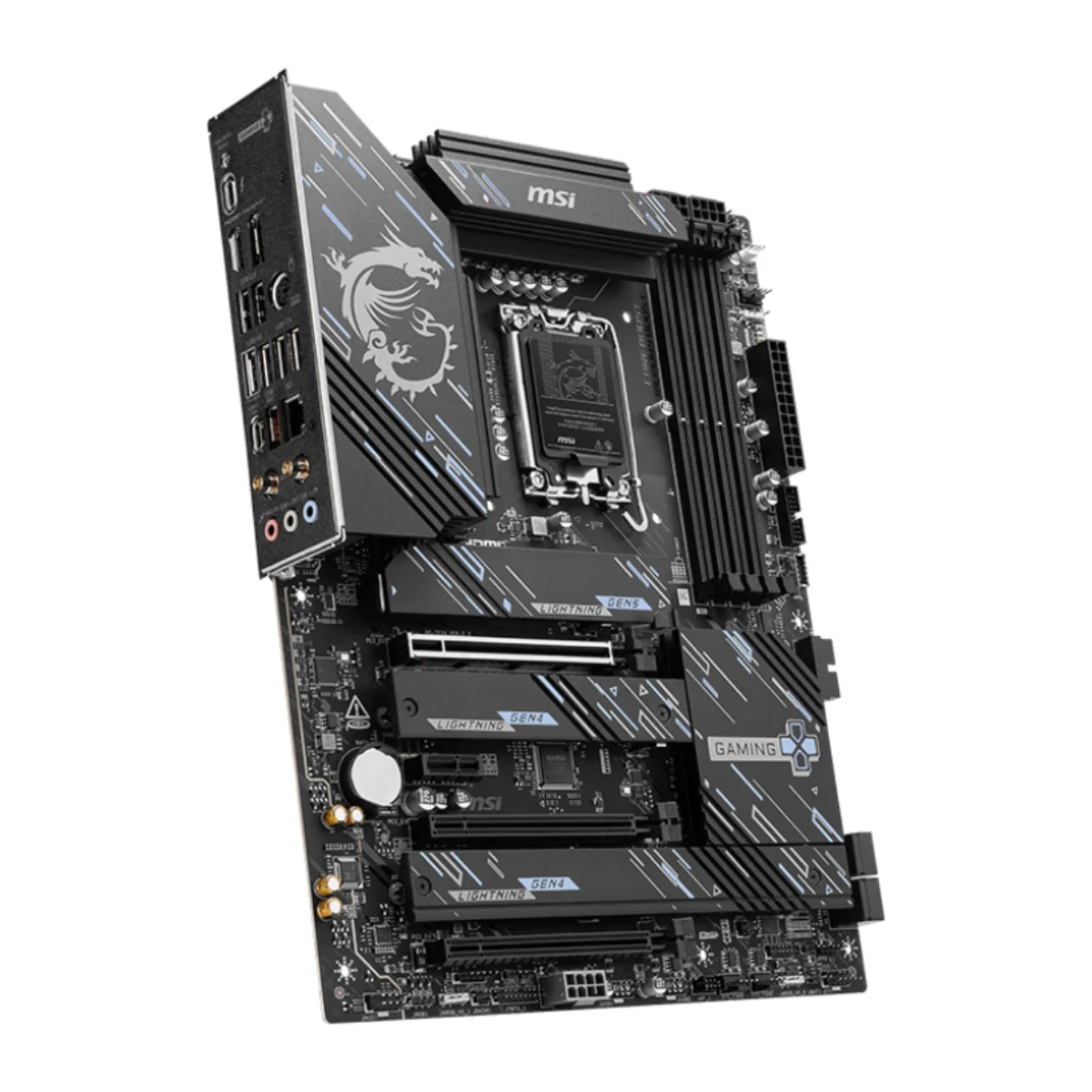

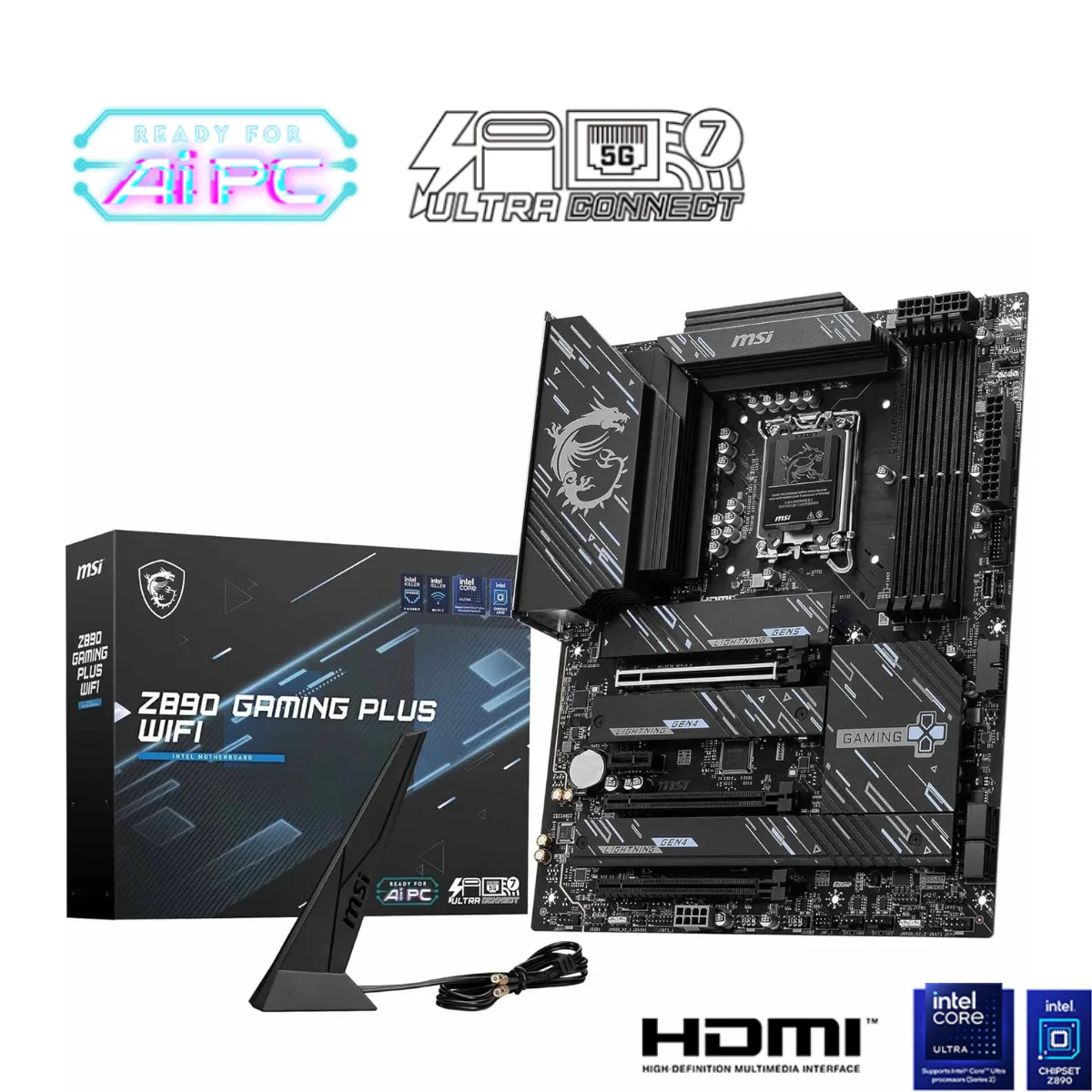

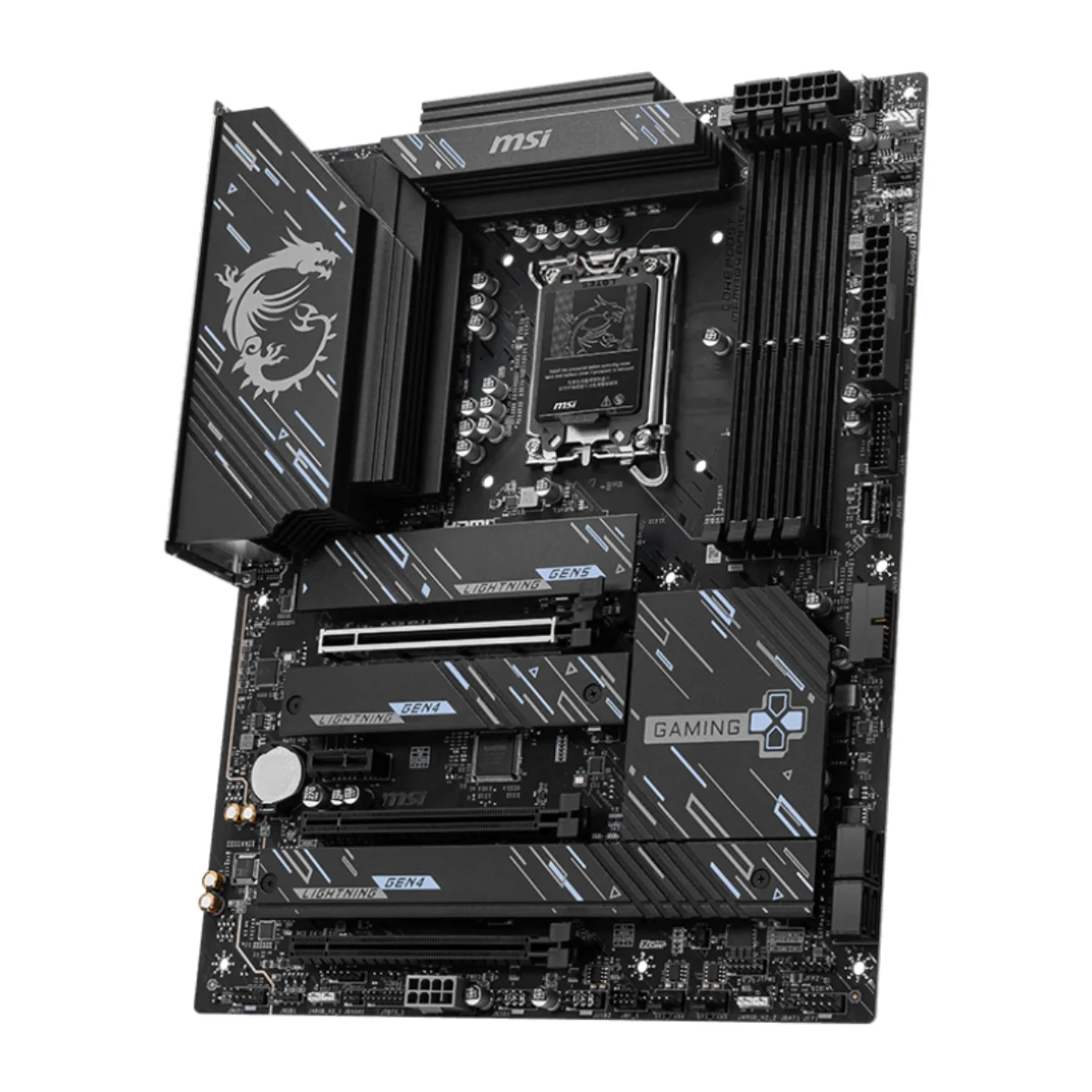

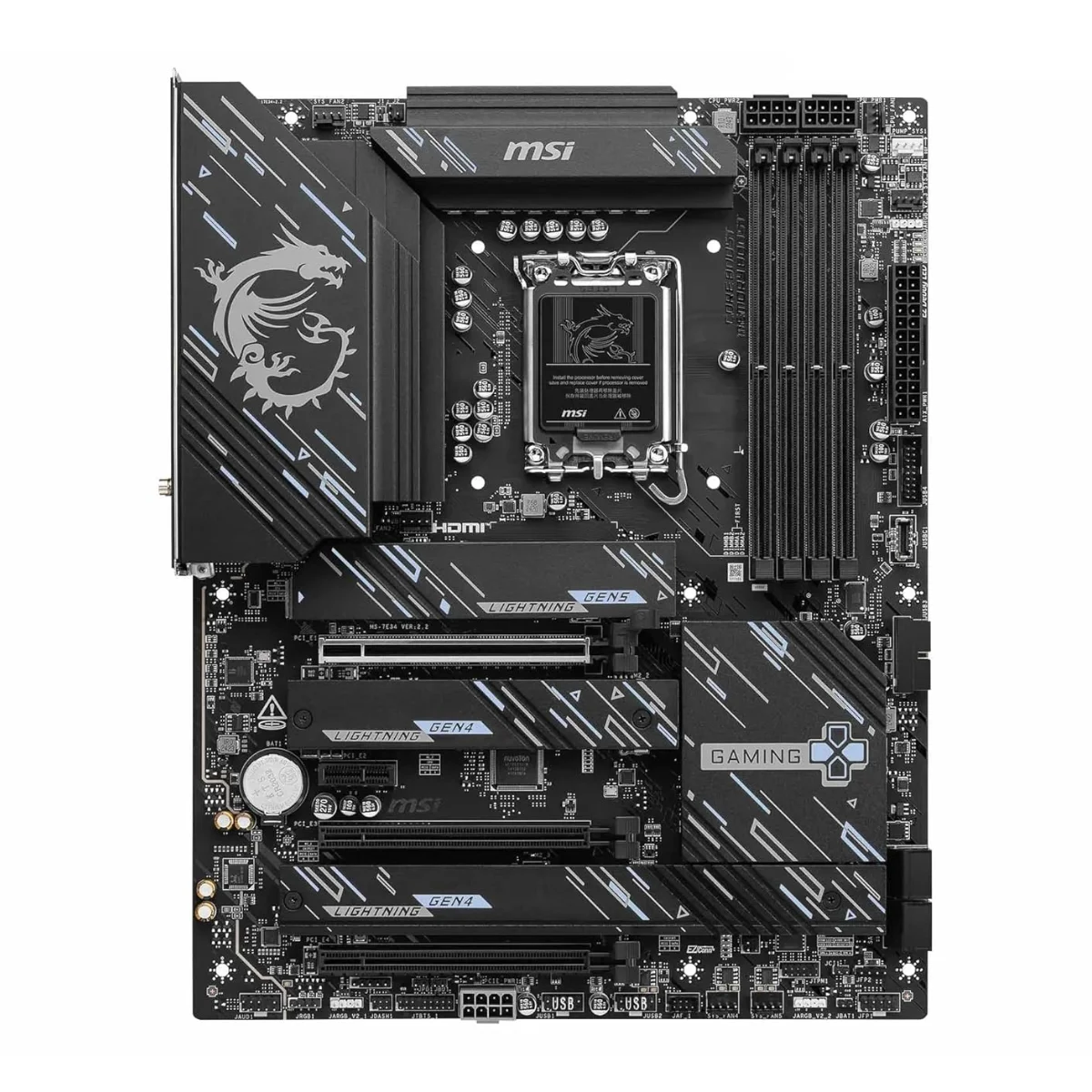

MSI Z890 GAMING PLUS WIFI / 911-7E34-002 / 4711377257718

La MSI Z890 GAMING PLUS WIFI rappresenta la scelta perfetta per chi desidera un’esperienza di gioco ad alte prestazioni, grazie al supporto per i processori Intel® Core™ Ultra (serie 2) con socket LGA 1851 e alla memoria DDR5 ad altissima velocità (fino a 9200+ MT/s in OC).

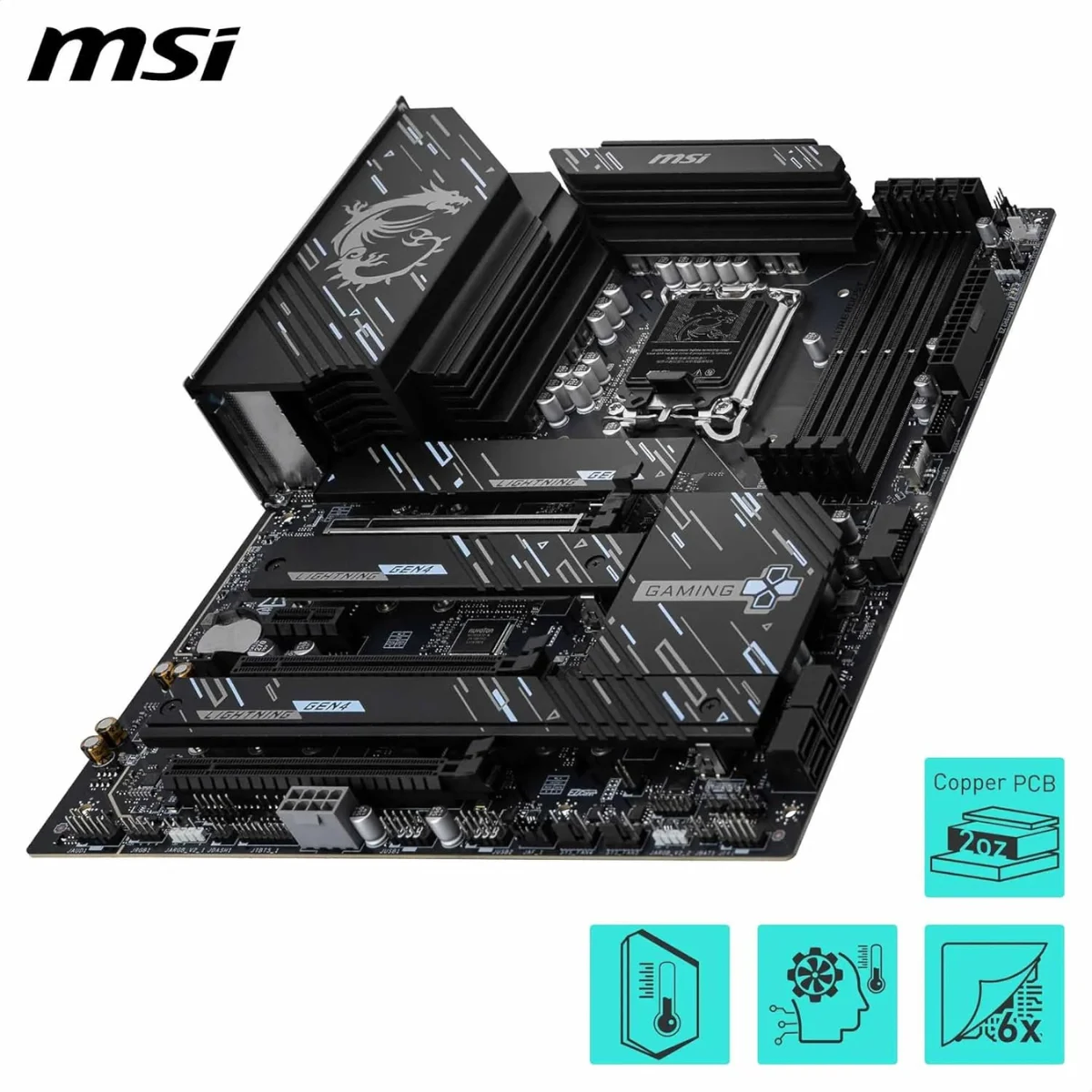

Dotata di un sistema di alimentazione Duet Rail 14+1+1+1 55A DrMOS con doppio connettore a 8 pin e tecnologia Core Boost, offre stabilità e potenza costante anche nei carichi più pesanti. Il PCB a 6 strati in rame da 2 once e il dissipatore Frozr Guard con pad termici premium assicurano una dissipazione ottimale per sessioni di gaming 24/7.

Il reparto connettività è di altissimo livello: PCIe 5.0, slot M.2 Lightning Gen 5 x4, Thunderbolt 4, Intel® Killer™ 5G LAN e Wi-Fi 7 garantiscono trasferimenti ultra-rapidi e connessioni stabili. Le funzioni EZ DIY come EZ M.2 Clip II, EZ PCIe Clip II ed EZ Antenna rendono l’assemblaggio e la manutenzione estremamente semplici.

Con l’audio di qualità professionale Audio Boost, la Z890 GAMING PLUS WIFI è pronta a offrire un’esperienza di gioco immersiva e prestazioni al top.

Caratteristiche principali

  • Supporto processori Intel® Core™ Ultra (serie 2) – Socket LGA 1851

  • DDR5 Dual Channel fino a 9200+ MT/s (OC)

  • Sistema di alimentazione Duet Rail 14+1+1+1 55A DrMOS con doppio connettore 8 pin

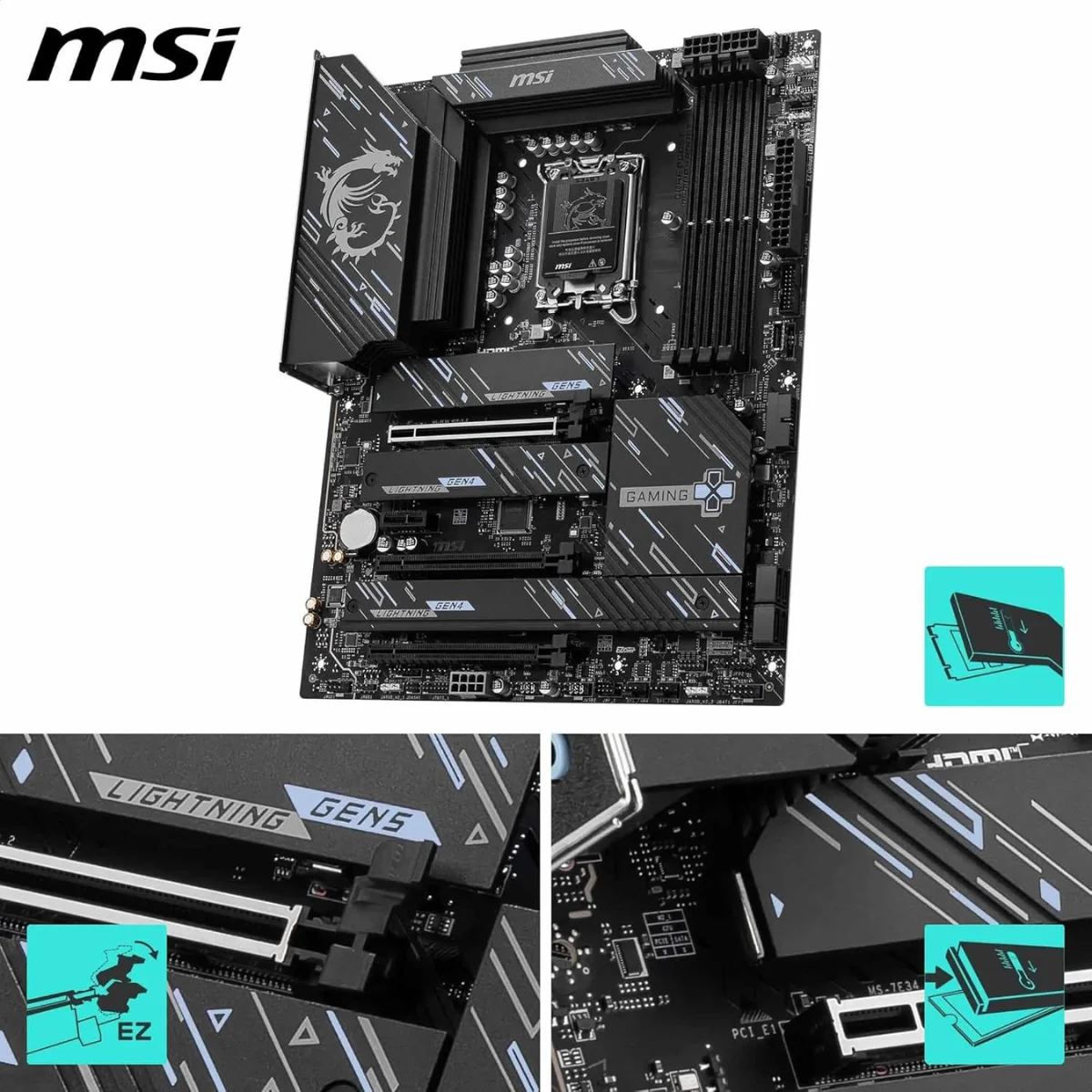

  • Dissipatore Frozr Guard e EZ M.2 Shield Frozr II

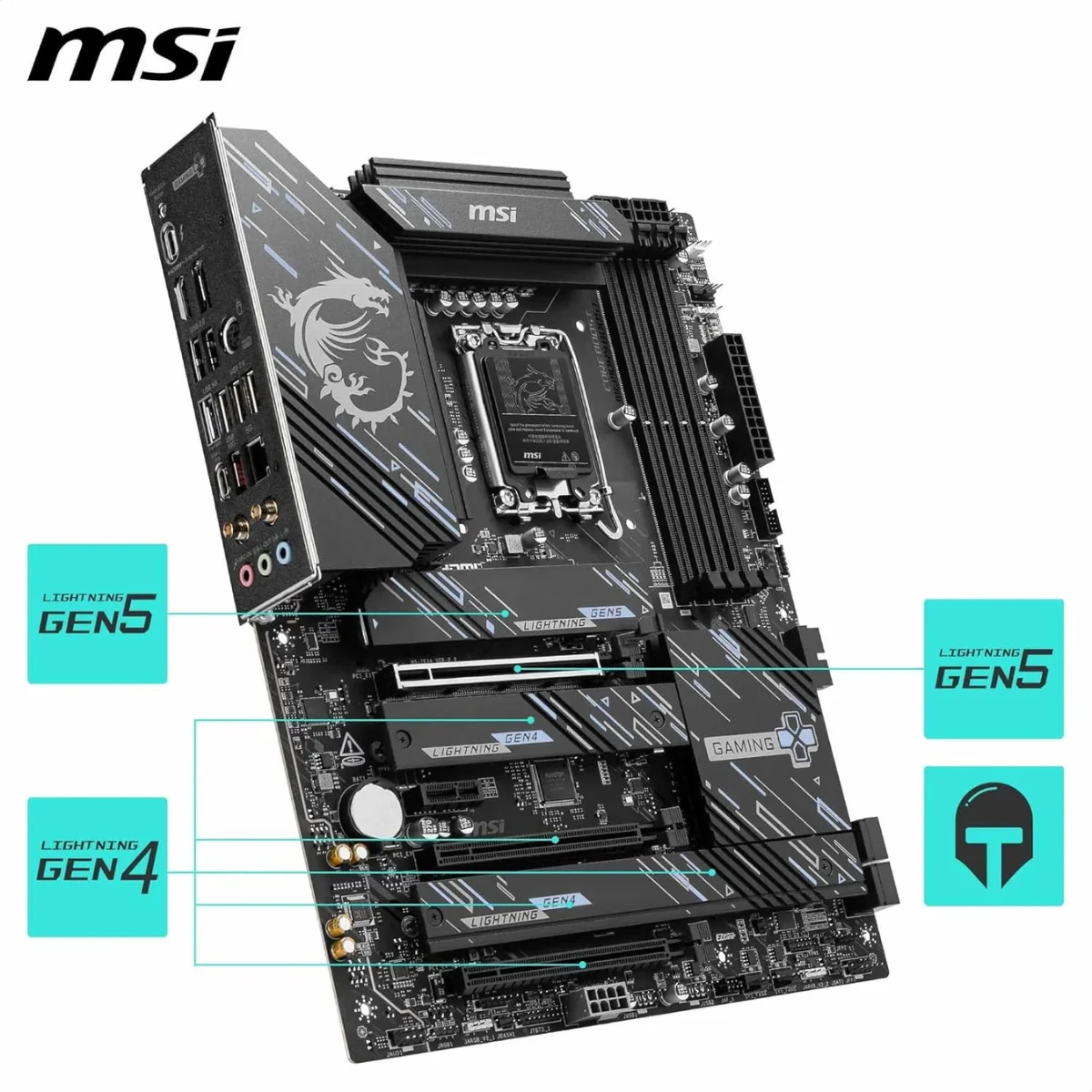

  • PCIe 5.0 e M.2 Lightning Gen 5 x4

  • Thunderbolt™ 4, Intel® Killer™ 5G LAN, Wi-Fi 7

  • Funzioni EZ DIY per assemblaggio semplificato

  • Audio Boost per qualità sonora premium

Specifiche Tecniche

Caratteristica Dettagli
Marca MSI
Modello Z890 GAMING PLUS WIFI
Codice prodotto 911-7E34-002
EAN 4711377257718
Fattore di forma ATX
Socket CPU LGA 1851
Chipset Intel Z890
Memoria DDR5 Dual Channel, fino a 9200+ MT/s (OC)
Alimentazione Duet Rail 14+1+1+1 55A DrMOS, doppio connettore CPU 8 pin
Espansione PCIe 5.0
Archiviazione M.2 Lightning Gen 5 x4
Rete Intel® Killer™ 5G LAN, Intel® Killer™ Wi-Fi 7
Porte Thunderbolt 4, HDMI, DisplayPort
Audio Audio Boost
Funzioni speciali EZ DIY, Frozr Guard, EZ M.2 Clip II, EZ PCIe Clip II, EZ Antenna
Uso consigliato Gaming e creazione contenuti

Domande Frequenti (FAQ)

1. Supporta i processori Intel Core di ultima generazione?
Sì, supporta i processori Intel® Core™ Ultra (serie 2) su socket LGA 1851.

2. Qual è la velocità massima della RAM?
Supporta DDR5 fino a 9200+ MT/s in overclock.

3. Ha connettività di rete ad alta velocità?
Sì, include Intel® Killer™ 5G LAN e Killer™ Wi-Fi 7.

4. È adatta per configurazioni di fascia alta con GPU PCIe 5.0?
Sì, è pienamente compatibile con schede grafiche PCIe 5.0 di ultima generazione.

5. L’installazione degli M.2 è semplice?
Sì, grazie alle funzioni EZ M.2 Shield Frozr II e EZ M.2 Clip II, l’installazione è veloce e senza viti.

Per ulteriori dettagli, visita la pagina ufficiale MSI Z890 GAMING PLUS WIFI.

Informazioni aggiuntive
Peso 1,36 kg
Dimensioni 30,5 × 24,4 × 3 cm
M.B. - Chipset

Intel Z890
CPU

Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
–
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Onboard Graphics

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Slot

3x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio

4x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt

1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
LAN

Intel® Killer™ E5000 5Gbps LAN
Internal IO

1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
LED FEATURE

4x EZ Debug LED

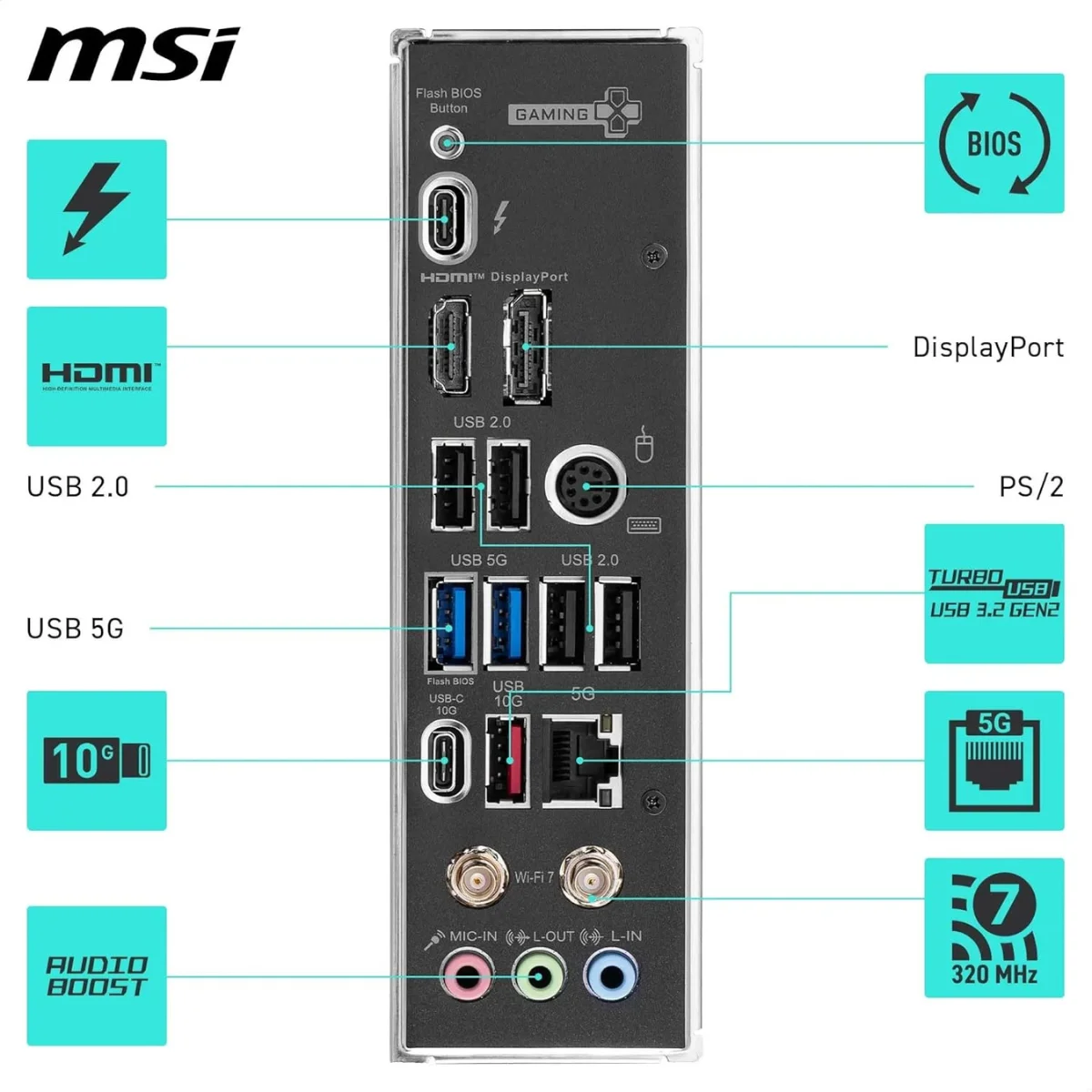

BACK PANEL PORTS

DisplayPort
Keyboard / Mouse
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
Thunderbolt™ 4 40Gbps (Type-C)
HDMI™
USB 2.0
USB 5Gbps Type A ports
USB 10 Gbps Type C ports
USB 10 Gbps Type A ports
OPERATING SYSTEM

Support for Windows® 11 64-bit
PCB Info

ATX
243.84mmx304.8mm
