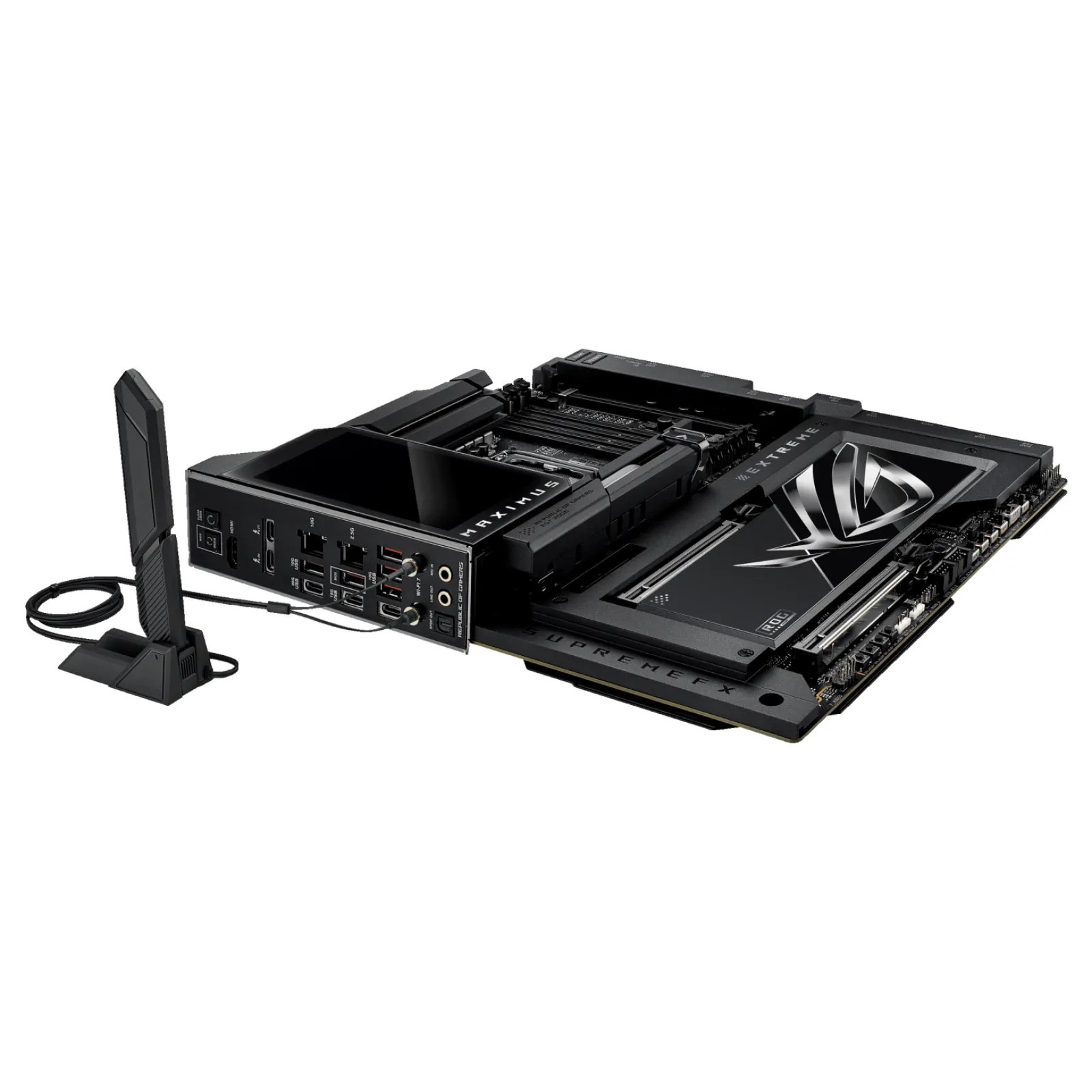

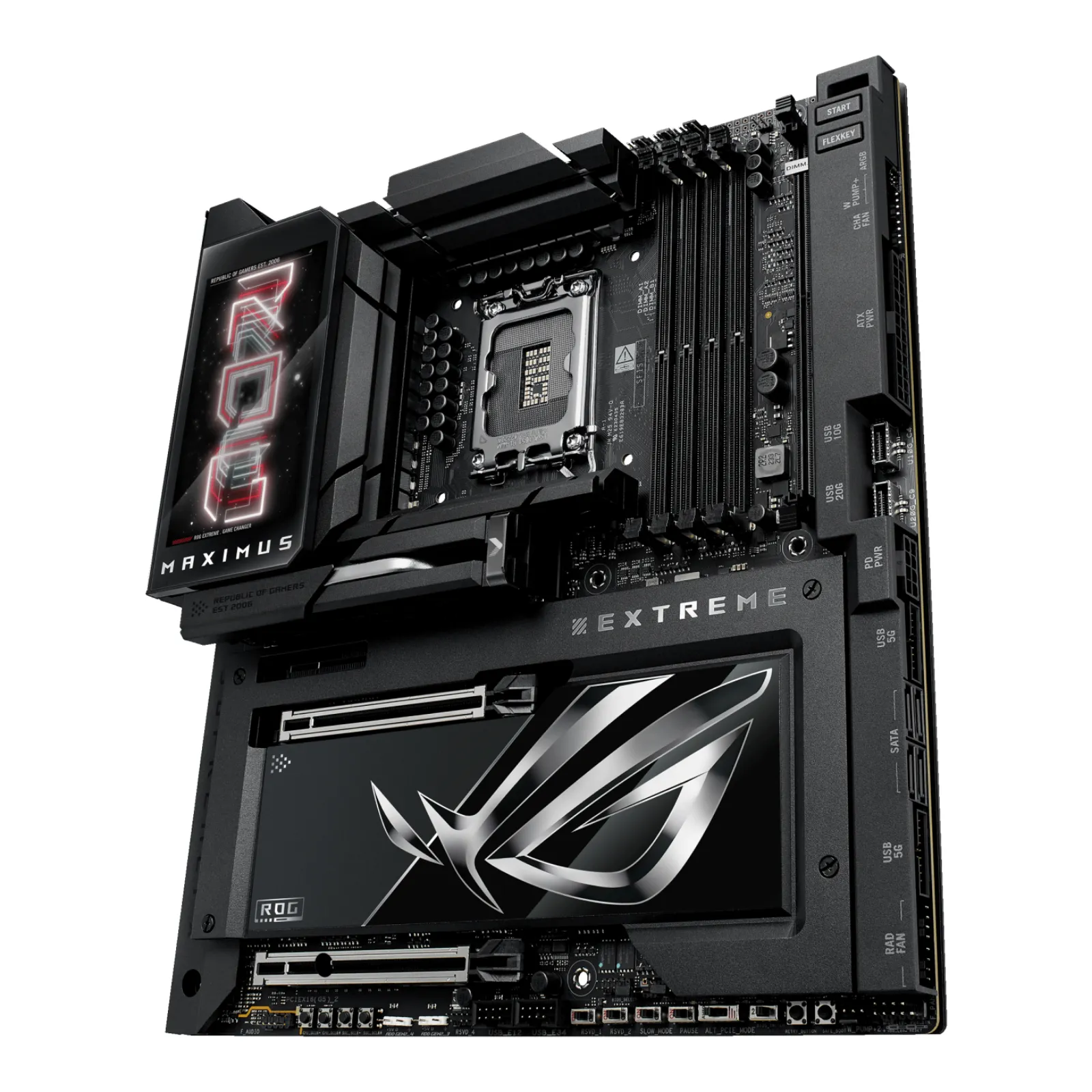

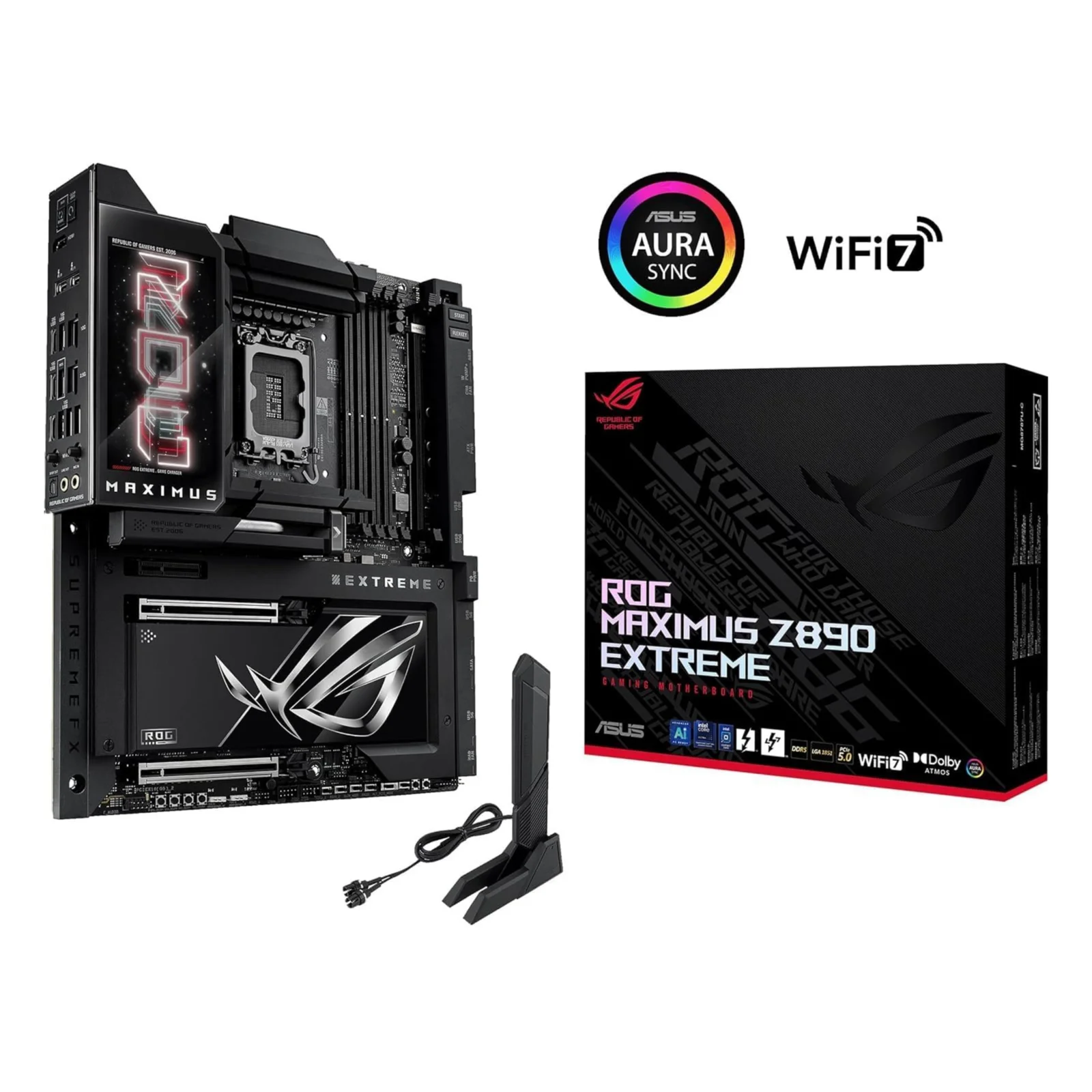

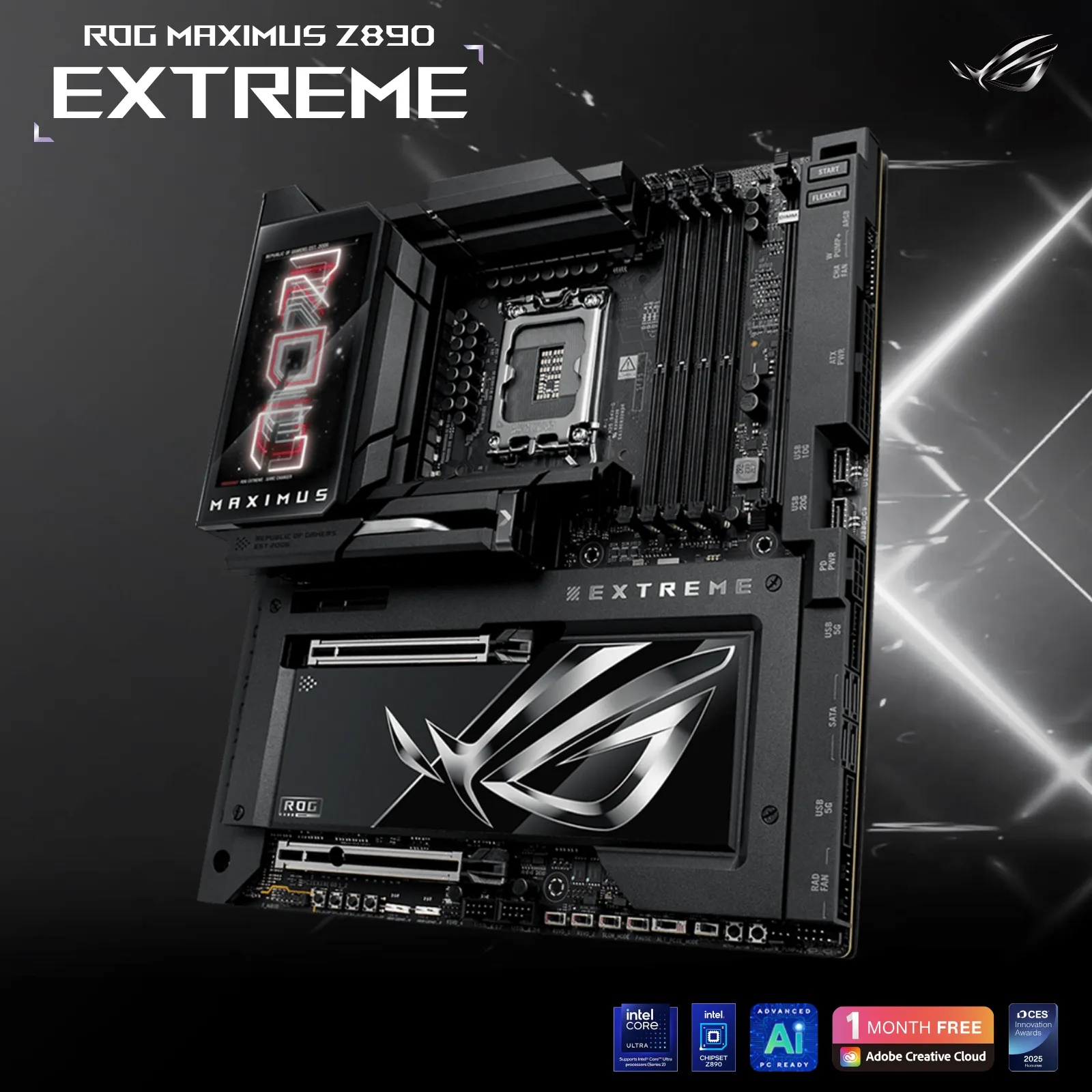

ASUS ROG MAXIMUS Z890 EXTREME – Scheda Madre E-ATX LGA1851 DDR5 PCIe 5.0 WiFi 7 Thunderbolt 5 con Display LCD 5″ [Pre-Ordine]

0 Persone guardano adesso questo prodotto!

EAN: 4711387754153 COD: 90MB1IA0-M0EAY0 Categorie: LGA 1851, ROG Z890 Promo

Descrizione

ASUS ROG MAXIMUS Z890 EXTREME / 90MB1IA0-M0EAY0 / 4711387754153

La massima espressione della piattaforma Intel Z890

La ASUS ROG Maximus Z890 Extreme rappresenta il vertice assoluto della gamma ROG per piattaforma Intel. Progettata per appassionati, overclocker e utenti enthusiast, mette a disposizione un livello eccezionale di potenza, espandibilità e controllo, così da creare un PC senza compromessi per gaming di fascia alta, produttività avanzata e configurazioni estreme.

Supporto ai processori Intel Core Ultra Series 2

Basata su socket LGA1851 e chipset Intel Z890, questa scheda madre supporta i processori Intel Core Ultra Series 2, offrendo una piattaforma di ultima generazione pronta per carichi intensivi, gaming avanzato e workflow professionali. È progettata per sfruttare al massimo le CPU moderne anche in scenari ad alte richieste energetiche, con ampio margine per tuning e overclock.

Alimentazione estrema per prestazioni e overclock

Il sistema di alimentazione è uno dei punti di forza principali di questa motherboard. La ROG Maximus Z890 Extreme integra una soluzione VRM di livello enthusiast con 24(110A)+1(90A)+2(90A)+2(80A) stadi di potenza, connettori dual ProCool II e componentistica premium progettata per garantire stabilità, precisione e affidabilità anche sotto carichi estremi.

Questo significa:

alimentazione più pulita e stabile
temperature sotto controllo
migliore supporto all’overclock di CPU, RAM e NPU

È una scheda madre pensata per chi vuole spingere il sistema al massimo.

Memoria DDR5 ad altissima velocità

La sezione memoria è progettata per chi cerca prestazioni senza compromessi. Sono presenti 4 slot DDR5 con supporto fino a 256GB totali e frequenze fino a 9200+ MT/s in overclock.

Le tecnologie ASUS dedicate migliorano ulteriormente la gestione della RAM:

NitroPath DRAM Technology
DIMM Flex
DIMM Fit
AEMP III
supporto XMP
compatibilità CUDIMM

Il risultato è una piattaforma estremamente avanzata per memory overclock, stabilità elevata e bandwidth superiore, ideale per gaming high-end, AI workload e applicazioni professionali.

PCIe 5.0 e storage NVMe di livello enthusiast

La ROG Maximus Z890 Extreme è costruita per offrire il massimo della banda disponibile. Integra:

2 slot PCIe 5.0 x16
1 slot PCIe 4.0 x4
fino a 6 slot M.2 totali
supporto PCIe 5.0 x4 per SSD di ultima generazione
4 porte SATA 6Gb/s

A bordo trovi:

4 slot M.2 integrati
2 ulteriori slot tramite ROG Q-DIMM.2
supporto RAID PCIe e SATA

È una soluzione ideale per chi vuole creare una configurazione con SSD ultraveloci, ampio spazio di archiviazione e prestazioni di I/O ai massimi livelli.

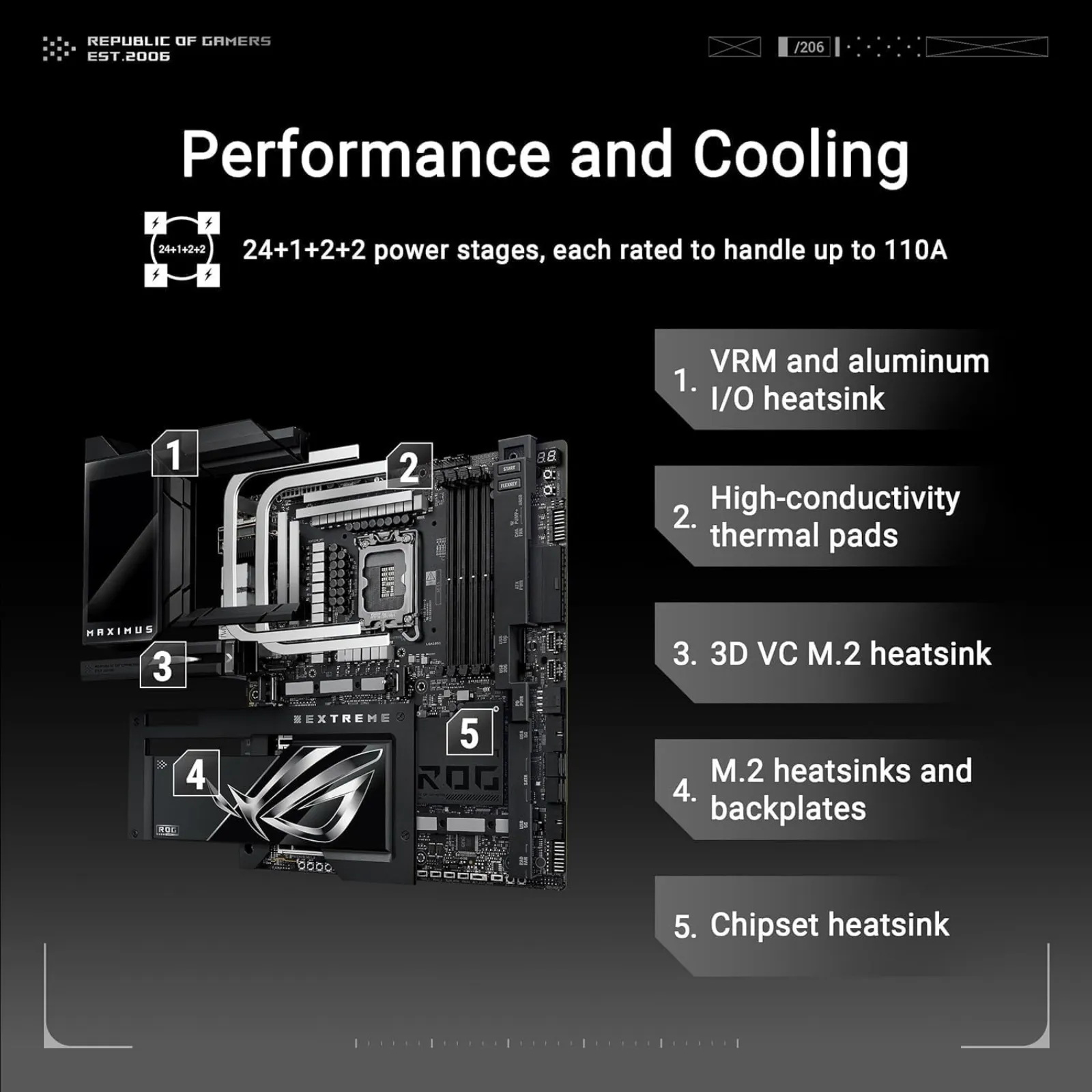

Raffreddamento evoluto per SSD e sistema

Per mantenere prestazioni elevate anche sotto carico continuo, ASUS ha integrato una soluzione termica avanzata. Il sistema include il raffinato 3D VC M.2 Heatsink, un dissipatore con camera di vapore progettato per migliorare in modo significativo il raffreddamento degli SSD PCIe 5.0.

A questo si aggiungono:

dissipatori VRM di grandi dimensioni
piastra posteriore metallica
numerosi header per ventole, pompe e sensori
controllo termico avanzato

La scheda è pensata per gestire senza difficoltà build spinte, storage ultra veloce e carichi prolungati.

WiFi 7, doppia LAN e connettività di nuova generazione

Sul fronte networking, questa motherboard offre una dotazione semplicemente eccezionale:

WiFi 7
Bluetooth 5.4
Intel 2.5Gb Ethernet
Marvell AQtion 10Gb Ethernet

Grazie al supporto WiFi 7 con banda 320 MHz e velocità fino a 5.8 Gbps, la piattaforma è pronta per connessioni wireless di ultima generazione. La doppia LAN cablata la rende perfetta per gaming online, streaming, workstation professionali, NAS e reti avanzate.

Thunderbolt 5 e USB ad altissima velocità

La connettività è uno dei grandi punti di forza di questa scheda madre. La ROG Maximus Z890 Extreme offre:

2 porte Thunderbolt 5 USB Type-C
1 porta USB 20Gbps Type-C
7 porte USB 10Gbps posteriori
connettori frontali USB Type-C fino a 20Gbps
supporto Quick Charge 4+ fino a 60W

È una piattaforma ideale per periferiche premium, docking station, monitor ad alta risoluzione, storage esterno ultraveloce e ricarica rapida dei dispositivi.

Audio premium SupremeFX con ESS DAC

Anche il comparto audio è di fascia altissima. La scheda integra:

ROG SupremeFX 7.1
codec ALC4082
ESS ES9219 QUAD DAC
condensatori audio premium
uscita ottica S/PDIF
jack audio illuminati

Il risultato è un audio estremamente curato, adatto sia al gaming immersivo sia all’ascolto di contenuti ad alta qualità.

Display LCD a colori da 5 pollici

Uno degli elementi più distintivi della ROG Maximus Z890 Extreme è il suo spettacolare display LCD full color da 5″. Questo schermo può mostrare:

statistiche di sistema in tempo reale
temperature e dati hardware
animazioni ROG
immagini e contenuti personalizzati

È una caratteristica premium che aggiunge valore sia estetico che funzionale alla build.

AI integrata per ottimizzazione intelligente

ASUS ha dotato questa motherboard di una suite avanzata di funzioni AI pensate per semplificare tuning, raffreddamento e rete:

AI Overclocking
AI Cooling II
AI Networking II
ASUS AI Advisor
NPU Boost

Queste tecnologie aiutano a ottimizzare automaticamente le prestazioni, bilanciare rumore e temperature, migliorare la connettività e persino sfruttare la NPU dei processori Intel Core Ultra per accelerare i carichi AI.

Funzioni premium per overclock e assemblaggio enthusiast

La Z890 Extreme è pensata per chi assembla, testa e ottimizza sistemi di fascia altissima. Include un vero kit da overclocker con:

Start button
Safe Boot
ReTry button
Slow Mode
LN2 Mode
ProbeIt measurement points
Q-Code
BIOS Switch
FlexKey

A questo si aggiungono le funzioni ASUS Q-Design che rendono il montaggio molto più semplice:

M.2 Q-Latch
M.2 Q-Release
M.2 Q-Slide
PCIe Q-Release Slim
Q-Antenna
Q-Dashboard
BIOS FlashBack
Clear CMOS

È una motherboard progettata per semplificare sia l’assemblaggio sia il tweaking avanzato.

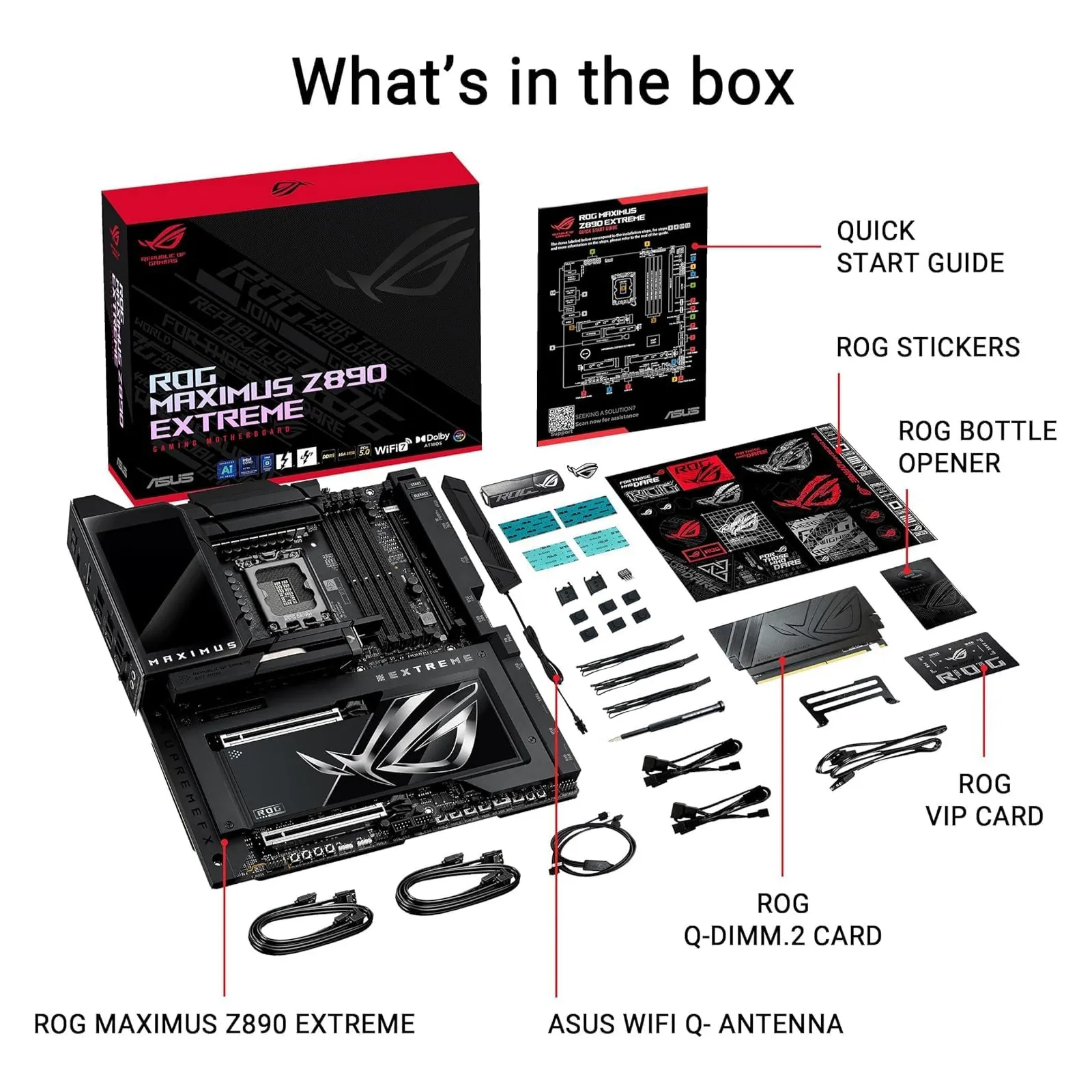

Formato E-ATX e dotazione di fascia assoluta

Con formato E-ATX (30,5 x 27,7 cm), la ROG Maximus Z890 Extreme è destinata a build premium con case di grandi dimensioni. La confezione include una dotazione ricca di accessori, tra cui:

ROG Q-DIMM.2 con dissipatore
cavi SATA
cavi ARGB
splitter per ventole
antenna WiFi
cacciavite ROG
USB drive con driver e utility
sensori termici
accessori per M.2

Tutto è pensato per offrire un’esperienza enthusiast completa fin dal primo avvio.

FAQ

Che processori supporta ASUS ROG Maximus Z890 Extreme?
Supporta i processori Intel Core Ultra Series 2 con socket LGA1851.

Supporta RAM DDR5?
Sì, dispone di 4 slot DDR5 e supporta fino a 256GB con frequenze fino a 9200+ MT/s in overclock.

Quanti slot M.2 offre?
Supporta fino a 6 slot M.2 totali, di cui 4 onboard e 2 tramite scheda ROG Q-DIMM.2.

Ha Thunderbolt 5?
Sì, integra 2 porte Thunderbolt 5 USB Type-C.

Che connettività di rete offre?
Include WiFi 7, Bluetooth 5.4, LAN 2.5GbE e LAN 10GbE.

Ha un display integrato?
Sì, è dotata di un display LCD a colori da 5 pollici personalizzabile.

È adatta per overclock?
Assolutamente sì, è una scheda madre enthusiast progettata specificamente per overclock avanzato di CPU, RAM e NPU.

È compatibile con PCIe 5.0?
Sì, supporta PCIe 5.0 sia per schede video sia per SSD NVMe compatibili.

Informazioni aggiuntive

Peso	4,5 kg
Dimensioni	38 × 30 × 14 cm
News & Updates	Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below: —– •Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). —– •Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. —– Please visit our GLOBAL website to check and download the latest updates. The Thunderbolt 5 features on this motherboard are only supported in Windows 11. To ensure the best experience, please install Windows 11 and update to the latest version to access the latest inbox drivers.
CPU	Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z890 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Support up to 9200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) Supports DIMM Flex DIMM Fit NitroPath DRAM Technology * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x HDMITM port 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs* * Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates. Supports max. 8K@60Hz with DSC as specified in HDMI 2.1. Supports up to 1 x 8K@60HZ(DSC mode)+2 x 4K@60HZ monitors, It is recommended to chain-connect the monitors using a verified Thunderbolt™ cable. *For resolution support please check DisplayPort 2.1 specs.bandwidth limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. *In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20. **VGA resolution support depends on processors' or graphic cards' resolution. *****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots	Intel® Core™ Ultra Processors(Series 2)* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes) Intel® Z890 Chipset 1 x PCIe 4.0×4 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). **M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled. – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports* Support Intel® Core™ Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes) Intel® Z890 Chipset DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. *M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
Ethernet	1 x Intel® 2.5Gb Ethernet 1 x Marvell® AQtion 10Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Intel® Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4* —– Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 10 ports) 2 x Thunderbolt™ 5 ports (2 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®) Front USB (Total 10 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)* 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A *USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082** – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel Audio Features – SupremeFX Shielding Technology – ESS® ES9219 QUAD DAC – LED-illuminated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports	2 x Thunderbolt™ 5 USB Type-C® ports 1 x USB 20Gbps port (1 x USB Type-C®) 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®) 1 x HDMITM port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 1 x Marvell® AQtion 10Gb Ethernet port 2 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x WB_SENSOR header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 2 x Addressable Gen 2 header 1 x Alteration PCIe mode switch 4 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 18 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switchs 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Special Features	Extreme OC Kit – FlexKey button – LN2 Mode – ProbeIt – ReTry button – Safe boot button – Start button – Slow Mode Extreme Engine Digi+ – 10K Black Metallic Capacitors – MicroFine Alloy Choke ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Code – Q-Connector – Q-Dashboard – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot – Q-DIMM.2 ASUS Thermal Solution – Fan bracket – M.2 heatsink backplate – M.2 heatsink – Metal backplate – VRM heatsink design – 3D VC M.2 Heatsink ASUS EZ DIY – Backplate – BIOS FlashBack™ button – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Addressable Gen 2 headers Dual BIOS Full Color 5" LCD Display ROG M.2 PowerBoost Front Panel USB 20Gbps with Quick Charge 4+ Support – Support: up to 60W fast charging and USB Wattage Watcher* – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A – Compatible with PD3.0 and PPS * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
Software Features	ROG Exclusive Software – ROG CPU-Z – Dolby Atmos – Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (1 year full version) – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – GameFirst – HWiNFO – Power Saving – LCD Display ASUS AI Advisor ASUS Driver Hub Turbo Vcore ASUS GlideX Thunderbolt™ Share USB Wattage Watcher WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide NPU Boost ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey
BIOS	2 x 64 MB (512Mb) Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME
Accessories	Cables 1 x 1-to-3 ARGB splitter cable 1 x 1-to-2 ARGB splitter cable 2 x 1-to-4 fan splitter cable 2 x ROG weave SATA 6G cable packages 1 x 3-in-1 Thermistor cables pack ROG Q-DIMM.2 with Heatsink 1 x ROG Q-DIMM.2 with heatsink 1 x M.2 pad package for ROG Q-DIMM.2 2 x Thermal pad for ROG Q-DIMM.2 Additional Cooling Kit 2 x Thermal pad for M.2 22110 1 x DDR5 Fan holder Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x ROG logo plate sticker 1 x ROG screwdriver 1 x ROG stickers 1 x ROG VIP card 2 x M.2 Q-Slide packages 6 x M.2 backplate rubber packages 1 x ROG Bottle Opener Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide
Operating System	Windows 11 (22H2 & later)
Form Factor	E-ATX Form Factor 12 inch x 10.9 inch (30.5 cm x 27.7 cm)
