MSI PRO X870E-P WIFI
MSI PRO X870E-P WIFI – Scheda Madre AM5 ATX con Wi-Fi 7, 5G LAN e PCIe 5.0 per Ryzen 9000 - immagine 2
MSI PRO X870E-P WIFI – Scheda Madre AM5 ATX con Wi-Fi 7, 5G LAN e PCIe 5.0 per Ryzen 9000 - immagine 3
MSI PRO X870E-P WIFI – Scheda Madre AM5 ATX con Wi-Fi 7, 5G LAN e PCIe 5.0 per Ryzen 9000 - immagine 4
MSI PRO X870E-P WIFI – Scheda Madre AM5 ATX con Wi-Fi 7, 5G LAN e PCIe 5.0 per Ryzen 9000 - immagine 5
MSI PRO X870E-P WIFI – Scheda Madre AM5 ATX con Wi-Fi 7, 5G LAN e PCIe 5.0 per Ryzen 9000 - immagine 6
MSI PRO X870E-P WIFI – Scheda Madre AM5 ATX con Wi-Fi 7, 5G LAN e PCIe 5.0 per Ryzen 9000 - immagine 7
MSI PRO X870E-P WIFI – Scheda Madre AM5 ATX con Wi-Fi 7, 5G LAN e PCIe 5.0 per Ryzen 9000 - immagine 8
MSI

MSI PRO X870E-P WIFI – Scheda Madre AM5 ATX con Wi-Fi 7, 5G LAN e PCIe 5.0 per Ryzen 9000

299,00 €

   Chipset AMD X870E
Form Factor   Form Factor ATX
Socket   Socket AM5
Tipo di Memoria   Tipo di Memoria DDR5

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4711377347600 COD: 911-7E70-002 Categoria:
Descrizione

PRO X870E-P WIFI / 911-7E70-002 / 4711377347600

🧠 Pensata per produttività, multitasking e AI PC

La serie MSI PRO è progettata per utenti che vogliono efficienza e affidabilità:

  • Ideale per workstation, studio e lavoro quotidiano intenso

  • Piattaforma pronta per applicazioni AI e carichi moderni

  • Interfaccia e strumenti MSI pensati per semplificare la gestione del sistema

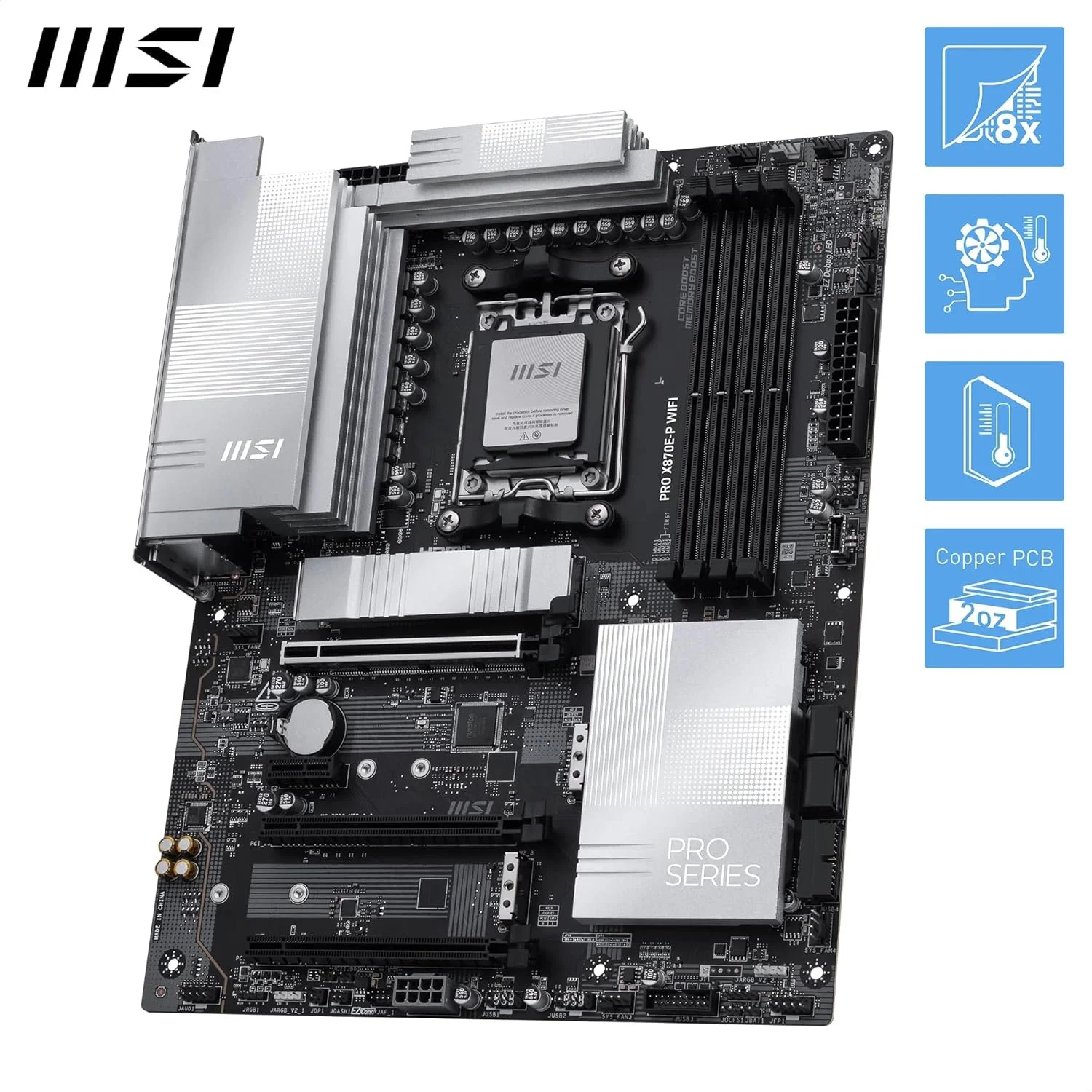

⚡ Prestazioni solide con VRM di livello “Ultra Performance”

Per gestire CPU potenti senza compromessi:

  • Alimentazione digitale avanzata con power design di fascia alta

  • Doppio connettore CPU e soluzioni MSI per stabilità sotto carico

  • PCB ottimizzato per banda e trasferimenti più rapidi

Perfetta per build Ryzen ad alte prestazioni, anche in sessioni prolungate.

❄️ Raffreddamento e ottimizzazione automatica con AI

La scheda integra funzioni intelligenti che lavorano “dietro le quinte”:

  • Frozr AI Cooling regola automaticamente le ventole per stabilità e silenzio

  • AI Engine sincronizza e ottimizza in base alle app in uso

  • AI LAN Manager riduce latenza e priorizza le applicazioni sensibili (es. gaming/meeting)

  • AI Boost per aumentare le prestazioni AI (NPU) su CPU compatibili

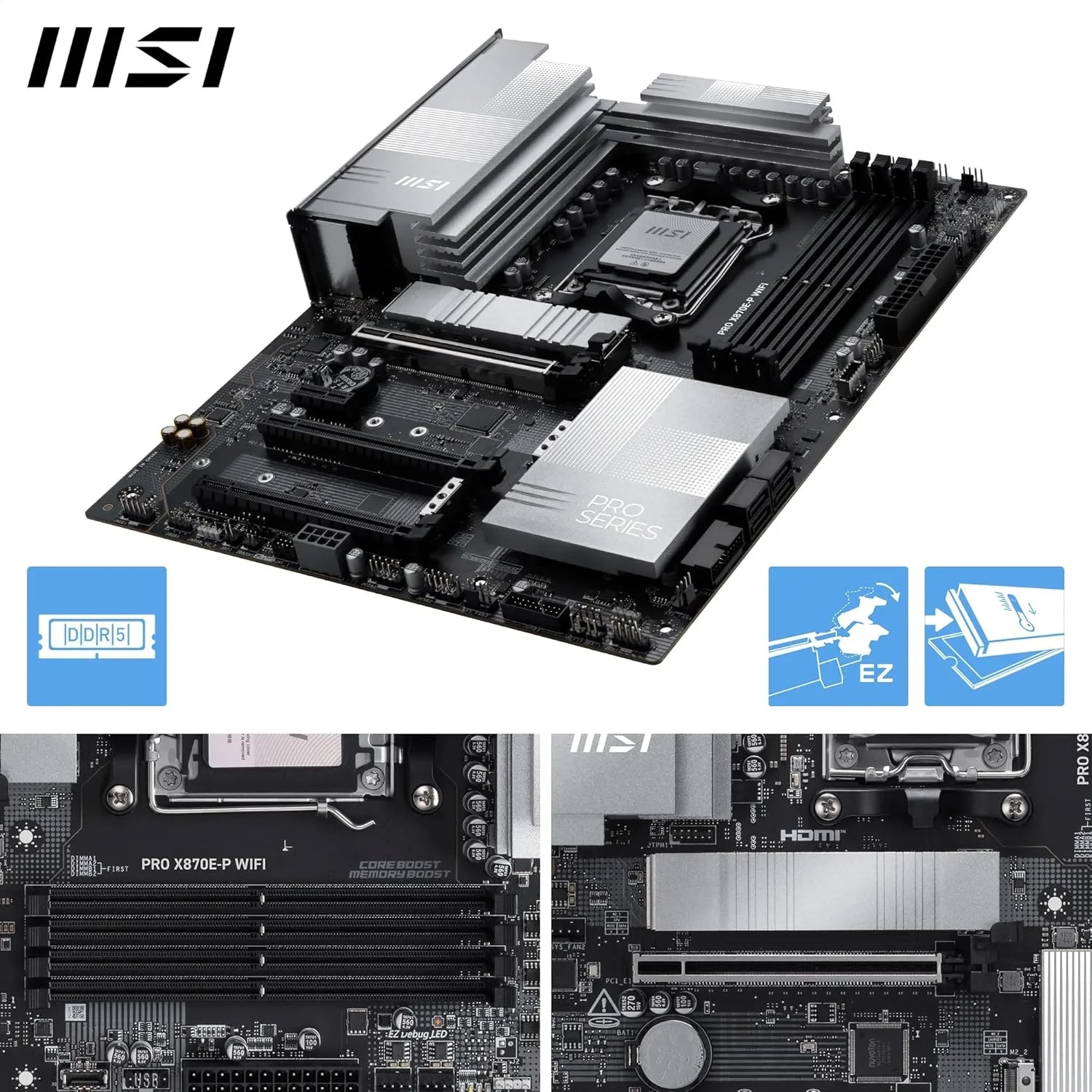

🛠️ EZ DIY: assemblaggio più rapido, zero stress

Pensata per rendere l’assemblaggio e gli upgrade più semplici:

  • EZ M.2 Shield Frozr II: dissipatore M.2 tool-free installabile con un dito

  • EZ M.2 Clip II: montaggio SSD M.2 senza viti

  • EZ PCIe Clip II: rimozione GPU facilitata con un solo dito

  • I/O Shield preinstallato: montaggio più veloce e pulito

  • EZ Antenna: aggancio rapido dell’antenna Wi-Fi senza rotazioni

🌐 Connettività di nuova generazione: Wi-Fi 7 + 5G LAN

Per chi lavora online, gioca e trasferisce dati spesso:

  • Wi-Fi 7 “true Wi-Fi” con EZ Antenna (più pratico e ordinato)

  • 5G LAN per massima velocità e stabilità via cavo

  • Porte moderne ad alta velocità, incluse opzioni USB4 per dispositivi e storage rapidi

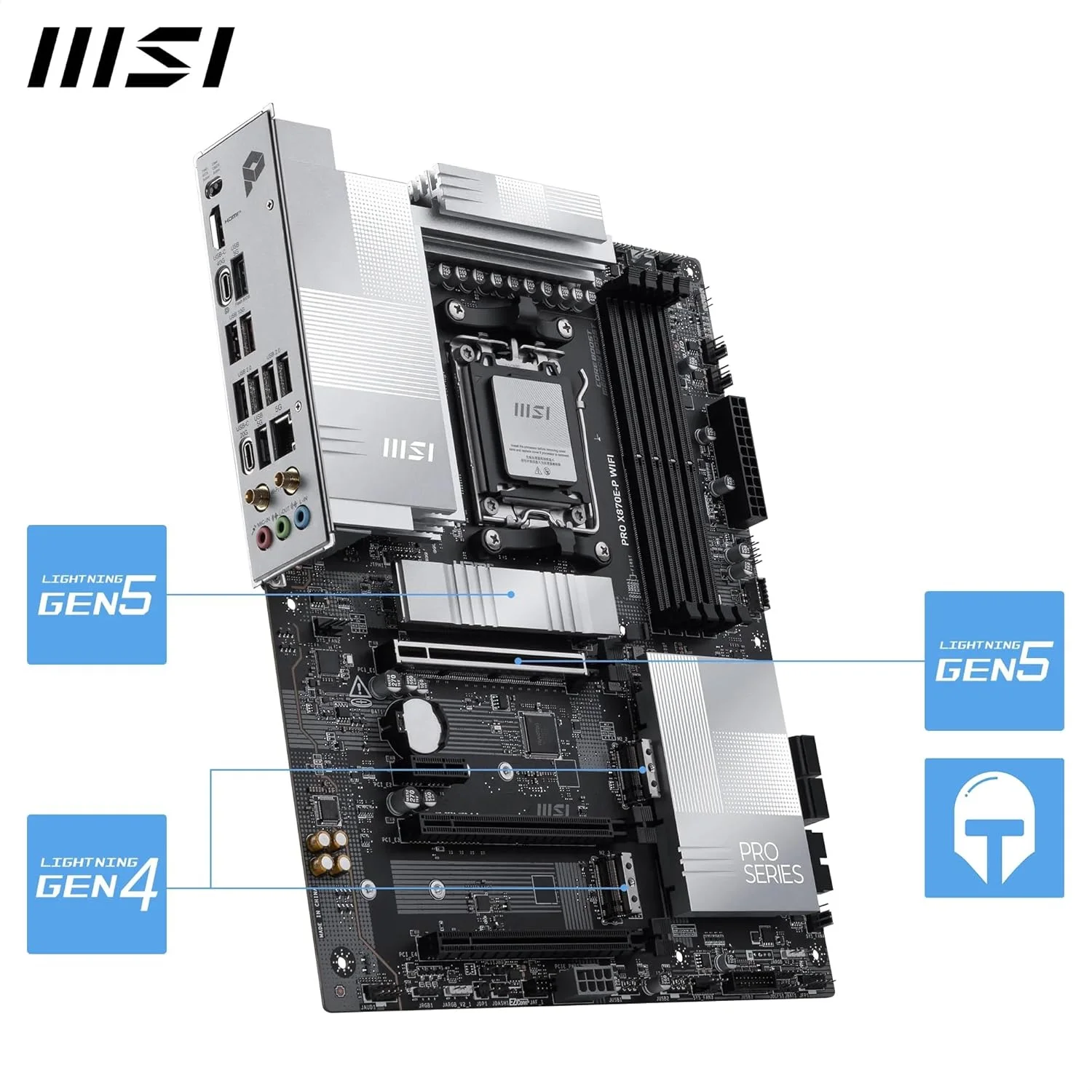

💾 PCIe 5.0 per build future-proof

Pronta per componenti di nuova generazione:

  • Supporto PCIe 5.0 per schede video e SSD NVMe

  • Soluzione termica dedicata per SSD con EZ M.2 Shield Frozr II

  • Pensata per massimizzare performance e affidabilità degli storage veloci

🎨 Design PRO elegante: perfetto per build white & black

  • Look pulito e professionale

  • Colorazione argento armoniosa

  • Ottima per PC da ufficio premium, creator PC e build minimal

❓ FAQ

È compatibile con AMD Ryzen su socket AM5?
Sì, è progettata per piattaforma AM5, inclusi processori Ryzen di nuova generazione.

Ha Wi-Fi integrato?
Sì, include Wi-Fi 7 con sistema EZ Antenna.

Ha una rete cablata veloce?
Sì, integra LAN 5G, ideale per streaming, lavoro e gaming online.

È facile da assemblare anche per chi non è esperto?
Sì, grazie alle funzioni EZ DIY (M.2 senza viti, clip PCIe, I/O shield preinstallato).

È adatta per SSD e GPU di nuova generazione?
Sì, supporta PCIe 5.0 e include soluzioni termiche dedicate per gli SSD.

🔗 Maggiori informazioni

Per immagini ufficiali e dettagli del produttore:
➡️ https://www.msi.com/Motherboard/PRO-X870E-P-WIFI

Informazioni aggiuntive
Peso 1,5 kg
Dimensioni 24,3 × 30,48 × 2,5 cm
Chipset

AMD X870E
CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics

1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot

3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
–
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Audio

Realtek® ALC897
7.1-Channel High Definition Audio
Storage

3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
4x SATA 6G
–
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
–
*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID

Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
–
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
USB

4x USB 2.0 (Rear)
6x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
1x USB 40Gbps Type C (Rear)
LAN

Realtek® 8126VB 5G LAN
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
6x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
–
Supports Bluetooth® 5.4**, MLO, 4KQAM
–
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE

4x EZ Debug LED
1x EZ Memory Detection LED

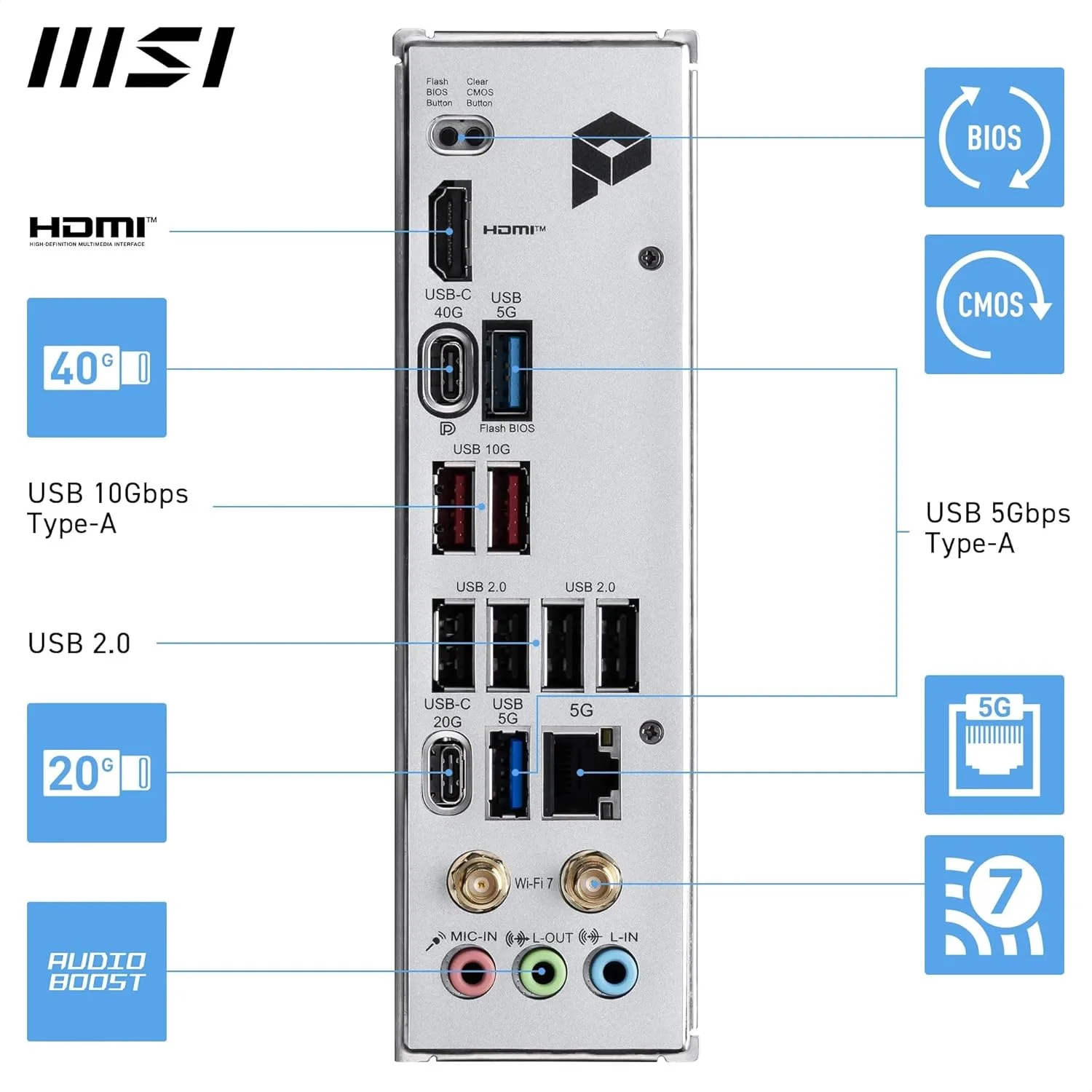

BACK PANEL PORTS

Clear CMOS Button
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 40Gbps Type-C
USB 10Gbps Type-A
USB 20Gbps Type-C
USB 5Gbps Type-A
OPERATING SYSTEM

Support for Windows® 11 64-bit
PCB Info

ATX
243.84mmx304.8mm
