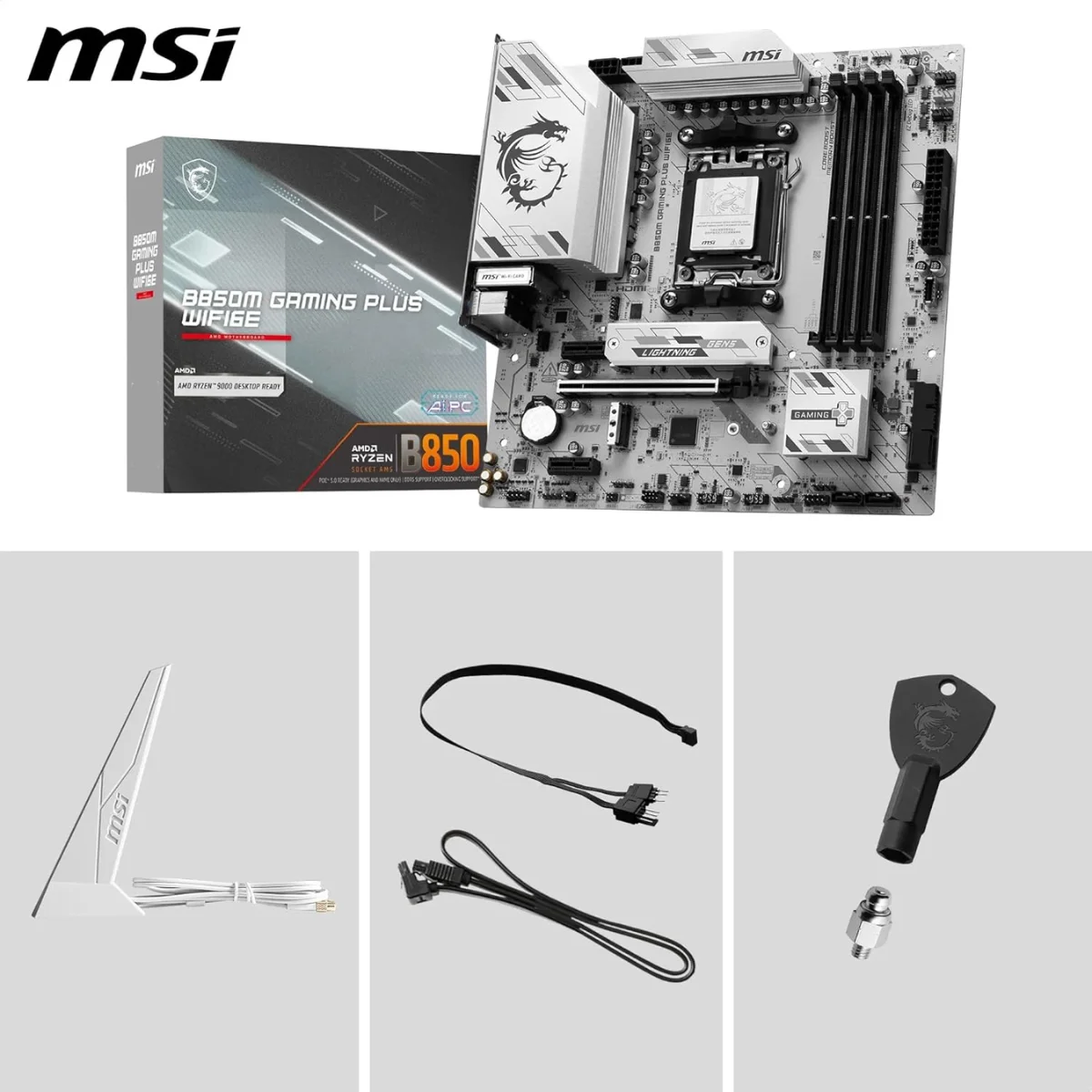

MSI B850M GAMING PLUS WIFI6E – Scheda Madre mATX AM5 per Ryzen 9000 con Wi-Fi 6E, 2.5G LAN, M.2 PCIe 5.0 e funzioni EZ DIY

Il prezzo originale era: 185,00 €.Il prezzo attuale è: 159,00 €.

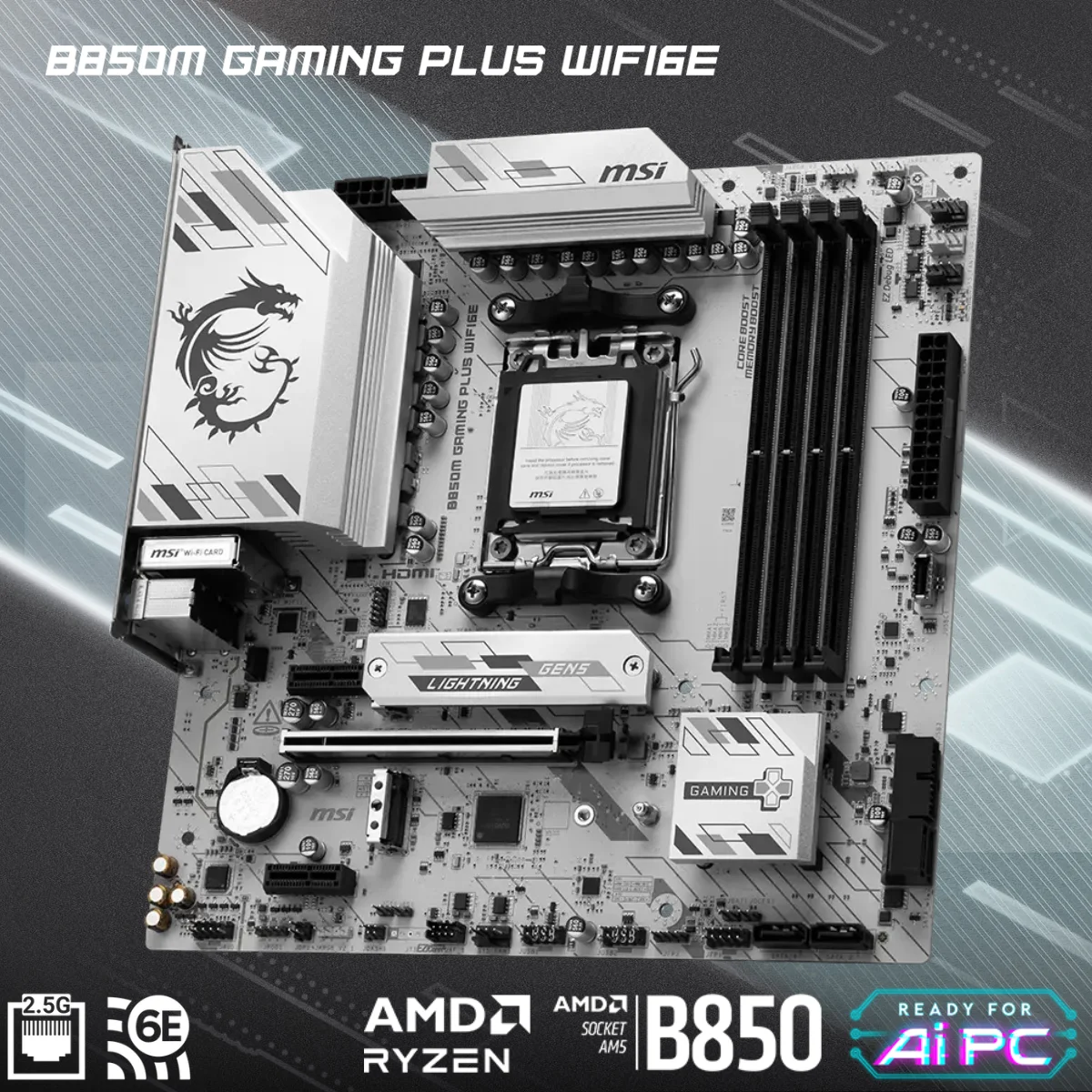

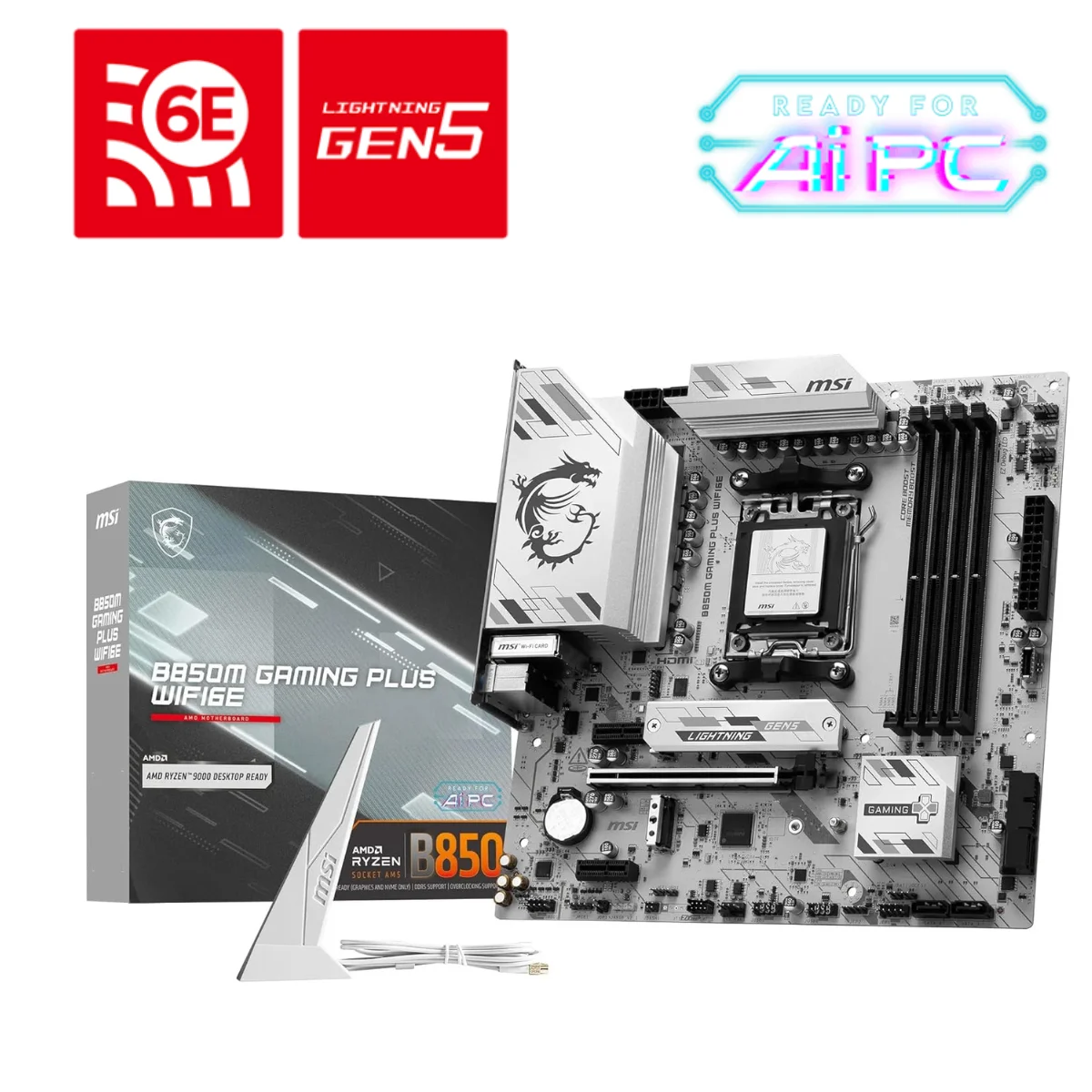

La MSI B850M GAMING PLUS WIFI6E è la scheda madre Micro-ATX AM5 pensata per chi vuole un PC da gaming moderno, veloce e “pronto a tutto”, con Wi-Fi 6E, LAN 2.5G, storage rapidissimo con M.2 PCIe 5.0, e tante funzioni EZ DIY per montare e aggiornare il PC in modo semplice e pulito. Ideale per build con AMD Ryzen™ serie 9000 / 8000 / 7000.



6 disponibili

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4711377365345 COD: 911-7E81-001 Categoria: Tag: , , , , , , , , , ,
Descrizione

B850M GAMING PLUS WIFI6E / 911-7E81-001 / 4711377365345

🔥 Prestazioni pronte per il gaming “24/7”

Progettata per reggere sessioni intense e continuative, offre un’alimentazione solida 10+2+1 Duet Rail con doppio connettore CPU 8+8 pin e un PCB ottimizzato per stabilità e affidabilità. In pratica: una base sicura per una build reattiva e moderna, pronta anche per carichi pesanti.

🌐 Connettività completa: Wi-Fi 6E + 2.5G LAN

Per giocare online senza compromessi:

  • Wi-Fi 6E (banda 6GHz, dove disponibile) con Bluetooth 5.3

  • 2.5G LAN Realtek per ping basso e trasferimenti rapidi

  • Funzioni intelligenti MSI come AI LAN Manager per dare priorità alle app più sensibili alla latenza (gaming/streaming)

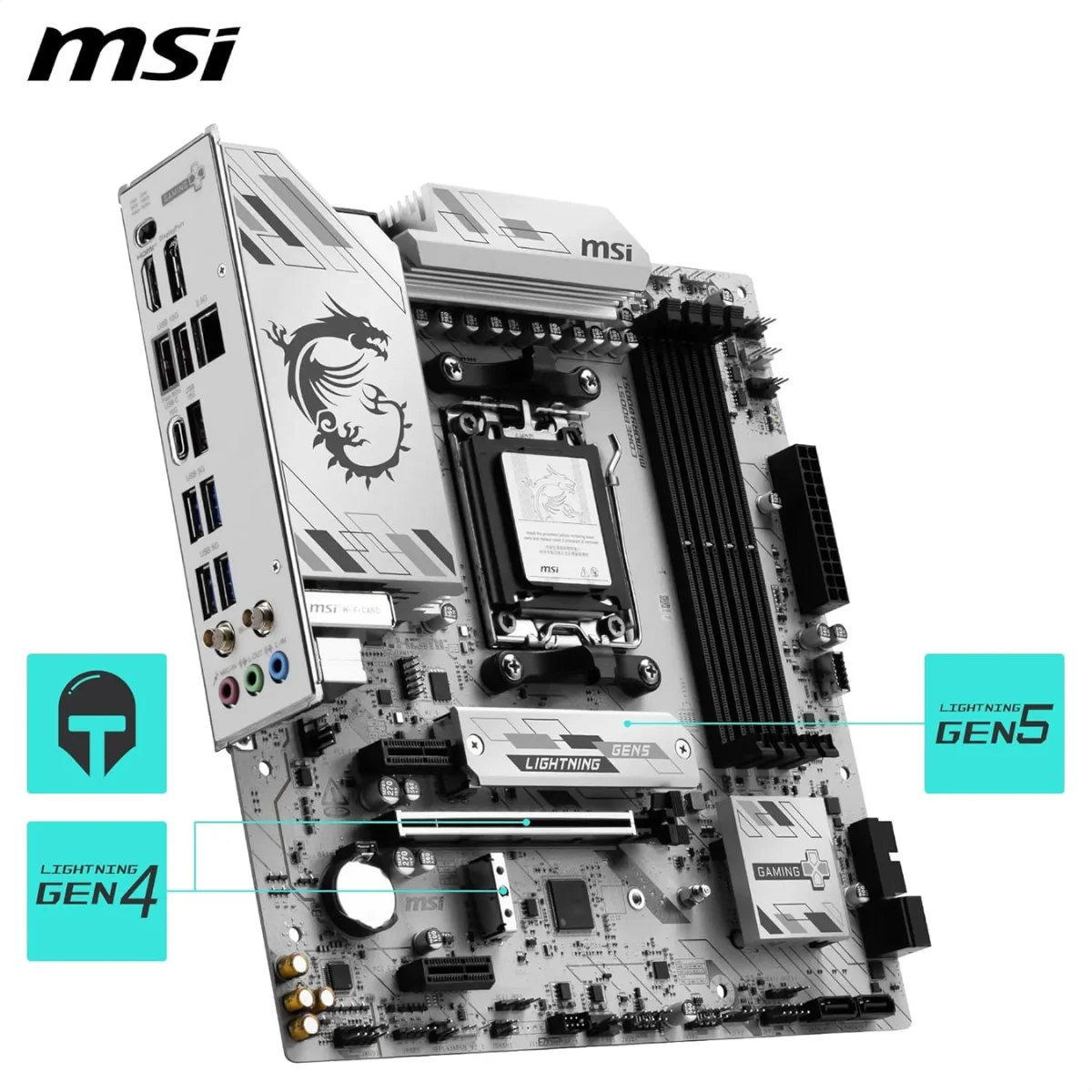

🚀 Storage e upgrade veloci: M.2 Gen5 e DDR5 ad alte prestazioni

Qui la differenza si sente davvero:

  • 2 slot M.2:

    • M.2_1 fino a PCIe 5.0 x4 (compatibilità dipendente dalla CPU)

    • M.2_2 fino a PCIe 4.0 x4

  • 4 porte SATA 6G per archiviazione aggiuntiva

  • DDR5 dual-channel fino a 256 GB, con supporto EXPO / A-XMP per prestazioni ottimizzate

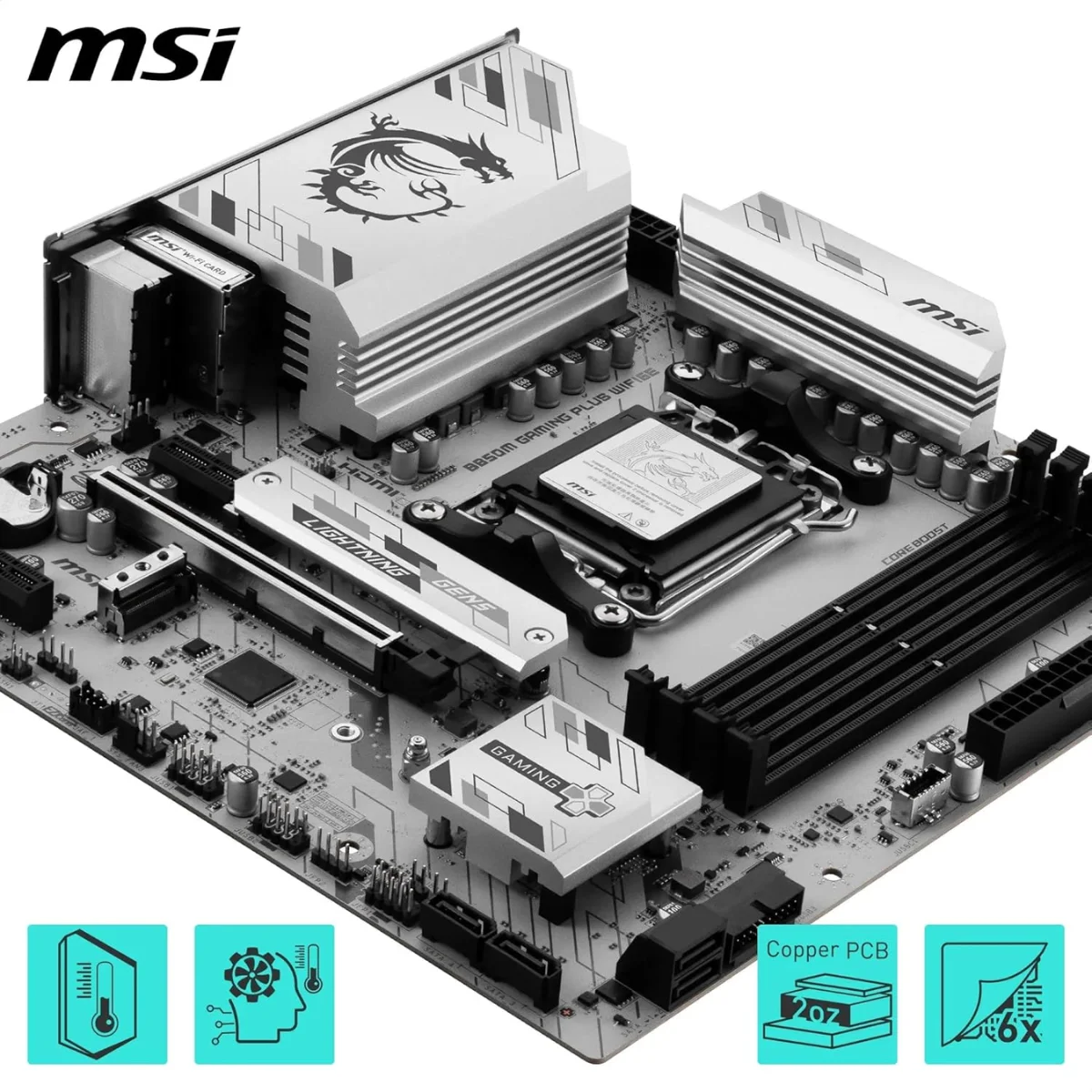

🧊 Raffreddamento smart e build più ordinata

Connettori e gestione pensati per una build pulita e silenziosa:

  • Header dedicati per CPU fan, pump/sys fan, system fan

  • Frozr AI Cooling: regola automaticamente le ventole in base a temperature CPU/GPU

  • Dissipazione curata con heatsink estesi e M.2 Shield Frozr per aiutare l’SSD a mantenere prestazioni costanti

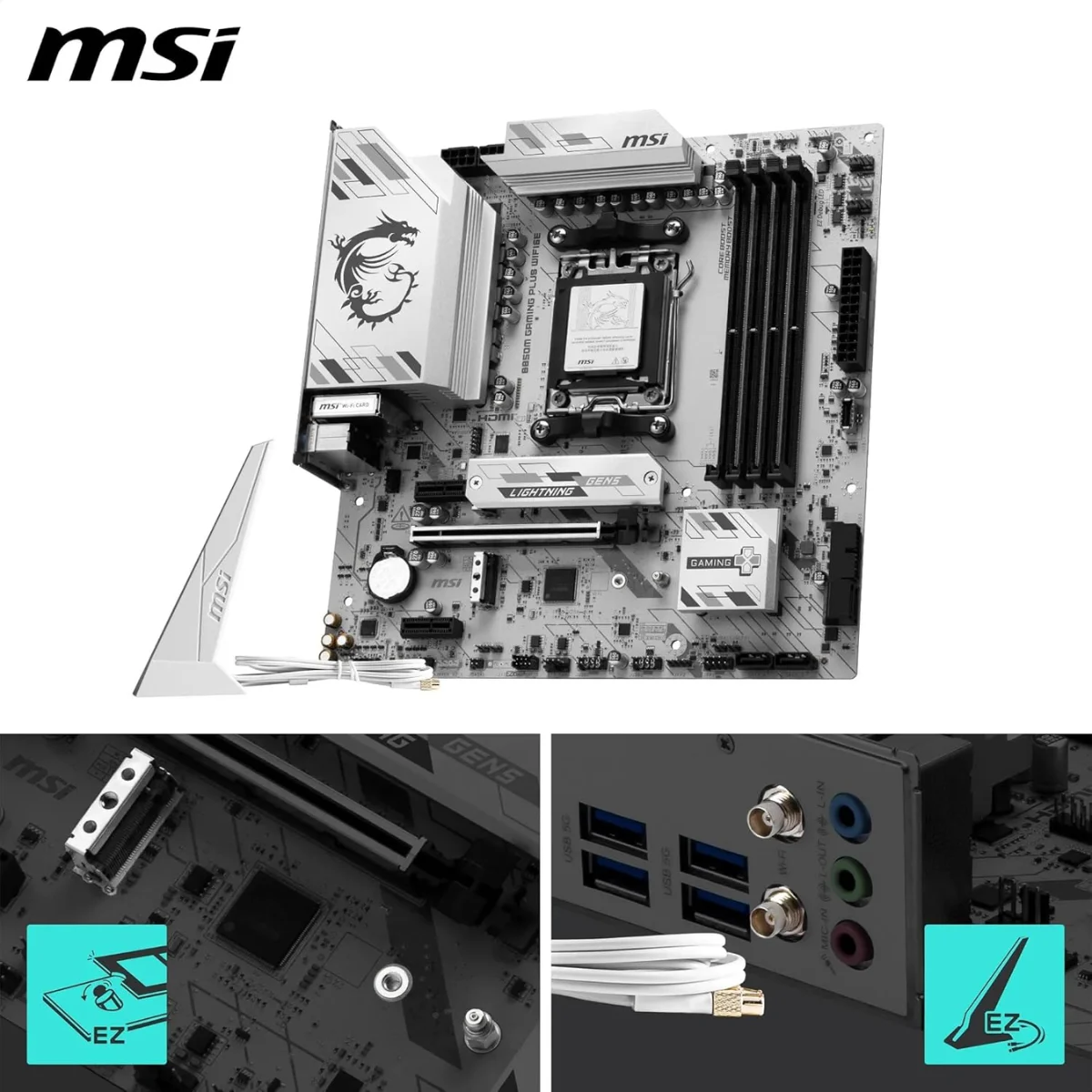

🧰 EZ DIY: montaggio facile, zero stress

Questa scheda è perfetta se vuoi assemblare senza impazzire:

  • EZ M.2 Clip II: monti/togli l’SSD M.2 senza cacciavite

  • I/O Shield pre-installato: installazione più rapida e pulita

  • EZ Antenna: collegamento antenna Wi-Fi semplice e immediato

  • EZ Debug LED + EZ Memory Detection LED: diagnosi rapida quando qualcosa non parte

🎮 Audio e porte: tutto quello che serve ogni giorno

  • Audio Realtek ALC897 7.1 per un’esperienza immersiva

  • Uscite video: HDMI 2.1 + DisplayPort 1.4 (con CPU dotata di grafica integrata)

  • USB complete, incluse USB-C 10Gbps (anche frontale) e molte porte posteriori per periferiche

❓ FAQ

È compatibile con AMD Ryzen serie 9000?
Sì, supporta Ryzen™ 9000 / 8000 / 7000 su socket AM5.

Ha lo slot M.2 PCIe 5.0?
Sì: M.2_1 supporta fino a PCIe 5.0 x4 (in base alla CPU installata).

Il Wi-Fi 6E funziona sempre in 6GHz?
Dipende dalle normative del Paese e dal supporto del sistema operativo (tipicamente Windows 11), oltre a router compatibile.

È adatta a un PC gaming compatto?
Sì, è Micro-ATX, quindi ideale per build compatte ma complete.

Serve il cacciavite per montare l’SSD M.2?
Di solito no: con EZ M.2 Clip II l’installazione è pensata per essere “tool-less”.

🔗 Link ufficiale

Scheda prodotto MSI (sito ufficiale):
https://www.msi.com/Motherboard/B850M-GAMING-PLUS-WIFI6E

Informazioni aggiuntive
Peso 1,624 kg
Dimensioni 24,4 × 24,4 × 3 cm
Chipset

AMD B850
CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
–
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Onboard Graphics

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
Slot

1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
–
PCI_E2 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio

Realtek® ALC897
7.1-Channel High Definition Audio
Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
–
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
–
M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB

4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN

Realtek® 8125D 2.5G LAN
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Wi-Fi 6E Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
LED FEATURE

4x EZ Debug LED
1x EZ Memory Detection LED

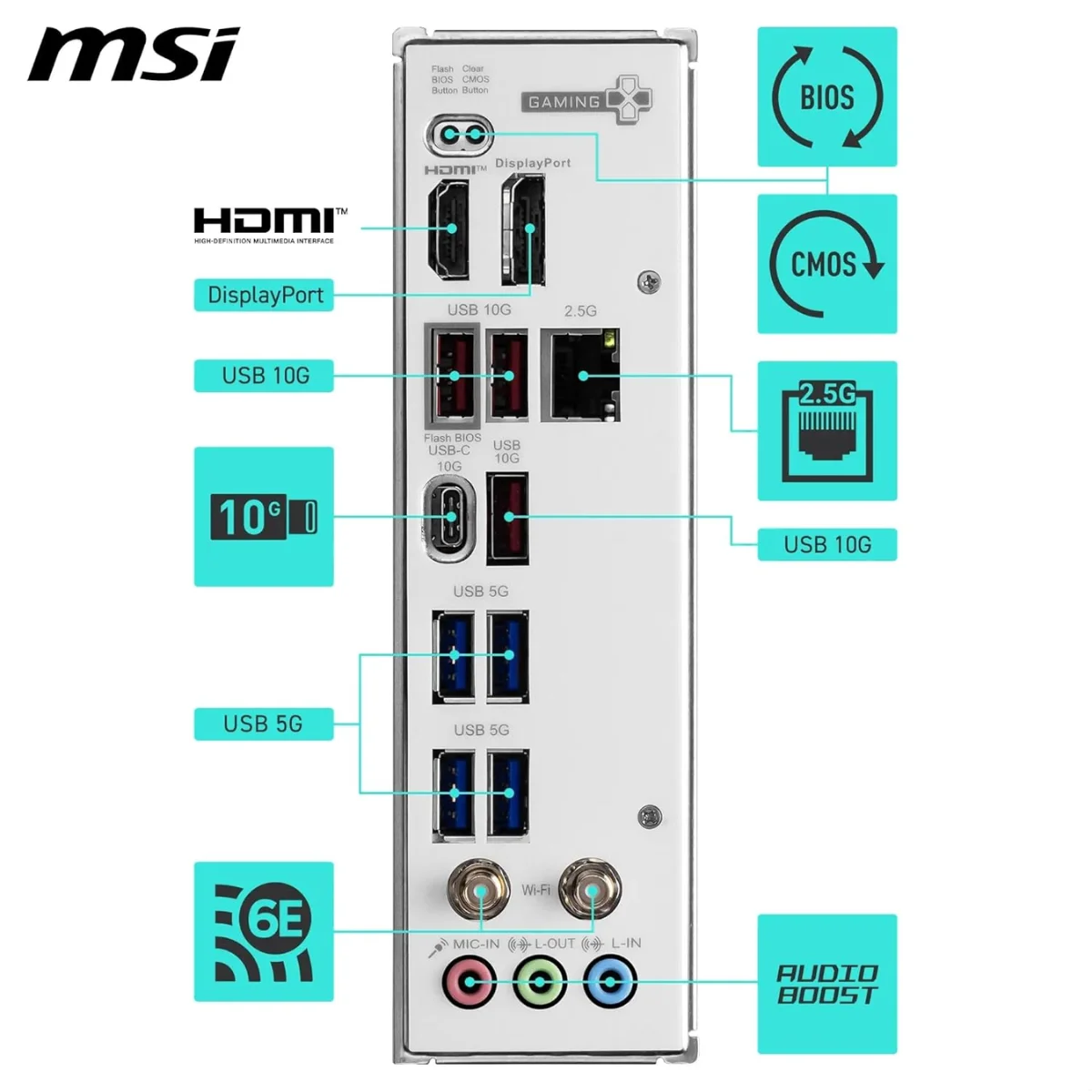

BACK PANEL PORTS

Clear CMOS Button
DisplayPort 1.4
2.5G LAN
USB 10Gbps (Type-A)
Wi-Fi / Bluetooth
HD Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps (Type-A)
USB 10Gbps (Type-C)
USB 5Gbps (Type-A)
OPERATING SYSTEM

Support for Windows® 11 64-bit

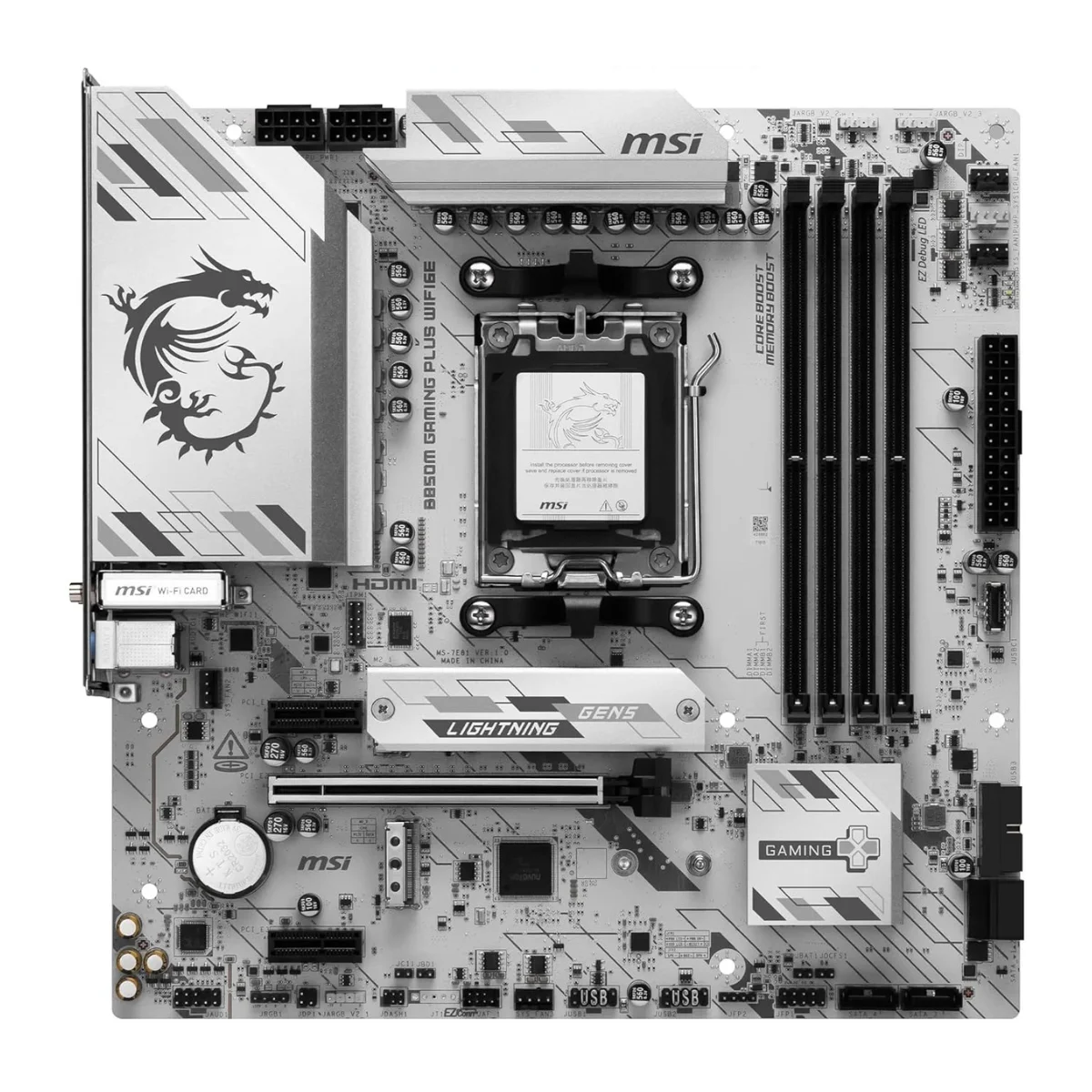

PCB Info

mATX
243.84mmx243.84mm
