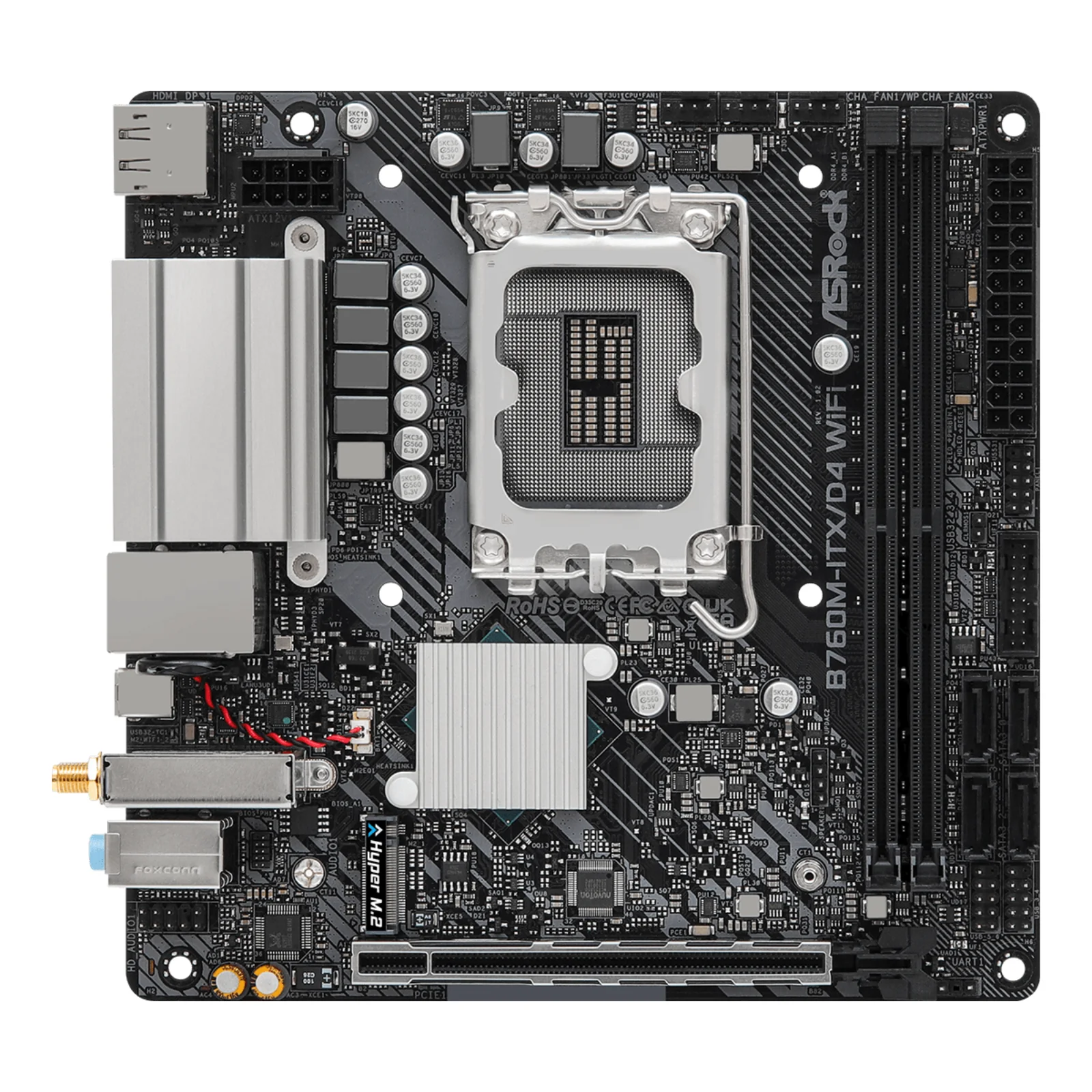

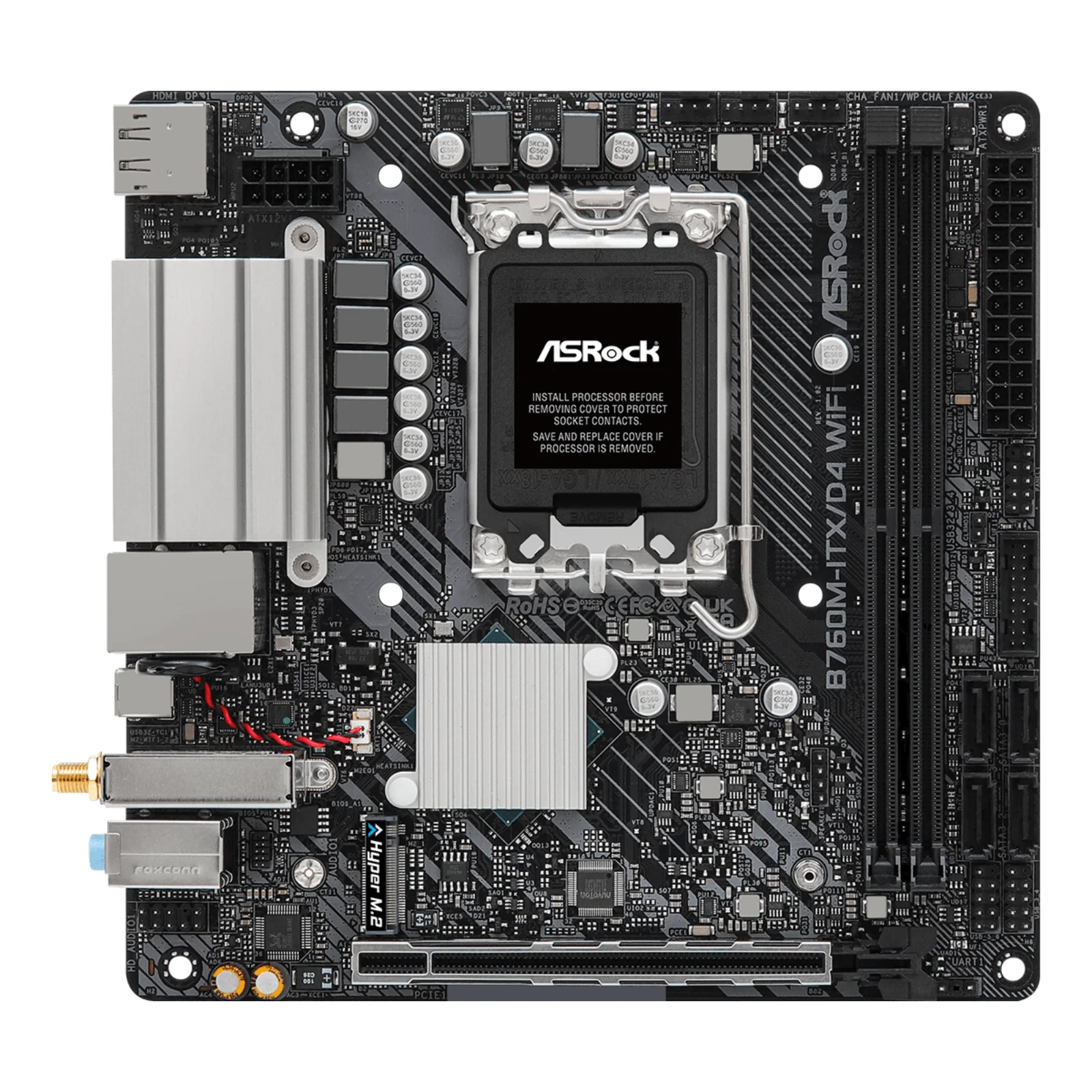

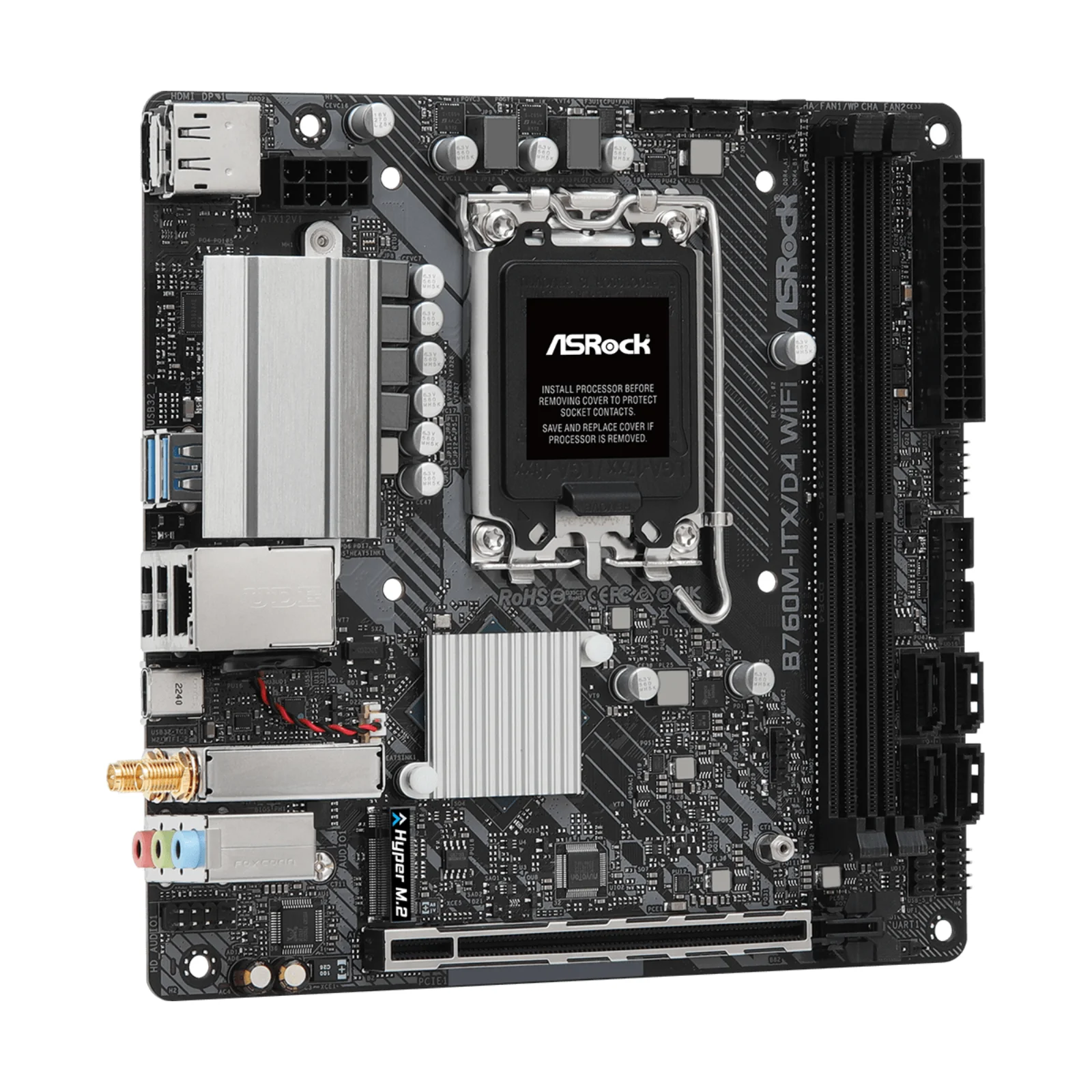

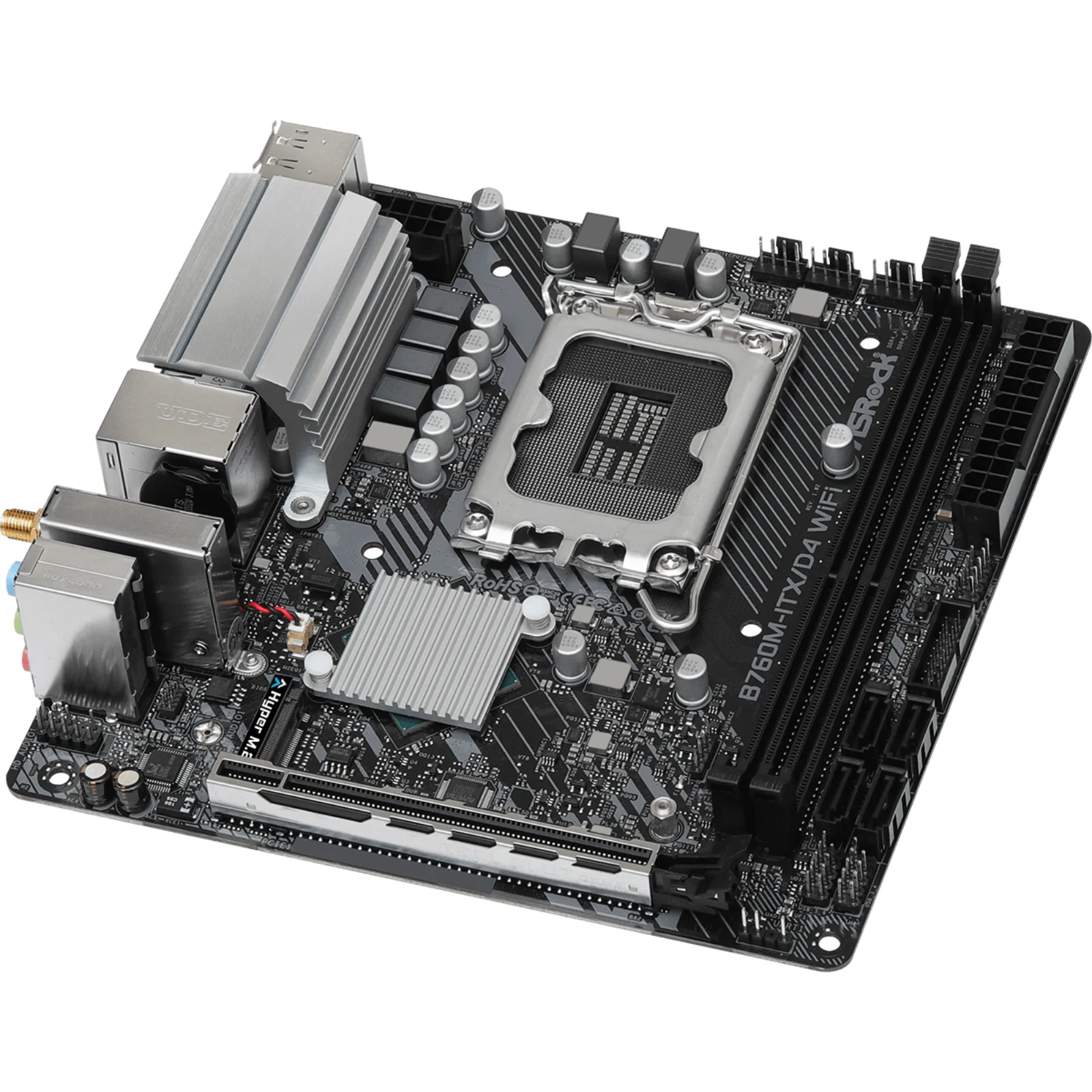

ASRock B760M-ITX/D4 WiFi
ASRock B760M-ITX/D4 WiFi – Scheda madre Mini-ITX, Socket LGA1700, DDR4, PCIe 4.0, WiFi 6E, Bluetooth - immagine 2
ASRock B760M-ITX/D4 WiFi – Scheda madre Mini-ITX, Socket LGA1700, DDR4, PCIe 4.0, WiFi 6E, Bluetooth - immagine 3
ASRock B760M-ITX/D4 WiFi – Scheda madre Mini-ITX, Socket LGA1700, DDR4, PCIe 4.0, WiFi 6E, Bluetooth - immagine 4
ASRock B760M-ITX/D4 WiFi – Scheda madre Mini-ITX, Socket LGA1700, DDR4, PCIe 4.0, WiFi 6E, Bluetooth - immagine 5
ASRock B760M-ITX/D4 WiFi – Scheda madre Mini-ITX, Socket LGA1700, DDR4, PCIe 4.0, WiFi 6E, Bluetooth - immagine 6
ASRock

ASRock B760M-ITX/D4 WiFi – Scheda madre Mini-ITX, Socket LGA1700, DDR4, PCIe 4.0, WiFi 6E, Bluetooth

149,00 €

   Chipset Intel B760
Form Factor   Form Factor Mini-ITX
Socket   Socket LGA 1700
Tipo di Memoria   Tipo di Memoria DDR4

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4710483942242 COD: 90-MXBKY0-A0CAYZ Categoria:
Descrizione

ASRock B760M-ITX/D4 WiFi / 90-MXBKY0-A0CAYZ / 4710483942242

Compatibilità e potenza in formato compatto

La B760M-ITX/D4 WiFi è compatibile con i processori Intel Core™ 14ª, 13ª e 12ª generazione, offrendo prestazioni elevate in un formato Mini-ITX ideale per build compatte. La sezione di alimentazione a 5+1+1 fasi Dr.MOS garantisce erogazione stabile e precisa alla CPU, perfetta anche per configurazioni gaming o produttive.

Prestazioni e stabilità

Il PCB a 6 strati garantisce segnale pulito e temperature più basse, migliorando l’efficienza energetica e la stabilità in overclock. Lo slot PCIe 4.0 rinforzato in acciaio assicura la massima tenuta e compatibilità con le schede grafiche di ultima generazione.

Memoria e storage ad alta velocità

Supporta fino a 64 GB DDR4 in Dual Channel (5333+ MHz OC) e include 1 slot M.2 PCIe 4.0 x4 per SSD NVMe ultraveloce, oltre a 4 porte SATA3 per unità aggiuntive.

Connettività moderna

Offre un set completo di connessioni:

  • 1 USB 3.2 Gen2x2 Type-C (20 Gbps)

  • 4 USB 3.2 Gen1 (2 posteriori, 2 frontali)

  • 6 USB 2.0 (2 posteriori, 4 frontali)

  • 1 HDMI e 1 DisplayPort per output video integrato

  • Realtek 1G LAN + WiFi 6E 802.11ax + Bluetooth per connettività veloce e stabile

Audio Nahimic 7.1 – Esperienza immersiva

La scheda integra il codec Realtek ALC897 con tecnologia Nahimic Audio, offrendo un suono immersivo e dettagliato per film, musica e giochi. Include funzionalità avanzate come:

  • Soppressione del rumore statico

  • Cancellazione dell’eco

  • Sound Tracker (radar audio direzionale 360°)

  • Stabilizzazione vocale per chat e streaming

Tecnologia Wi-Fi 6E

La nuova tecnologia Wi-Fi 6E (802.11ax) sfrutta la banda da 6 GHz, garantendo velocità superiori, latenza ridotta e maggiore stabilità, anche in ambienti congestionati.

USB 3.2 Gen2x2 Type-C ultraveloce

La porta USB-C 20 Gbps di ultima generazione assicura trasferimenti rapidissimi e massima compatibilità con dispositivi moderni, grazie al connettore reversibile.

ASRock Auto Driver Installer

Installare i driver non è mai stato così semplice: la funzione Auto Driver Installer scarica automaticamente i driver di rete e sistema, anche senza unità ottica.

Specifiche tecniche

Caratteristica Dettaglio
Marca ASRock
Modello B760M-ITX/D4 WiFi
Codice prodotto 90-MXBKY0-A0CAYZ
EAN 4710483942242
Formato Mini-ITX
Chipset Intel® B760
Socket CPU LGA1700
Compatibilità CPU Intel Core™ 14ª / 13ª / 12ª generazione
Fasi di alimentazione 5+1+1 Power Phase, Dr.MOS
Memoria supportata 2 x DDR4 DIMM, Dual Channel, fino a 5333+ MHz (OC)
Capacità massima RAM 64 GB
Slot PCIe 1 x PCIe 4.0 x16 (rinforzato in acciaio)
Storage 1 x M.2 (PCIe 4.0 x4), 4 x SATA3
Audio Realtek ALC897 7.1 HD Audio, Nahimic Audio
Rete cablata Realtek 1G LAN
Rete wireless WiFi 6E 802.11ax + Bluetooth
Uscite video HDMI, DisplayPort
Porte USB posteriori 1 x USB 3.2 Gen2x2 Type-C, 2 x USB 3.2 Gen1, 2 x USB 2.0
Porte USB frontali 2 x USB 3.2 Gen1, 4 x USB 2.0 (tramite header)
Connettori interni Header RGB, ventole, SATA, M.2
Caratteristiche speciali Dr.MOS Power, PCIe Steel Slot, Auto Driver Installer, WiFi 6E, Audio Nahimic
Compatibilità sistema operativo Windows 10 / 11 64-bit

Domande Frequenti (FAQ)

1. È compatibile con processori Intel Core di 14ª generazione?
Sì, supporta CPU Intel Core™ di 14ª, 13ª e 12ª generazione su socket LGA1700.

2. Supporta memorie DDR5?
No, questa scheda madre utilizza memorie DDR4.

3. Posso installare una scheda video dedicata?
Sì, dispone di uno slot PCIe 4.0 x16 rinforzato, compatibile con GPU moderne.

4. Ha grafica integrata?
No, ma supporta l’output video HDMI e DisplayPort tramite la GPU integrata della CPU.

5. Include Wi-Fi e Bluetooth?
Sì, integra WiFi 6E e Bluetooth per connessioni wireless ad alte prestazioni.

Maggiori informazioni

Per dettagli completi, aggiornamenti e driver ufficiali, visita il sito:
👉 ASRock B760M-ITX/D4 WiFi

Informazioni aggiuntive
Peso 0,76 kg
Dimensioni 17 × 17 × 3 cm
Caratteristica Unica

Solida durabilità
– 5+1+1 Power Phase, 50A Dr.MOS per VCore+GT
Gioco ultraveloce
– 802.11ax Wi-Fi 6E Module
Aggiornamento EZ
– Programma di installazione del driver automatico ASRock
CPU

– Supporta 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
– Supporta Intel® Hybrid Technology
– Supporta Intel® Turbo Boost Max 3.0 Technology
– Supporta Intel® Incremento della velocità termica (TVB)
– Supporta Intel® Tecnologia ad incremento adattivo (ABT)
Chipset

– Intel® B760
Memoria

– Tecnologia di memoria Dual Channel DDR4
– 2 x slot DDR4 DIMM
– Supporta DDR4 non-ECC, momoria senza buffer up to 5333+(OC)*
– Supporta moduli di memoria ECC UDIMM (funzionano in modalità non ECC)
– Capacità massima della memoria di sistema: 64GB
– Supporto di Intel® XMP (Profilo di memoria estrema) 2.0
–
*1DPC 1R fino a 5333+ MHz (OC), 3200 MHz nativo.
1DPC 2R Up to 4266+ MHz (OC), 3200 MHz Natively.
BIOS

– BIOS legale 128 Mb AMI UEFI con supporto GUI
Schede Grafiche

– Intel® Xe Architettura grafica (Gen 12)
– 1 x HDMI 2.1 TMDS Compatible, Supporta HDCP 2.3 e max. Risoluzione up to 4K 60Hz
– 1 x DisplayPort 1.4 con DSC (compresso), supporta HDCP 2.3 e risoluzione massima fino a 8K 60Hz/5K 120Hz
–
*Intel® UHD Graphics Visuals integrata e le uscite VGA possono essere supportate solo con processori con GPU integrata.
Audio

– Audio HD a 7.1 canali (Realtek ALC897 Audio Codec)
– Nahimic Audio
LAN

– Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
Wireless LAN

– 802.11ax Wi-Fi 6E Module
– Supporta IEEE 802.11a/b/g/n/ac/ax
– Supporta Dual-Band 2×2 con supporto esteso della banda a 6GHz*
– CPU, CPU opzionale/Pompa dell’acqua, ventole del case
– Supporta Bluetooth + High speed class II
– Supporta MU-MIMO
–
*The 6GHz band of Wi-Fi 6E module is supportato da Microsoft® Windows® 11 only. La disponibilità della banda 6 GHz dipenderà dal diverso stato di regolamentazione di ciascun Paese e regione. Verrà attivato (per i Paesi supportati) tramite Windows® Update e aggiornamenti software non appena disponibili.
Per la funzionalità 6E è necessario un router compatibile con 6GHz.
Slot di espansione

CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), Supporta a modalità x16*
Chipset:
– 1 x Socket verticale M.2 (tasto E), supporta il modulo Wi-Fi/BT PCIe WiFi di tipo 2230 e Intel® CNVio/CNVio2 (Wi-Fi/BT integrato)
–
*SSD NVMe come dischi di avvio
Immagazzinamento

CPU:
– 1 x socket Hyper M.2 (M2_1, Key M), Supporta type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 4 x connettori SATA3 6.0 Go/s
–
*Supporta il dispositivo Intel® Volume Management (VMD)
SSD NVMe come dischi di avvio
RAID

– Supporta RAID 0, RAID 1, RAID 5 e RAID 10 per dispositivi di archiviazione SATA
USB

– 1 x USB 3.2 Gen2x2 Type-C (posteriori)
– 4 x USB 3.2 Gen1 (2 Rear, 2 frontali)
– 6 x USB 2.0 (2 Rear, 4 Front)
* Tutte le porte USB supportano la protezione ESD.
Connettore

– 1 x Connettore CPU ventola (4-pin)*
– 1 x Connettore Chassis ventola (4-pin)*
– 1 x Case/connettore ventola pompa dell’acqua (4-pin) (Controllo intelligente della velocità della ventola)**
– 1 x 24-pin collettore alimentazione ATX
– 1 x 8-pin connettore ATX 12V
– 1 x connettore audio sul pannello frontale
– 2 x collettore USB 2.0 (supporta 4 porte USB 2.0)
– 1 x collettore USB 3.2 Gen1 (supporta 2 porte USB 3.2 Gen1)
–
*CPU_FAN1 e CHA_FAN2 supporta the fan power up to 1A (12W).
–
**CHA_FAN1/WP supporta the fan power up to 2A (24W).
CHA_FAN1/WP possono automaticamente rilevare se la ventola a 3 pin o a 4 pin è in uso.

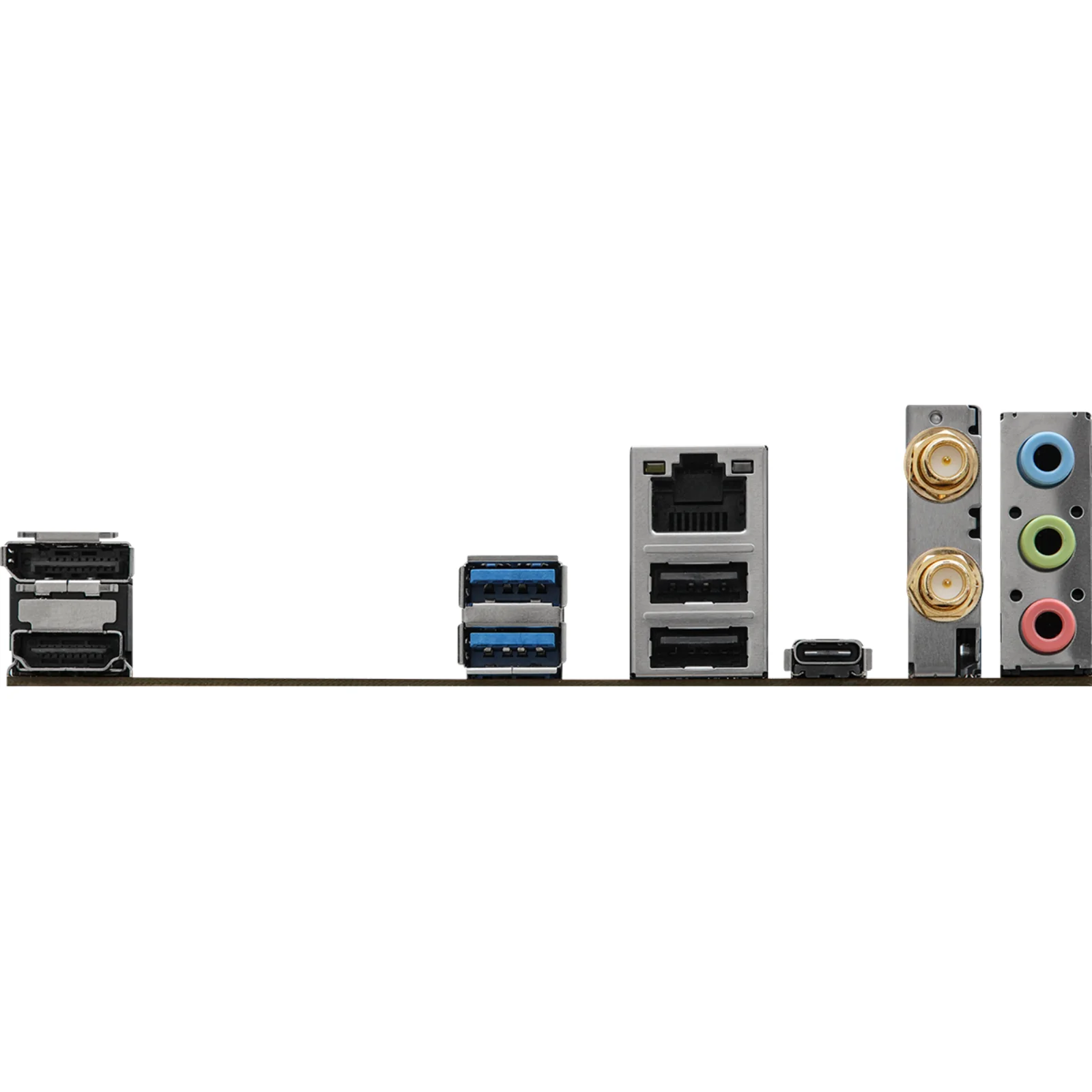

Pannello Posteriore I/O

I/O
– 2 x Porte dell'antenna
– 1 x porta HDMI
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
– 2 x porte USB 3.2 Gen1
– 2 x porte USB 2.0
– 1 x porte LAN RJ-45
– Jack Audio HD: ingresso linea / cassa frontale / microfono
Software e UEFI

Software
– ASRock Scheda Madre Utility (A-Tuning)
UEFI
– ASRock Modalità EZ
– ASRock UEFI Full HD
– ASRock My Favorites in UEFI
– Programma di installazione del driver automatico ASRock
– ASRock Flash istantaneo
– ASRock Easy RAID Installer
–
*Queste utility possono essere scaricate da App Shop.

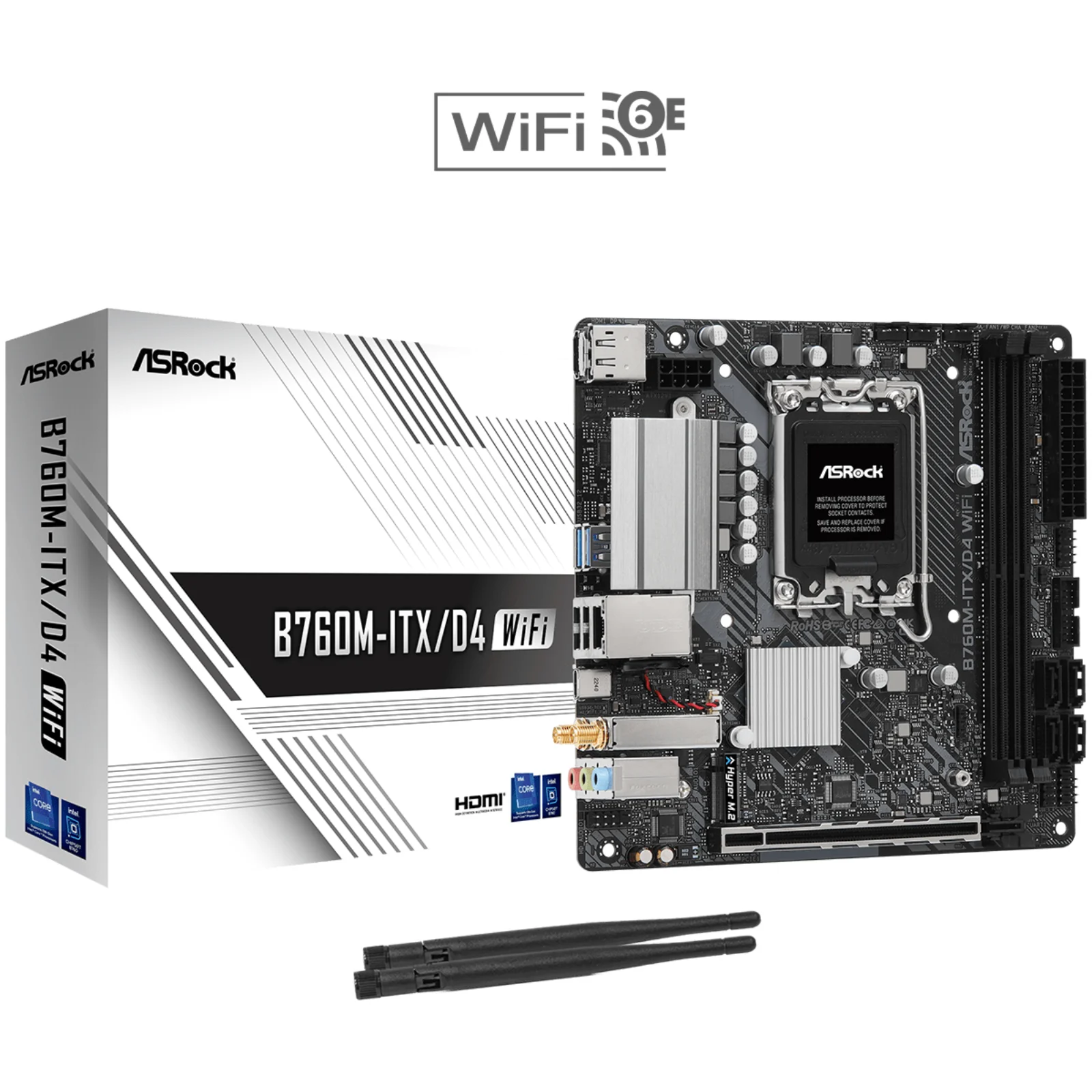

Accessori

– 1 x Manuale d'uso
– 1 x I/O Shield
– 2 x cavi dati SATA
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas
– 1 x Vite per Socket M.2
Fattore di Forma

– Fattore di forma Mini-ITX: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
OS

– Microsoft® Windows® 10 64-bit / 11 64-bit
Certificazioni

– FCC, CE
– Predisposto ErP/EuP (è necessaria l’alimentazione predisposta per il sistema ErP/EuP)
