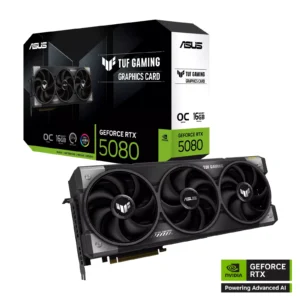

ASUS TUF Gaming GeForce RTX™ 5080 16GB GDDR7 OC Edition
ASUS TUF Gaming GeForce RTX 5080 16GB GDDR7 OC Edition – Scheda Video NVIDIA con PCIe 5.0, 16GB GDDR7, 2730 MHz 1.650,00 €
ASRock Z890 Pro-A WiFi
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 2
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 3
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 4
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 5
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 6
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 7
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 8
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 9
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 10
Clicca per ingrandire

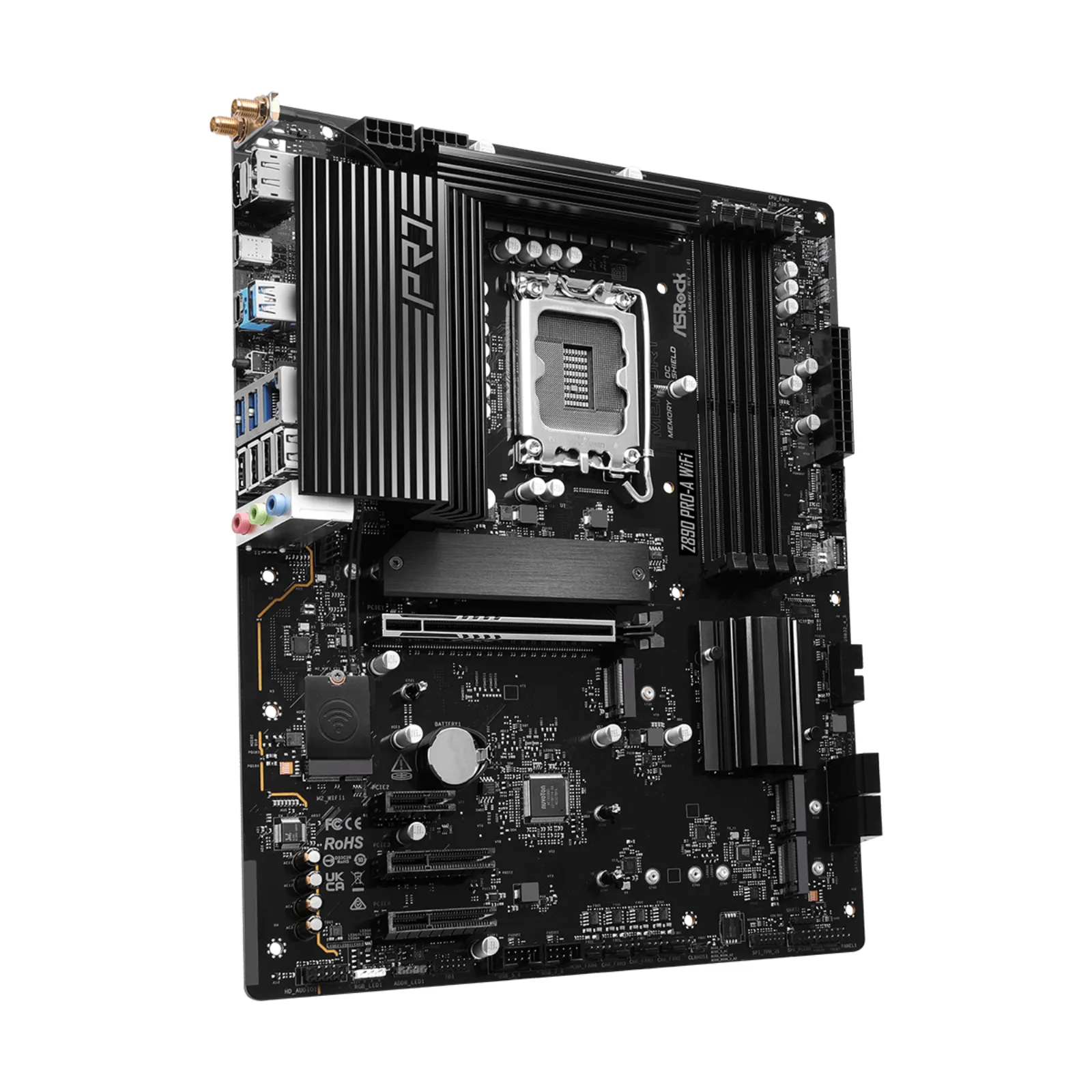

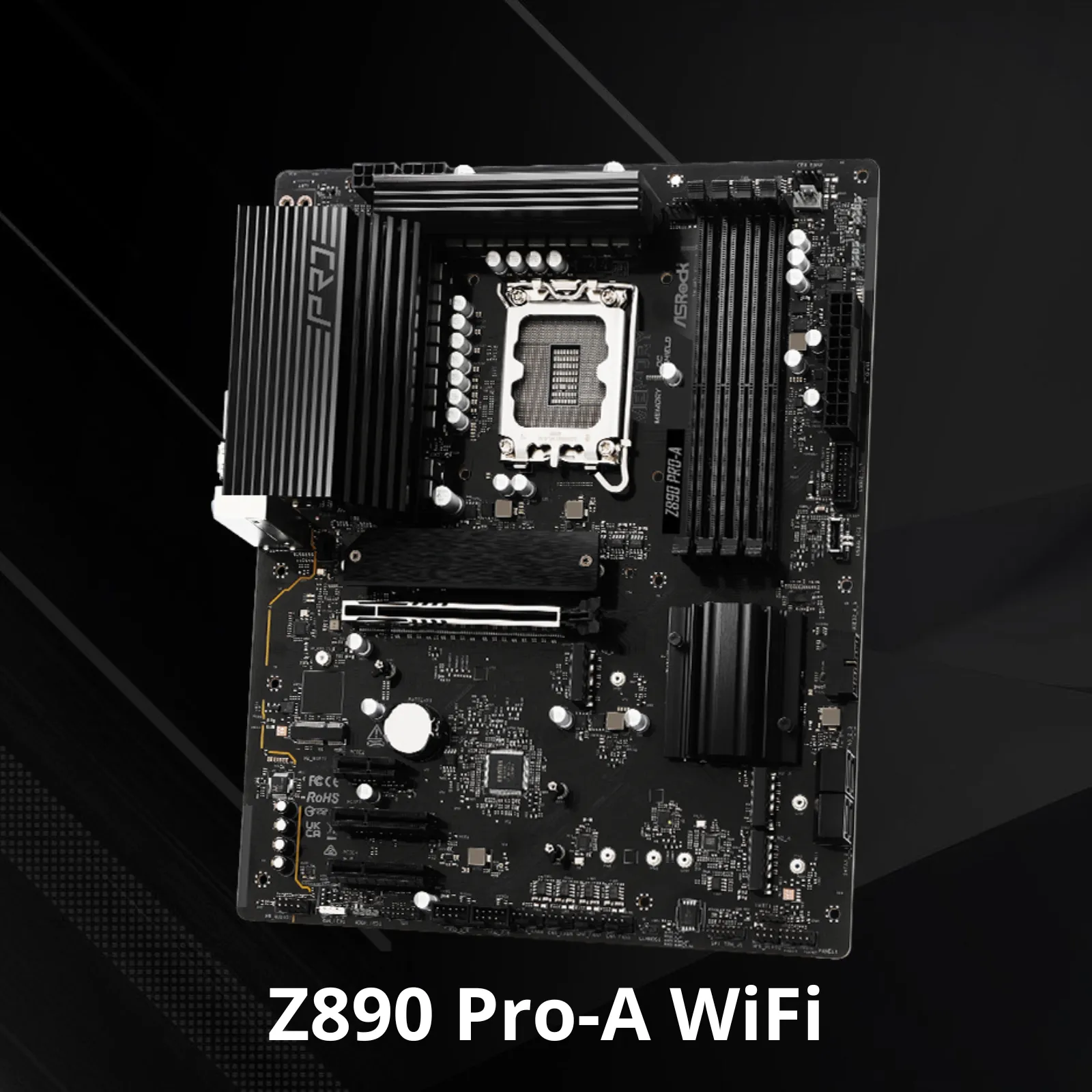

ASRock Z890 Pro-A WiFi
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 2
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 3
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 4
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 5
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 6
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 7
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 8
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 9
ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4 - immagine 10
ASRock

ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4

219,00 €

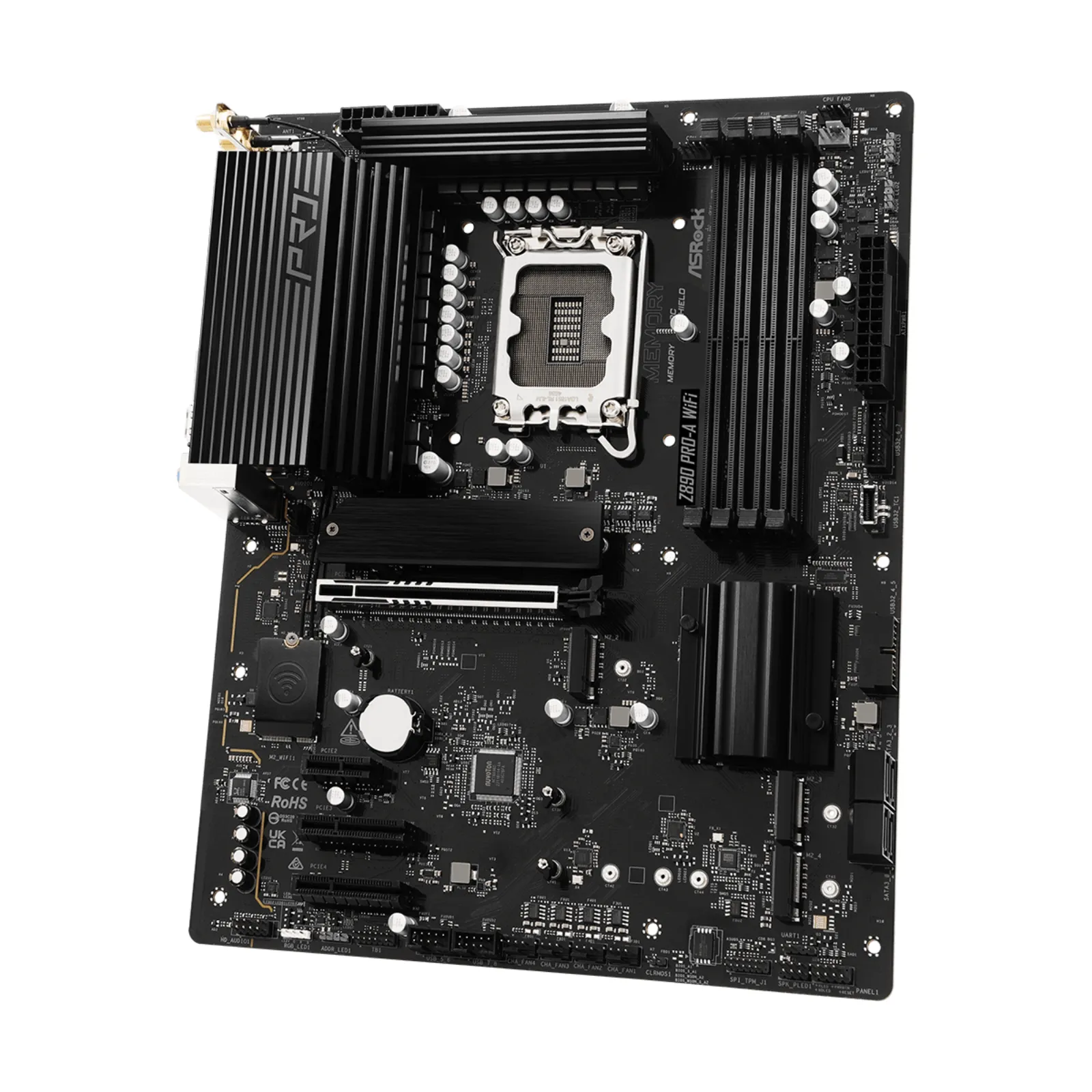

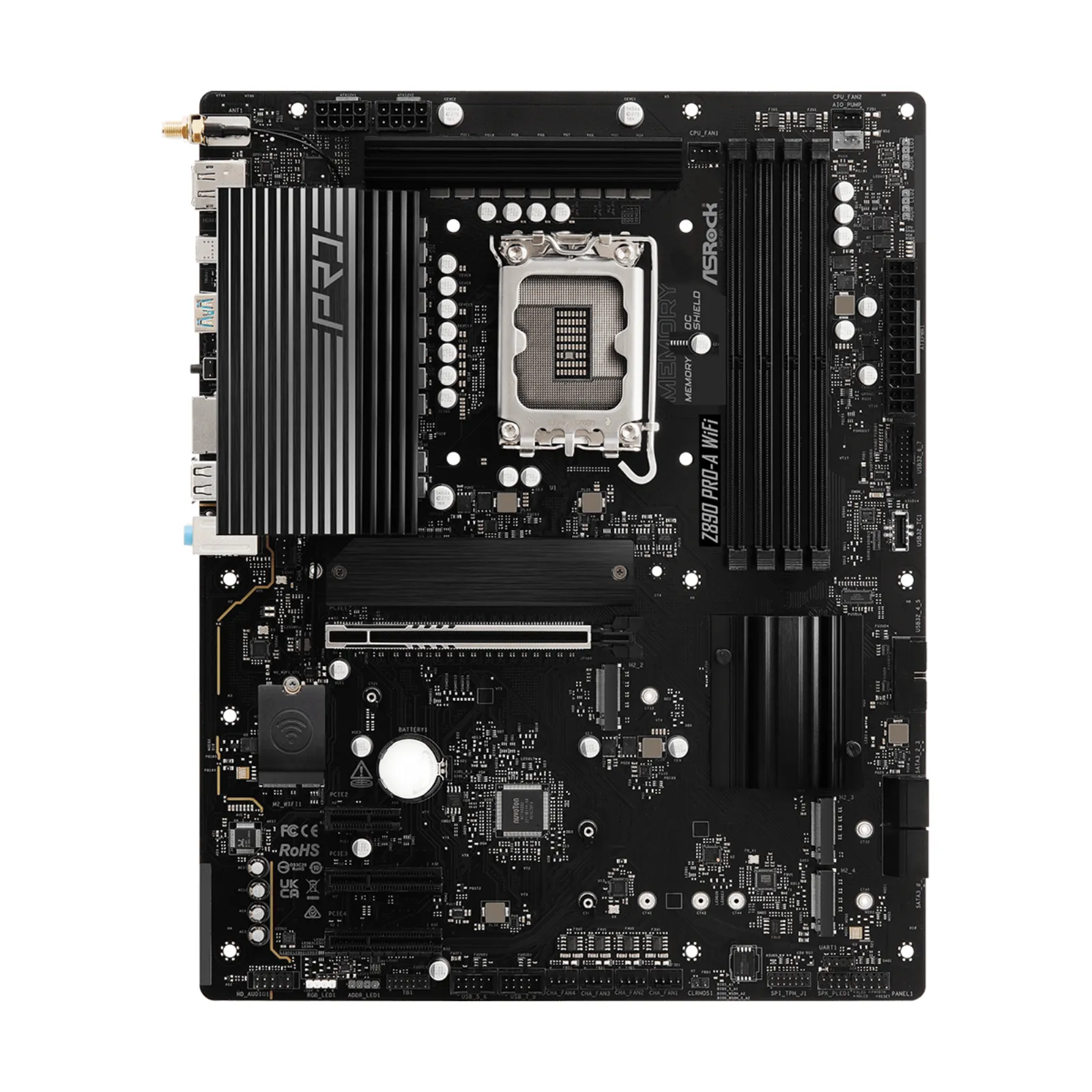

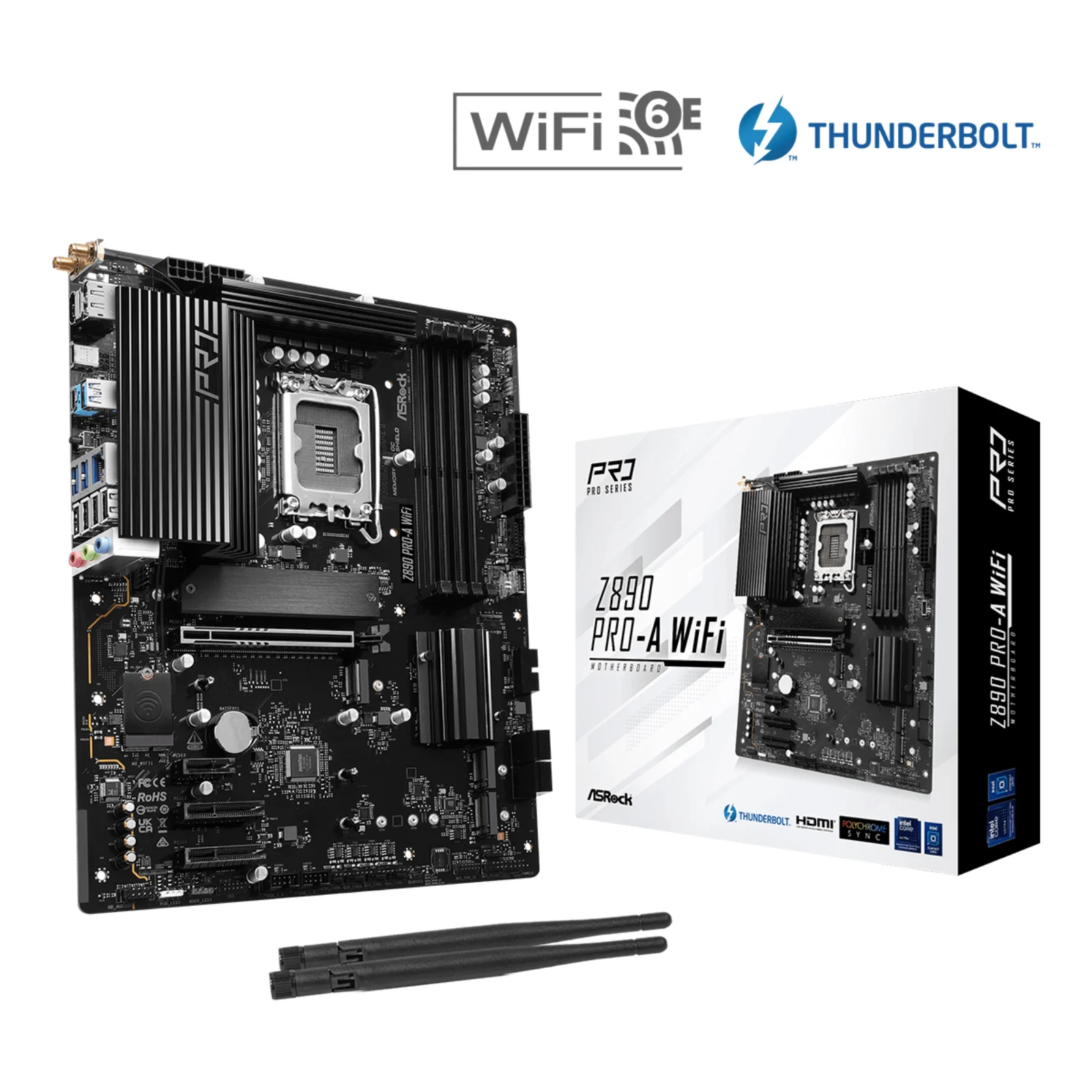

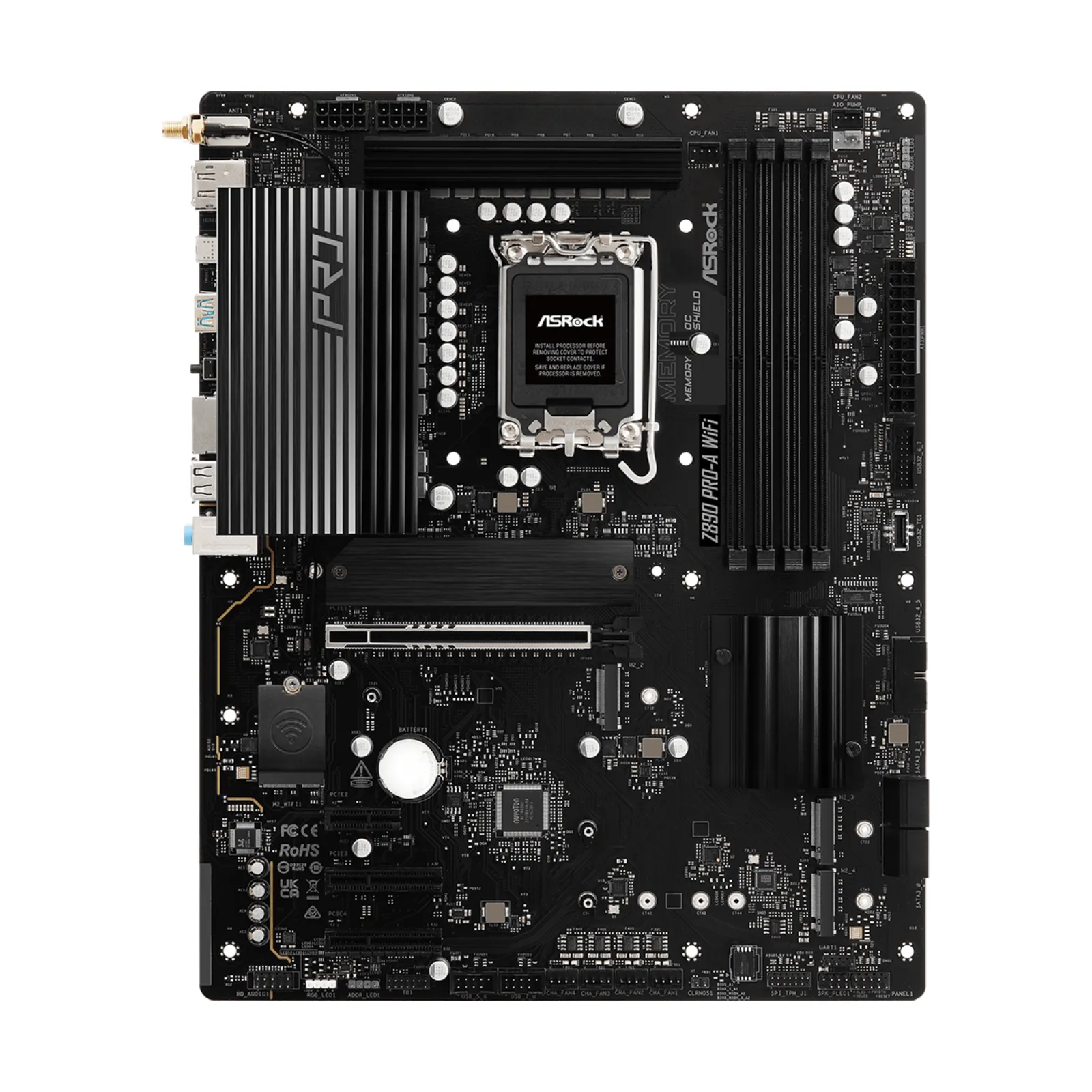

La ASRock Z890 Pro-A WiFi è una scheda madre ATX progettata per i processori Intel® Core™ Ultra (Series 2) su socket LGA1851, pensata per offrire stabilità, efficienza e connettività di ultima generazione. Con VRM 16+1+1+1+1 Dr.MOS, supporto DDR5 fino a 9066+ MHz (OC), PCIe 5.0 per GPU e SSD, Wi-Fi 6E, 2.5G LAN e Thunderbolt™ 4/USB4, è ideale per gaming avanzato e workstation moderne.

1 disponibili

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4710483947544 COD: 90-MXBP60-A0UAYZ Categoria:
Descrizione

ASRock Z890 Pro-A WiFi / 90-MXBP60-A0UAYZ / 4710483947544

⚡ Prestazioni potenziate con Intel® 200S Boost

Compatibile con Intel® 200S Boost (tramite aggiornamento BIOS), permette di ottenere un incremento prestazionale sui processori Intel Core Ultra compatibili.

Supporta:

  • Intel® Hybrid Technology

  • Turbo Boost Max 3.0

  • Thermal Velocity Boost

  • Adaptive Boost Technology

  • NPU integrata per accelerazione AI

🔥 VRM 16+1+1+1+1 con Dr.MOS – Overclock stabile

  • 16+1+1+1+1 Power Phase Design

  • Componenti di alta qualità

  • PCB con 2oz Copper

  • Connettori di alimentazione 8+8 pin

Erogazione stabile e temperature controllate anche sotto carico elevato.

🚀 PCIe 5.0 & M.2 Gen5 – Massima velocità

  • 1x PCIe 5.0 x16 (GPU)

  • 1x Blazing M.2 PCIe Gen5 x4 (128Gb/s)

  • 3x M.2 Gen4

  • 4x SATA3

Supporta SSD NVMe Gen5 per velocità di trasferimento estreme.

🧠 DDR5 fino a 9066+ MHz (OC)

  • 4x DDR5 DIMM

  • Dual Channel

  • Fino a 256GB

  • Supporto XMP 3.0

  • Supporto CUDIMM

  • Memory OC Shield

Ideale per build gaming e produttività ad alte prestazioni.

🌐 Connettività Ultra Veloce

  • Wi-Fi 6E (802.11axe) + Bluetooth 5.3

  • Dragon 2.5G LAN (RTL8125BG)

  • Thunderbolt™ 4 / USB4 (40Gb/s)

  • USB 3.2 Gen2x2 Type-C (20Gb/s)

  • HDMI 2.1 (4K 120Hz)

  • DisplayPort 1.4 (fino 8K 60Hz)

Perfetta per streaming, gaming online e workflow professionali.

❄ Design di raffreddamento intelligente

  • Heatsink in alluminio ottimizzato

  • Dissipatore M.2 inferiore

  • Controllo ventole intelligente

  • Supporto AIO Pump

Mantiene stabilità e temperature ottimali anche sotto stress.

🎨 RGB & Personalizzazione

  • Polychrome RGB

  • 1 header RGB + 3 header ARGB

  • Compatibilità SignalRGB

  • Supporto fino a 80 LED indirizzabili

Sincronizzazione completa con componenti RGB compatibili.

🛠 Funzioni DIY avanzate

  • BIOS Flashback

  • Auto Driver Installer

  • Post Status Checker

  • Slot PCIe rinforzato in acciaio

  • Supporto RAID 0/1/5/10

Pensata per assemblatori e upgrade semplici.

📏 Specifiche principali

Chipset: Intel® Z890
Socket: LGA1851
Formato: ATX (30.5 x 24.4 cm)
Memoria: DDR5 fino a 9066+ MHz (OC)
PCIe: 5.0 + 4.0
Rete: 2.5G LAN + Wi-Fi 6E
Thunderbolt™ 4: Sì
Audio: Realtek ALC897 7.1

EAN: 4710483947544
Codice prodotto: 90-MXBP60-A0UAYZ

FAQ

È compatibile con Intel Core Ultra Series 2?
Sì, supporta Intel® Core™ Ultra (Series 2) su LGA1851.

Supporta DDR4?
No, solo DDR5.

Ha PCIe 5.0 per SSD?
Sì, include uno slot M.2 Gen5.

Supporta Wi-Fi integrato?
Sì, Wi-Fi 6E + Bluetooth 5.3.

È adatta per overclock?
Sì, grazie al VRM 16+1+1+1+1 e supporto OC DDR5.

Informazioni aggiuntive
Peso 1,2 kg
Dimensioni 34 × 27 × 7 cm
Unique Feature

Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
– Thunderbolt™ 4/USB4 Type-C Port (40 Gb/s)
Rock-Solid Durability
– 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT
– Memory OC Shield
Ultrafast Connectivity
– 2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker
CPU

– Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
– Supports Intel® Thermal Velocity Boost (TVB)
– Supports Intel® Adaptive Boost Technology (ABT)
– Integrated NPU for dedicated AI acceleration
Chipset

– Intel® Z890
Memory

– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)*
– Supports Clocked Unbuffered DIMM (CUDIMM)
– Max. capacity of system memory: 256GB
– Supports Intel® Extreme Memory Profile (XMP) 3.0x
—
*1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively.
1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively.
2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
BIOS

– 256Mb AMI UEFI Legal BIOS with GUI support
Graphics

– Intel® Xe LPG Graphics Architecture
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
– 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*
—
* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Supports two 4K displays or one 8K display
Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports.
If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
Audio

– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
Wireless LAN

– 802.11axe Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax/axe
– Supports Dual-Band 2×2 with extended 6GHz band support*
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.3
– Supports MU-MIMO
—
*The 6GHz band of Wi-Fi 6E module is supported by Microsoft Windows® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Slots

CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*
– 1 x PCIe 4.0 x1 Slot (PCIE2)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
—
* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
Supports NVMe SSD as boot disks
Storage

CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 4 x SATA3 6.0 Gb/s Connectors
—
* Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
RAID

– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB

CPU:
– 1 x Thunderbolt™ 4/USB4 Type-C (Rear)
– 1 x USB 3.2 Gen2x2 Type-C (Rear)
Chipset:
– 1 x USB 3.2 Gen2x2 Type-C (Front)
– 1 x USB 3.2 Gen2 Type-A (Rear)
– 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
– 8 x USB 2.0 (4 Rear, 4 Front)
—
* All USB ports support ESD Protection
Connector

– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
– 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
– 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
—
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

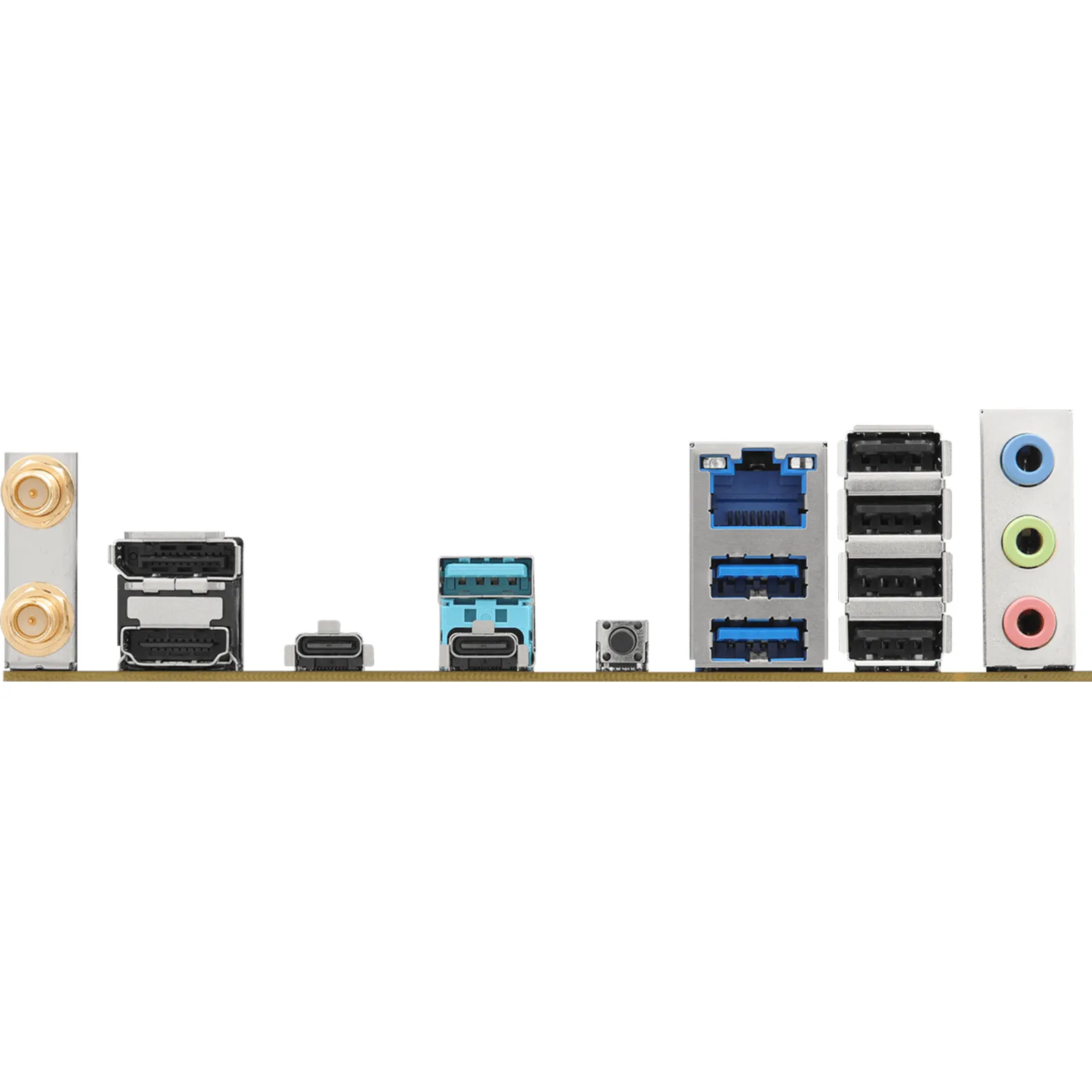

Rear Panel I/O

– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x Thunderbolt™ 4/USB4 Type-C Port (40 Gb/s)*
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
– 2 x USB 3.2 Gen1 Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
—
* Supports USB PD 3.0 up to 5V@3A (15W) charging
Software and UEFI

Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
—
*These utilities can be downloaded from ASRock Live Update & APP Shop.

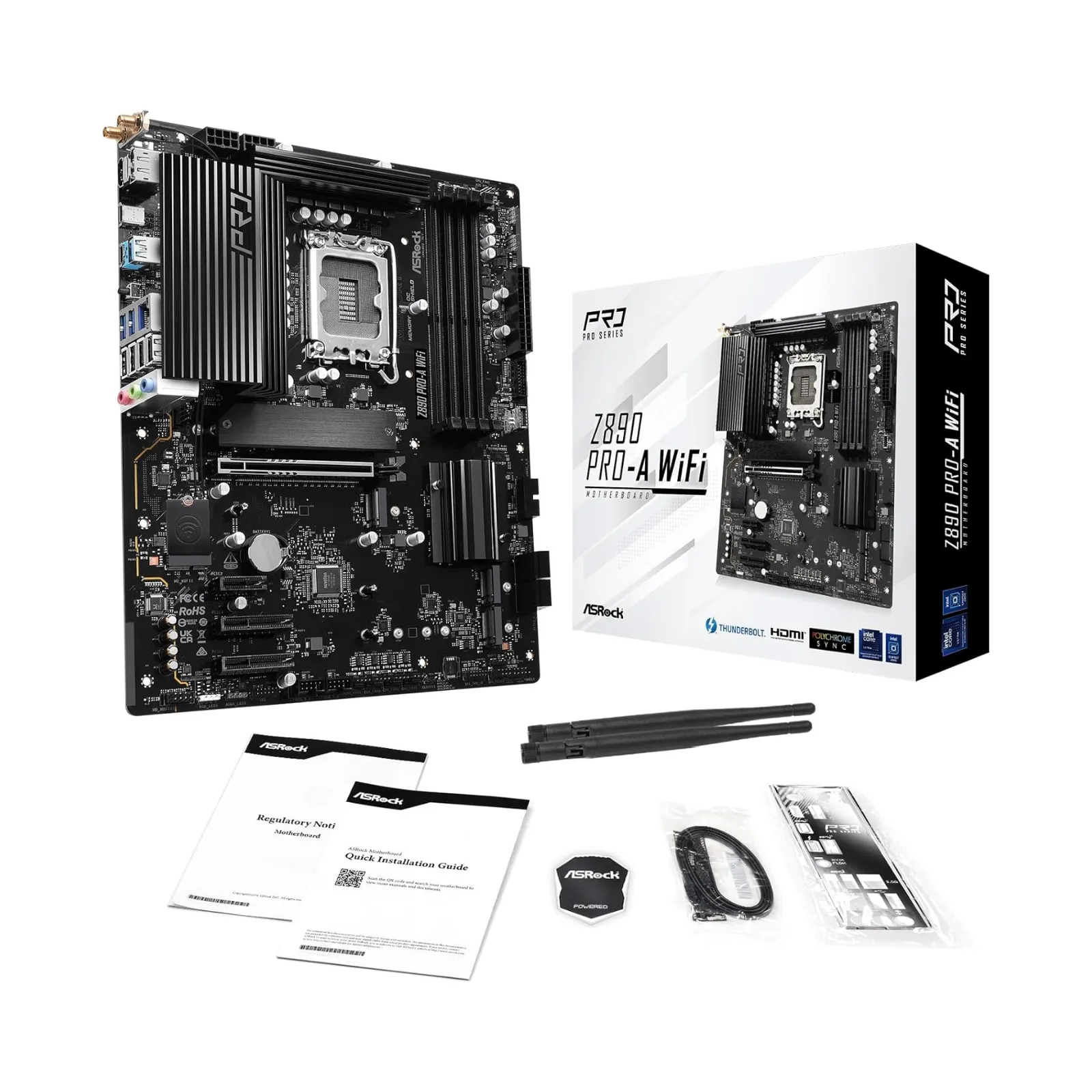

Accessories

– 1 x I/O Shield
– 2 x SATA Data Cables
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas
Form Factor

– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 2oz Copper PCB
OS

– Microsoft Windows® 11 64-bit
Certifications

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Recensioni (0)

Recensioni

Ancora non ci sono recensioni.

Recensisci per primo “ASRock Z890 Pro-A WiFi – Scheda Madre ATX, LGA1851, DDR5, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4”

Il tuo indirizzo email non sarà pubblicato. I campi obbligatori sono contrassegnati *



About brand
ASRock è un brand taiwanese fondato nel 2002, nato come spin-off di ASUS e oggi tra i principali produttori mondiali di schede madri. L’azienda si è affermata grazie alla capacità di combinare innovazione, qualità e prezzi competitivi, proponendo soluzioni adatte a diversi segmenti di mercato: dagli utenti domestici agli appassionati di gaming, fino ad arrivare a workstation professionali e sistemi industriali. Oltre alle schede madri, ASRock sviluppa anche mini PC, soluzioni per server e prodotti dedicati al settore embedded. La filosofia del marchio si concentra su creatività, funzionalità e affidabilità, con l’obiettivo di rendere la tecnologia accessibile e performante per ogni esigenza.

Prodotti correlati

Esaurito
ASRock B860M-X WiFi
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASRock B860M-X WiFi – Scheda Madre Micro-ATX Intel B860 con DDR5, PCIe 5.0 M.2, Wi-Fi 6E e LAN 2.5G

139,00 €
Leggi tutto
SKU: 90-MXBRY0-A0UAYZ
Peso 0,6 kg
Dimensioni 24,4 × 21,8 × 2,5 cm
Caratteristica Unica

Produttività superba
– PCIe Gen5 (M.2)
– Dual Channel DDR5
Solida durabilità
– 7+1+1+1+1 Power Phase
Connettività ultraveloce
– 2.5G LAN, 802.11axe Wi-Fi 6E Module
Aggiornamento EZ
– Interruttore BIOS Flashback
– Programma di installazione del driver automatico ASRock
Risoluzione dei problemi EZ
– ASRock Checker stato post
CPU

– Supporta Intel® Core™ Ultra Processors (Series 2) (LGA1851)
– Supporta Intel® Hybrid Technology
– Supporta Intel® Turbo Boost Max 3.0 Technology
– Supporta Intel® Incremento della velocità termica (TVB)
– Supporta Intel® Tecnologia ad incremento adattivo (ABT)
– NPU integrata per accelerazione IA dedicata
Chipset

– Intel® B860
Memoria

– Dual Channel DDR5 Memory Technology
– 2 x DDR5 slot DIMM
– Supporta DDR5 non-ECC, momoria senza buffer up to 9066+(OC)*
– Supporta Clocked Unbuffered DIMM (CUDIMM)
– Capacità massima della memoria di sistema: 128GB
– Supporto di Intel® XMP (Profilo di memoria estrema) 3.0x
–
*1DPC 1R Up to 9066+ MHz (OC), 6400 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively.
BIOS

– BIOS legale 256 Mb AMI UEFI con supporto GUI
Schede Grafiche

– Intel® Xe LPG Architettura grafica
– 1 x HDMI 2.1 TMDS/FRL Compatibile con l’8G, Supporta HDR, HDCP 2.3 e max. Risoluzione up to 4K 120Hz
– 1 x DisplayPort 1.4 con DSC (compresso), supporta HDCP 2.3 e risoluzione massima fino a 8K 60Hz/5K 120Hz
–
*Intel® UHD Graphics Visuals integrata e le uscite VGA possono essere supportate solo con processori con GPU integrata.
Audio

– Audio HD a 7.1 canali (Realtek ALC897 Audio Codec)
LAN

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supporta Dragon 2.5G LAN Software
– Controllo regolazione della larghezza di banda automatico e intelligente
– Interfaccia grafica intuitiva
– Statistiche visive di utilizzo della rete
– Impostazioni predefinite e ottimizzate per modalità gioco, browser e streaming
– Controllo priorità personalizzato dall'utente
Wireless LAN

– 802.11axe Wi-Fi 6E Module
– Supporta IEEE 802.11a/b/g/n/ac/ax/axe
– Supporta Dual-Band 2×2 con supporto esteso della banda a 6GHz*
– CPU, CPU opzionale/Pompa dell’acqua, ventole del case
– Supporta Bluetooth 5.3
– Supporta MU-MIMO
–
*The 6GHz band of Wi-Fi 6E module is supportato da Microsoft® Windows® 11 only. La disponibilità della banda 6 GHz dipenderà dal diverso stato di regolamentazione di ciascun Paese e regione. Verrà attivato (per i Paesi supportati) tramite Windows® Update e aggiornamenti software non appena disponibili.
Per la funzionalità 6E è necessario un router compatibile con 6GHz.
Slot di espansione

CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), Supporta a modalità x16*
Chipset:
– 1 x PCIe 4.0 x1 Slot (PCIE2)*
– 1 x PCIe 4.0 x4 Slot (PCIE3), Supporta a modalità x4*
– 1 x socket M.2 (Key E), supporta il modulo Wi-Fi/BT PCIe WiFi di tipo 2230 e Intel® CNVio/CNVio2 (Wi-Fi/BT integrato)
–
*SSD NVMe come dischi di avvio
Immagazzinamento

CPU:
– 1 x Blazing socket M.2 (M2_1, Key M), Supporta type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x socket Hyper M.2 (M2_2, Key M), Supporta type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x connettori SATA3 6.0 Go/s
–
*Supporta il dispositivo Intel® Volume Management (VMD)
SSD NVMe come dischi di avvio
RAID

– Supporta RAID 0, RAID 1, RAID 5 e RAID 10 per dispositivi di archiviazione SATA
USB

CPU:
– 1 x USB 3.2 Gen2x2 Type-C (posteriori)
Chipset:
– 1 x USB 3.2 Gen1 Type-C (frontali)
– 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 frontali)
– 6 x USB 2.0 (2 Rear, 4 Front)
–
*Tutte le porte USB supportano la protezione ESD.
Connettore

– 1 x collettore SPI TPM
– 1 x LED di alimentazione e header altoparlanti
– 1 x collettore RGB LED*
– 2 x Header LED indirizzabiles**
– 2 x Connettore CPU ventola (4-pin) (Controllo intelligente della velocità della ventola)***
– 2 x Connettore Chassis ventola (4-pin) (Controllo intelligente della velocità della ventola)***
– 1 x AIO Pump Fan Connector (4-pin) (Controllo intelligente della velocità della ventola)***
– 1 x 24-pin collettore alimentazione ATX
– 1 x 8-pin connettore ATX 12V (Connettore di potenza ad alta densità)
– 1 x 4-pin connettore ATX 12V (Connettore di potenza ad alta densità)
– 1 x connettore audio sul pannello frontale
– 2 x collettore USB 2.0 (supporta 4 porte USB 2.0)
– 1 x collettore USB 3.2 Gen1 (supporta 2 porte USB 3.2 Gen1)
– 1 x Header USB 3.2 Gen1 di tipo C sul pannello frontale
–
*Supporta strisce LED fino a 12V/3A 36W
–
**supporta in total up to 5V/3A, 15W LED Strip
–
***CPU_FAN1 supporta una potenza della ventola fino a 1 A (12 W).
CPU_FAN2, CHA_FAN1~2 e AIO_PUMP supporta the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~2 e AIO_PUMP possono automaticamente rilevare se la ventola a 3 pin o a 4 pin è in uso.
Pannello Posteriore I/O

– 2 x Porte dell'antenna
– 1 x porta HDMI
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
– 3 x porte USB 3.2 Gen1
– 2 x porte USB 2.0
– 1 x porte LAN RJ-45
– 1 x Interruttore BIOS Flashback
– Jack Audio HD: ingresso linea / cassa frontale / microfono
Software e UEFI

Software
– ASRock Scheda Madre Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Modalità EZ
– ASRock UEFI Full HD
– ASRock My Favorites in UEFI
– Programma di installazione del driver automatico ASRock
– ASRock Flash istantaneo
–
*Queste utility possono essere scaricate da App Shop.
Accessori

– 1 x I/O Shield
– 2 x cavi dati SATA
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas
– 1 x Vite per Socket M.2
– 1 x Standoff per prese M.2
Fattore di Forma

– Fattore di forma Micro ATX: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm
OS

– Microsoft® Windows® 11 64-bit
Certificazioni

– FCC, CE
– Predisposto ErP/EuP (è necessaria l’alimentazione predisposta per il sistema ErP/EuP)
-11%Esaurito
ASUS PRIME Z890M-PLUS WIFI
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS PRIME Z890M-PLUS WIFI – Scheda Madre mATX LGA1851 con WiFi 7, PCIe 5.0 e DDR5 per Intel Core Ultra (Serie 2)

Il prezzo originale era: 269,00 €.Il prezzo attuale è: 239,00 €.
Leggi tutto
SKU: 90MB1J80-M0EAY0
Peso 1,25 kg
Dimensioni 27 × 27 × 7,5 cm
Modello

PRIME Z890M-PLUS WIFI
CPU

Supports Intel® Core™ Ultra Processors(Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® Z890 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

1 x DisplayPort**
1 x HDMI™ port***
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****
*Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
**Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
****Supports max. 4K@120Hz as specified in DisplayPort 1.4.
***** VGA resolution support depends on processors' or graphic cards' resolution.
****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® Core™ Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slots (support x1 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® Z890 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1x USB 10Gbps port (1 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A) **
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
* USB Type-C® power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1x USB 10Gbps port (1 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors

Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin +12V CPU Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front Panel System header
1 x Thunderbolt™ (USB4®) header
Special Features

ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
NPU Boost (Intel K-series Processors only)
BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
3 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide
Operating System

Windows 11 (22H2 & later)
Form Factor

mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
-9%
ASUS ROG Maximus Z890 Extreme
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG MAXIMUS Z890 EXTREME – Scheda Madre E-ATX LGA1851 DDR5 PCIe 5.0 WiFi 7 Thunderbolt 5 con Display LCD 5″ [Pre-Ordine]

Il prezzo originale era: 1.529,00 €.Il prezzo attuale è: 1.399,00 €.
Aggiungi al carrello
SKU: 90MB1IA0-M0EAY0
Peso 4,5 kg
Dimensioni 38 × 30 × 14 cm
News & Updates

Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below:
—–
•Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
—–
•Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.
—–
Please visit our GLOBAL website to check and download the latest updates.
The Thunderbolt 5 features on this motherboard are only supported in Windows 11. To ensure the best experience, please install Windows 11 and update to the latest version to access the latest inbox drivers.
CPU

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® Z890 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 9200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Supports DIMM Flex
DIMM Fit
NitroPath DRAM Technology
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

1 x HDMITM port**
2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
**Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
***Supports up to 1 x 8K@60HZ(DSC mode)+2 x 4K@60HZ monitors, It is recommended to chain-connect the monitors using a verified Thunderbolt™ cable.
****For resolution support please check DisplayPort 2.1 specs.bandwidth limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s.
*****In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.
******VGA resolution support depends on processors' or graphic cards' resolution.
*******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® Core™ Ultra Processors(Series 2)*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**
Intel® Z890 Chipset**
1 x PCIe 4.0×4 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage

Total supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports*
Support Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**
Intel® Z890 Chipset
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
Ethernet

1 x Intel® 2.5Gb Ethernet
1 x Marvell® AQtion 10Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Intel® Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4***
—–
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 10 ports)
2 x Thunderbolt™ 5 ports (2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®)
Front USB (Total 10 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)*
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
*USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
– SupremeFX Shielding Technology
– ESS® ES9219 QUAD DAC
– LED-illuminated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports

2 x Thunderbolt™ 5 USB Type-C® ports
1 x USB 20Gbps port (1 x USB Type-C®)
7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®)
1 x HDMITM port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
1 x Marvell® AQtion 10Gb Ethernet port
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x WB_SENSOR header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
4 x BCLK button
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
18 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switchs
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features

Extreme OC Kit
– FlexKey button
– LN2 Mode
– ProbeIt
– ReTry button
– Safe boot button
– Start button
– Slow Mode
Extreme Engine Digi+
– 10K Black Metallic Capacitors
– MicroFine Alloy Choke
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Code
– Q-Connector
– Q-Dashboard
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
– Q-DIMM.2
ASUS Thermal Solution
– Fan bracket
– M.2 heatsink backplate
– M.2 heatsink
– Metal backplate
– VRM heatsink design
– 3D VC M.2 Heatsink
ASUS EZ DIY
– Backplate
– BIOS FlashBack™ button
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen 2 headers
Dual BIOS
Full Color 5" LCD Display
ROG M.2 PowerBoost
Front Panel USB 20Gbps with Quick Charge 4+ Support
– Support: up to 60W fast charging and USB Wattage Watcher*
– Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
– Compatible with PD3.0 and PPS
* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
– Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (1 year full version)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
– Power Saving
– LCD Display
ASUS AI Advisor
ASUS Driver Hub
Turbo Vcore
ASUS GlideX
Thunderbolt™ Share
USB Wattage Watcher
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
BIOS

2 x 64 MB (512Mb)
Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME
Accessories

Cables
1 x 1-to-3 ARGB splitter cable
1 x 1-to-2 ARGB splitter cable
2 x 1-to-4 fan splitter cable
2 x ROG weave SATA 6G cable packages
1 x 3-in-1 Thermistor cables pack
ROG Q-DIMM.2 with Heatsink
1 x ROG Q-DIMM.2 with heatsink
1 x M.2 pad package for ROG Q-DIMM.2
2 x Thermal pad for ROG Q-DIMM.2
Additional Cooling Kit
2 x Thermal pad for M.2 22110
1 x DDR5 Fan holder
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x ROG logo plate sticker
1 x ROG screwdriver
1 x ROG stickers
1 x ROG VIP card
2 x M.2 Q-Slide packages
6 x M.2 backplate rubber packages
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide
Operating System

Windows 11 (22H2 & later)
Form Factor

E-ATX Form Factor
12 inch x 10.9 inch (30.5 cm x 27.7 cm)
-5%
ASUS ROG MAXIMUS Z890 HERO
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG MAXIMUS Z890 HERO – Scheda Madre ATX LGA1851 DDR5 PCIe 5.0 WiFi 7 Thunderbolt 4 per Gaming e Overclock [Pre-Ordine]

Il prezzo originale era: 839,00 €.Il prezzo attuale è: 799,00 €.
Aggiungi al carrello
SKU: 90MB1ID0-M0EAY0
Peso 3,2 kg
Dimensioni 35 × 27 × 11,5 cm
News & Updates

Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below:
—–
•Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
—–
•Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.
CPU

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® Z890 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM FIT
ASUS Enhanced Memory Profile III (AEMP III)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

1 x HDMI™ port**
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates
** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
*** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
**** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® Core™ Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)**
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage

Supports 6 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® Z890 Chipset
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
SlimSAS slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via an adapter cable. The cable is purchased separately.
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
Ethernet

1 x Intel® 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4***
—–
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 11 ports)
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 10 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)*
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
* USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
– SupremeFX Shielding Technology
– ESS® ES9219 QUAD DAC
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports

2 x Thunderbolt™ 4 USB Type-C® ports
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
1 x 8-pin PCIe Power connector
Storage Related
6 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x SlimSAS connector
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 10Gps connector (supports USB Type-C® )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Special Features

Extreme OC Kit
– FlexKey button
– ReTry button
– Start button
Extreme Engine Digi+
– 10K Black metallic capacitors
– MicroFine alloy choke
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Code
– Q-Connector
– Q-Dashboard
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– Metal backplate
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen 2 header(s)
ROG M.2 PowerBoost
Front Panel USB 20Gbps with Quick Charge 4+ Support
– Support: up to 60W fast charging and USB Wattage Watcher*
– Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
– Compatible with PD3.0 and PPS
* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
– Polymo Lighting II
– Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (1 year full version)
– Aura Creator
– Aura Sync
– Xpert 4 (with AI Cooling II)
– GameFirst
– Power Saving
– Hwinfo
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
Thunderbolt™ Share
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
NPU Boost
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
FlexKey
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME
Accessories

Cables
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
Additional Cooling Kit
1 x DDR5 fan holder
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Slide packages
1 x ROG stickers
6 x M.2 rubber packages
1 x ROG thank you card
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide
Operating System

Windows 11 (22H2 & later)
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
-12%
ASUS ROG MAXIMUS Z890 HERO BTF
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG MAXIMUS Z890 HERO BTF – Scheda Madre ATX LGA1851 DDR5 PCIe 5.0 WiFi 7 Thunderbolt 4 con Connettori Nascosti [Pre-ordine]

Il prezzo originale era: 879,00 €.Il prezzo attuale è: 775,00 €.
Aggiungi al carrello
SKU: 90MB1KG0-M0EAY0
Peso 3,5 kg
Dimensioni 36 × 28 × 12 cm
News & Updates

Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below:
—–
•Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
—–
•Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.
—–
Please visit our GLOBAL website to check and download the latest updates.
CPU

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® Z890 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM FIT
ASUS Enhanced Memory Profile III (AEMP III)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

1 x HDMI™ port**
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates
** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
*** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
**** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® Core™ Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)**
Intel® Z890 Chipset
1 x PCIe 4.0 x4 slot
1 x PCIe 4.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage

Supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® Z890 Chipset
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
Ethernet

1 x Intel® 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4***
—–
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 11 ports)
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 10 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
– SupremeFX Shielding Technology
– ESS® ES9219 QUAD DAC
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports

2 x Thunderbolt™ 4 USB Type-C® ports
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
1 x Graphics card high power slot
1 x 12V-2X6 Auxiliary power connector
Storage Related
6 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 10Gps connector (supports USB Type-C® )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header*
* The Thunderbolt™ card can only be used when installed to the PCIEX16(G4) slot. Ensure to install your Thunderbolt™ card to the PCIEX16(G4) slot.
Special Features

Extreme OC Kit
– FlexKey button
– Start button
Extreme Engine Digi+
– 10K Black metallic capacitors
– MicroFine alloy choke
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Code
– Q-Connector
– Q-Dashboard
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– Metal backplate
– VRM heatsink design
ASUS EZ DIY
– Backplate
– BIOS FlashBack™ button
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen 2 header(s)
ROG M.2 PowerBoost
Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
– Polymo Lighting II
– Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (1 year full version)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– Power Saving
– Hwinfo
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
Thunderbolt™ Share
TurboV Core
Adobe Creative Cloud (Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
NPU Boost
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME
Accessories

Cables
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
Additional Cooling Kit
1 x DDR5 fan holder
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
3 x M.2 Q-Slide packages
1 x ROG stickers
6 x M.2 rubber packages
1 x ROG thank you card
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide
Operating System

Windows 11 (22H2 & later)
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
-11%
ASUS ROG STRIX Z890-E GAMING WIFI
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS ROG STRIX Z890-E GAMING WIFI – Scheda Madre ATX LGA1851 DDR5 PCIe 5.0 WiFi 7 Thunderbolt 4 con 7 Slot M.2 [Pre-Ordine]

Il prezzo originale era: 629,00 €.Il prezzo attuale è: 560,00 €.
Aggiungi al carrello
SKU: 90MB1IM0-M0EAY0
Peso 3 kg
Dimensioni 34 × 26,5 × 11 cm
News & Updates

Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below:
—–
•Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
—–
•Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.
CPU

Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® Z890 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 9200+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)
*Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics

1 x DisplayPort**
1 x HDMI® port***
2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports max. 8K@60Hz as specified in HDMI 2.1.
**** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
***** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
****** VGA resolution support depends on processors' or graphic cards' resolution.
*******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® Core™ Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage

Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
Intel® Z890 Chipset
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
** M.2_3 & M.2_4 slots share bandwidth with PCIEX16(G5). When M.2_3 & M.2_4 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
Ethernet

1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4***
—–
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 14 ports)
2 x Thunderbolt™ 4 (2 x USB Type-C®)
9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**
3 x USB 5Gbps ports (3 x Type-A)
Front USB (Total 11 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
* USB Type-C® power delivery output: 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel
—–
Audio Features
– Audio Shielding
– Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
—–
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports

2 x Thunderbolt™ 4 (2 x USB Type-C®)
9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)
3 x USB 5Gbps ports (3 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage related
7 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Chassis Intrusion header
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Alteration PCIe mode switch
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Special Features

Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Code
– Q-Dashboard
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsinks
– M.2 heatsink backplate
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen2 headers
Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
– Power Saving
ASUS Driver Hub
ASUS GlideX
TurboV Core
USB Wattage Watcher
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
NPU Boost
FlexKey
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS Wi-Fi Q-Antenna
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG key chain
1 x ROG Strix stickers
7 x M.2 Rubbers
Documentation
1 x Quick start guide
Operating System

Windows® 11 (22H2 & later)
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
-11%Esaurito
ASUS TUF GAMING B860M-PLUS WIFI
Add to compare
Anteprima
Aggiungi alla lista dei desideri

ASUS TUF GAMING B860M-PLUS WIFI – Scheda Madre mATX per Intel Core Ultra Series 2 LGA1851, DDR5 8800+, PCIe 5.0, WiFi 7, USB 20Gbps

Il prezzo originale era: 269,00 €.Il prezzo attuale è: 240,00 €.
Leggi tutto
SKU: 90MB1JV0-M0EAY0
Peso 1,8 kg
Dimensioni 30 × 27 × 7 cm
Modello

TUF GAMING B860M-PLUS WIFI
CPU

Support Intel® Core™ Ultra Processors (Series 2) ,LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
*Refer to https://www.asus.com/support/download-center/ for CPU support list.
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® B860 Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

1 x DisplayPort**
1 x HDMI™ port***
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
*****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots

Intel® CoreTM Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x4 slot
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet

1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth

Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
2 x USB 10Gbps port (2 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 ports (1x Type-A)
Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 headers support 2 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
2 x USB 10Gbps port (2 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors

I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front panel audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
Special Features

ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
– M.2 heatsinks
– VRM heatsink design
ASUS EZ DIY
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
AURA Sync
– Addressable Gen 2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
– AURA Creator
– AURA Sync
– Fan Xpert 2+
– Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
NPU Boost
BIOS

2 x 128 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 Rubber Packages
1 x TUF Gaming sticker
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Operating System

Windows 11 (22H2 & later)
Form Factor

mATX Form Factor
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
-9%
MSI B860M GAMING PLUS WIFI
Add to compare
Anteprima
Aggiungi alla lista dei desideri

MSI B860M GAMING PLUS WIFI – Scheda Madre mATX Intel B860 LGA 1851 con WiFi 7, Thunderbolt 4, DDR5, PCIe 5.0 e 5G LAN

Il prezzo originale era: 219,00 €.Il prezzo attuale è: 199,00 €.
Aggiungi al carrello
SKU: 601-7E42-02S
Peso 1,6 kg
Dimensioni 28 × 27,2 × 7 cm
Chipset

INTEL B860
CPU

Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
——
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
——
• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot

4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage

3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
4x SATA 6G
——
*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Onboard Thunderbolt

1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
1x USB 5Gbps Type C (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
LAN

Intel® Killer™ E5000 5Gbps LAN
Internal IO

1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
——
Supports Bluetooth® 5.4**, MLO, 4KQAM
——
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED FEATURE

4x EZ Debug LED
BACK PANEL PORTS

Display Port
Clear CMOS Button
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
Thunderbolt™ 4 40Gbps (Type-C)
USB 2.0
USB 5Gbps (Type-A)
USB 5Gbps (Type-C)
USB 10Gbps (Type-A)
OPERATING SYSTEM

Support for Windows® 11 64-bit
PCB Info

mATX
243.84mmx243.84mm
