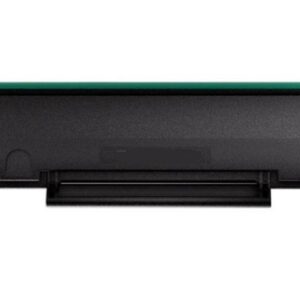

Toner PATL-A2310HPP
PANTUM PATL-A2310HPP – Toner Compatibile Nero Alta Capacità per Stampanti Pantum Serie BM2300 BP2300 45,00 €
Torna ai prodotti
ARCTIC Liquid Freezer III Pro 360
ARCTIC Liquid Freezer III Pro 360 – Dissipatore a Liquido AIO 360mm, Ventola VRM Integrata, Radiatore 38mm, MX-6, LGA1851/1700 & AM5/AM4 Il prezzo originale era: 129,99 €.Il prezzo attuale è: 99,00 €.
-6%
MSI MAG B850 TOMAHAWK WIFI
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 2
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 3
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 4
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 5
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 6
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 7
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 8
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 9
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 10
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 11
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 12
Clicca per ingrandire
MSI MAG B850 TOMAHAWK WIFI
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 2
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 3
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 4
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 5
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 6
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 7
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 8
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 9
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 10
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 11
MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps - immagine 12
Gaming

MSI MAG B850 TOMAHAWK WIFI – Scheda Madre ATX AM5, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 7, LAN 5G, USB-C 20Gbps

Il prezzo originale era: 255,00 €.Il prezzo attuale è: 239,00 €.

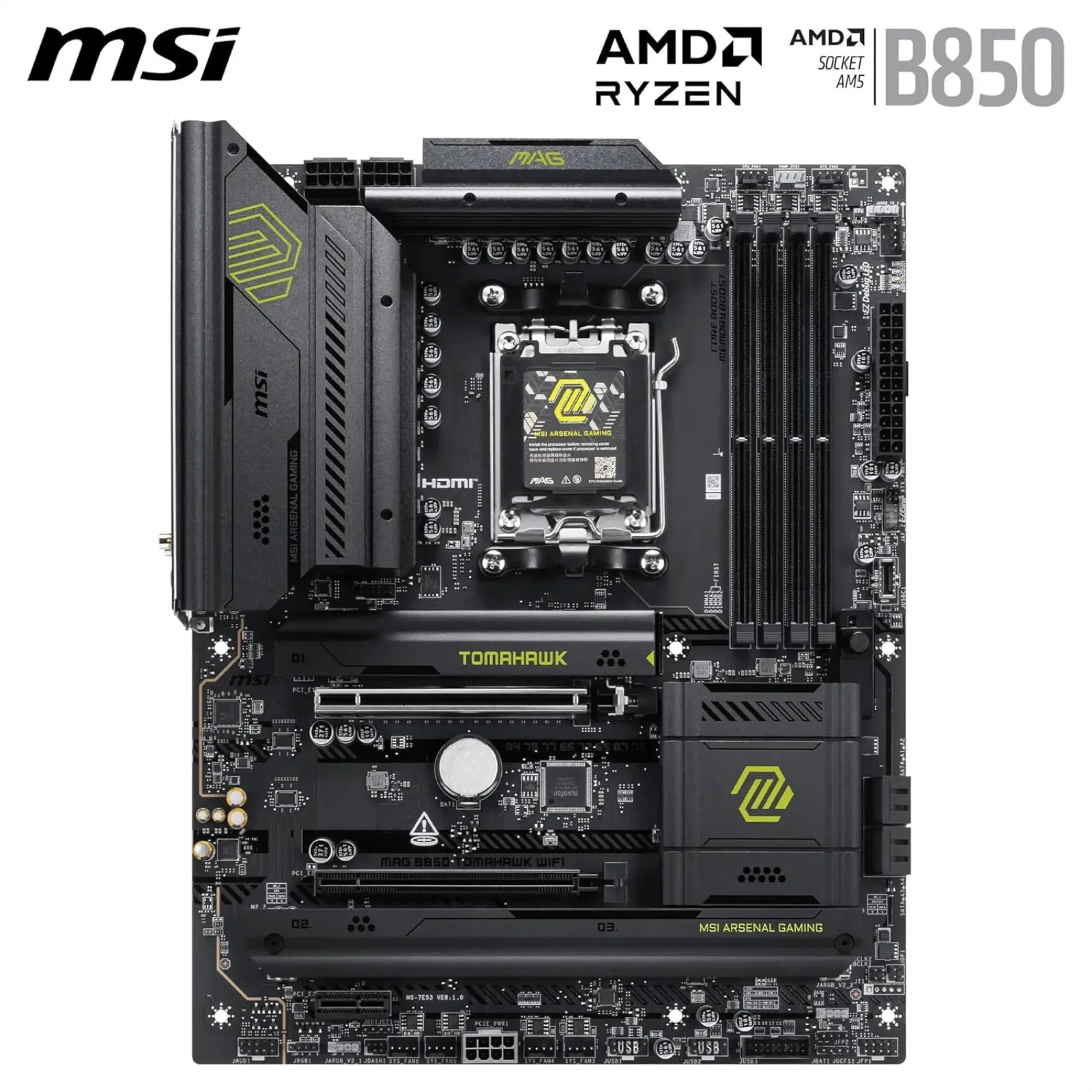

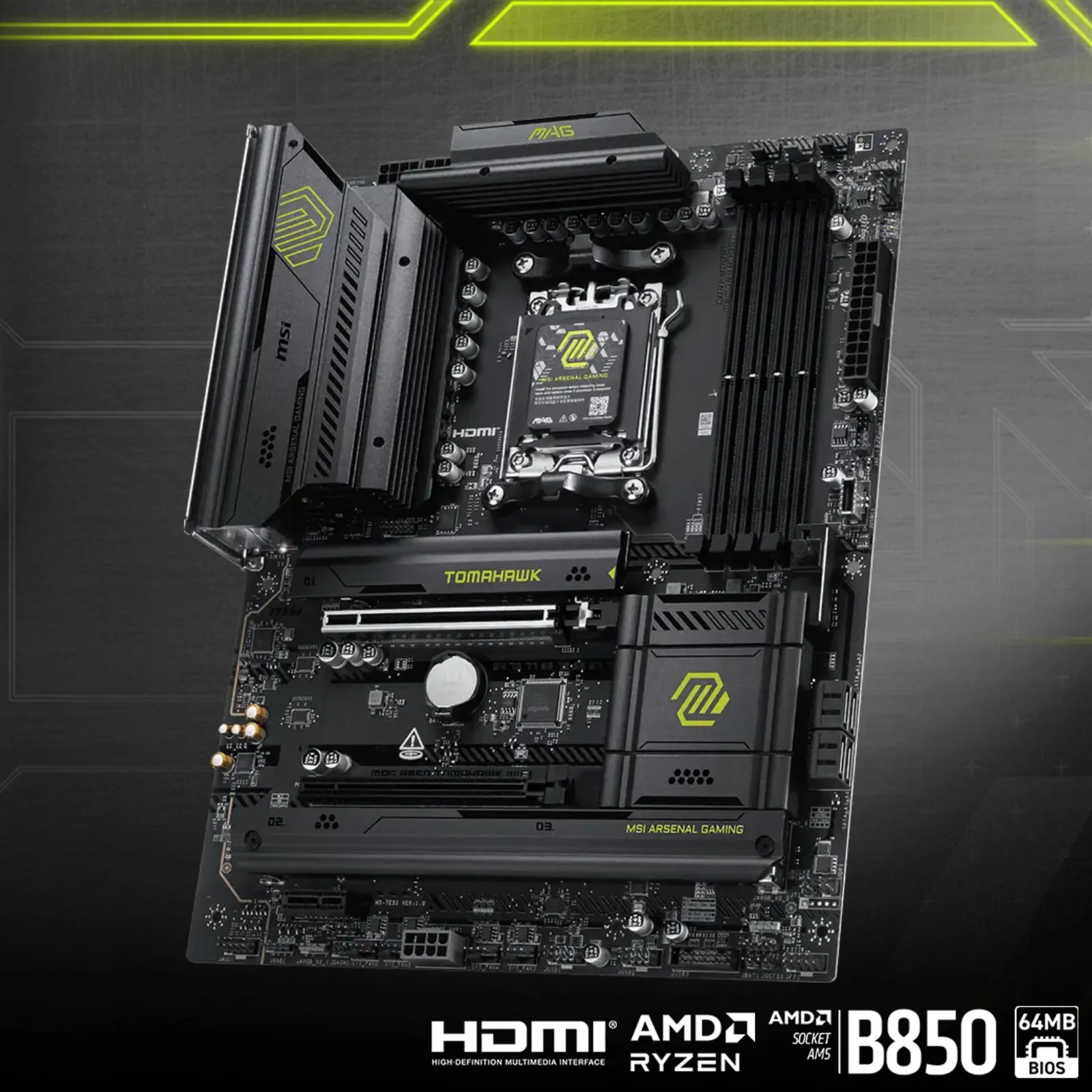

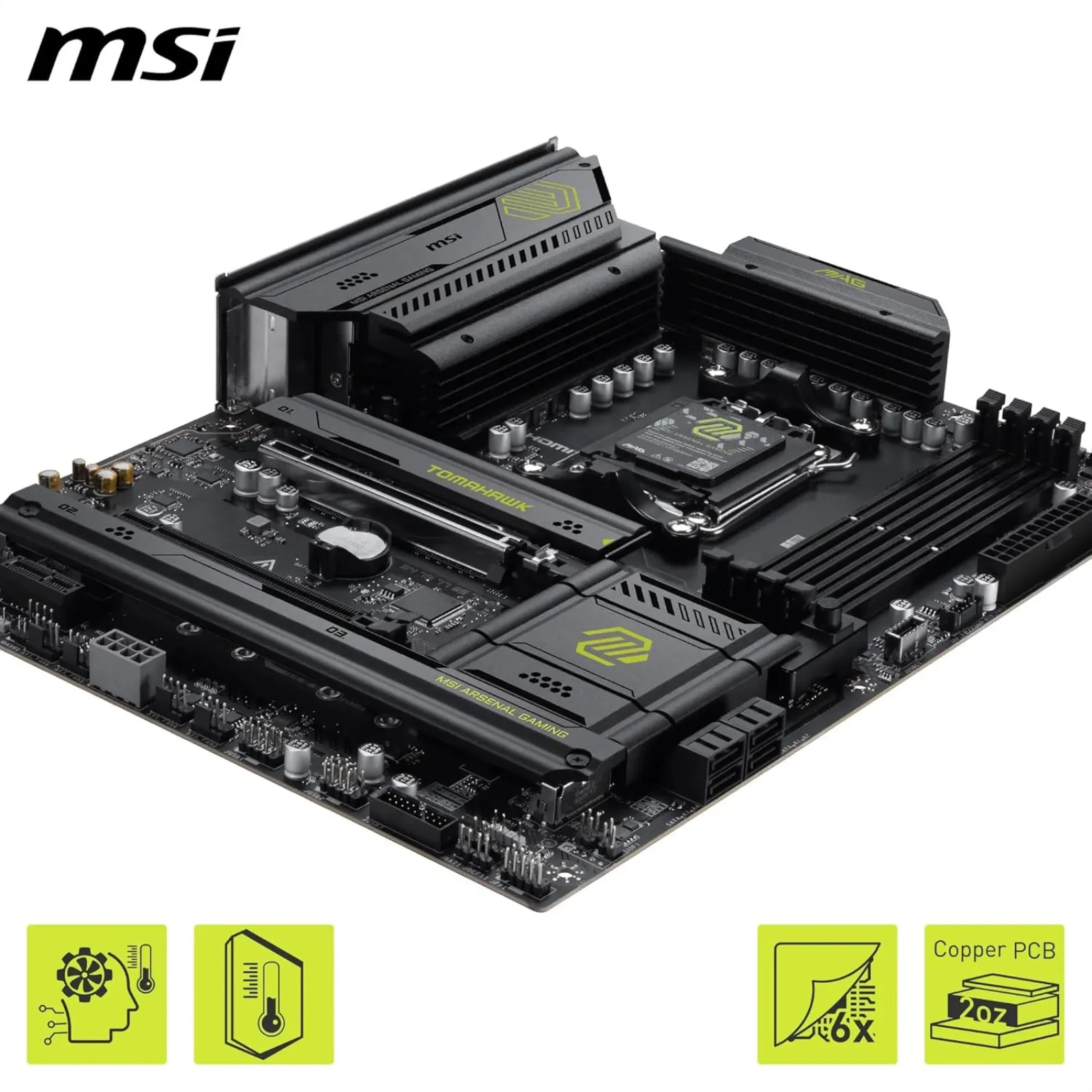

La MSI MAG B850 TOMAHAWK WIFI è una scheda madre ATX AM5 per build gaming solide e “DIY friendly”: VRM 14+2+1 Duet Rail 80A, supporto Ryzen™ 9000/8000/7000, DDR5 fino a 8200+ MT/s (OC), PCIe 5.0 x16, M.2 PCIe 5.0, Wi-Fi 7 + Bluetooth 5.4, LAN 5G e USB-C 20Gbps per periferiche veloci. Include funzioni EZ DIY per montaggio e upgrade più rapidi.

1 disponibili

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4711377402859 COD: 911-7E53-001 Categoria:
Descrizione

MSI MAG B850 TOMAHAWK WIFI / 911-7E53-001 / 4711377402859

Progettata per chi vuole una base affidabile per un PC AMD moderno, la MAG B850 TOMAHAWK WIFI combina alimentazione robusta, dissipazione efficace e connettività di nuova generazione.

Potenza e stabilità per Ryzen

Il sistema 14+2+1 Duet Rail Power System con Smart Power Stage da 80A è pensato per CPU Ryzen ad alte prestazioni, mantenendo stabilità anche sotto carico. La scheda usa un PCB a 6 strati con rame da 2oz e materiali di livello server per migliorare qualità del segnale e affidabilità.

DDR5 ad alte prestazioni con profili EXPO/A-XMP

Supporta DDR5 Dual Channel fino a 8200+ MT/s (OC) e consente overclock semplice tramite AMD EXPO o A-XMP. Funzioni come High-Efficiency Mode e Latency Killer aiutano a ottimizzare banda e latenza.

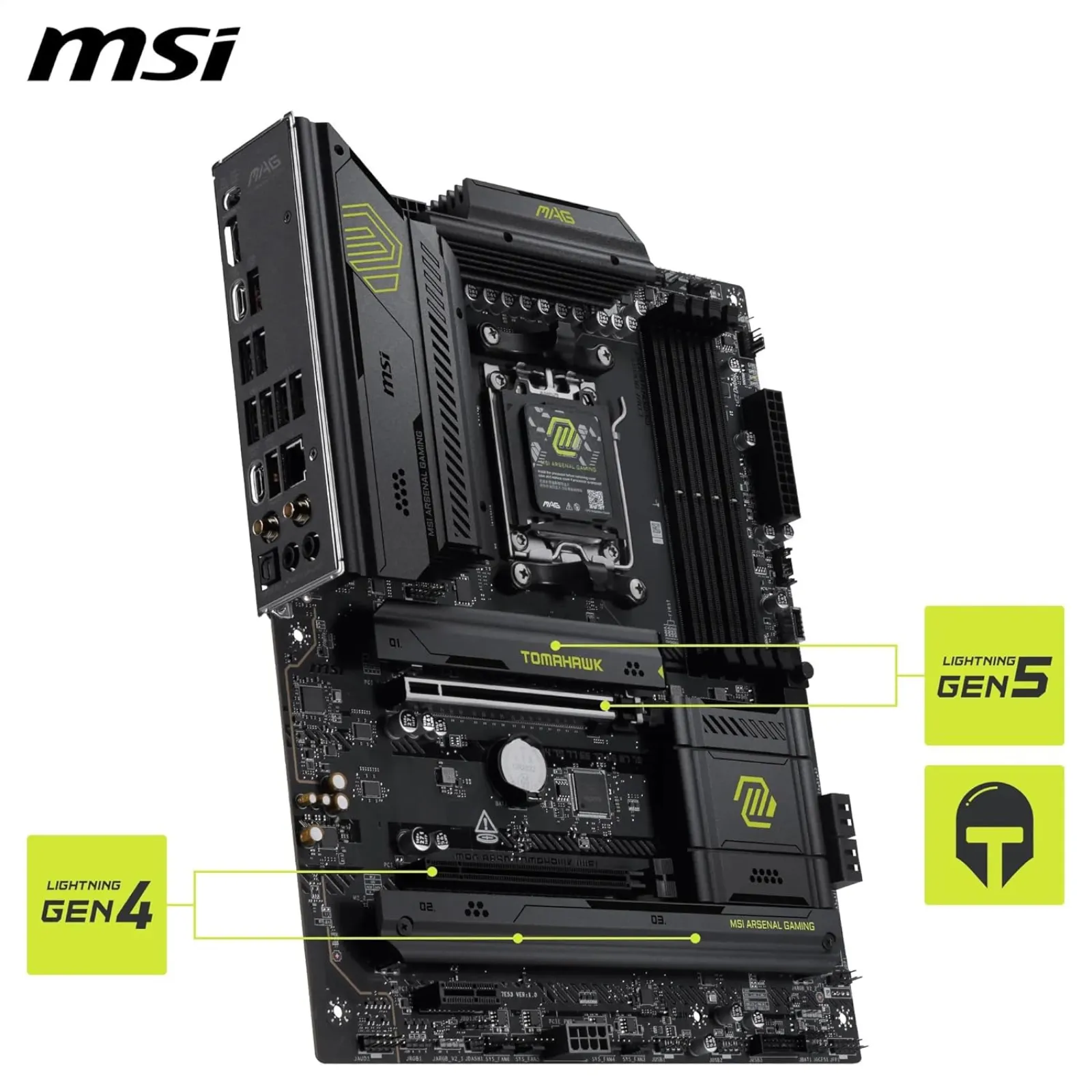

Storage veloce e PCIe 5.0

Per la GPU, lo slot principale è PCIe 5.0 x16. Sul fronte storage trovi 3 slot M.2:

  • M.2_1 (CPU): PCIe 5.0 x4

  • M.2_2 (CPU): PCIe 4.0 x4

  • M.2_3 (Chipset): PCIe 4.0 x4
    più 4× SATA 6Gb/s per SSD/HDD.

Rete e porte: Wi-Fi 7, LAN 5G e USB-C 20Gbps

Connettività completa per gaming e creator:

  • Wi-Fi 7 + Bluetooth 5.4

  • LAN 5G Realtek 8126VB

  • USB ad alta velocità, inclusa USB-C 20Gbps (posteriore) e USB-C 10Gbps (frontale e posteriore), oltre a USB-A 10Gbps/5Gbps e USB 2.0.

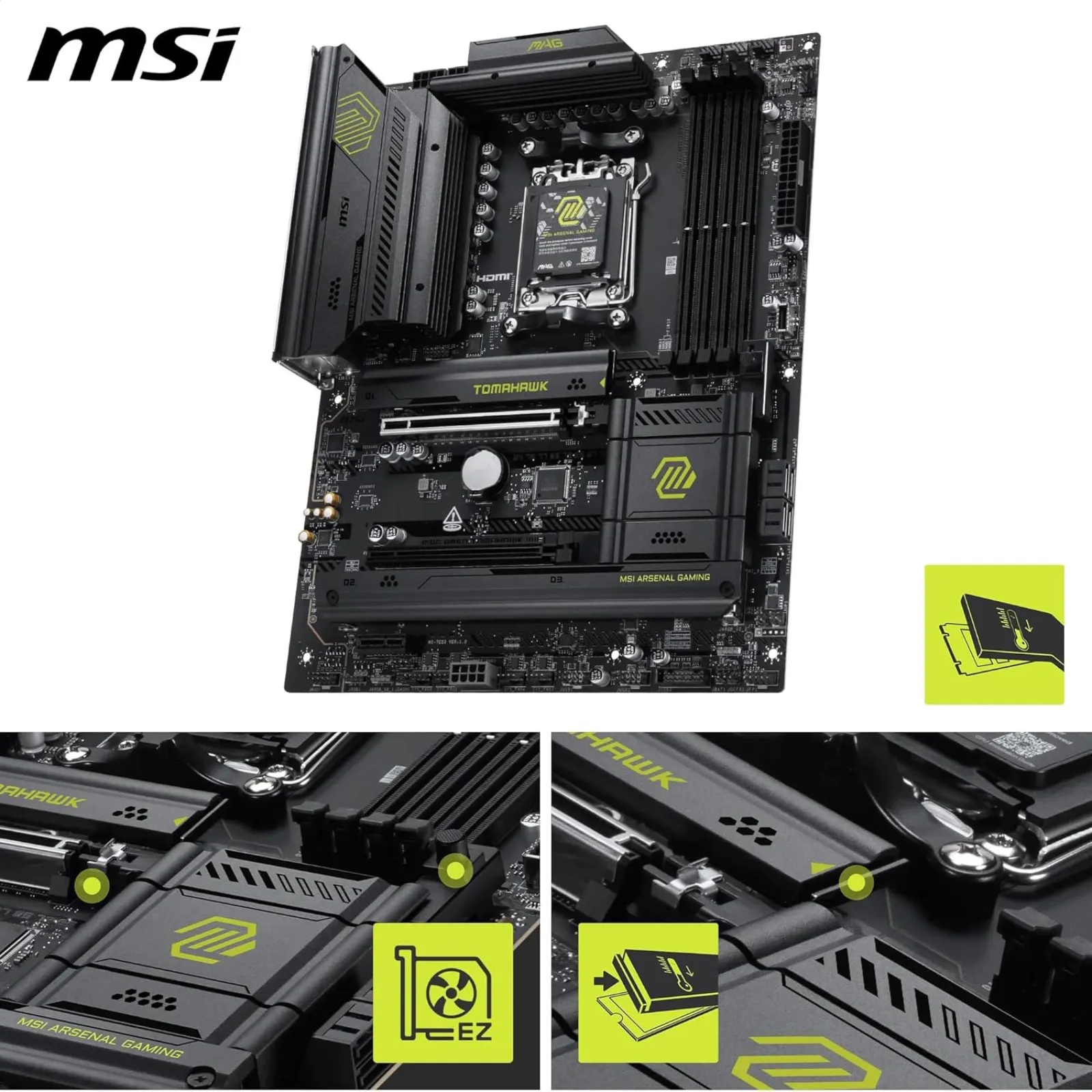

EZ DIY: montaggio più semplice

Include soluzioni pratiche come EZ M.2 Clip (installazione SSD senza viti), EZ PCIe Release (rimozione GPU con un tocco), I/O Shield preinstallato, EZ Antenna, e diagnostica con EZ Debug LED + EZ Memory Detection LED.

Audio e software

Audio con Realtek ALC4080 (7.1 USB high performance) e strumenti MSI (MSI Center + Click BIOS X) con funzioni AI per rete e raffreddamento.

Specifiche principali (riassunto)

  • Chipset / Socket: AMD B850 – AM5

  • CPU: Ryzen™ 9000/8000/7000

  • Formato: ATX (243,84 × 304,8 mm)

  • RAM: 4× DDR5 UDIMM, fino a 256GB, 8200+ MT/s (OC)

  • Slot PCIe: 1× PCIe 5.0 x16, 1× PCIe 4.0 x4, 1× PCIe 3.0 x1

  • Storage: 3× M.2 (1× Gen5 x4) + 4× SATA

  • Rete: Wi-Fi 7 + BT 5.4 + LAN 5G

  • OS: Windows 11 64-bit

  • EAN: 4711377402859

  • Codice: 911-7E53-001

FAQ

È compatibile con Ryzen 9000?
Sì, supporta AMD Ryzen™ Serie 9000/8000/7000 su socket AM5.

Wi-Fi 7 è incluso?
Sì, è presente una soluzione Wi-Fi 7 integrata con Bluetooth 5.4.

Quanti slot M.2 ha e qual è quello PCIe 5.0?
Ha 3 slot M.2 totali; M.2_1 è PCIe 5.0 x4.

Ha LAN 5G?
Sì, Realtek 8126VB 5G LAN.

La RAM arriva a 8400+ come il modello MAX?
No: questo modello è dichiarato fino a DDR5 8200+ MT/s (OC) (il MAX sale di più).

Informazioni aggiuntive
Peso 1,9 kg
Dimensioni 34 × 27 × 8 cm
Chipset

AMD B850
CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
—
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
—
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics

1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
—
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio

Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output
Storage

3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
—
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
—
M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
—
M2_3 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
—
* Please refer to the manual for M.2 SSD heatsink restrictions
Multi-GPU

AMD MULTI-GPU Support
RAID

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN

Realtek® 8126VB 5G LAN
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x Direct OC Jumper (JBCLK)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
—
Supports Bluetooth® 5.4**, MLO, 4KQAM
—
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE

4x EZ Debug LED
1x EZ Memory Detection LED

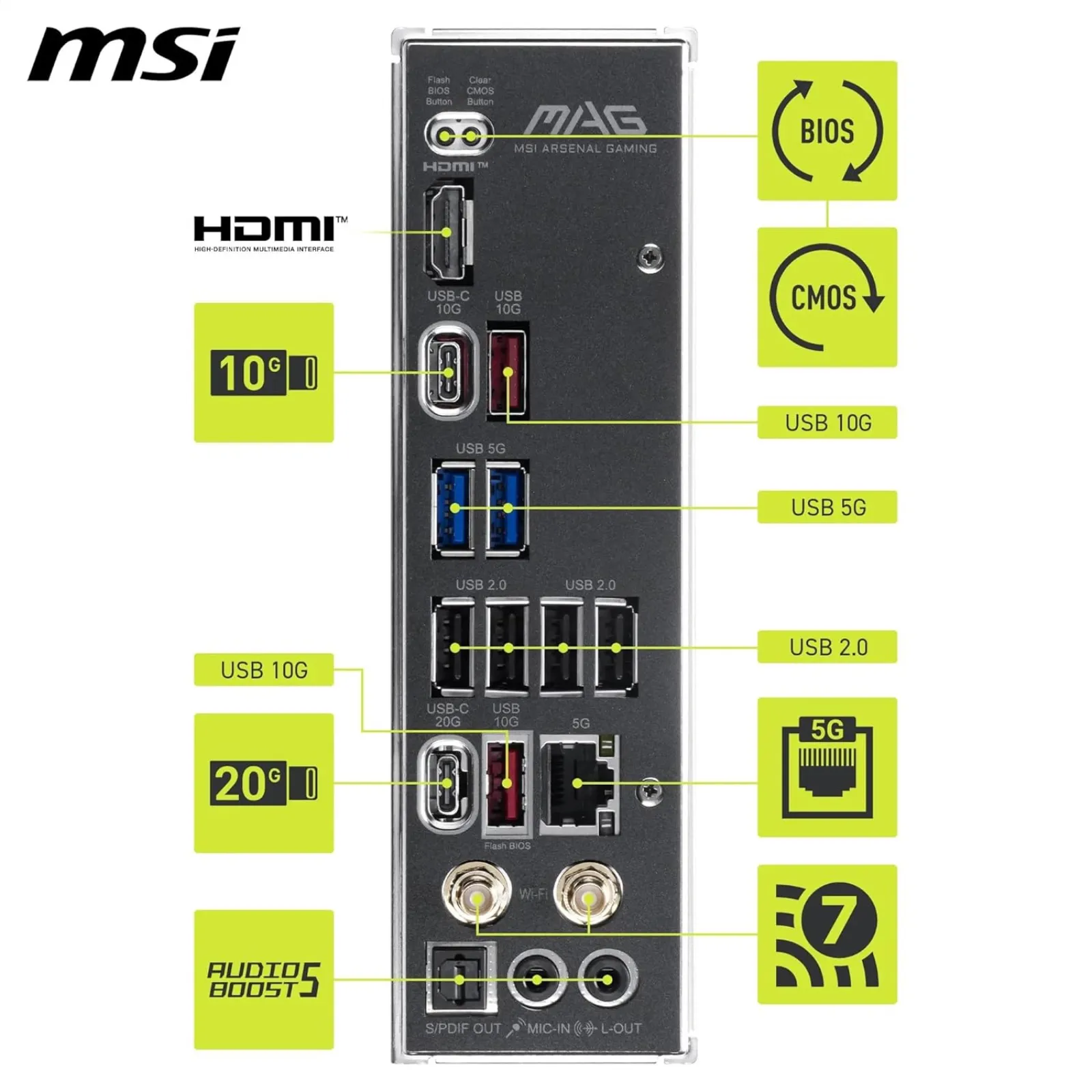

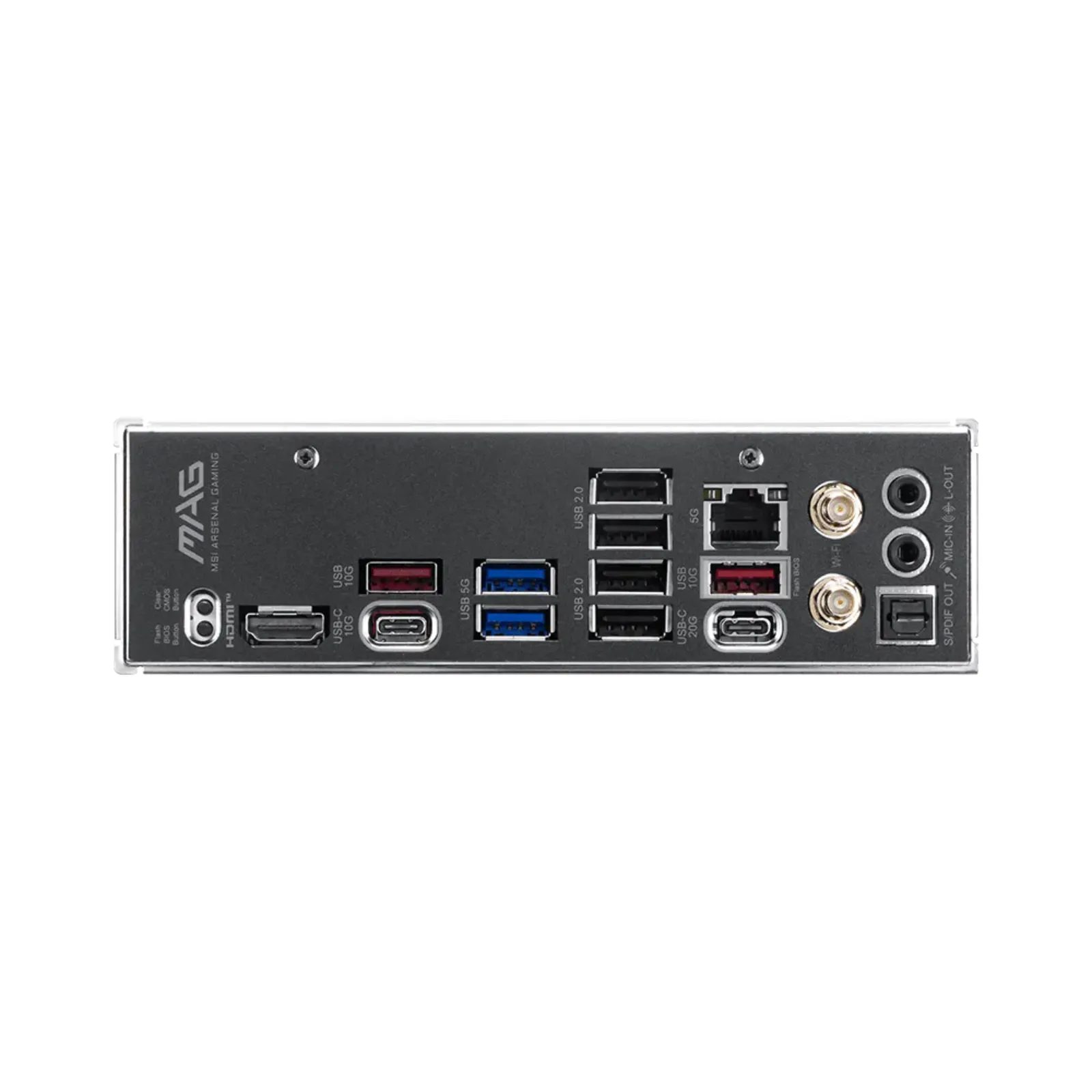

BACK PANEL PORTS

Clear CMOS Button
USB 10Gbps Type-A
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps Type-C
USB 20Gbps Type-C
USB 10Gbps Type-A
Optical S/PDIF Out
OPERATING SYSTEM

Support for Windows® 11 64-bit
PCB Info

ATX
243.84mmx304.8mm
