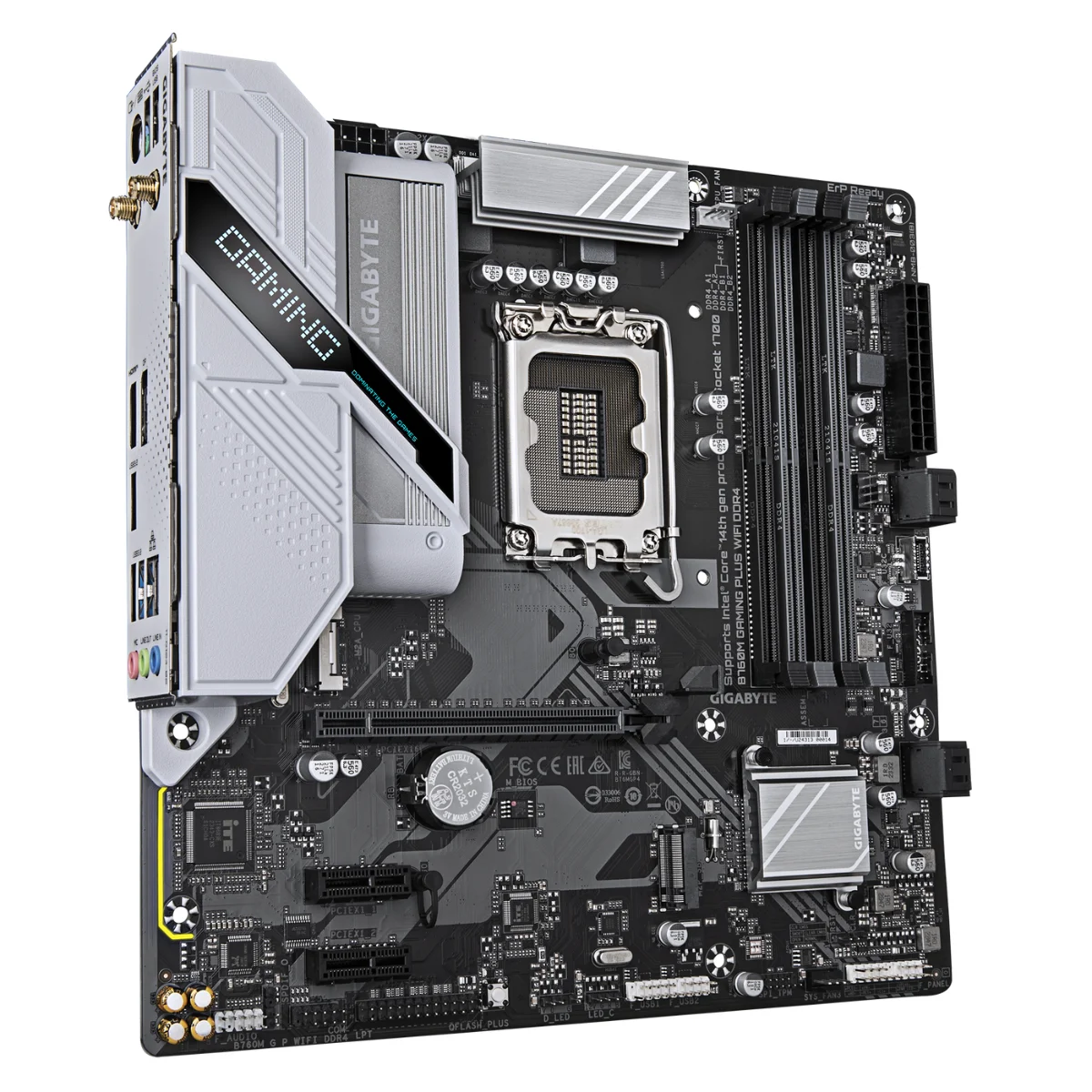

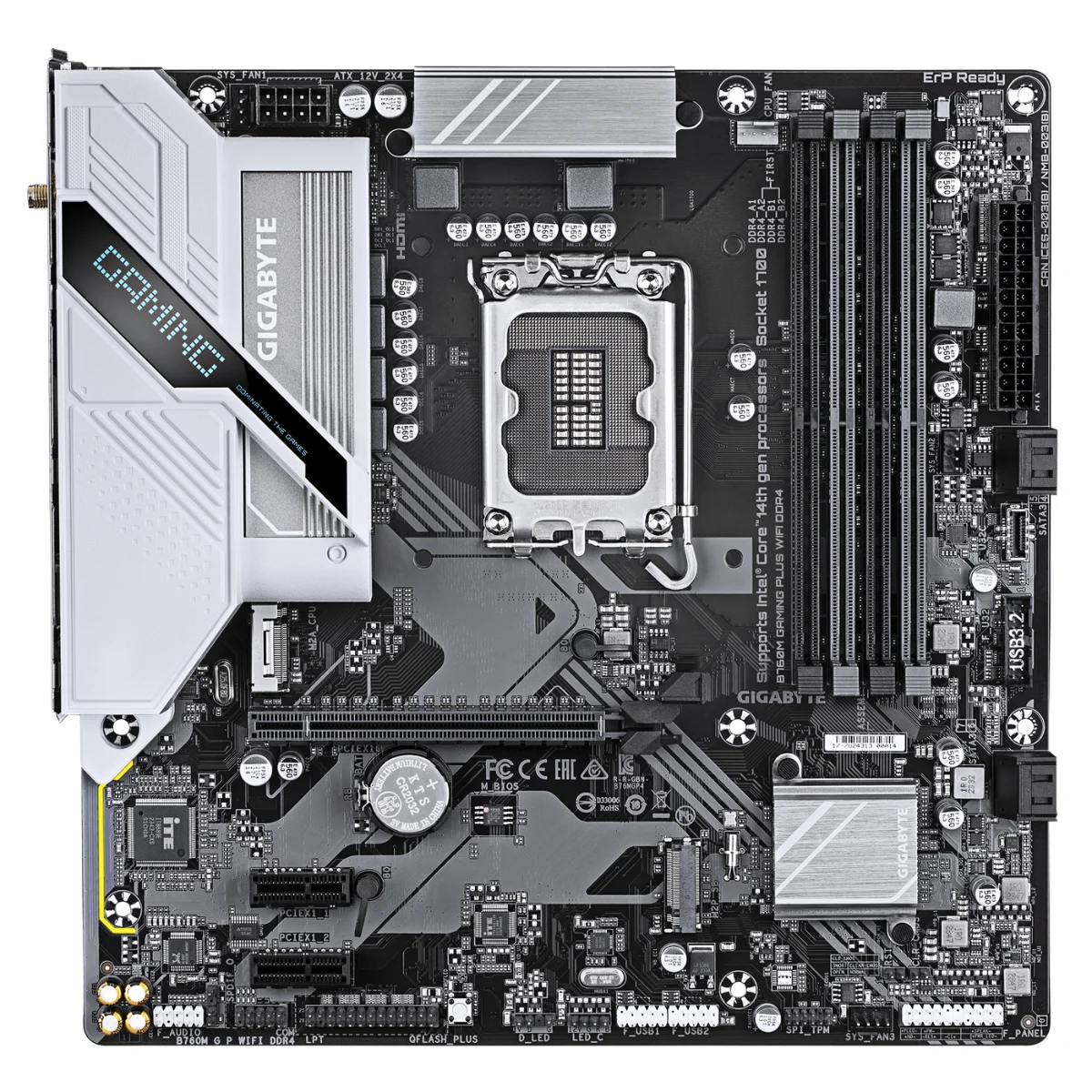

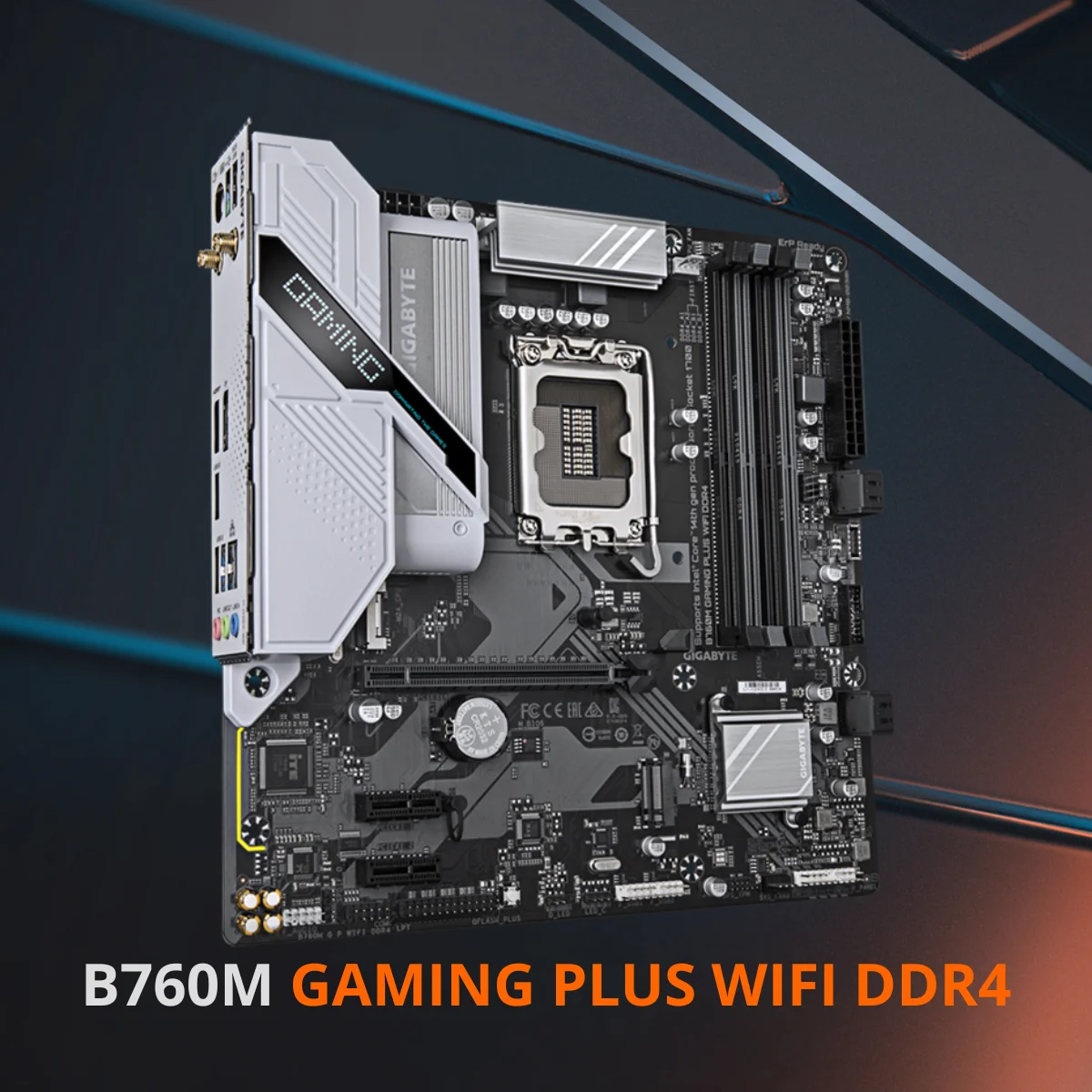

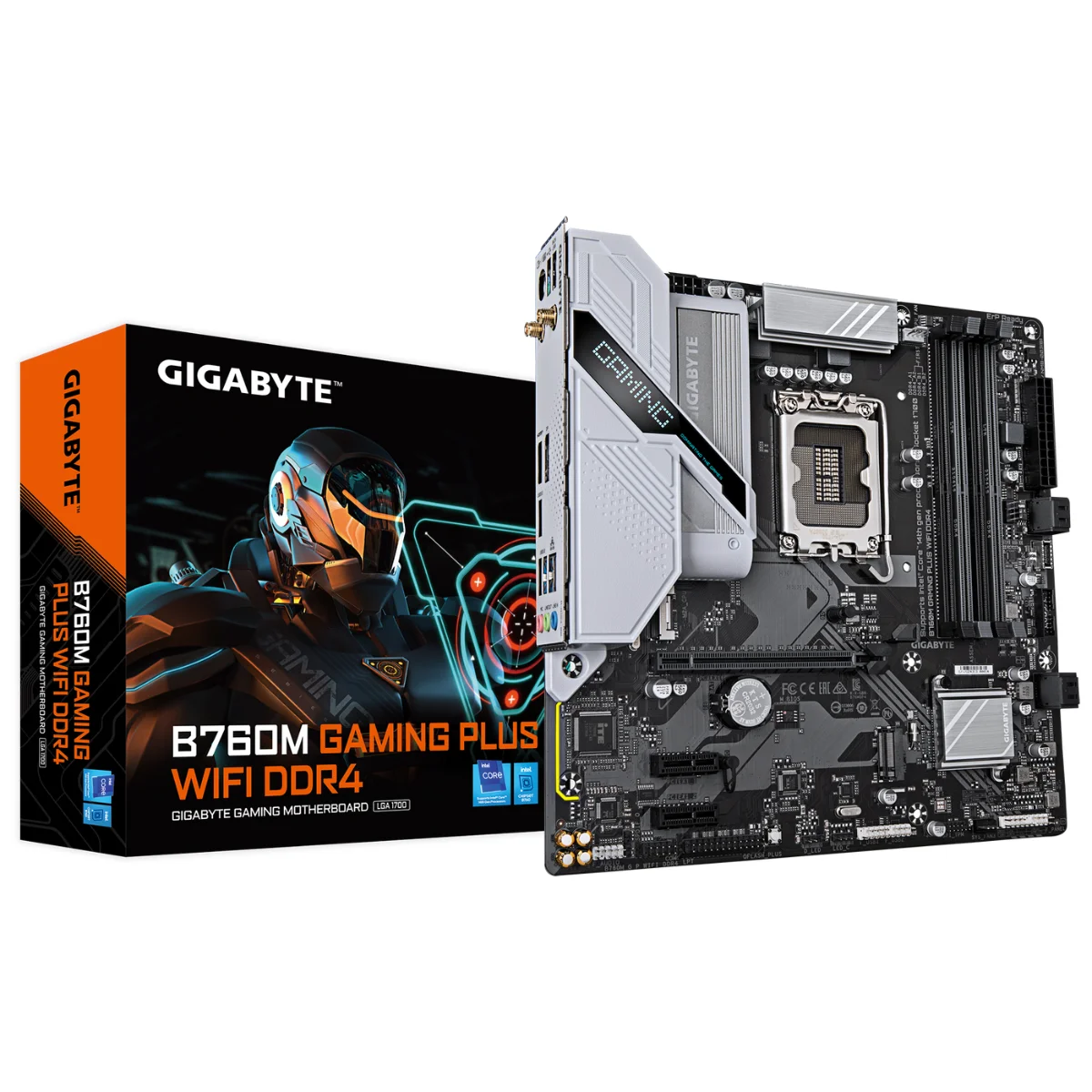

GIGABYTE B760M GAMING PLUS WIFI DDR4 – Scheda Madre Micro-ATX, LGA1700, DDR4, PCIe 4.0, Wi-Fi 6, Q-Flash Plus e Smart Fan 6

0 Persone guardano adesso questo prodotto!

EAN: 4719331862855 COD: 9MB76MGP4-00-G10 Categoria: LGA 1700

Descrizione

GIGABYTE B760M GAMING PLUS WIFI DDR4 / 9MB76MGP4-00-G10 / 4719331862855

Prestazioni e compatibilità
Dotata di socket LGA1700 e VRM digitale 4+1+1, questa scheda madre garantisce stabilità e supporto per i processori Intel Core™ di ultima generazione, offrendo potenza e affidabilità.

Memoria DDR4 ad alte frequenze
Supporta moduli DDR4 fino a 5333MHz (XMP), con 4 slot DIMM dual-channel per configurazioni ottimizzate e prestazioni superiori.

Storage e PCIe 4.0
Con 2 slot M.2 PCIe 4.0 x4 e slot PCIe 4.0 x16, assicura velocità di trasferimento elevate e compatibilità con schede grafiche e SSD di nuova generazione.

Connettività avanzata
Dispone di Wi-Fi 6 (802.11ax), Bluetooth 5.0 e LAN Gigabit, garantendo connessioni stabili e veloci per gaming e streaming.

Gestione termica intelligente
La tecnologia Smart Fan 6 permette di monitorare le temperature, personalizzare le curve di raffreddamento e ridurre la rumorosità grazie alla funzione Fan Stop.

Funzioni pratiche
Q-Flash Plus consente l’aggiornamento del BIOS senza CPU o memoria installata, mentre EZ-Latch semplifica la rimozione della GPU.

Audio di qualità
Componenti audio Hi-Fi e sistema Noise Guard offrono un suono fedele e pulito, ideale per gaming e intrattenimento.

Descrizione principale (riassunta)

Supporto Intel® Core™ 14ª/13ª/12ª Gen (socket LGA1700)
DDR4 fino a 5333MHz (XMP), 4 slot DIMM
2 slot M.2 PCIe 4.0 x4 e PCIe 4.0 x16
Wi-Fi 6 (802.11ax), Bluetooth 5.0, GbE LAN
Smart Fan 6 con sensori multipli e Fan Stop
Q-Flash Plus per aggiornare il BIOS senza CPU
Audio di qualità con condensatori Hi-Fi e Noise Guard

Specifiche tecniche

Caratteristica	Dettagli
Marca	GIGABYTE
Modello	B760M GAMING PLUS WIFI DDR4
Codice prodotto	9MB76MGP4-00-G10
EAN	4719331862855
Formato	Micro-ATX
Socket CPU	LGA1700 (Intel® Core™ 14ª/13ª/12ª Gen)
Alimentazione VRM	4+1+1 Phases Digital VRM
Memoria	DDR4 Dual Channel, 4x DIMM, supporto XMP fino a 5333MHz*
Slot M.2	2x PCIe 4.0 x4
Slot PCIe	1x PCIe 4.0 x16, slot aggiuntivi PCIe
Rete	Wi-Fi 6 (802.11ax), Bluetooth 5.0, GbE LAN
Audio	High-End Audio Capacitors, Audio Noise Guard
Porte USB	Front USB-C® 5Gb/s, porte posteriori multiple USB 3.2/2.0
Uscite video	1x DisplayPort, 1x HDMI
Raffreddamento	Smart Fan 6 (PWM/DC, Fan Stop, curve personalizzabili)
Funzionalità extra	Q-Flash Plus, EZ-Latch GPU, UEFI BIOS avanzato
Software	GIGABYTE Control Center

Domande Frequenti (FAQ)

1. La scheda madre è compatibile con i nuovi processori Intel?
Sì, supporta Intel Core™ di 14ª, 13ª e 12ª generazione (socket LGA1700).

2. Quale memoria RAM posso installare?
Supporta DDR4 fino a 5333MHz (XMP), con 4 slot DIMM dual-channel.

3. È dotata di connettività Wi-Fi?
Sì, integra Wi-Fi 6 802.11ax e Bluetooth 5.0.

4. Quanti slot M.2 per SSD sono presenti?
Sono disponibili 2 slot PCIe 4.0 x4 M.2.

5. Posso aggiornare il BIOS senza CPU?
Sì, grazie alla funzione Q-Flash Plus.

Maggiori informazioni

Per dettagli aggiuntivi visita il sito ufficiale GIGABYTE ↗.

Informazioni aggiuntive

Peso	0,7 kg
Dimensioni	24,4 × 24,4 × 3 cm
CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel® B760 Express Chipset
Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: – – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. – – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 – (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. – Support for S/PDIF Out
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module	Realtek® Wi-Fi 6 RTL8851BE – WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. – Chipset: – 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface	CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) – 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

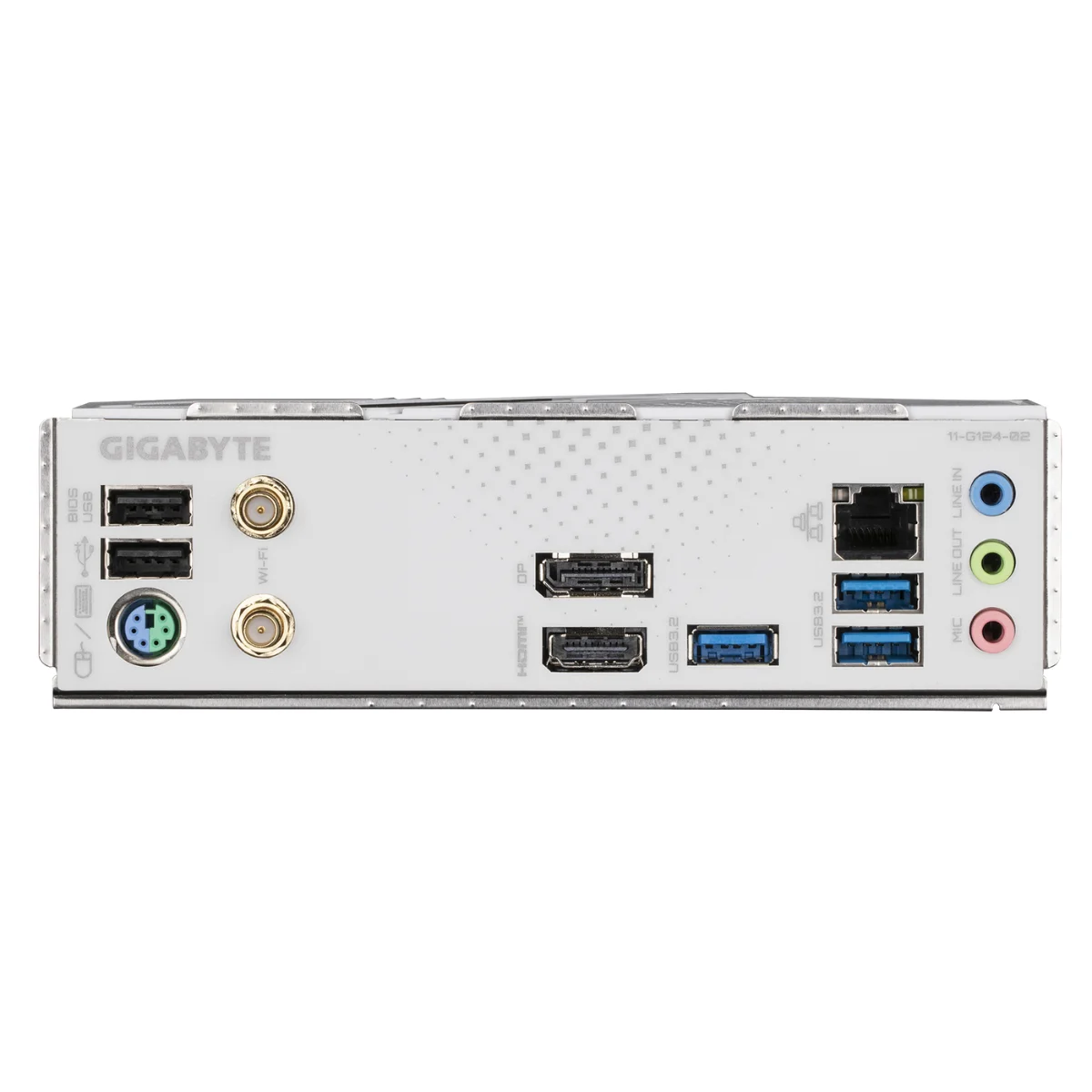

Back Panel Connectors	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. – Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
