ASUS

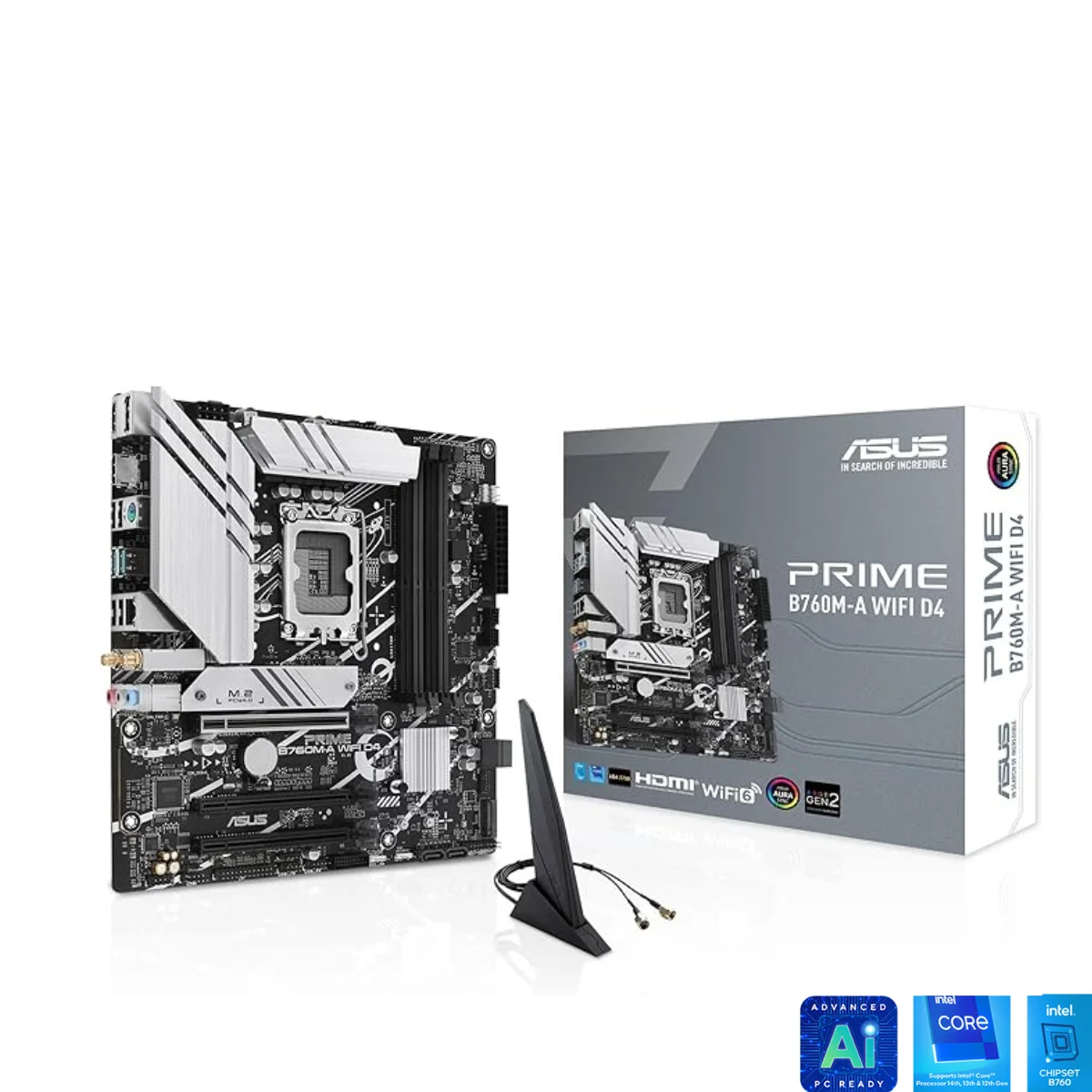

ASUS PRIME B760M-A WIFI D4 – Scheda Madre Micro-ATX, Socket LGA 1700, DDR4, PCIe 4.0, USB 3.2, LAN 2.5G, Wi-Fi 6, Bluetooth 5.2, Aura Sync [90MB1CX0-M1EAY0]

179,00 €

   Chipset Intel B760
Form Factor   Form Factor Micro-ATX
Socket   Socket LGA 1700
Tipo di Memoria   Tipo di Memoria DDR4

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4711081982661 COD: 90MB1CX0-M1EAY0 Categoria:
Descrizione

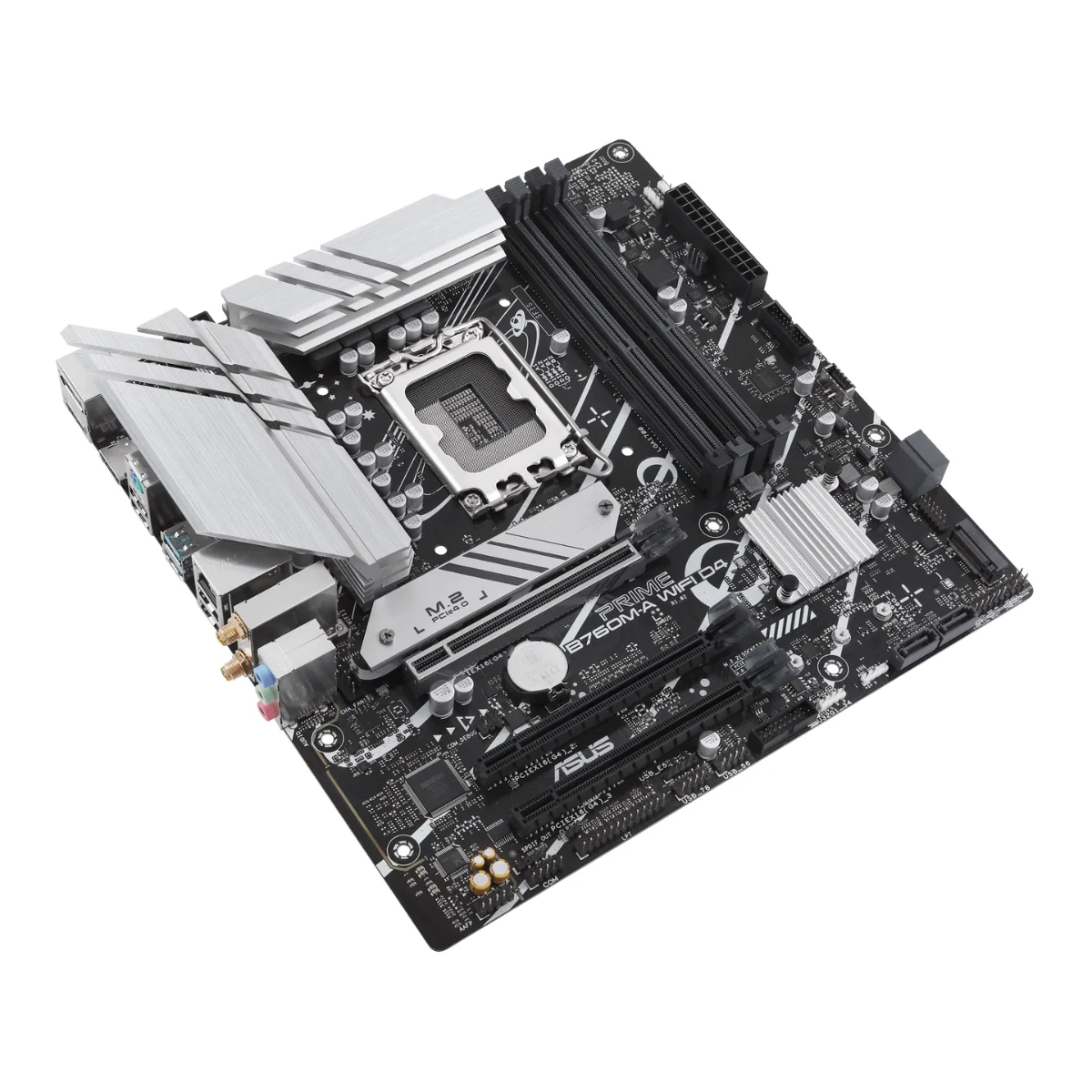

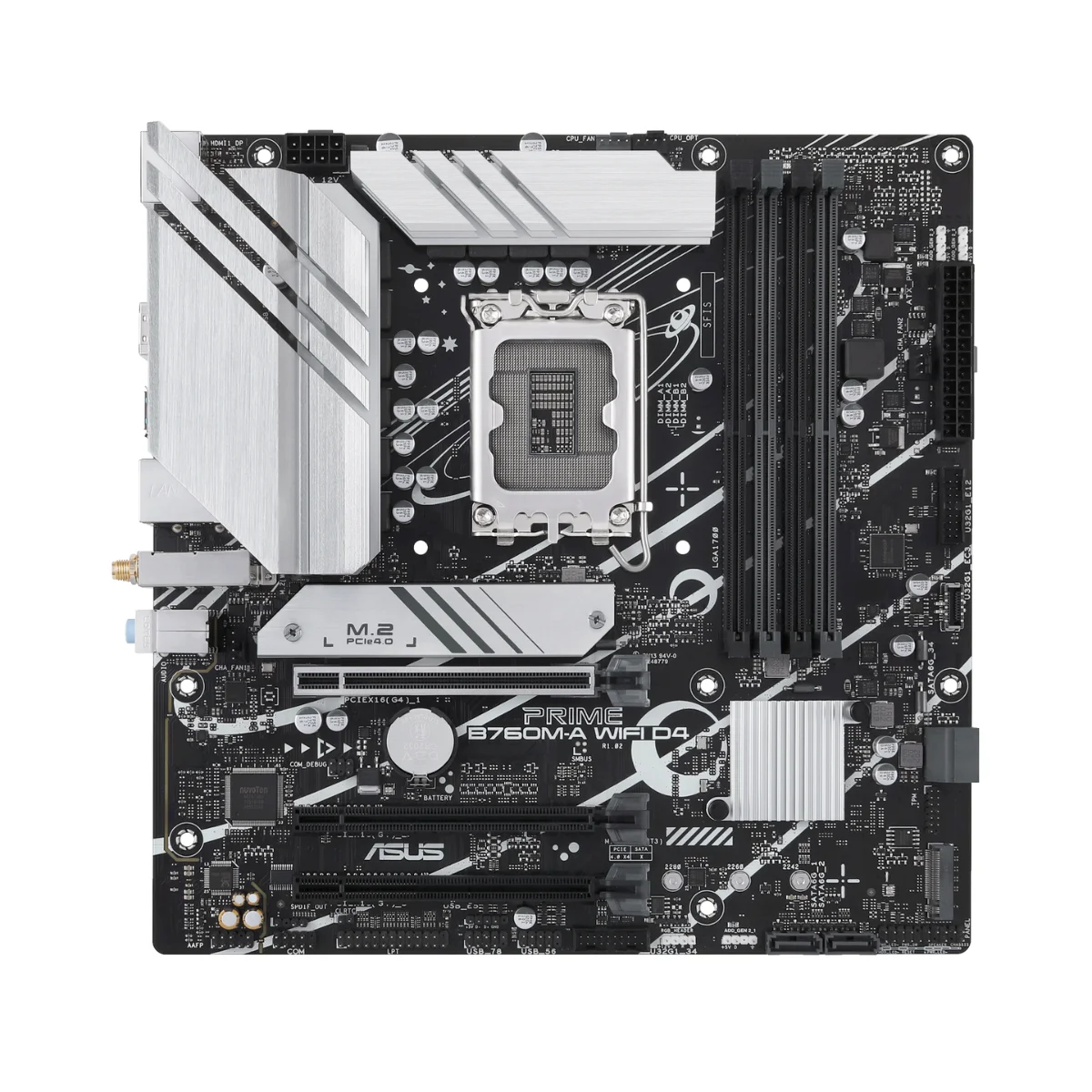

ASUS PRIME B760M-A WIFI D4 / 90MB1CX0-M1EAY0 / 4711081982661

La ASUS Prime B760M-A WiFi D4 è progettata per fornire un equilibrio ottimale tra prestazioni, raffreddamento e connettività in formato Micro-ATX. Con PCIe 4.0, due slot M.2, LAN 2.5Gb e Wi-Fi 6, offre la velocità necessaria per gaming, creazione di contenuti e produttività avanzata.

Il sistema di raffreddamento completo include dissipatori per VRM, M.2 e PCH, mentre la tecnologia ASUS OptiMem II ottimizza le tracce della memoria per overclock più stabili. L’illuminazione Aura Sync RGB consente di personalizzare l’estetica e sincronizzare gli effetti con altri componenti compatibili.

Caratteristiche principali:

  • Compatibilità CPU: Intel® Core™ 13ᵃ e 12ᵃ generazione, Pentium® Gold, Celeron®, socket LGA 1700.

  • Memoria DDR4: con tecnologia ASUS OptiMem II per integrità del segnale e migliori capacità di overclock.

  • Espansione: PCIe 4.0, due slot M.2 per SSD NVMe ad alta velocità.

  • Connettività moderna: LAN Realtek 2.5Gb, Wi-Fi 6, USB 3.2 Gen 2 posteriore, USB 3.2 Gen 1 Type-C® anteriore.

  • Raffreddamento completo: dissipatori VRM, M.2 e PCH, header ventole ibride e gestione tramite Fan Xpert 2+.

  • Illuminazione Aura Sync RGB: personalizzazione estetica e sincronizzazione con hardware compatibile.

Specifiche Tecniche

Caratteristica Dettagli
Marca ASUS
Modello Prime B760M-A WiFi D4
Formato Micro-ATX
Socket LGA 1700
Chipset Intel® B760
Compatibilità CPU Intel® Core™ 13ᵃ/12ᵃ gen, Pentium® Gold, Celeron®
Memoria DDR4
Slot RAM 4 x DIMM
Slot PCI Express PCIe 4.0
Archiviazione 2 x M.2, porte SATA
Rete LAN 2.5Gb, Wi-Fi 6
Audio Audio HD
USB USB 3.2 Gen 2 posteriore, USB 3.2 Gen 1 Type-C anteriore
Raffreddamento Dissipatori VRM, M.2, PCH; Fan Xpert 2+
Illuminazione Aura Sync RGB
Codice prodotto 90MB1CX0-M1EAY0
EAN 4711081982661

Domande Frequenti (FAQ)

1. La Prime B760M-A WiFi D4 supporta memoria DDR5?
No, è compatibile solo con moduli DDR4.

2. Qual è la garanzia del prodotto?
Normalmente ASUS offre 3 anni di copertura, ma può variare in base al rivenditore.

3. È adatta per un PC da gaming?
Sì, con PCIe 4.0, LAN 2.5Gb, Wi-Fi 6 e due slot M.2, offre prestazioni solide per il gaming.

4. L’illuminazione RGB può essere sincronizzata con altri componenti?
Sì, grazie ad Aura Sync RGB puoi sincronizzare gli effetti con periferiche e componenti compatibili.

5. Ha un buon sistema di raffreddamento?
Sì, include dissipatori VRM, M.2 e PCH, oltre alla gestione avanzata delle ventole.

Per ulteriori dettagli e specifiche complete, visita la pagina ufficiale ASUS Prime B760M-A WiFi D4.

Informazioni aggiuntive
Peso 1,402 kg
Dimensioni 24,4 × 24,4 × 3,5 cm
M.B. - Chipset

Intel B760
CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Memory

4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Graphics

1 x DisplayPort
2 x HDMI® ports

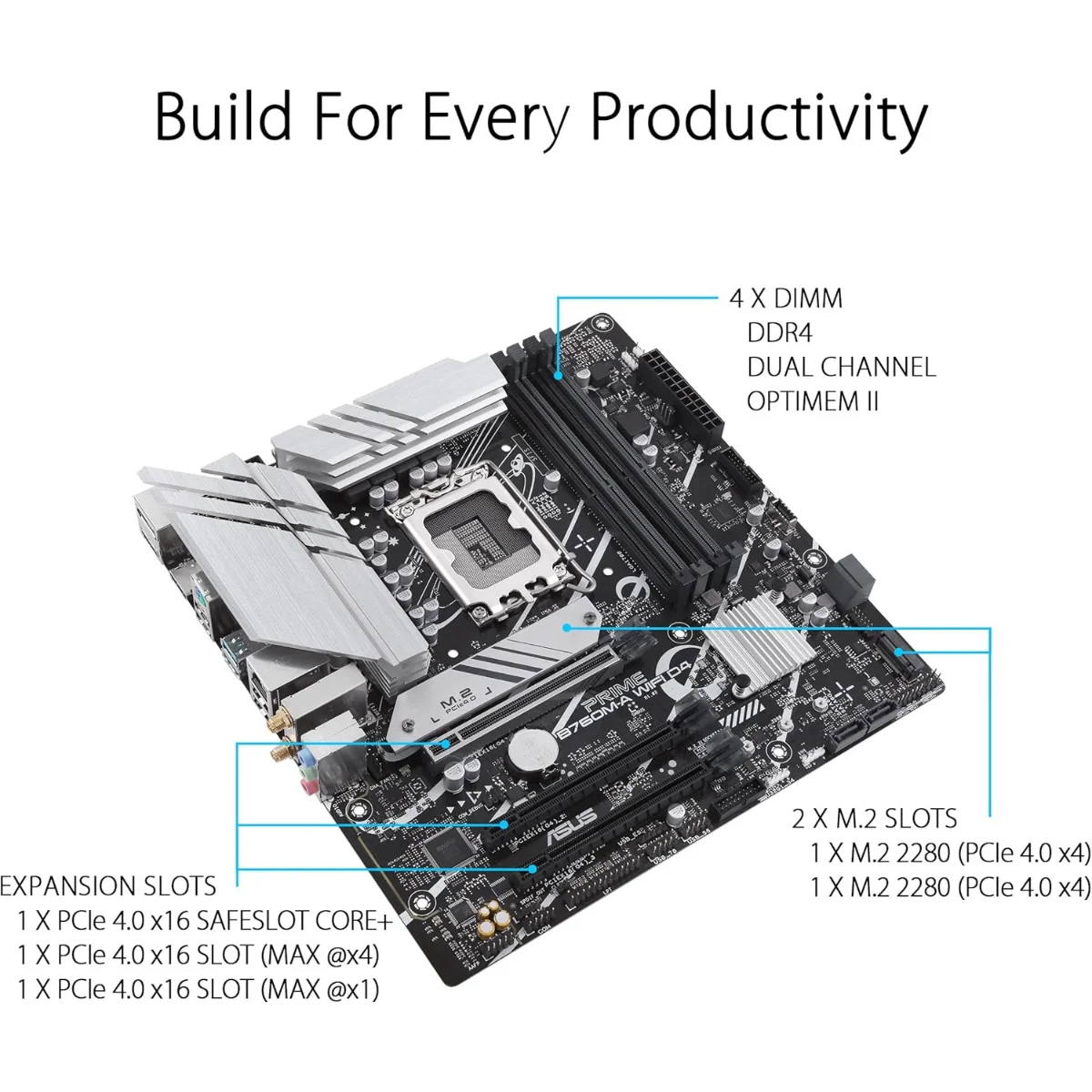

Expansion Slots

Intel® CoreTM Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
Storage

Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet

1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth

Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
USB

Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 10 ports)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers

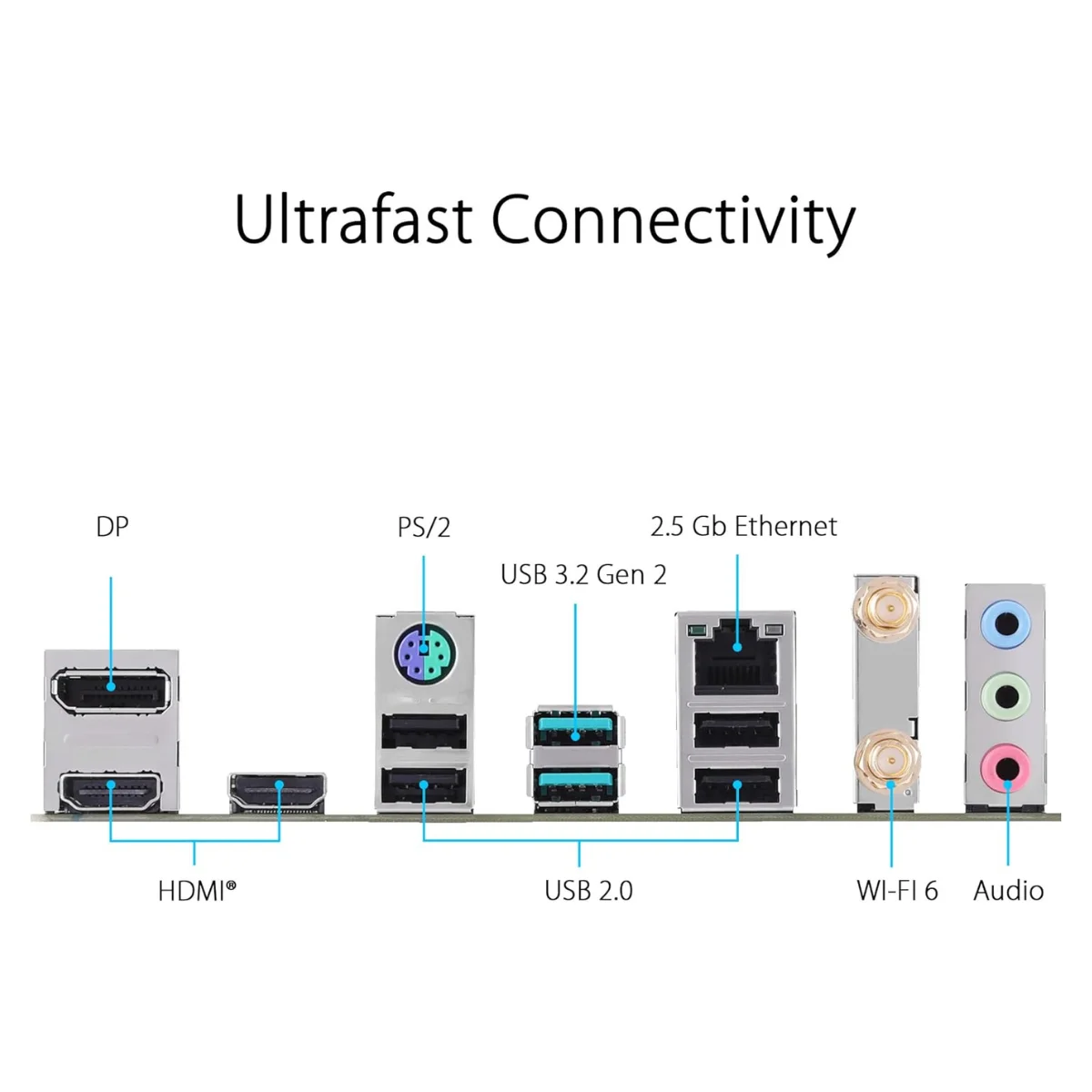

Back Panel I/O Ports

2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMI® ports
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors

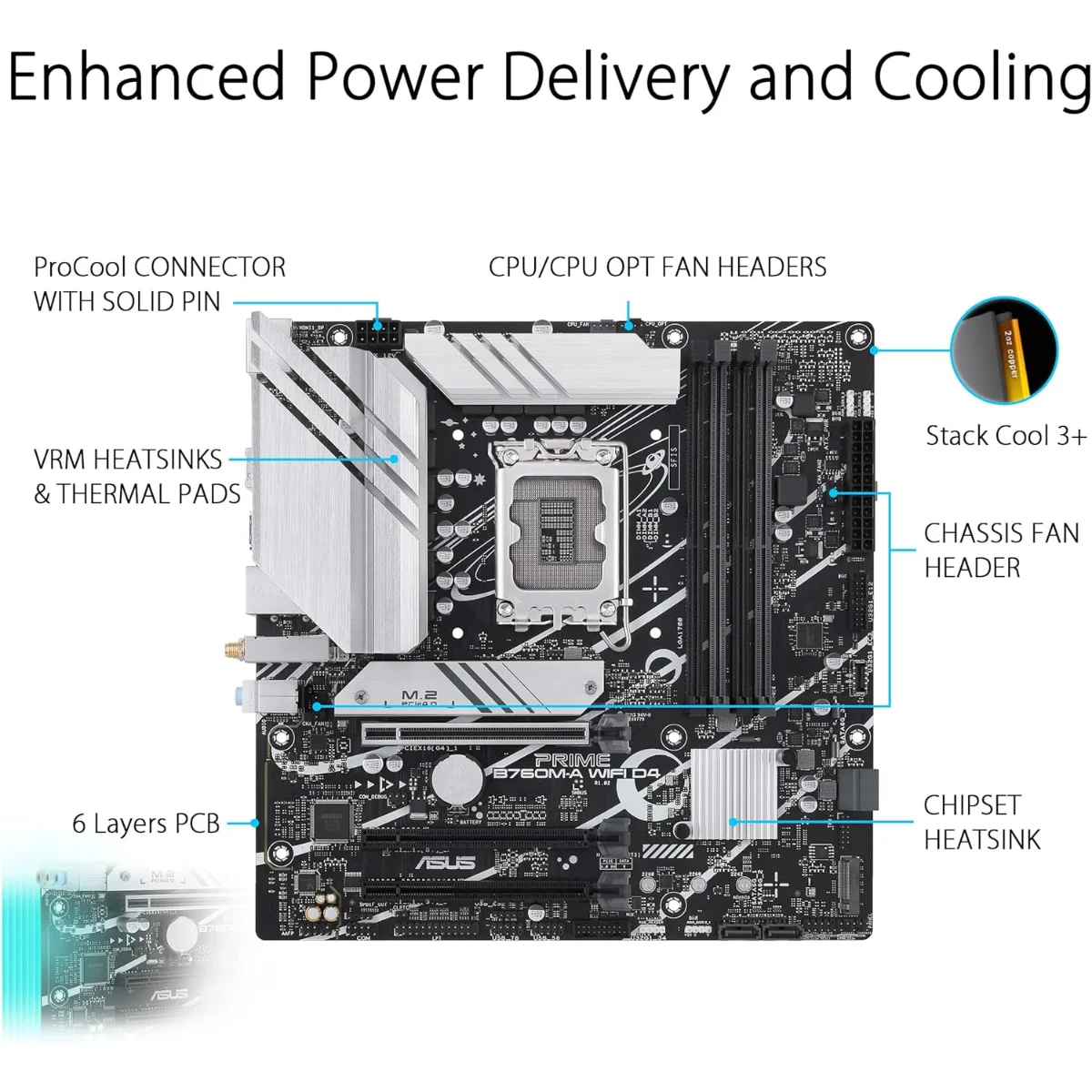

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port

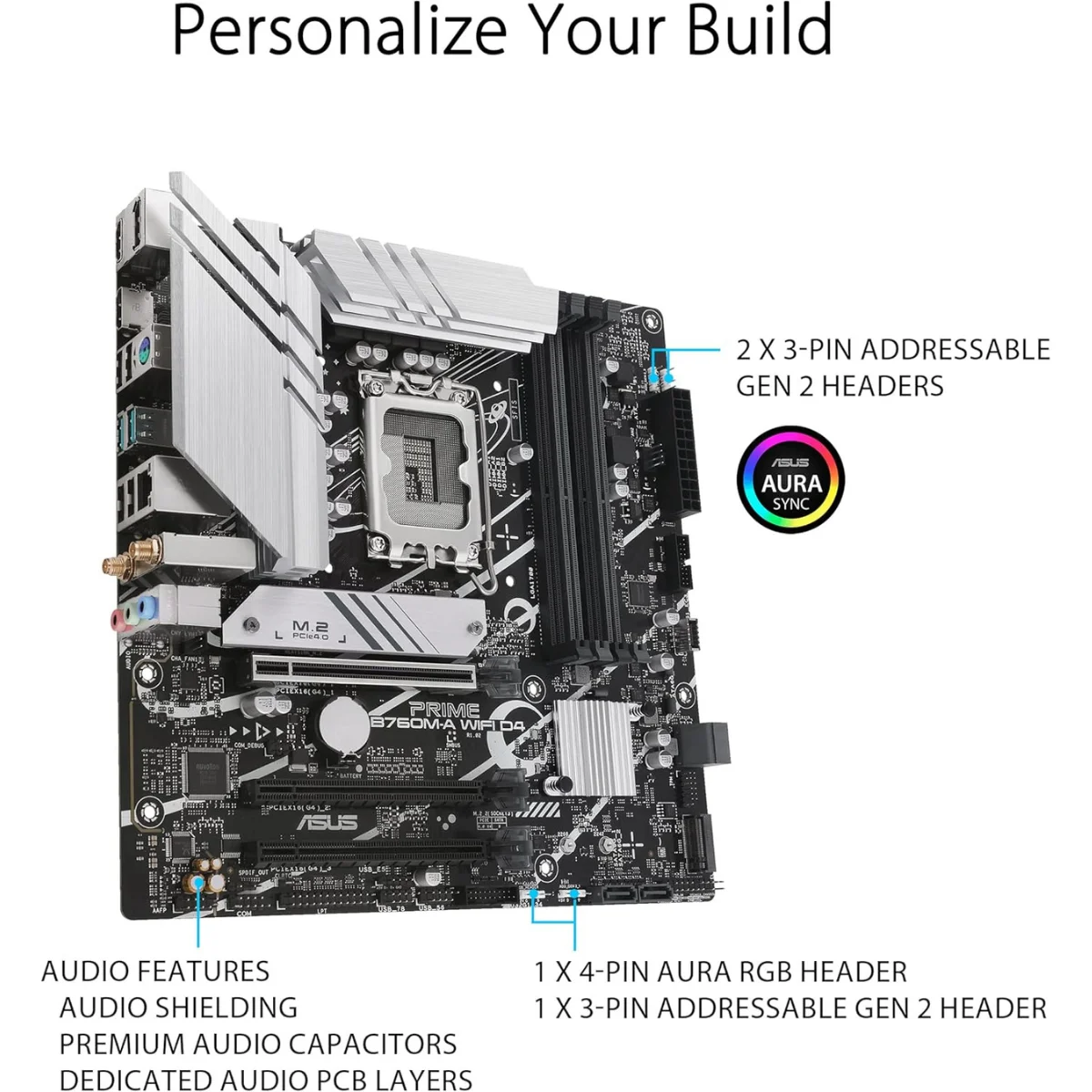

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
Special Features

ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
AI Suite 3
– Digi+ VRM
– PC Cleaner
ASUS CPU-Z
MyAsus
Norton Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS

128 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE

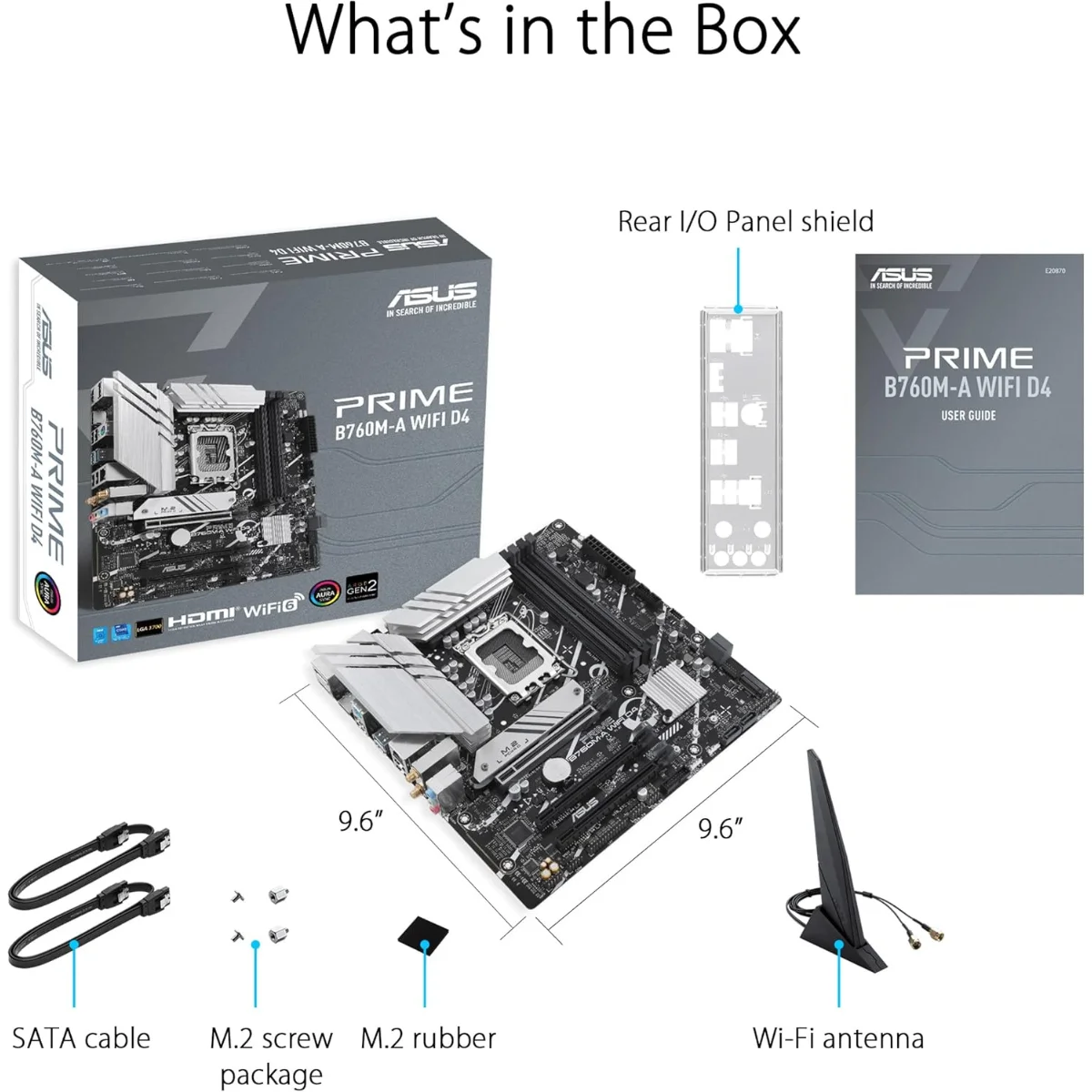

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x User guide
Operating System

Windows® 11, Windows® 10 64-bit
Form Factor

mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
