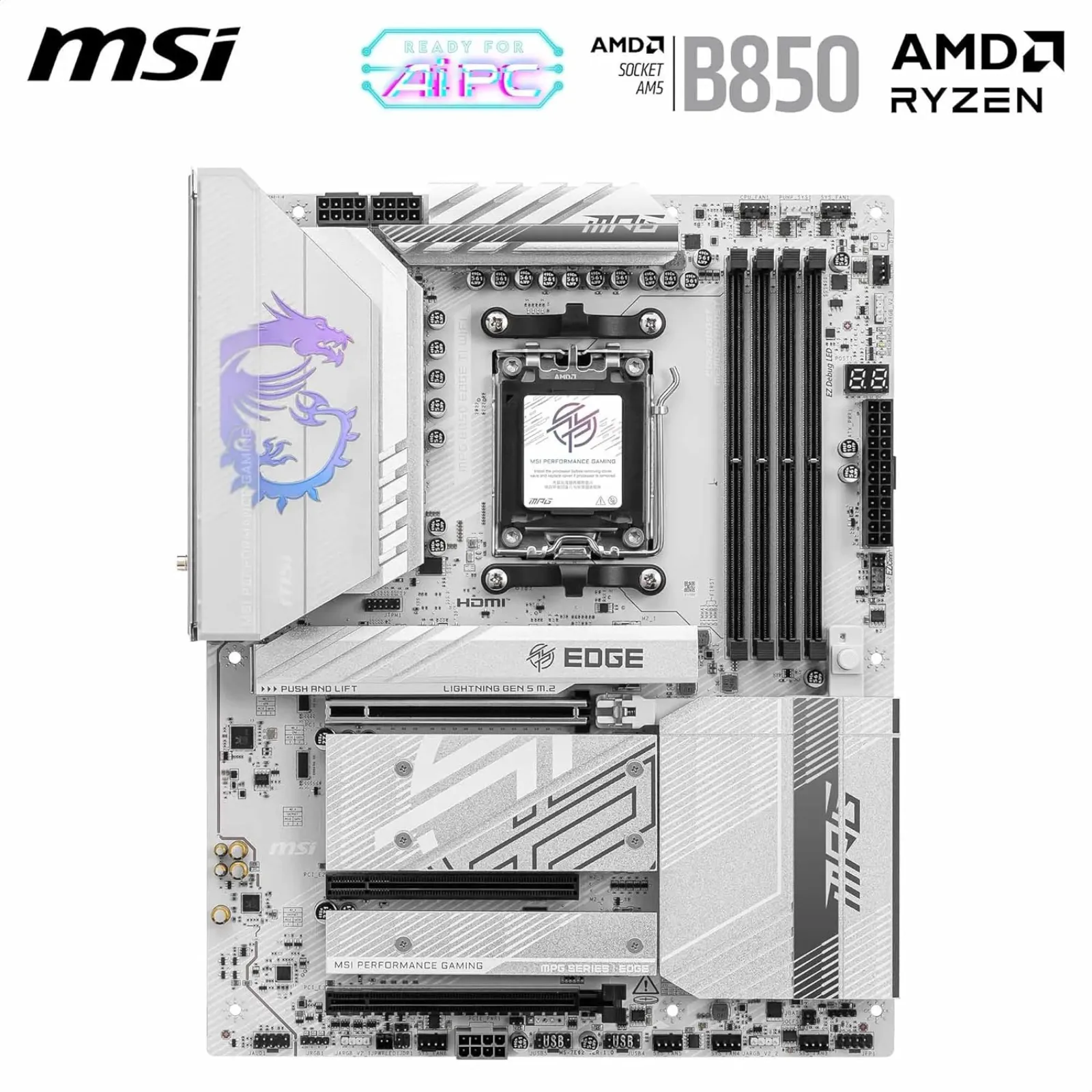

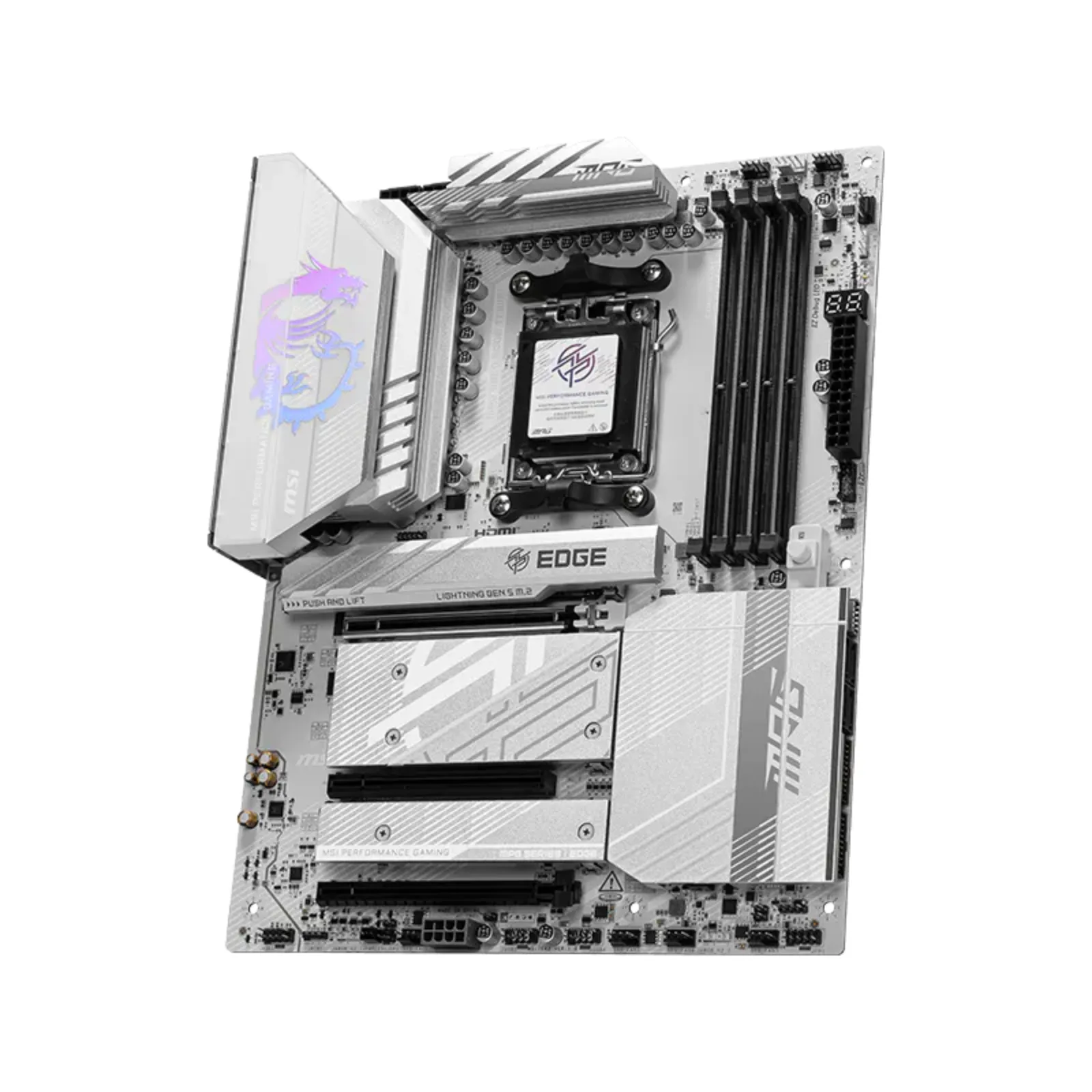

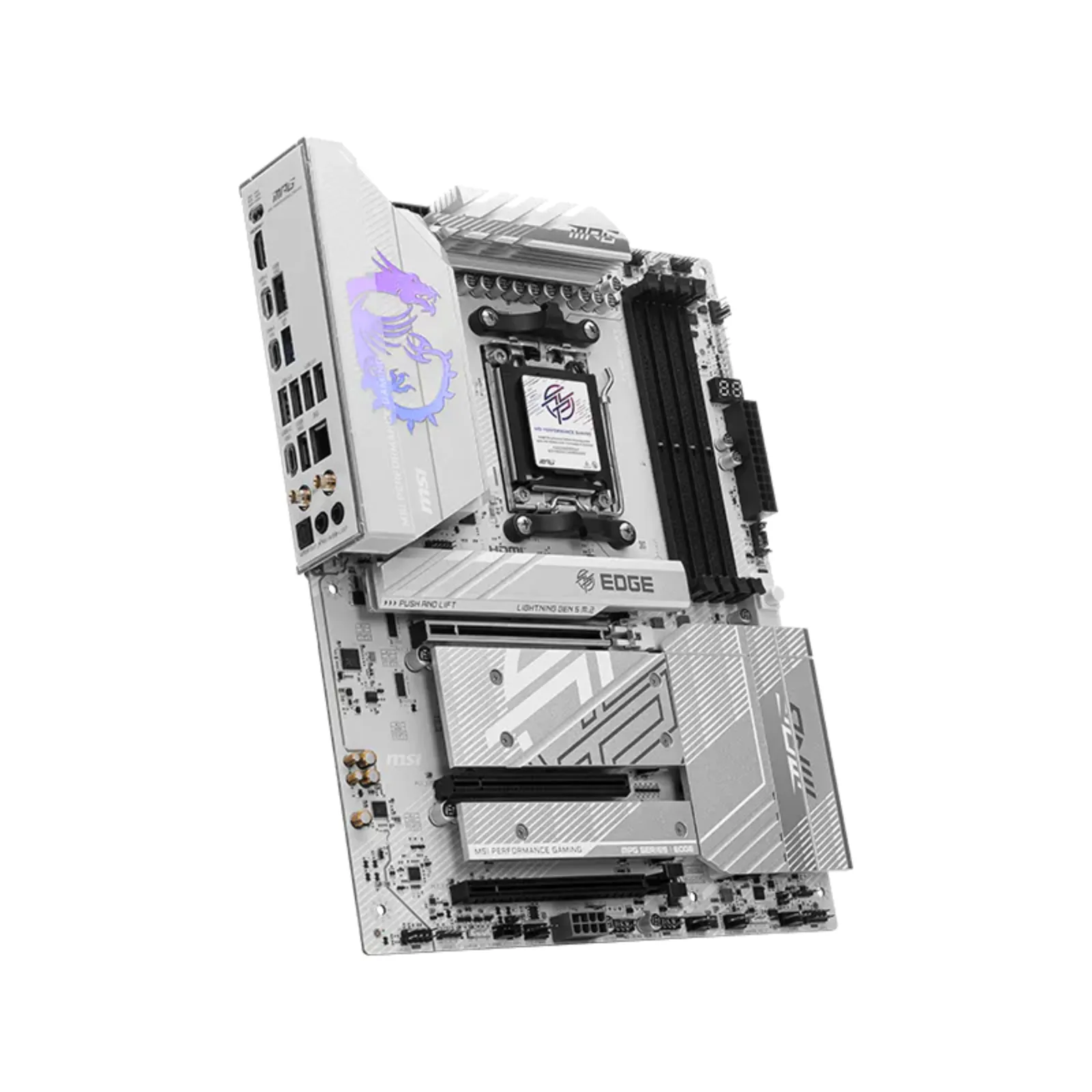

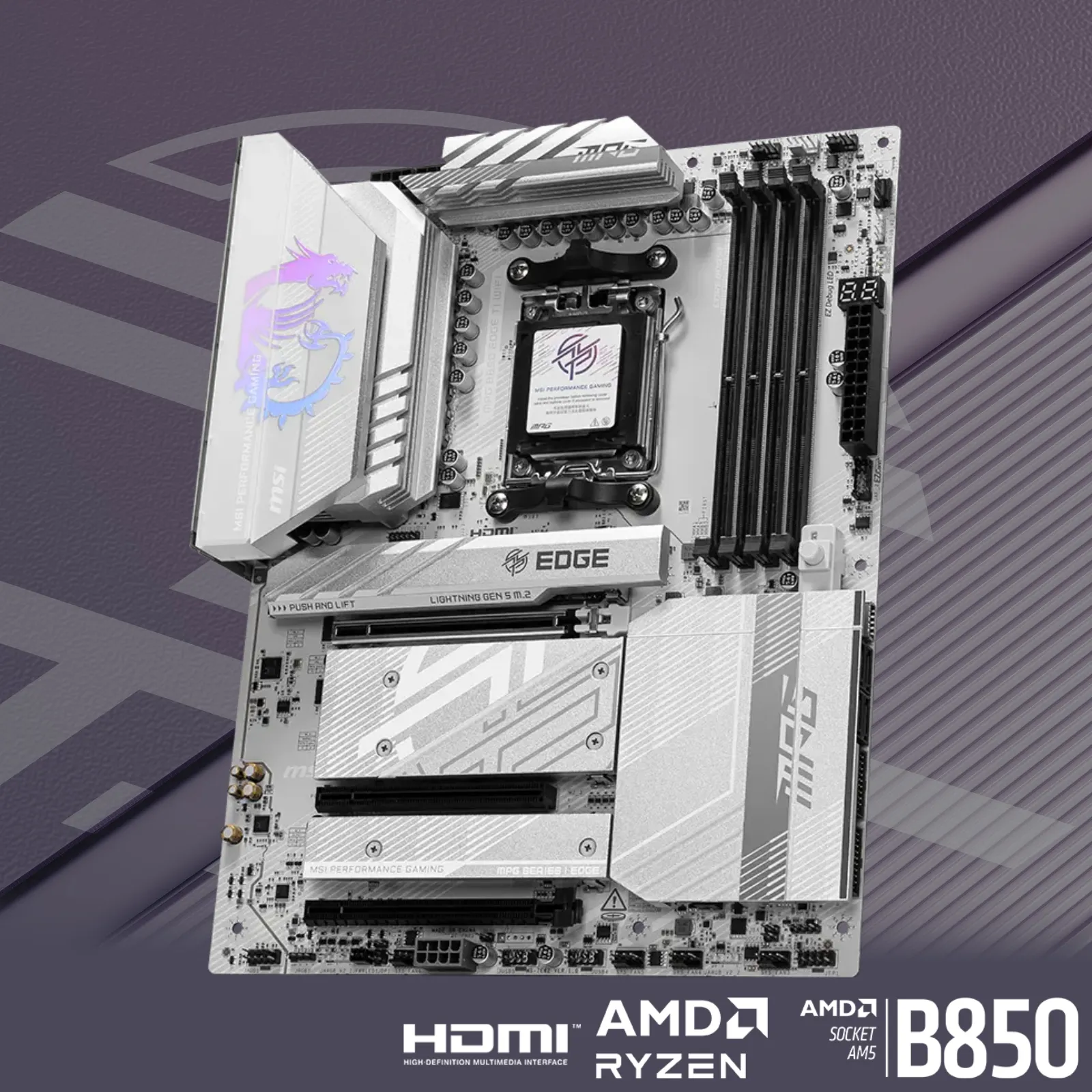

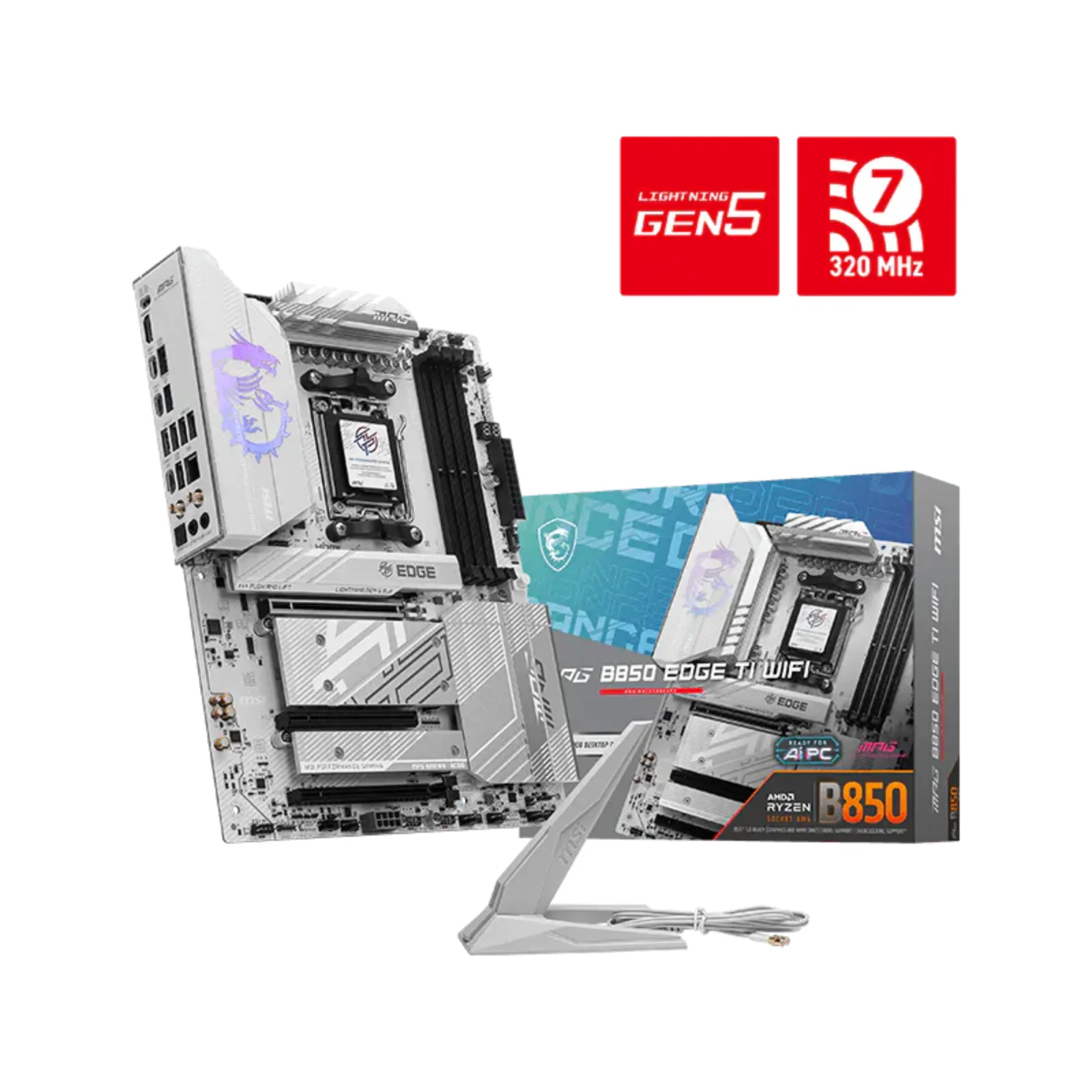

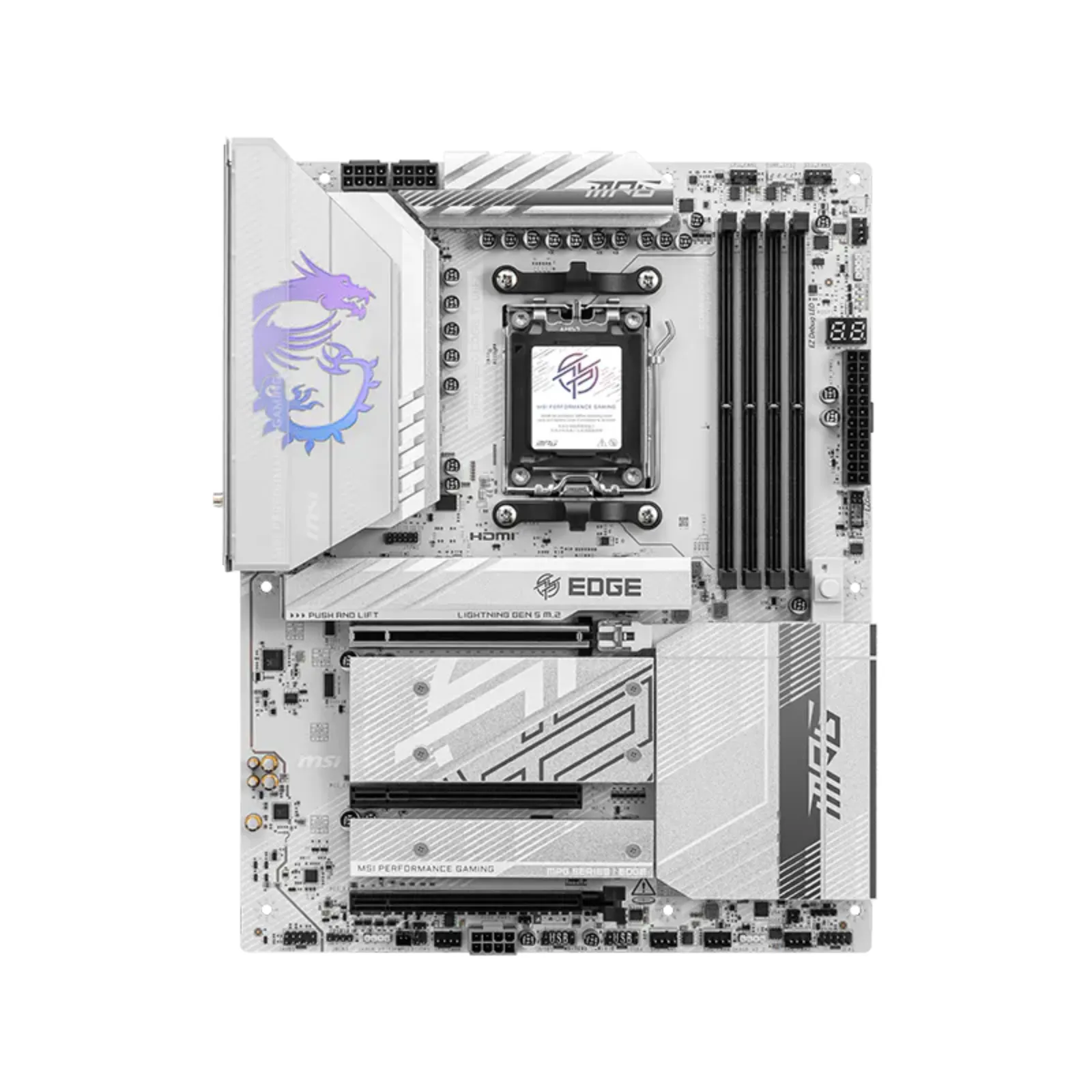

MSI MPG B850 EDGE TI WIFI – Scheda Madre AM5 B850 White/Silver, Wi-Fi 7, LAN 5G, PCIe 5.0, DDR5 8400+ (OC) - immagine 2

Clicca per ingrandire

MSI MPG B850 EDGE TI WIFI – Scheda Madre AM5 B850 White/Silver, Wi-Fi 7, LAN 5G, PCIe 5.0, DDR5 8400+ (OC) - immagine 3

MSI MPG B850 EDGE TI WIFI – Scheda Madre AM5 B850 White/Silver, Wi-Fi 7, LAN 5G, PCIe 5.0, DDR5 8400+ (OC) - immagine 4

MSI MPG B850 EDGE TI WIFI – Scheda Madre AM5 B850 White/Silver, Wi-Fi 7, LAN 5G, PCIe 5.0, DDR5 8400+ (OC) - immagine 5

MSI MPG B850 EDGE TI WIFI – Scheda Madre AM5 B850 White/Silver, Wi-Fi 7, LAN 5G, PCIe 5.0, DDR5 8400+ (OC) - immagine 6

MSI MPG B850 EDGE TI WIFI – Scheda Madre AM5 B850 White/Silver, Wi-Fi 7, LAN 5G, PCIe 5.0, DDR5 8400+ (OC) - immagine 7

MSI MPG B850 EDGE TI WIFI – Scheda Madre AM5 B850 White/Silver, Wi-Fi 7, LAN 5G, PCIe 5.0, DDR5 8400+ (OC) - immagine 8

MSI MPG B850 EDGE TI WIFI – Scheda Madre AM5 B850 White/Silver, Wi-Fi 7, LAN 5G, PCIe 5.0, DDR5 8400+ (OC) - immagine 9

MSI MPG B850 EDGE TI WIFI – Scheda Madre AM5 B850 White/Silver, Wi-Fi 7, LAN 5G, PCIe 5.0, DDR5 8400+ (OC) - immagine 10

MSI MPG B850 EDGE TI WIFI – Scheda Madre AM5 B850 White/Silver, Wi-Fi 7, LAN 5G, PCIe 5.0, DDR5 8400+ (OC) - immagine 11

MSI MPG B850 EDGE TI WIFI – Scheda Madre AM5 B850 White/Silver, Wi-Fi 7, LAN 5G, PCIe 5.0, DDR5 8400+ (OC)

Name: MSI MPG B850 EDGE TI WIFI – Scheda Madre AM5 B850 White/Silver, Wi-Fi 7, LAN 5G, PCIe 5.0, DDR5 8400+ (OC)
Brand: Gaming
SKU: 601-7E62-01S
Availability: OutOfStock

Il prezzo originale era: 339,00 €.Il prezzo attuale è: 249,00 €.

La MSI MPG B850 EDGE TI WIFI è una scheda madre ATX per socket AM5 pensata per build white e prestazioni elevate. Supporta CPU AMD Ryzen serie 9000/8000/7000, integra Wi-Fi 7 + Bluetooth 5.4, LAN 5G, slot PCIe 5.0 x16, storage con M.2 Gen5 e memorie DDR5 fino a 8400+ MT/s (OC). Il VRM 14+2+1 da 80A e il design termico Frozr assicurano stabilità e temperature contenute anche con CPU di fascia alta.

Esaurito

Add to compare

Aggiungi alla lista dei desideri

0 Persone guardano adesso questo prodotto!

EAN: 4711377290616 COD: 601-7E62-01S Categoria: AM5 Tag: AM5, AMD B850, ATX, Bianco, DDR5, MSI MPG, PCIe 5.0

Descrizione

MSI MPG B850 EDGE TI WIFI / 601-7E62-01S / 4711377290616

La MPG B850 EDGE TI WIFI unisce estetica premium e funzionalità orientate a gaming e produttività. La finitura bianco-argento è pensata per chi vuole un PC “white build” pulito e riconoscibile, mentre la dotazione tecnica punta a offrire una piattaforma AM5 moderna e pronta per upgrade futuri.

MSI integra inoltre funzioni AI in MSI Center e nel BIOS per semplificare ottimizzazioni, gestione rete e raffreddamento, rendendo l’esperienza più immediata anche per chi non vuole perdere tempo in settaggi complessi.

Alimentazione VRM 14+2+1 DRPS (80A) per CPU Ryzen di fascia alta

Il sistema di alimentazione Duet Rail 14+2+1 con Smart Power Stage da 80A è progettato per erogare potenza stabile anche sotto carichi prolungati:

14 fasi Vcore
2 fasi SoC
1 fase Misc
Doppi connettori di alimentazione CPU 8-pin
Alimentazione supplementare PCIe_PWR 8-pin per supportare esigenze elevate (AI/GPU)

Questa base è ideale per build gaming, streaming e workload pesanti.

DDR5 fino a 8400+ MT/s (OC) e ottimizzazioni latenza

Supporto memoria avanzato:

4x DDR5 UDIMM, fino a 256GB
Dual Channel
Frequenze fino a DDR5 8400+ MT/s (OC)
Compatibilità AMD EXPO e A-XMP

Il BIOS include funzioni come High-Efficiency Mode e Latency Killer (riduzione latenza fino a 12% con BIOS/AGESA compatibili), pensate per chi vuole massimizzare banda e reattività.

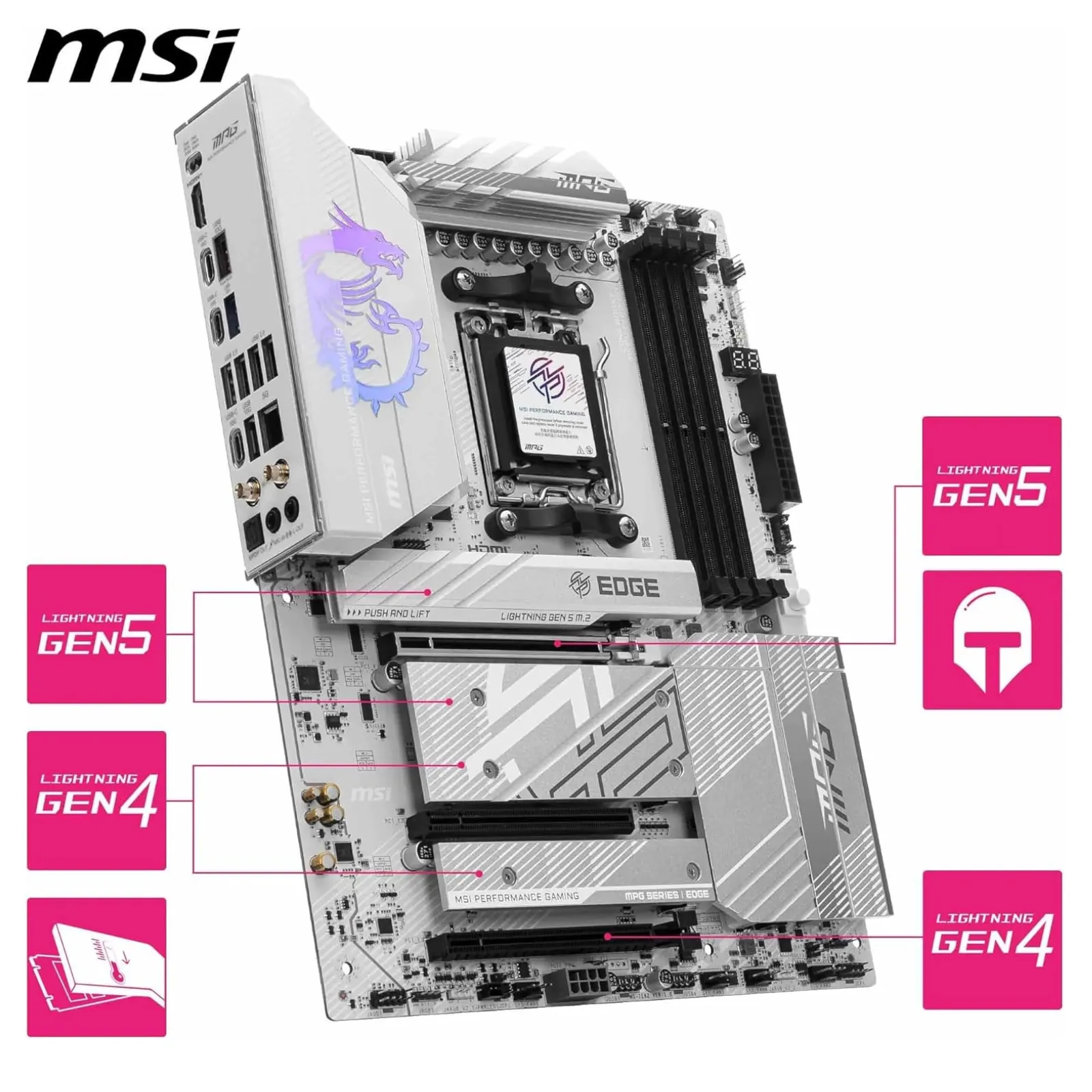

PCIe 5.0 e storage veloce per gaming e creator

Per GPU e archiviazione:

1x PCIe 5.0 x16 (da CPU)
1x PCIe 3.0 x1 (da chipset)
1x PCIe 4.0 x4 (da chipset) (nota: può operare a x2 con device su M.2_3)

Storage:

4x M.2 totali:
- M.2_1: PCIe 5.0 x4 (CPU)
- M.2_2: PCIe 5.0 x4 (CPU)
- M.2_3: PCIe 4.0 x2 (Chipset)
- M.2_4: PCIe 4.0 x4 (Chipset)
4x SATA 6Gb/s
Supporto RAID per NVMe (con note in base alla CPU)

Perfetta per SSD NVMe di nuova generazione e caricamenti rapidissimi.

Rete: Wi-Fi 7 + LAN 5G (bassa latenza)

Connettività pronta per il futuro:

Wi-Fi 7 (fino a 5.8Gbps, 2.4/5/6GHz, 320MHz)
Bluetooth 5.4
Realtek 8126 5G LAN

Con AI LAN Manager puoi dare priorità ai giochi e alle app sensibili alla latenza per un’esperienza online più stabile.

Nota: alcune funzioni Wi-Fi 7/BT 5.4 sono indicate come “pronte” con Windows 11 (24H2) a seconda del supporto.

USB e I/O moderni

Dotazione USB completa per periferiche e storage esterni:

USB-C 20Gbps frontale
3x USB-C 10Gbps posteriori
USB-A 10Gbps e 5Gbps posteriori
Ampia dotazione USB frontali (USB 2.0 e USB 5Gbps)

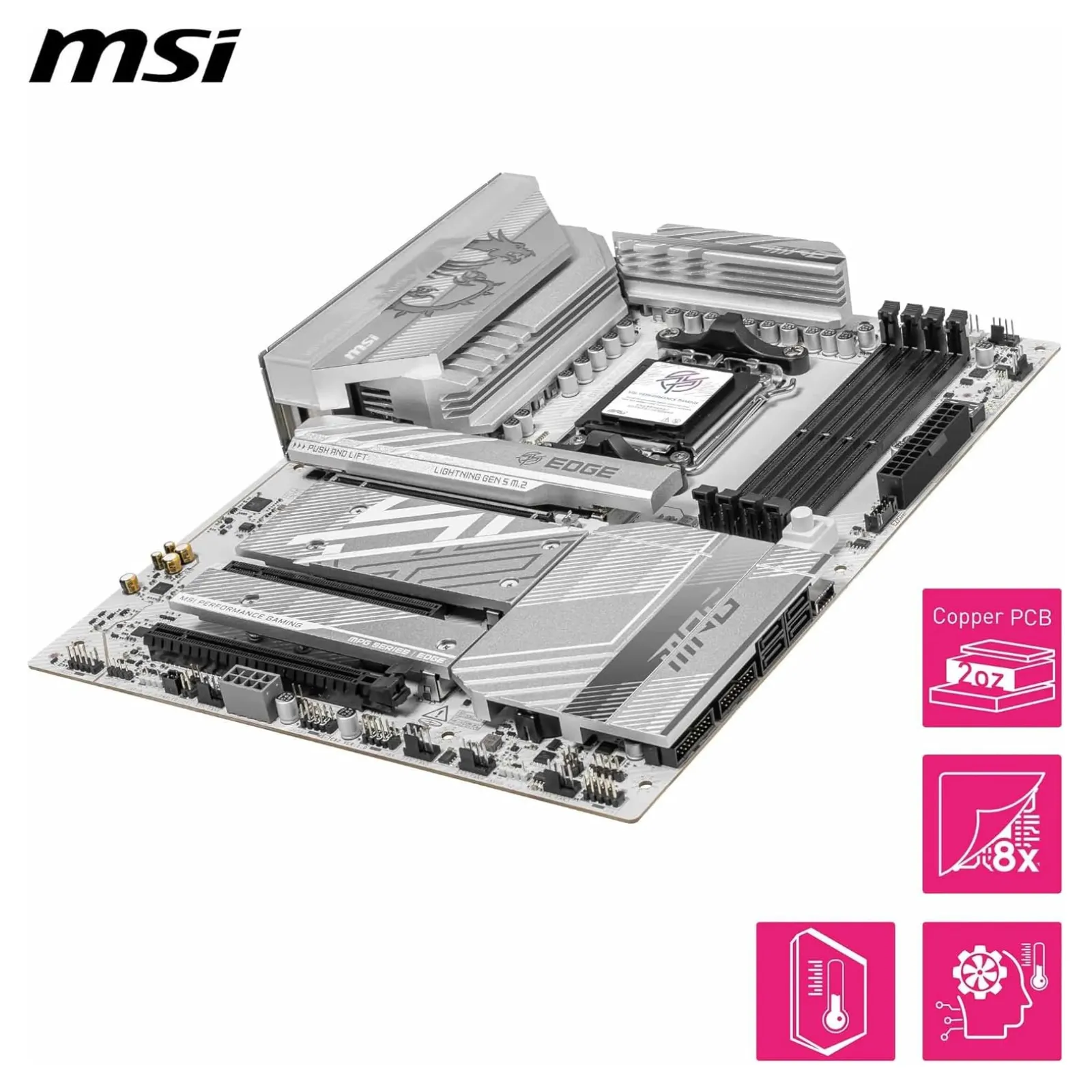

Design termico Frozr e raffreddamento intelligente

La sezione Frozr include:

Dissipatore esteso
M.2 Shield Frozr
Dissipatore VRM placcato
Pad termici MOSFET 7W/mK + choke pad
Dissipatore chipset ingrandito

In più, Frozr AI Cooling e header con rilevamento PWM/DC aiutano a mantenere il sistema fresco e silenzioso.

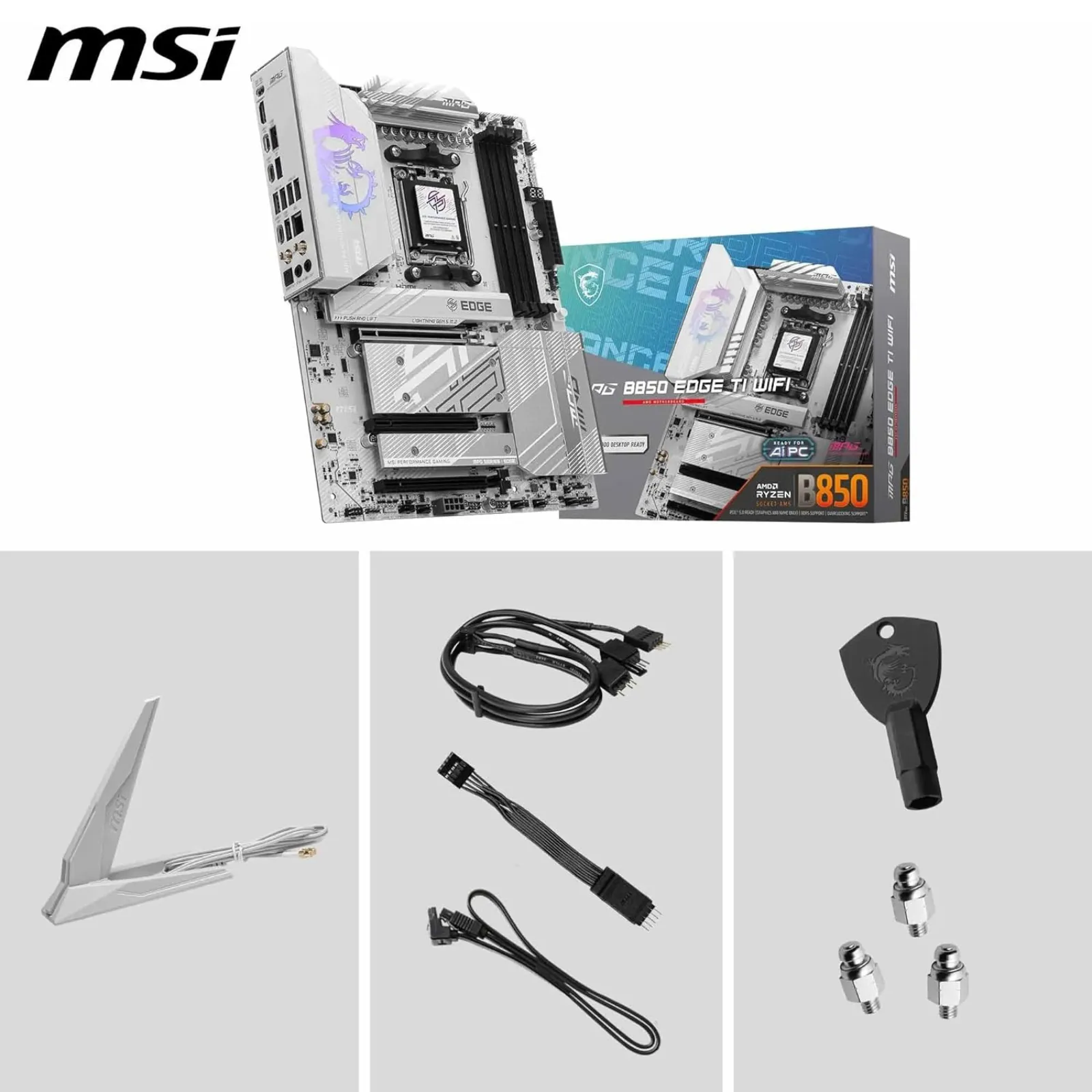

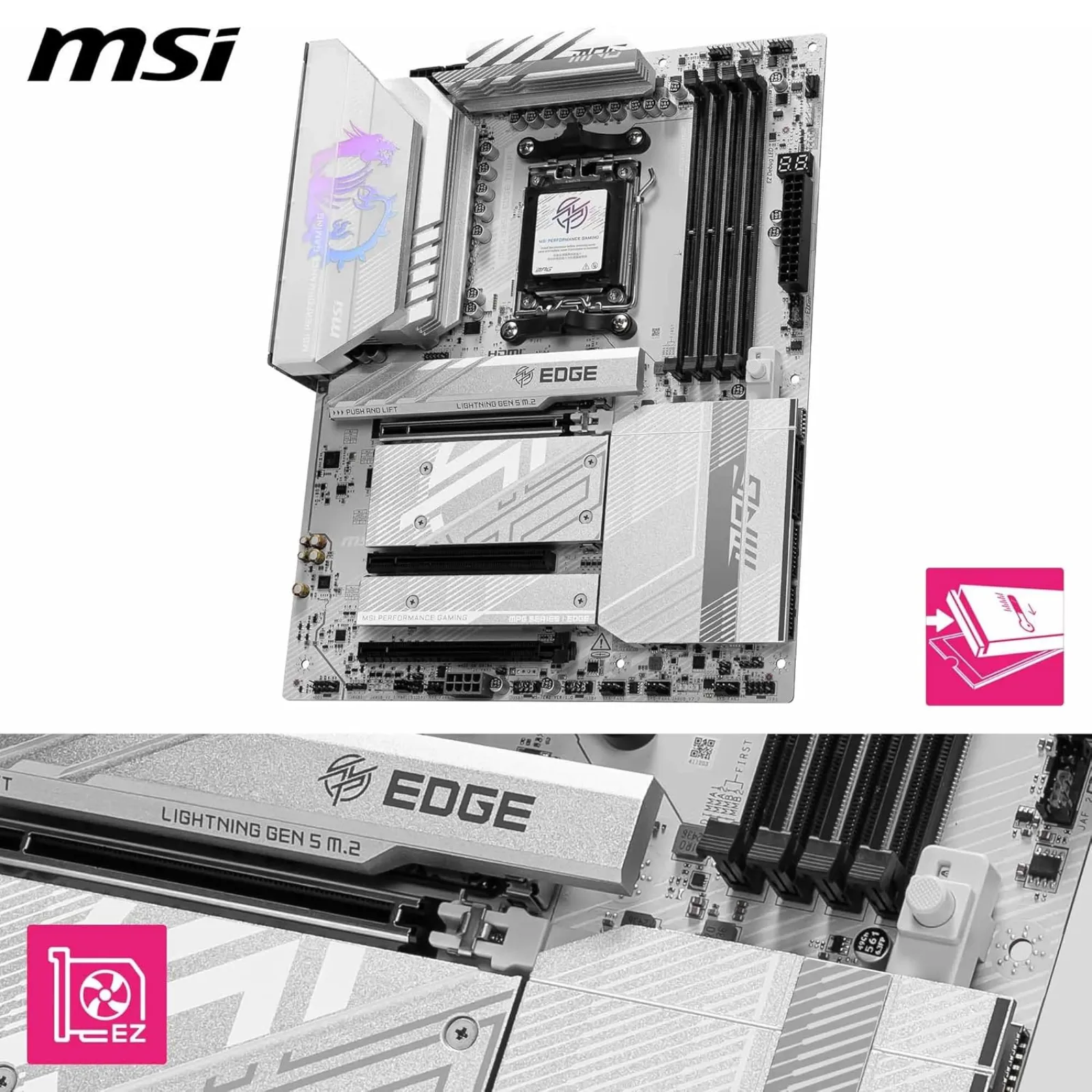

EZ DIY: assemblaggio più rapido e pulito

Funzioni che semplificano build e upgrade:

EZ PCIe Release (rimozione GPU con un tocco)
I/O Shield preinstallato
EZ Antenna con stand magnetico
EZ M.2 Clip II + EZ M.2 Shield Frozr II
Debug: EZ Debug LED, EZ Digi-Debug LED, EZ Memory Detection LED
EZ Conn header (JAF_2) con cavo 1-a-3 (ARGB + SYS FAN + USB)

Audio e software

Audio: Realtek ALC4080, 7.1 USB High-Performance Audio, fino a 32-bit/384kHz sul front panel, S/PDIF
Software: MSI Center, Click BIOS X, Mystic Light
OS: supporto Windows 11 64-bit

Specifiche tecniche

Chipset: AMD B850
Formato: ATX (304.8 x 243.84 mm)
Socket: AM5
CPU: Ryzen 9000 / 8000 / 7000
RAM: 4x DDR5 UDIMM, fino a 256GB, fino a 8400+ MT/s (OC)
PCIe: Gen5 x16 (principale), Gen3 x1, Gen4 x4
Storage: 4x M.2 (2x Gen5 x4, 1x Gen4 x2, 1x Gen4 x4) + 4x SATA
Rete: Wi-Fi 7 + BT 5.4 + 5G LAN
USB: USB-C front 20Gbps + posteriori USB-C/USB-A 10Gbps
Audio: Realtek ALC4080 + S/PDIF
Codice: 601-7E62-01S
EAN: 4711377290616

FAQ

È adatta per una build “white”?
Sì, il design bianco-argento è pensato apposta per configurazioni white/premium.

Supporta Ryzen 9000?
Sì, è compatibile con Ryzen serie 9000/8000/7000 su socket AM5.

Quanta RAM supporta e a che velocità?
Fino a 256GB DDR5, con overclock fino a 8400+ MT/s (dipende da CPU e kit RAM).

Ha PCIe 5.0 per la GPU?
Sì, lo slot principale è PCIe 5.0 x16 (da CPU).

Quanti M.2 posso installare?
Fino a 4 SSD M.2: 2 Gen5 (CPU) + 2 Gen4 (chipset, uno a x2 e uno a x4).

Ha Wi-Fi 7 e LAN 5G?
Sì, integra Wi-Fi 7 e una porta 5G LAN, oltre a Bluetooth 5.4.

Informazioni aggiuntive

Peso	1,9 kg
Dimensioni	34 × 27 × 8 cm
Chipset	AMD B850
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s — Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* — * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard only have single-sided latche. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) — PCI_E1 slot (From CPU) • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) — PCI_E2 slot (From B850 chipset) • Supports up to PCIe 3.0 x1 — PCI_E3* slot (From B850 chipset) • Supports up to PCIe 4.0 x4 — *PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slot
Audio	Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
Storage	4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) — M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) • Supports 2280/22110 storage devices — M.2_2 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) — M2_3* slot (From Chipset) • Supports up to PCIe 4.0 x2 • Supports 2260/2280 storage devices — M2_4 slot (From Chipset) • Supports up to PCIe 4.0 x4 • Supports 2260/2280 storage devices — * PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot.
RAID	• Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices *RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen 9000/7000 series CPU
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 3x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN	1x Realtek® 8126 5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be — Supports Bluetooth® 5.4*, MLO, 4KQAM — 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Digit Debug LED 1x EZ Memory Detection LED

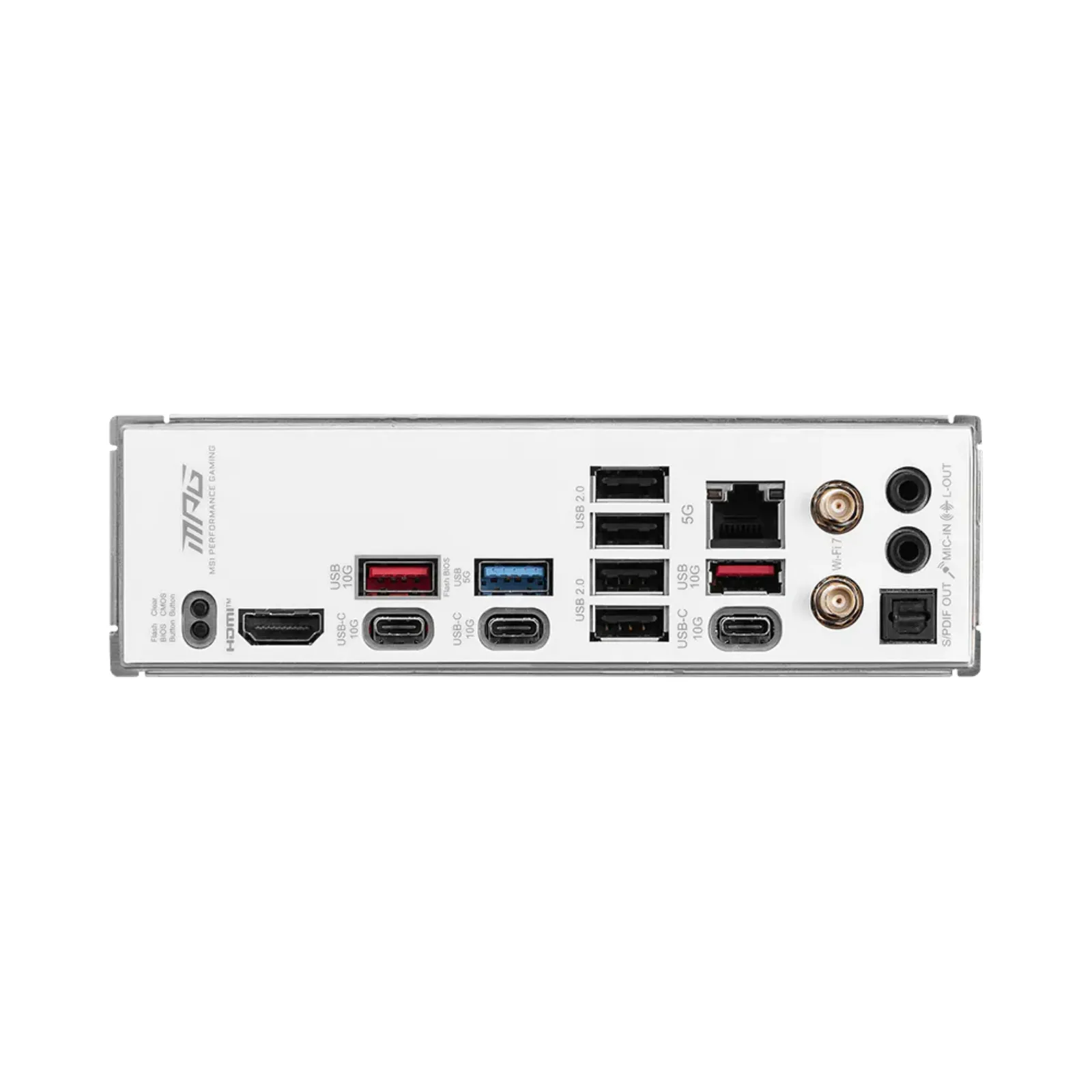

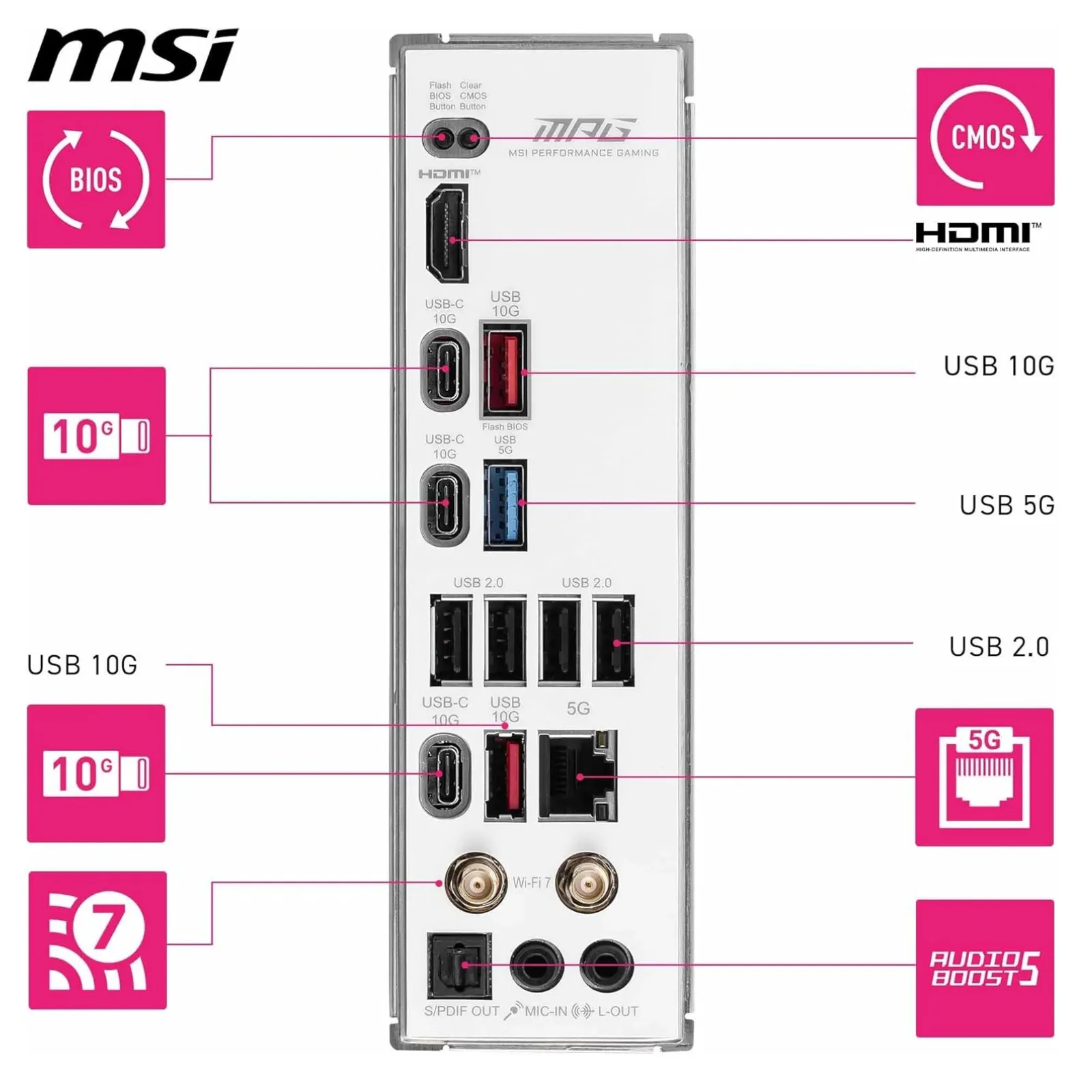

BACK PANEL PORTS	Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Optical S/PDIF Out
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB Info	ATX 304.8mmx243.84mm
