ASUS ROG STRIX B760-G GAMING WIFI – Scheda Madre Micro-ATX, Socket LGA 1700, DDR5, PCIe 5.0, USB 3.2, LAN 2.5G, Wi-Fi 6E, Bluetooth 5.3, Aura Sync [90MB1EQ0-M1EAY0]

Il prezzo originale era: 259,00 €.Il prezzo attuale è: 239,00 €.

   Chipset Intel B760
Form Factor   Form Factor Micro-ATX
Socket   Socket LGA 1700
Tipo di Memoria   Tipo di Memoria DDR5

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4711387120002 COD: 90MB1EQ0-M1EAY0 Categoria: Tag: , , , , , , , , , ,
Descrizione

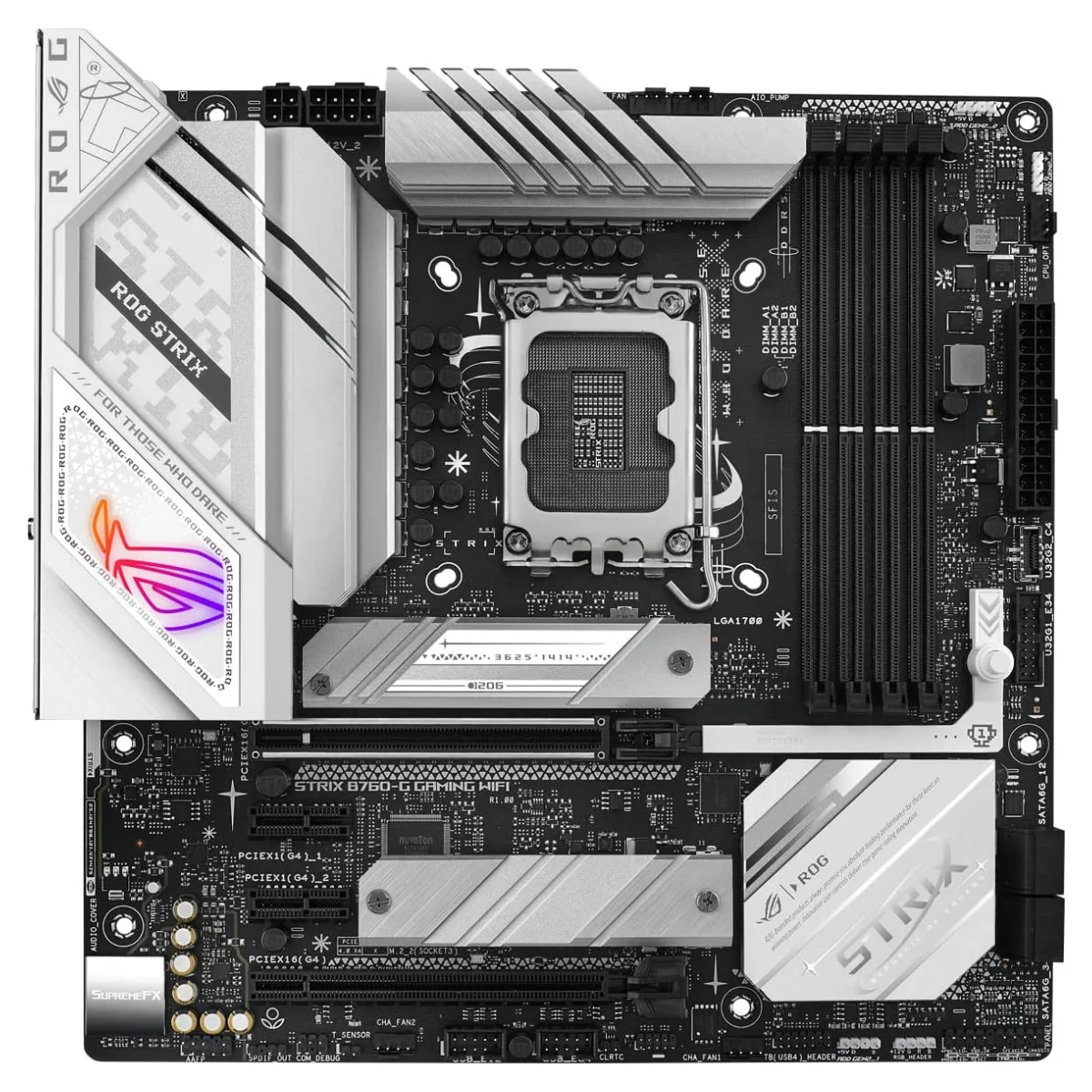

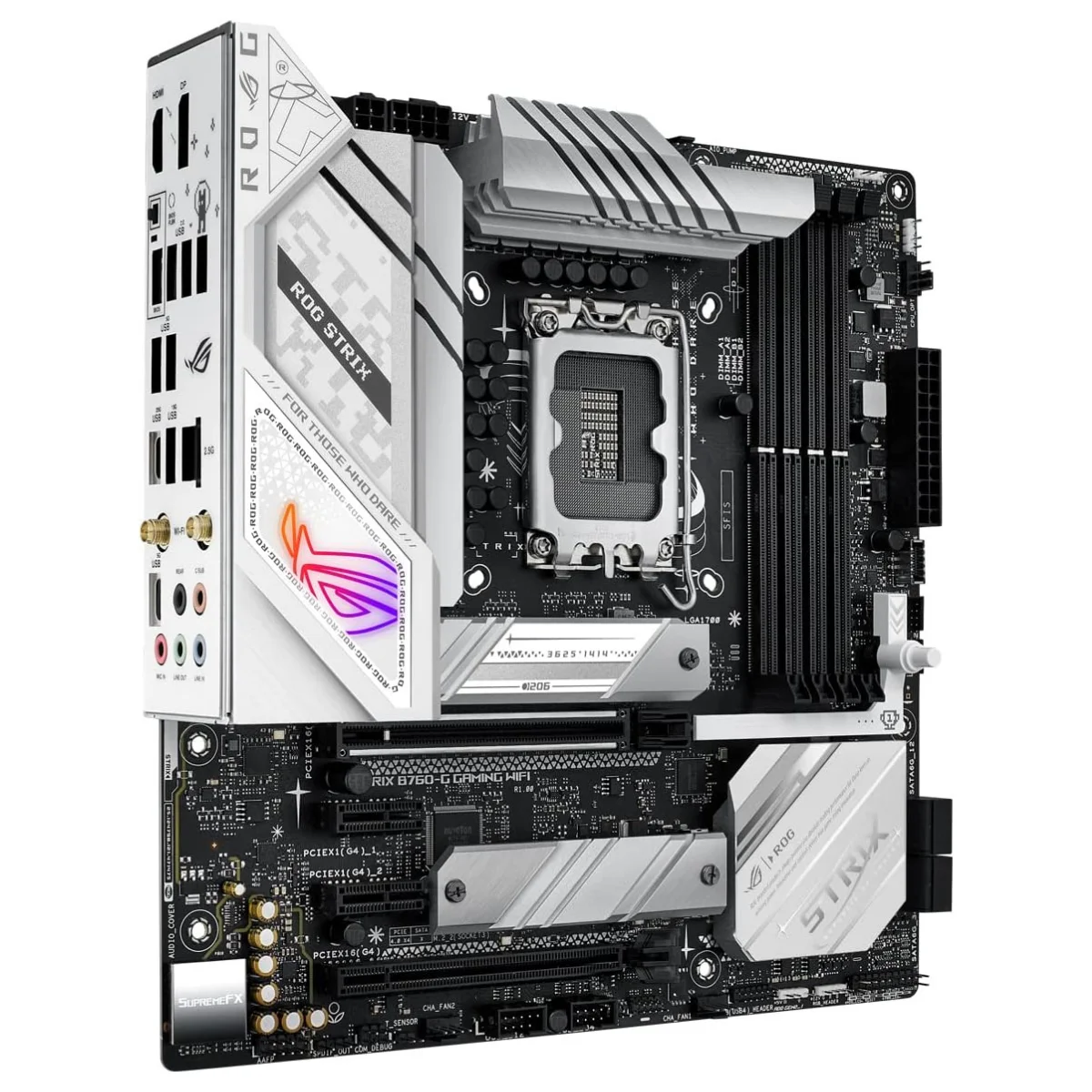

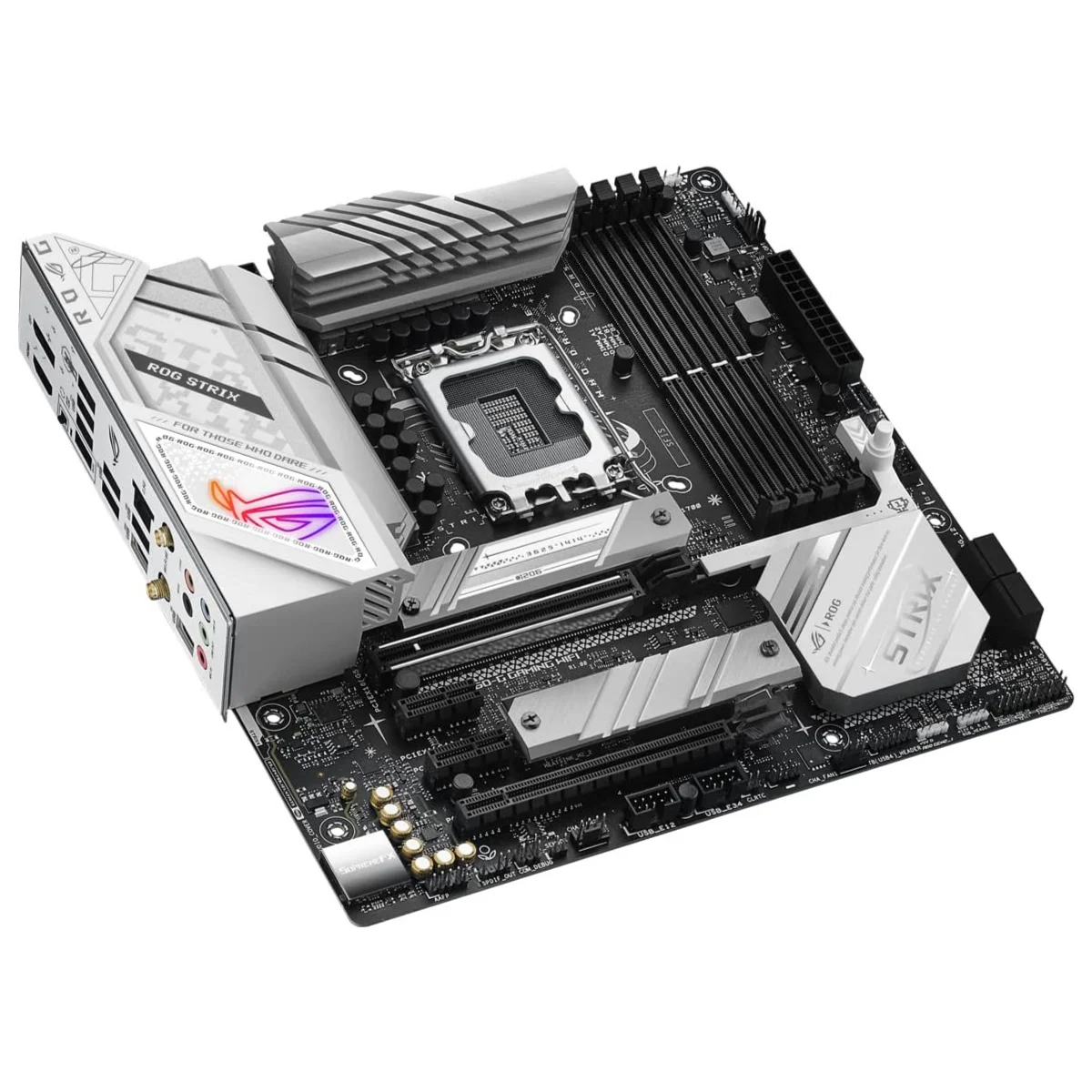

ASUS ROG STRIX B760-G GAMING WIFI / 90MB1EQ0-M1EAY0 / 4711387120002

La ASUS ROG Strix B760-G Gaming WiFi unisce design compatto e potenza estrema in un formato Micro-ATX. È dotata di stadi di alimentazione potenziati per gestire i processori Intel® Core™ di 13ᵃ e 12ᵃ generazione, e supporta memoria DDR5 ultraveloce per garantire velocità e reattività eccezionali.

Con slot PCIe 5.0, USB 3.2 Gen 2×2 e Wi-Fi 6E, assicura un’esperienza di gioco e produttività fluida. Il design monocromatico con dettagli bianchi e argento si abbina perfettamente a case come l’ASUS AP201, mentre le insegne retrò mantengono il DNA ROG.

Caratteristiche principali:

  • Compatibilità CPU: Intel® Core™ 13ᵃ e 12ᵃ generazione, socket LGA 1700.

  • Memoria DDR5 ad alte prestazioni: fino a 7800+ MT/s, con tecnologie AEMP II e XMP.

  • Espansione grafica di ultima generazione: 1 slot PCIe 5.0 x16 per GPU di fascia alta.

  • Connettività moderna: USB 3.2 Gen 2×2, porta I/O Type-C® posteriore, LAN ad alta velocità, Wi-Fi 6E.

  • Alimentazione affidabile: stadi di potenza robusti per stabilità anche sotto carichi elevati.

  • Design compatto e stiloso: estetica bianco/argento con dettagli ROG classici.

Specifiche Tecniche

Caratteristica Dettagli
Marca ASUS
Modello ROG Strix B760-G Gaming WiFi
Formato Micro-ATX
Socket LGA 1700
Chipset Intel® B760
Compatibilità CPU Intel® Core™ 13ᵃ/12ᵃ gen
Memoria DDR5, fino a 7800+ MT/s, AEMP II, XMP
Slot RAM 4 x DIMM
Slot PCI Express 1 x PCIe 5.0 x16
Archiviazione Slot M.2, porte SATA
Rete LAN ad alta velocità, Wi-Fi 6E
USB USB 3.2 Gen 2×2, Type-C posteriore
Alimentazione Stadi di potenza affidabili
Codice prodotto 90MB1EQ0-M1EAY0
EAN 4711387120002

Domande Frequenti (FAQ)

1. La ROG Strix B760-G Gaming WiFi è compatibile con CPU Intel di 14ᵃ generazione?
Progettata per 13ᵃ e 12ᵃ generazione, la compatibilità con la 14ᵃ dipende da eventuali aggiornamenti BIOS.

2. Qual è la garanzia del prodotto?
Normalmente ASUS offre 3 anni di copertura, ma può variare in base al rivenditore.

3. Supporta memoria DDR4?
No, è compatibile esclusivamente con moduli DDR5.

4. Il formato Micro-ATX limita le prestazioni?
No, offre prestazioni di fascia alta in un formato compatto, ideale per case più piccoli.

5. È adatta per un PC gaming di fascia alta?
Sì, con PCIe 5.0, DDR5 ad alta velocità e connettività Wi-Fi 6E, è perfetta per build compatte ma potenti.

Per ulteriori dettagli e specifiche complete, visita la pagina ufficiale ASUS ROG Strix B760-G Gaming WiFi.

Informazioni aggiuntive
Peso 1,34 kg
Dimensioni 24,4 × 24,4 × 3,5 cm
M.B. - Chipset

Intel B760
M.B. - Numero Slot M.2

2 Slot
CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Memory

4 x DIMM slots, Max. 192GB, DDR5
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile
(XMP)
OptiMem II
Graphics

1 x DisplayPort
1 x HDMI
Expansion Slots

Intel® 14th & 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot(s)
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2x PCIe 4.0 x1 slots
Storage

Total supports 2 x M.2 slots and 4 x SATA
6Gb/s ports*
Intel® 14th & 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
USB

Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2×2 port(s) (1 x USB
Type-C®)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x
USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB
Type-C®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header supports additional 4
USB 2.0 ports
Audio

ROG SupremeFX 7.1-Channel High
Definition Audio CODEC S1220A
– Impedance sense for front and rear
headphone outputs
– Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Premium audio capacitors
– Audio cover

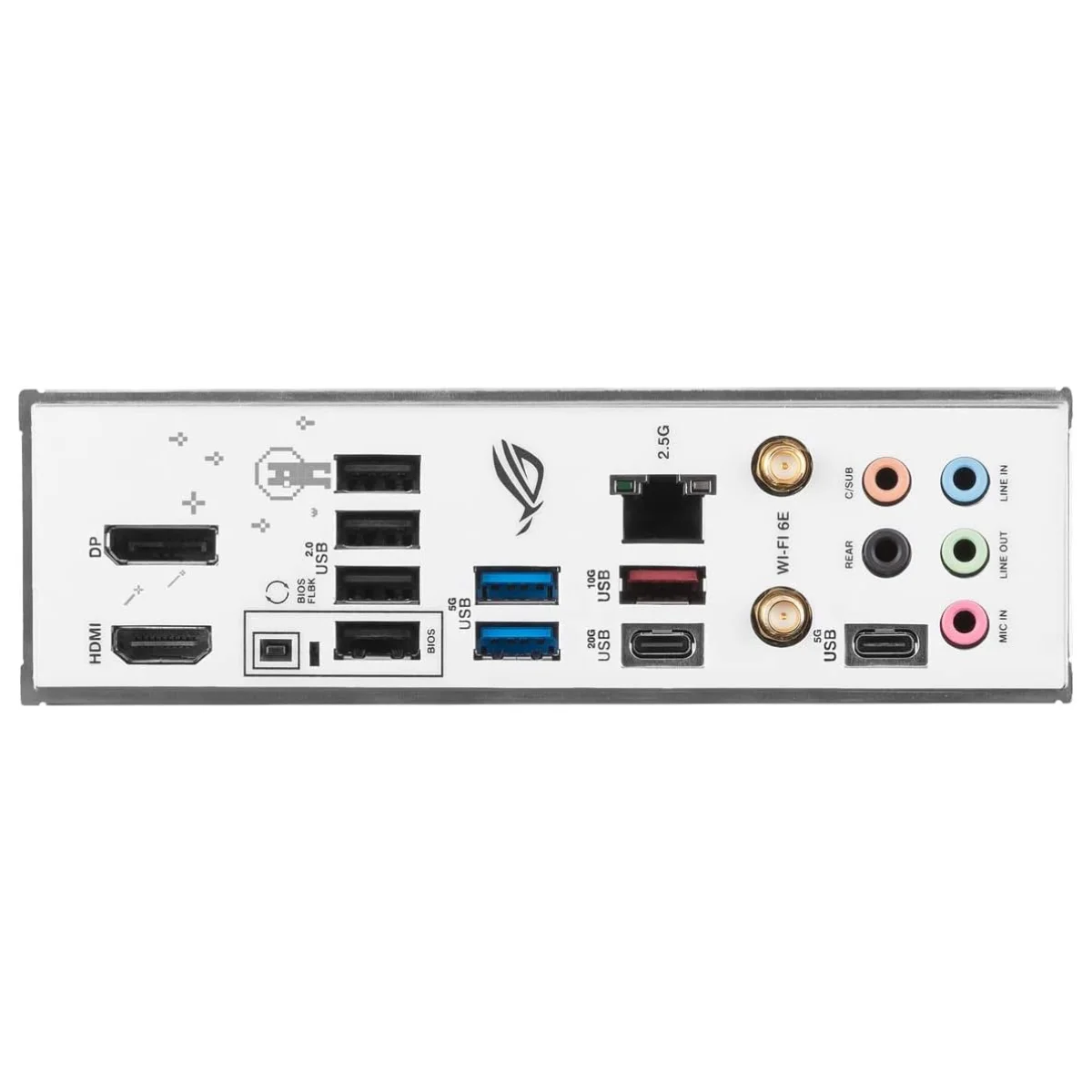

Back Panel I/O Ports

1 x USB 3.2 Gen 2×2 port(s) (1 x USB
Type-C®)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x
USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
1 x HDMI® port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB
Type-C®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4
USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with
Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Special Features

Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
-CPU
Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync
– Aura RGB header
– Addressable Gen 2 header
Software Features

ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– AURA Creator
– AURA Sync
– Fan Xpert 4
– Two-Way AI Noise Cancelation
– Power Saving
AI Suite 3
– Performance And Power Saving Utility
– DIGI+ VRM
– PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
MemTest86
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE

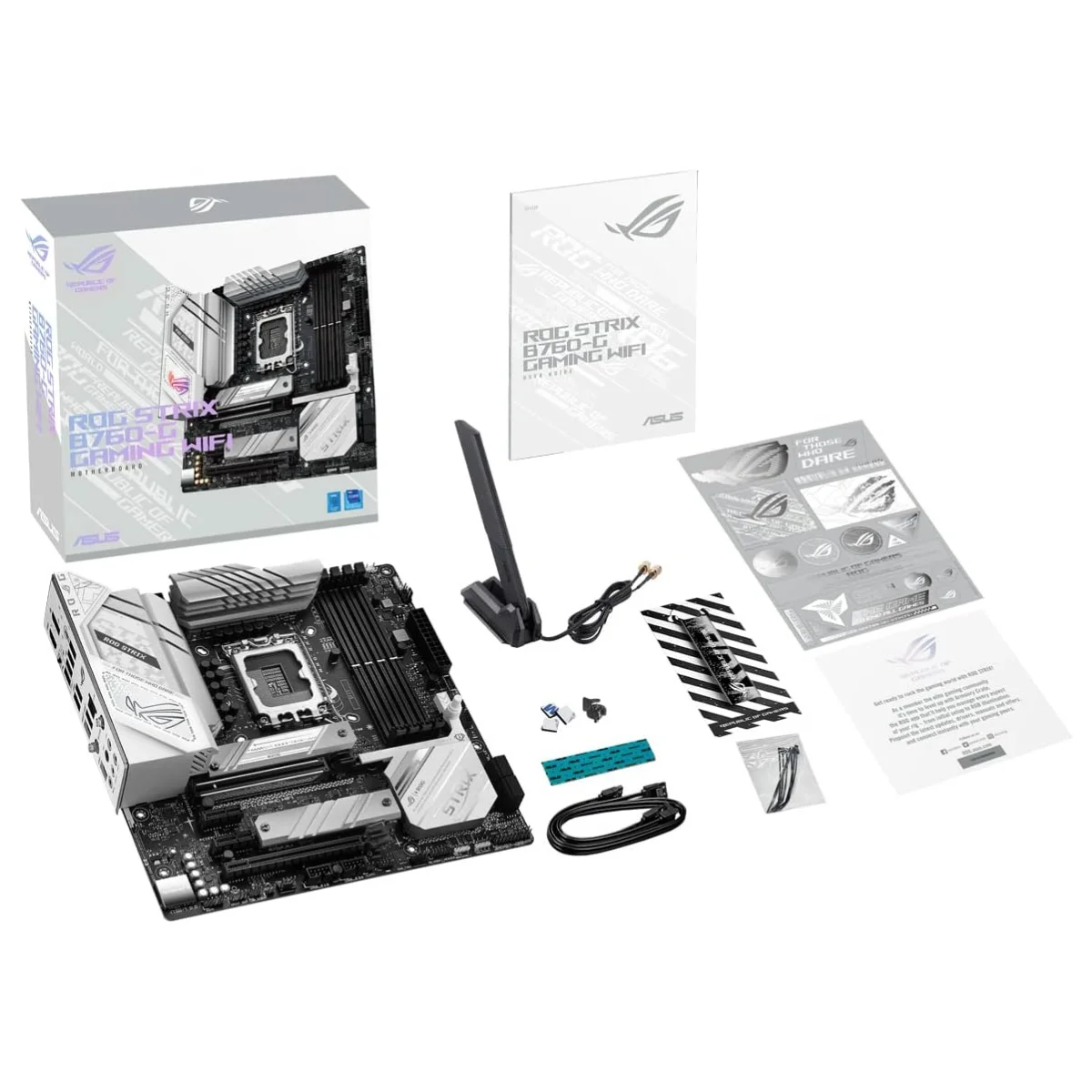

Accessories

Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous

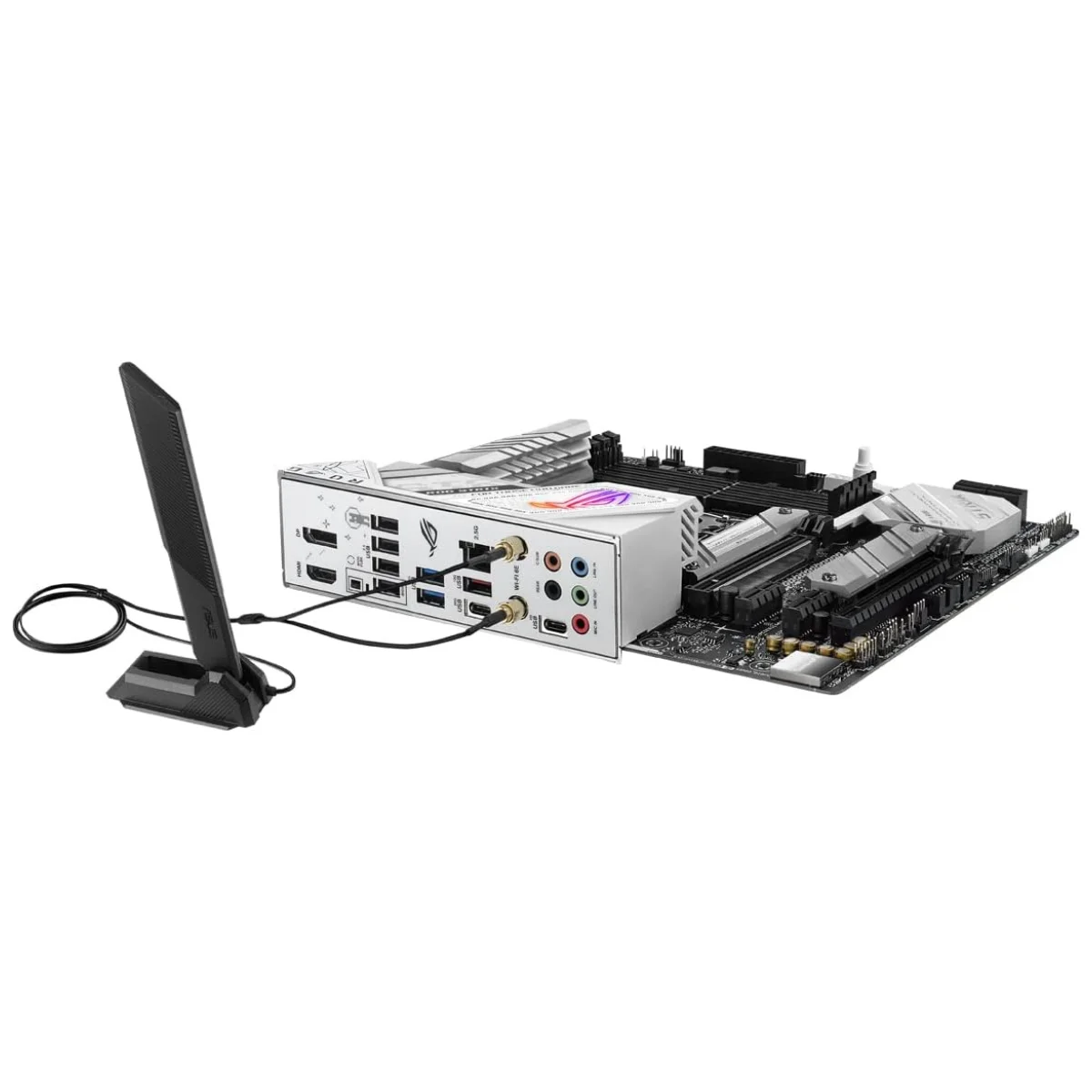

1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Documentation
1 x User manual
Operating System

Windows® 11, Windows® 10 64-bit
Form Factor

9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
