MSI B760M PROJECT ZERO – Scheda Madre Micro-ATX, Socket LGA 1700, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 6E, LAN 2.5G, Bluetooth 5.3 [911-7E14-001]

Il prezzo originale era: 235,00 €.Il prezzo attuale è: 209,00 €.
SKU: 911-7E14-001
Peso 1,6 kg
Dimensioni 24,4 × 24,4 × 3,5 cm
M.B. - Chipset

Intel B760

CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA1700

Memory

4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile

Onboard Graphics

1x HDMI™ – Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort – Support DP 1.4, maximum resolution of 4K 60Hz

Slot

2x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Audio

Realtek® ALC897 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output

Storage

2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

LAN

Realtek® 2.5Gbps LAN

Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

WIRELESS LAN & BLUETOOTH

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

USB 2.0
DisplayPort 1.4
USB 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI™ 2.1 Port
USB 20Gbps Type-C
Optical S/PDIF OUT

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Info

mATX
243.84mmx243.84mm

MSI B850 GAMING PLUS WIFI – Scheda Madre ATX, Socket AM5, DDR5, M.2 Gen5, PCIe 5.0, USB 3.1, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [911-7E56-05S]

Il prezzo originale era: 239,00 €.Il prezzo attuale è: 229,00 €.
SKU: 911-7E56-05S
Peso 1,5 kg
Dimensioni 30,5 × 24,4 × 3,5 cm
M.B. - Chipset

AMD B850

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only

Onboard Graphics

1x DisplayPort
Support DisplayPort 1.2, maximum resolution of 4K 60Hz

Slot

4x PCI-E x16 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Audio

Realtek® ALC897
7.1-Channel High Definition Audio

Storage

3x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G (Qty)

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

RAID

Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)

LAN

Realtek® 8126VB 5G LAN

Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x ARGB+FAN Header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports

WIRELESS LAN & BLUETOOTH

Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

Clear CMOS Button
USB 10Gbps (Type-A)
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
DisplayPort
USB 10Gbps (Type-C)
USB 10Gbps (Type-C)
USB 5Gbps (Type-A)
S/PDIF-OUT

OPERATING SYSTEM

Support for Windows® 11 64-bit

MSI B850 GAMING PLUS WIFI6E – Scheda Madre ATX, Socket AM5, DDR5, Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2, Audio Boost

Il prezzo originale era: 199,00 €.Il prezzo attuale è: 179,00 €.
SKU: 911-7E80-001
Peso 0,7 kg
Dimensioni 30,5 × 24,4 × 3 cm
Chipset

AMD B850

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Audio

Realtek® ALC897
7.1-Channel High Definition Audio

Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

*Please refer to the manual for M.2 SSD heatsink restrictions.

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)

LAN

Realtek® 8125D 2.5G LAN

Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

WIRELESS LAN & BLUETOOTH

Wi-Fi 6E Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

LED FEATURE

x EZ Debug LED
1x EZ Memory Detection LED

BACK PANEL PORTS

Clear CMOS Button
DisplayPort 1.4
2.5G LAN
USB 10Gbps (Type-A)
Wi-Fi / Bluetooth
HD Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps (Type-A)
USB 10Gbps (Type-C)
USB 5Gbps (Type-A)

OPERATING SYSTEM

Support for Windows® 11 64-bit

PCB Info

ATX
243.84mmx304.8mm

MSI B850M GAMING PLUS WIFI6E – Scheda Madre mATX AM5 per Ryzen 9000 con Wi-Fi 6E, 2.5G LAN, M.2 PCIe 5.0 e funzioni EZ DIY

Il prezzo originale era: 185,00 €.Il prezzo attuale è: 159,00 €.
SKU: 911-7E81-001
Peso 1,624 kg
Dimensioni 24,4 × 24,4 × 3 cm
Chipset

AMD B850

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only

Onboard Graphics

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*

Slot

1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E2 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Audio

Realtek® ALC897
7.1-Channel High Definition Audio

Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)

LAN

Realtek® 8125D 2.5G LAN

Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

WIRELESS LAN & BLUETOOTH

Wi-Fi 6E Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA

LED FEATURE

4x EZ Debug LED
1x EZ Memory Detection LED

BACK PANEL PORTS

Clear CMOS Button
DisplayPort 1.4
2.5G LAN
USB 10Gbps (Type-A)
Wi-Fi / Bluetooth
HD Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps (Type-A)
USB 10Gbps (Type-C)
USB 5Gbps (Type-A)

OPERATING SYSTEM

Support for Windows® 11 64-bit

PCB Info

mATX
243.84mmx243.84mm

MSI Cyborg 15 AI A1VFK-076XIT – Notebook Gaming 15.6″ FHD 144Hz, Intel Core Ultra 7 155H, RTX 4060, 16GB DDR5, 1TB SSD, Free DOS

Il prezzo originale era: 1.399,00 €.Il prezzo attuale è: 1.199,00 €.
SKU: 9S7-15K211-076
CPU

Intel® Core™ Ultra 7 processor 155H with Intel® AI Boost (NPU)
16 cores (6 P-cores + 8 E-cores + 2 Low Power E-cores), Max Turbo Frequency 4.8 GHz

Operating Systems

Free Dos

Display

15.6" FHD(1920×1080), 144Hz Refresh Rate, IPS-Level

Chipset

Integrated SoC

Discrete Graphics

NVIDIA® GeForce RTX™ 4060 Laptop GPU powers advanced AI with 233 AI TOPS
Up to 1470MHz Boost Clock 45W Maximum Graphics Power with Dynamic Boost. *May vary by scenario

Video Memory

8GB GDDR6

Memory

8GB*2, DDR5-5600
*Vary by Memory capacity

Memory Slot and Max Capacity

2 Slots, Max 96GB

Storage

1TB*1 NVMe SSD PCIe Gen4

Storage Slot

1x M.2 SSD slot (NVMe PCIe Gen4)

Keyboard

4-Zone RGB Gaming Keyboard with Copilot Key

WebCam

HD type (30fps@720p)

Audio

2x 2W Audio Speaker
Hi-Res Audio Ready, DTS Audio Processing

Audio Port

1x Mic-in/Headphone-out Combo Jack

USB Ports

2x Type-A USB3.2 Gen1
1x Type-C (USB3.2 Gen2 / DisplayPort™)

Video Ports

1x HDMI™ 2.1 (4K @ 60Hz)

LAN

Gigabit Ethernet

Wi-Fi/ Bluetooth

Intel® Wi-Fi 6E AX211, Bluetooth v5.3

Security

Firmware Trusted Platform Module(fTPM) 2.0, Kensington Lock

AC Adapter

120W Adaptor

Battery

3-Cell
53.5 Whrs

Dimension (WXDXH)

359.36 x 250.34 x 21.95-22.9 mm

Weight (W/ Battery)

1.98 kg

Chassis Color

Translucent Black

Warranty

2 years limited warranty

Xbox Game Pass

One month of PC Game Pass
*Spec may vary by model. Please refer to the final spec of the product purchased for Xbox Game Pass preinstalled details.

MSI Cyborg 15 B2RWEKG-244XIT – Notebook Gaming 15.6″ FHD IPS 144Hz, Intel Core 7-240H, RTX 5050, 16GB DDR5, 1TB SSD, FreeDos

1.199,00
SKU: 9S7-15Q342-244
CPU

Intel® Core™ 7 processor 240H
10 cores (6 P-cores + 4 E-cores), 16 thread, 24 MB Intel®
Smart Cache, Max Turbo Frequency 5.2 GHz

Operating Systems

Free Dos

Display

15.6" FHD(1920×1080), 144Hz Refresh Rate, IPS-Level

Chipset

Integrated SoC

Discrete Graphics

NVIDIA® GeForce RTX™ 5050 Laptop GPU powers advanced AI
Up to 1500MHz Boost Clock 45W Maximum Graphics Power with Dynamic Boost. *May vary by scenario
*Power Efficiency

Video Memory

8GB GDDR7

Memory

8GB*2 DDR5-5600
*The actual frequency will vary by memory combination and CPU capability

Memory Slot and Max Capacity

DDR5, 2 Slots, Max 96GB

Storage

1TB*1 NVMe SSD PCIe Gen4
”Please consult service center for upgrading SSD.”

Storage Slot

1x M.2 SSD slot (NVMe PCIe Gen4)

Keyboard

4-Zone RGB Gaming Keyboard with Copilot Key

WebCam

HD type (30fps@720p)

Audio

2x 2W Audio Speaker
Hi-Res Audio Ready, DTS Audio Processing
Array Microphone

Audio Port

1x Mic-in/Headphone-out Combo Jack

USB Ports

2x Type-A USB3.2 Gen2
1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0)

Video Ports

1x HDMI™ 2.1 (4K @ 60Hz)

LAN

Gigabit Ethernet

Wi-Fi/ Bluetooth

Intel®
Wi-Fi 6E AX211, Bluetooth v5.3

Security

Firmware Trusted Platform Module(fTPM) 2.0, Webcam Shutter, Kensington Lock

AC Adapter

120W Adaptor

Battery

4-Cell
55.2 Whrs

Dimension (WXDXH)

359.3 x 245.25 x 22.15-23.15 mm

Weight (W/ Battery)

2.1 kg

Chassis Color

Translucent Black

Certification

MIL-STD-810H/G

Warranty

2 years limited warranty

Xbox Game Pass

One month of PC Game Pass
*Spec and bundle offer may vary by model and by country. Please refer to the final specification of the product
purchased for Xbox Game Pass pre-installed details.

MSI Cyborg 15 B2RWFKG-245XIT – Notebook Gaming 15.6” FHD 144Hz, Intel Core 7 240H, RTX 5060 8GB GDDR7, 16GB DDR5, 1TB SSD, Wi-Fi 6E, FreeDOS

Il prezzo originale era: 1.299,00 €.Il prezzo attuale è: 1.199,00 €.
SKU: 9S7-15Q342-245
CPU

Intel® Core™ 7 processor 240H
10 cores (6 P-cores + 4 E-cores), 16 thread, 24 MB Intel®
Smart Cache, Max Turbo Frequency 5.2 GHz

Operating Systems

Free Dos

Display

15.6" FHD(1920×1080), 144Hz Refresh Rate, IPS-Level

Chipset

Integrated SoC

Discrete Graphics

NVIDIA® GeForce RTX™ 5060 Laptop GPU powers advanced AI with 572 AI TOPS
Up to 1455MHz Boost Clock 55W Maximum Graphics Power with Dynamic Boost. *May vary by scenario
*Power Efficiency

Video Memory

8GB GDDR7

Memory

8GB*2 DDR5-5600
*The actual frequency will vary by memory combination and CPU capability.

Memory Slot and Max Capacity

DDR5-5600, 2 Slots, Max 96GB

Storage

1TB*1 NVMe SSD PCIe Gen4
”Please consult service center for upgrading SSD.”

Storage Slot

1x M.2 SSD slot (NVMe PCIe Gen4)

Keyboard

4-Zone RGB Gaming Keyboard with Copilot Key

WebCam

HD type (30fps@720p) with 3D Noise Reduction (3DNR)

Audio

2x 2W Audio Speaker
Hi-Res Audio Ready, DTS Audio Processing
Array Microphone

Audio Port

1x Mic-in/Headphone-out Combo Jack

USB Ports

2x Type-A USB3.2 Gen2
1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0)

Video Ports

1x HDMI™ 2.1 (4K @ 60Hz)

LAN

Gigabit Ethernet

Wi-Fi/ Bluetooth

Intel® Wi-Fi 6E AX211, Bluetooth v5.3

Security

Firmware Trusted Platform Module(fTPM) 2.0, Webcam Shutter, Kensington Lock

AC Adapter

120W Adaptor

Battery

4-Cell
55.2 Whrs

Dimension (WXDXH)

359.3 x 245.25 x 22.15-23.15 mm

Weight (W/ Battery)

2.1 kg

Chassis Color

Translucent Black

Certification

MIL-STD-810H/G

Warranty

2 years limited warranty

MSI Katana 15 B13VFK-247IT – Notebook Gaming 15.6″ FHD 144Hz, Intel Core i7-13620H, RTX 4060, 16GB DDR5, 1TB SSD, Win 11 Home

Il prezzo originale era: 1.399,00 €.Il prezzo attuale è: 1.099,00 €.
SKU: 9S7-158571-247
DISPLAY

Dimensioni schermo 39,6 cm (15.6")
Risoluzione del display 1920 x 1080 Pixel
Touch screen No
Tipologia HD Full HD
RGB spazio colore NTSC
Gamma di colori 45%
Tempo massimo di refresh 144 Hz

PROCESSORE

Famiglia processore Intel® Core™ i7
Produttore processore Intel
Modello del processore i7-13620H
Generazione del processore Intel® Core™ i7 di 13a generazione
Frequenza del processore turbo massima 4,9 GHz
Frequenza boost core efficiente 3,6 GHz
Numero di core del processore 10
Cache processore 24 MB
Tipo di cache del processore Cache intelligente
Potenza di base del processore 45 W
Massima potenza turbo 115 W

MEMORIA RAM

RAM installata 16 GB
RAM massima supportata 64 GB
Tipo di RAM DDR5-SDRAM
Velocità memoria 5200 MHz
Struttura memoria 2 x 8 GB

ARCHIVIAZIONE

Capacità totale di archiviazione 1000 GB
Supporto di memoria SSD
Tipo drive ottico No
Capacità SSD totale 1000 GB
Numero di SSD installati 1
Capacità SSD 1000 GB
Interfaccia Solid State Drive (SSD) PCI Express 4.0
NVMe Sì

GRAFICA

Scheda grafica integrata Sì
Adattatore di scheda grafica separato Sì
Scheda grafica dedicata NVIDIA GeForce RTX 4060
Modello scheda grafica integrata Intel® UHD Graphics
Produttore discreto GPU NVIDIA
Famiglia dell adattatore della scheda grafica integrata Intel® UHD Graphics
Memoria Grafica Dedicata 8 GB
Tipo di memoria della scheda grafica GDDR6

AUDIO E VIDEO

Sistema audio Nahimic 3
Numero di altoparlanti incorporati 2
Marca degli altoparlanti Nahimic
Potenza altoparlante 2 W
Fotocamera frontale Sì
Tipo HD della fotocamera anteriore HD
Velocità acquisizione video 30 fps

CONNESSIONI

Connessione di rete mobile No
Wi-Fi standard Wi-Fi 6 (802.11ax)
Standard Wi-Fi Wi-Fi 6 (802.11ax)
Tipo di antenna 2×2
Modello di dispositivo di controllo WLAN Intel Wi-Fi 6 AX201
Produttore del controller WLAN Intel
Bluetooth Sì
Versione Bluetooth 5.2
Quantità porte USB 2.0 1
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A 2
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo C 1
Quantità porte HDMI 1
Quantità porte Ethernet LAN (RJ-45) 1
Jack combinato per microfono/auricolare No
Modalità alternativa DisplayPort USB di Tipo C Sì
Tastiera numerica Sì
Dispositivo di puntatura Touchpad
tastiera retroilluminata Sì
Colore della retroilluminazione della tastiera RGB
Zona retroilluminata tastiera RGB a 4 zone
Sistema operativo incluso Windows 11 Home

ALIMENTAZIONE

Capacità della batteria 53,5 Wh
Numero di celle della batteria 3
Adattatore dissipazione di potenza AC 200 W

DIMENSIONE E PESO

Peso 2,25 kg
Larghezza 359 mm
Profondità 259 mm
Altezza 24,9 mm

MSI Katana 15 B13VGK-1894IT – Notebook Gaming 15.6″ FHD IPS 144Hz, Intel Core i7-13620H, RTX 4070, 16GB DDR5, 1TB SSD, Win 11 Home

1.699,00
SKU: 9S7-158571-1894
CPU

13th Gen Intel®
Core™ i7-13620H processor
10 cores (6 P-cores + 4 E-cores), Max Turbo Frequency 4.9 GHz

Operating Systems

Windows 11 Home (MSI recommends Windows 11 Pro for business.)

Display

15.6" FHD(1920×1080), 144Hz Refresh Rate, IPS-Level

Chipset

Integrated SoC

Discrete Graphics

NVIDIA®
GeForce RTX™ 4070 Laptop GPU powers advanced AI with 321 AI TOPS
Up to 1980MHz Boost Clock 105W Maximum Graphics Power with Dynamic Boost. *May vary by scenario

Video Memory

8GB GDDR6

Memory

8GB*2 DDR5-5600

Memory Slot and Max Capacity

DDR5-5200, 2 Slots, Max 64GB

Storage

1TB*1
NVMe SSD PCIe Gen4
”Please consult service center for upgrading SSD.”

Storage Slot

2x M.2 SSD slot (NVMe PCIe Gen4)

Keyboard

4-Zone RGB Gaming Keyboard

WebCam

HD type (30fps@720p)

Audio

2x 2W Audio Speaker
Nahimic 3 Audio Enhancer, Hi-Res Audio Ready

Audio Port

1x Mic-in/Headphone-out Combo Jack

USB Ports

2x Type-A USB3.2 Gen1
1x Type-A USB2.0
1x Type-C (USB3.2 Gen1 / DisplayPort™)

Video Ports

1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz)

LAN

Gigabit Ethernet

Wi-Fi/ Bluetooth

Intel®
Wi-Fi 6E AX211, Bluetooth v5.3

Security

Firmware Trusted Platform Module(fTPM) 2.0

AC Adapter

200W Adaptor

Battery

3-Cell
53.5 Whrs

Dimension (WXDXH)

359 x 259 x 24.9 mm

Weight (W/ Battery)

2.25 kg

Chassis Color

Black

Certification

Meta Ready

Warranty

2 years limited warranty

Xbox Game Pass

One month of PC Game Pass
*Spec and bundle offer may vary by model and by country. Please refer to the final specification of the product
purchased for Xbox Game Pass pre-installed details.

MSI Katana 15 HX B14WEK-052IT – Notebook Gaming 15.6″ IPS FHD 144Hz, Intel Core i7-14650HX, RTX 5050, 16GB DDR5, 1TB SSD, Win 11 Home

1.299,00
SKU: 9S7-1587C1-052
PROCESSORE

Intel® Core™ i7-14650HX Processor

Chipset Intel® HM770

SISTEMA OPERATIVO

Windows® 11 Home

DISPLAY

15.6" FHD (1920*1080), 144Hz 45%NTSC IPS-Level

GRAFICA

NVIDIA® GeForce RTX™ 5050 Laptop GPU, GDDR7 8GB

MEMORIA

DDR5 16GB
Fino a DDR5-5600 Max 96 GB
1TB NVMe PCIe SSD Gen4x4 w/o DRAM

SICUREZZA

Modulo di piattaforma affidabile del firmware (fTPM) 2.0

TASTIERA, AUDIO E VIDEO

Webcam Tipo HD (30 fps a 720p)
Tastiera da gioco RGB a 4 zone con tasto Copilot
2 altoparlanti da 2 W

RETE E PORTE

Gb LAN
802.11ax Wi-Fi 6E + Bluetooth v5.3
1x jack combo ingresso microfono/uscita cuffie
1x Tipo-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0)
3x Tipo-A USB3.2 Gen2
1x HDMI™ 2.1 (8K a 60 Hz / 4K a 120 Hz)
1x RJ45

BATTERIA E ALIMENTAZIONE

Batteria a 4 celle da 75 Wh
Adattatore da 240 W

DIMENSIONE E PESO

Dimensioni (LxPxA) 398 x 275,6 x 27,8 millimetri
Peso (con batteria) 2,7 kg

MSI Katana 15 HX B14WGK-034IT – Notebook Gaming 15.6″ FHD IPS 144Hz, Intel Core i7-14650HX, RTX 5070, 16GB DDR5, 1TB SSD, Win 11 Home

1.649,00
SKU: 9S7-1587C1-034
CPU

Intel® Core™ i7-14650HX Processor

OS

Windows® 11 Home Advanced

Display

15.6" FHD (1920*1080), 144Hz 45%NTSC IPS-Level

Chipset

Intel® HM770

Graphics

NVIDIA® GeForce RTX™ 5070 Laptop GPU 8GB GDDR7 powers advanced AI with 798 AI TOPS
Up to 2347MHz Boost Clock 115W Maximum Graphics Power with Dynamic Boost. *May vary by scenario

CPU and GPU Combined Power

*Full Power CPU & GPU

Memory

DDR5 8GB*2 5600Mhz, 2 Slots Max 96GB

Storage Capability

1TB NVMe PCIe SSD Gen4x4 w/o DRAM

Firmware Trusted Platform Module(fTPM) 2.0

Firmware Trusted Platform Module(fTPM) 2.0

Webcam

HD type (30fps@720p)

Keyboard

4-Zone RGB Gaming Keyboard with Copilot Key

Communication

Gb LAN
802.11 ax Wi-Fi 6E + Bluetooth v5.3

Audio

2x 2W Speaker

Audio Jack

1x Mic-in/Headphone-out Combo Jack

I/O Ports

1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0)
3x Type-A USB3.2 Gen2
1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz)

Battery

4-Cell
75 Battery (Whr)

AC Adapter

240W adapter

Dimension (WxDxH)

359 x 262 x 25.5 mm

Weight (w/ Battery)

2.4 kg

Color

Black

Xbox Game Pass

One month of PC Game Pass
*Spec and bundle offer may vary by model and by country. Please refer to the final specification of the product purchased for Xbox Game Pass pre-installed details.

MSI Katana 17 HX B14WFK-020IT – Notebook Gaming 17.3″ QHD IPS 240Hz, Intel Core i7-14650HX, RTX 5060, 16GB DDR5, 1TB SSD, Win 11 Home

Il prezzo originale era: 1.699,00 €.Il prezzo attuale è: 1.509,90 €.
SKU: 9S7-17L791-020
CPU

Intel® Core™ i7-14650HX Processor

OS

Windows 11 Home

Display

17.3" QHD (2560×1440), 240Hz, IPS-Level

Chipset

Intel® HM770

Graphics

NVIDIA® GeForce RTX™ 5060 Laptop GPU 8GB GDDR7 powers advanced AI with 572 AI TOPS
Up to 2497MHz Boost Clock 115W Maximum Graphics Power with Dynamic Boost. *May vary by scenario

CPU and GPU Combined Power

*Full Power CPU & GPU

Memory

DDR5 8GB*2 5600MHz Max 96GB, 2 Slots

Storage Capability

1TB M.2 SSD slot (NVMe PCIe Gen4)

Security

Firmware Trusted Platform Module(fTPM) 2.0

Webcam

HD type (30fps@720p)

Keyboard

4-Zone RGB Gaming Keyboard with Copilot Key

Communication

Gb LAN
802.11 ax Wi-Fi 6E + Bluetooth v5.3

Audio

2x 2W Speaker

Audio Jack

1x Mic-in/Headphone-out Combo Jack

I/O Ports

1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0)
3x Type-A USB3.2 Gen2
1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz)

Battery

4-Cell
75 Battery (Whr)

AC Adapter

240W adapter

Dimension (WxDxH)

398 x 275.6 x 27.8 mm

Weight (w/ Battery)

2.7 kg

Color

Black

Xbox Game Pass

One month of PC Game Pass
*Spec and bundle offer may vary by model and by country. Please refer to the final specification of the product purchased for Xbox Game Pass pre-installed details.

MSI MAG B850M MORTAR WIFI – Scheda Madre Micro-ATX, Socket AM5, DDR5, PCIe 5.0, USB 3.2, Wi-Fi 7, LAN 5G, Bluetooth 5.4 [911-7E61-001]

Il prezzo originale era: 289,00 €.Il prezzo attuale è: 249,00 €.
SKU: 911-7E61-001
Peso 0,8 kg
Dimensioni 24,4 × 24,4 × 3,5 cm
M.B. - Chipset

AMD B550

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only

Onboard Graphics

1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz

Slot

1x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)

Audio

Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output

Storage

3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
4x SATA 6G

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M2_2 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

M2_3 slot
• Supports up to PCIe 4.0 x2

Multi-GPU

AMD MULTI-GPU Support

RAID

• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB

4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

LAN

Realtek® 8126-VB 5G LAN

Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

WIRELESS LAN & BLUETOOTH

Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM

LED FEATURE

4x EZ Debug LED
1x EZ Memory Detection LED

BACK PANEL PORTS

Clear CMOS Button
5G LAN
USB 10Gbps Type-A
USB 5Gbps Type-A
Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps Type-A
USB 10Gbps Type-C
USB 20Gbps Type-C
Wi-Fi / Bluetooth
Optical S/PDIF Out

OPERATING SYSTEM

Support for Windows® 11 64-bit

MSI MAG Infinite E1 14NUC5-023AT – Gaming Desktop con Intel Core i5-14400F, RTX 4060 8G, 16GB DDR5, 1TB SSD, Wi-Fi 6E, Windows 11 Home

950,00
SKU: 9S6-B91111-023
Peso 9,03 kg
Dimensioni 56,5 × 24,2 × 51 cm
1 - Colore

Nero

1 - Marca

MSI

PC - Processore

Intel Core i5

PC - RAM

16GB

PC - RAM Tipo

DDR5

PC - Scheda Video

NVIDIA GeForce RTX 4060

PC - SSD

1TB

Case - Formato

Mini Tower

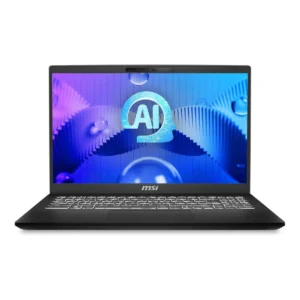

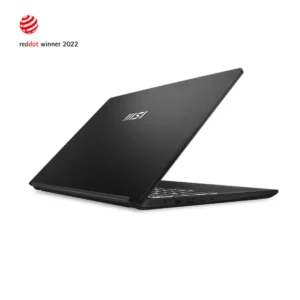

MSI Modern 15 H AI C1MG-097IT – Notebook Business Intel Core Ultra 7 155H, 15.6” FHD IPS, 16GB DDR5, 512GB SSD, Intel Arc, Wi-Fi 6E, Win 11 Home

649,00
SKU: 9S7-15H551-097
Peso 1,9 kg
Dimensioni 35,9 × 24,1 × 1,99 cm
CPU

Intel® Core™ Ultra 7 processor 155H with Intel® AI Boost (NPU)
16 cores (6 P-cores + 8 E-cores + 2 Low Power E-cores), Max Turbo Frequency 4.8 GHz

Operating Systems

Windows 11 Home (MSI recommends Windows 11 Pro for business.)

Display

15.6" FHD(1920×1080), IPS-Level

Chipset

Integrated SoC

Integrated Graphics

Intel® Arc™ graphics(*Intel®
Arc™ graphics requires configuration with 16GB dual-channel memory or above.)

Memory

8GB*2 DDR5-5600
*The actual frequency will vary by memory combination and CPU capability.

Memory Slot and Max Capacity

DDR5-5600, 2 Slots, Max 96GB

Storage

512GB*1 NVMe SSD PCIe Gen4
”Please consult service center for upgrading SSD.”

Storage Slot

1x M.2 SSD slot (NVMe PCIe Gen4)

Keyboard

Single Backlit Keyboard (White) with Copilot Key

WebCam

HD type (30fps@720p) with 3D Noise Reduction (3DNR)

Audio

2x 2W Audio Speaker
Hi-Res Audio Ready

Audio Port

1x Mic-in/Headphone-out Combo Jack

USB Ports

3x Type-A USB3.2 Gen1
1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0)

Video Ports

1x HDMI™ 2.1 (4K @ 60Hz)

Card Reader

1x microSD Card Reader

Wi-Fi/ Bluetooth

Intel® Wi-Fi 6E AX211, Bluetooth v5.3

Security

Firmware Trusted Platform Module(fTPM) 2.0

AC Adapter

90W Adaptor

Battery

3-Cell
39.3 Whrs

Dimension (WXDXH)

359 x 241 x 19.9 mm

Weight (W/ Battery)

1.9 kg

Chassis Color

Classic Black

Certification

MIL-STD-810H/G

Warranty

2 years limited warranty

MSI Modern 15 H AI C1MOG-215IT – Notebook Business Intel Core Ultra 7 155H, 15.6” FHD IPS, 16GB DDR5, 512GB SSD, Intel Arc, Wi-Fi 6E, Win 11 Home

659,00
SKU: 9S7-15H551-215
Peso 1,9 kg
Dimensioni 35,9 × 24,1 × 1,96 cm
CPU

Intel® Core™ Ultra 7 processor 155H with Intel® AI Boost (NPU)
16 cores (6 P-cores + 8 E-cores + 2 Low Power E-cores), 22 threads, 24 MB Intel® Smart Cache, Max Turbo
Frequency 4.8 GHz

Operating Systems

Windows 11 Home (MSI recommends Windows 11 Pro for business.)

Display

Integrated SoC

Integrated Graphics

Intel® Arc™ graphics(*Intel® Arc™ graphics requires configuration with 16GB dual-channel memory or above.)

Memory

8GB*2 DDR5-5600
*The actual frequency will vary by memory combination and CPU capability.

Memory Slot and Max Capacity

DDR5-5600, 2 Slots, Max 96GB

Storage

512GB*1 NVMe SSD PCIe Gen4
”Please consult service center for upgrading SSD.”

Storage Slot

1x M.2 SSD slot (NVMe PCIe Gen4)

Keyboard

Single Backlit Keyboard (White) with Copilot Key

WebCam

HD type (30fps@720p) with 3D Noise Reduction (3DNR)

Audio

2x 2W Audio Speaker
Hi-Res Audio Ready

Audio Port

1x Mic-in/Headphone-out Combo Jack

USB Ports

3x Type-A USB3.2 Gen1
1x Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0)

Video Ports

1x HDMI™ 2.1 (4K @ 60Hz)

Card Reader

1x microSD Card Reader

Wi-Fi/ Bluetooth

Intel® Wi-Fi 6E AX211, Bluetooth v5.3

Security

Firmware Trusted Platform Module(fTPM) 2.0

AC Adapter

90W Adaptor

Battery

3-Cell
39.3 Whrs

Dimension (WXDXH)

359 x 241 x 19.6 mm

Weight (W/ Battery)

1.9 kg

Chassis Color

Classic Black

Certification

MIL-STD-810H/G

Warranty

2 years limited warranty

MSI MPG B650I EDGE WIFI – Scheda Madre Mini-ITX, Socket AM5, DDR5, PCIe 4.0, USB 3.2, Wi-Fi 6E, LAN 2.5G, Bluetooth 5.3 [7D73-001R]

Il prezzo originale era: 284,99 €.Il prezzo attuale è: 245,00 €.
SKU: 7D73-001R
Peso 0,7 kg
Dimensioni 17 × 17 × 3 cm
M.B. - Chipset

AMD B650

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory

2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™

Onboard Graphics

1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz

Slot

1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

Audio

Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel

Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

RAID

Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

2x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

LAN

Realtek® RTL8125BG 2.5Gbps LAN

Internal IO

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

WIRELESS LAN & BLUETOOTH

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

Clear CMOS Button
USB 5Gbps (Type-A)
2.5G LAN
Wireless / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps (Type-A)
USB 10Gbps (Type-A)
USB 20Gbps (Type-C)

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

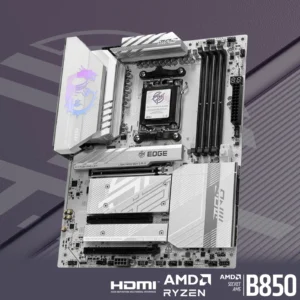

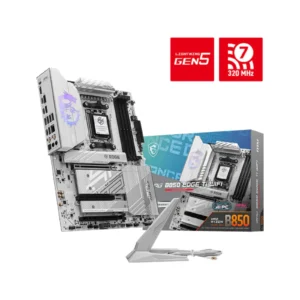

MSI MPG B850 EDGE TI WIFI – Scheda Madre AM5 B850 White/Silver, Wi-Fi 7, LAN 5G, PCIe 5.0, DDR5 8400+ (OC)

Il prezzo originale era: 339,00 €.Il prezzo attuale è: 249,00 €.
SKU: 601-7E62-01S
Peso 1,9 kg
Dimensioni 34 × 27 × 8 cm
Chipset

AMD B850

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard only have single-sided latche.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics

1x HDMI™
Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

3x PCI-E x16 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot (From CPU)
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

PCI_E2 slot (From B850 chipset)
• Supports up to PCIe 3.0 x1

PCI_E3* slot (From B850 chipset)
• Supports up to PCIe 4.0 x4

*PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slot

Audio

Realtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output

Storage

4x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G (Qty)

M.2_1 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
• Supports 2280/22110 storage devices

M.2_2 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

M2_3* slot (From Chipset)
• Supports up to PCIe 4.0 x2
• Supports 2260/2280 storage devices

M2_4 slot (From Chipset)
• Supports up to PCIe 4.0 x4
• Supports 2260/2280 storage devices

* PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot.

RAID

• Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices
*RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen 9000/7000 series CPU

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
3x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)

LAN

1x Realtek® 8126 5G LAN

Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED FEATURE

4x EZ Debug LED
1x EZ Digit Debug LED
1x EZ Memory Detection LED

BACK PANEL PORTS

Clear CMOS Button
USB 10Gbps Type-A
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps Type-C
USB 10Gbps Type-A
USB 10Gbps Type-C
Optical S/PDIF Out

OPERATING SYSTEM

Support for Windows® 11 64-bit

PCB Info

ATX
304.8mmx243.84mm
