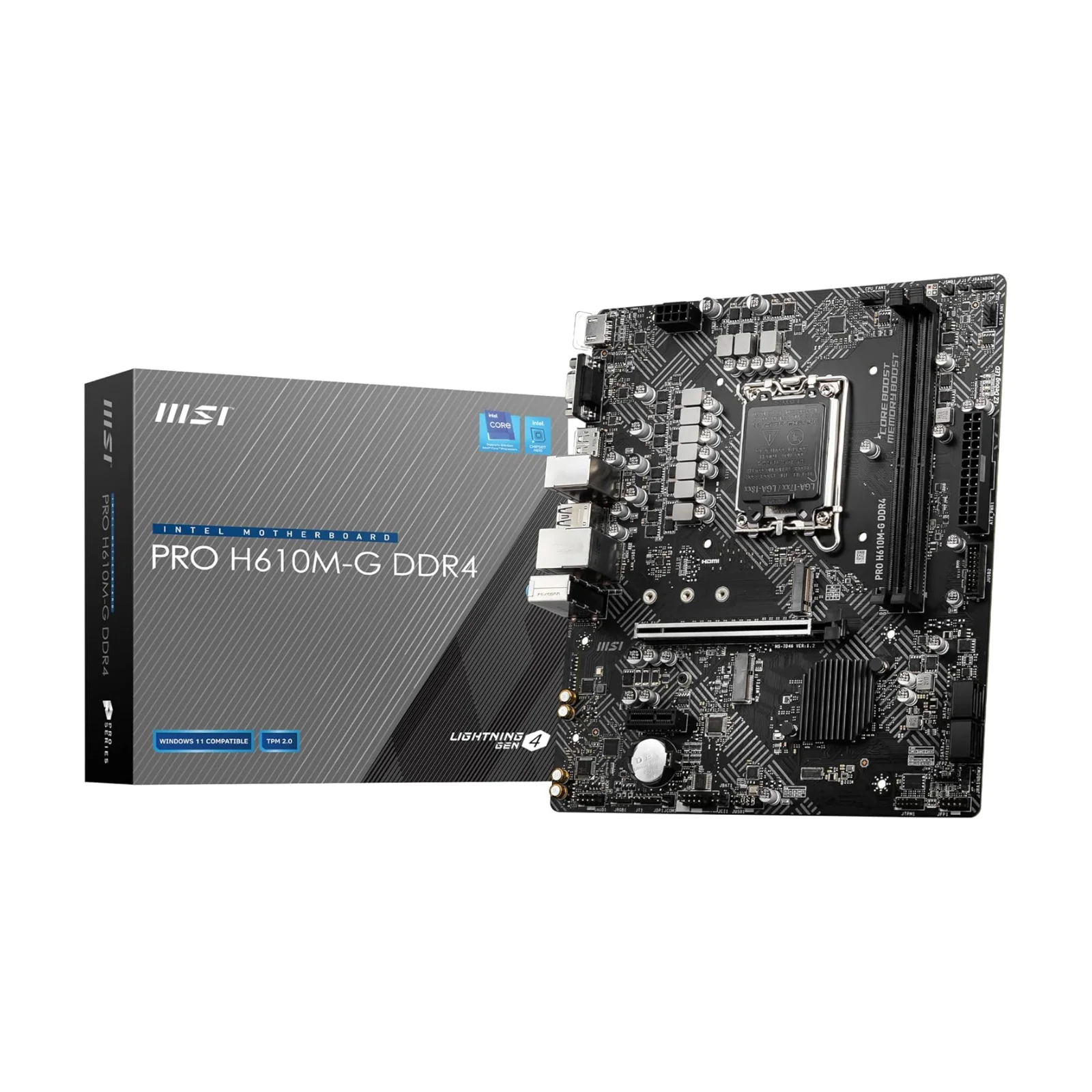

MSI PRO H610M-G (WIFI) DDR4 – Scheda Madre Micro-ATX Intel LGA 1700 con PCIe 4.0, USB 3.2 e Wi-Fi Opzionale

0 Persone guardano adesso questo prodotto!

COD: 4719072925024 / 4711377020626 Categoria: LGA 1700

Descrizione

MSI PRO H610M-G (WIFI) DDR4

🧠 Serie MSI PRO: lavorare in modo più intelligente

La serie PRO di MSI è pensata per chi cerca efficienza e longevità.
Queste schede madri sono progettate per garantire:

Funzionamento stabile nel tempo
Assemblaggio semplice anche per utenti fai-da-te
Compatibilità ampia con componenti e periferiche

Sono ideali per uffici, studi professionali, scuole e PC domestici affidabili, dove la continuità operativa è fondamentale.

🧩 Design user-friendly per assemblaggi senza stress

La MSI PRO H610M-G DDR4 adotta un design orientato al fai-da-te, con layout chiaro e soluzioni pensate per semplificare ogni fase dell’installazione:

Slot e connettori ben posizionati
BIOS intuitivo e strumenti di diagnostica MSI
Installazione rapida di CPU, RAM, storage e scheda grafica

È una piattaforma perfetta anche per chi assembla PC occasionalmente ma vuole un risultato professionale.

🛡️ Componenti affidabili e protezioni rinforzate

MSI utilizza componenti selezionati per garantire durata e stabilità:

PCI-E Steel Armor, con slot rinforzato per sostenere schede grafiche pesanti
Protezione contro interferenze elettromagnetiche (EMI)
Doppia protezione ESD per salvaguardare i componenti da scariche elettrostatiche

Queste soluzioni rendono la scheda adatta anche a sistemi che restano accesi molte ore al giorno.

⚡ Prestazioni stabili con Core Boost e Memory Boost

La PRO H610M-G DDR4 integra tecnologie MSI dedicate alla stabilità:

Core Boost, con alimentazione digitale ottimizzata per supportare CPU multi-core
Memory Boost, che migliora l’integrità del segnale della memoria per garantire compatibilità e prestazioni costanti

Il risultato è un sistema reattivo e affidabile, ideale per multitasking, produttività e utilizzo quotidiano.

🌐 Connettività completa, con o senza Wi-Fi

La scheda è disponibile in due varianti, per adattarsi a ogni esigenza:

Versione WIFI

Connessione Wi-Fi dual band integrata
Bluetooth per periferiche wireless
Ideale per postazioni senza cablaggio di rete

Versione senza WIFI

LAN Intel® Gigabit, ottimizzata per una connessione stabile e a bassa latenza
Soluzione perfetta per ambienti cablati e uffici aziendali

Entrambe offrono un networking affidabile per lavoro, streaming e utilizzo quotidiano.

🔊 Audio Boost: qualità sonora superiore

Il comparto audio è curato con la tecnologia Audio Boost:

Codec audio selezionati per una resa più pulita
Migliore isolamento delle tracce audio
Esperienza sonora superiore rispetto alle soluzioni base

Perfetto per videoconferenze, contenuti multimediali e uso quotidiano.

💾 Espandibilità moderna per PC attuali

La PRO H610M-G DDR4 offre una base solida per sistemi moderni:

Supporto a storage M.2 per SSD veloci
Compatibilità con PCIe 4.0 per schede grafiche e dispositivi di nuova generazione
Numerose porte USB per periferiche e accessori

Una piattaforma equilibrata che copre tutte le esigenze essenziali senza inutili complessità.

🖥️ Formato compatto, massima praticità

Il formato Micro-ATX consente di:

Assemblare PC compatti ma completi
Ridurre l’ingombro del case
Mantenere un buon livello di espandibilità

Ideale per desktop da ufficio, home PC e configurazioni professionali compatte.

FAQ

È adatta a PC da ufficio e lavoro?
Sì, è progettata proprio per produttività, stabilità e affidabilità.

Qual è la differenza tra versione Wi-Fi e non Wi-Fi?
La versione Wi-Fi integra Wi-Fi e Bluetooth, mentre la versione standard utilizza solo LAN cablata.

È indicata per il gaming?
È adatta a gaming leggero o casual, ma nasce principalmente per uso professionale e daily-use.

Supporta le CPU Intel più recenti?
Supporta i processori Intel® di 12ª generazione su socket LGA 1700.

È facile da assemblare?
Sì, il design user-friendly la rende ideale anche per utenti meno esperti.

Maggiori informazioni

Versione Wi-Fi: https://it.msi.com/Motherboard/PRO-H610M-G-WIFI-DDR4
Versione senza Wi-Fi: https://it.msi.com/Motherboard/PRO-H610M-G-DDR4

Informazioni aggiuntive

Peso	N/A
Dimensioni	N/A
Processor	Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1 Processor socket LGA1700
Chipset	Intel® H610 Chipset
Memory	2x DDR4 memory slots, support up to 64GB [1] Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory [1] Please refer to http://www.msi.com for more information on compatible memory.
Expansion Slot	1x PCIe x16 slot (From CPU) – Supports up to PCIe 4.0 x16 1x PCIe x1 slot – Supports PCIe 3.0 x1 — 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) (PRO H610M-G DDR4)
Wireless LAN & Bluetooth®	Intel® Dual Band Wireless-AC 3168 – Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. – Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2 (non c'è per il modello PRO H610M-G DDR4)
Onboard Graphics	1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz [1][2] 1x VGA port, supports a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz [1] 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz [1][2] [1] Available only on processors featuring integrated graphics. [2] Graphics specifications may vary depending on the CPU installed.
SATA Ports	4x SATA 6Gb/s ports [1] [1]* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 SSD Slot	1x M.2 slot (Key M, from chipset) [1] – Supports up to PCIe 3.0 x4 – Supports up to SATA 6Gb/s – Supports 2242/ 2260/ 2280 storage devices – Supports Intel® Smart Response Technology for Intel Core™ processors [1] SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
USB	Intel® H610 Chipset – 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) – 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
Audio	Realtek® ALC897 Codec – 7.1-Channel High Definition Audio
LAN	1x Intel® I219V 1Gbps LAN controller
Power Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector
Fan Connectors	1x 4-pin CPU fan connector 1x 4-pin system fan connector
System Connectors	1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector
Jumpers	1x Clear CMOS jumper
LED Features	1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED
Back panel ports	HDMI™ VGA DisplayPort Keyboard/Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0
Dimensions	PRO H610M-G WIFI DDR4: mATX Form Factor 9.61 x 8.31 in. (24.4 cm x 21.1 cm) — PRO H610M-G DDR4: mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm)
Operating System	Support for Windows® 11 64-bit
