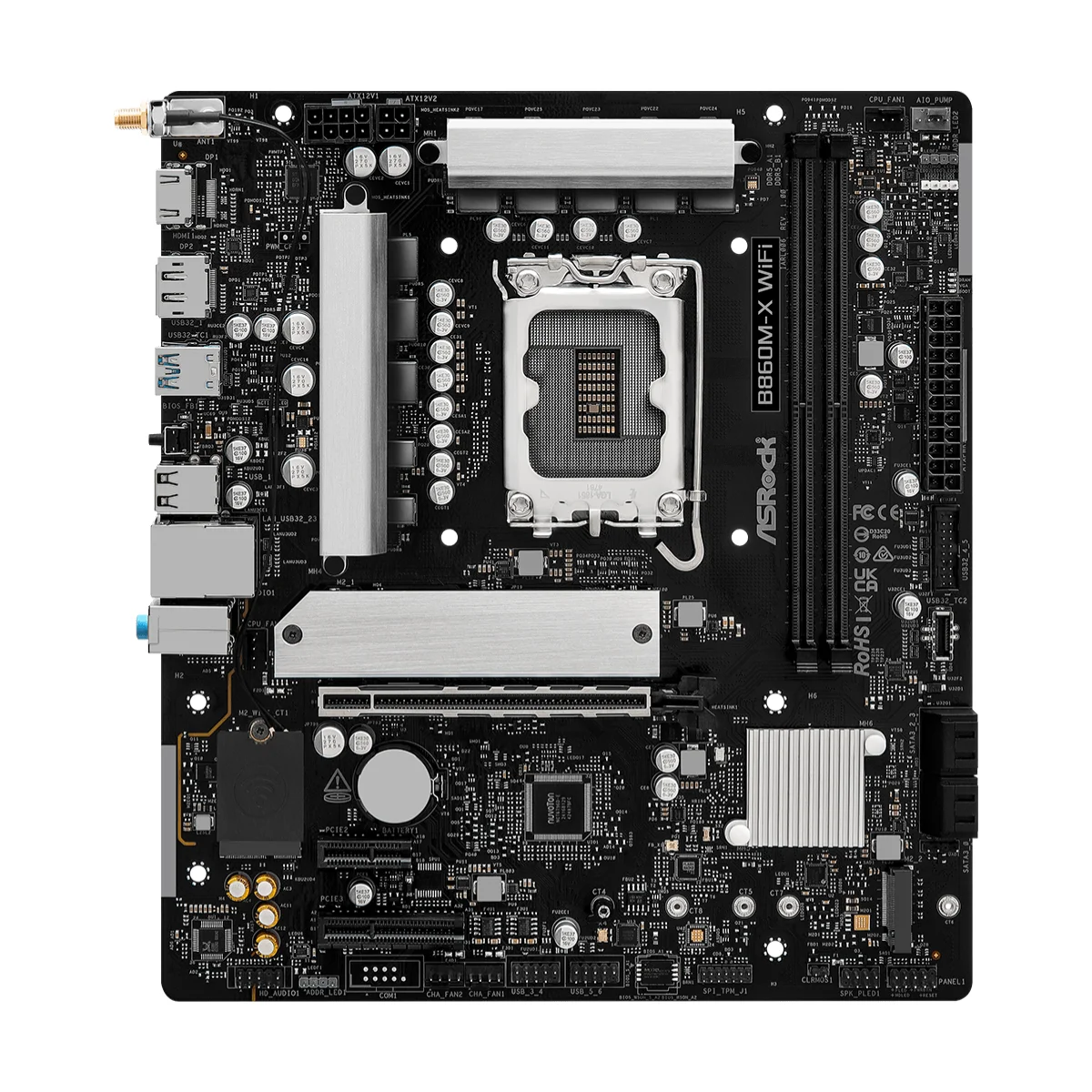

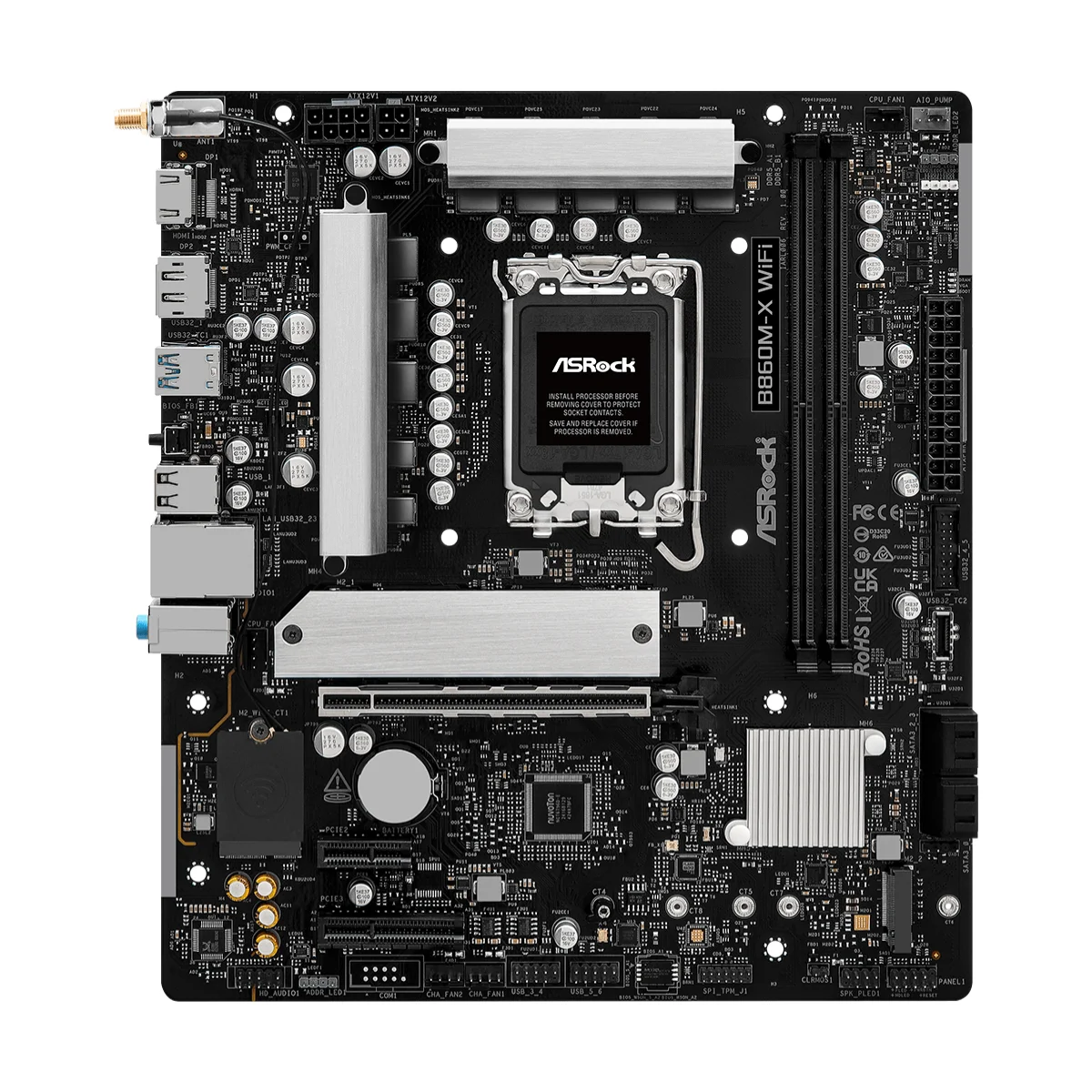

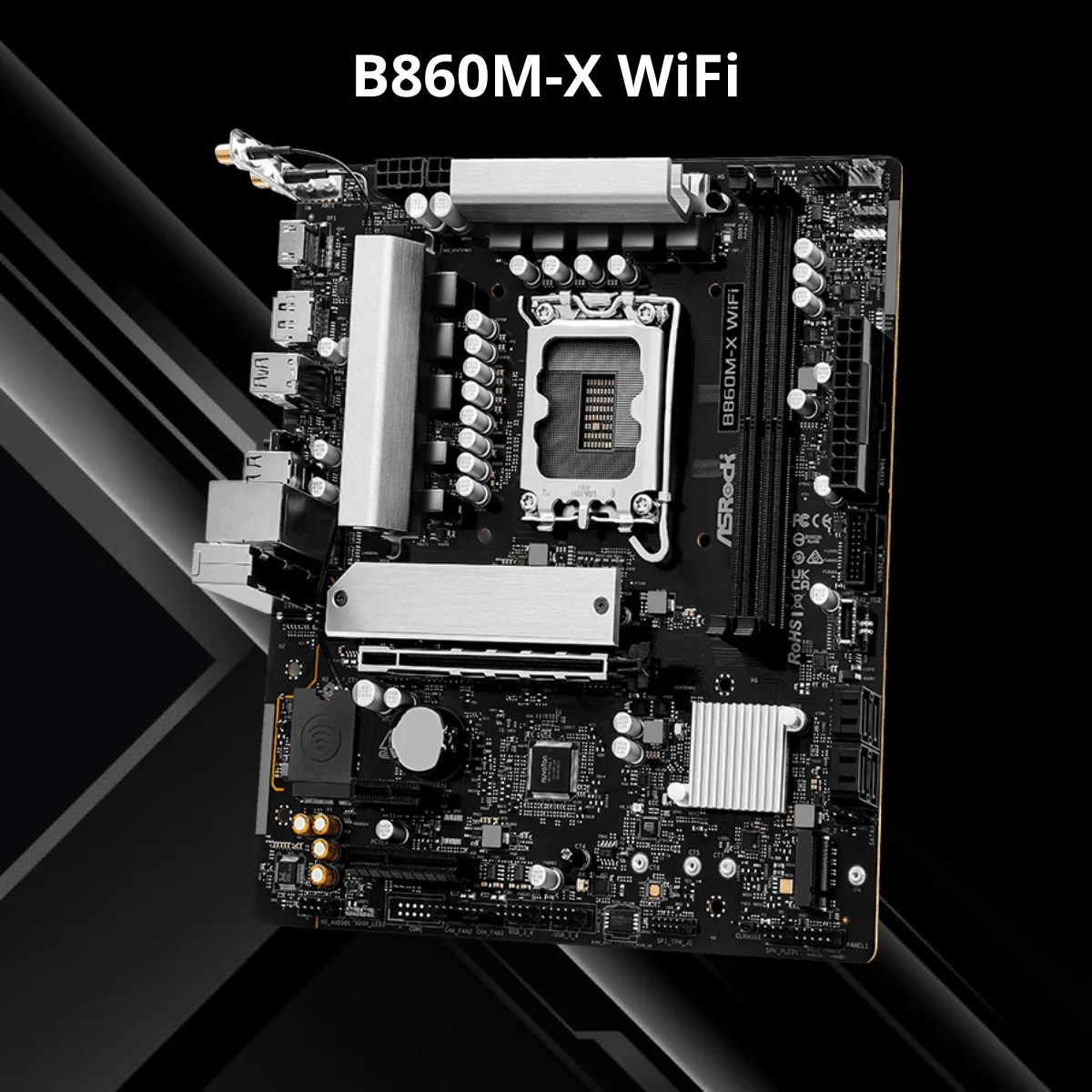

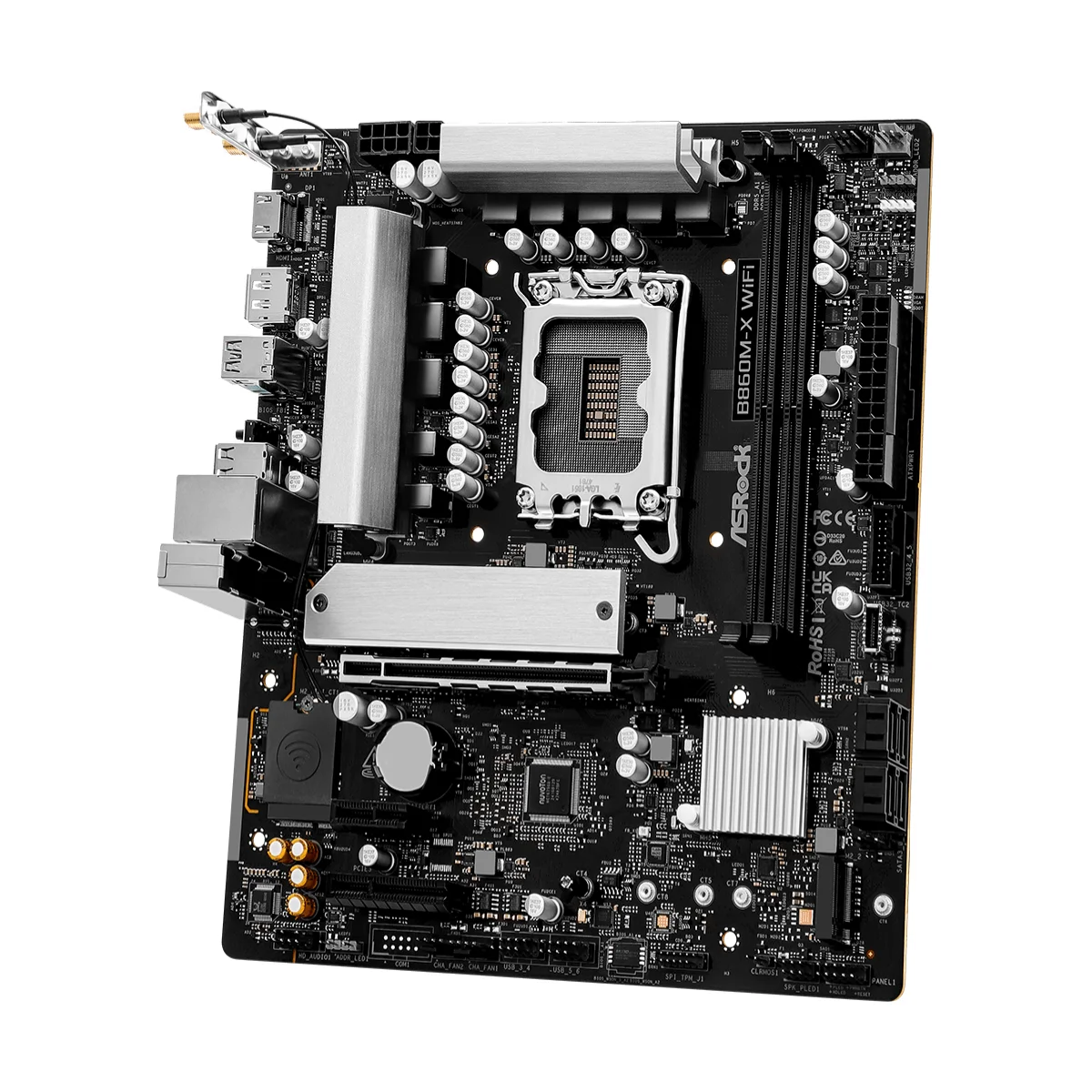

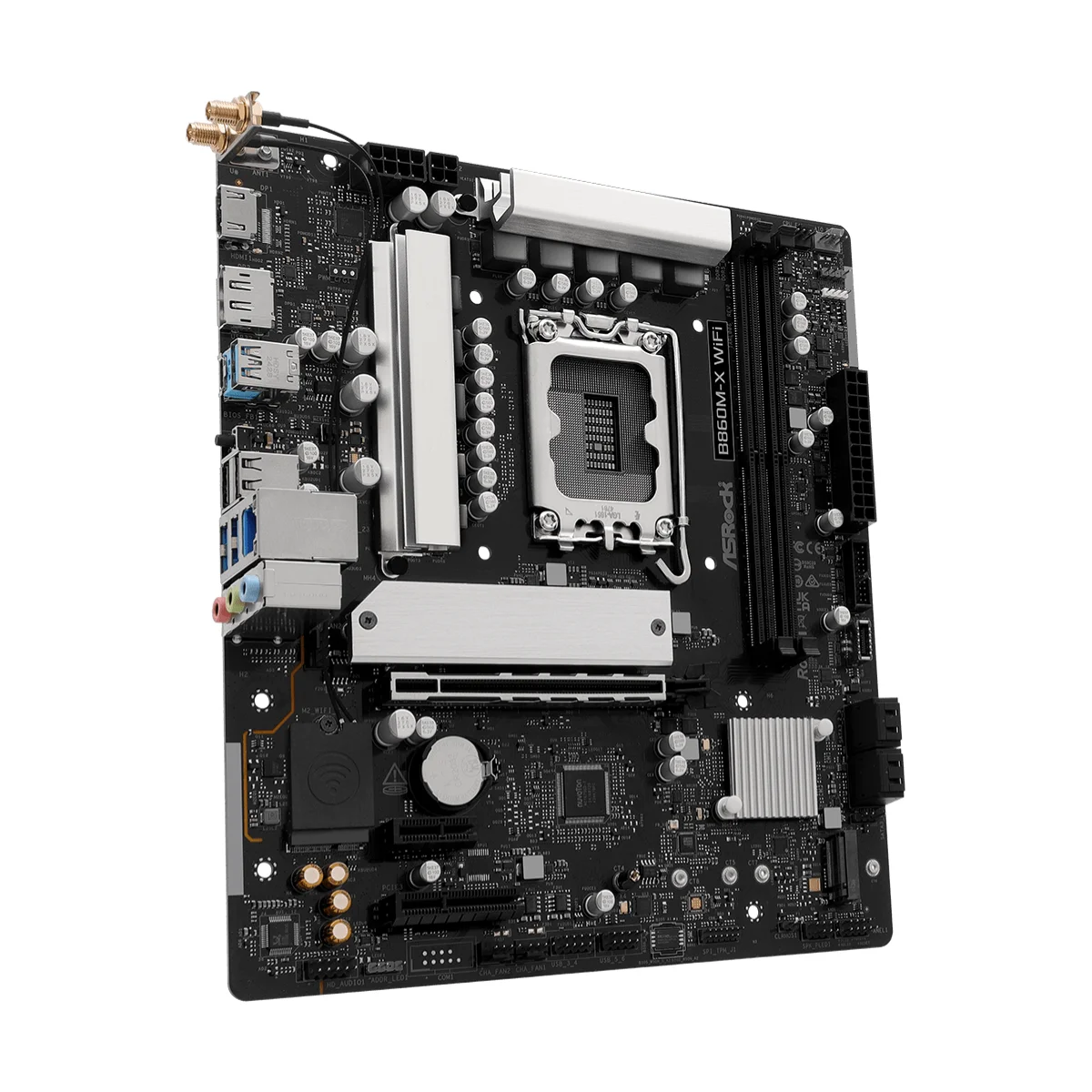

ASRock B860M-X WiFi
ASRock B860M-X WiFi – Scheda Madre Micro-ATX Intel B860 con DDR5, PCIe 5.0 M.2, Wi-Fi 6E e LAN 2.5G - immagine 2
ASRock B860M-X WiFi – Scheda Madre Micro-ATX Intel B860 con DDR5, PCIe 5.0 M.2, Wi-Fi 6E e LAN 2.5G - immagine 3
ASRock B860M-X WiFi – Scheda Madre Micro-ATX Intel B860 con DDR5, PCIe 5.0 M.2, Wi-Fi 6E e LAN 2.5G - immagine 4
ASRock B860M-X WiFi – Scheda Madre Micro-ATX Intel B860 con DDR5, PCIe 5.0 M.2, Wi-Fi 6E e LAN 2.5G - immagine 5
ASRock B860M-X WiFi – Scheda Madre Micro-ATX Intel B860 con DDR5, PCIe 5.0 M.2, Wi-Fi 6E e LAN 2.5G - immagine 6
ASRock B860M-X WiFi – Scheda Madre Micro-ATX Intel B860 con DDR5, PCIe 5.0 M.2, Wi-Fi 6E e LAN 2.5G - immagine 7
ASRock

ASRock B860M-X WiFi – Scheda Madre Micro-ATX Intel B860 con DDR5, PCIe 5.0 M.2, Wi-Fi 6E e LAN 2.5G

139,00 €

   Chipset Intel B860
Form Factor   Form Factor Micro-ATX
Socket   Socket LGA 1851
Tipo di Memoria   Tipo di Memoria DDR5

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4711581490413 COD: 90-MXBRY0-A0UAYZ Categoria:
Descrizione

B860M-X WiFi / 90-MXBRY0-A0UAYZ / 4711581490413

❄️ Prestazioni solide per PC moderni Intel

Progettata per offrire stabilità e reattività anche sotto carichi intensi:

  • Supporto CPU Intel Core™ Ultra Series 2 (Arrow Lake)

  • Design di alimentazione 7+1+1+1+1 fasi per una gestione efficiente dell’energia

  • PCB a 6 strati per segnali più puliti e temperature più basse

  • Ideale per produttività, multitasking e utilizzo quotidiano avanzato

⚡ DDR5 e storage di nuova generazione

La B860M-X WiFi è pronta per le tecnologie più recenti:

  • DDR5 Dual Channel fino a 9066+ MHz (OC)

  • Supporto Intel XMP 3.0

  • 1 slot M.2 PCIe 5.0 x4 (Blazing M.2) per SSD ultra-veloci

  • 1 slot M.2 PCIe 4.0 x4 (Hyper M.2)

  • 4 porte SATA 6Gb/s per archiviazione tradizionale

🌐 Connettività completa: Wi-Fi 6E, LAN 2.5G e USB 20Gbps

Pensata per connessioni veloci e stabili:

  • Wi-Fi 6E (802.11axe) con banda a 6GHz

  • LAN Realtek 2.5Gb per gaming online e trasferimenti rapidi

  • USB 3.2 Gen2x2 Type-C 20Gbps sul pannello posteriore

  • USB Type-C frontale per la massima praticità

🌀 Raffreddamento intelligente e build semplificata

ASRock cura anche l’esperienza di assemblaggio:

  • Dissipatori in alluminio per VRM e M.2

  • Header PWM/DC auto-detect per ventole e AIO

  • Fan-Tastic Tuning per ottimizzare rumore e temperature

  • BIOS Flashback: aggiorni il BIOS senza CPU o RAM

✨ RGB personalizzabile e compatibilità totale

Perfetta anche per build curate esteticamente:

  • Polychrome RGB con header RGB e ARGB

  • Compatibile con SignalRGB

  • Uscite video HDMI 2.1 + DisplayPort 1.4

  • Audio Realtek ALC897 7.1 HD

❓ FAQ

È compatibile con i processori Intel Core Ultra Series 2?
Sì, supporta tutti i processori Intel® Core™ Ultra (Series 2) con socket LGA1851.

Supporta SSD PCIe 5.0?
Sì, dispone di 1 slot M.2 PCIe Gen5 x4 per storage di ultima generazione.

Ha Wi-Fi integrato?
Sì, include Wi-Fi 6E con supporto alla banda 6GHz e Bluetooth integrato.

È adatta a build compatte?
Assolutamente sì: il formato Micro-ATX la rende ideale per case compatti senza rinunciare alle funzionalità.

Serve una GPU dedicata?
No, se usi una CPU con grafica integrata puoi sfruttare HDMI e DisplayPort direttamente dalla scheda madre.

🔗 Maggiori informazioni ufficiali

👉 https://asrock.com/mb/Intel/B860M-X%20WiFi/index.it.asp

Informazioni aggiuntive
Peso 0,6 kg
Dimensioni 24,4 × 21,8 × 2,5 cm
Caratteristica Unica

Produttività superba
– PCIe Gen5 (M.2)
– Dual Channel DDR5
Solida durabilità
– 7+1+1+1+1 Power Phase
Connettività ultraveloce
– 2.5G LAN, 802.11axe Wi-Fi 6E Module
Aggiornamento EZ
– Interruttore BIOS Flashback
– Programma di installazione del driver automatico ASRock
Risoluzione dei problemi EZ
– ASRock Checker stato post
CPU

– Supporta Intel® Core™ Ultra Processors (Series 2) (LGA1851)
– Supporta Intel® Hybrid Technology
– Supporta Intel® Turbo Boost Max 3.0 Technology
– Supporta Intel® Incremento della velocità termica (TVB)
– Supporta Intel® Tecnologia ad incremento adattivo (ABT)
– NPU integrata per accelerazione IA dedicata
Chipset

– Intel® B860
Memoria

– Dual Channel DDR5 Memory Technology
– 2 x DDR5 slot DIMM
– Supporta DDR5 non-ECC, momoria senza buffer up to 9066+(OC)*
– Supporta Clocked Unbuffered DIMM (CUDIMM)
– Capacità massima della memoria di sistema: 128GB
– Supporto di Intel® XMP (Profilo di memoria estrema) 3.0x
–
*1DPC 1R Up to 9066+ MHz (OC), 6400 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively.
BIOS

– BIOS legale 256 Mb AMI UEFI con supporto GUI
Schede Grafiche

– Intel® Xe LPG Architettura grafica
– 1 x HDMI 2.1 TMDS/FRL Compatibile con l’8G, Supporta HDR, HDCP 2.3 e max. Risoluzione up to 4K 120Hz
– 1 x DisplayPort 1.4 con DSC (compresso), supporta HDCP 2.3 e risoluzione massima fino a 8K 60Hz/5K 120Hz
–
*Intel® UHD Graphics Visuals integrata e le uscite VGA possono essere supportate solo con processori con GPU integrata.
Audio

– Audio HD a 7.1 canali (Realtek ALC897 Audio Codec)
LAN

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supporta Dragon 2.5G LAN Software
– Controllo regolazione della larghezza di banda automatico e intelligente
– Interfaccia grafica intuitiva
– Statistiche visive di utilizzo della rete
– Impostazioni predefinite e ottimizzate per modalità gioco, browser e streaming
– Controllo priorità personalizzato dall'utente
Wireless LAN

– 802.11axe Wi-Fi 6E Module
– Supporta IEEE 802.11a/b/g/n/ac/ax/axe
– Supporta Dual-Band 2×2 con supporto esteso della banda a 6GHz*
– CPU, CPU opzionale/Pompa dell’acqua, ventole del case
– Supporta Bluetooth 5.3
– Supporta MU-MIMO
–
*The 6GHz band of Wi-Fi 6E module is supportato da Microsoft® Windows® 11 only. La disponibilità della banda 6 GHz dipenderà dal diverso stato di regolamentazione di ciascun Paese e regione. Verrà attivato (per i Paesi supportati) tramite Windows® Update e aggiornamenti software non appena disponibili.
Per la funzionalità 6E è necessario un router compatibile con 6GHz.
Slot di espansione

CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), Supporta a modalità x16*
Chipset:
– 1 x PCIe 4.0 x1 Slot (PCIE2)*
– 1 x PCIe 4.0 x4 Slot (PCIE3), Supporta a modalità x4*
– 1 x socket M.2 (Key E), supporta il modulo Wi-Fi/BT PCIe WiFi di tipo 2230 e Intel® CNVio/CNVio2 (Wi-Fi/BT integrato)
–
*SSD NVMe come dischi di avvio
Immagazzinamento

CPU:
– 1 x Blazing socket M.2 (M2_1, Key M), Supporta type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x socket Hyper M.2 (M2_2, Key M), Supporta type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x connettori SATA3 6.0 Go/s
–
*Supporta il dispositivo Intel® Volume Management (VMD)
SSD NVMe come dischi di avvio
RAID

– Supporta RAID 0, RAID 1, RAID 5 e RAID 10 per dispositivi di archiviazione SATA
USB

CPU:
– 1 x USB 3.2 Gen2x2 Type-C (posteriori)
Chipset:
– 1 x USB 3.2 Gen1 Type-C (frontali)
– 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 frontali)
– 6 x USB 2.0 (2 Rear, 4 Front)
–
*Tutte le porte USB supportano la protezione ESD.
Connettore

– 1 x collettore SPI TPM
– 1 x LED di alimentazione e header altoparlanti
– 1 x collettore RGB LED*
– 2 x Header LED indirizzabiles**
– 2 x Connettore CPU ventola (4-pin) (Controllo intelligente della velocità della ventola)***
– 2 x Connettore Chassis ventola (4-pin) (Controllo intelligente della velocità della ventola)***
– 1 x AIO Pump Fan Connector (4-pin) (Controllo intelligente della velocità della ventola)***
– 1 x 24-pin collettore alimentazione ATX
– 1 x 8-pin connettore ATX 12V (Connettore di potenza ad alta densità)
– 1 x 4-pin connettore ATX 12V (Connettore di potenza ad alta densità)
– 1 x connettore audio sul pannello frontale
– 2 x collettore USB 2.0 (supporta 4 porte USB 2.0)
– 1 x collettore USB 3.2 Gen1 (supporta 2 porte USB 3.2 Gen1)
– 1 x Header USB 3.2 Gen1 di tipo C sul pannello frontale
–
*Supporta strisce LED fino a 12V/3A 36W
–
**supporta in total up to 5V/3A, 15W LED Strip
–
***CPU_FAN1 supporta una potenza della ventola fino a 1 A (12 W).
CPU_FAN2, CHA_FAN1~2 e AIO_PUMP supporta the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~2 e AIO_PUMP possono automaticamente rilevare se la ventola a 3 pin o a 4 pin è in uso.

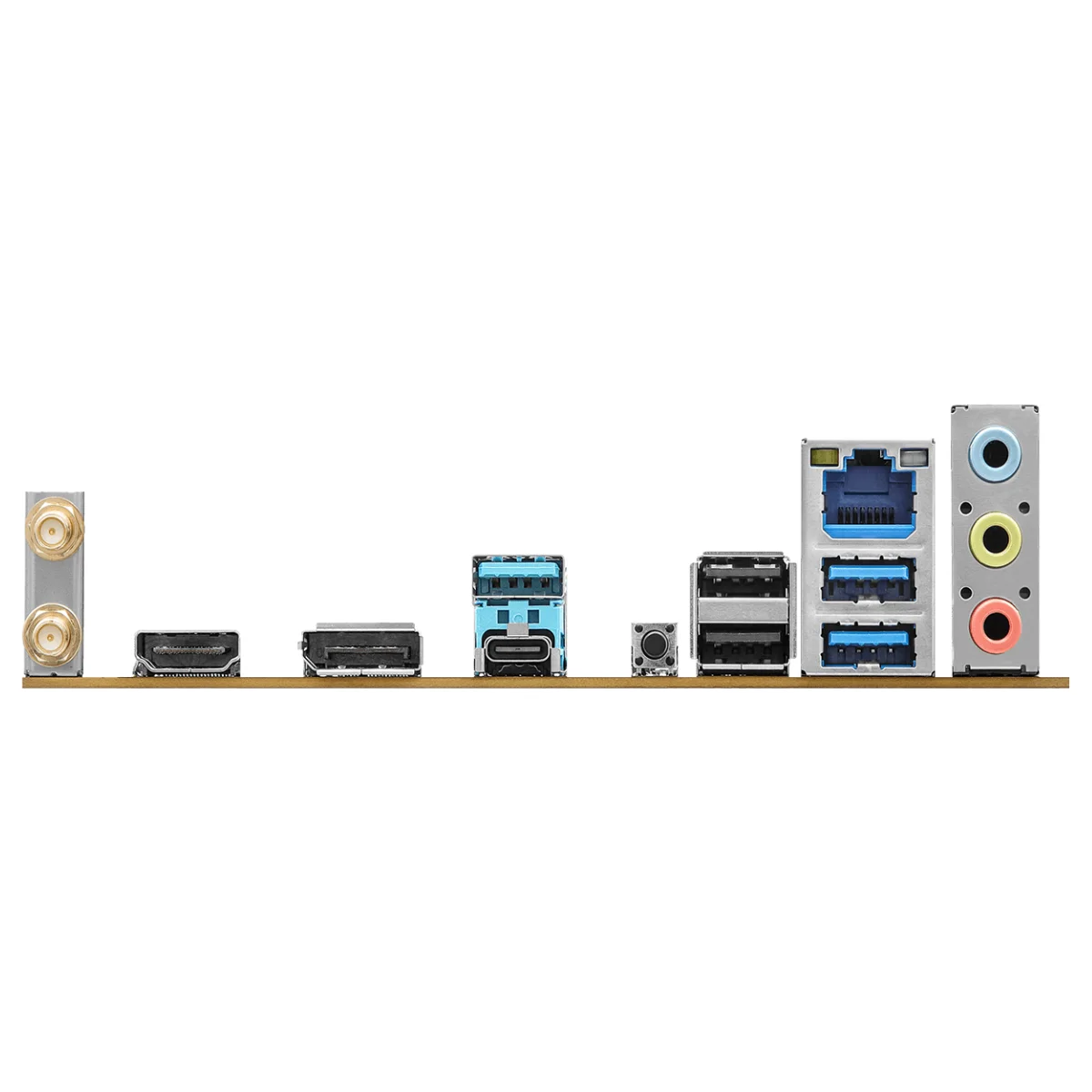

Pannello Posteriore I/O

– 2 x Porte dell'antenna
– 1 x porta HDMI
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
– 3 x porte USB 3.2 Gen1
– 2 x porte USB 2.0
– 1 x porte LAN RJ-45
– 1 x Interruttore BIOS Flashback
– Jack Audio HD: ingresso linea / cassa frontale / microfono
Software e UEFI

Software
– ASRock Scheda Madre Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Modalità EZ
– ASRock UEFI Full HD
– ASRock My Favorites in UEFI
– Programma di installazione del driver automatico ASRock
– ASRock Flash istantaneo
–
*Queste utility possono essere scaricate da App Shop.

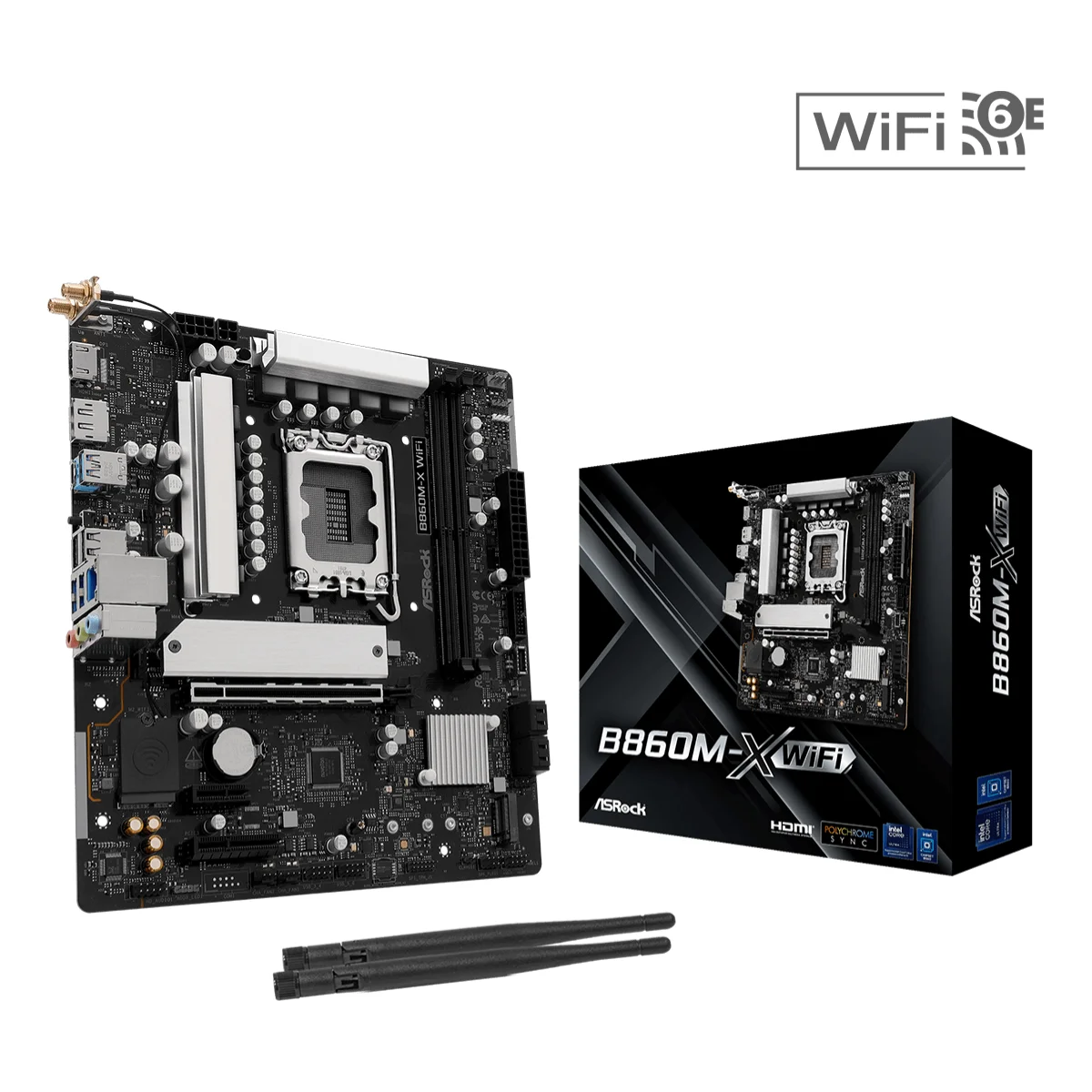

Accessori

– 1 x I/O Shield
– 2 x cavi dati SATA
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas
– 1 x Vite per Socket M.2
– 1 x Standoff per prese M.2
Fattore di Forma

– Fattore di forma Micro ATX: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm
OS

– Microsoft® Windows® 11 64-bit
Certificazioni

– FCC, CE
– Predisposto ErP/EuP (è necessaria l’alimentazione predisposta per il sistema ErP/EuP)
