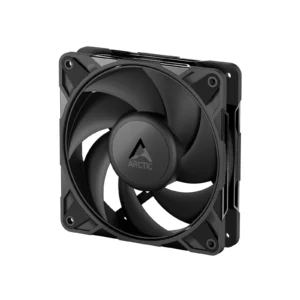

ARCTIC P12 Pro PST
ARCTIC P12 Pro PST – Ventola PWM 120 mm ad Alta Pressione Statica per Radiatori e Case Il prezzo originale era: 14,49 €.Il prezzo attuale è: 12,00 €.
Torna ai prodotti
AMD Ryzen 5 5500
AMD Ryzen 5 5500 – CPU Processore Desktop 6 Core / 12 Thread Zen 3 fino a 4,2 GHz, Socket AM4, 65W 109,00 €
Esaurito
MSI B550M PRO-VDH WIFI
MSI B550M PRO-VDH WIFI – Scheda Madre mATX AMD AM4 con Wi-Fi, PCIe 4.0 e M.2 Shield Frozr - immagine 2
MSI B550M PRO-VDH WIFI – Scheda Madre mATX AMD AM4 con Wi-Fi, PCIe 4.0 e M.2 Shield Frozr - immagine 3
MSI B550M PRO-VDH WIFI – Scheda Madre mATX AMD AM4 con Wi-Fi, PCIe 4.0 e M.2 Shield Frozr - immagine 4
MSI B550M PRO-VDH WIFI – Scheda Madre mATX AMD AM4 con Wi-Fi, PCIe 4.0 e M.2 Shield Frozr - immagine 5
Clicca per ingrandire

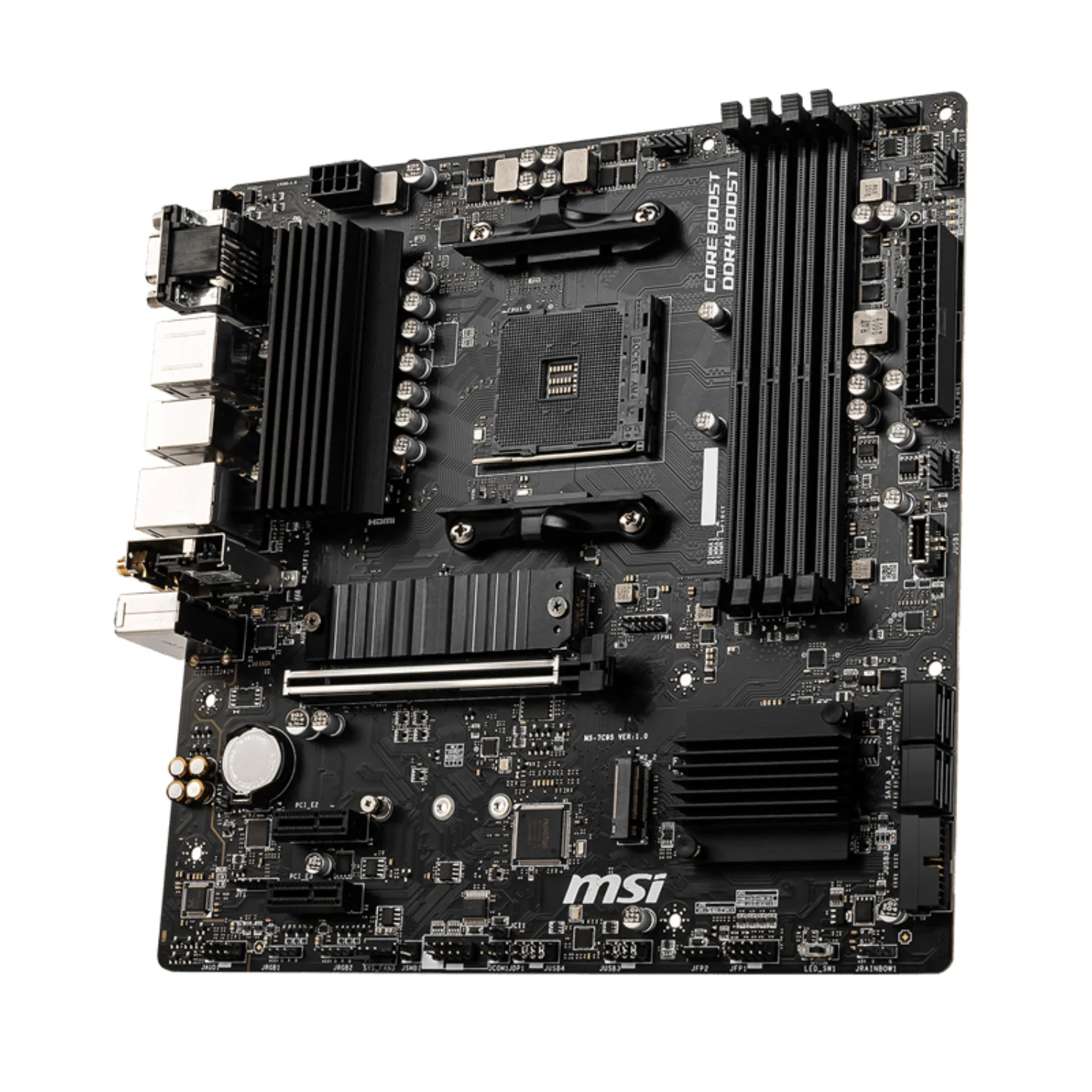

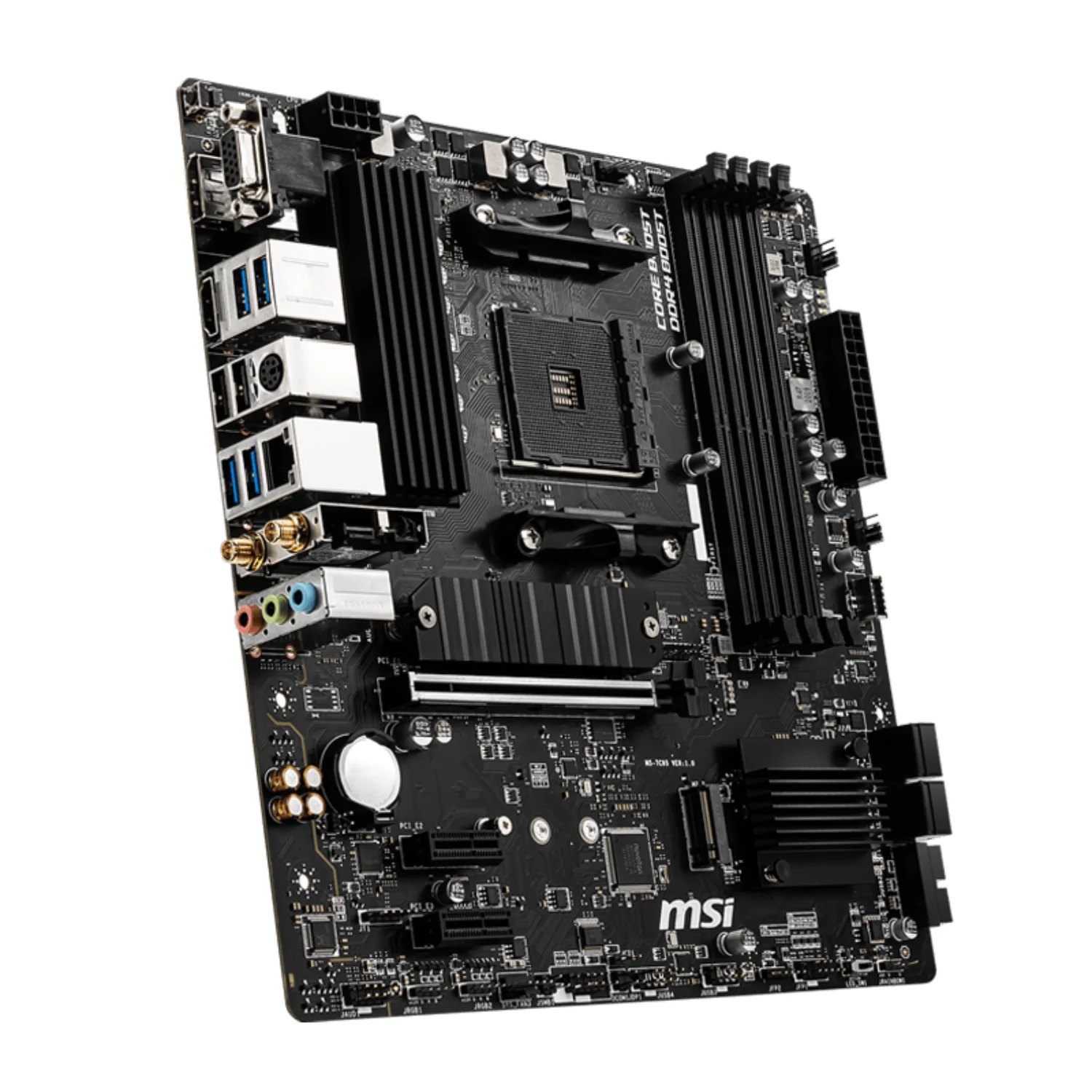

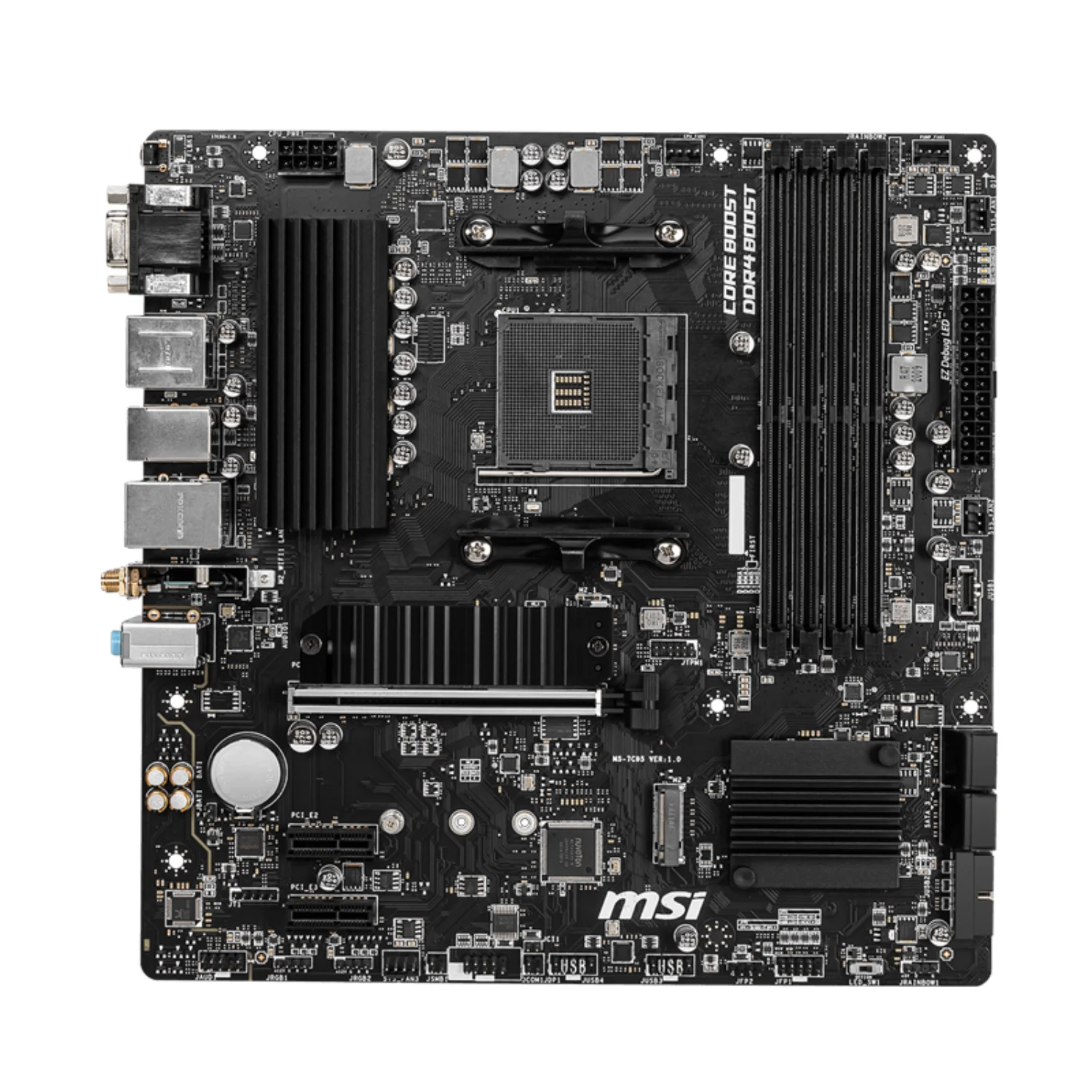

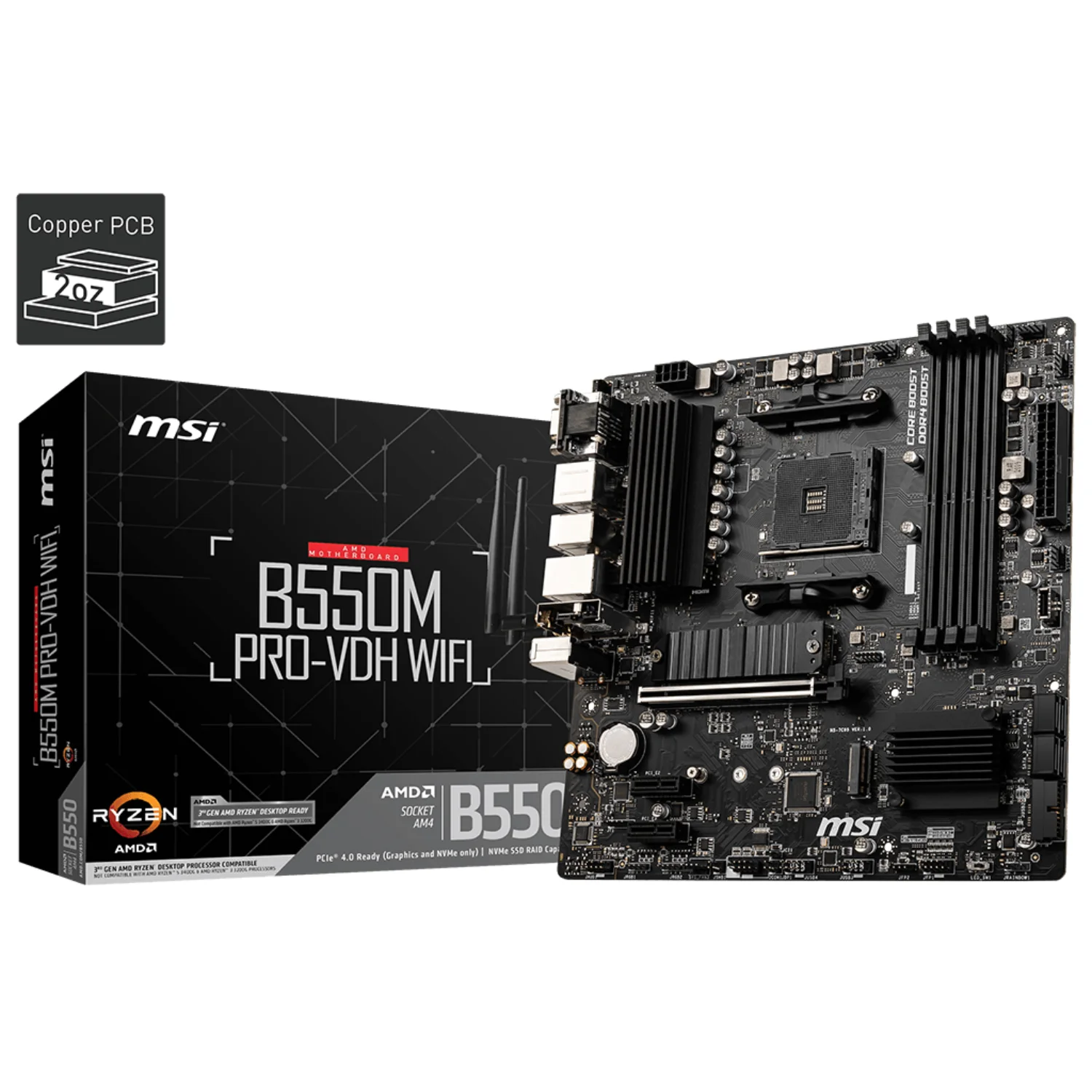

MSI B550M PRO-VDH WIFI
MSI B550M PRO-VDH WIFI – Scheda Madre mATX AMD AM4 con Wi-Fi, PCIe 4.0 e M.2 Shield Frozr - immagine 2
MSI B550M PRO-VDH WIFI – Scheda Madre mATX AMD AM4 con Wi-Fi, PCIe 4.0 e M.2 Shield Frozr - immagine 3
MSI B550M PRO-VDH WIFI – Scheda Madre mATX AMD AM4 con Wi-Fi, PCIe 4.0 e M.2 Shield Frozr - immagine 4
MSI B550M PRO-VDH WIFI – Scheda Madre mATX AMD AM4 con Wi-Fi, PCIe 4.0 e M.2 Shield Frozr - immagine 5
MSI

MSI B550M PRO-VDH WIFI – Scheda Madre mATX AMD AM4 con Wi-Fi, PCIe 4.0 e M.2 Shield Frozr

119,00 €

   Chipset AMD B550
Form Factor   Form Factor Micro-ATX
Socket   Socket AM4
Tipo di Memoria   Tipo di Memoria DDR4

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 4719072733698 COD: 911-7C95-010 Categoria:
Descrizione

MSI B550M PRO-VDH WIFI / 911-7C95-010 / 4719072733698

⚙️ Prestazioni solide per lavoro e produttività

Parte della serie PRO di MSI, questa scheda madre è costruita per ridurre i problemi nel tempo e garantire una piattaforma affidabile:

  • Supporto ai processori AMD Ryzen™ di 3ª generazione e successivi (con aggiornamento BIOS)

  • Design di alimentazione Core Boost per una distribuzione di corrente stabile

  • PCB con rame ispessito da 2oz per maggiore efficienza elettrica e termica

È la base ideale per sistemi da ufficio avanzati, workstation entry-level e PC multitasking.

❄️ Raffreddamento ottimizzato e controllo totale

La B550M PRO-VDH WIFI è progettata per mantenere prestazioni costanti anche sotto carico:

  • M.2 Shield Frozr per prevenire il thermal throttling degli SSD NVMe

  • Supporto completo a raffreddamento a liquido AIO, con header dedicato per la pompa

  • Total Fan Control da BIOS e software per regolare curve, temperature e rumorosità

Il risultato è un sistema più fresco, silenzioso e duraturo.

🚀 Storage e memoria di nuova generazione

La piattaforma B550 consente di sfruttare tecnologie moderne:

  • PCIe 4.0 per GPU e SSD NVMe ad alte prestazioni

  • Lightning Gen4 M.2 con velocità fino a 64 Gb/s

  • Supporto DDR4 fino a 4400 MHz (OC) con profili A-XMP per un boost immediato delle prestazioni

Perfetta per migliorare tempi di caricamento, reattività del sistema e flussi di lavoro intensivi.

🔊 Audio e connettività di qualità

Nonostante il formato compatto, la scheda offre un’esperienza completa:

  • Audio Boost con circuito isolato e condensatori di alta qualità

  • LAN Gigabit Realtek + Wi-Fi integrato, ideale per ambienti senza cablaggio

  • USB frontale Type-C per dispositivi moderni

  • Supporto RGB tramite Mystic Light, con header JRGB e JRAINBOW

🧩 Gestione semplificata con software MSI

Grazie a MSI Dragon Center, puoi:

  • Monitorare hardware e temperature

  • Gestire ventole e profili di utilizzo

  • Aggiornare driver e BIOS

  • Controllare l’illuminazione RGB

Tutto da un’unica interfaccia intuitiva.

❓ FAQ

È adatta per gaming?
Sì, supporta CPU Ryzen, GPU PCIe 4.0 e memorie ad alta frequenza, rendendola valida anche per gaming in Full HD / QHD.

Ha il Wi-Fi integrato?
Sì, è dotata di Wi-Fi onboard, ideale per postazioni senza Ethernet.

Supporta SSD PCIe 4.0?
Sì, lo slot Lightning Gen4 M.2 con Shield Frozr è progettato per SSD NVMe ad alte prestazioni.

È adatta a case compatti?
Sì, il formato micro-ATX la rende compatibile con la maggior parte dei case mid-tower e compact.

🔗 Maggiori informazioni

Specifiche complete e supporto ufficiale MSI:
👉 https://it.msi.com/Motherboard/B550M-PRO-VDH-WIFI/Overview

Informazioni aggiuntive
Peso 0,8 kg
Dimensioni 24,4 × 24,4 × 2 cm
CPU

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Chipset

AMD B550 Chipset
Memory

4x DDR4 memory slots, support up to 128GB 1
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHZ
1DPC 2R max speed 3733 MHZ
2DPC 1R max speed 3866 MHZ
2DPC 2R max speed 3466 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory
Supports un-buffered memory
Expansion Slot

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
2x PCIe 3.0 x1 slots
Onboard Graphics

1x VGA port, supports resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz1
1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz1
1x HDMI™ 2.1 port, supports a maximum resolution of 4096×2160 @60Hz12
Maximum shared memory of 16 GB
Storage

AMD B550 Chipset
4x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4 1
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0×4
Supports 2242/ 2260/ 2280 storage devices
RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB

AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio

Realtek® ALC892 Codec
7.1-Channel High Definition Audio
LAN

1x Realtek® 8111HN Gigabit LAN controller
Internal connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper

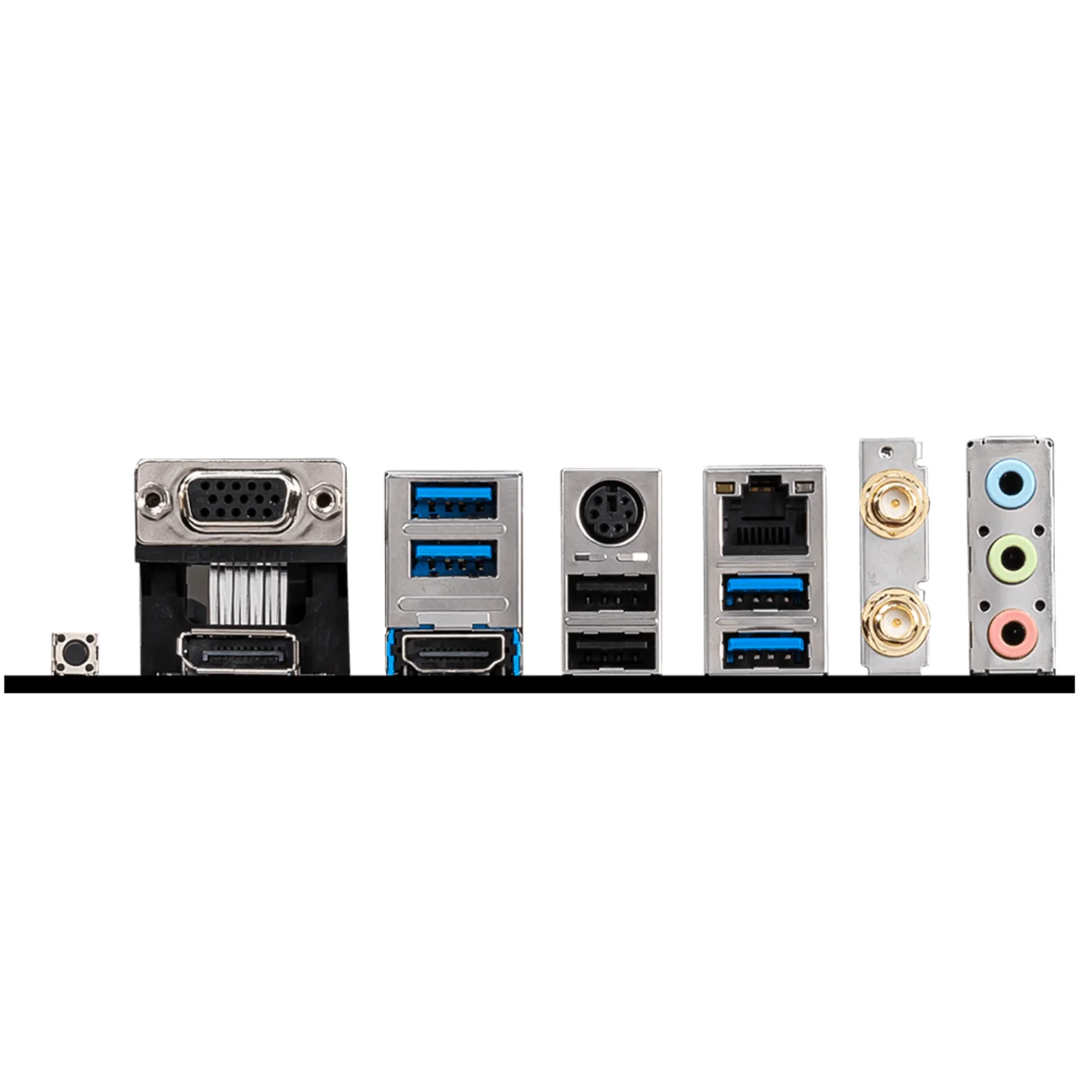

Back panel ports

VGA
USB 3.2 Gen 1 5Gbps Type-A
Keyboard / Mouse
LAN
Flash BIOS Button
DisplayPort
HDMI™
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
Wi-Fi Antenna connectors
3x Audio jacks
Dimensions

Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
MOUNTING

8 mounting holes
