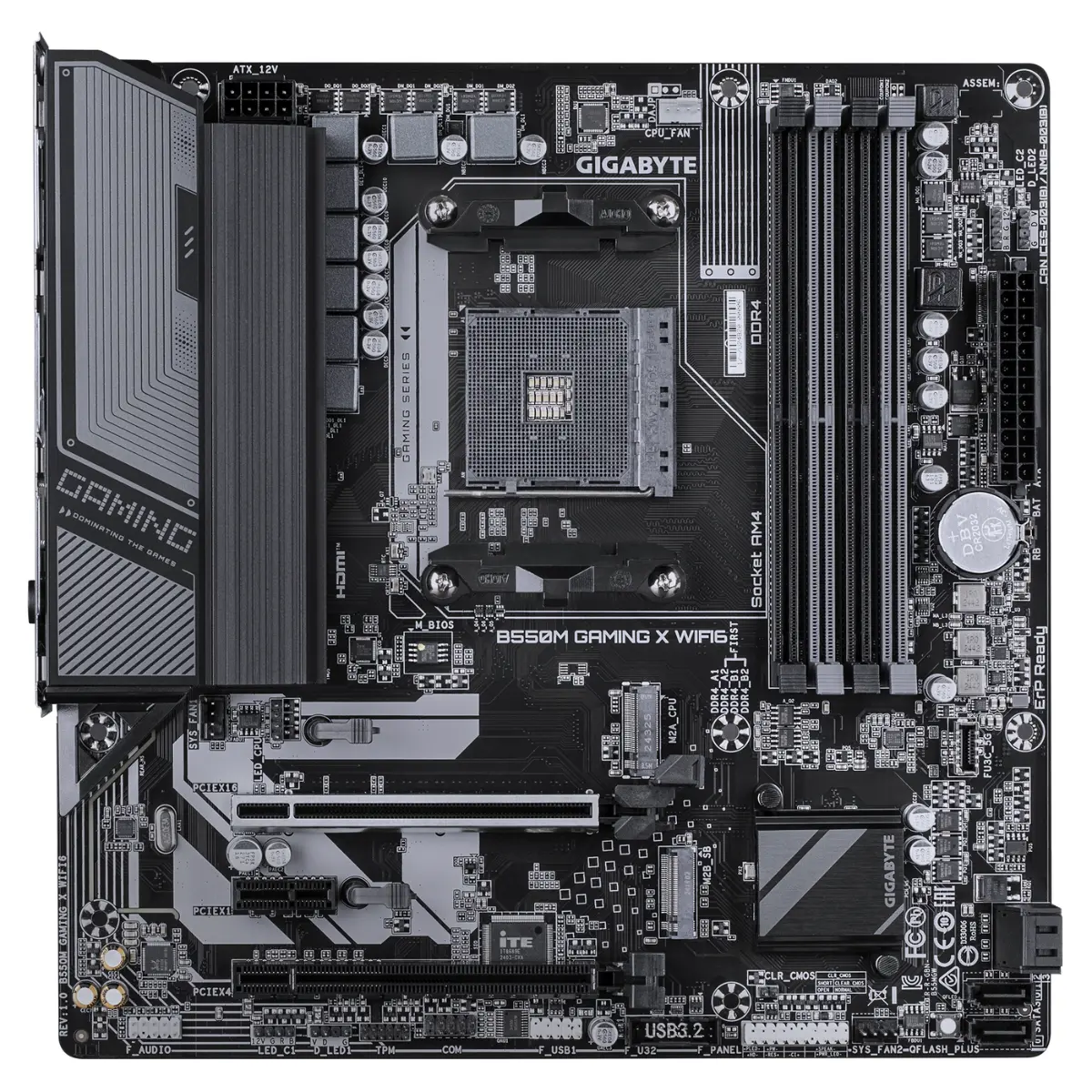

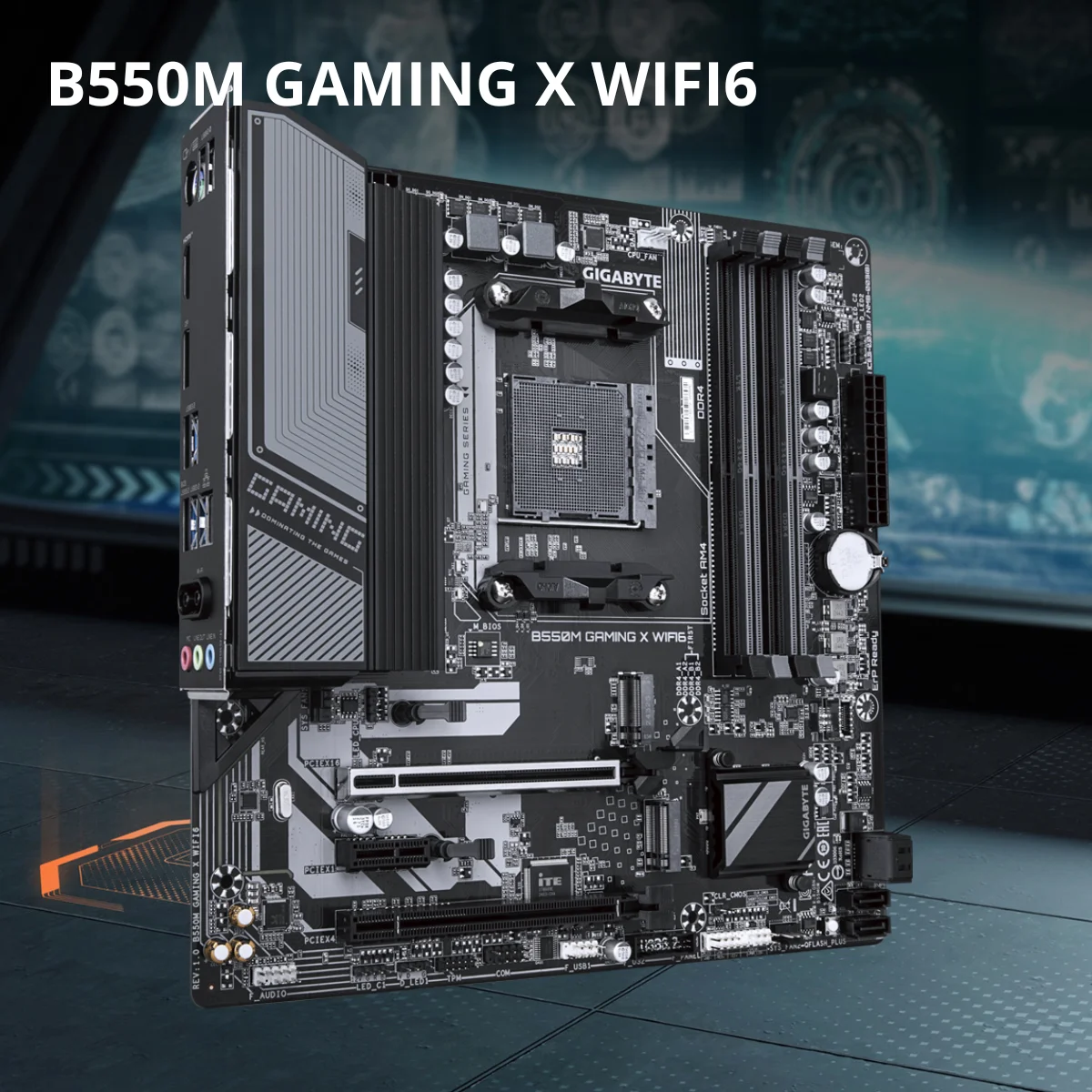

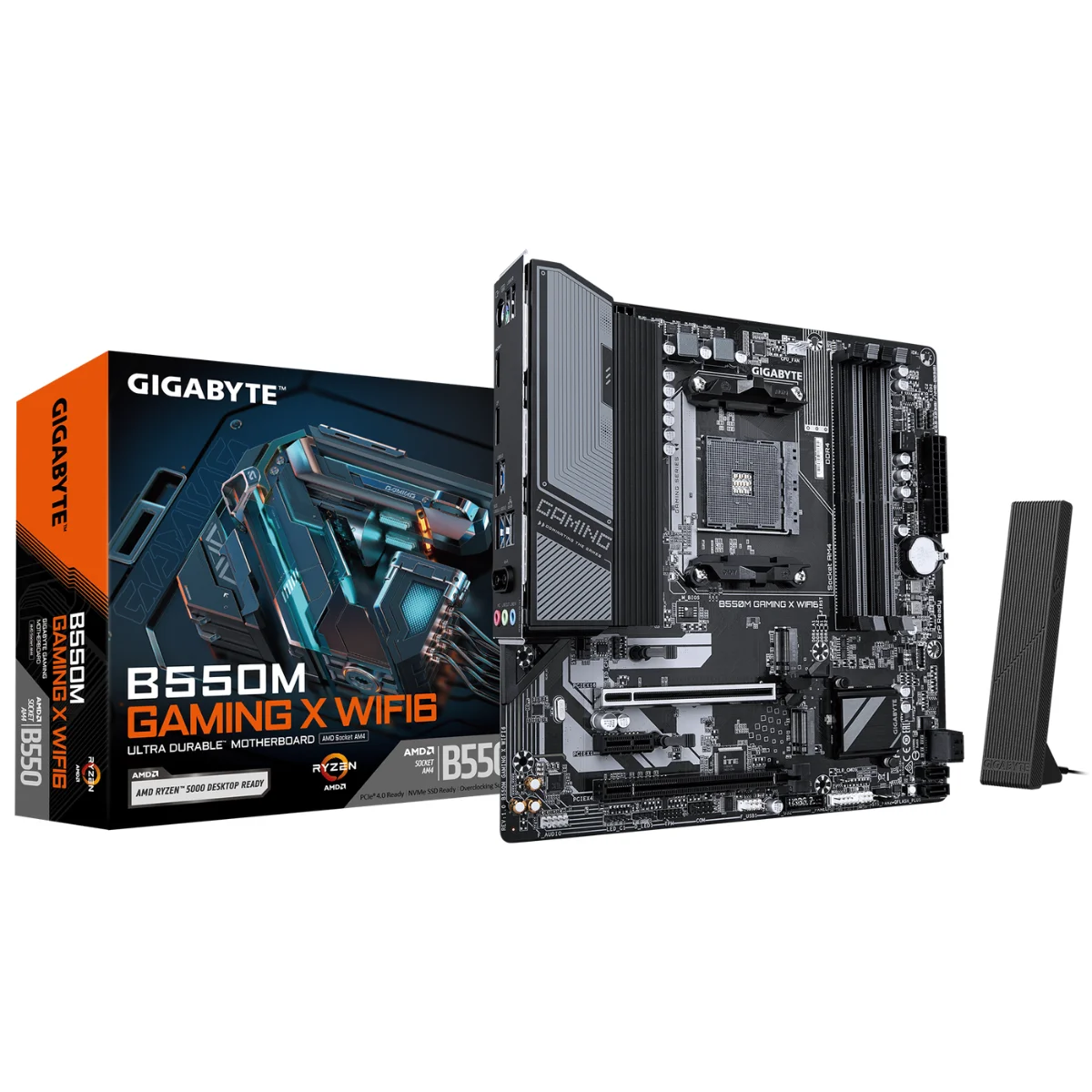

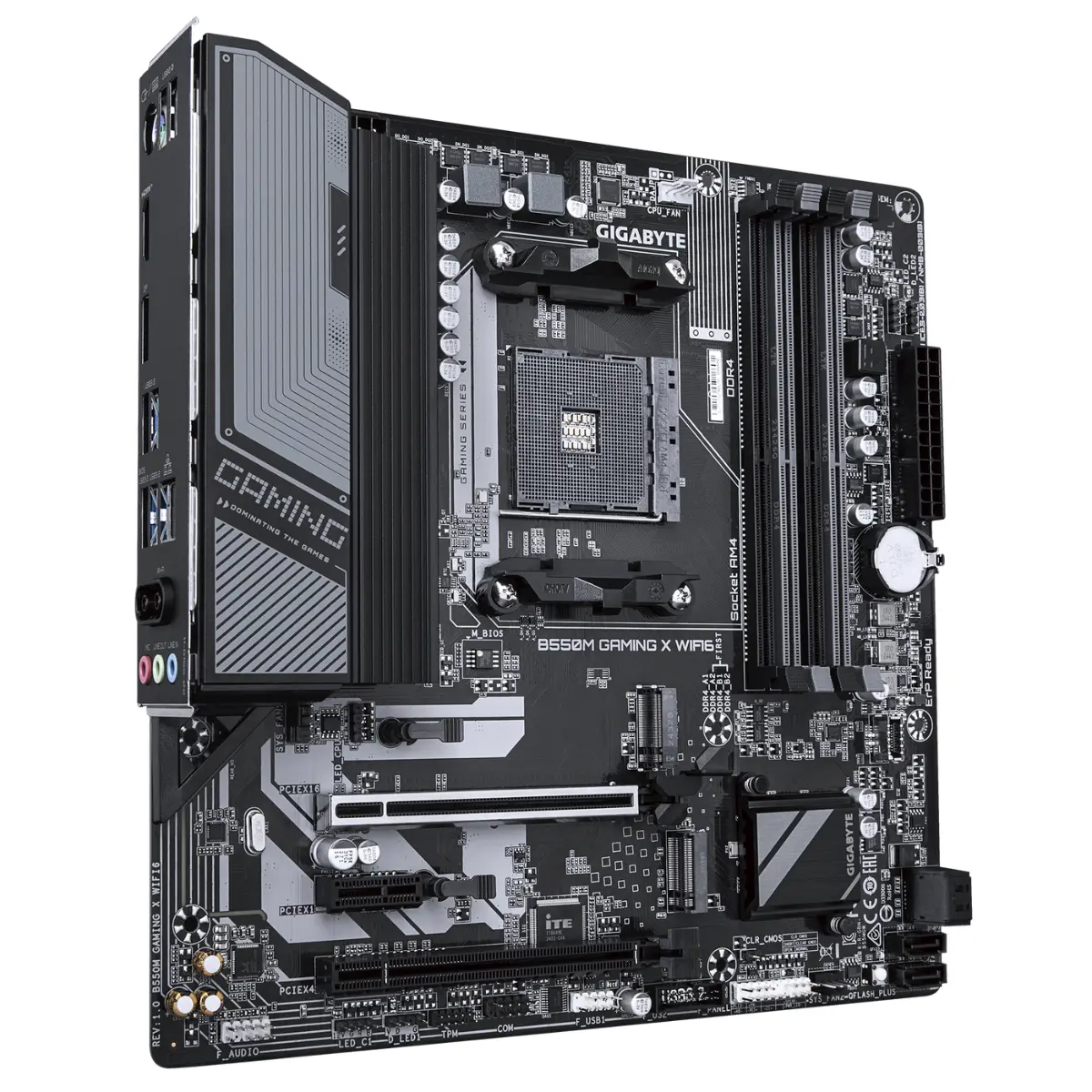

GIGABYTE B550M GAMING X WIFI6 – Scheda Madre Micro-ATX, Socket AM4, DDR4, PCIe 4.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.3 [9MB55MGW-00-G10] - immagine 1

GIGABYTE B550M GAMING X WIFI6 – Scheda Madre Micro-ATX, Socket AM4, DDR4, PCIe 4.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.3 [9MB55MGW-00-G10] - immagine 2

Clicca per ingrandire

GIGABYTE B550M GAMING X WIFI6 – Scheda Madre Micro-ATX, Socket AM4, DDR4, PCIe 4.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.3 [9MB55MGW-00-G10]

GIGABYTE B550M GAMING X WIFI6 – Scheda Madre Micro-ATX, Socket AM4, DDR4, PCIe 4.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.3 [9MB55MGW-00-G10] - immagine 3

GIGABYTE B550M GAMING X WIFI6 – Scheda Madre Micro-ATX, Socket AM4, DDR4, PCIe 4.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.3 [9MB55MGW-00-G10] - immagine 4

GIGABYTE B550M GAMING X WIFI6 – Scheda Madre Micro-ATX, Socket AM4, DDR4, PCIe 4.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.3 [9MB55MGW-00-G10]

Il prezzo originale era: 125,00 €.Il prezzo attuale è: 119,00 €.

Chipset	AMD B550
Form Factor	Micro ATX
Socket	AM4
Tipo di Memoria	DDR4

1 disponibili

Add to compare

0 Persone guardano adesso questo prodotto!

EAN: 4719331870096 COD: 9MB55MGW-00-G10 Categoria: AM4

Descrizione

GIGABYTE B550M GAMING X WIFI6 / 9MB55MGW-00-G10 / 4719331870096

La GIGABYTE B550M GAMING X WIFI6 offre prestazioni affidabili per configurazioni gaming e produttive basate su piattaforma AMD AM4. Supporta i processori AMD Ryzen™ serie 5000, 4000 e 3000, ed è dotata di un VRM digitale a 5+3 fasi per un’erogazione di potenza stabile anche in overclock.

Il supporto PCIe 4.0 x16 con slot rinforzati Ultra Durable garantisce stabilità e durata anche con schede grafiche di fascia alta. I due slot M.2 (uno PCIe 4.0) consentono velocità di storage elevate, mentre la connettività Wi-Fi 6 e LAN Gigabit assicura connessioni rapide e stabili.

Il design EZ-Latch per lo sgancio rapido degli slot PCIe e il WIFI EZ-Plug semplificano l’assemblaggio. Il raffreddamento è potenziato con VRM Thermal Armor Advanced per mantenere temperature ottimali sotto carico.

Caratteristiche principali:

Socket: AMD AM4 – Supporto Ryzen™ 5000 / 4000 / 3000 series.
Chipset: AMD B550.
Memoria: DDR4 Dual Channel, 4 slot DIMM.
Archiviazione: 2x M.2 (1x PCIe 4.0).
Connettività: HDMI, DisplayPort, Wi-Fi 6, LAN Gigabit.
Espansione: PCIe 4.0 x16 Ultra Durable Slot.
Audio: Alta definizione.
Formato: mATX.

Specifiche Tecniche

Caratteristica	Dettagli
Marca	GIGABYTE
Modello	B550M GAMING X WIFI6
Socket	AMD AM4
Chipset	AMD B550
Processori supportati	AMD Ryzen™ 5000 / 4000 / 3000 series
Memoria	DDR4 Dual Channel, 4x DIMM
Archiviazione	2x M.2 (1x PCIe 4.0)
Connettività	HDMI, DisplayPort, Wi-Fi 6, GbE LAN
Espansione	PCIe 4.0 x16 Ultra Durable
Raffreddamento	VRM Thermal Armor Advanced
Formato	mATX
Codice prodotto	9MB55MGW-00-G10
EAN	4719331870096

Domande Frequenti (FAQ)

1. Supporta memoria DDR5?
No, questa scheda madre supporta solo moduli DDR4.

2. Posso installare un SSD PCIe 4.0?
Sì, su uno degli slot M.2 dedicati.

3. Ha il Wi-Fi integrato?
Sì, con modulo Wi-Fi 6 incluso.

4. È compatibile con schede video PCIe 3.0?
Sì, mantiene la retrocompatibilità con PCIe 3.0.

5. È adatta per un PC gaming compatto?
Sì, grazie al formato mATX e alle funzionalità integrate.

Maggiori informazioni

Per ulteriori dettagli e specifiche complete, visita la pagina ufficiale GIGABYTE B550M GAMING X WIFI6.

Informazioni aggiuntive

Peso	1,14 kg
Dimensioni	24,4 × 24,4 × 3 cm
M.B. - Chipset	AMD B550
CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (Graphics specifications may vary depending on CPU support.) Maximum shared memory of 16 GB
Audio	Realtek® ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel
LAN	Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Wireless Communication module	Realtek® Wi-Fi 6 RTL8851BE – WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 80MHz wireless standard
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0×16 mode Chipset: – 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 – 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: – AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0×4/x2 SSDs – AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button

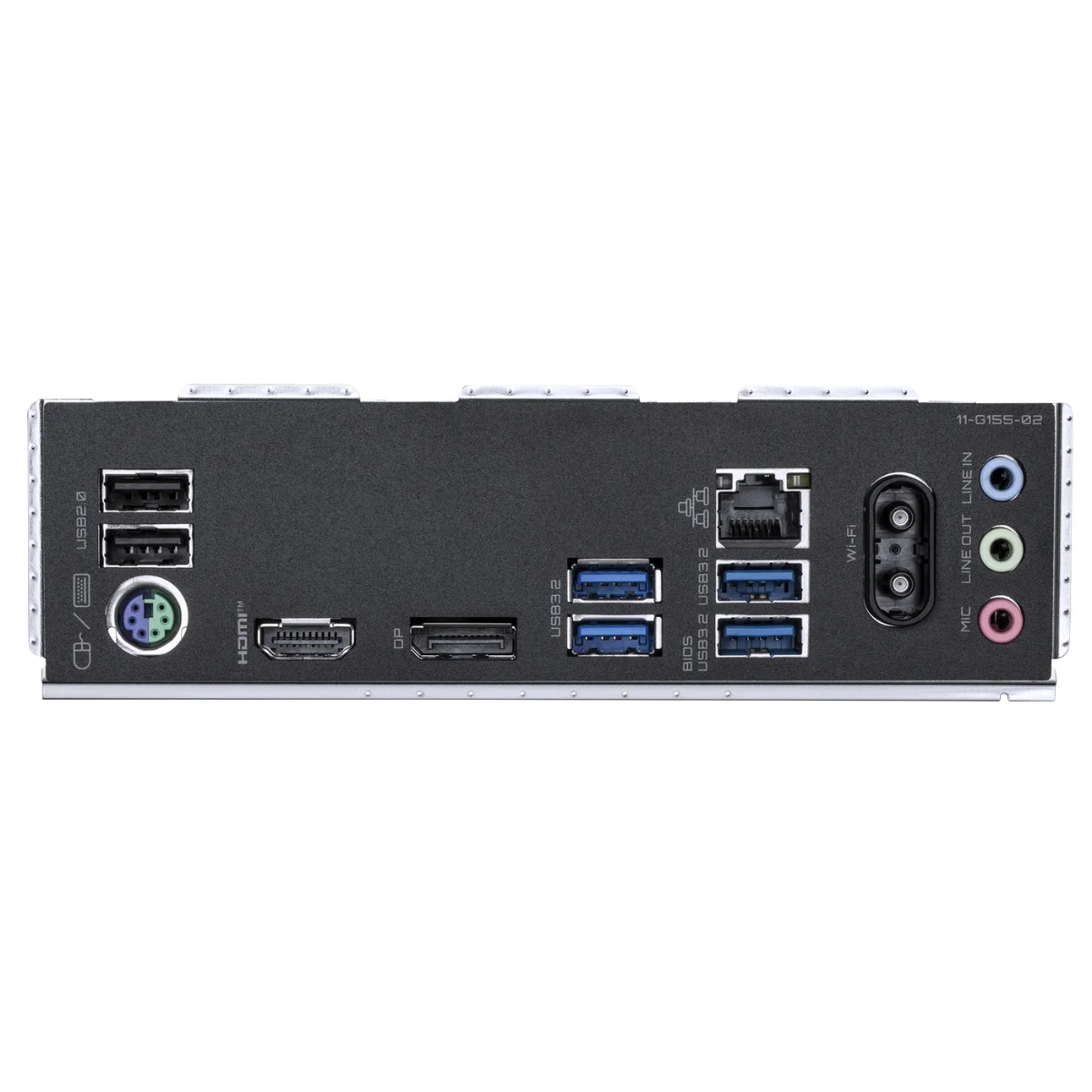

Back Panel Connectors	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x antenna connectors 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center – @BIOS – EasyTune – RGB Fusion – Smart Backup – System Information Viewer Support for Q-Flash Plus Support for Q-Flash
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

Recensioni (0)

Recensioni

Ancora non ci sono recensioni.

Recensisci per primo “GIGABYTE B550M GAMING X WIFI6 – Scheda Madre Micro-ATX, Socket AM4, DDR4, PCIe 4.0, USB 3.2, Wi-Fi 6, LAN GbE, Bluetooth 5.3 [9MB55MGW-00-G10]”

About brand

GIGABYTE è uno dei principali produttori mondiali di hardware per computer, con sede a Taiwan e attivo dal 1986. Il marchio è noto per l’ampia gamma di componenti ad alte prestazioni, tra cui schede madri, schede video, laptop, monitor, periferiche e accessori per il gaming e l’uso professionale. GIGABYTE si distingue per l’innovazione tecnologica, l'affidabilità e l'attenzione alla qualità costruttiva, offrendo soluzioni sia per utenti casual che per gamer e creatori di contenuti. Con linee iconiche come AORUS, GIGABYTE è una scelta solida per chi cerca prestazioni elevate, design moderno e tecnologie avanzate.
