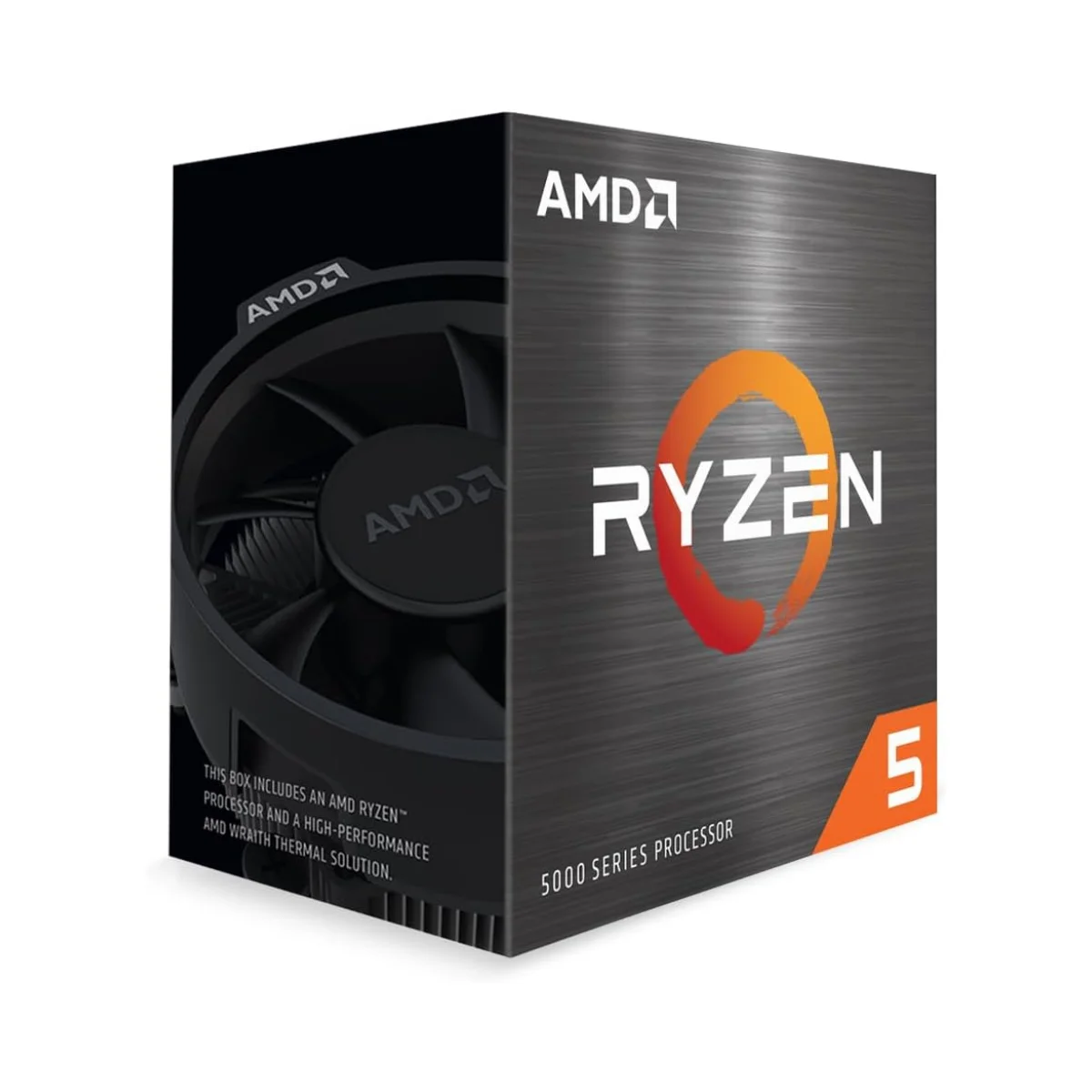

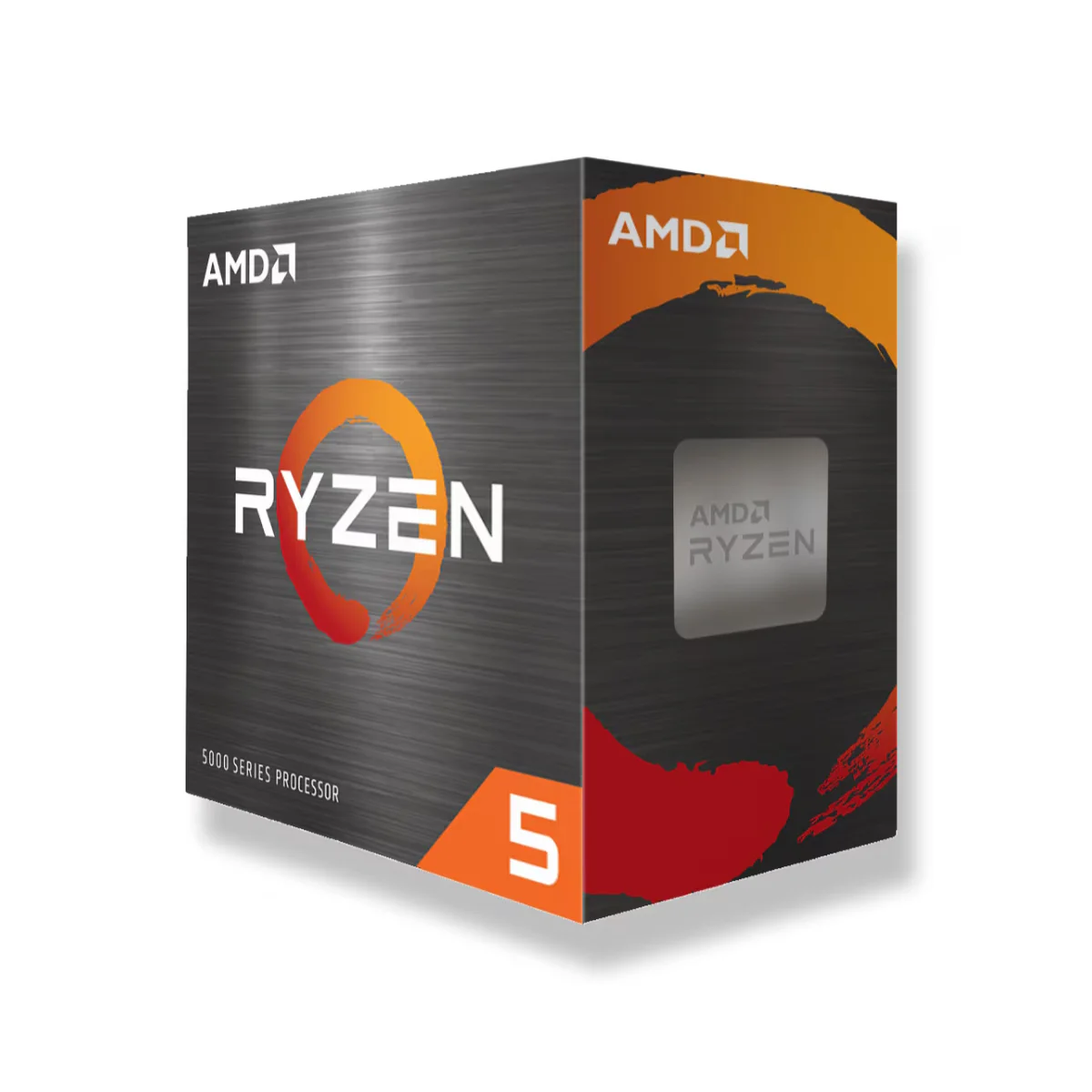

AMD Ryzen 5 5600XT
AMD Ryzen 5 5600XT – CPU Processore Desktop 6 Core / 12 Thread, fino a 4.7 GHz, Zen 3, Socket AM4 - immagine 2
Clicca per ingrandire
AMD Ryzen 5 5600XT
AMD Ryzen 5 5600XT – CPU Processore Desktop 6 Core / 12 Thread, fino a 4.7 GHz, Zen 3, Socket AM4 - immagine 2
AMD

AMD Ryzen 5 5600XT – CPU Processore Desktop 6 Core / 12 Thread, fino a 4.7 GHz, Zen 3, Socket AM4

175,00 €

L’AMD Ryzen™ 5 5600XT è un processore desktop della serie Ryzen 5000 progettato per il gaming e l’utilizzo quotidiano ad alte prestazioni. Grazie ai 6 core e 12 thread, all’architettura Zen 3 e a una frequenza boost fino a 4.7 GHz, offre prestazioni eccellenti nei giochi moderni e nelle applicazioni multitasking, mantenendo un TDP di soli 65W.

Esaurito

Add to compare
Aggiungi alla lista dei desideri
0 Persone guardano adesso questo prodotto!
EAN: 0730143316613 COD: 100-100001585BOX Categoria: Tag: , , , , , , , ,
Descrizione

AMD Ryzen 5 5600XT / 100-100001585BOX / 0730143316613

⚡ Prestazioni gaming con architettura Zen 3

Il Ryzen 5 5600XT sfrutta l’architettura Zen 3, nota per l’elevato IPC e la bassa latenza:

  • 6 core / 12 thread con SMT attivo

  • Frequenza base 3.7 GHz

  • Boost fino a 4.7 GHz con Precision Boost 2

  • 32 MB di cache L3 per migliori prestazioni nei giochi

Ideale per chi vuole giocare ad alti frame rate senza compromessi.

🧠 Multitasking fluido ed efficienza energetica

  • Supporto completo al multithreading

  • Ottimo bilanciamento tra prestazioni e consumi

  • TDP 65W, perfetto anche per sistemi compatti e silenziosi

  • Processo produttivo TSMC 7nm FinFET

Una CPU adatta sia al gaming che allo streaming e al lavoro quotidiano.

🚀 Supporto PCIe 4.0 e storage NVMe

  • PCI Express® 4.0

  • 24 linee PCIe totali (20 utilizzabili)

  • Supporto NVMe Boot e RAID 0/1/10

Perfetto per SSD di nuova generazione e schede grafiche ad alte prestazioni.

🧊 Raffreddamento incluso e overclock

  • Sbloccato per overclock

  • Tecnologia Precision Boost 2

  • Dissipatore incluso AMD Wraith Stealth

  • Temperatura massima operativa 95°C

Pronto all’uso anche senza dissipatori aftermarket.

💾 Supporto memoria DDR4

  • Memoria DDR4 Dual Channel

  • Frequenza ufficiale fino a DDR4-3200

  • Capacità massima 128 GB

  • Supporto ECC (richiede scheda madre compatibile)

Compatibile con un’ampia gamma di configurazioni gaming e workstation.

🔌 Compatibilità piattaforma AM4

  • Socket: AM4

  • Chipset supportati:

    • X570, X470, X370

    • B550, B450, B350

    • A520

Aggiornamento ideale per chi possiede già una piattaforma AM4.

🎮 Grafica e utilizzo

  • Grafica integrata: ❌ Non presente

  • Scheda video dedicata richiesta

Pensato per build gaming con GPU dedicata.

📐 Specifiche principali

  • Architettura: Zen 3

  • Core / Thread: 6 / 12

  • Cache:

    • L1: 384 KB

    • L2: 3 MB

    • L3: 32 MB

  • TDP: 65W

  • Tecnologie supportate: AVX2, AES, AMD-V, FMA3, SHA, SSE

  • Sistema operativo: Windows 10 / 11 64-bit, Linux (Ubuntu, RHEL)

❓ FAQ

È adatto per il gaming moderno?
Sì, è progettato specificamente per il gaming, offrendo alte frequenze, cache ampia e ottime prestazioni single-core.

Include il dissipatore?
Sì, è incluso il dissipatore AMD Wraith Stealth.

Serve una scheda video dedicata?
Sì, il Ryzen 5 5600XT non ha grafica integrata.

È possibile fare overclock?
Sì, il processore è sbloccato per l’overclock.

È compatibile con schede madri AM4 più vecchie?
Sì, con chipset compatibili e BIOS aggiornato.

ℹ️ Maggiori informazioni

Per specifiche complete, compatibilità aggiornata e documentazione ufficiale, visita il sito AMD:
👉 https://www.amd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-5-5600xt.html

Informazioni aggiuntive
Peso 0,05 kg
Dimensioni 4 × 4 × 0,3 cm
Name

AMD Ryzen™ 5 5600XT
Family

Ryzen
Series

Ryzen 5000 Series
Form Factor

Desktops, Boxed Processor
Market Segment

Mainstream Desktop
Regional Availability

Global , China , NA , EMEA , APJ , LATAM
Former Codename

Vermeer
Processor Architecture

Zen 3
# of CPU Cores

6
Multithreading (SMT)

Yes
# of Threads

12
Max. Boost Clock

Up to 4.7 GHz
Base Clock

3.7 GHz
L1 Cache

384 KB
L2 Cache

3 MB
L3 Cache

32 MB
Default TDP

65W
Processor Technology for CPU Cores

TSMC 7nm FinFET
Processor Technology for I/O Die

12nm (Globalfoundries)
CPU Compute Die (CCD) Size

74mm²
I/O Die (IOD) Size

125mm²
Package Die Count

2
Unlocked for Overclocking

Yes
CPU Socket

AM4
Supporting Chipsets

X570 , X470 , X370 , B550 , B450 , B350 , A520
CPU Boost Technology

Precision Boost 2
Instruction Set

x86-64
Supported Extensions

AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)

AMD Wraith Stealth
Max. Operating Temperature (Tjmax)

95°C
Launch Date

10/31/2024
*OS Support

Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Native USB 3.2 Gen 2 (10Gbps)

4
Native USB 3.2 Gen 1 (5Gbps)

0
Native USB 2.0 (480Mbps)

0
Native SATA Ports

2
PCI Express® Version

PCIe® 4.0
Native PCIe® Lanes (Total/Usable)

24 , 20
Additional Usable PCIe Lanes from Motherboard

X570
X470

16x Gen 4
2x Gen 3, 8x Gen 2
NVMe Support

Boot , RAID0 , RAID1 , RAID10
System Memory Type

DDR4
Memory Channels

2
Max. Memory

128 GB
System Memory Subtype

UDIMM
System Memory Specification

Up to 3200 MT/s
Max Memory Speed

2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support

Yes (Requires mobo support)
Graphics Model

Discrete Graphics Card Required
