be quiet! Pure Base 501 Airflow Window Black – Case ATX Mid Tower ad Alto Flusso d’Aria con Vetro Temperato, USB-C e Supporto Radiatori fino a 360 mm
99,00 €
Il be quiet! Pure Base 501 Airflow Window Black è un case ATX Mid Tower compatto ed elegante, progettato per garantire raffreddamento eccellente, silenziosità e massima compatibilità hardware. Dotato di pannello frontale ad alto airflow, due ventole Pure Wings 3 da 140 mm PWM preinstallate, finestra laterale in vetro temperato e supporto completo per raffreddamento a liquido, è ideale per gaming rig, workstation rig e build performanti dall’estetica pulita.
Esaurito
be quiet! Pure Base 501 Airflow Window Black / BGW74 / 4260052191828
🌬️ Airflow ottimizzato, temperature sotto controllo
Il Pure Base 501 Airflow è progettato per massimizzare il flusso d’aria:
-
Pannello frontale e top ad alta ventilazione
-
2× Pure Wings 3 140 mm PWM preinstallate (front + rear)
-
Supporto fino a 6 ventole totali
-
Compatibilità con radiatori fino a 360 mm sul frontale
Le ventole Pure Wings 3, con pale ottimizzate per l’airflow, offrono pressione elevata, bassa turbolenza e rumorosità contenuta, rendendo il case perfetto anche per configurazioni ad alte prestazioni.
🧱 Compatto ma pronto per hardware high-end
Nonostante il design compatto, il Pure Base 501 offre ampio spazio interno:
-
Supporto schede madri ATX / mATX / Mini-ITX
-
Schede grafiche fino a 368 mm
-
Dissipatori CPU fino a 178 mm
-
Alimentatori ATX PS/2 fino a 180 mm
Una soluzione ideale per build moderne con GPU di fascia alta e dissipatori voluminosi.
🖼️ Finestra in vetro temperato
Il pannello laterale in vetro temperato oscurato permette di mostrare i componenti interni mantenendo un look elegante e sobrio, perfetto per chi vuole valorizzare la build senza eccessi RGB.
🎮 Installazione GPU verticale opzionale
Gli slot PCIe ruotabili a 90° consentono il montaggio verticale della scheda grafica (con riser cable opzionale be quiet!), migliorando l’estetica e offrendo una nuova prospettiva al tuo setup.

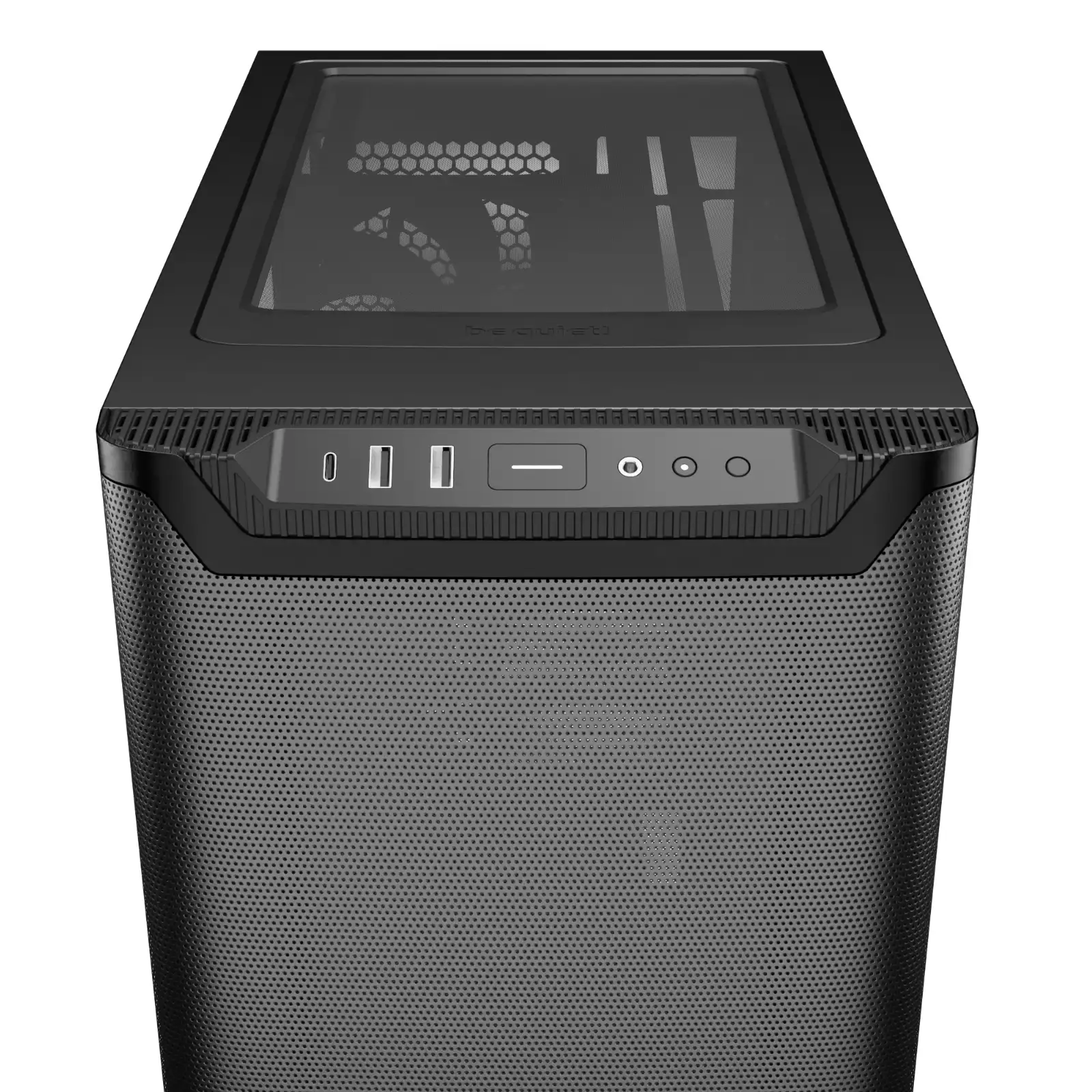

🔌 Connettività moderna sul pannello frontale
Il pannello I/O offre connessioni aggiornate e pratiche:
-
1× USB 3.2 Gen 2 Type-C
-
2× USB 3.2 Type-A
-
Jack audio combo (cuffie + microfono)
Perfetto per periferiche moderne e accessori ad alta velocità.
🧩 Cable management intelligente
Grazie alle canalizzazioni per cavi ben studiate e allo spazio interno ottimizzato, l’organizzazione dei cavi risulta semplice e ordinata, migliorando sia il flusso d’aria sia l’estetica interna.
🔇 Qualità costruttiva e silenziosità
Come da tradizione be quiet!, il case integra:
-
Supporti anti-vibrazione per HDD, ventole, PSU e motherboard
-
Pannello laterale con materiali fonoassorbenti
-
Struttura solida in acciaio verniciato a polvere
Il risultato è un sistema silenzioso, stabile e affidabile.
FAQ
È adatto a un gaming rig ad alte prestazioni?
Sì, supporta GPU di grandi dimensioni, raffreddamento avanzato e airflow elevato.
Supporta il raffreddamento a liquido?
Sì, fino a 360 mm frontale e 240 mm sul top.
Le ventole sono incluse?
Sì, include 2 ventole Pure Wings 3 da 140 mm PWM preinstallate.
È possibile montare la GPU in verticale?
Sì, con slot PCIe ruotabili e riser cable opzionale.
Il case è silenzioso?
Sì, è progettato per ridurre vibrazioni e rumorosità mantenendo alte prestazioni termiche.
Maggiori informazioni
Per specifiche complete, accessori compatibili e dettagli ufficiali, visita il sito di be quiet!:
👉 https://www.bequiet.com/en/case/5324
| Peso | 8,4 kg |
|---|---|
| Dimensioni | 51,8 × 29,2 × 50,3 cm |
| Model |
Pure Base 501 Airflow Window Black |
| Color option |
Black |
| Motherboard compatibility |
ATX / M-ATX / Mini-ITX |

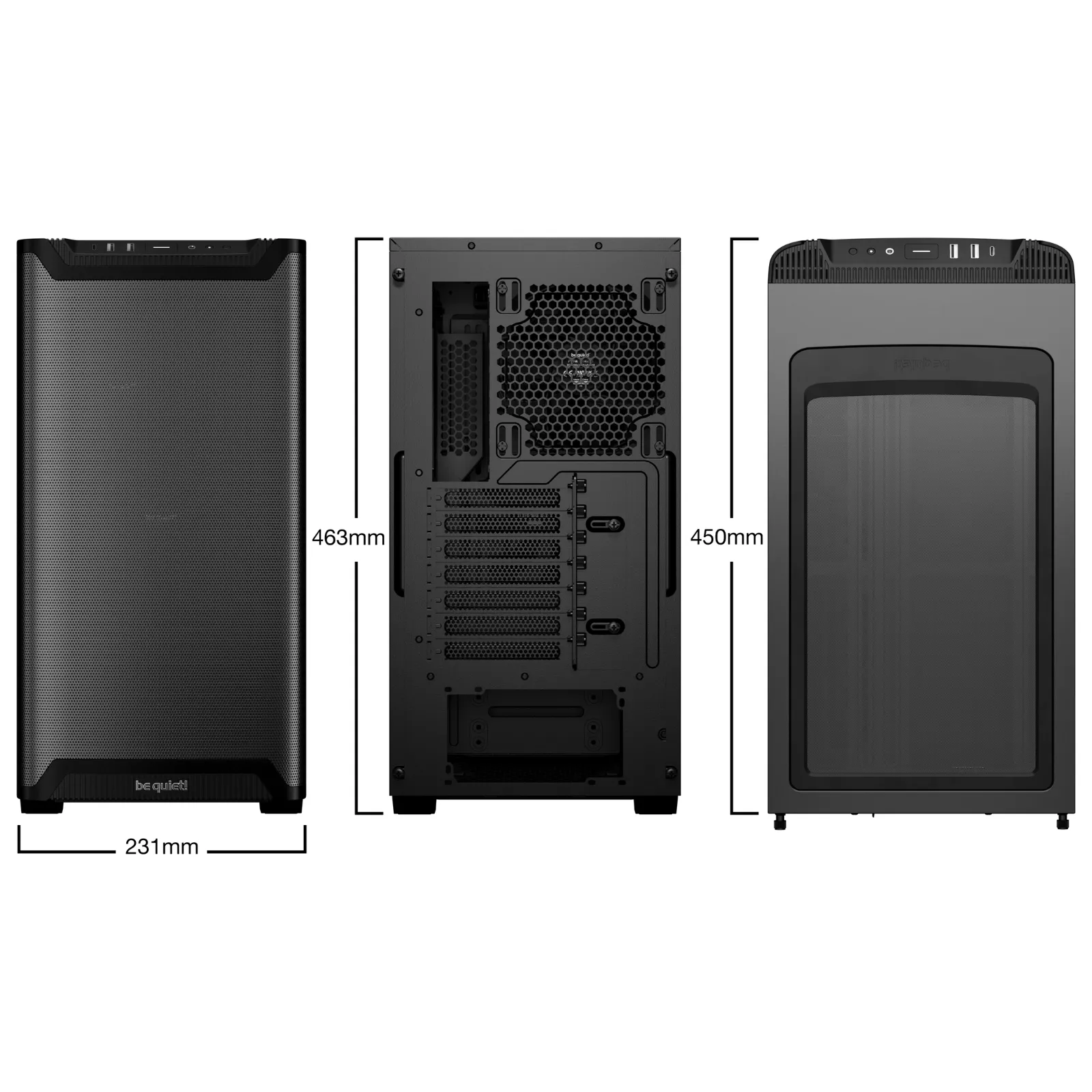

| Case size excl. stands (L x W x H), (mm) |
450 x 231 x 449 |
| Case size incl. stands (L x W x H), (mm) |
450 x 231 x 463 |
| Volume (l) |
39.2 |
| PSU form factor |
ATX PS/2 |
| Net weight (kg) |
7.2 |
| Expansion slots |
7 |
| Fan at top |
– |
| Fan at front |
1x Pure Wings 3 140mm PWM |
| Fan at side |
– |
| Fan at rear |
1x Pure Wings 3 140mm PWM |
| Fan at bottom |
– |
| Dimensions (L x W x H), (mm) |
Front: 140 x 25 x 140 / Rear: 140 x 25 x 140 |
| Pre-installed fans |
Fan speed at 100% PWM / 12V (rpm) 1200 |
| Maximum fan installation |
Maximum fans 6 |
| Optional radiator installation |
Top (mm) 120 / 240 |
| PSU compatibility |
Maximum dimensions excl. bottom fan (mm) 180 |
| Graphics card |
HDD cage (in height of graphics card) installed (mm) 368 |
| Drive bay capacity |
5.25 bays (pcs.) – |
| Cooling |
Max.construction height of CPU cooler unit (mm) 178 |
| Lighting |
LED illumination – |
| I/O Panel |
USB 3.2 Gen. 2 Type C 1 |
| Insulation and damping |
Top panel insulation mats – |

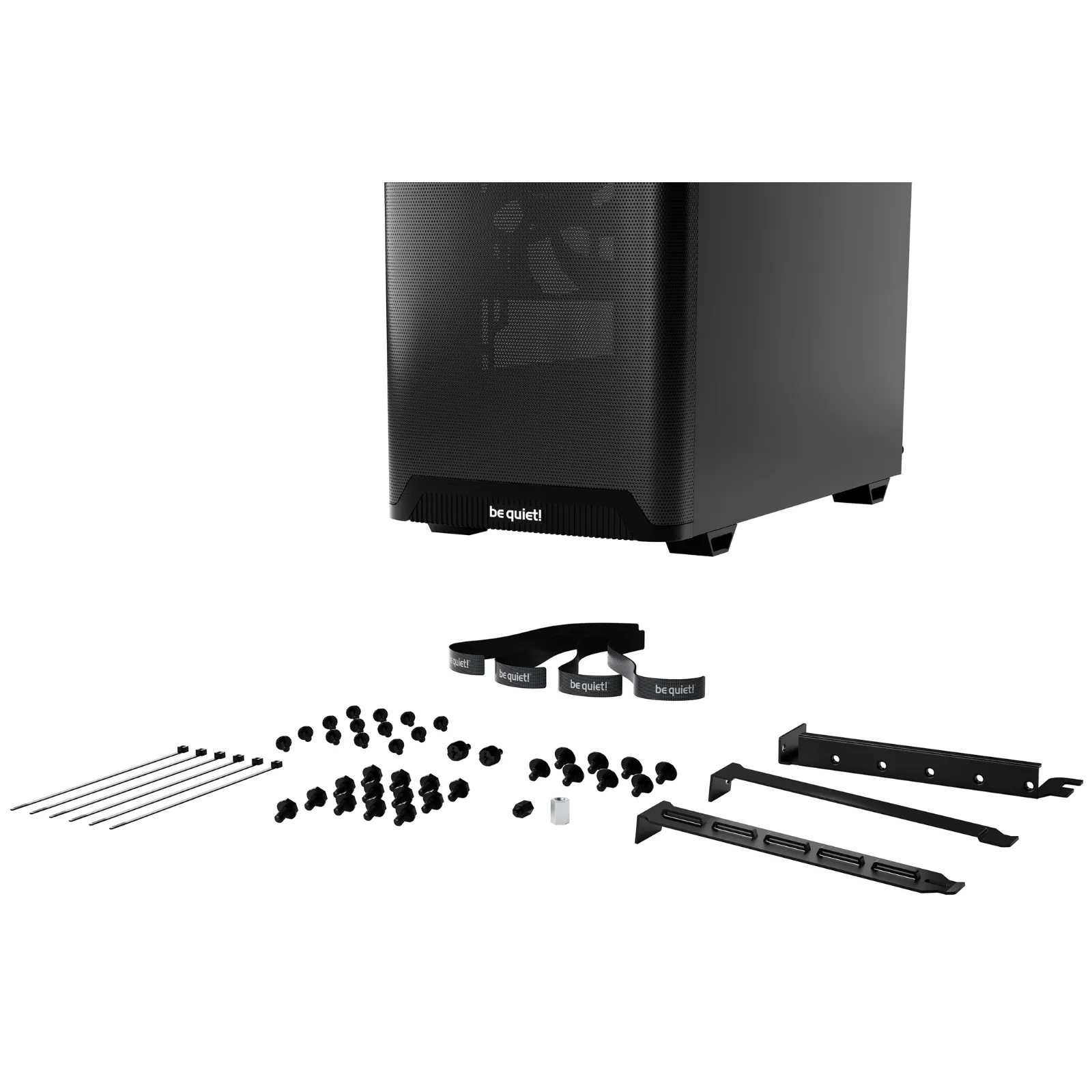

| Scope of delivery |
Screw set (Drives/Motherboard) ✓ |
| Removeable dust filters |
Top 1 |
| Material |
Top cover Steel |
| Safety certification |
Approvals CE, UKCA |
| Environmental directives |
RoHS ✓ |
| Logistics data and RRP |
Article number BGW74 |
