ASUS ROG STRIX 1000W Platinum – Alimentatore 1000W, 80 PLUS Platinum, Cybenetics A+, ATX 3.1, PCIe 5.1, Modulare
239,00 €
Alimentatore da 1000W con certificazione 80 PLUS Platinum, connettore 12V-2×6 nativo, ventola a doppio cuscinetto a sfera, raffreddamento silenzioso 0dB, GaN MOSFET ad alta efficienza e tecnologia GPU-First per una regolazione perfetta della tensione della GPU.
Esaurito
ASUS ROG STRIX 1000W Platinum / 90YE00W1-B0NA00 / 4711387594384
L’ASUS ROG STRIX 1000W Platinum è un alimentatore premium completamente modulare, progettato per offrire un’efficienza energetica superiore, una gestione termica silenziosa e una stabilità di alimentazione perfetta per i sistemi da gaming e professionali più esigenti.
Dotato di MOSFET GaN di nuova generazione, migliora l’efficienza del 30% rispetto ai MOSFET tradizionali e consente una disposizione interna più compatta e ordinata, migliorando la dissipazione del calore.
Il sistema GPU-First con stabilizzatore intelligente brevettato garantisce una regolazione della tensione migliorata del 45% per la scheda video, assicurando performance fluide e stabili anche sotto carico.

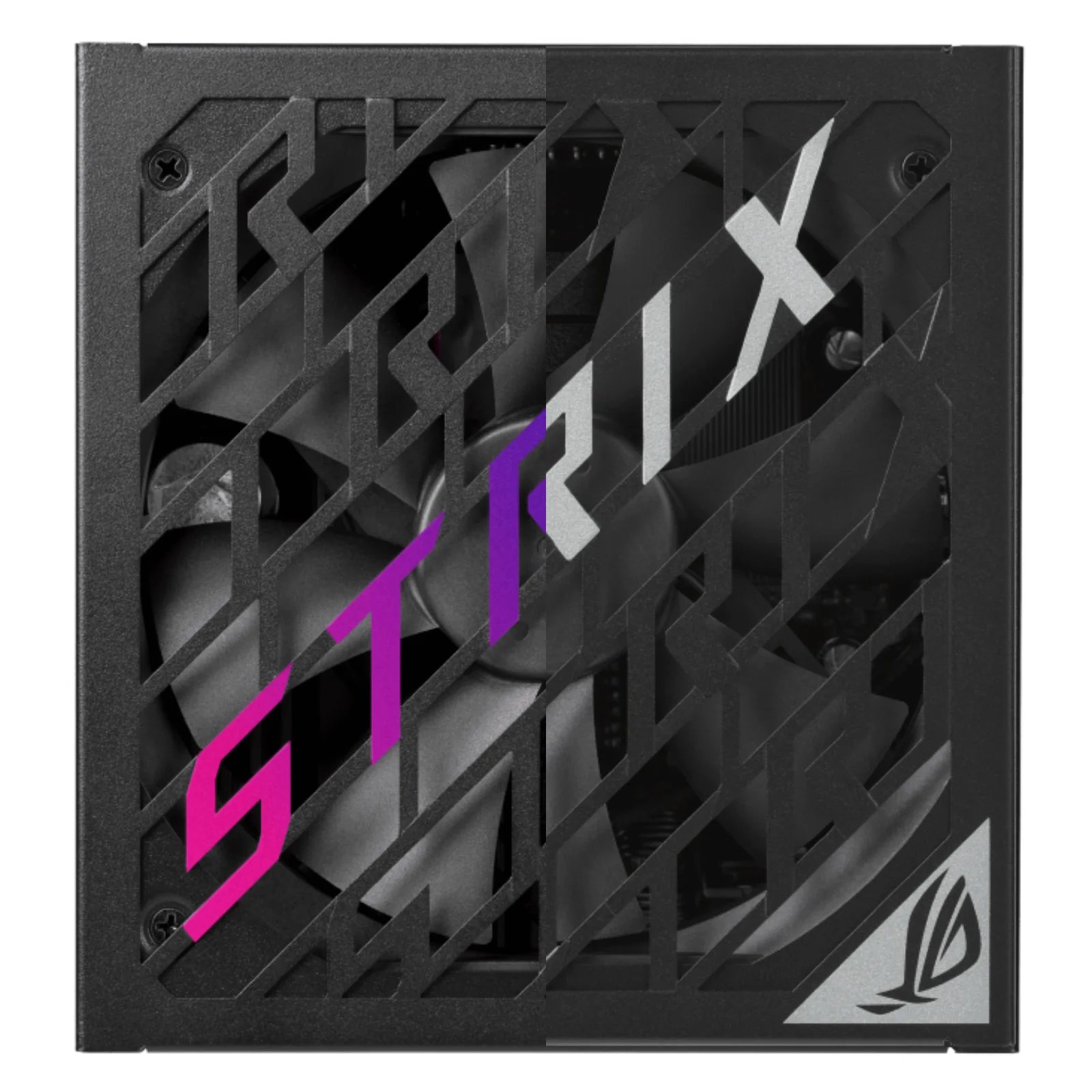

Le ampie heatsink ROG e la ventola da 135 mm con doppio cuscinetto a sfera prolungano la durata del sistema di raffreddamento, mantenendo basse temperature e silenziosità. La modalità 0dB consente l’arresto completo della ventola in condizioni di carico leggero.
Il supporto nativo ad ATX 3.1 e PCIe 5.1 con connettore 12V-2×6 assicura compatibilità con le GPU di ultima generazione come le NVIDIA RTX serie 50.
Certificato Lambda A+ per un funzionamento silenzioso inferiore ai 20 dB e 80 PLUS Platinum per un’efficienza energetica eccezionale.

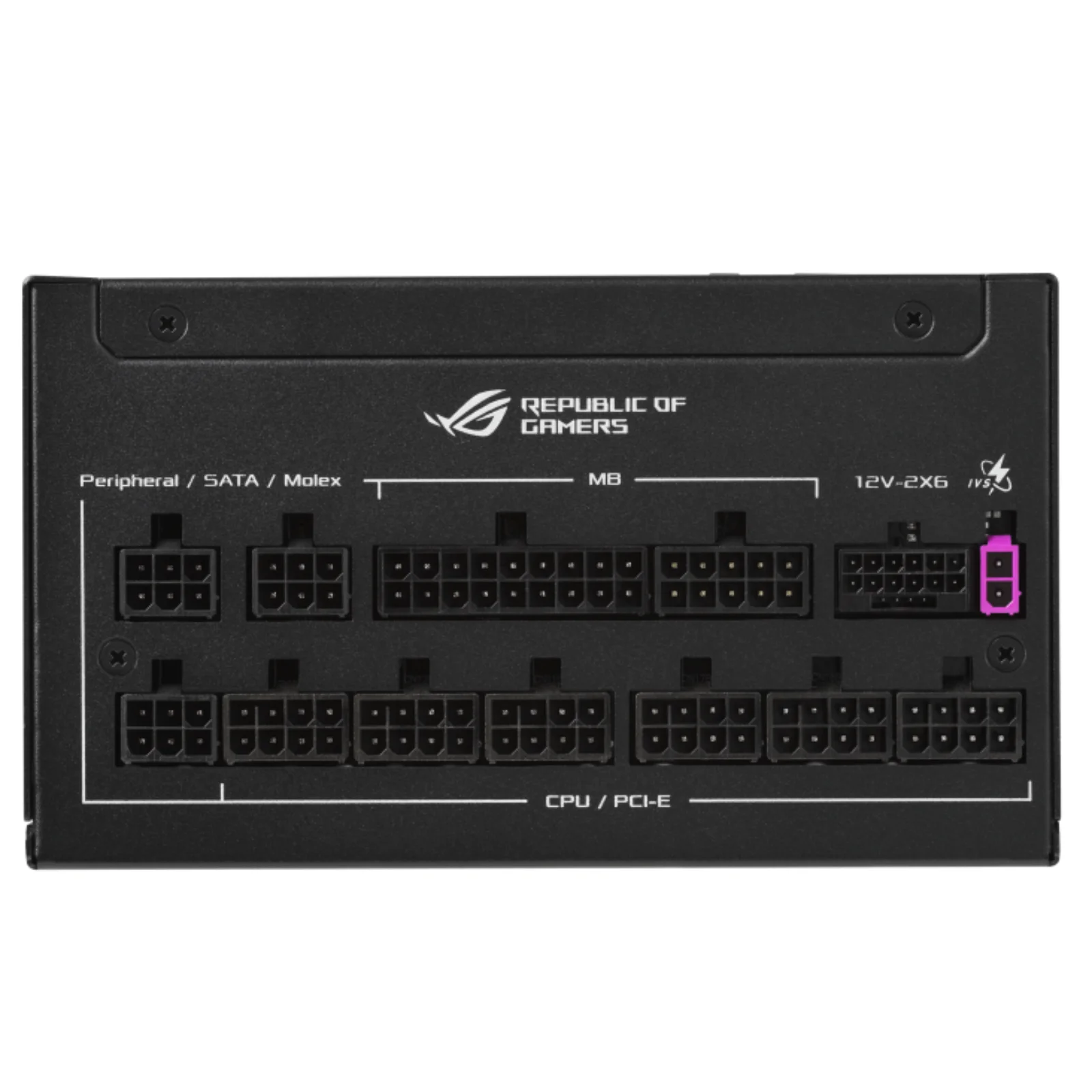

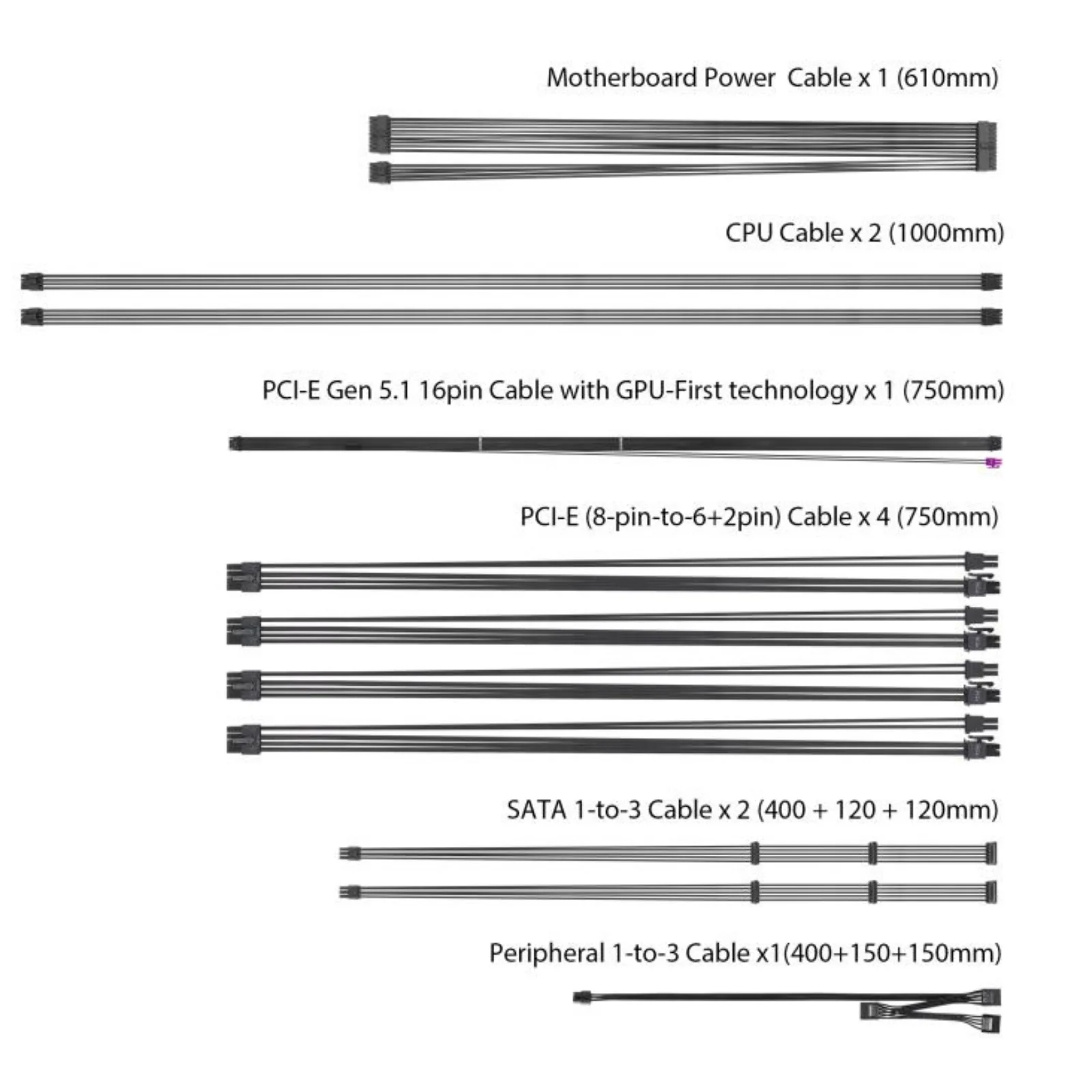

Tabella dei Cavi – ASUS ROG STRIX 1000W Platinum
| Tipo di Cavo | Connettori per Cavo | Lunghezza | Quantità Totale |
|---|---|---|---|
| MB (24/20 pin) | 1 | 610 mm | 1 |
| CPU (8/4 pin) | 1 per cavo | 1000 mm | 2 |
| PCIe 5.1 12V-2×6 (16 pin) | 1 | 750 mm | 1 |
| PCIe (8-pin to 6+2 pin) | 1 per cavo | 750 mm | 4 |
| SATA (1-to-3) | 3 connettori per cavo | 400 + 120 + 120 mm | 2 |
| Molex (1-to-3) | 3 connettori per cavo | 400 + 150 + 150 mm | 1 |
| Alimentatore - Tipo |
ATX |
|---|---|
| Alimentatore - Formato ATX |
ATX12V V3.1 |
| Alimentatore - Certificazione |
80 PLUS Platinum |
| Alimentatore - Modularità |
Modulare |
| PFC Type |
Active PFC |
| dimensioni |
160 x 150 x 86 mm |
| MTBF |
>120,000 hrs @ 25°C |
| funzioni di protezione |
OPP/OVP/UVP/SCP/OCP/OTP |
| materiali pericolosi |
ROHS |
| range di input AC |
100-240Vac |
| voltaggio di output DC |
+3.3V +5V +12V -12V +5Vsb |
| carico massimo |
25A 25A 83.3A 0.3A 3A |
| Combined Load |
130W 130W 1000W 3.6W 15W |
| connettori |
MB 24/20-pin x 1 |
| contenuto della scatola |
Power Cord x 1 |
| Peso |
1.81 kg (single PSU) |
| Cybenetics Noise Level Certification |
A+ |
| 0dB Technology |
Supported. The fan shuts off entirely when the PSU is under certain load |

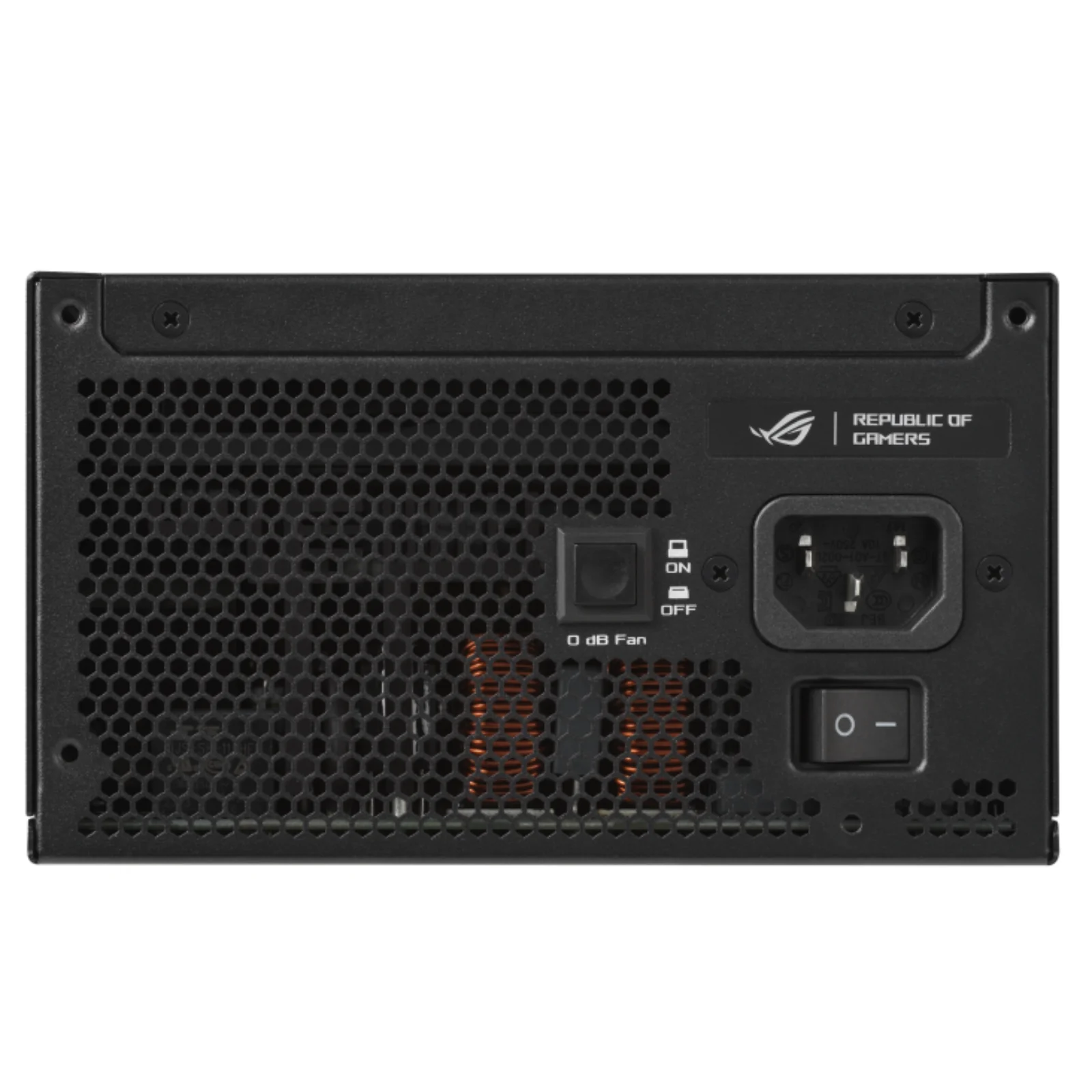

| 0dB Fan Button |
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
